1855A RG59 MINI DIGITAL COAXIAL CABLE
Highlights
- Product: 1855A
- Cable Type: 75 Ohm SDI Coax, Mini RG-59
- Conductor: 23 AWG Solid Bare Copper
- Insulation: PE (Foam) – 0.102 in (2.59 mm)
- Shielding: Tri-Laminate Foil + 95% Tinned Copper Braid
- Foil Coverage: 100%
- Outer Jacket: PVC
- Cable Diameter: 0.159 in (4.04 mm)
- Characteristic Impedance: 75 Ohm
- Velocity of Propagation: 82%
- Capacitance: 16.3 pF/ft (53.5 pF/m)
- Voltage Rating: 300 V
- Operating Temperature: -30°C to +75°C
- Minimum Bend Radius: 1.6 in (41 mm)

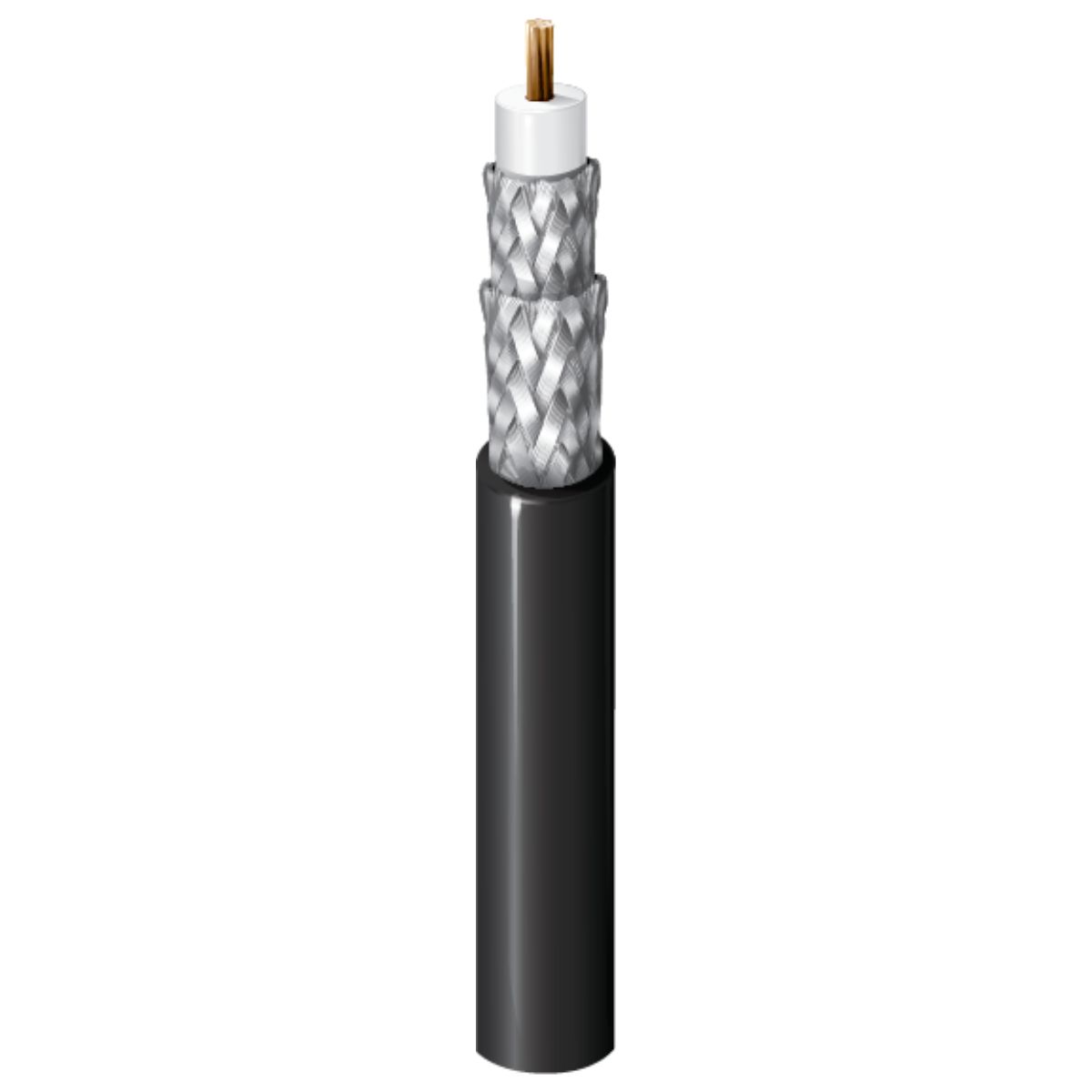

1505F RG59 FLEXIBILE COAXIAL CABLE
Highlights
- Product: 1505F
- Cable Type: 75 Ohm SDI Coax, RG-59
- Conductor: 21 AWG, 7 × 29 Stranded Bare Copper (Compacted)
- Insulation: PE (Foam) – 0.145 in (3.68 mm)
- Shielding: Double 95% Tinned Copper Braid
- Outer Jacket: PVC
- Overall Cable Diameter: 0.242 in (6.15 mm)
- Cable Type: CM, Flexible
- Characteristic Impedance: 75 Ohm
- Velocity of Propagation: 80%
- Capacitance: 17.0 pF/ft (55.8 pF/m)
- Conductor DCR: 12.2 Ohm/1000 ft
- Outer Shield DCR: 2.4 Ohm/1000 ft (7.9 Ohm/km)
- Voltage Rating: 300 V (CM)
- Operating Temperature: -35°C to +75°C
- UL Temperature Rating: 60°C
- Minimum Bend Radius: 2.4 in (61 mm)

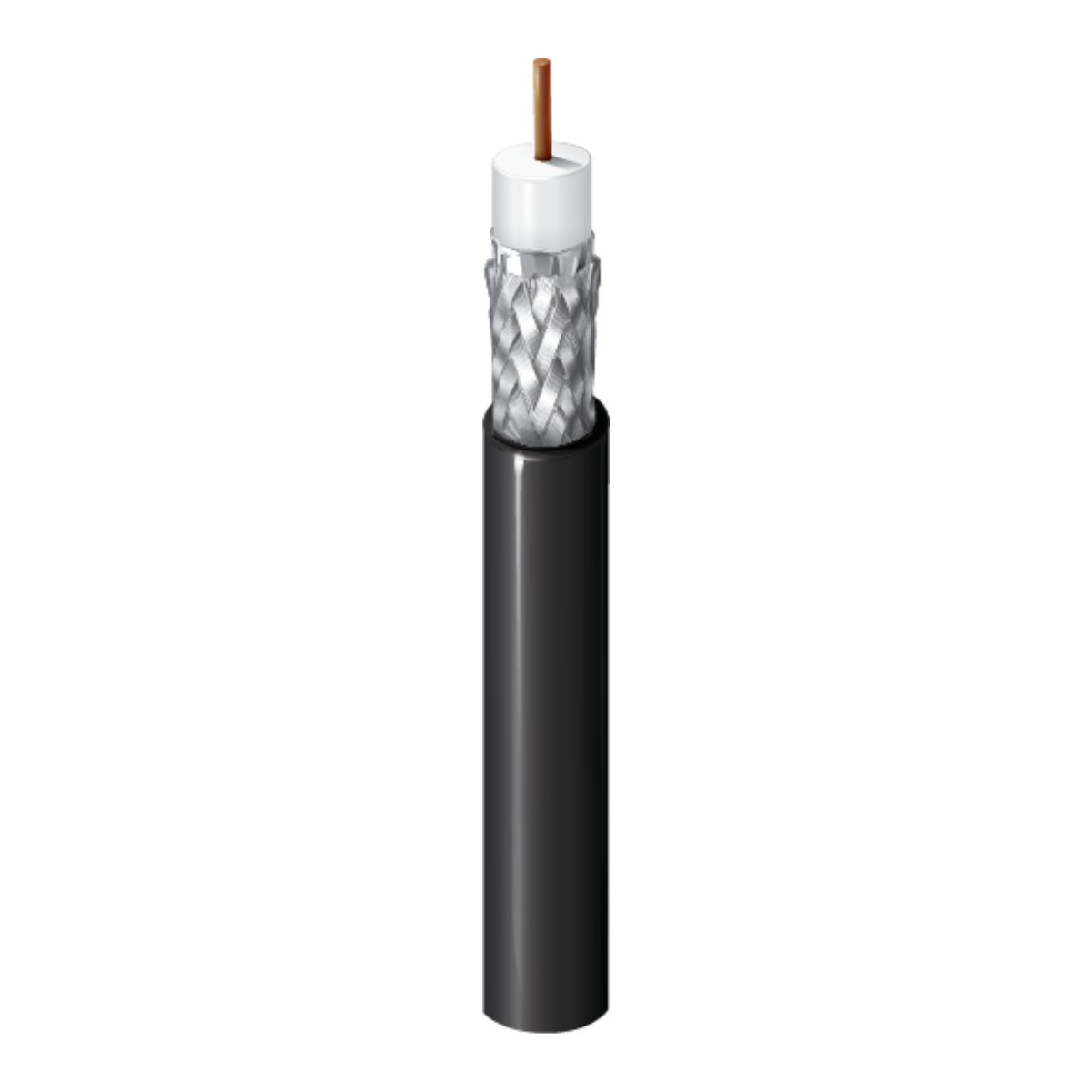

1694A RG6 COAXIAL CABLE BLACK
Highlights
- Product: 1694A
- Cable Type: 75 Ohm SDI Coaxial Cable
- RG Type: RG-6
- Conductor: 18 AWG, Solid Bare Copper
- Conductor Diameter: 0.040 in
- Insulation: Foam PE (Polyethylene)
- Insulation Diameter: 0.180 in (4.57 mm)
- Shielding: Tri-Laminate Foil + 95% Tinned Copper Braid
- Foil Coverage: 100%
- Braid Coverage: 95%
- Outer Jacket: PVC (Polyvinyl Chloride)
- Overall Cable Diameter: 0.274 in (6.96 mm)
- Characteristic Impedance: 75 Ohm
- Velocity of Propagation: 82%
- Capacitance: 16.2 pF/ft (53.1 pF/m)
- Conductor DCR: 6.4 Ohm/1000 ft (21 Ohm/km)
- Shield DCR: 3.8 Ohm/1000 ft (12 Ohm/km)
- Voltage Rating: 300 V

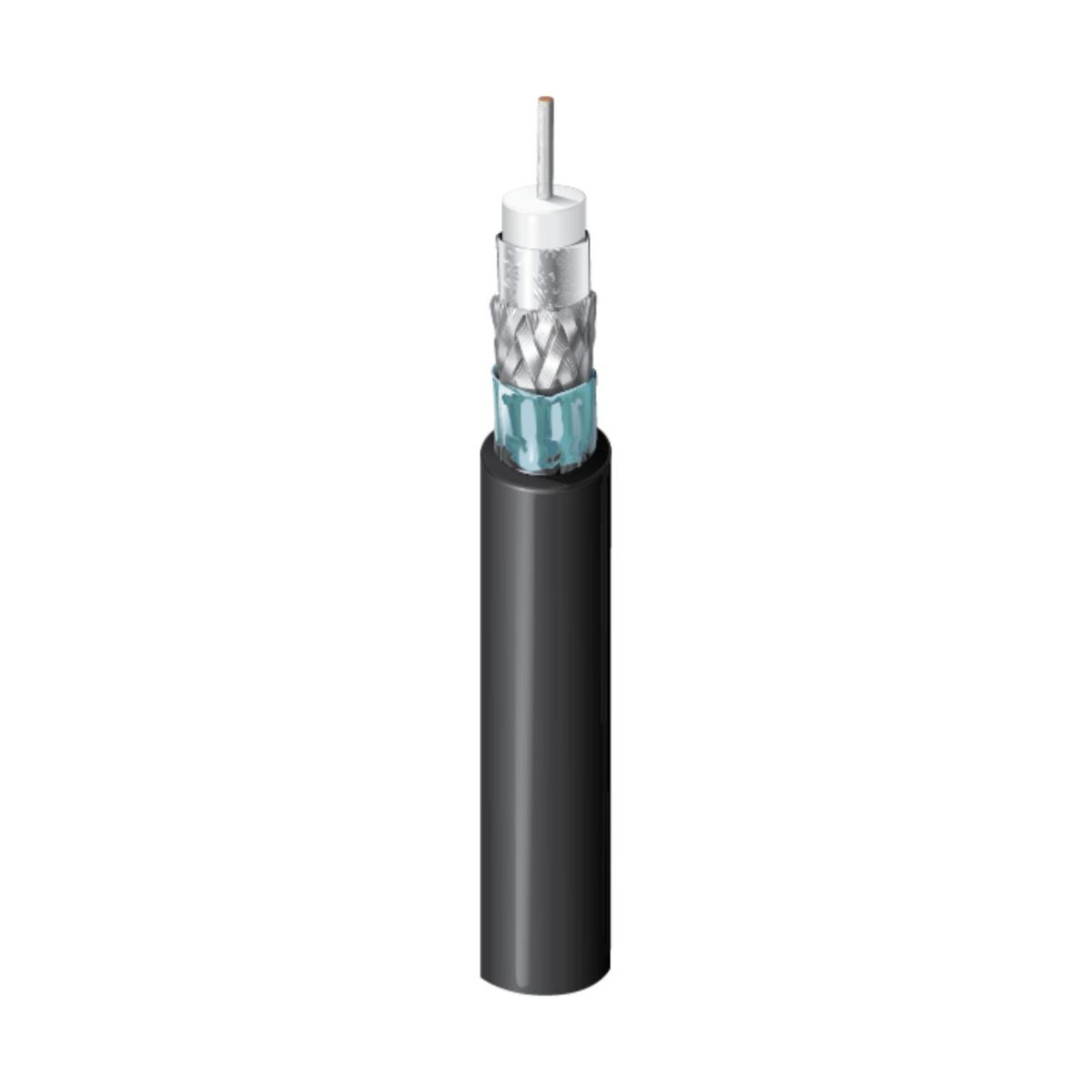

4855R RG59 MINI DIGITAL COAXIAL CABLE,4K
Highlights
- Cable Type: 4K UHD Coaxial Cable for 12G-SDI
- RG Type: Mini RG-59
- Characteristic Impedance: 75 Ohm
- Conductor: 23 AWG Solid Silvered Copper (SC)
- Conductor Diameter: 0.023 in
- Insulation: Gas-injected foamed PE (Polyethylene)
- Insulation Diameter: 0.102 in (2.59 mm)
- Shielding: Duofoil®/Tri-Laminate Tape + Tinned Copper Braid
- Shield Coverage: 100% Tape + 95% Braid
- Outer Jacket: PVC (Polyvinyl Chloride)
- Overall Cable Diameter: 0.159 in (4.04 mm)
- Velocity of Propagation: 82%
- Conductor DCR: 19.7 Ohm/1000 ft (64.6 Ohm/km)
- Shield DCR: 3.8 Ohm/1000 ft (12 Ohm/km)
4505R RG59 COAXIAL CABLE, 4K
Highlights
- Product: Belden 4505R
- Cable Type: 75 Ohm SDI Coax, RG-59
- Application: 4K UHD / 12G-SDI
- Conductor: 20 AWG Solid Silvered Copper (SC)
- Insulation: PE (Foam) – Gas Injected
- Insulation Diameter: 0.145 in (3.68 mm)
- Shield: Tri-Laminate Foil + 95% Tinned Copper Braid
- Foil Coverage: 100%
- Braid Coverage: 95%
- Jacket: PVC (Polyvinyl Chloride)
- Overall Cable Diameter: 0.233 in (5.92 mm)
- Characteristic Impedance: 75 Ohm
- Velocity of Propagation: 83%
- Conductor DCR: 10.1 Ohm/1000 ft

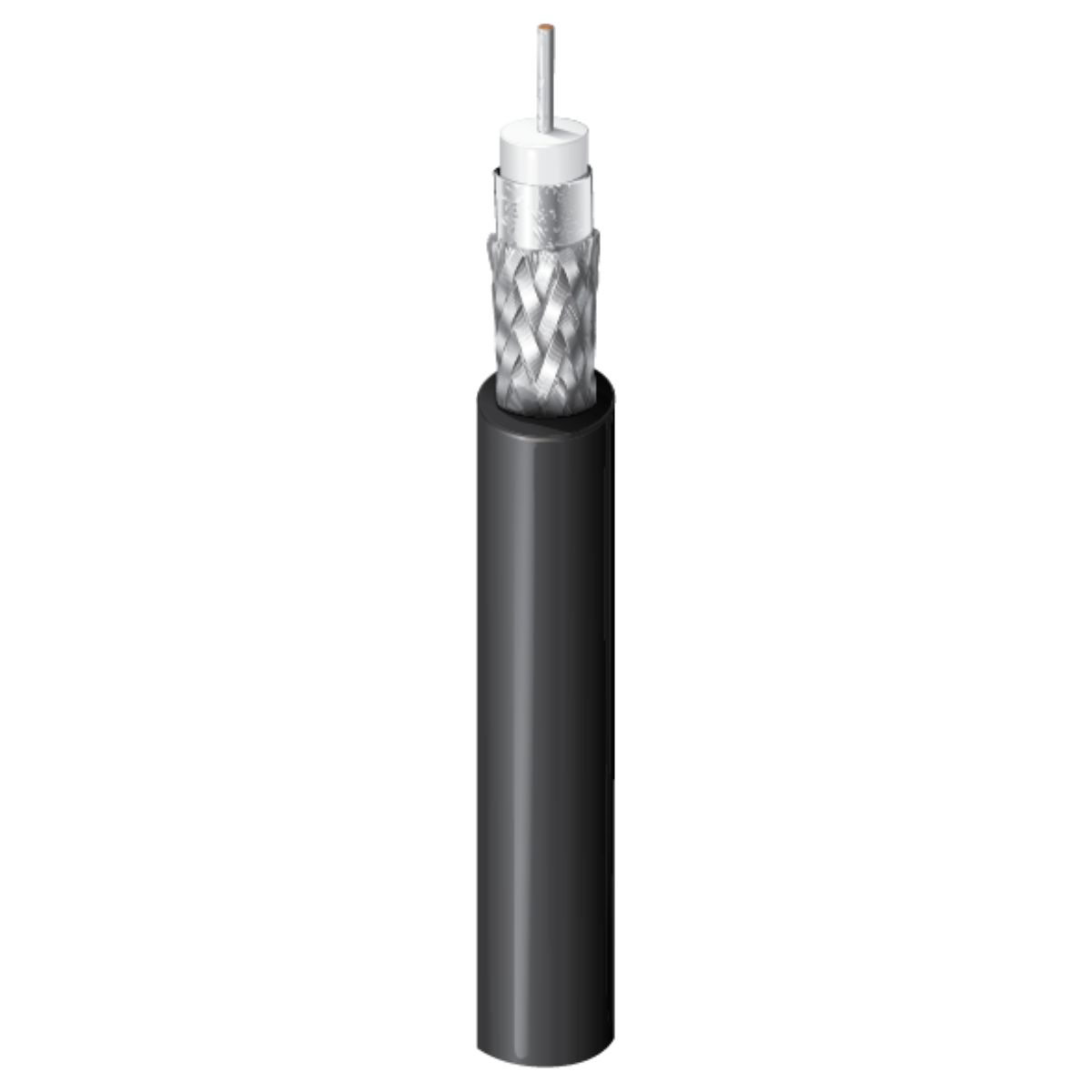

4694R RG6 COAXIAL CABLE, 4K,BLACK
Highlights
- Product: Belden 4694R
- Cable Type: 75 Ohm SDI Coax, RG-6
- Application: 4K UHD / 12G-SDI
- Conductor: 18 AWG Solid Silvered Copper (SC)
- Conductor Diameter: 0.040 in
- Insulation: PE (Foam), Gas-Injected
- Insulation Diameter: 0.180 in (4.57 mm)
- Shield: Tri-Laminate Foil + 95% Tinned Copper Braid
- Foil Coverage: 100%
- Braid Coverage: 95%
- Jacket: PVC (Polyvinyl Chloride)
- Overall Cable Diameter: 0.274 in (6.96 mm)
- Characteristic Impedance: 75 Ohm
- Velocity of Propagation: 85%
- Capacitance: 15.9 pF/ft (52.2 pF/m)
4694 RG6 COAXIAL CABLE, 4K,BLACK,PLENUM
Highlights
- Cable Type: 75 Ohm SDI Coax, RG-6
- Application: 4K UHD / 12G-SDI
- Conductor: 18 AWG Solid Silvered Copper (SC)
- Insulation: FEP Foam
- Insulation Diameter: 0.168 in (4.27 mm)
- Shield: Tri-Laminate Foil + 95% Tinned Copper Braid
- Foil Coverage: 100%
- Braid Coverage: 95%
- Jacket: PVC
- Overall Cable Diameter: 0.229 in (5.82 mm)
- Characteristic Impedance: 75 Ohm
- Velocity of Propagation: 83%
- Capacitance: 16.1 pF/ft (52.8 pF/m)
- Conductor DCR: 6.4 Ohm/1000 ft
- Shield DCR: 2.9 Ohm/1000 ft (9.5 Ohm/km)
4794R RG7 COAXIAL CABLE, 4K
Highlights
- Product: 4794R
- Cable Type: 4K UHD Coax for 12G-SDI
- Characteristic Impedance: 75 Ohm
- Series: Series 7
- Conductor: 16 AWG Solid Silvered Copper
- Conductor Diameter: 0.051 in
- Insulation: PE (Polyethylene Foam)
- Insulation Diameter: 0.225 in (5.72 mm)
- Shielding: Tri-Shield
8259 RG58 ,50 OHMS CABLE
Highlights
- Product: Belden 8259
- Cable Type: 50 Ohm Wireless Transmission Coax, RG-58
- Conductor: 20 AWG, 19×33 stranded
- Conductor Material: Tinned Copper (TC)
- Insulation: Polyethylene (PE)
- Insulation Diameter: 0.117 in (2.97 mm)
- Shield: Tinned Copper Braid
- Shield Coverage: 95%
- Jacket: PVC (Polyvinyl Chloride)
- Overall Cable Diameter: 0.193 in (4.90 mm)
- Characteristic Impedance: 50 Ohm
- Capacitance: 30.8 pF/ft (101 pF/m)
- Velocity of Propagation: 66%
- Voltage Rating: 1900 V
- Operating Temperature: -30°C to +75°C
7806A RF 195,RG58 ,50 OHMS CABLE
Highlights
- Designed for 50 Ohm wireless transmission
- RG-58 coaxial cable construction
- 20 AWG tinned copper conductor
- 95% tinned copper braid for shielding
- Suitable for point-to-point wireless antenna communication
- Suitable for point-to-multipoint wireless antenna communication
- Can be used with wireless microphones
- Suitable for two-way radios
- Suitable for amateur (Ham) radio
- Suitable for low-power FM
- Suitable for GPS and RFID applications
9258 RG8X, 50 OHMS CABLE, FLEXIBLE
Highlights
- Product: Belden 9258
- Cable Type: 50 Ohm Wireless Transmission Coax
- RG Type: RG-8X
- Conductor: 16 AWG, 19×29 stranded
- Conductor Material: Bare Copper (BC)
- Conductor Diameter: 0.057 in
- Insulation: Foamed Polyethylene (PE)
- Insulation Diameter: 0.155 in (3.94 mm)
- Shield: Bare Copper Braid
- Shield Coverage: 95%
- Jacket: PVC (Polyvinyl Chloride)
- Overall Cable Diameter: 0.242 in (6.15 mm)
- Characteristic Impedance: 50 Ohm
- Capacitance: 25.3 pF/ft (83.0 pF/m)
- Velocity of Propagation: 82%
- Voltage Rating: 300 V (CM)
8240 RG58 ,50 OHMS CABLE
Highlights
- Product: Belden 8240
- Cable Type: 50 Ohm Wireless Transmission Coax
- RG Type: RG-58
- Conductor: 20 AWG Solid Bare Copper (BC)
- Conductor Diameter: 0.033 in
- Insulation: PE (Polyethylene)
- Insulation Diameter: 0.116 in (2.95 mm)
- Insulation Color: White
- Shield: Tinned Copper (TC) Braid
- Shield Coverage: 95%
- Jacket: PVC (Polyvinyl Chloride)
- Overall Cable Diameter: 0.193 in (4.90 mm)
- Characteristic Impedance: 52 Ohm
7808A RF240,RG58X , 50 OHMS CABLE
Highlights
- Product: Belden 1855A
- Cable Type: 75 Ohm SDI Coax
- RG Type: Mini RG-59
- Conductor: 23 AWG Solid Bare Copper (BC)
- Conductor Diameter: 0.023 in
- Insulation: Foamed Polyethylene (PE)
- Insulation Diameter: 0.102 in (2.59 mm)
- Insulation Color: White
- Shield: Tri-Laminate Foil + Tinned Copper Braid
- Foil Coverage: 100%
- Braid Coverage: 95%
- Jacket: PVC
- Overall Diameter: 0.159 in (4.04 mm)
- Characteristic Impedance: 75 Ohm
- Capacitance: 16.3 pF/ft (53.5 pF/m)
9913 RG8 , 10 AWG, BARE COPPER , 50 OHMS CABLE
Highlights
- Product: Belden 9913
- Cable Type: 50 Ohm Wireless Transmission Coax
- RG Type: RG-8
- Conductor: 10 AWG Solid Bare Copper (BC)
- Conductor Diameter: 0.108 in
- Insulation: PE (Polyethylene), Semi-Solid
- Insulation Diameter: 0.285 in (7.24 mm)
- Insulation Color: White
- Shield: Tri-Laminate Foil + Tinned Copper Braid
- Foil Coverage: 100%
- Braid Coverage: 90%
- Jacket: PVC (Polyvinyl Chloride)
- Overall Cable Diameter: 0.405 in (10.3 mm)
- Characteristic Impedance: 50 Ohm
- Capacitance: 24.6 pF/ft (80.7 pF/m)
7810A RG8 ,10 AWG ,50 OHMS CABLE, LMR 400
Highlights
- Product: Belden 7810A
- Cable Type: 50 Ohm Wireless Transmission Coax
- RG Type: RG-8 / RF400
- Conductor: 10 AWG Solid BCCA (Bare Copper Covered Aluminum)
- Conductor Diameter: 0.111 in
- Insulation: Foamed Polyethylene (PE)
- Insulation Diameter: 0.285 in (7.24 mm)
- Insulation Color: White
- Shield: Duofoil® II Tri-Laminate + 95% Tinned Copper Braid
- Foil Coverage: 100%
- Braid Coverage: 95%
- Jacket: PE (Polyethylene)
- Overall Cable Diameter: 0.403 in (10.2 mm)

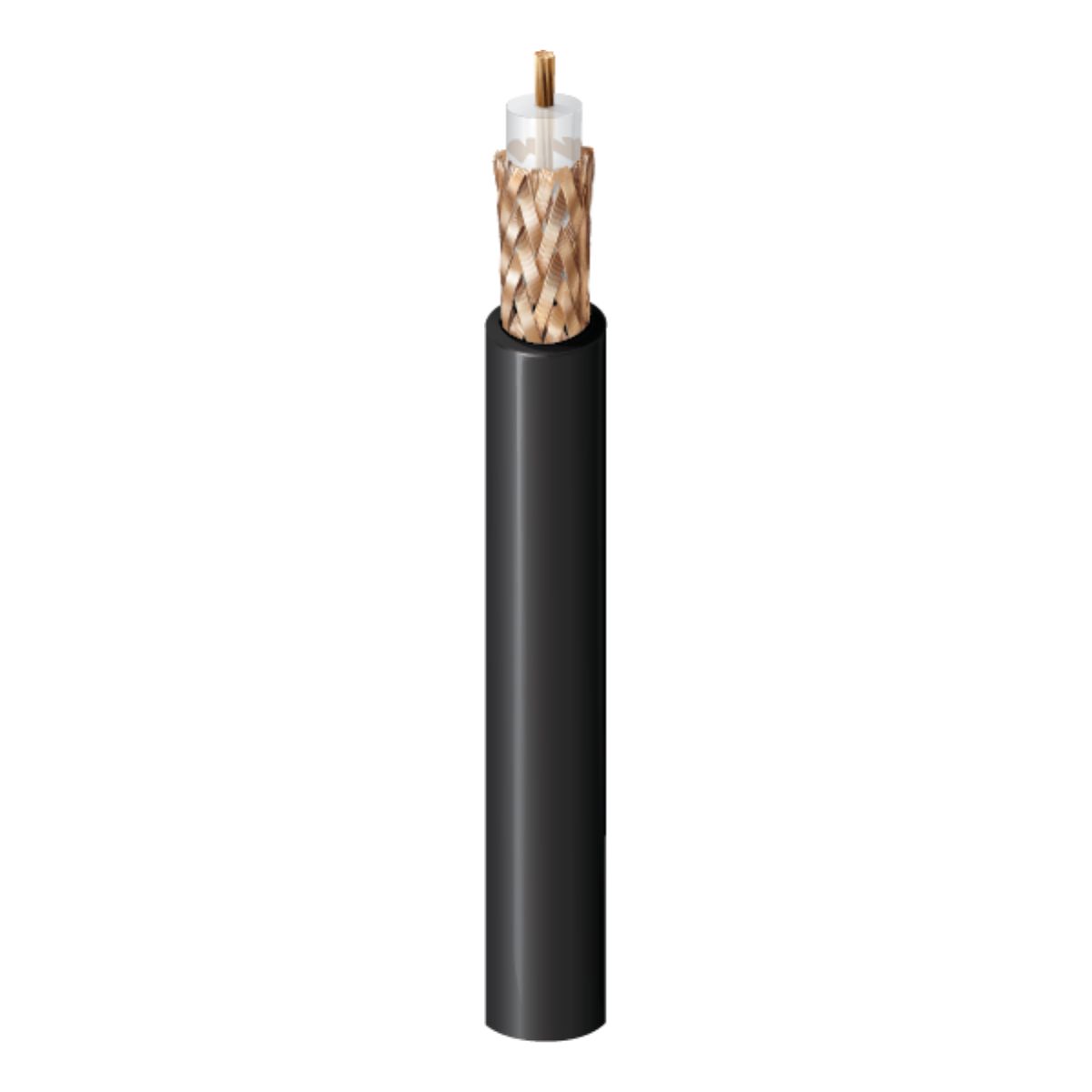

8267 RG213, MIL GRADE, 50 OHMS CABLE
Highlights
- Cable Type: Mil-Spec Coaxial Cable
- RG Type: RG-213
- Characteristic Impedance: 50 Ohm
- Conductor: 13 AWG, 7×21 Stranded Bare Copper
- Conductor Diameter: 0.089 in
- Insulation: PE (Polyethylene)
- Insulation Diameter: 0.285 in (7.24 mm)
- Shield: Bare Copper Braid
- Shield Coverage: 95%
- Jacket: PVC, Non-Contaminating
- Overall Cable Diameter: 0.405 in (10.3 mm)
- Nominal Capacitance: 30.8 pF/ft (101 pF/m)
- Velocity of Propagation: 66%

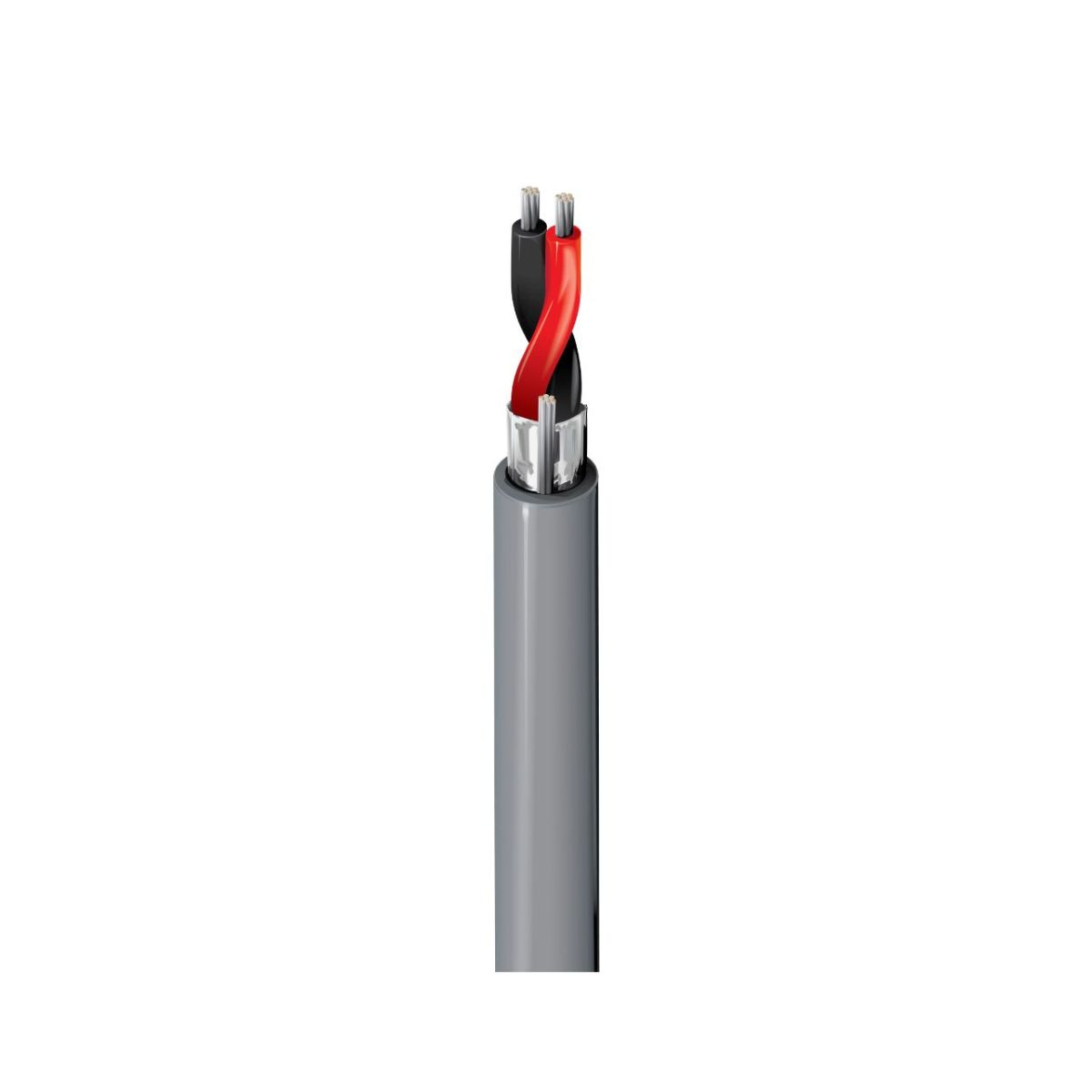

1800B DIGITAL 110 OHMS AUDIO CABLE, AES/EBU
Highlights
- Conductor: 24 AWG, 7×32 Stranded Tinned Copper
- Pair: 1 Pair
- Insulation: Datalene® / Foamed Polyethylene (PE)
- Insulation Thickness: 0.022 in (0.56 mm)
- Insulation Diameter: 0.068 in (1.7 mm)
- Color Code: Red & Black
- Shield: Bi-Laminate Aluminium + Polyethylene foil
- Shield Coverage: 100%
- Drain Wire: 24 AWG (7×32) Tinned Copper
- Jacket: PVC (Polyvinyl Chloride)
- Jacket Thickness: 0.023 in (0.58 mm)

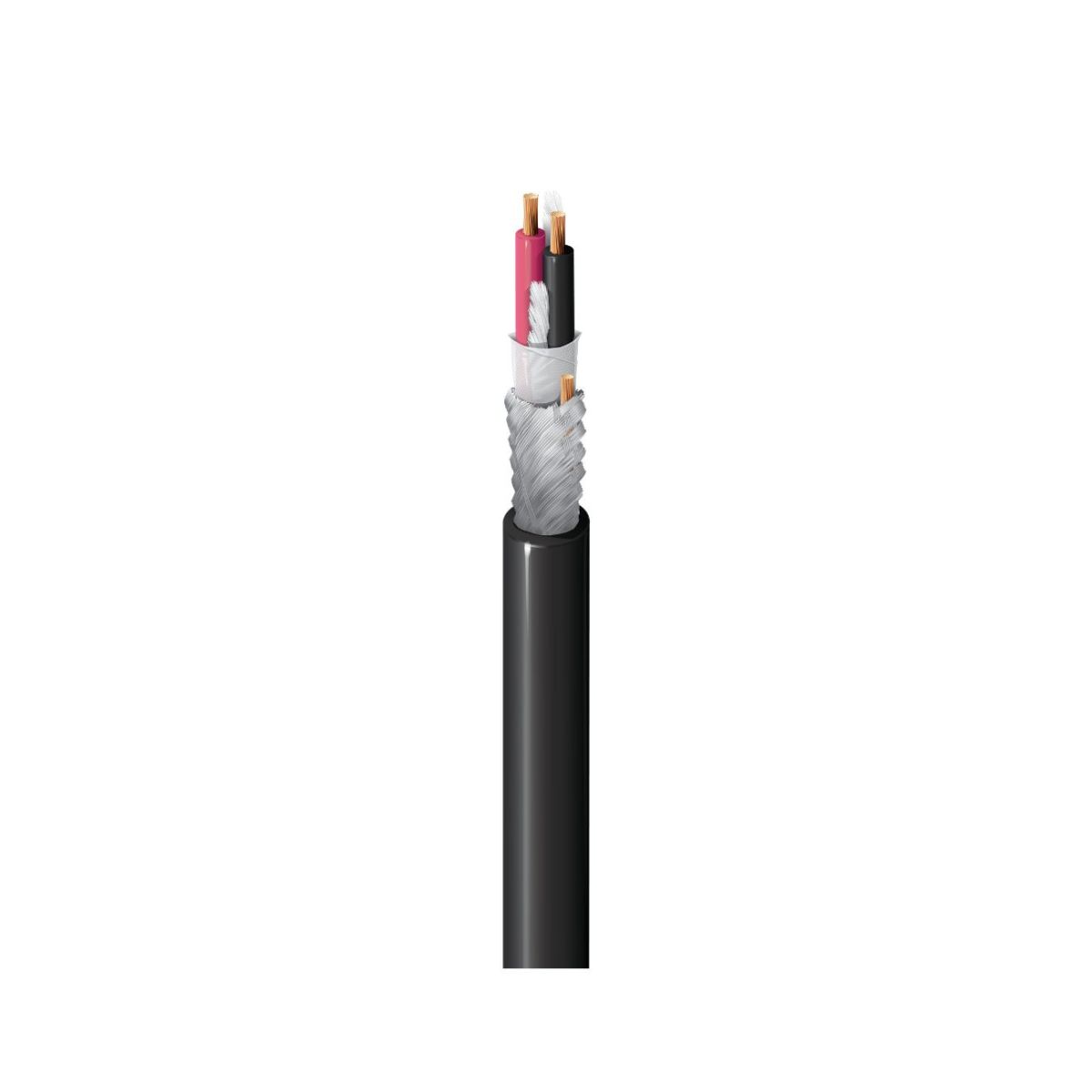

1800F DIGITAL 110 OHMS AUDIO CABLE, AES/EBU,FLEXIBLE
Highlights
- Characteristic Impedance: 110 Ω
- Conductor DCR: 23.7 Ω/1000 ft
- Capacitance Cond-to-Cond: 12 pF/ft (39 pF/m)
- Capacitance Cond-to-Other: 26 pF/ft (85 pF/m)
- Inductance: 0.18 µH/ft (0.59 µH/m)
- Velocity of Propagation: 76%
- Maximum Current: 3.8 A per conductor @ 30°C
- Outer Shield DCR: 6.42 Ω/1000 ft (21.1 Ω/km)

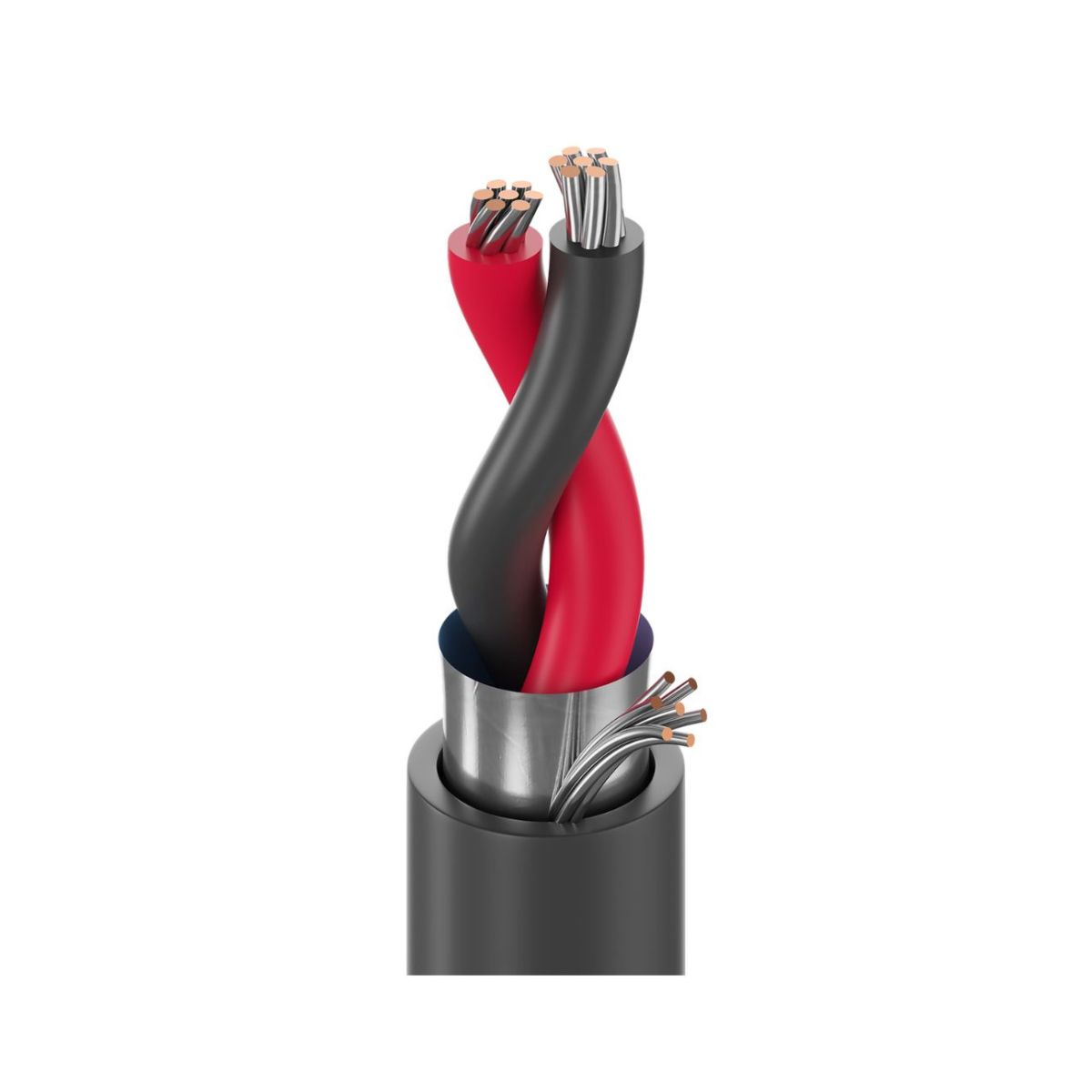

8451 22 AWG AUDIO CABLE, PAPER WRAP, BLACK
Highlights
- Conductor: 22 AWG, 7×30 stranded Tinned Copper
- Pair: 1 Pair
- Insulation: Polypropylene (PP)
- Insulation Thickness: 0.009 in (0.23 mm)
- Insulation Diameter: 0.046 in (1.2 mm)
- Color Code: Black & Red
- Shield: Bi-Laminate Aluminium + Polyethylene foil
- Shield Coverage: 100%
- Drain Wire: 22 AWG, 7×30 Tinned Copper
- Outer Jacket: PVC
- Jacket Thickness: 0.020 in (0.51 mm)
- Jacket Diameter: 0.138 in (3.51 mm)
