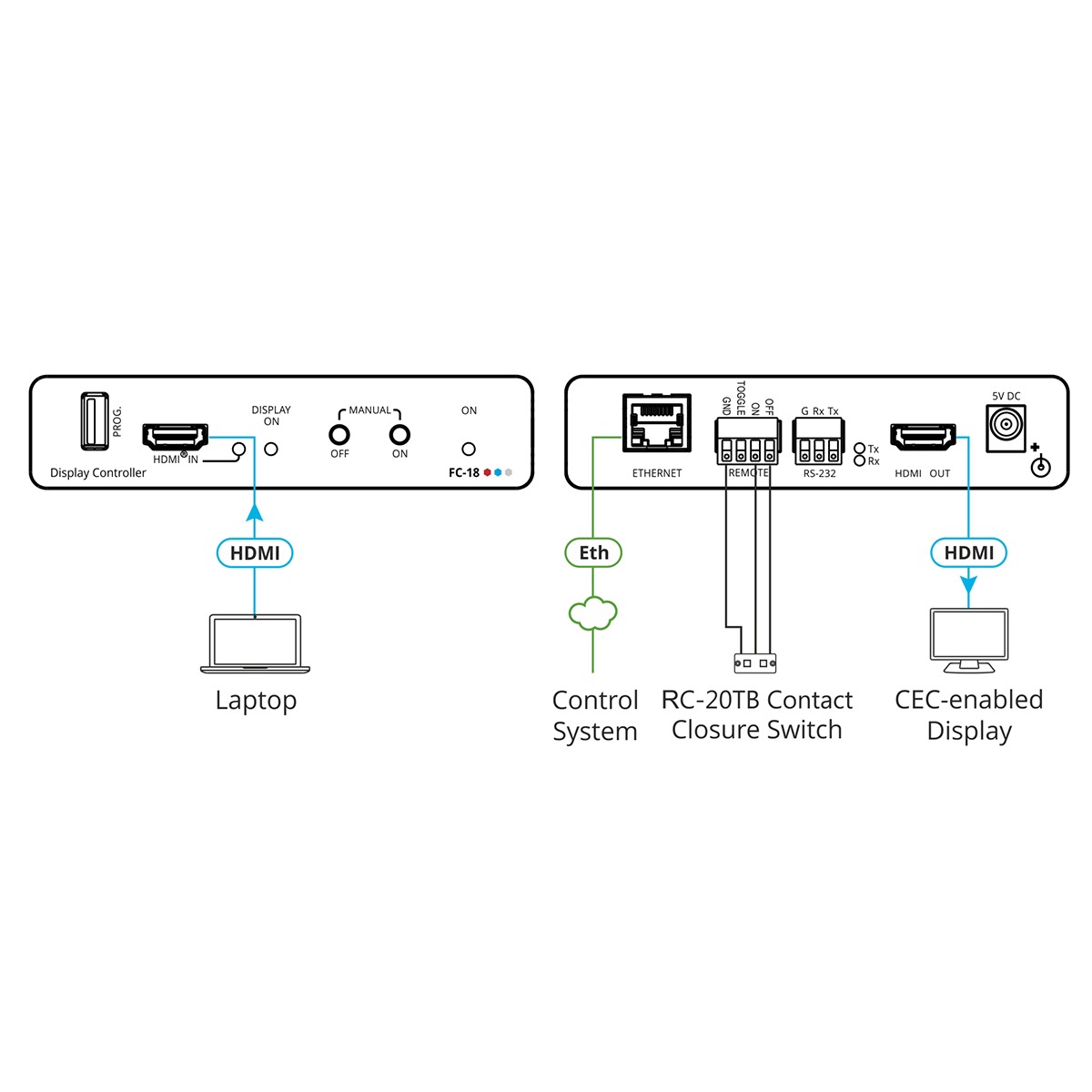

FC-18 4K HDR Display ON/OFF Controller

4K HDR Display ON/OFF Controller

Highlights

Automatically turn display ON/OFF on plug in/out
Save meeting setup time
Save power costs
Ethernet and RS–232 tunelling

Download

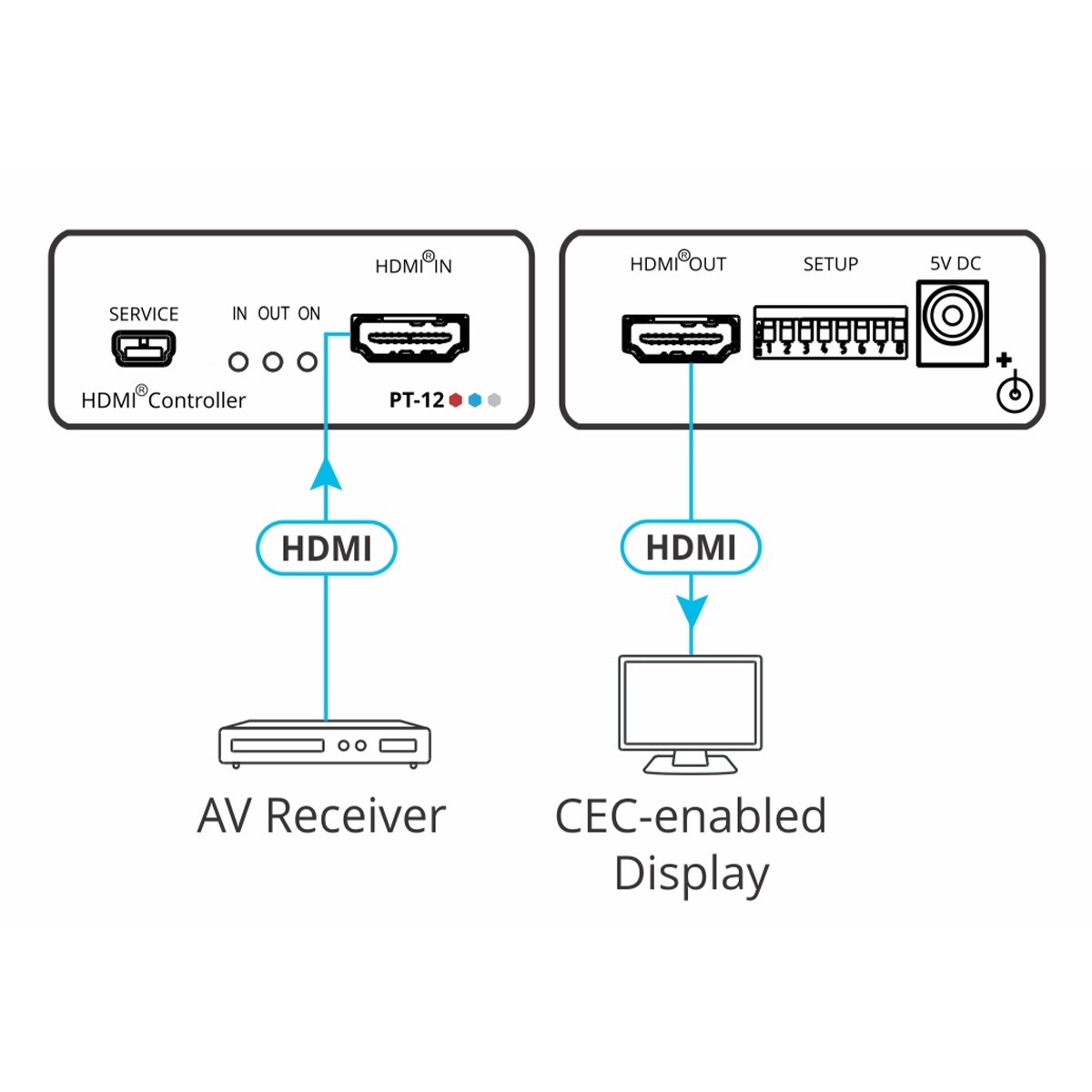

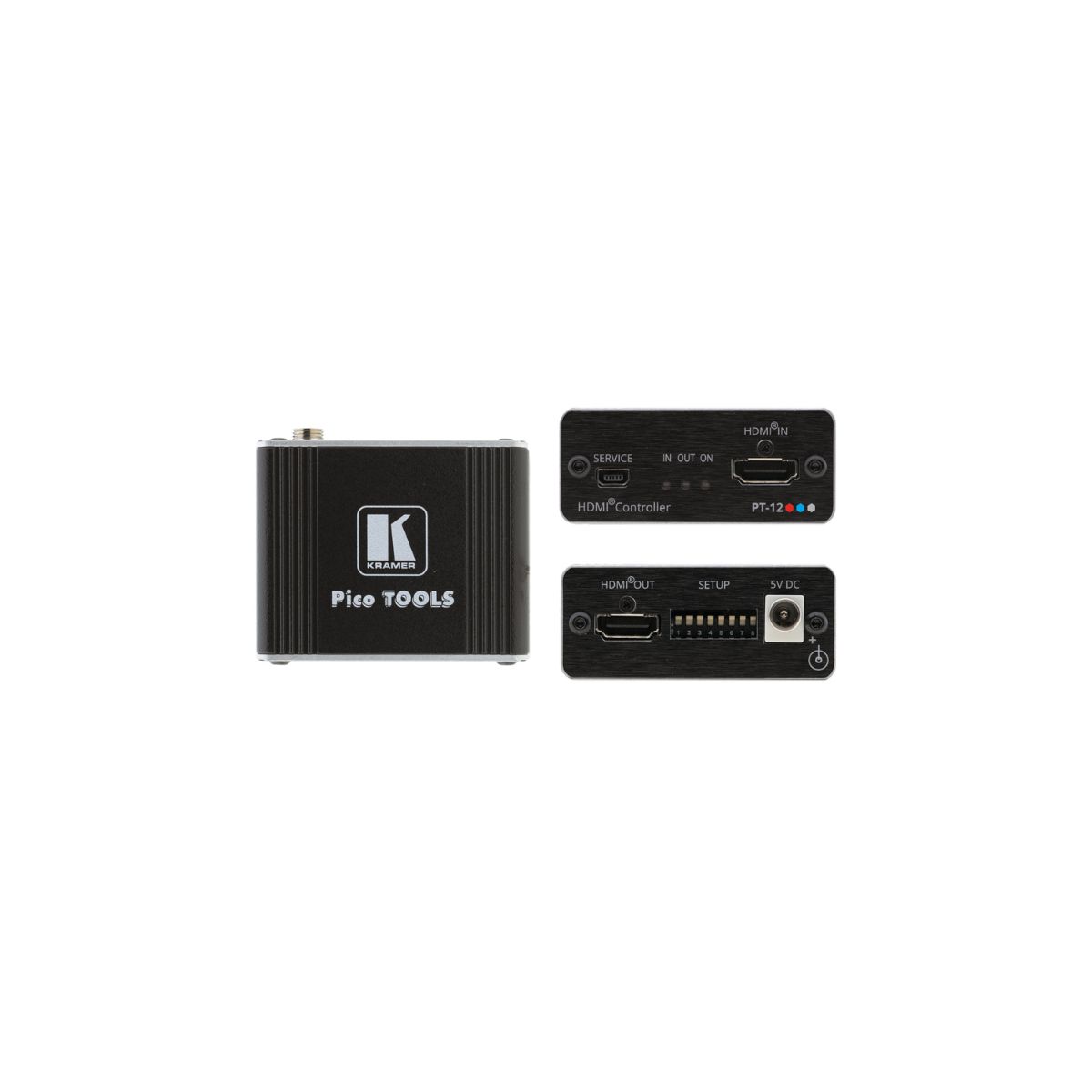

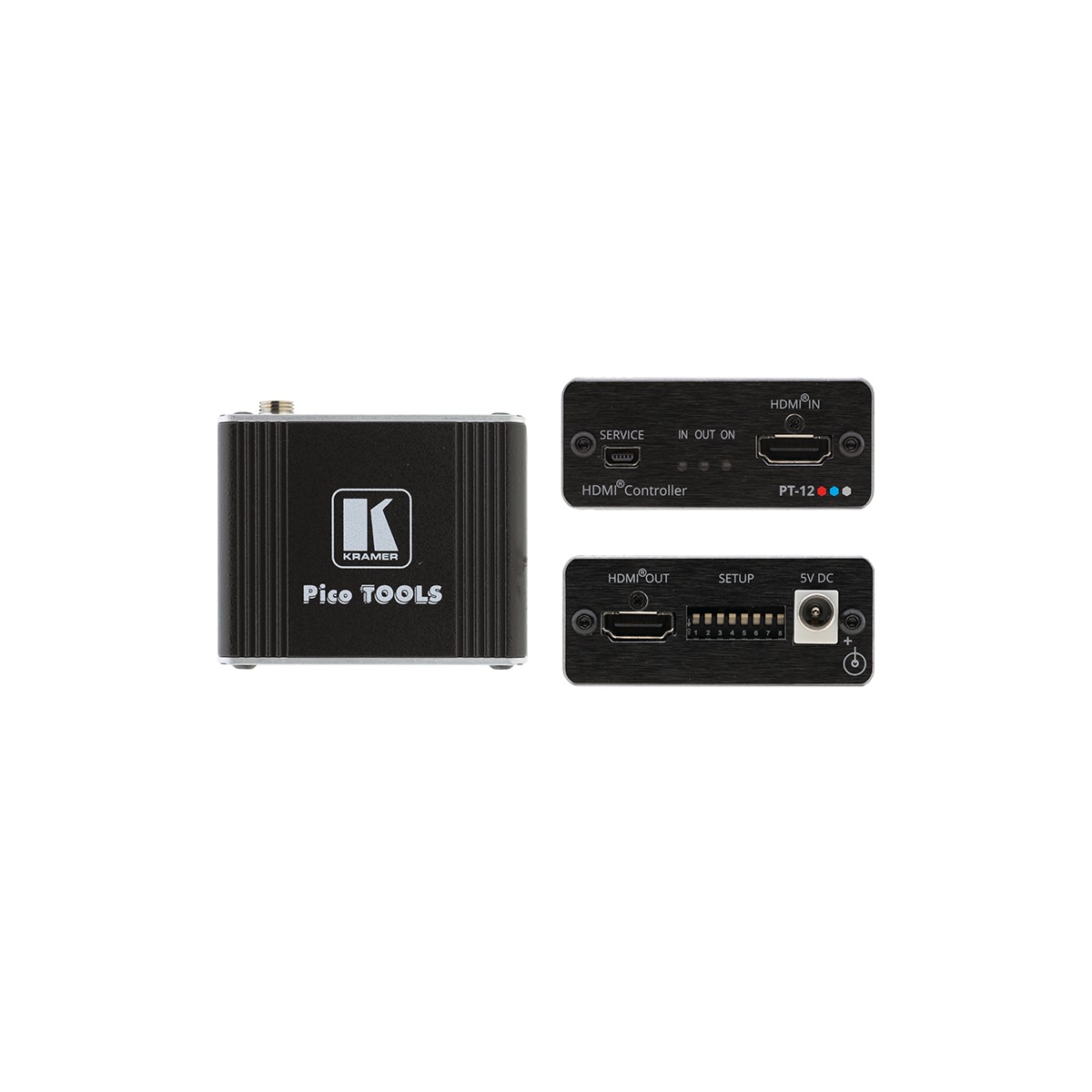

PT-12 4K60 4:2:0 HDMI Controller

4K60 4:2:0 HDMI Controller

Highlights

Plug–and–Play Display Operation — Simplifies meeting presentation operation by automatically turning ON/OFF a CEC–enabled display when the presentation source is plugged in / unplugged with user–defined shut–down delay.
High–Performance HDMI Controller — Supports pass–through of signals up to 4K@60Hz (4:2:0) resolution with user control on signal capabilities and functions.
HDCP Authorization — Controlled device appearance as HDCP authorized to allow unsecured content display by all market–available computer sources.
Video Signal Control — Controlled color depth attributes and color space forcing capabilities of passing–through video signal, along with EDID locking configuration to ensure proper video display.

Download

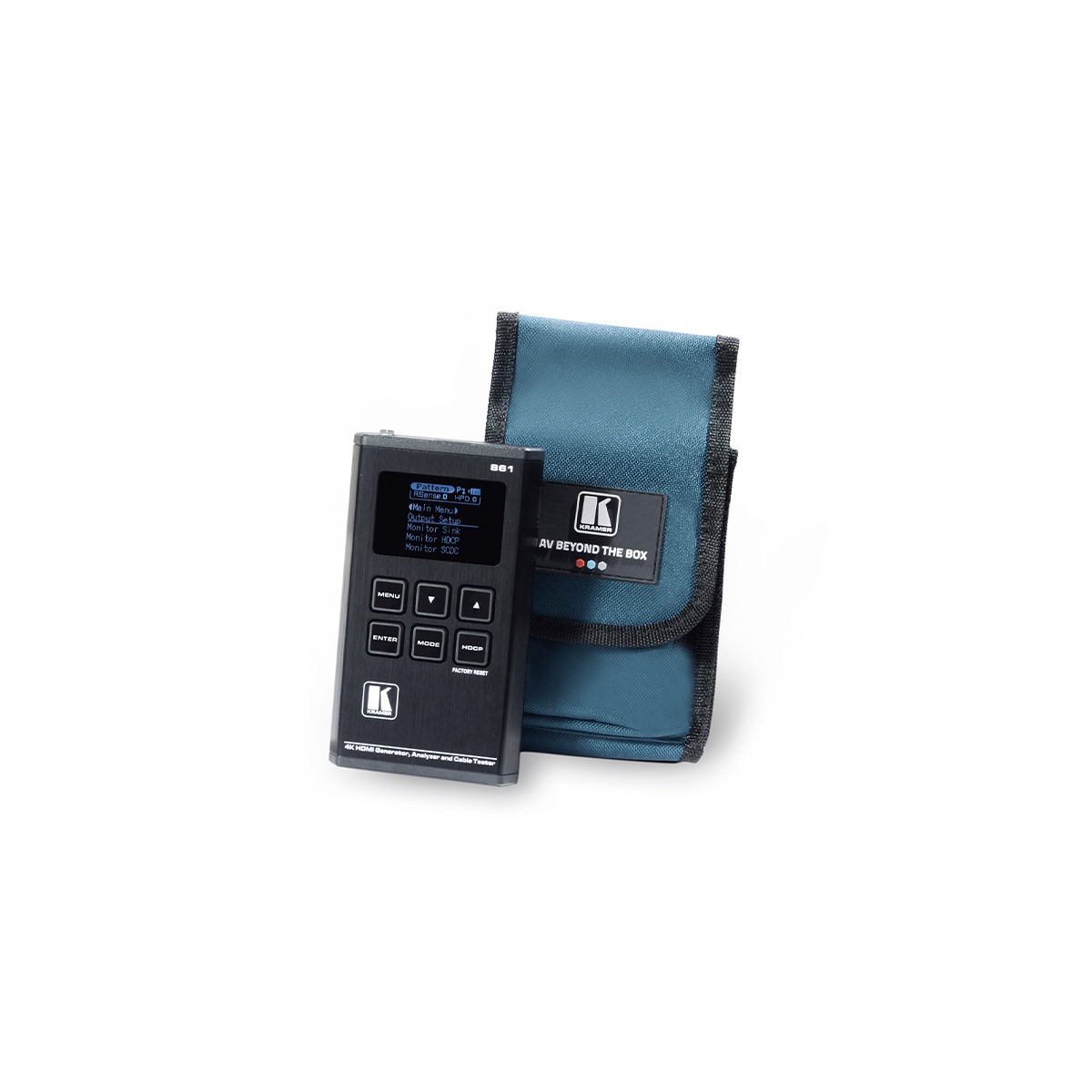

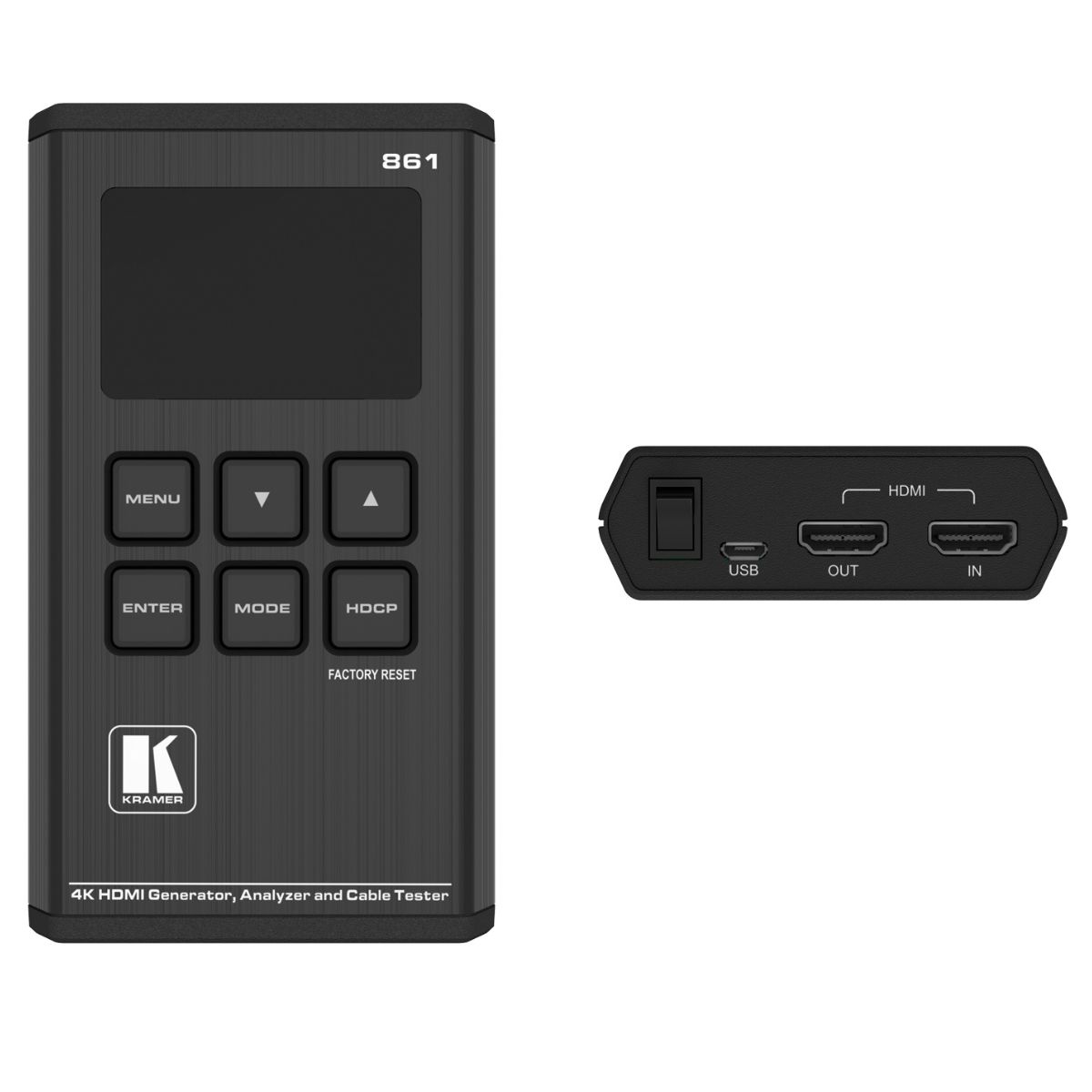

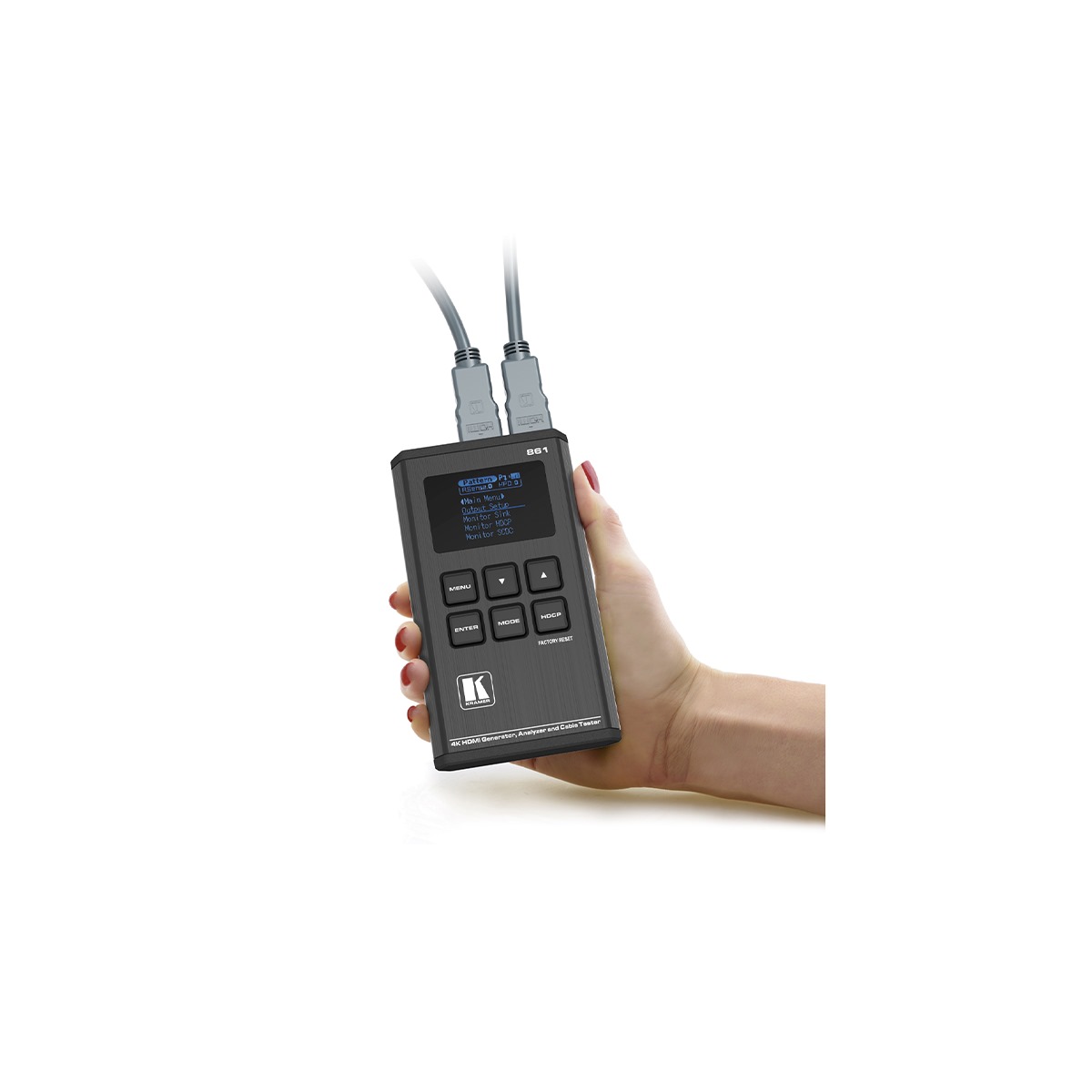

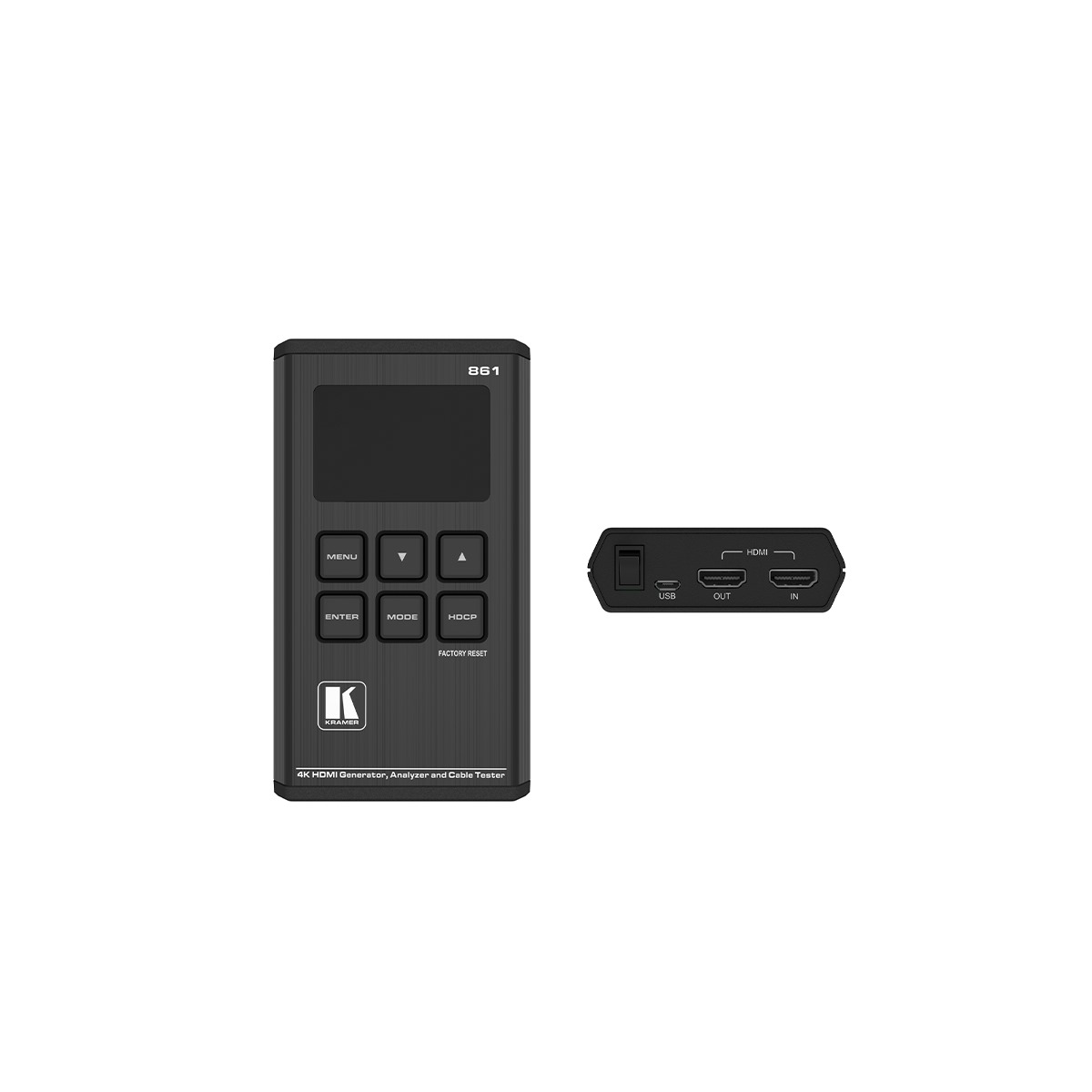

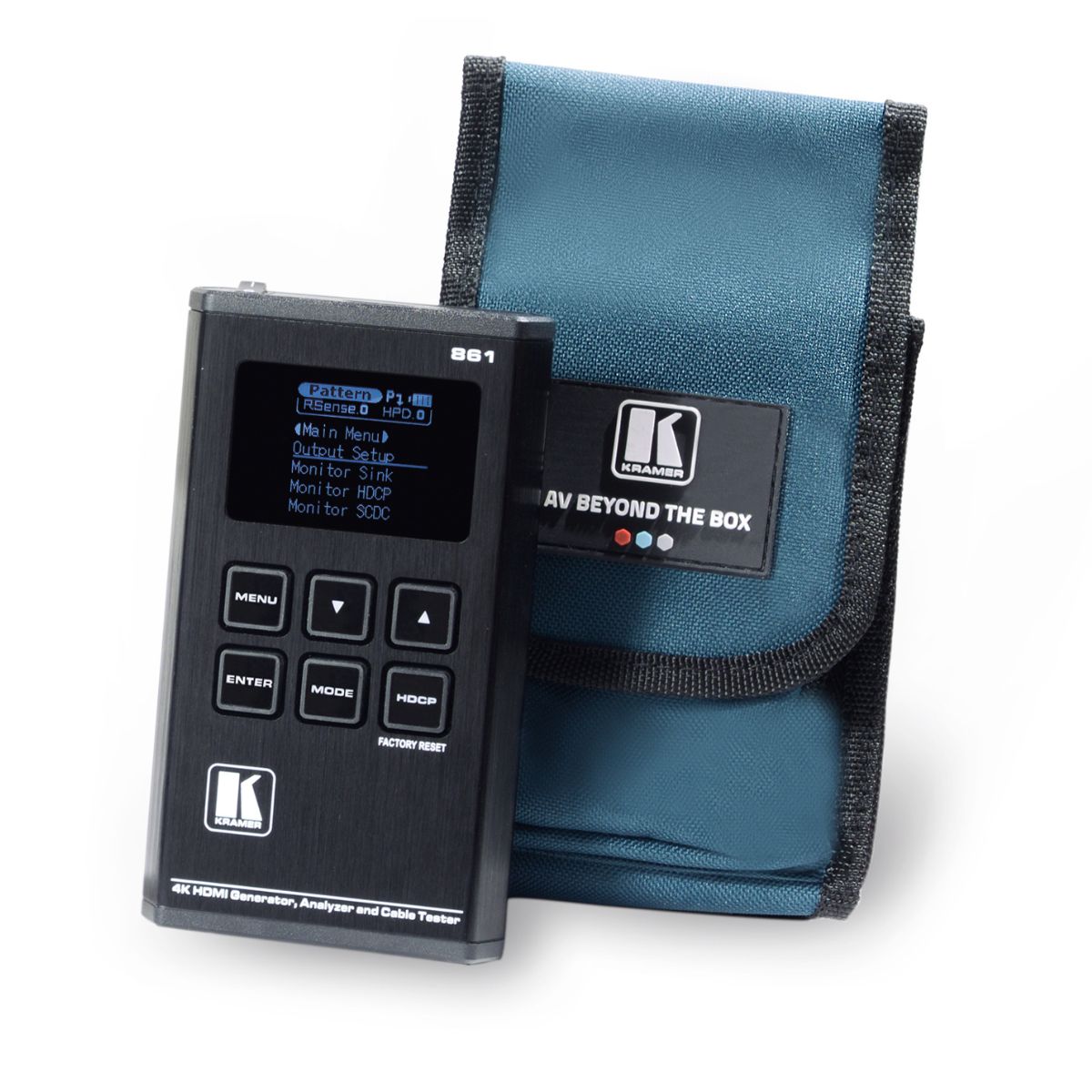

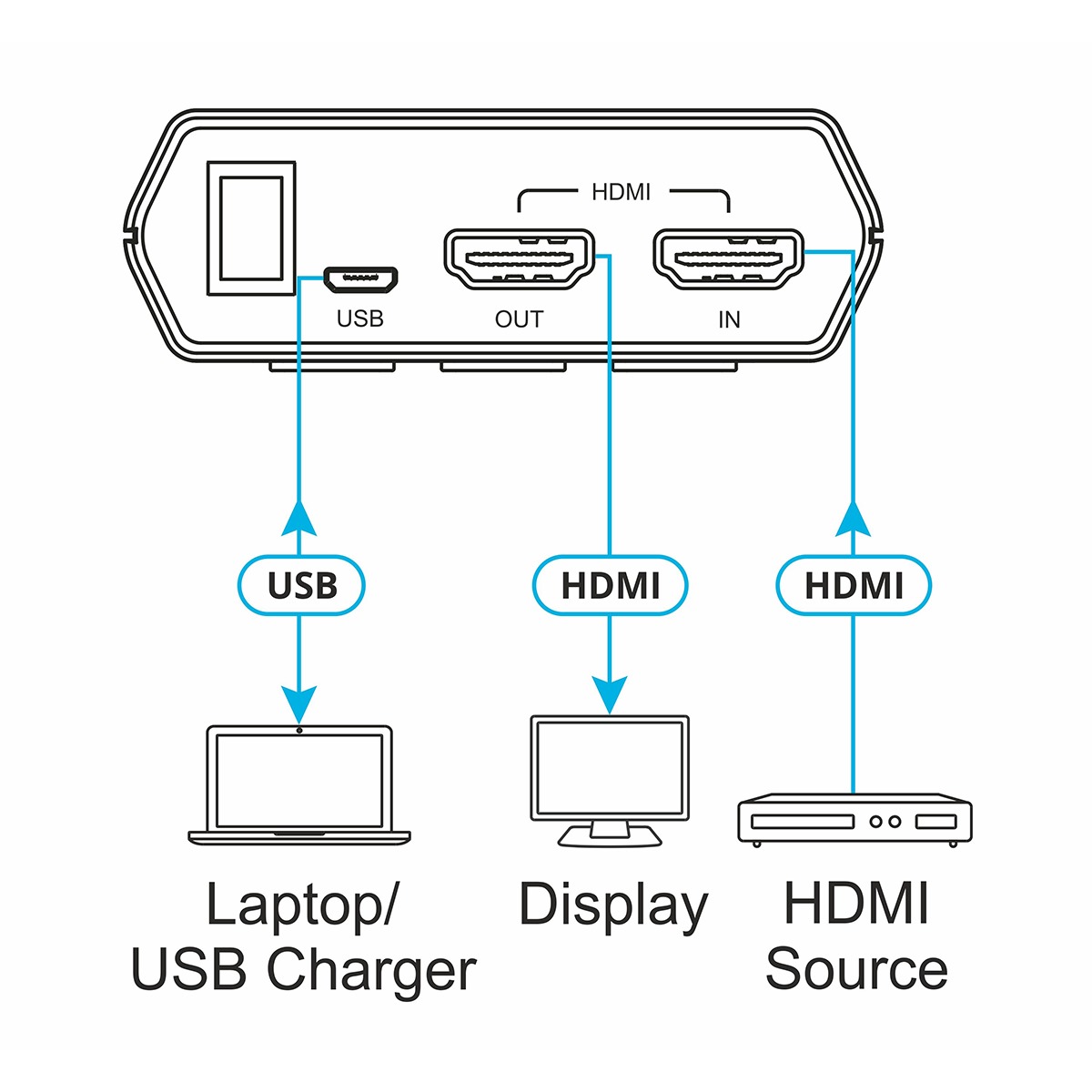

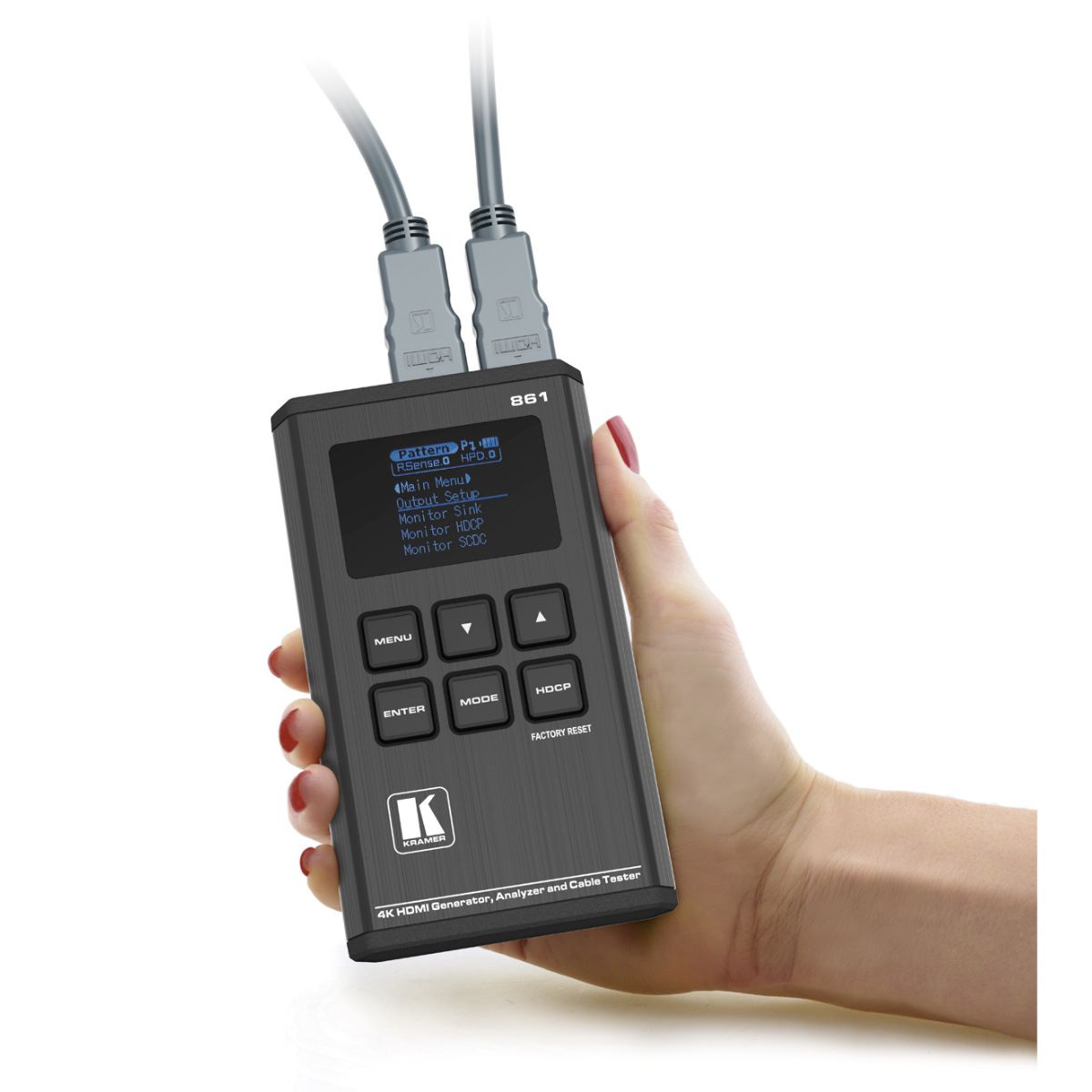

861 Generator, Analyzer and Cable Tester

18G 4K HDR Pocket Signal Generator, Analyzer and Cable Tester

Highlights

23 built–in resolutions, 11 test patterns
Over a dozen types of A/V analysis functions
Supports resolutions up to 4K@60Hz (4:4:4)
HDR10, HDCP 2.2 & HDCP 1.4 compliance

Download

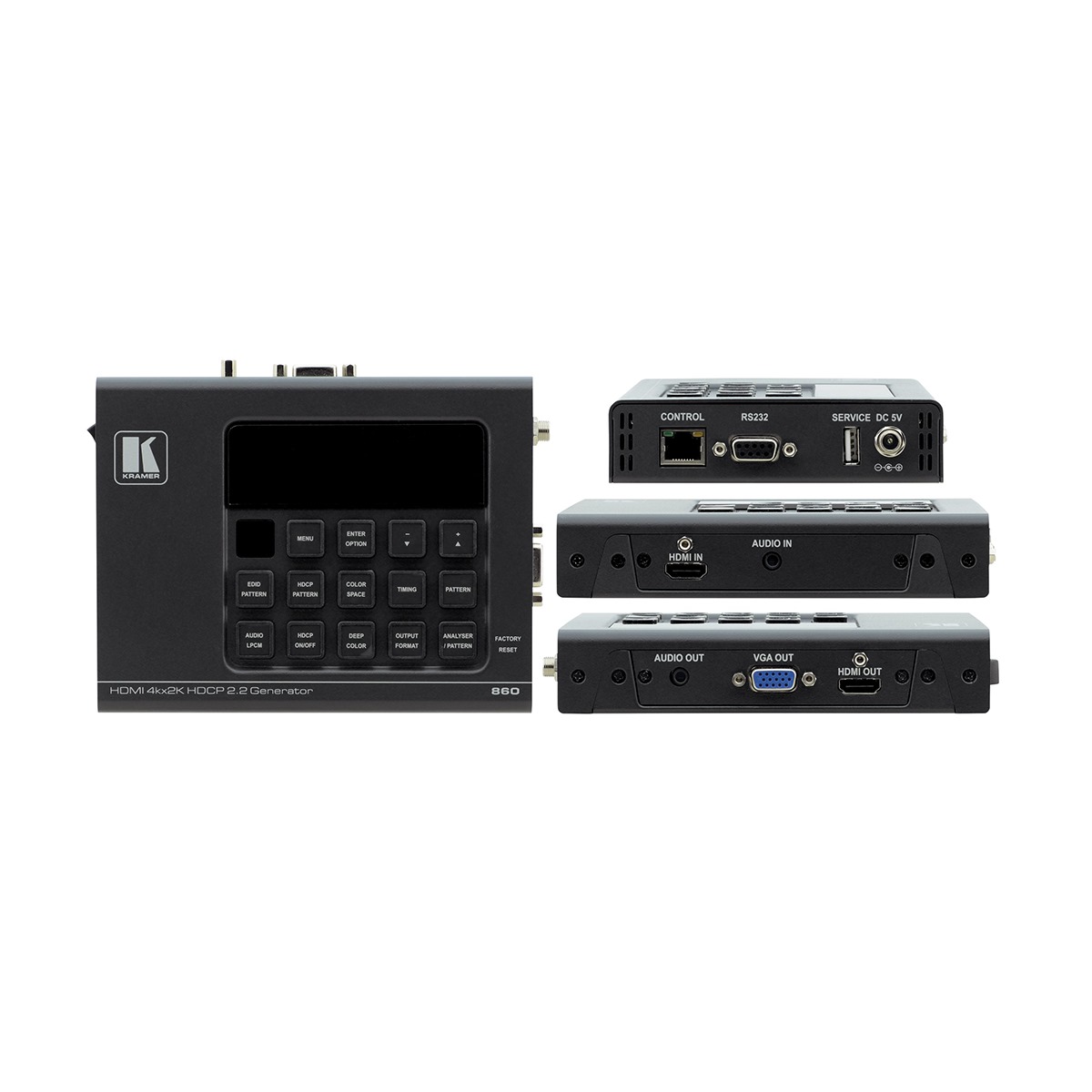

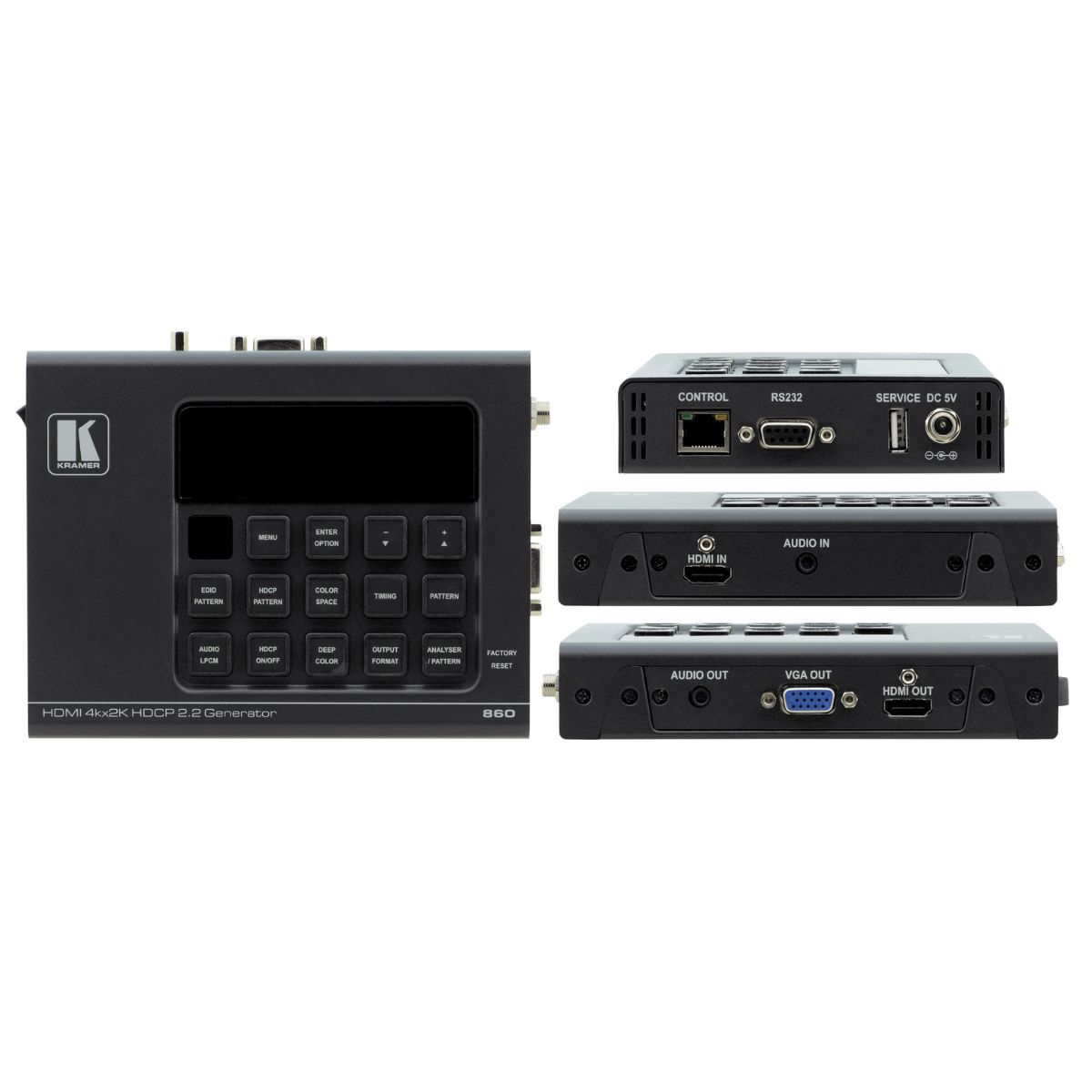

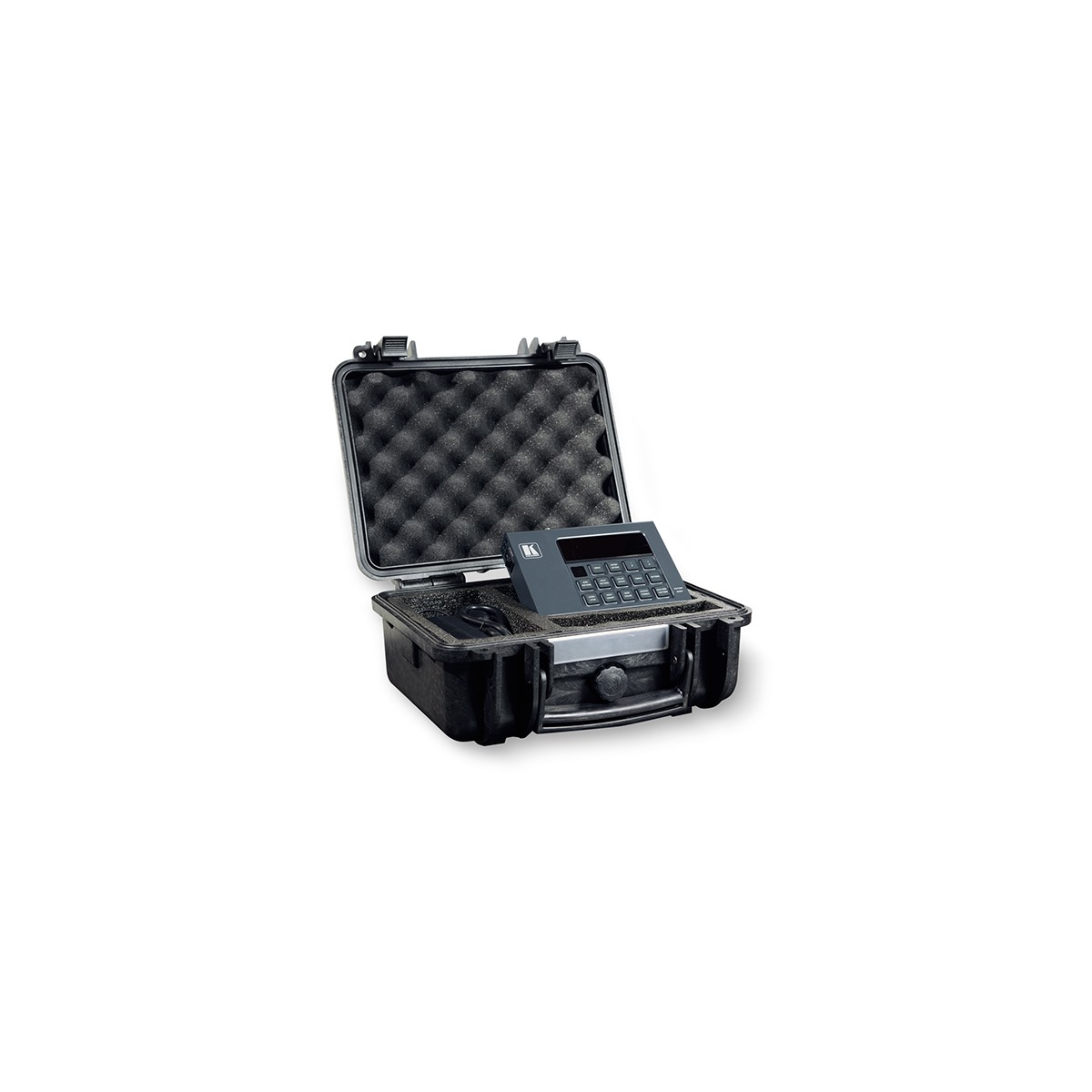

860 18G 4K HDR Signal Generator & Analyzer

18G 4K HDR Signal Generator & Analyzer

Highlights

88 built–in resolutions, 55 test patterns
Over a dozen types of A/V analysis functions
Supports resolutions up to 4K@60Hz (4:4:4)
HDR10, HDCP 2.2 & HDCP 1.4 compliance

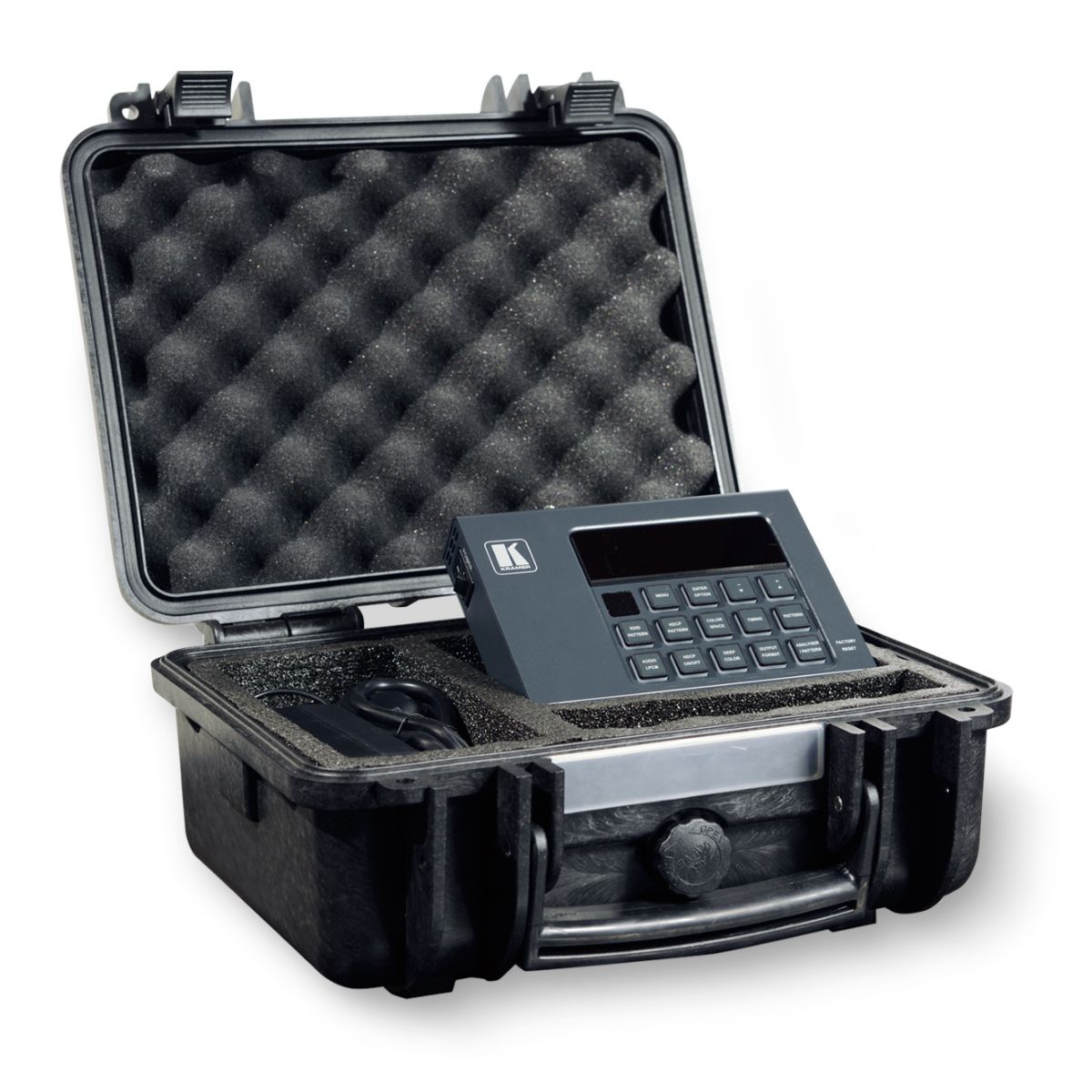

Heavy–duty, protective case included

Download

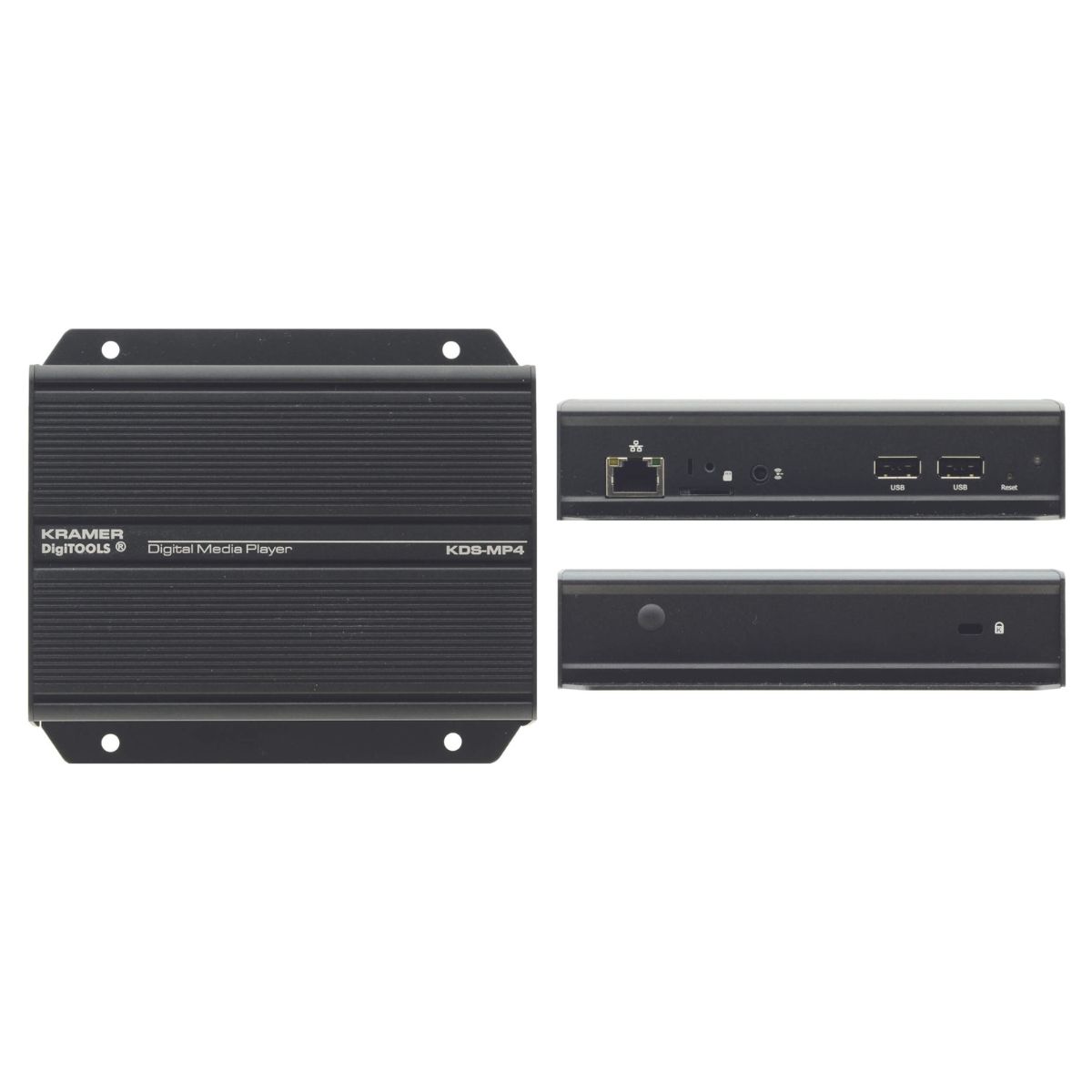

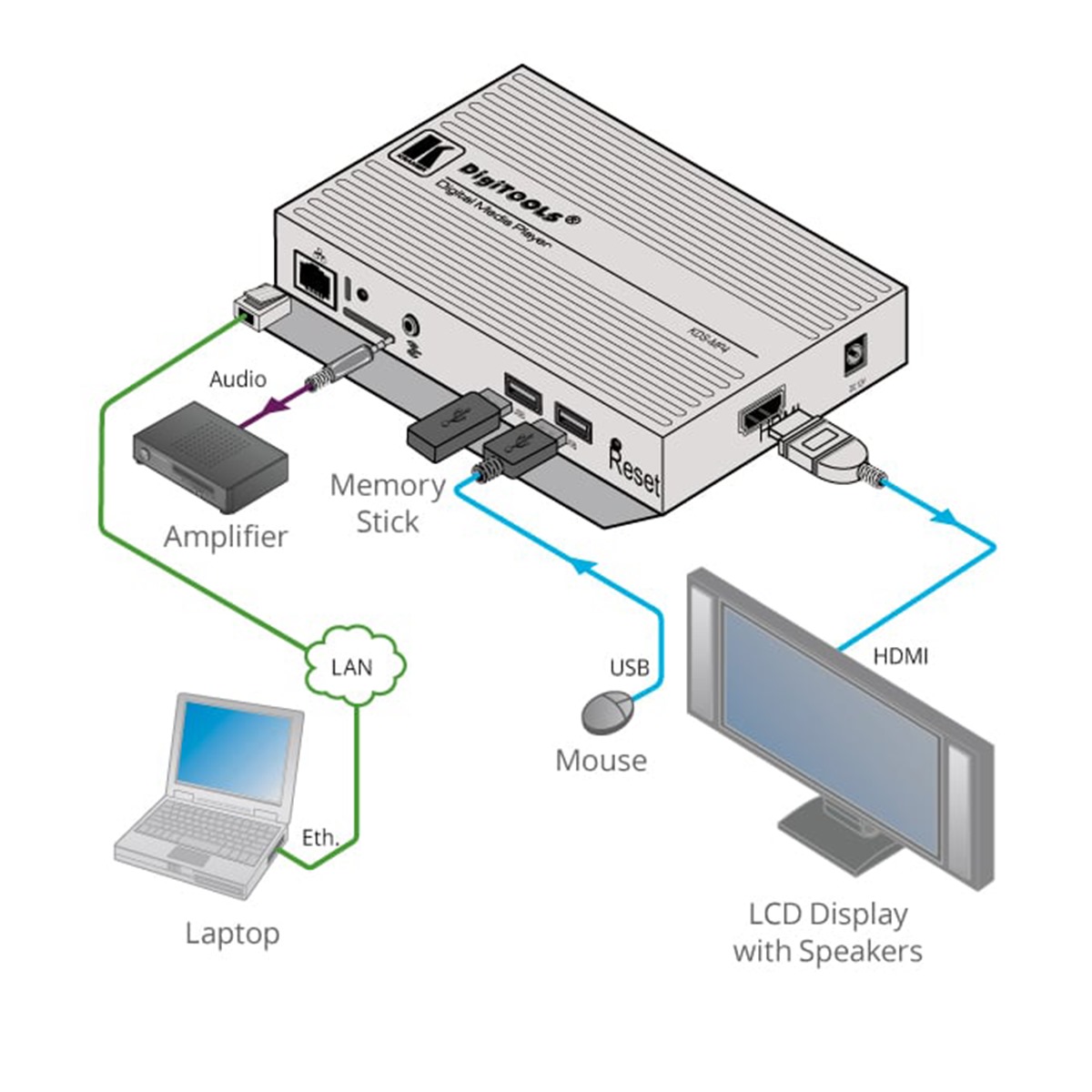

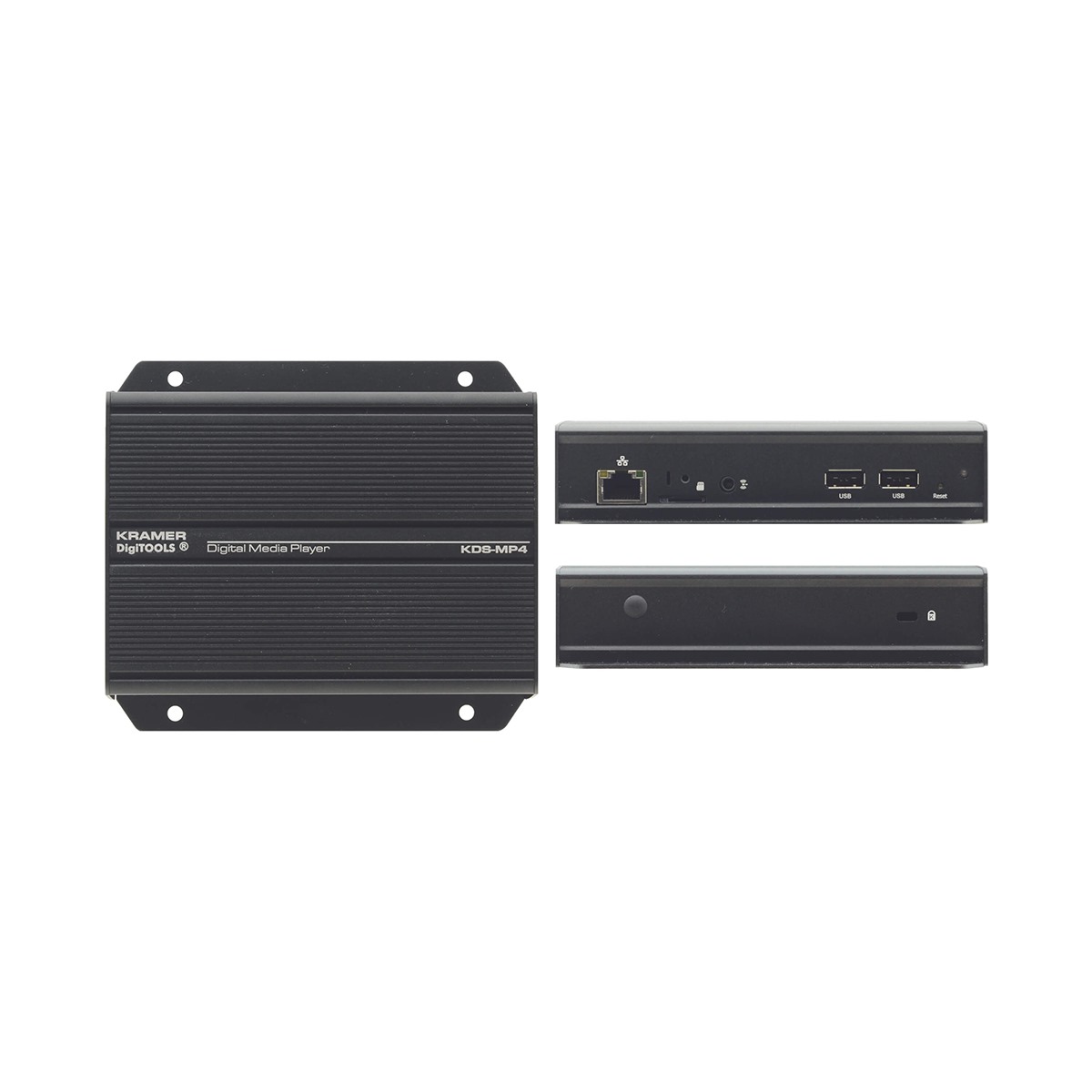

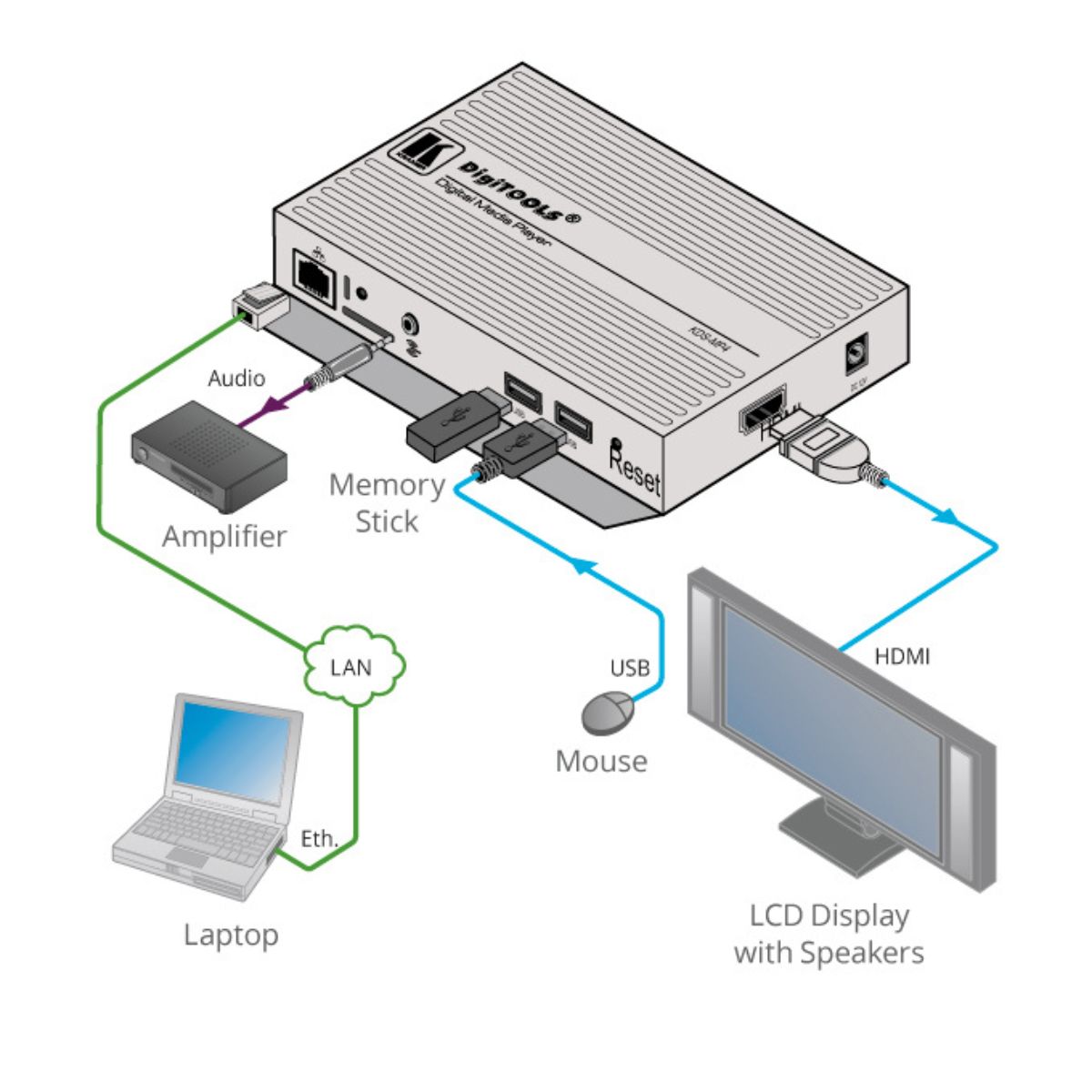

KDS-MP4 4K60 4:2:0 Digital Signage Media Player

4K60 4:2:0 Digital Signage Media Player

Highlights

4K60 4:2:0 Support
High Quality HDMI Video & Audio.
Codec Support — MPEG–1, 2, L2, 3, 4, and VC–1.
Memory Options — 8GB internal.
Integrated SMIL Control
CMS Device Management — In LAN environments using the integrated SMIL control.
Compact DigiTOOLS® — Built–in mounting bracket.

Download

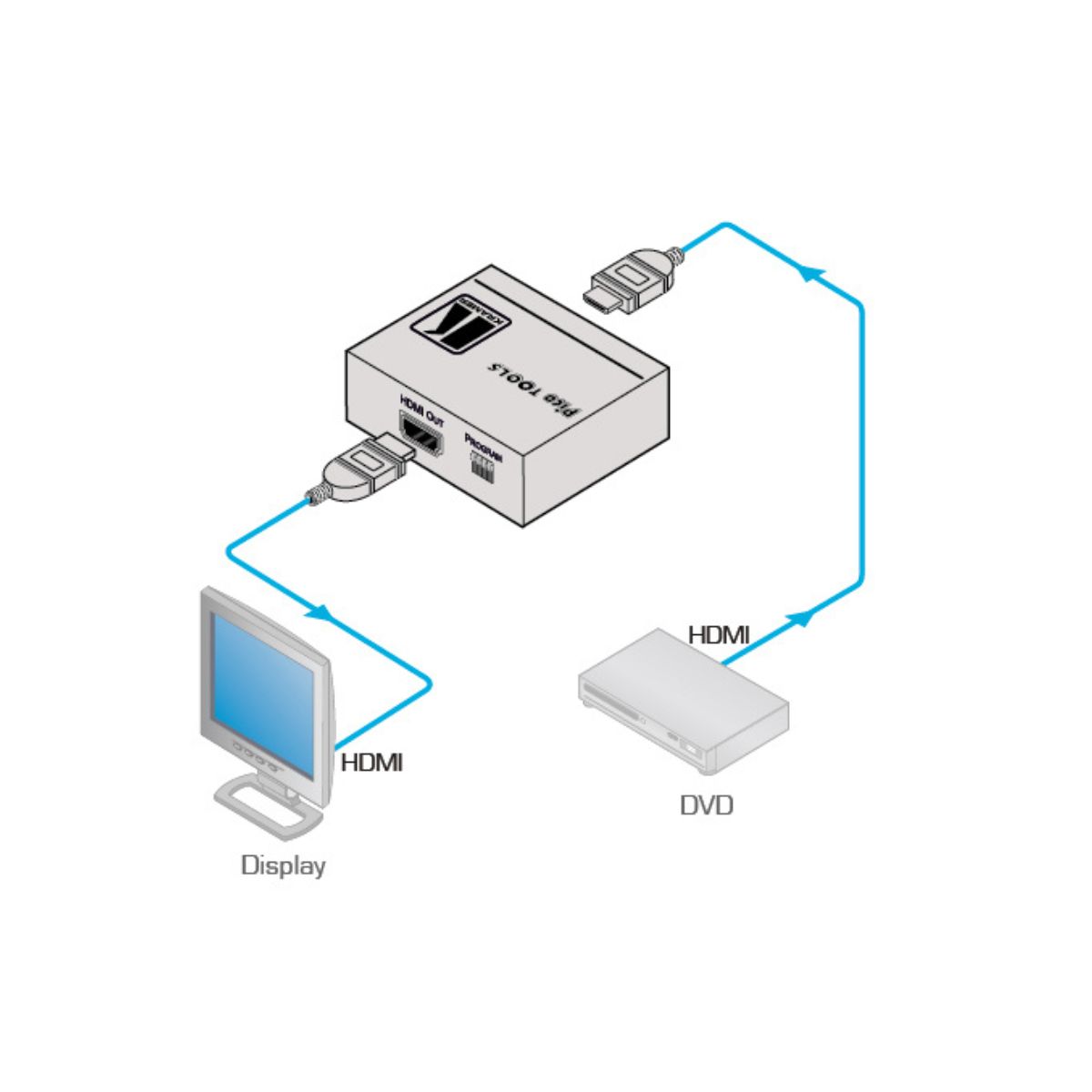

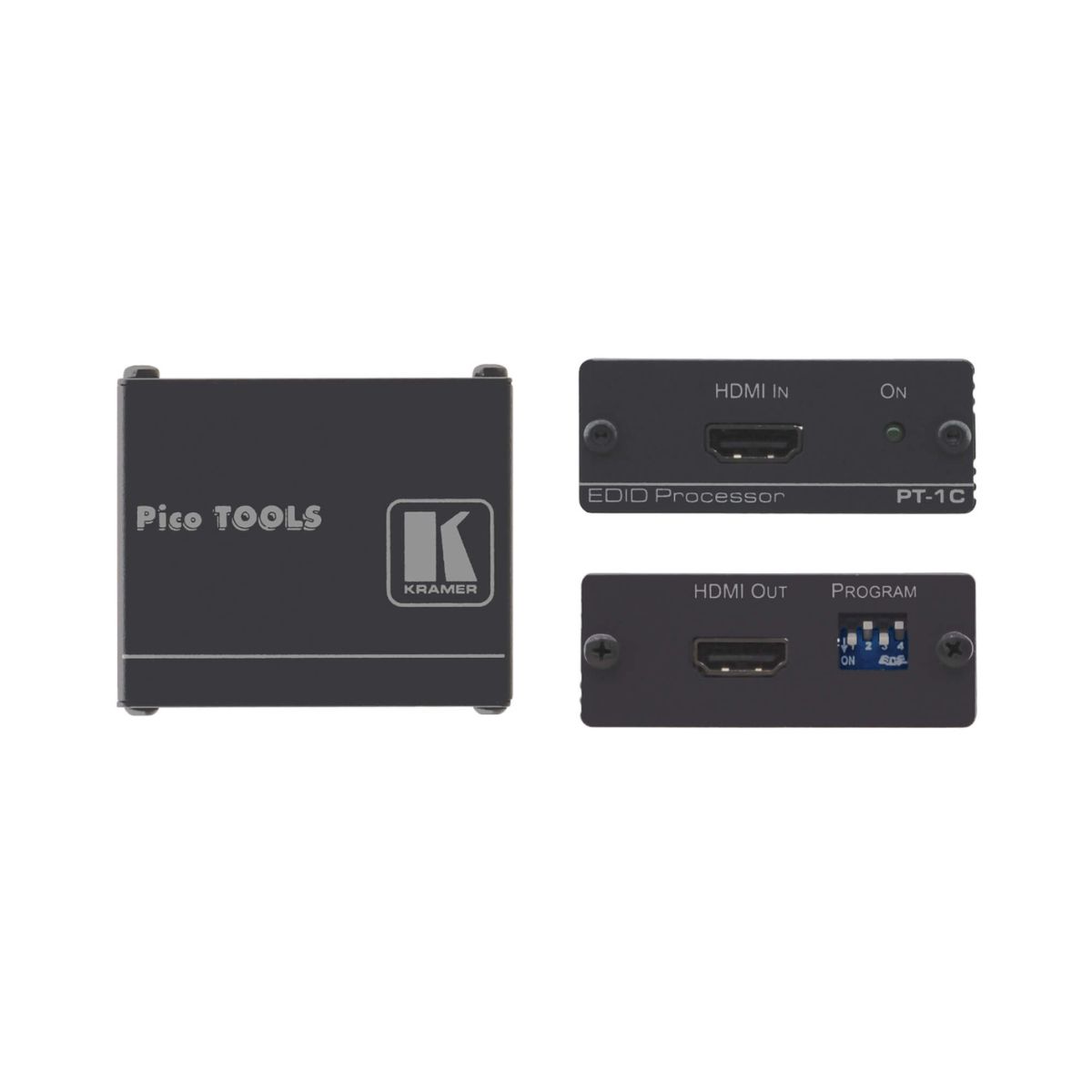

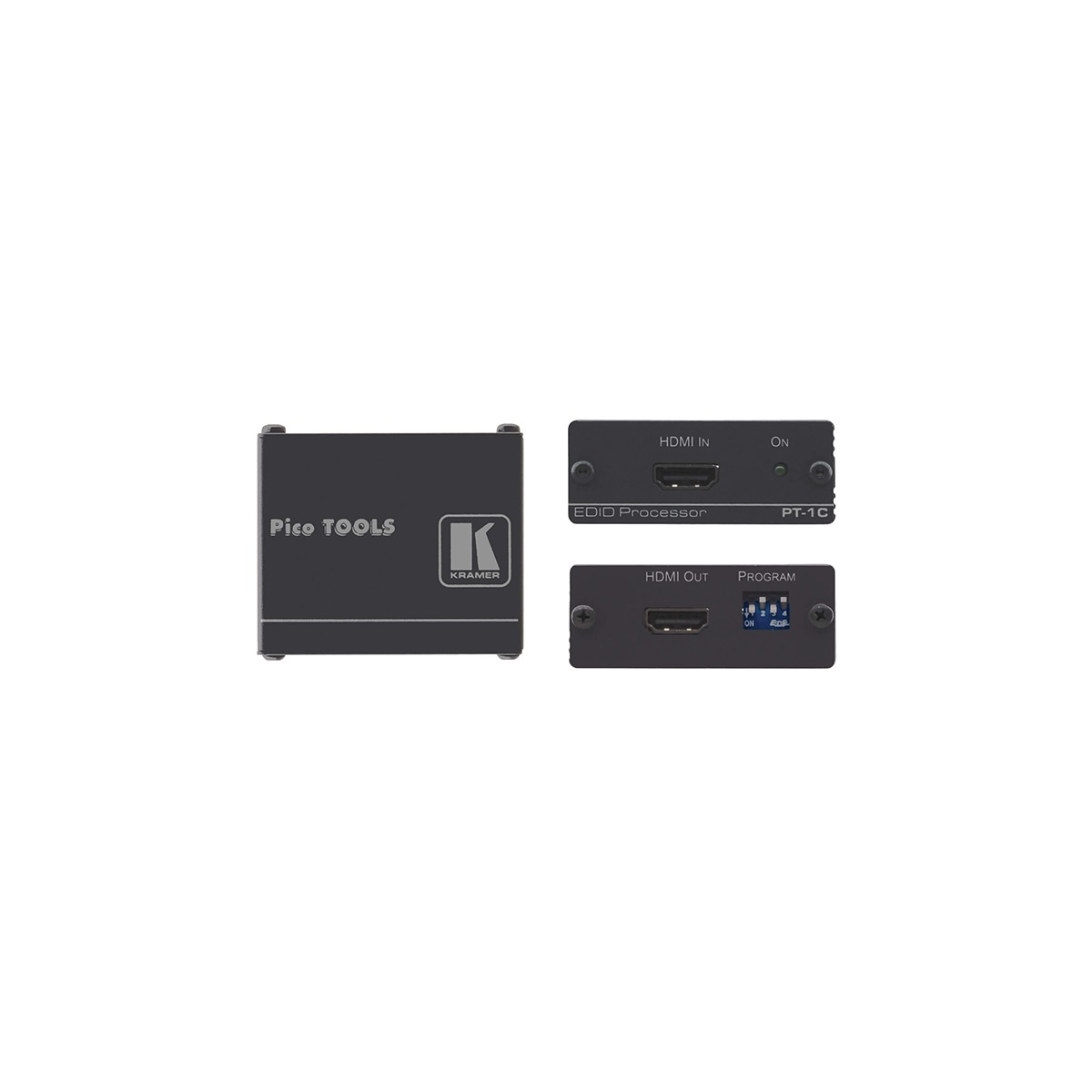

PT-1C 4K HDR HDMI EDID Processor

4K HDR HDMI EDID Processor

Highlights

Max. Data Rate — 17.82Gbps (5.94Gbps per data channel).
Max. Resolution — 4K@60Hz (4:4:4).
HDMI Compatible.
Compliance with HMDI Standards — HDR10, HDCP 2.2.
Line Powered Device — Power taken from the HDMI line, no power supply is needed.
Indicator — Power LED.

Download

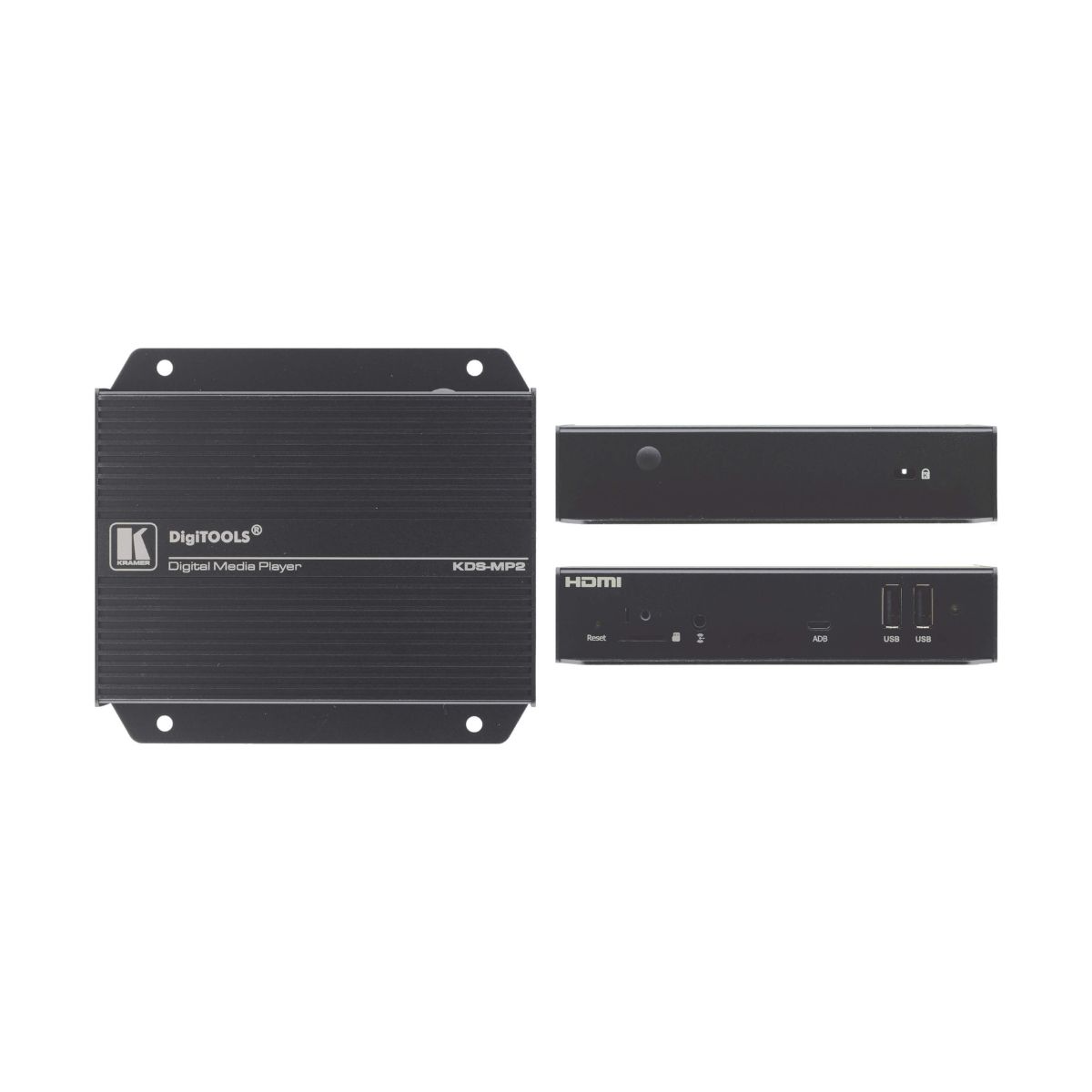

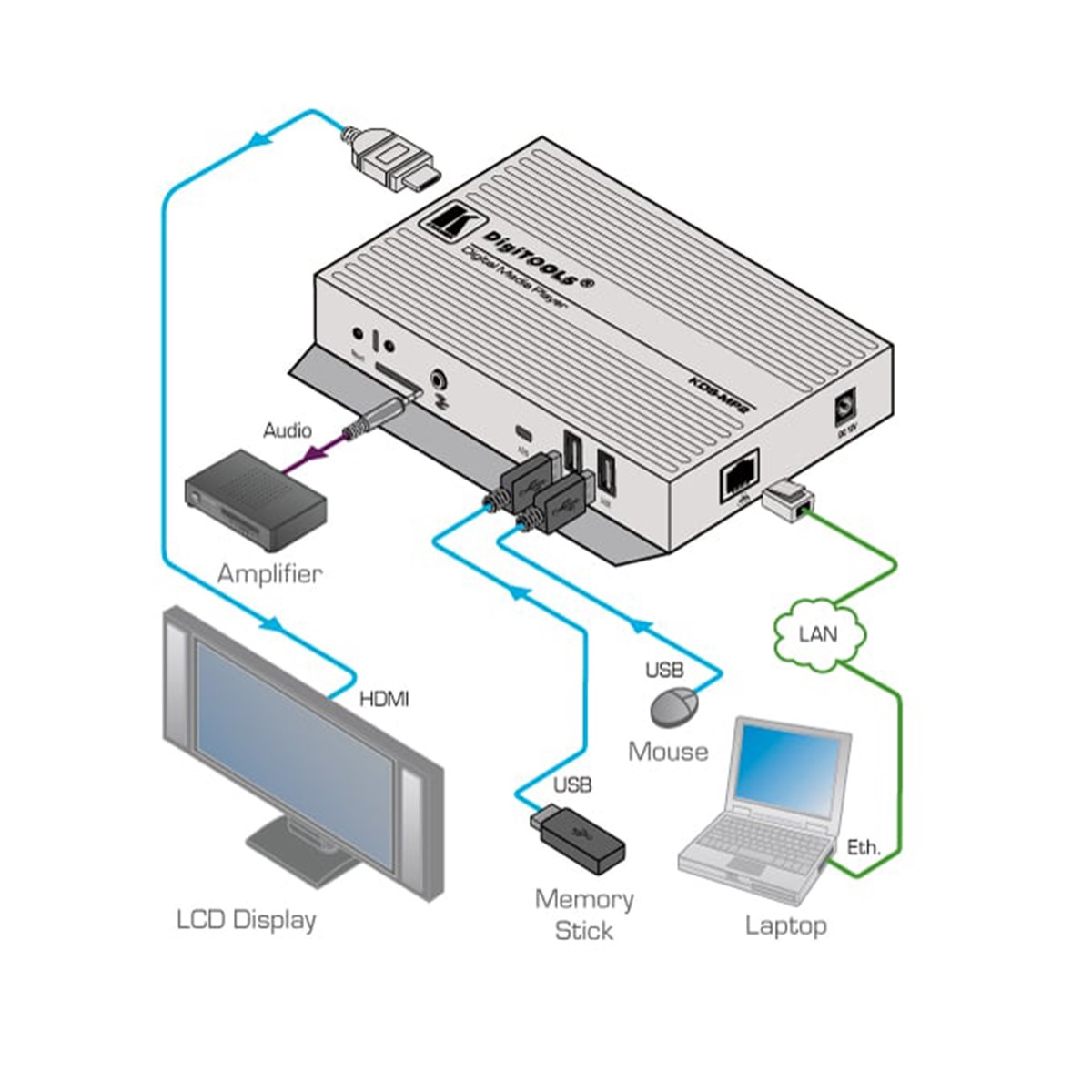

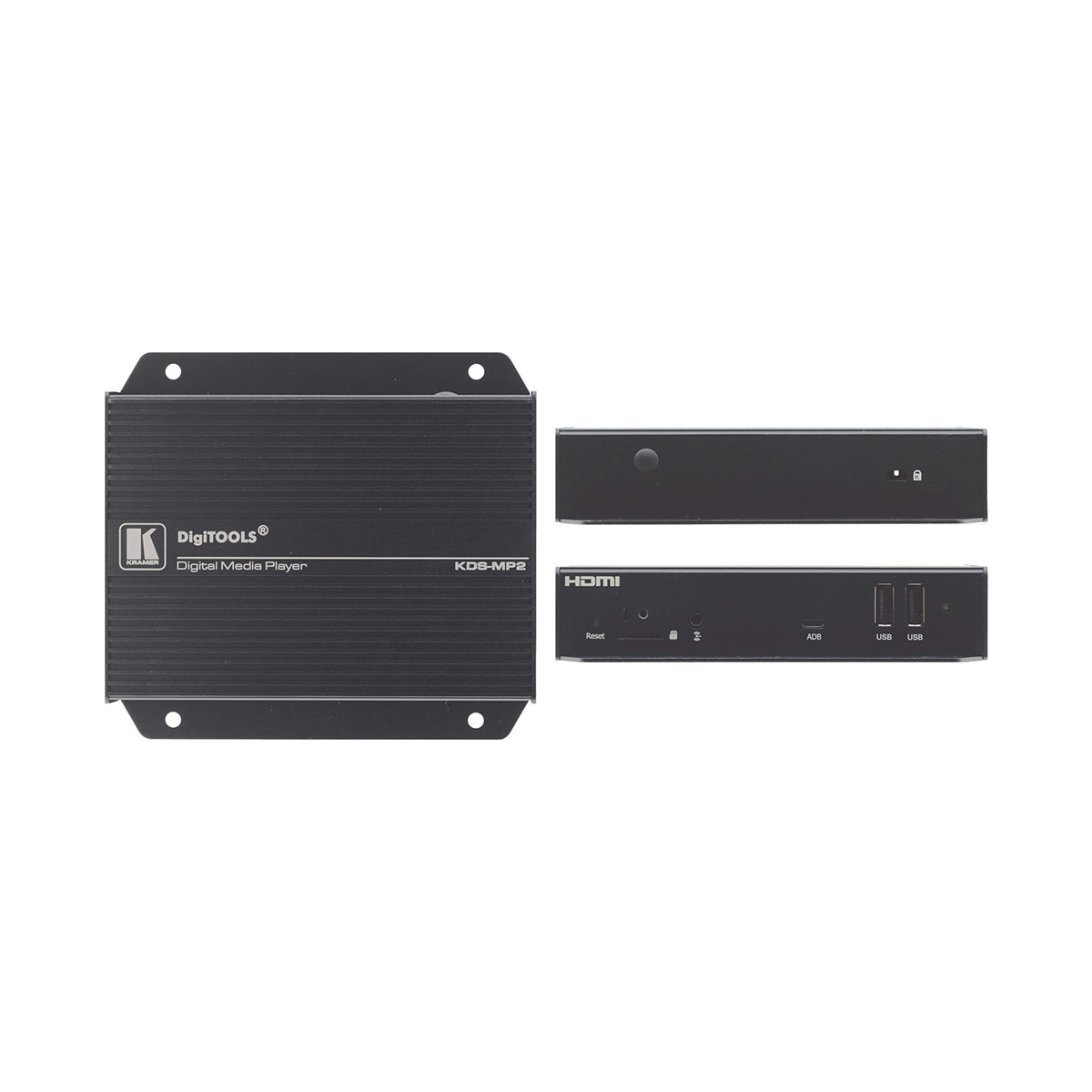

KDS-MP2 HD Digital Signage Media Player

HD Digital Signage Media Player

Highlights

1080p Full HD Support
Codec Support — MPEG–1, MPEG–2, MPEG L2, MP3, H.264/MPEG–4, and VC–1.
Memory Options — 8GB internal.
CMS Device Management
KDS–MP2 Media Manager Software
Compact DigiTOOLS® — Built–in mounting bracket.

Download

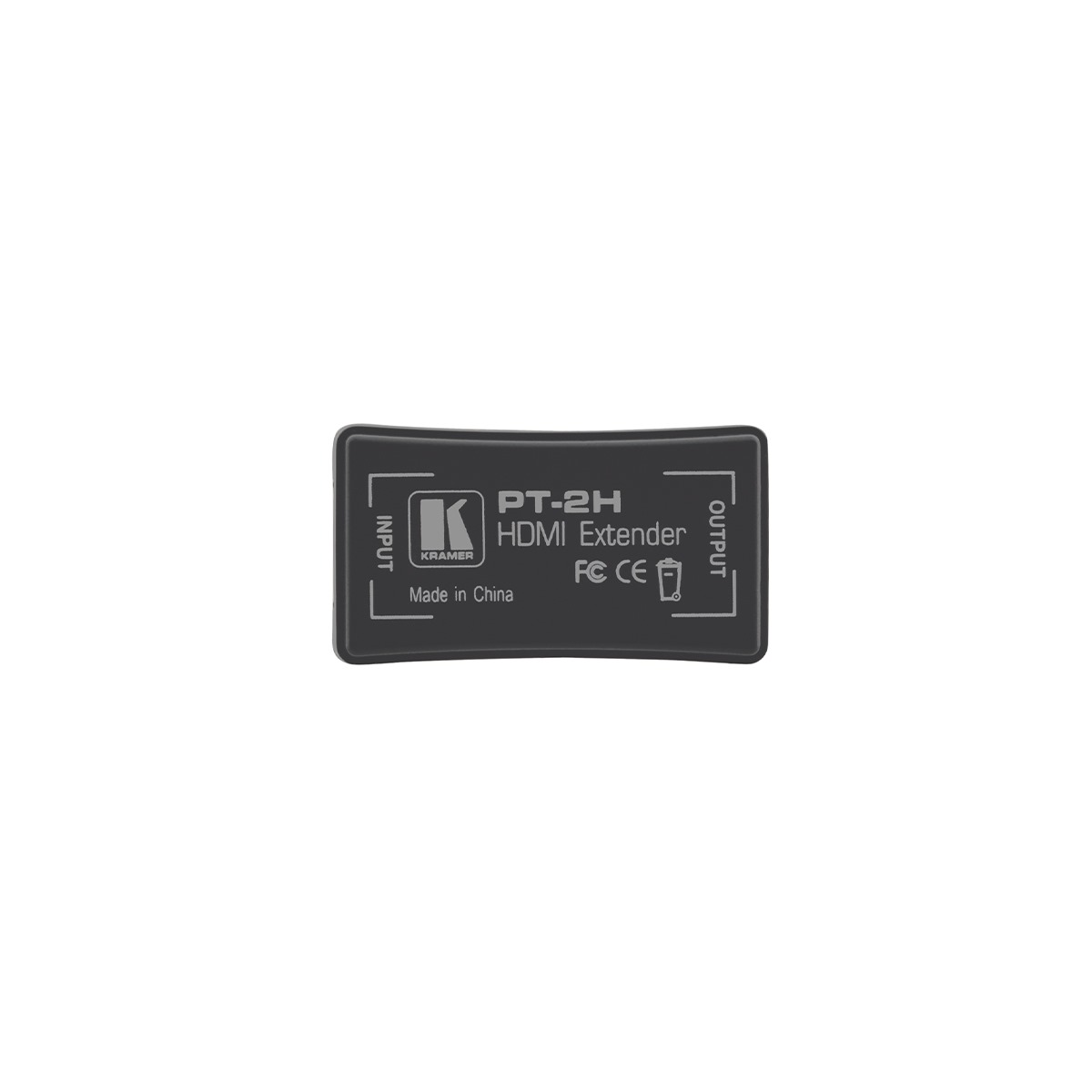

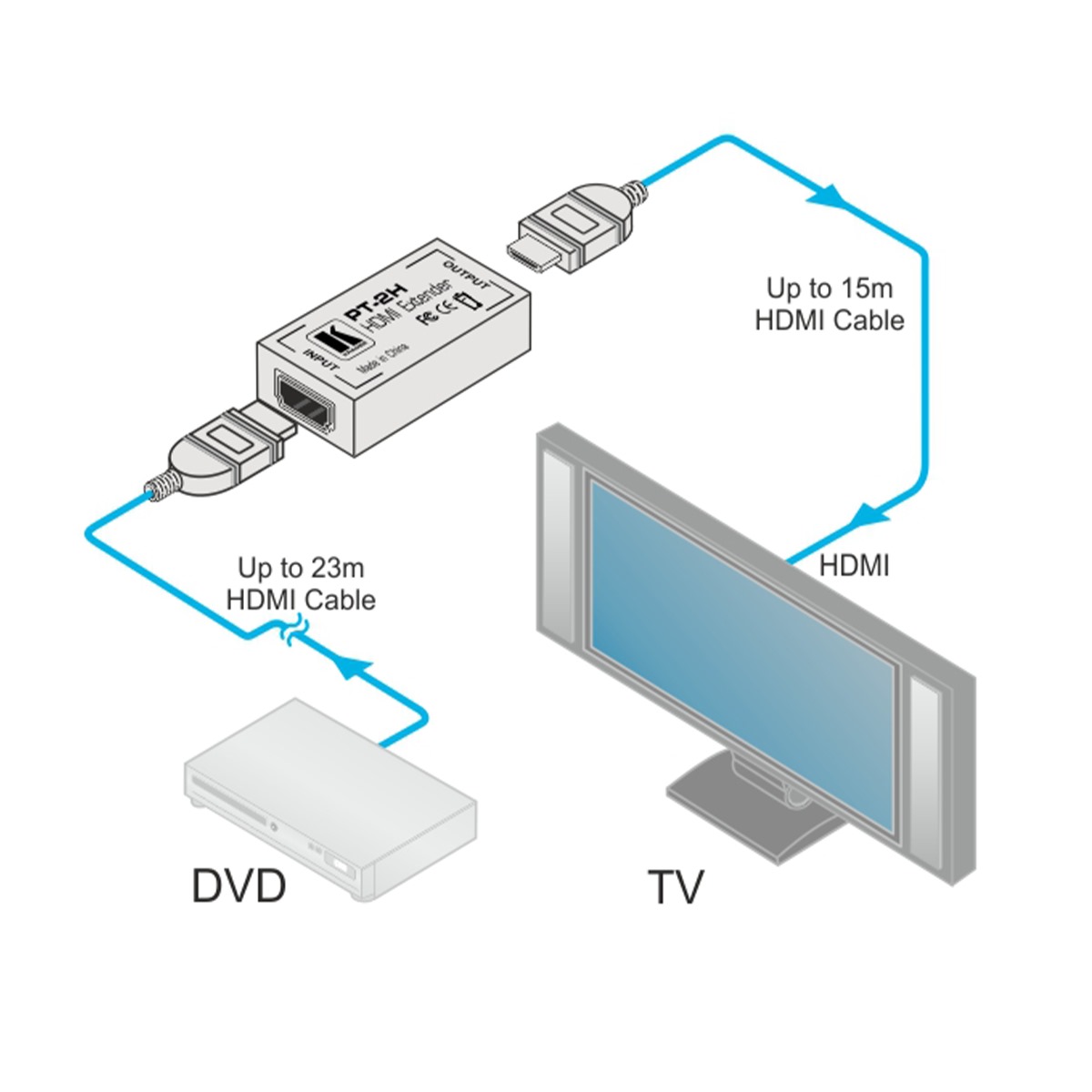

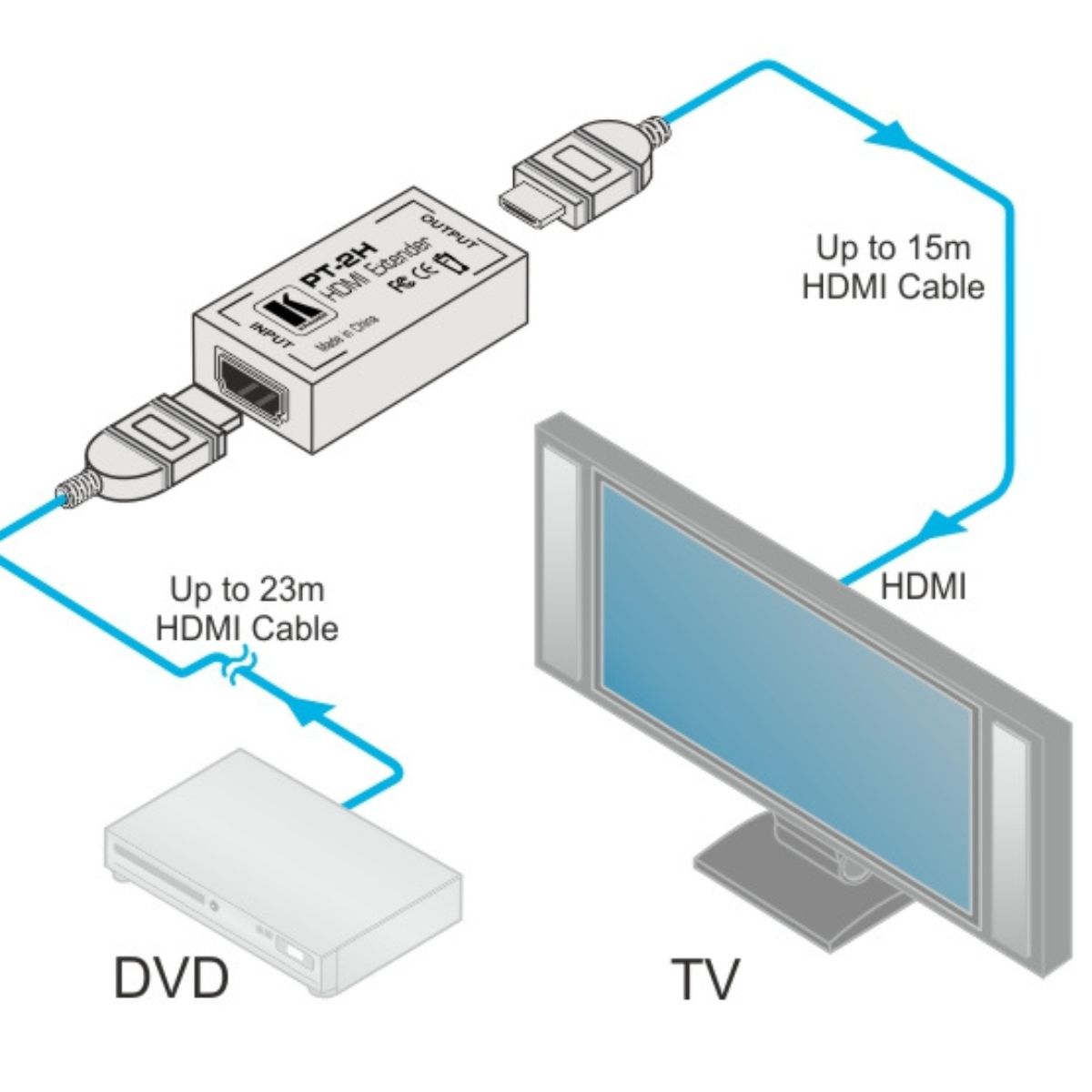

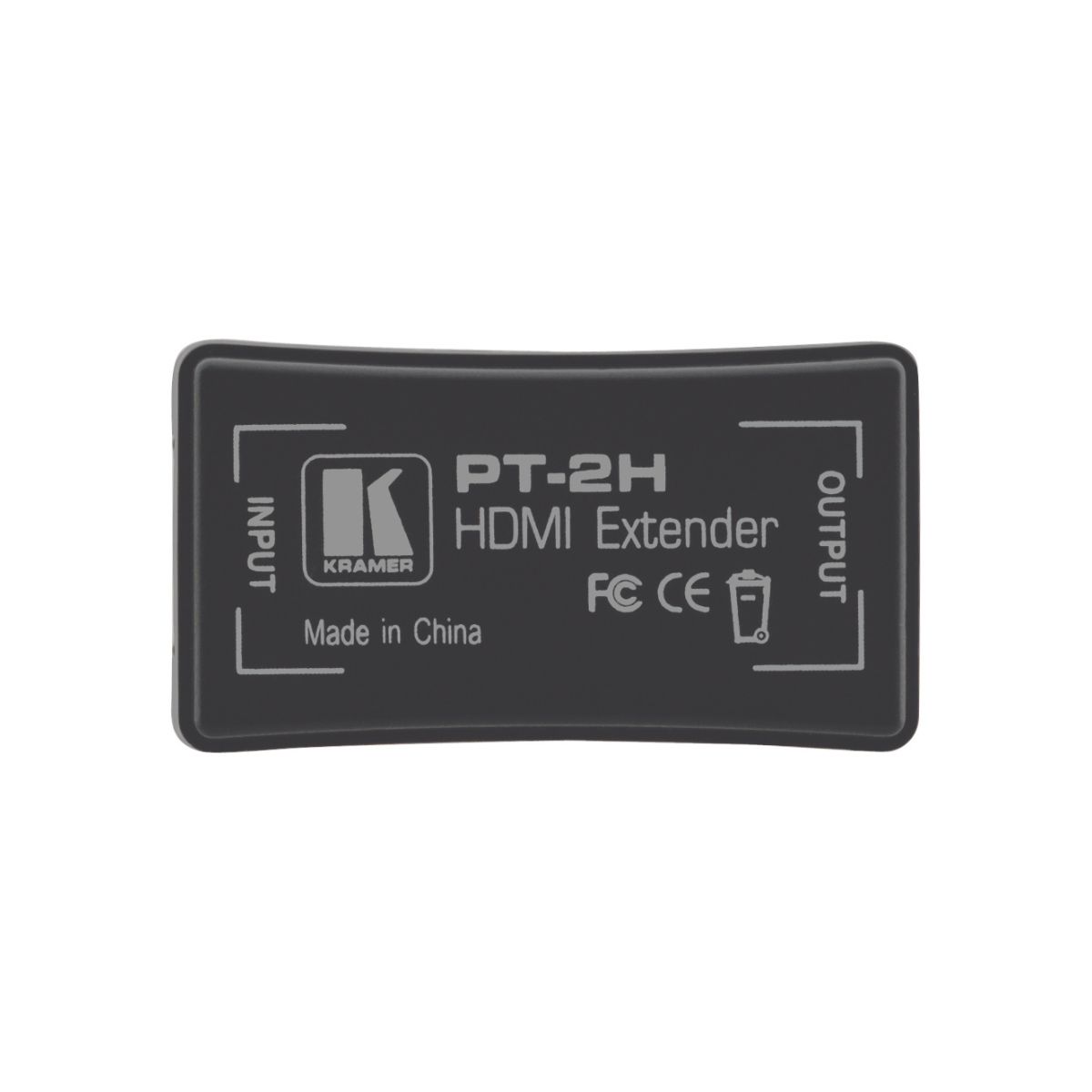

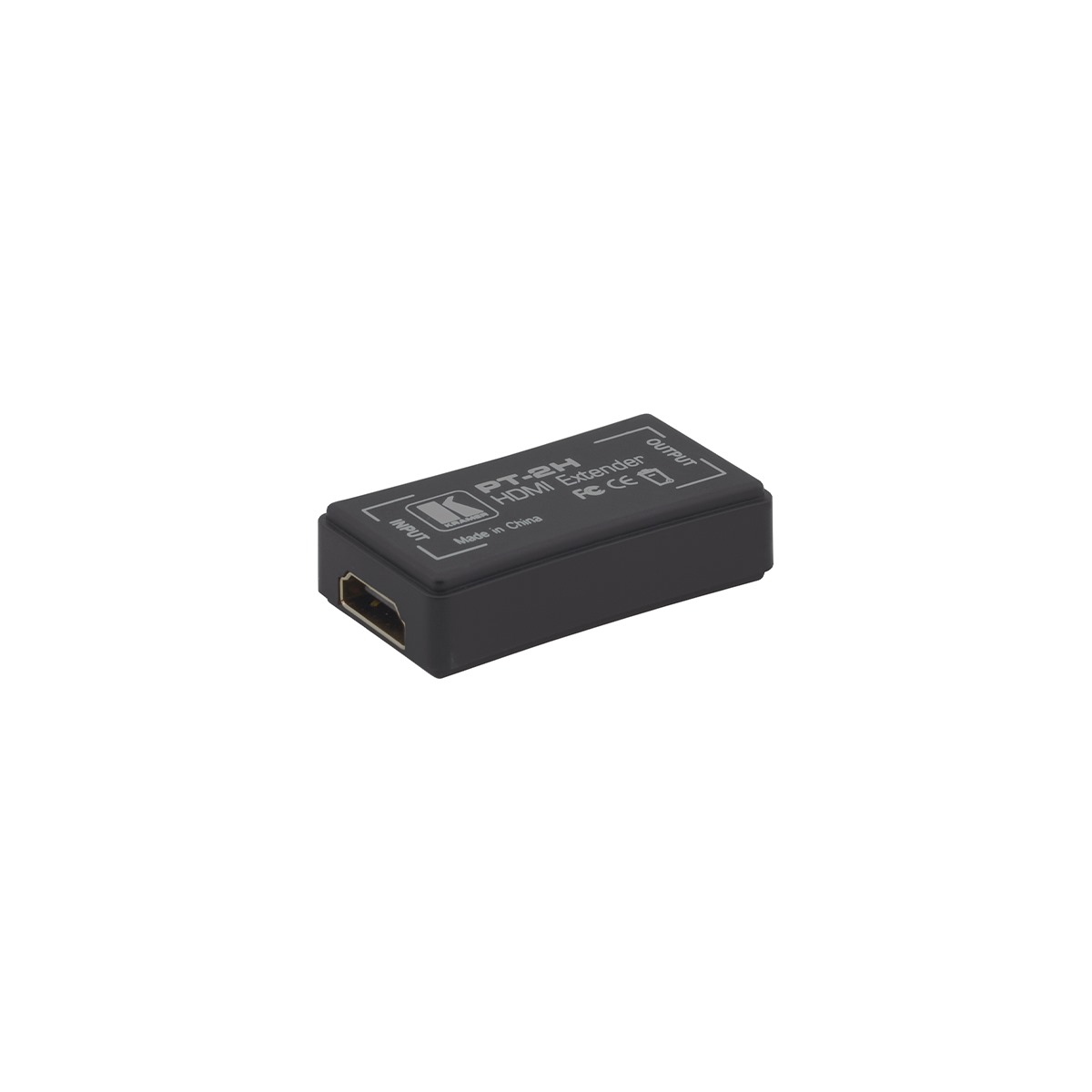

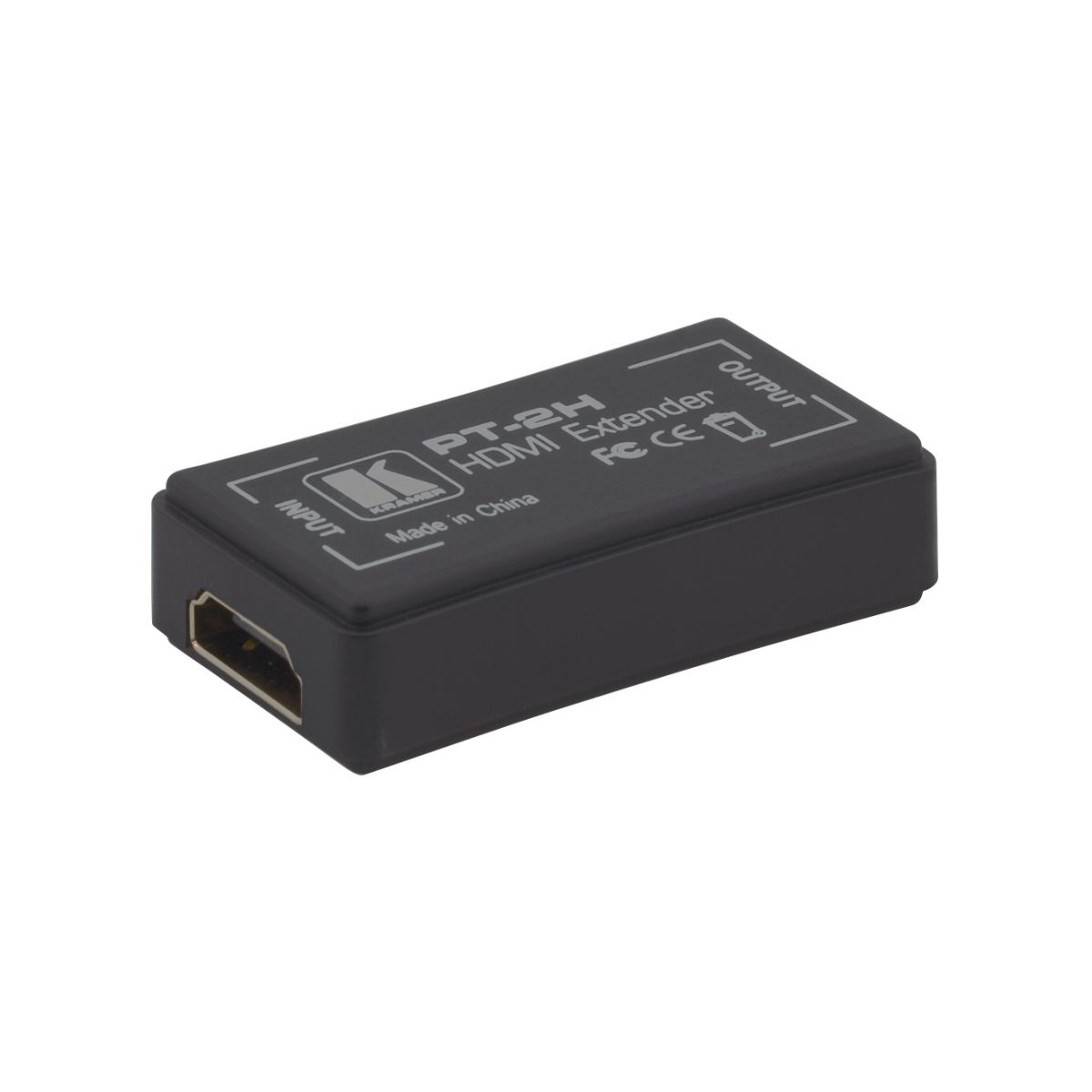

PT-2H HDMI Equalizer

HDMI Equalizer

Highlights

Resolution — Up to 1080p.
HDTV Compatible.
HDCP Compliant.
Range — 38m (120ft).
Powered from HDMI Source.

Download

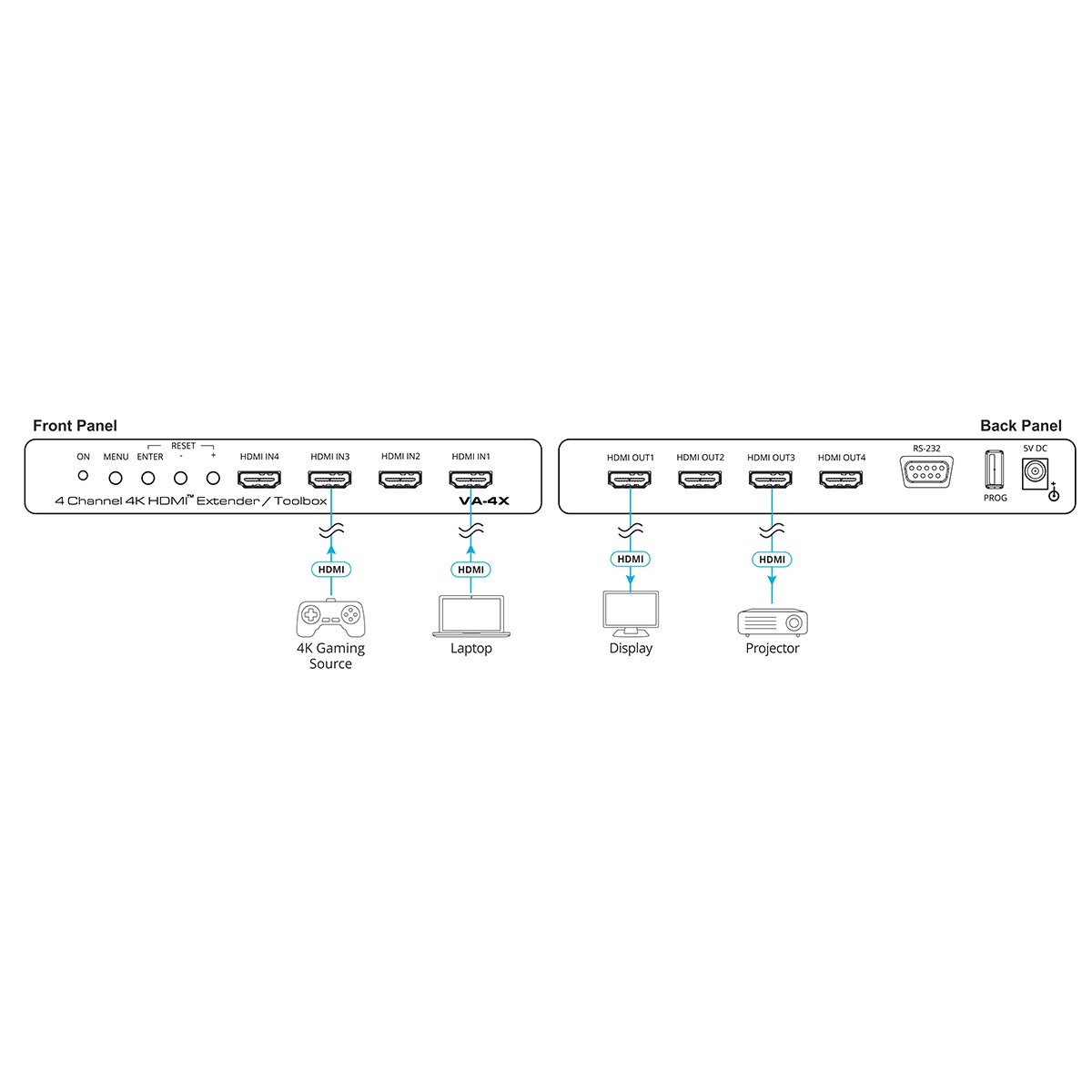

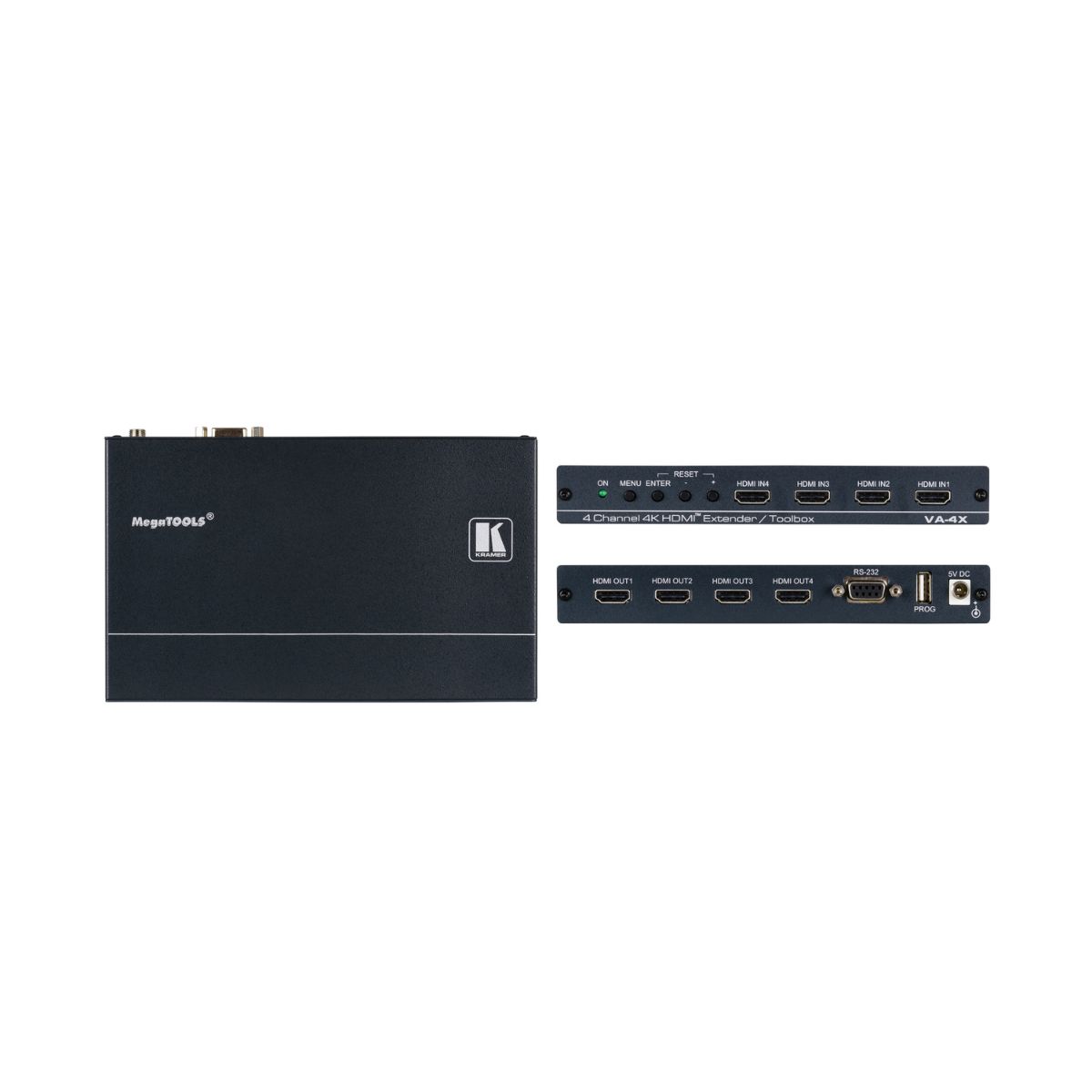

VA-4X 4–Channel 4K HDMI Extender / Toolbox

4–Channel 4K HDMI Extender / Toolbox

Highlights

4 independent HDMI channels in one device
Equalizes and reclocks all signals
Max resolution 4K@60Hz (4:4:4)
Interoperability between HDCP 1.4 and HDCP 2.2
Chroma sampling reduction (4K60 4:4:4 to 4K60 4:2:0 conversion)
EDID management
Independent pattern generator for each channel

Download

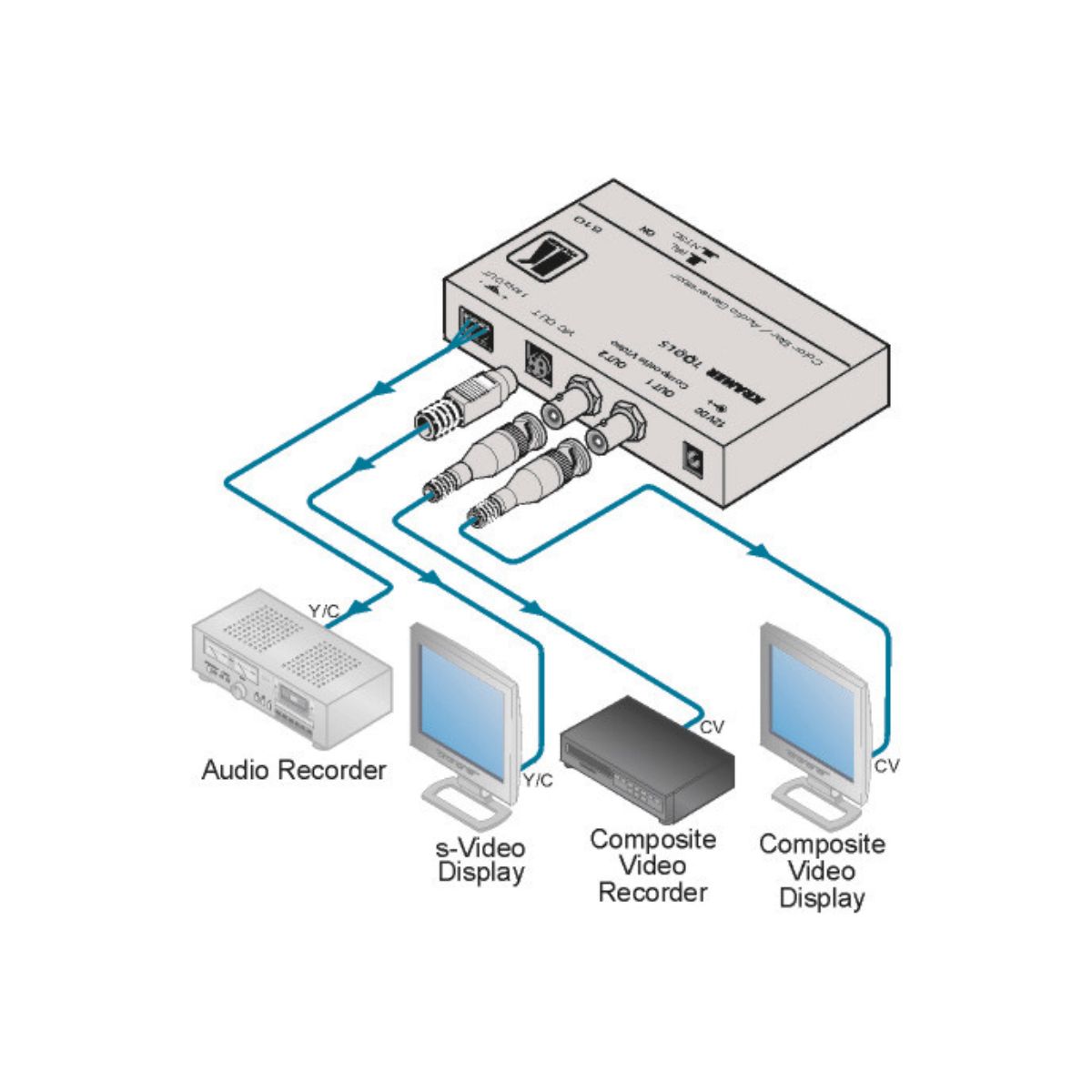

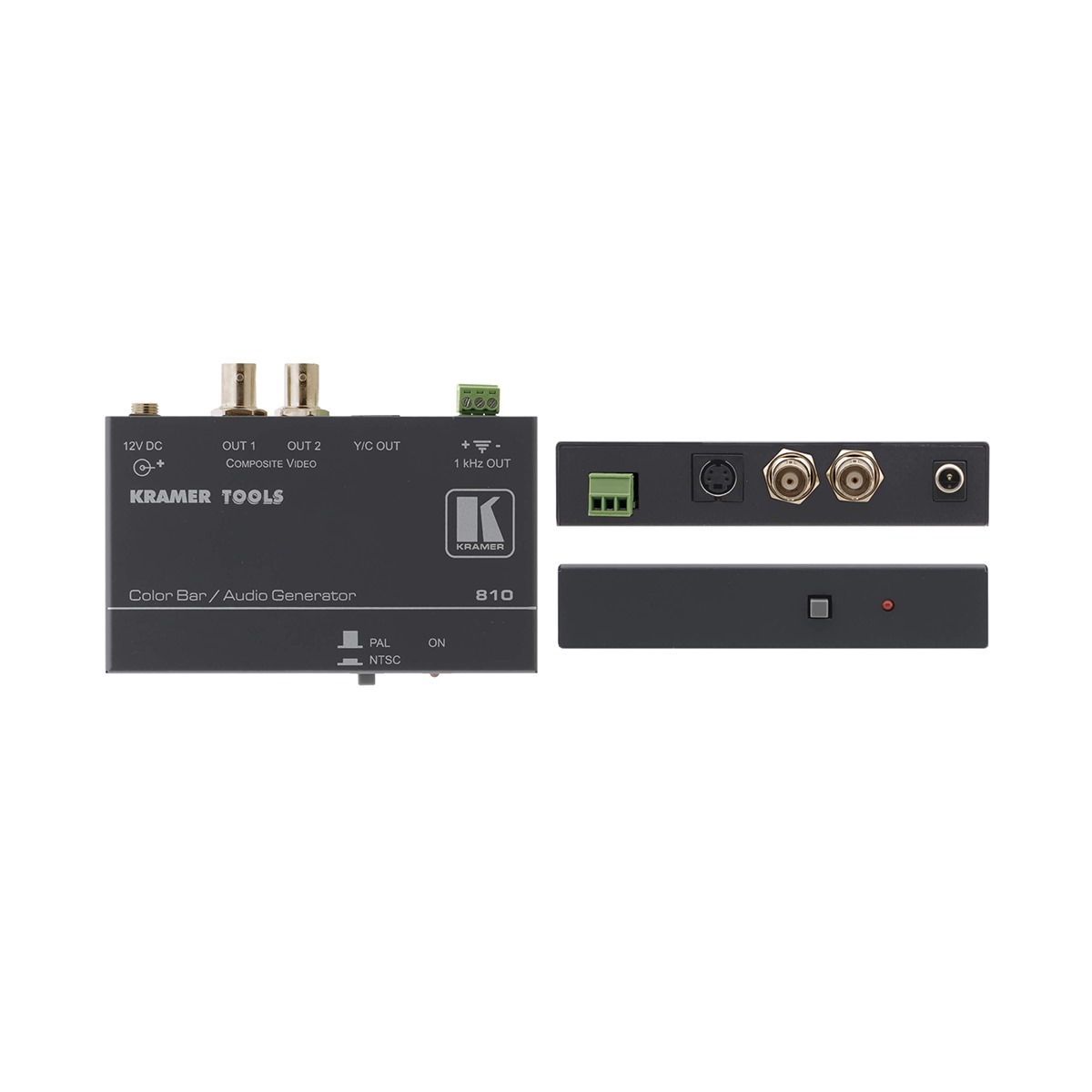

810Composite Video & s–Video Color Bar/Audio Tone Generator

VIDEO OUTPUTS

2 75% color bar on BNC connectors, 1Vpp/75Ω
1 75% s–Video color bar on a 4–pin connector, 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C)

AUDIO OUTPUT

Unbalanced stereo audio, 1kHz, 4dBu/47Ω on a detachable 3–pin terminal block

VIDEO S/N RATIO

75dB

CONTROL

PAL/NTSC selector switch
audio level control (trimmer)

Download

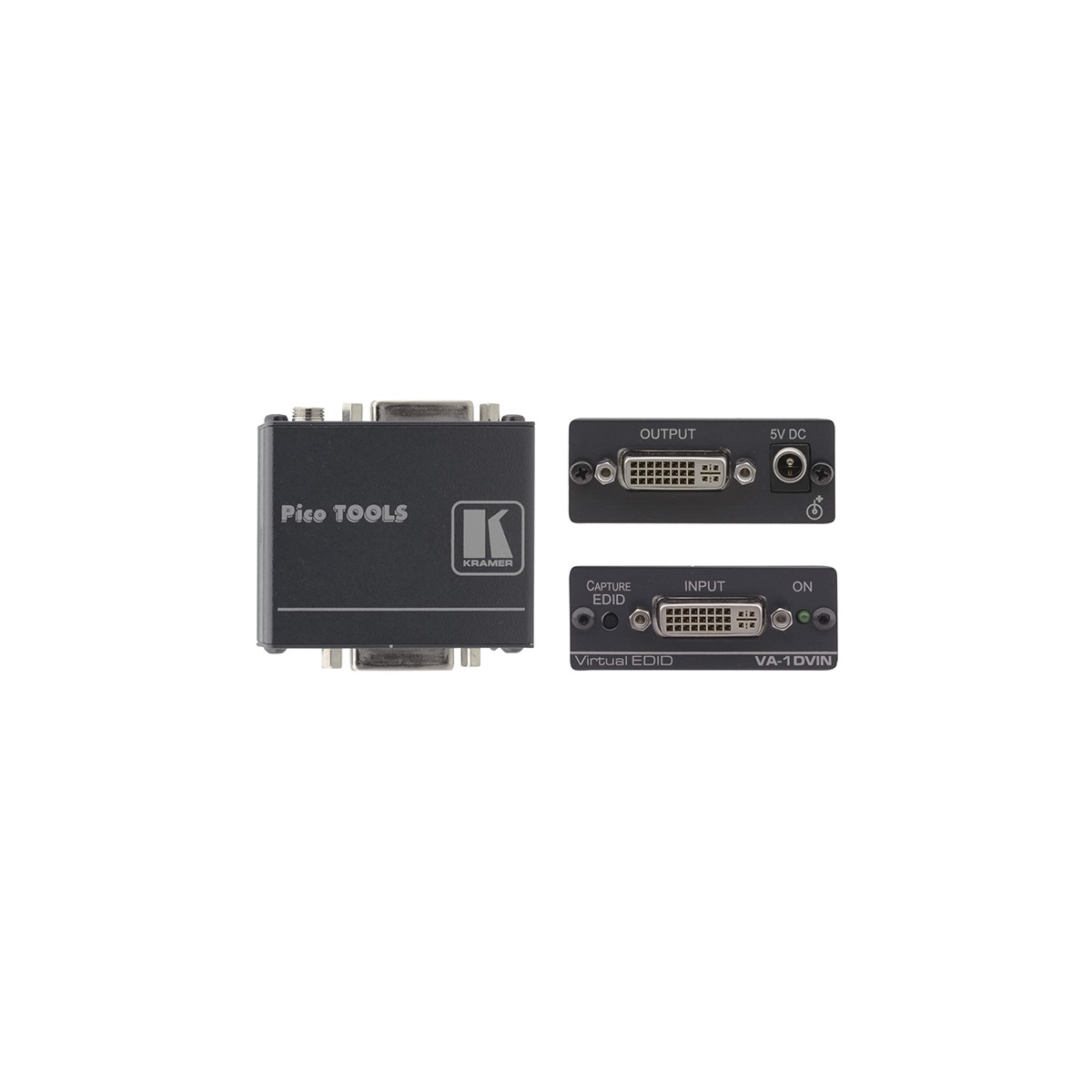

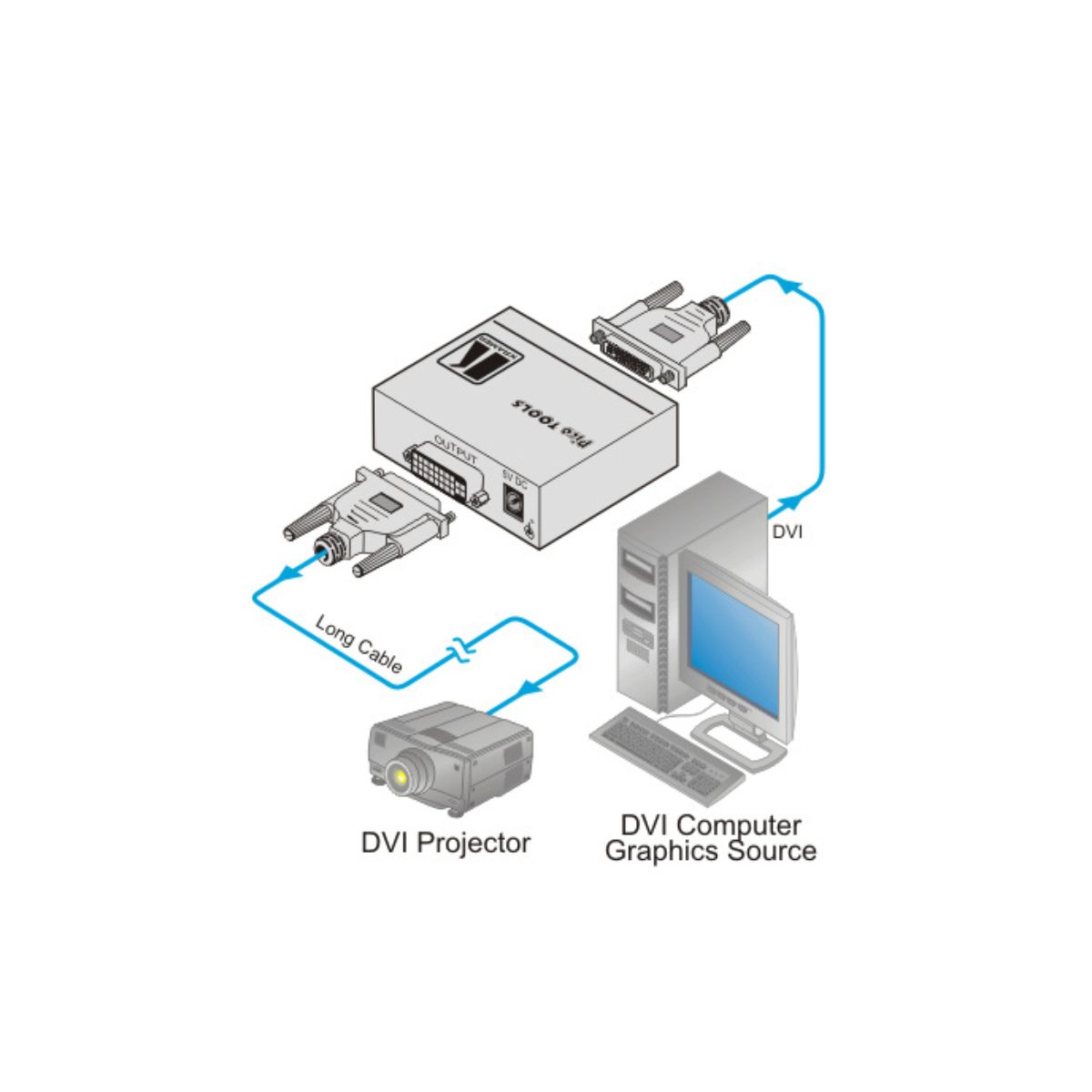

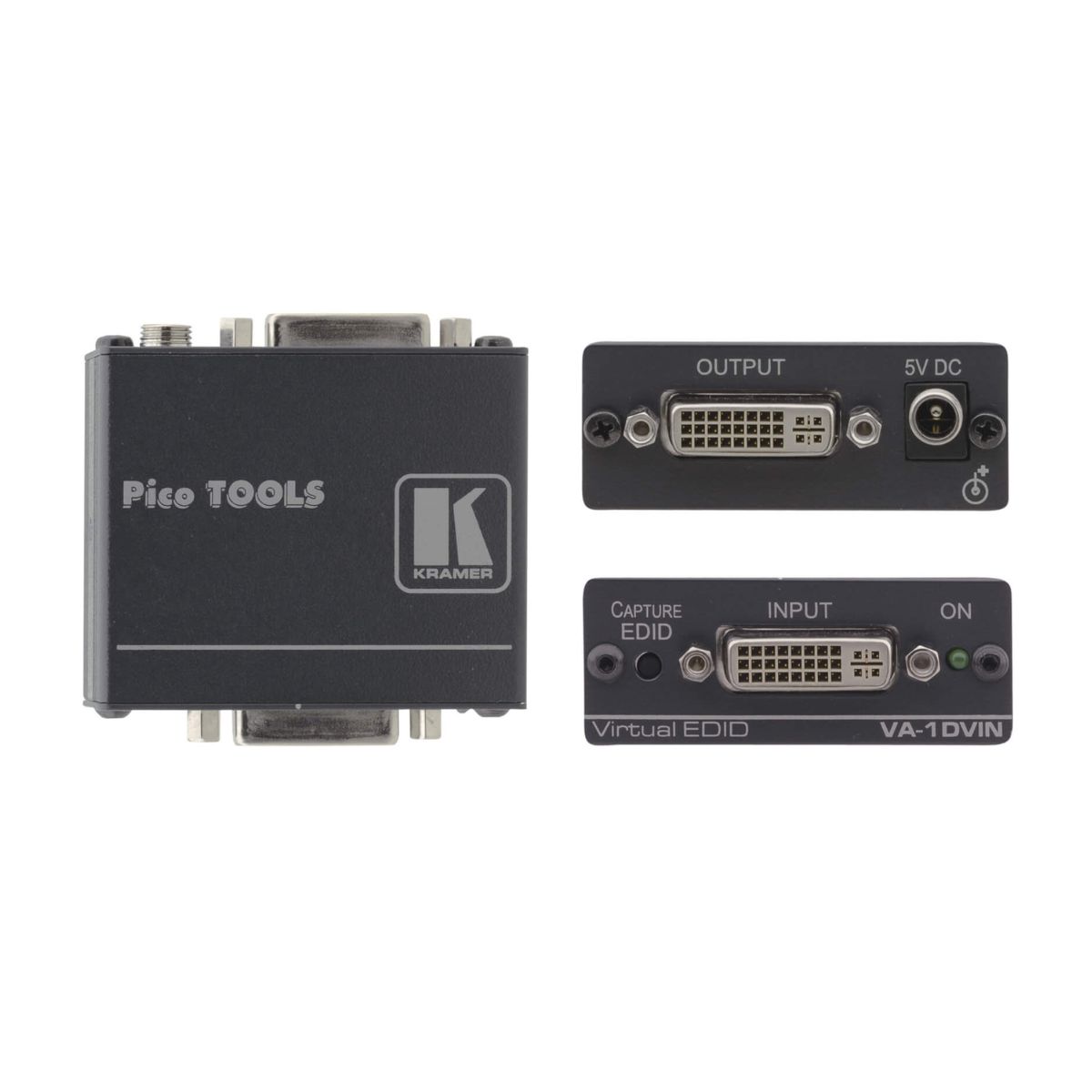

VA-1DVIN DVI EDID Emulator

DVI EDID Emulator

Highlights

Max. Data Rate — 3.3Gbps per graphic channel.
Input/Output — Passes analog signals on the DVI–I connector without processing.
Control — Capture button.

Download

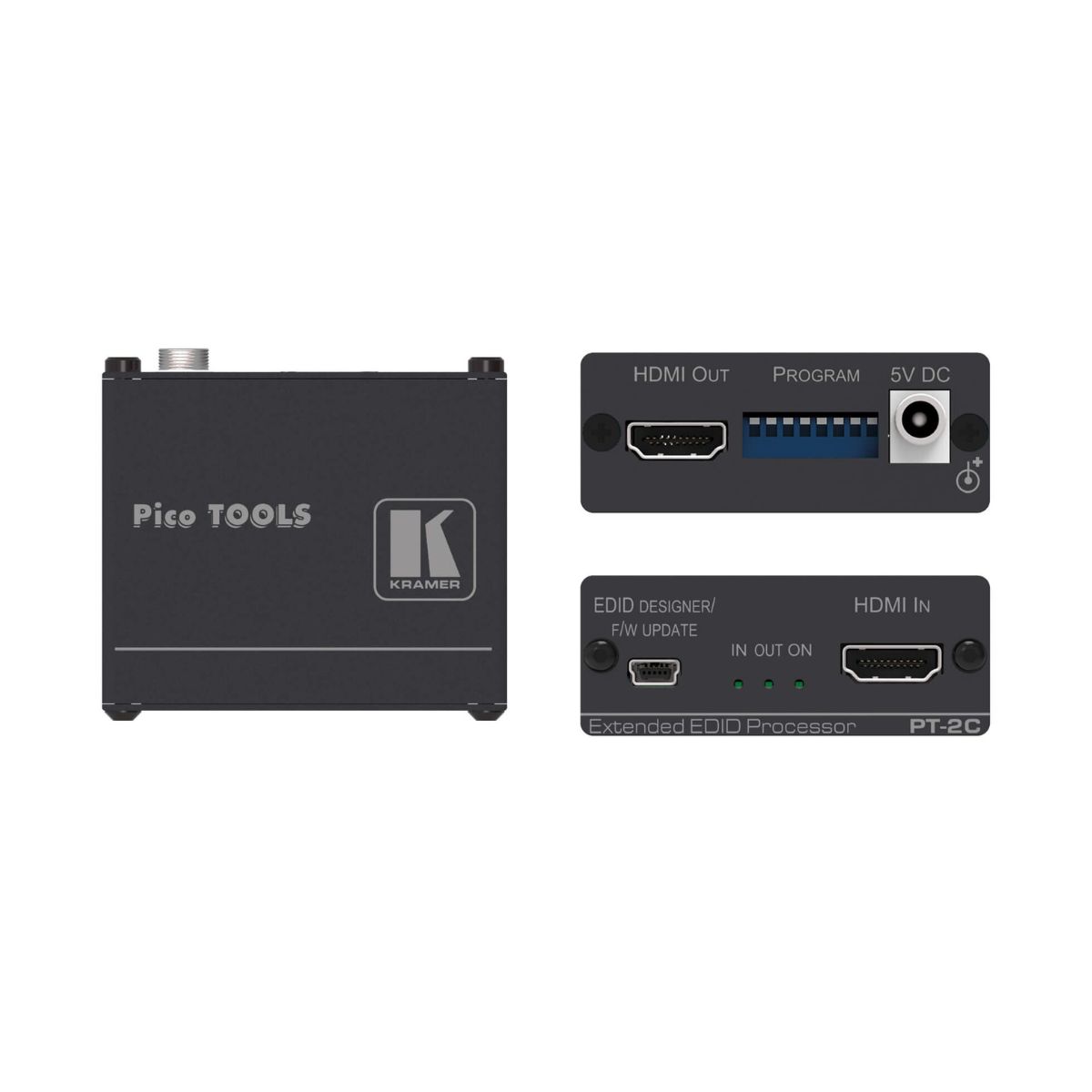

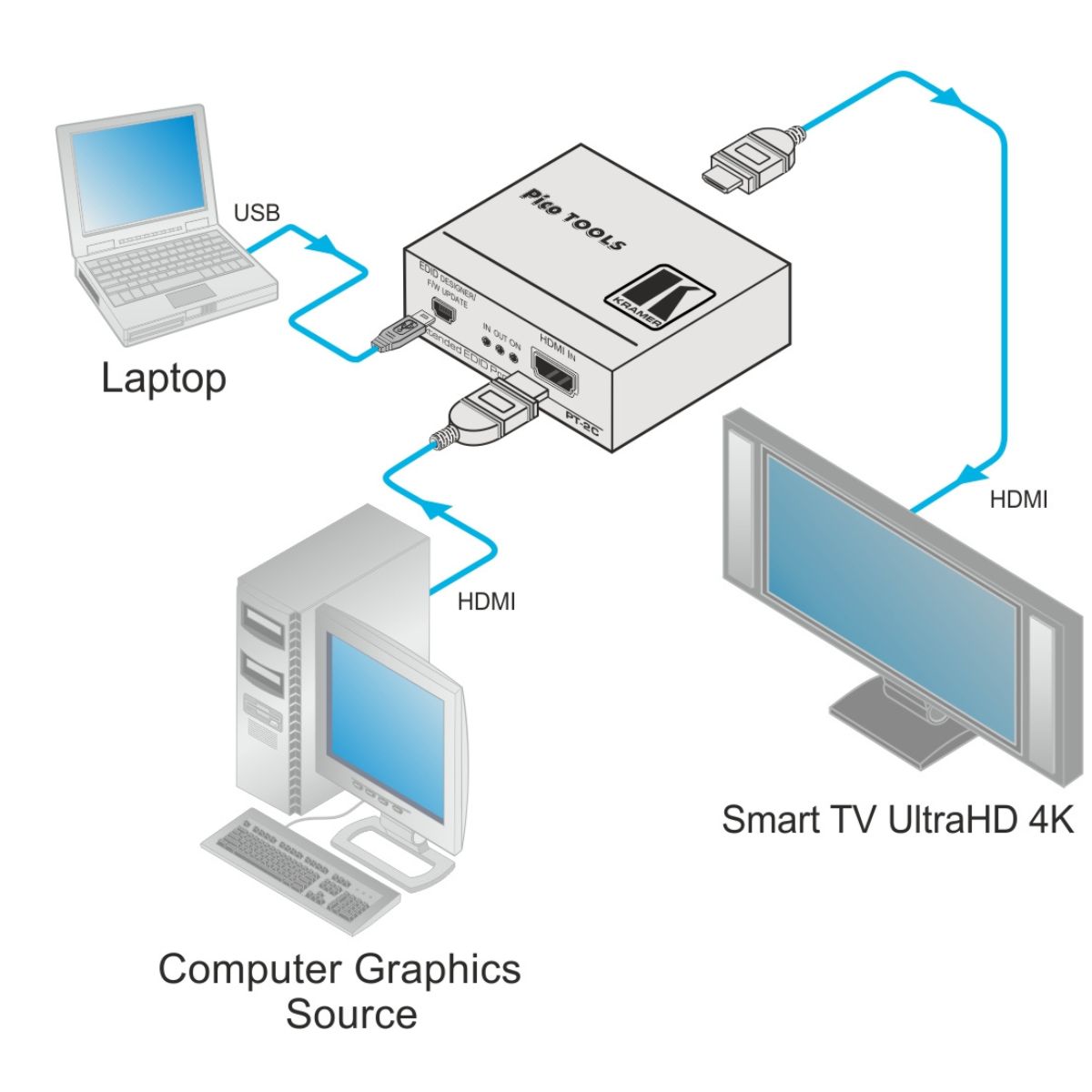

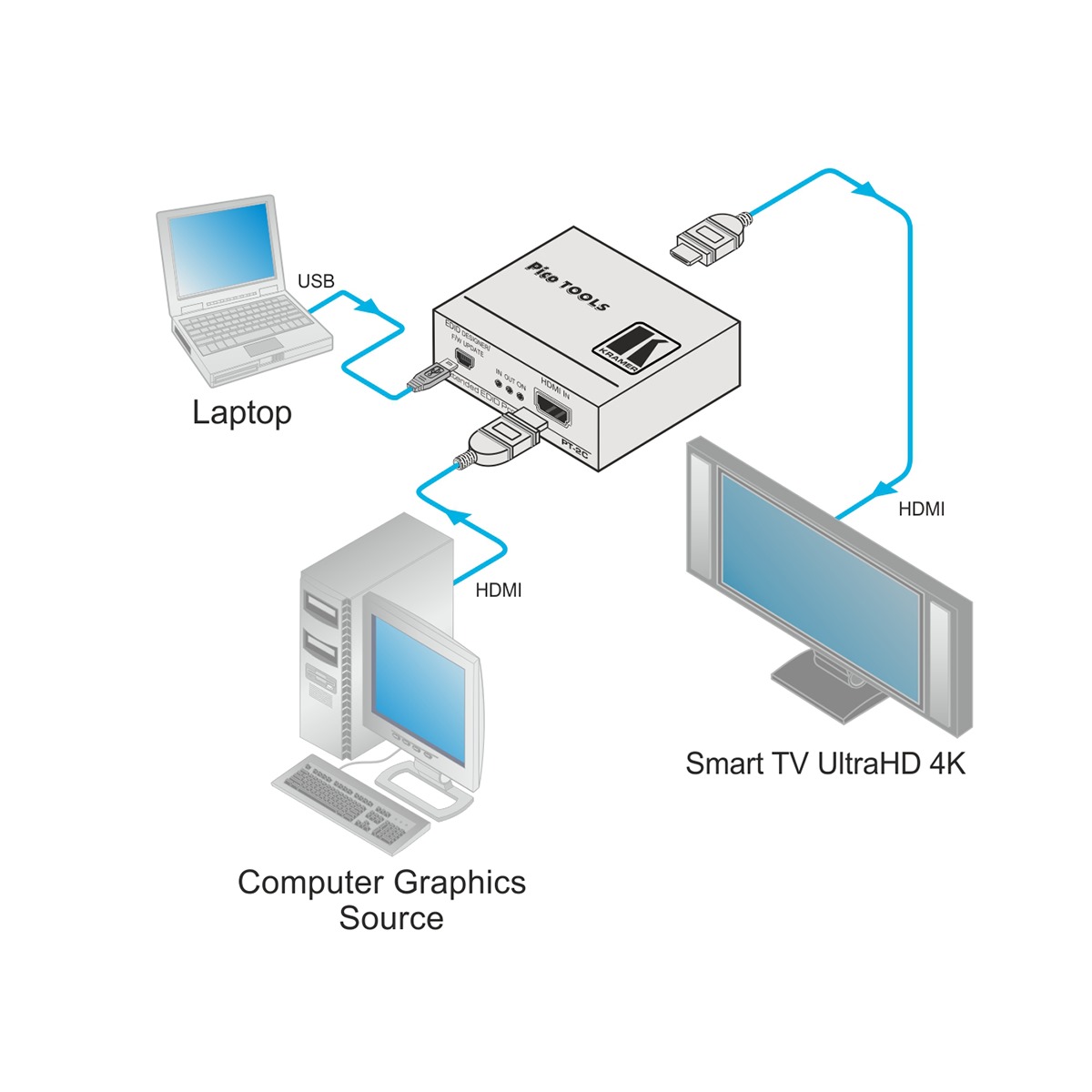

PT-2C 4K60 4:2:0 Extended EDID Processor

4K60 4:2:0 Extended EDID Processor

Highlights

Max. Resolution — 4K@60Hz (4:2:0).
Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
HDMI Compliance.
Signal Reclocking.
Active Video Signal Source Detection.
Configurable Timeout — For when the input signal is lost.

Download

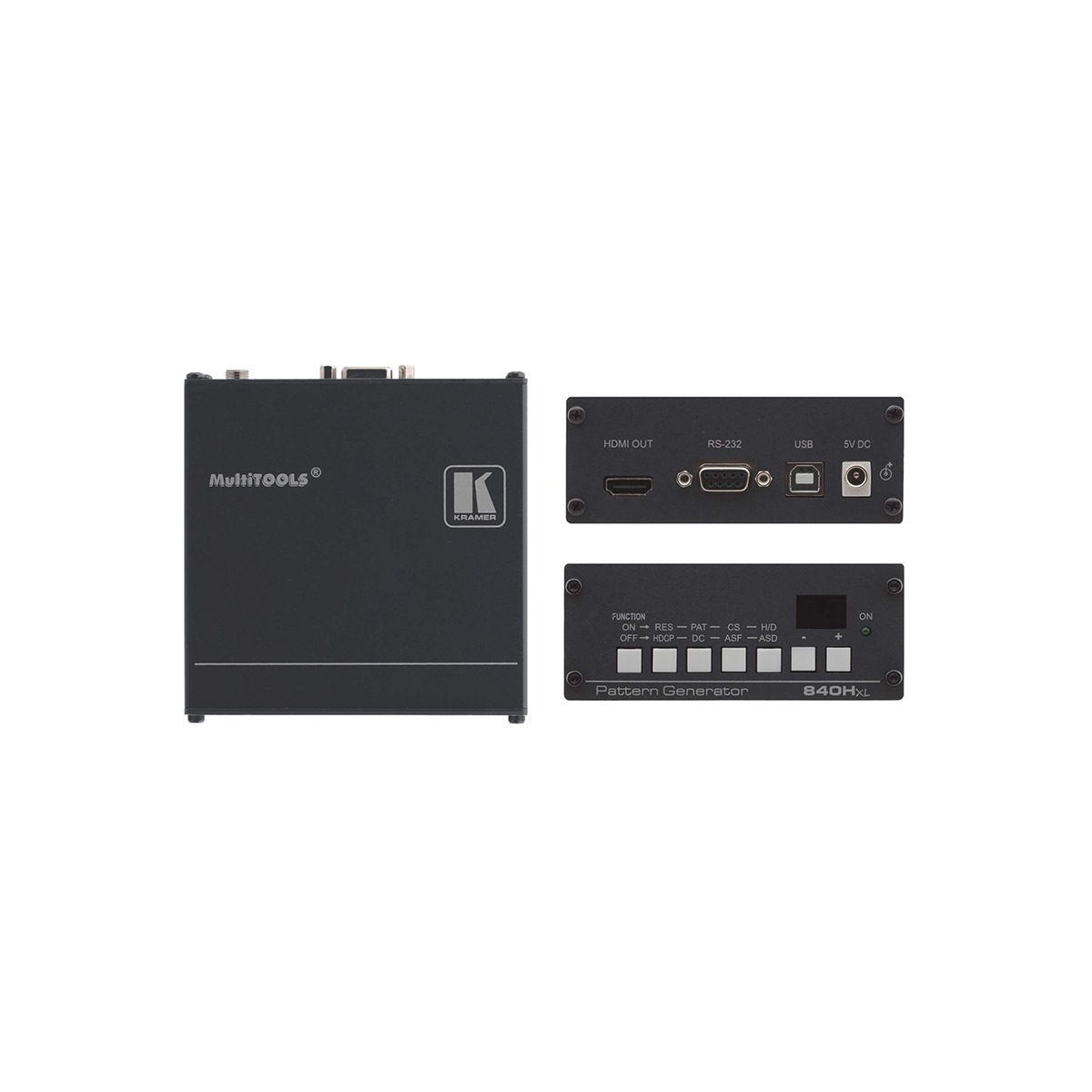

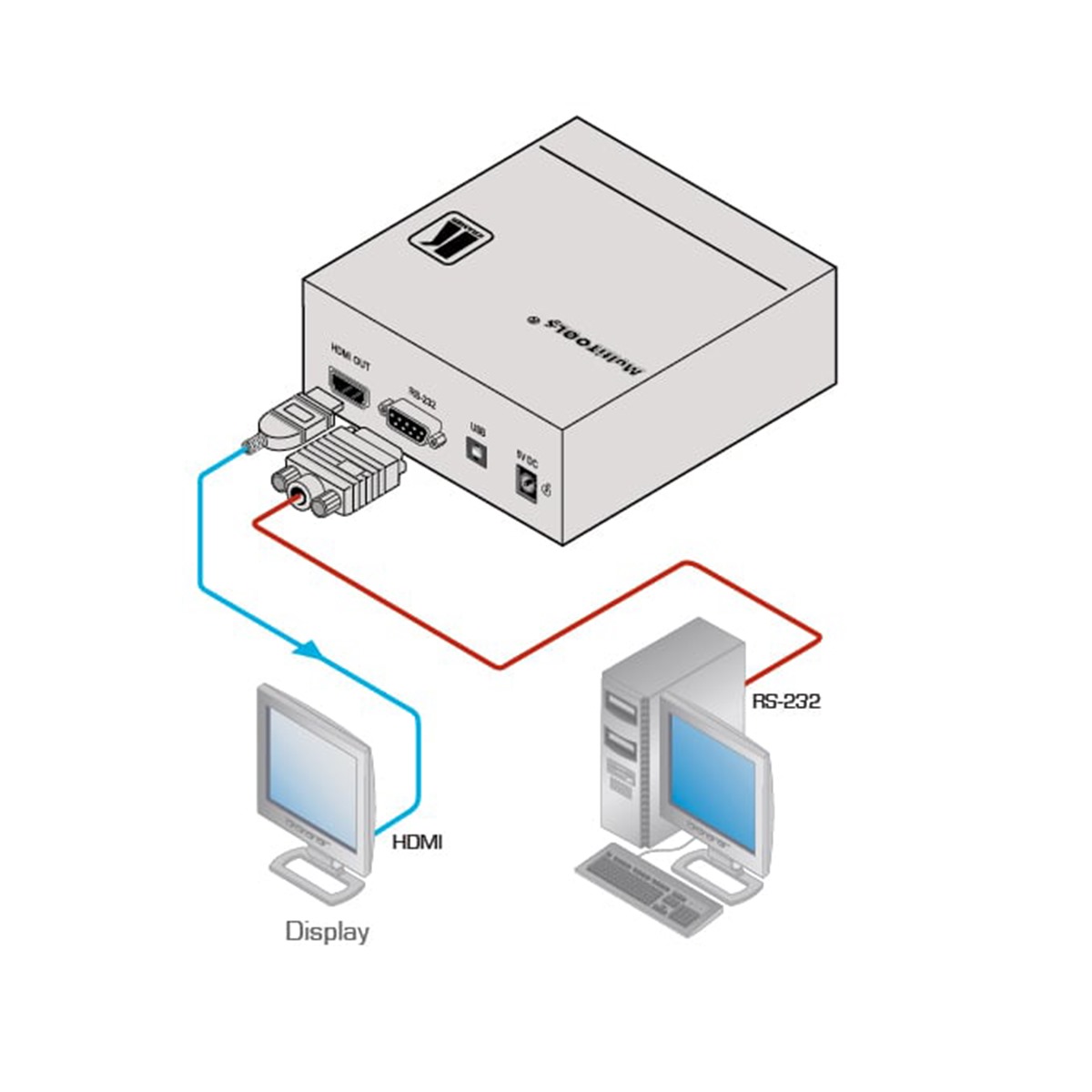

840Hxl HDMI Video Test Pattern Generator

HDMI Video Test Pattern Generator

Highlights

Patterns — 32.
Output Resolutions — All common PC and HDTV resolutions.
Color Space — RGB, YUV 444, YUV 442 & auto.
Embedded Audio — 6 sample rates & 3 bit depths.
HDTV Compatible.
Controls — HDCP On/Off, Embedded Audio On/Off.

Download

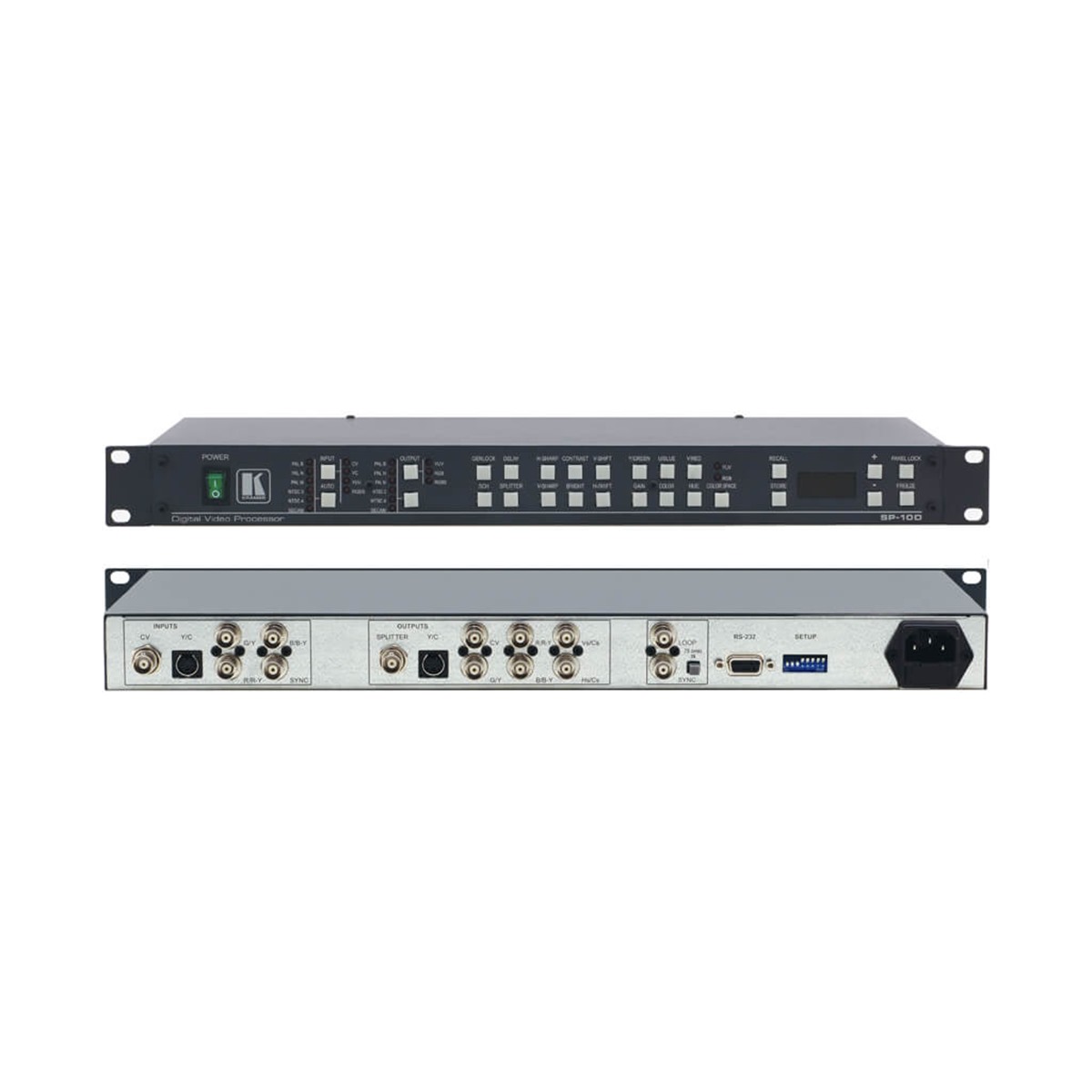

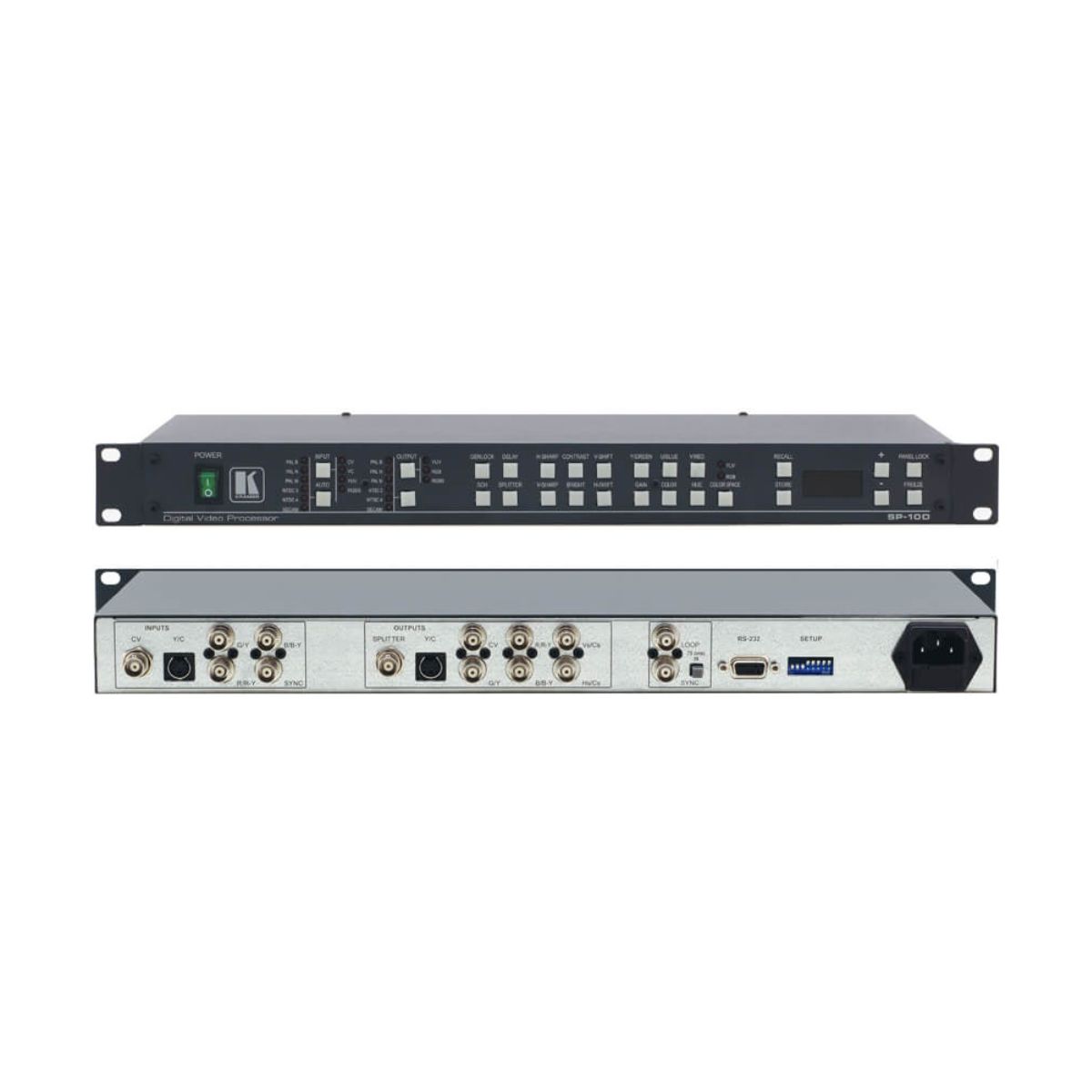

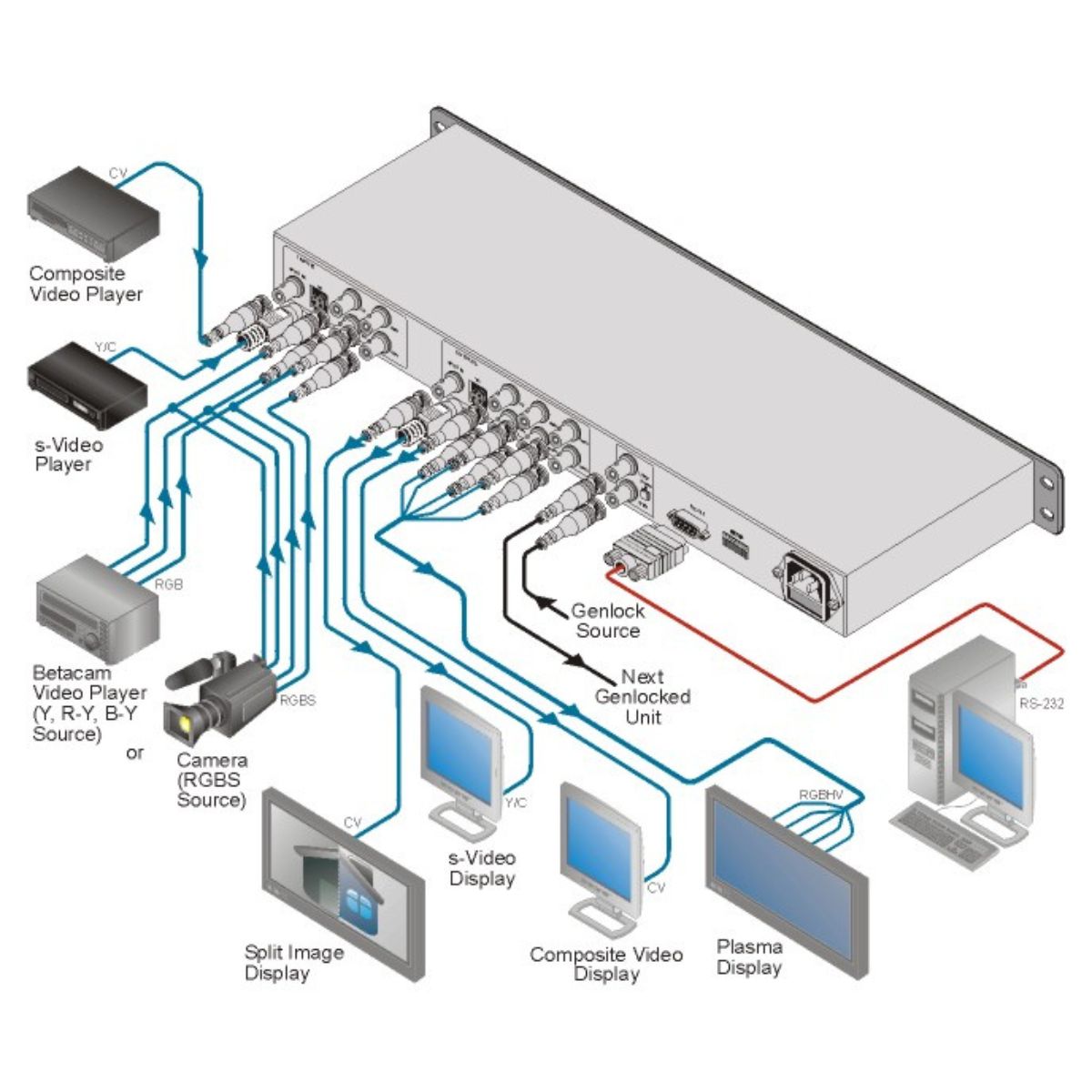

SP-10D ProcAmp/TBC/Format & Standards Converter

Multi–Format Analog Video Processor/ProcAmp/TBC/Format & Standards Converter

Highlights

Video Processor
Format Converter
ProcAmp
TBC
Standards Converter
Genlock Input
Split–Screen
Control — RS–232

Download

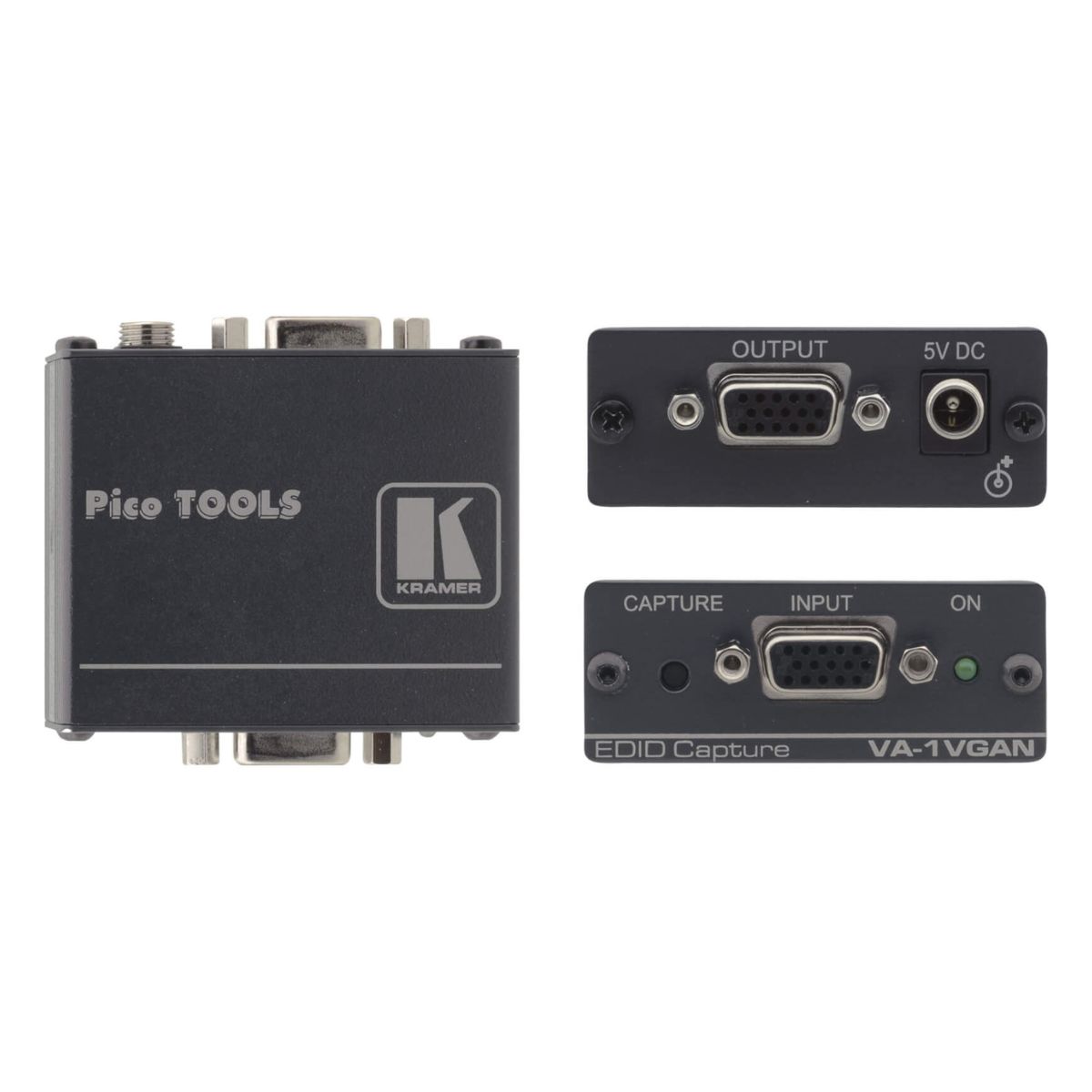

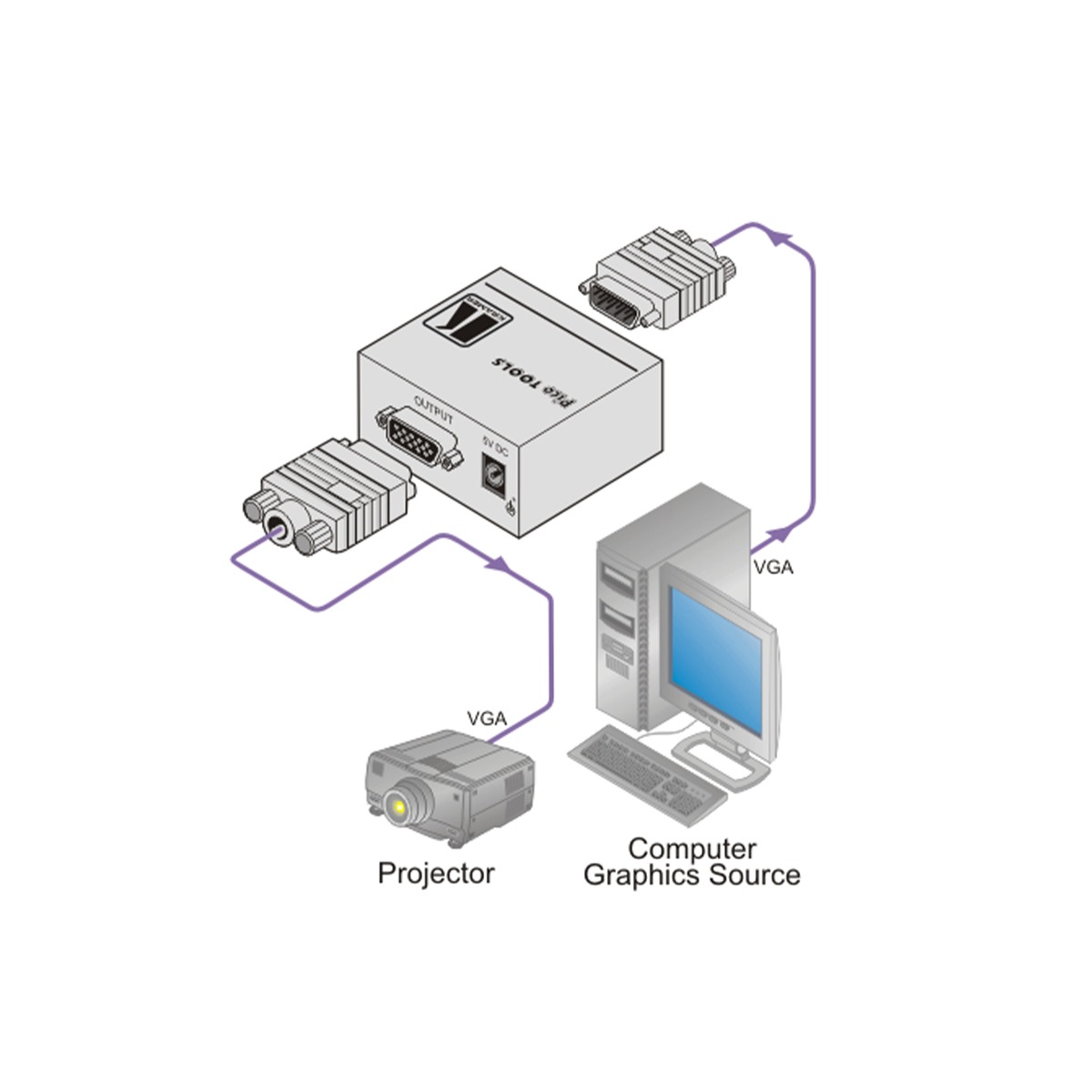

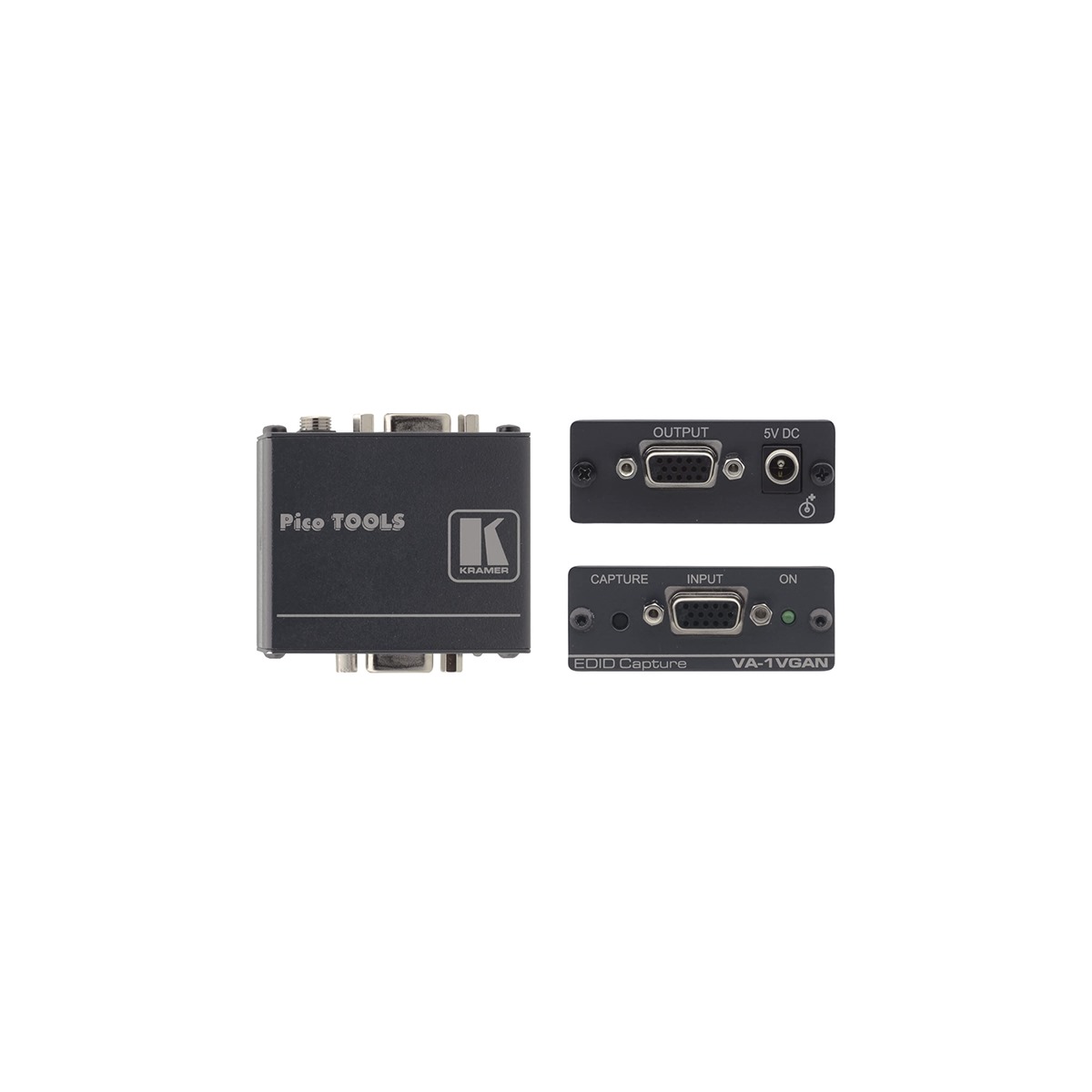

VA-1VGAN Computer Graphics Video EDID Emulator

Computer Graphics Video EDID Emulator

Highlights

Stores EDID Settings
Bandwidth — 1.8GHz.
Control — Capture button.
The VA-1VGAN is an EDID emulator for computer graphics video signals. The unit can capture an EDID setting in non-volatile memory from the output allowing convenient and reliable connection to the source.

Download
