Standard Cable Assemblies Product Listing Details

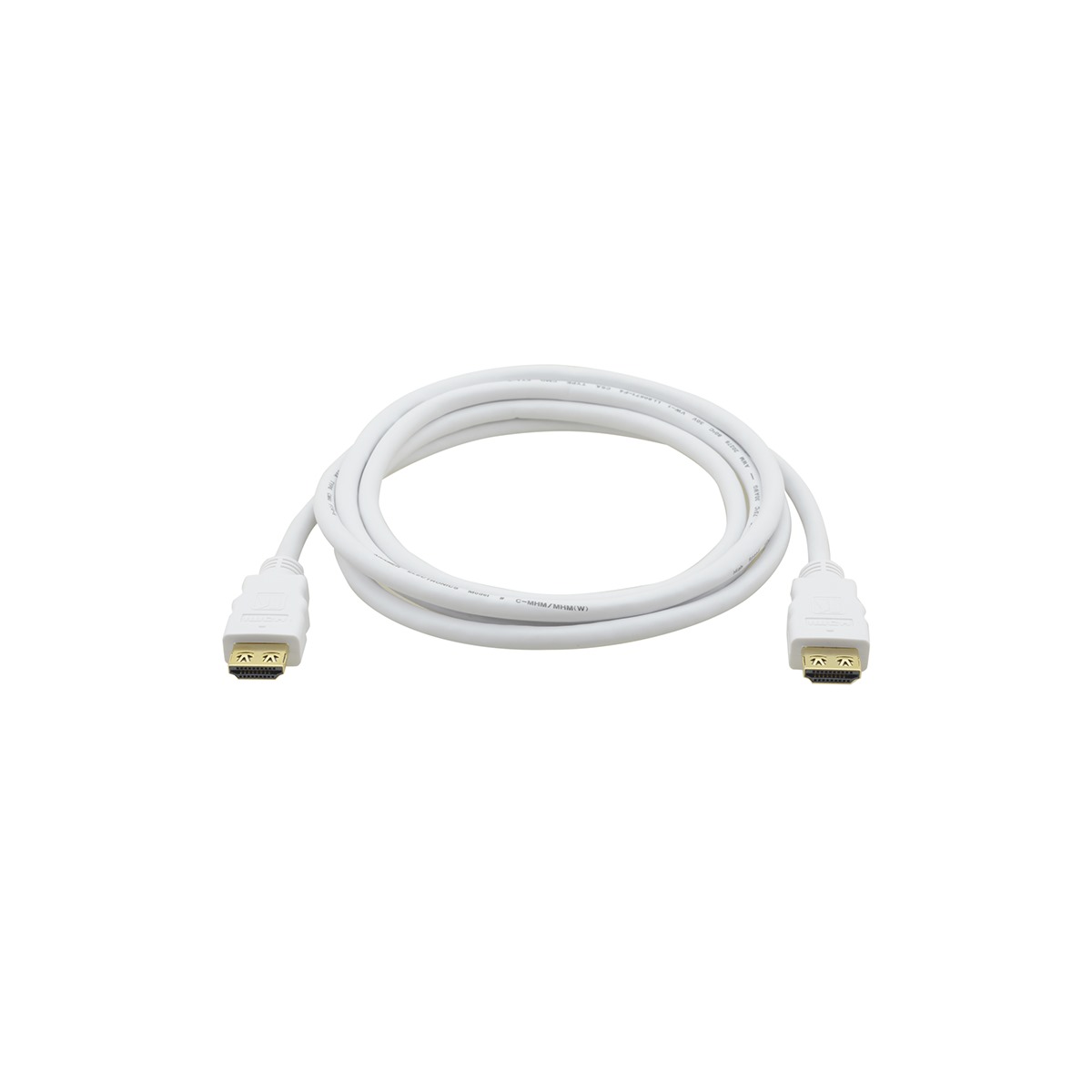

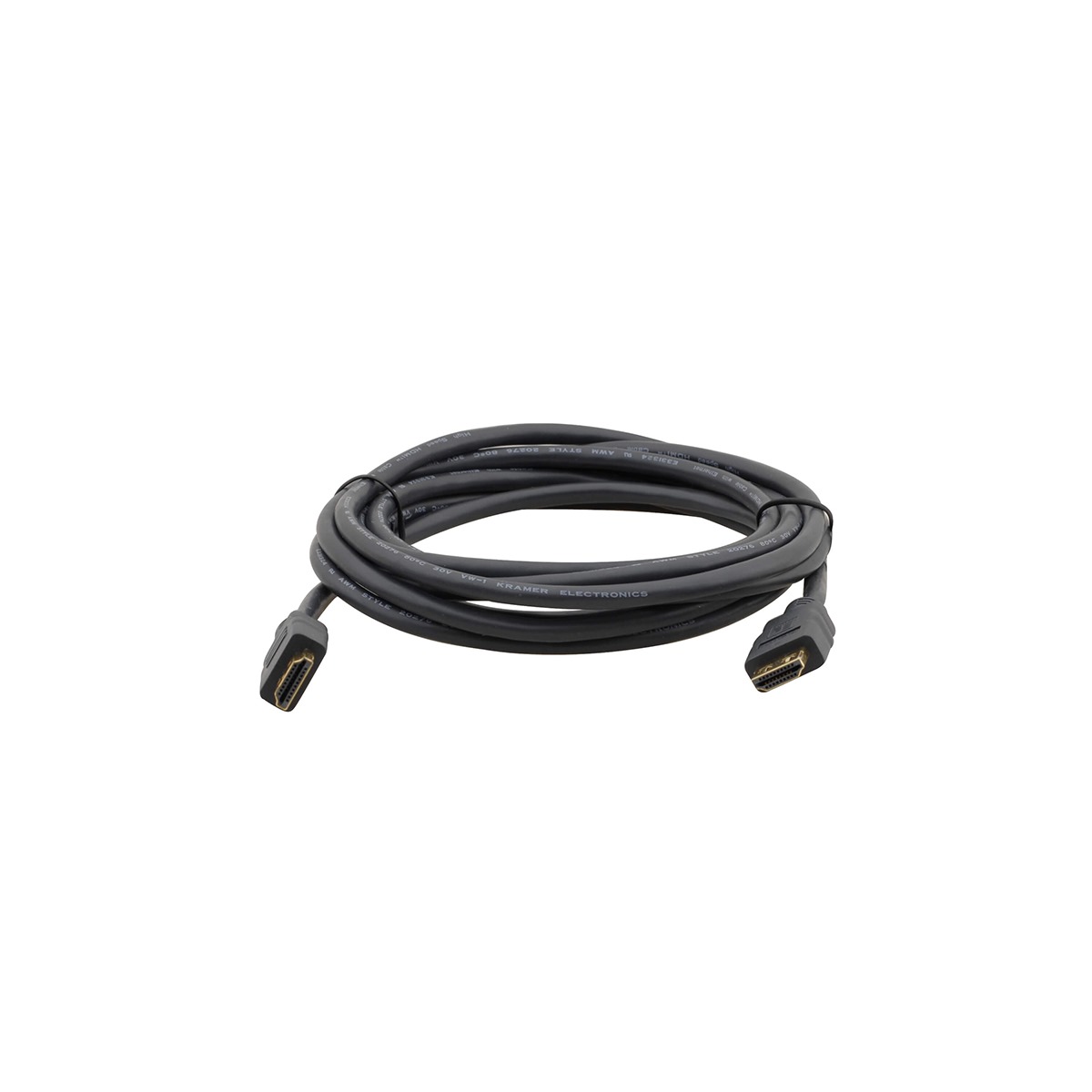

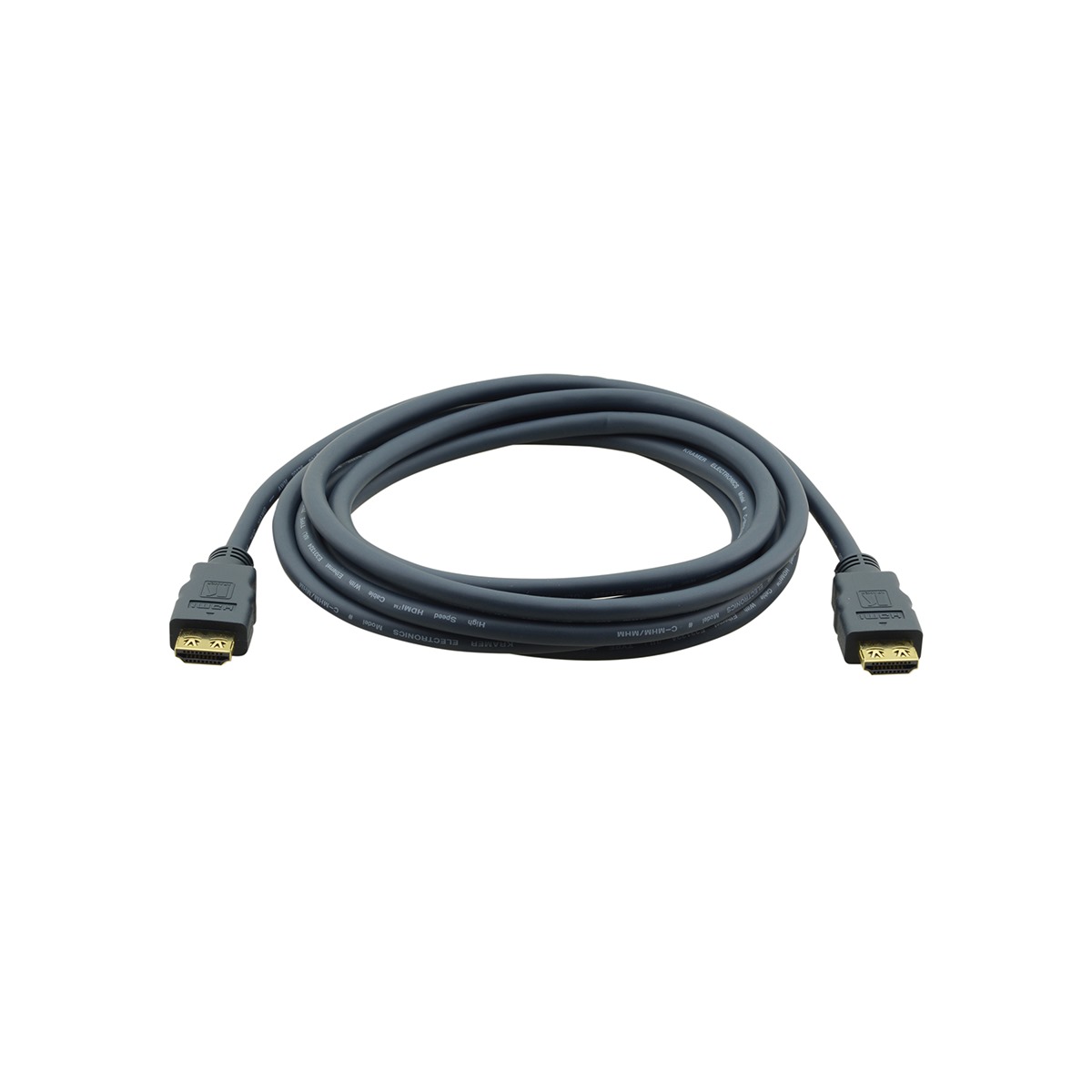

C-MHM/MHM HDMI Cable with Ethernet

Flexible High–Speed HDMI Cable with Ethernet

Highlights

• Max. Resolution — 4K@60Hz (4:4:4).
•  K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
•  Available Colors — gray and white.
•  Varied Selection of Lengths — Available in versions of 0.3 to 10.7m (1, 2, 3, 6, 10, 15, 25 and 35ft).

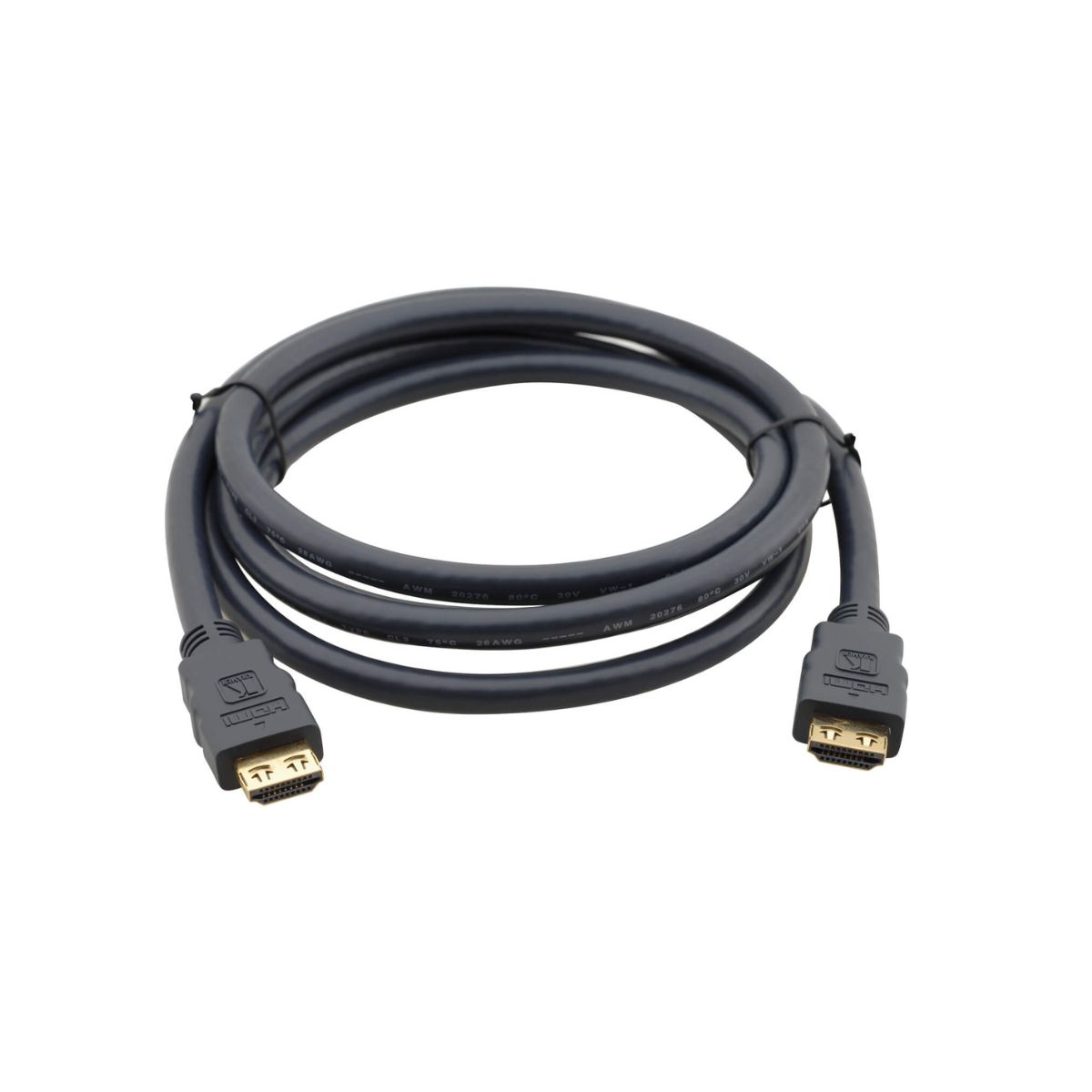

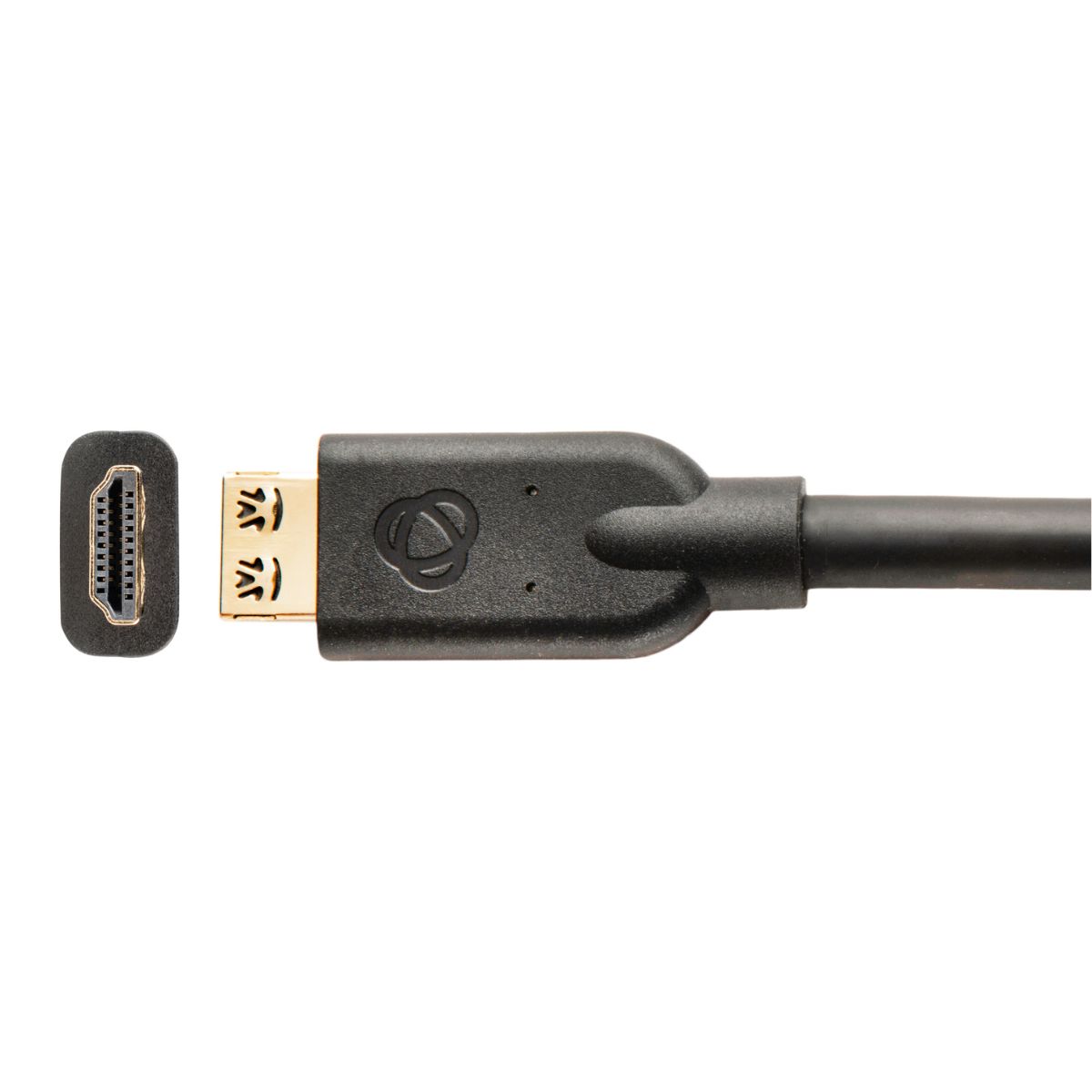

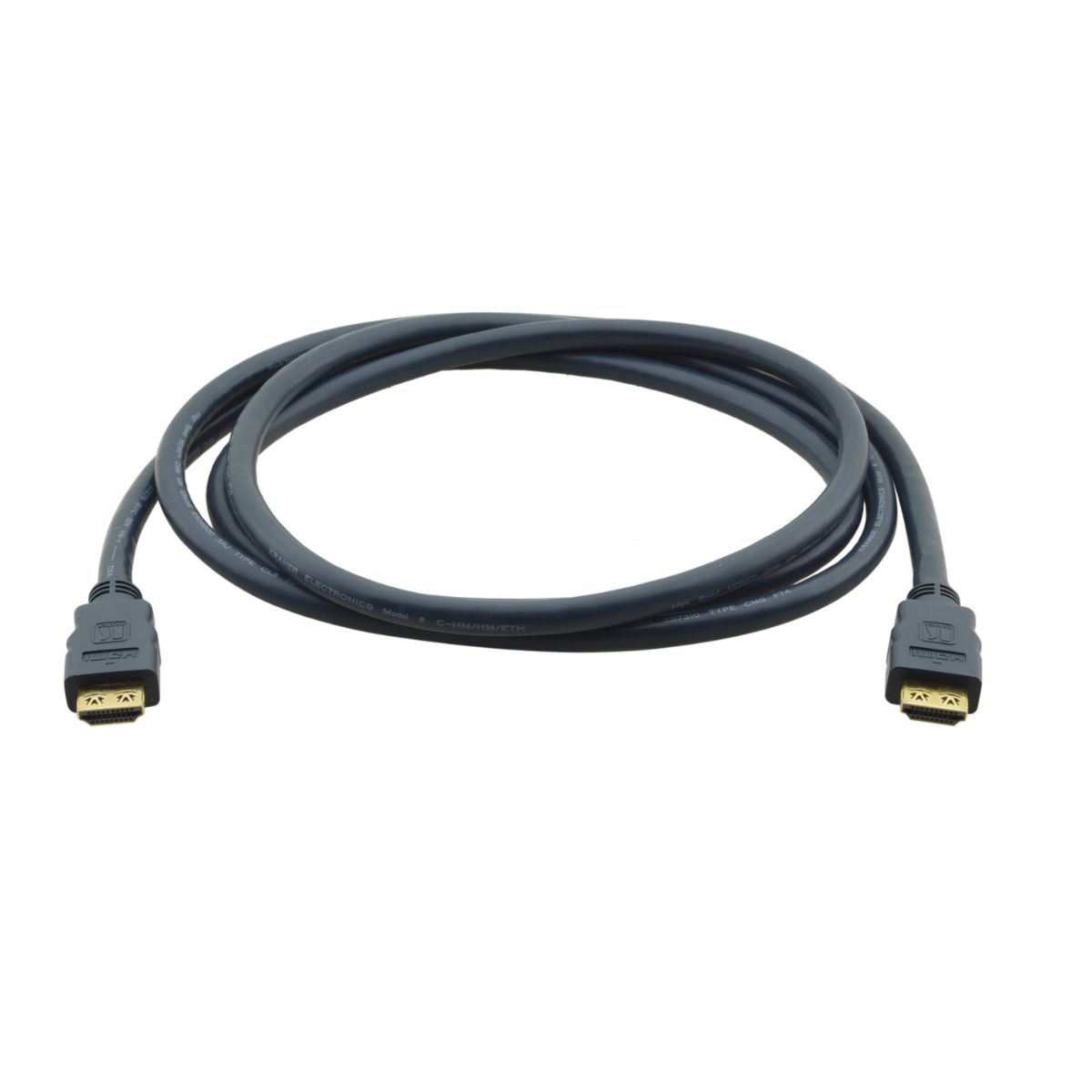

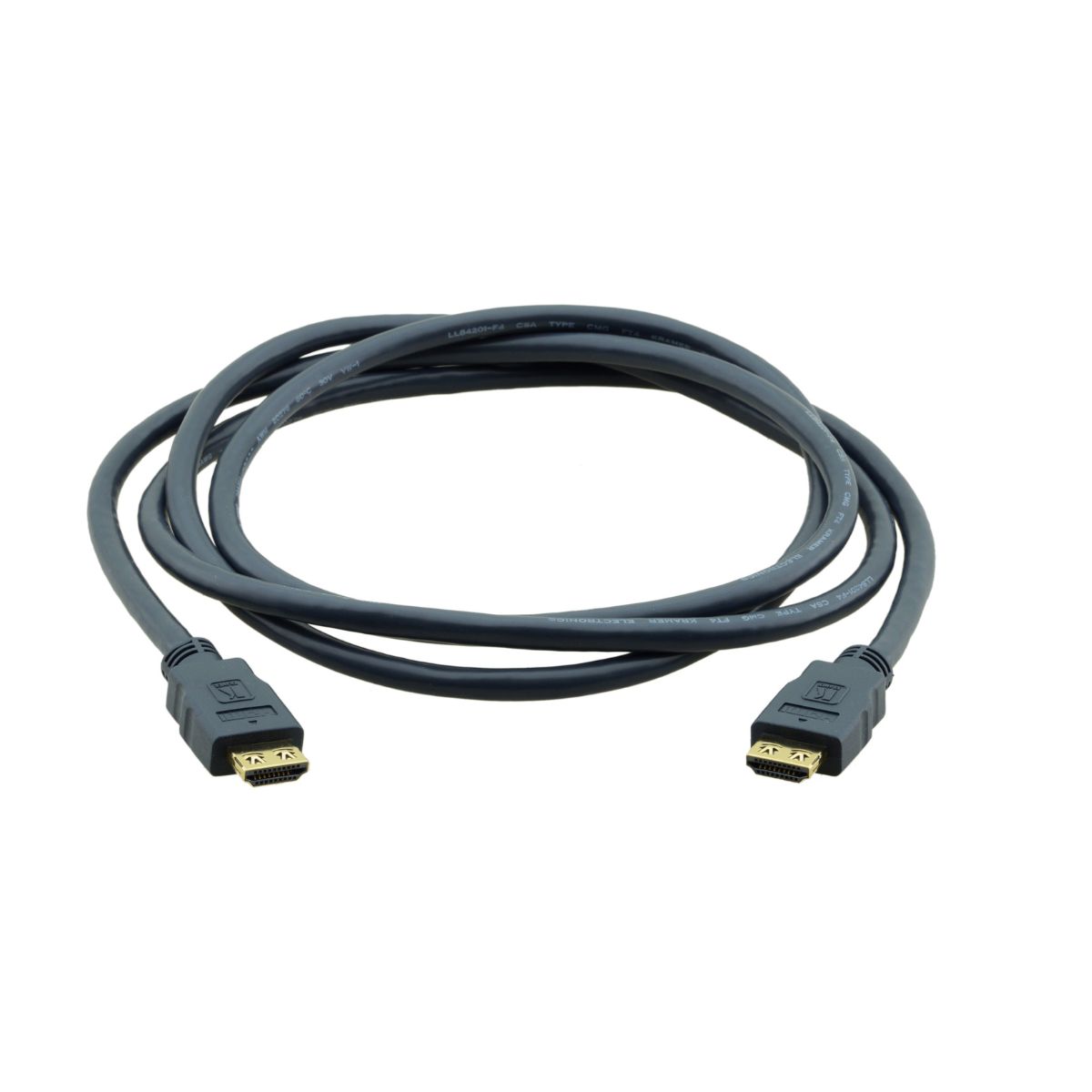

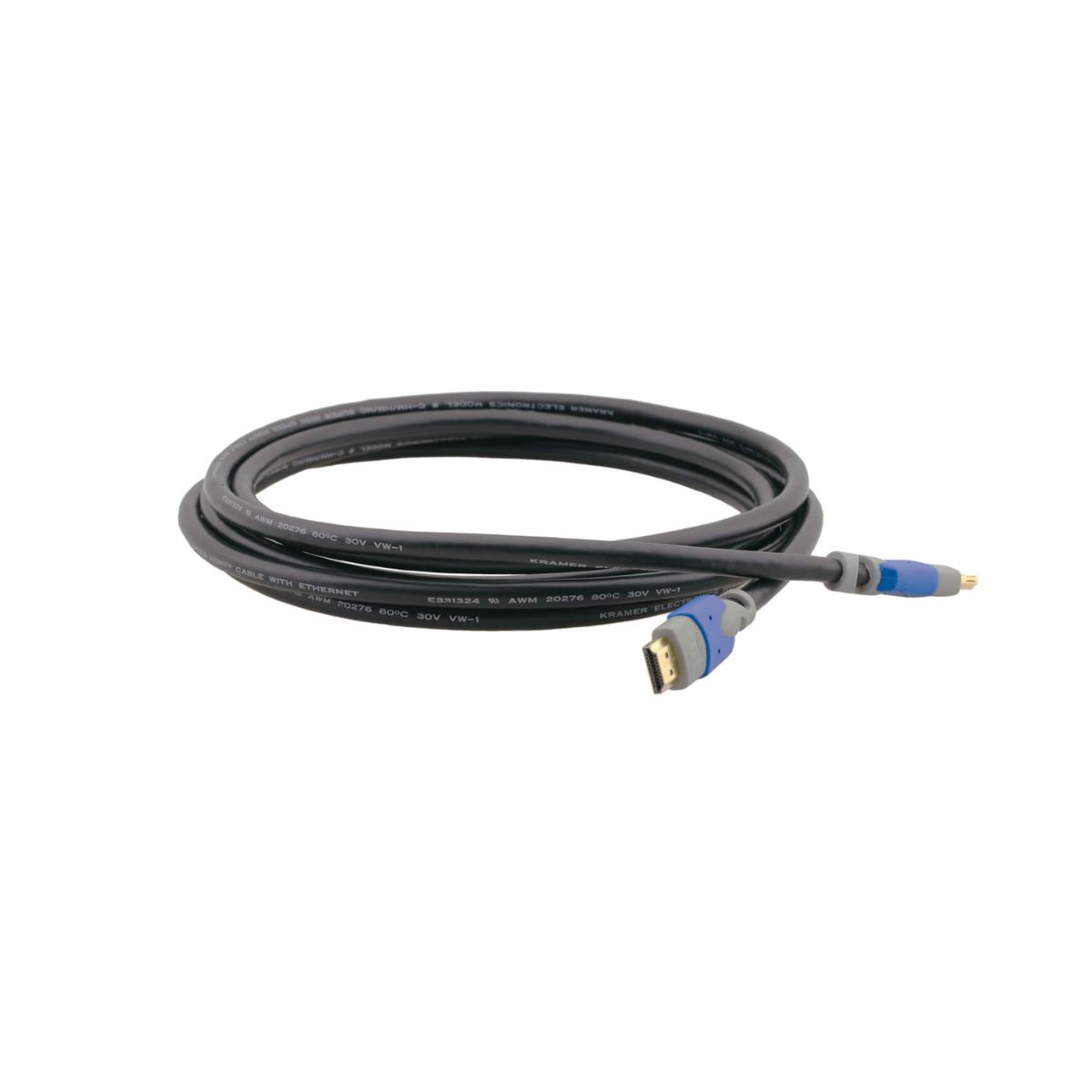

C-HM/HM PREMIUM High–Speed HDMI Cable

PREMIUM High–Speed HDMI Cable

Highlights

• Quality Performance — Kramer’s HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as LCD or OLED display screens for high–definition TVs.
•  Max. Resolution — 4K@60Hz (4:4:4).
•  High–Quality Connectors — 24K gold–plated connectors resist corrosion, and offer the best possible connectivity.
•  K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.

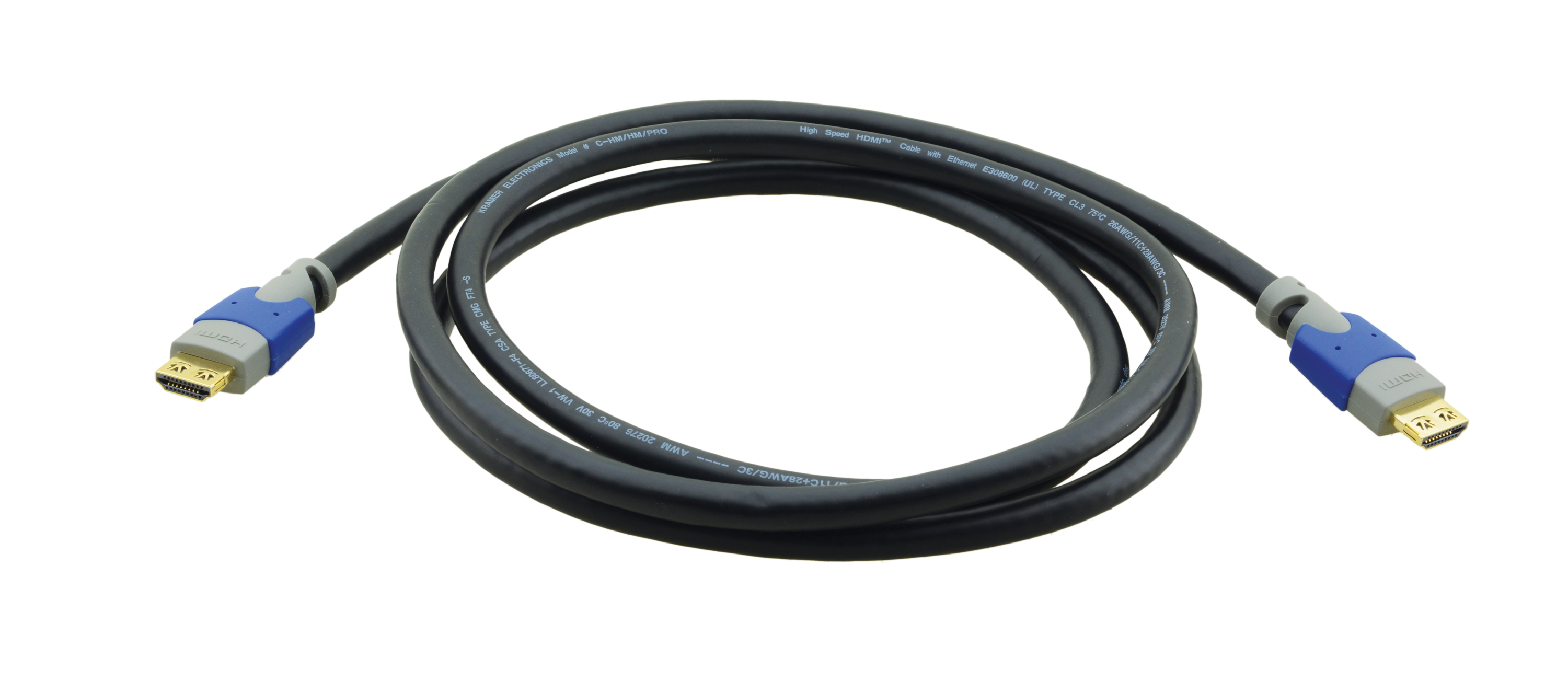

C-HM/HM/PRO Premium / High–Speed HDMI Cable with Ethernet

Premium / High–Speed HDMI Cable with Ethernet

Highlights

• Max. Data Rate — 18Gbps.
•  Max. Resolution — 4K@60Hz (4:4:4).
•  Deep Color — Supports 24–bit, 30–bit, 36–bit and 48–bit (RGB or YCbCr) color depths. Best for multimedia applications or home cinema and surround systems.
•  Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
•  High Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.

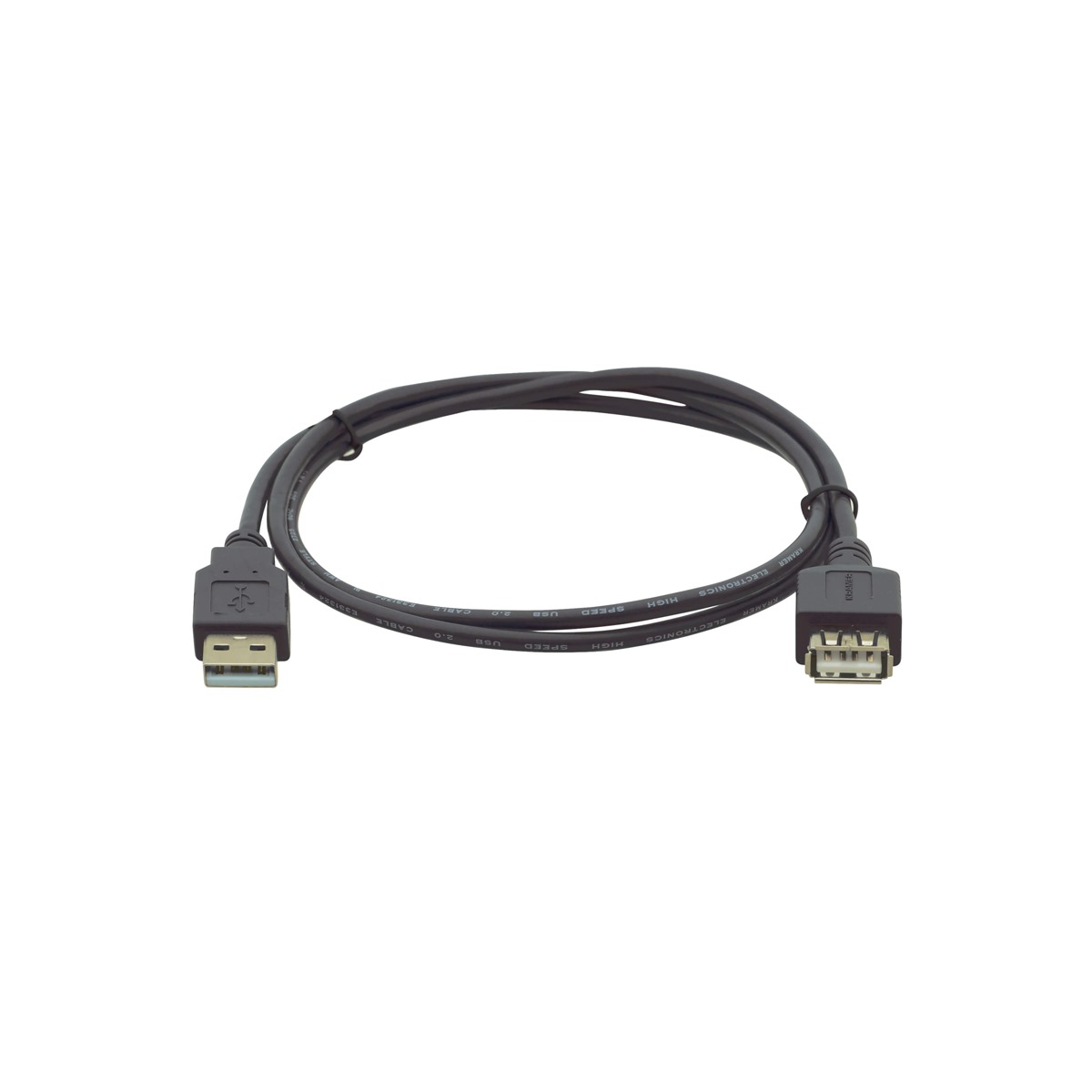

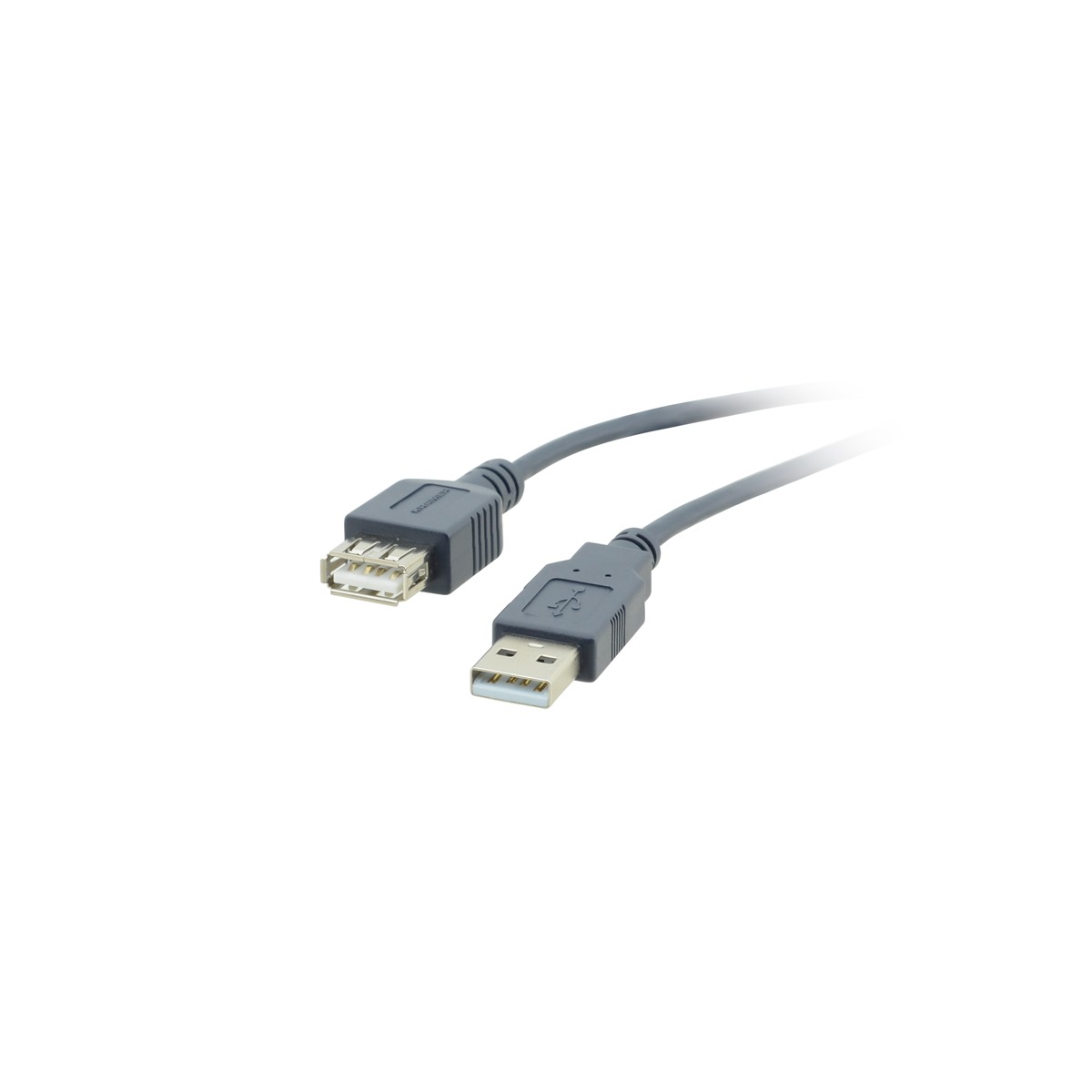

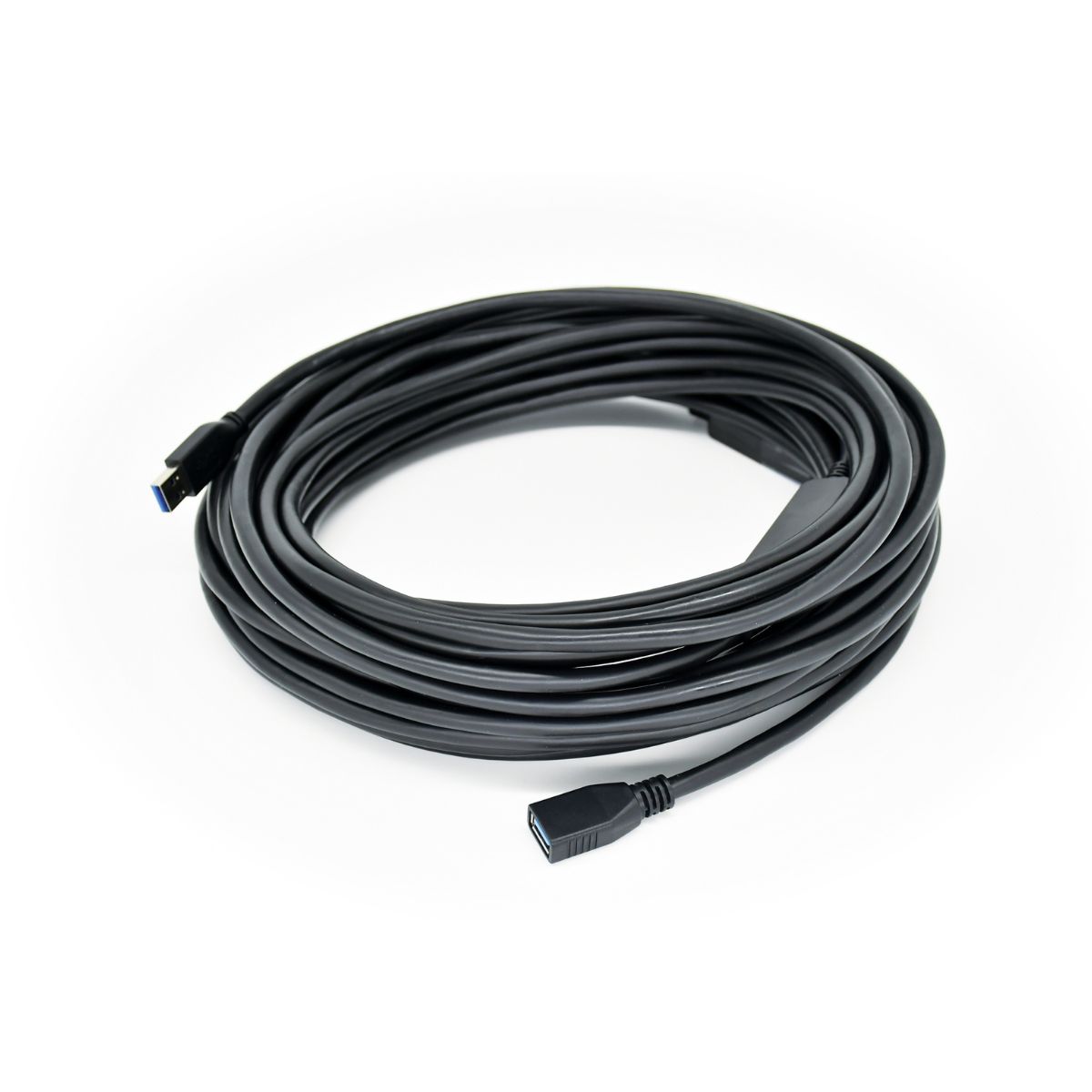

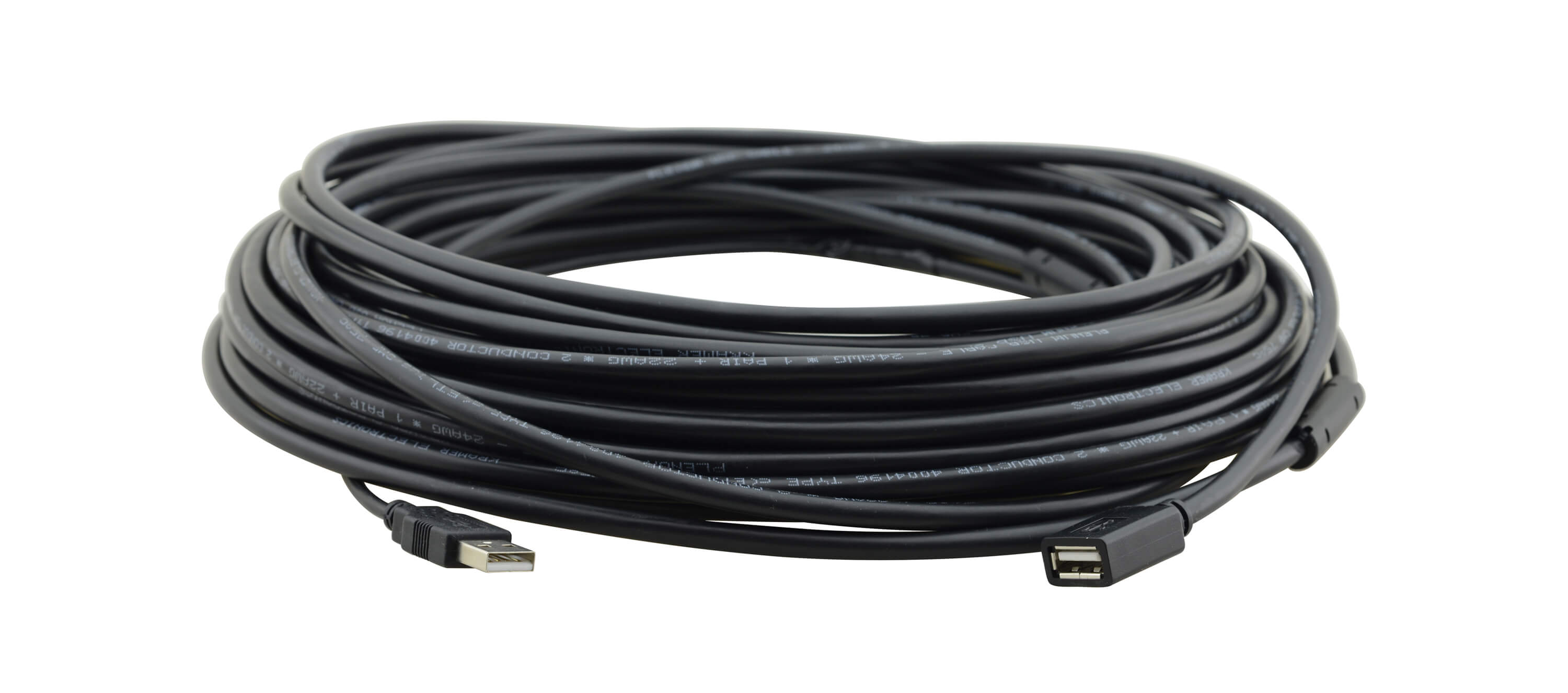

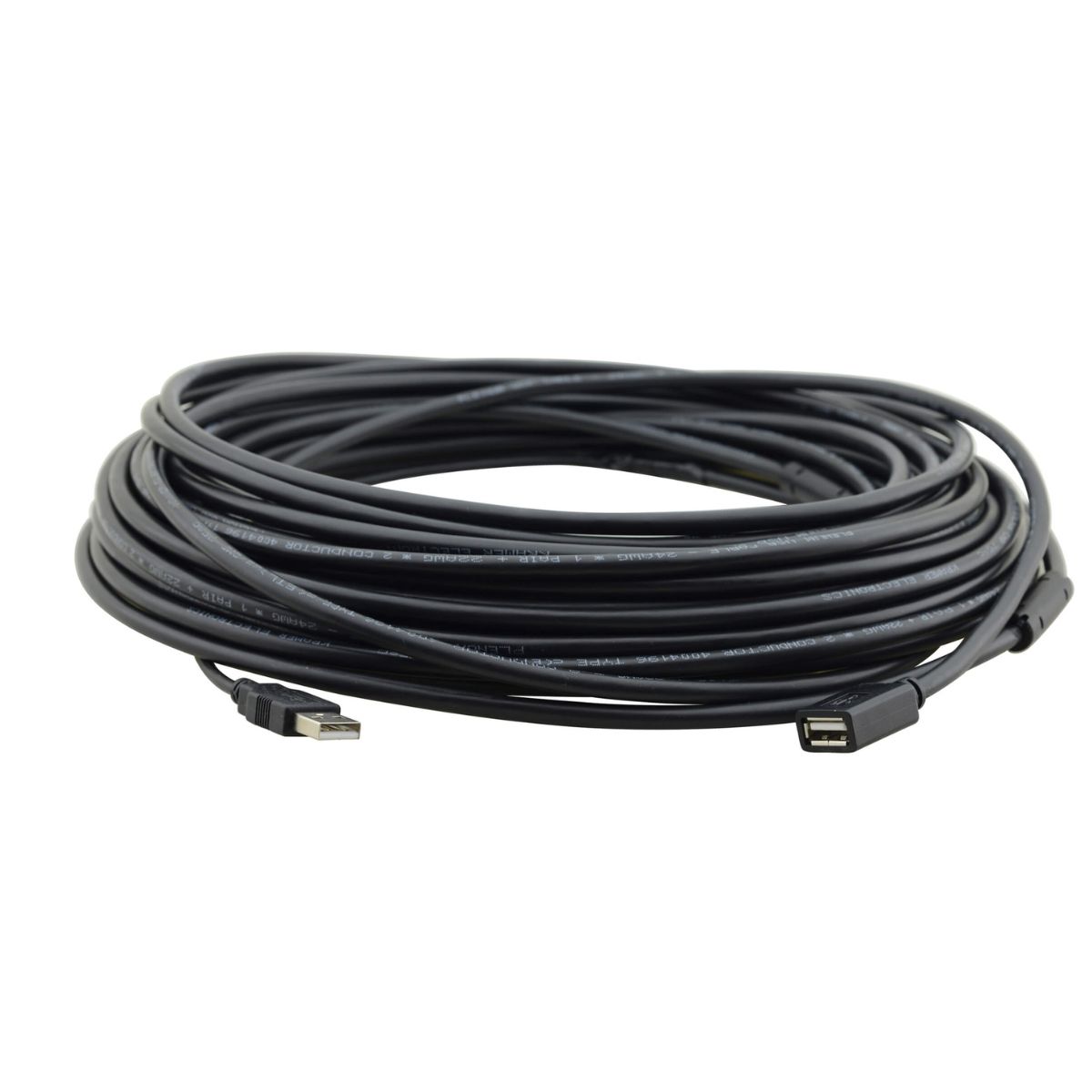

CA-UAM/UAF USB Active Extender Cable

USB Active Extender Cable

Highlights

• True Plug–and–Play — No additional drivers needed.
•  USB 2.0 High Speed (480Mbps) Standard.
•  Construction — 1 pair 24AWG + 2 pair 22AWG + drain wire 24AWG, tinned copper braid.
•  No External Power — Pulls power from source.
•  Data Transfer Only — Not for charging.
•  Buffers Incoming & Outgoing Signal.

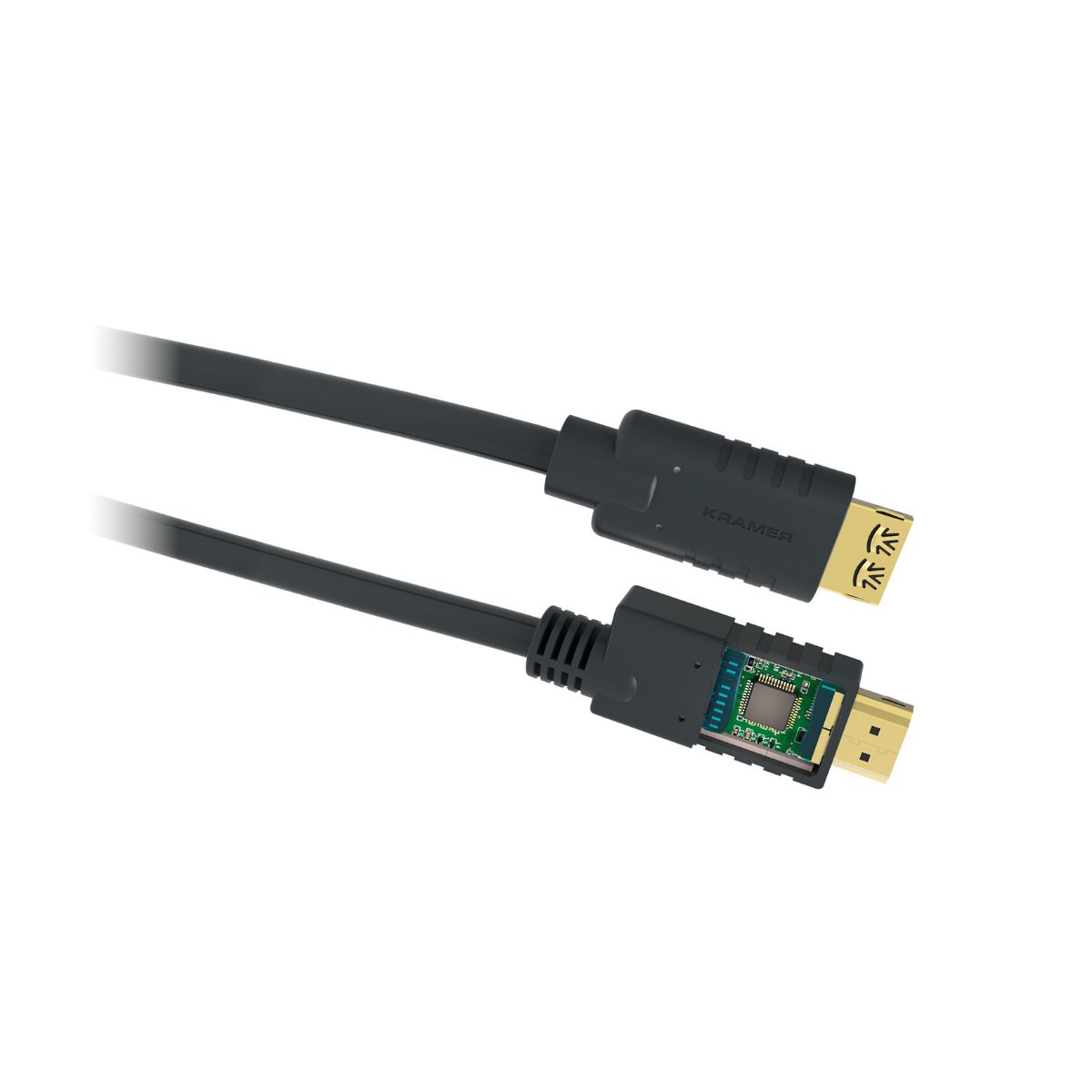

CA-HM High Speed HDMI Cable with Ethernet

Active High Speed HDMI Cable with Ethernet

Highlights

• Video Resolution — Up to 4K@60Hz (4:4:4).
•  High Data Transfer Rate — Up to 18Gbps.
•  HDMI Support — HDCP 2.2, HDR, EDID, ARC and CEC.
•  Deep Color, x.v.Color™, 5.1/7.1 lossless Dolby TrueHD and DTS–HD surround sound.
•  High–quality Connectors — 24K gold–plated, corrosion–resistant connectors offer the best possible connectivity.

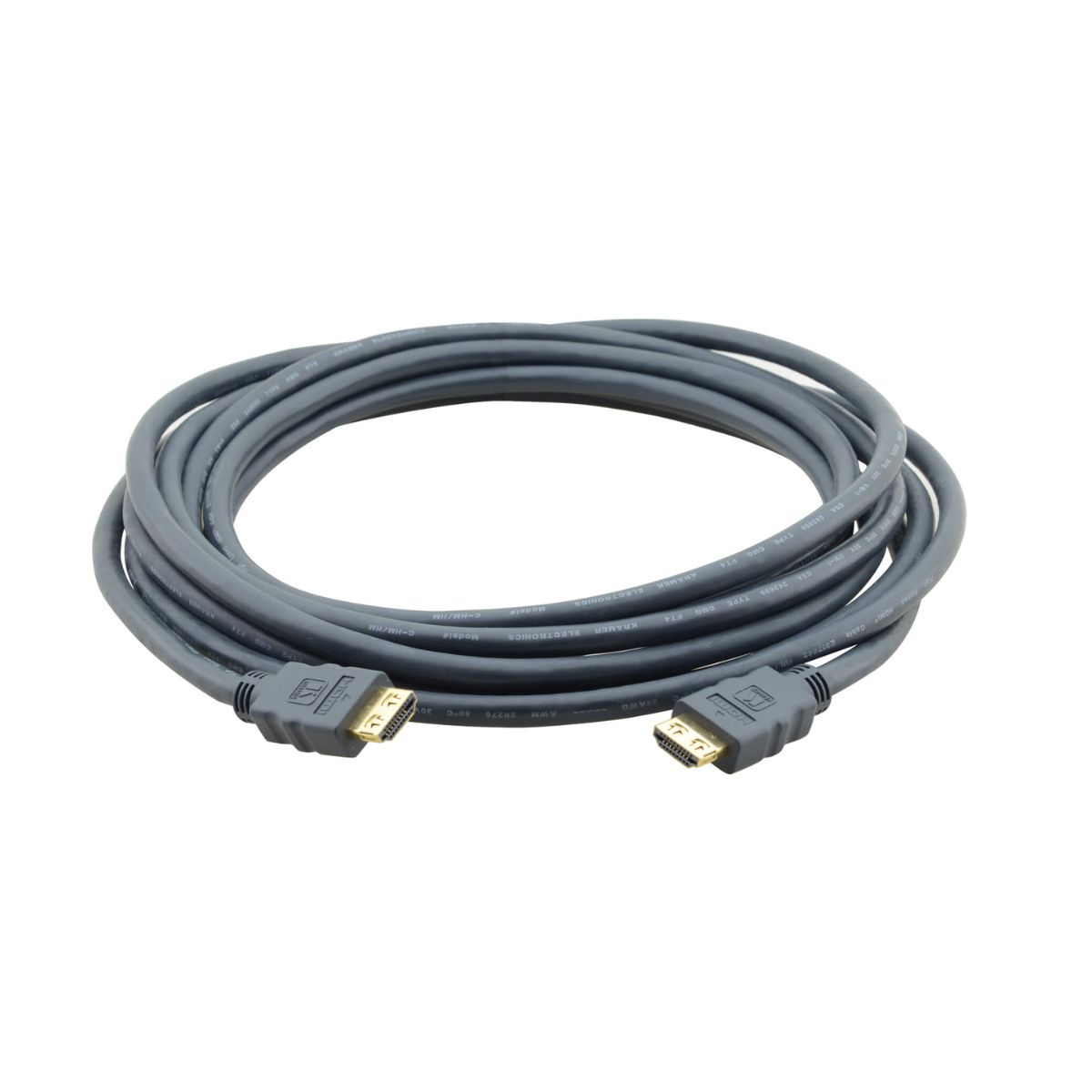

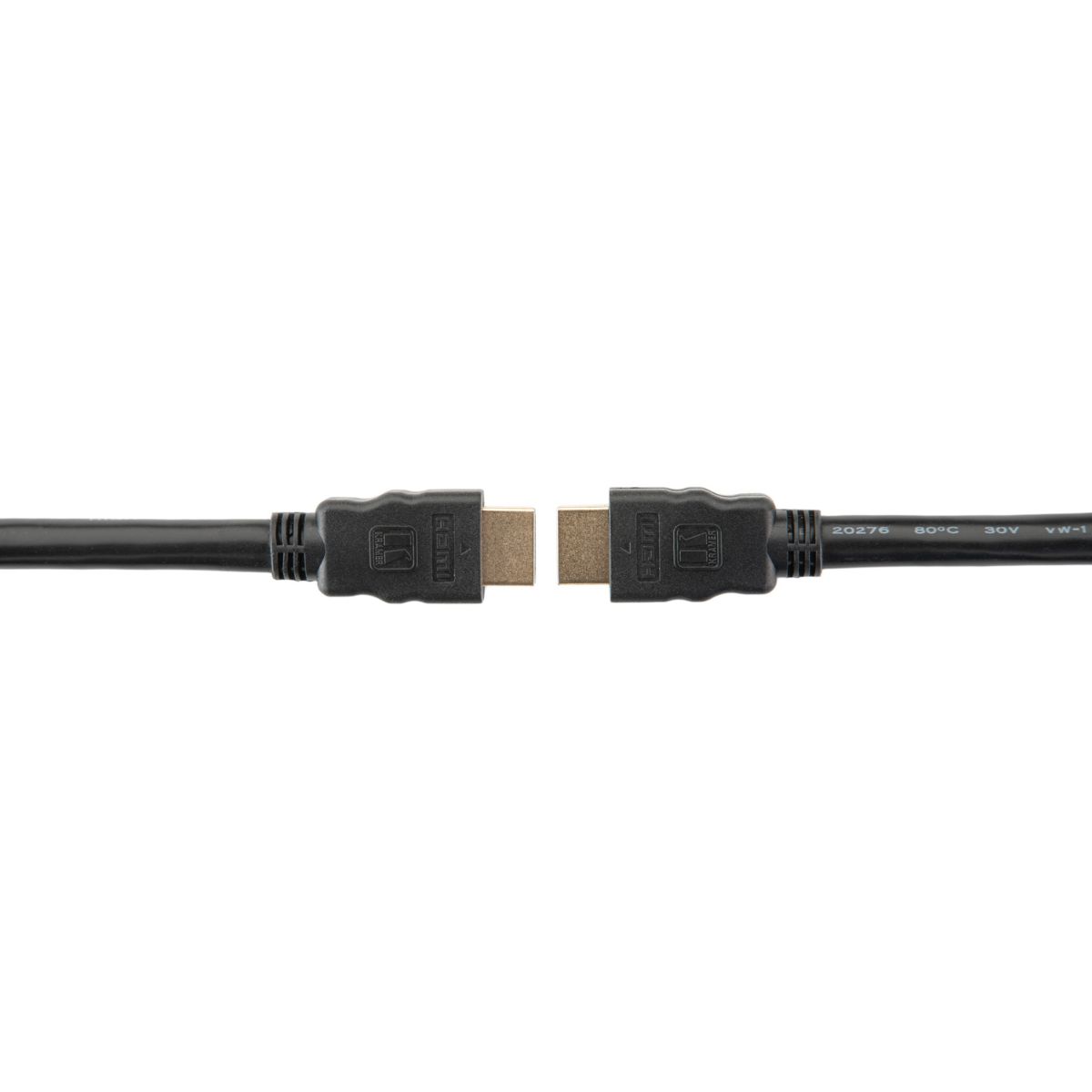

C-HM/HM/ETH HDMI Cable with Ethernet

High–Speed HDMI Cable with Ethernet

Highlights

• Quality Performance — Kramer’s HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as plasma display screens for high–definition TVs.
•  Max. Resolution — 4K@60Hz (4:4:4).
•  High–Quality Connectors — 24k gold–plated connectors resist corrosion, and offer the best possible connectivity.
•  K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.

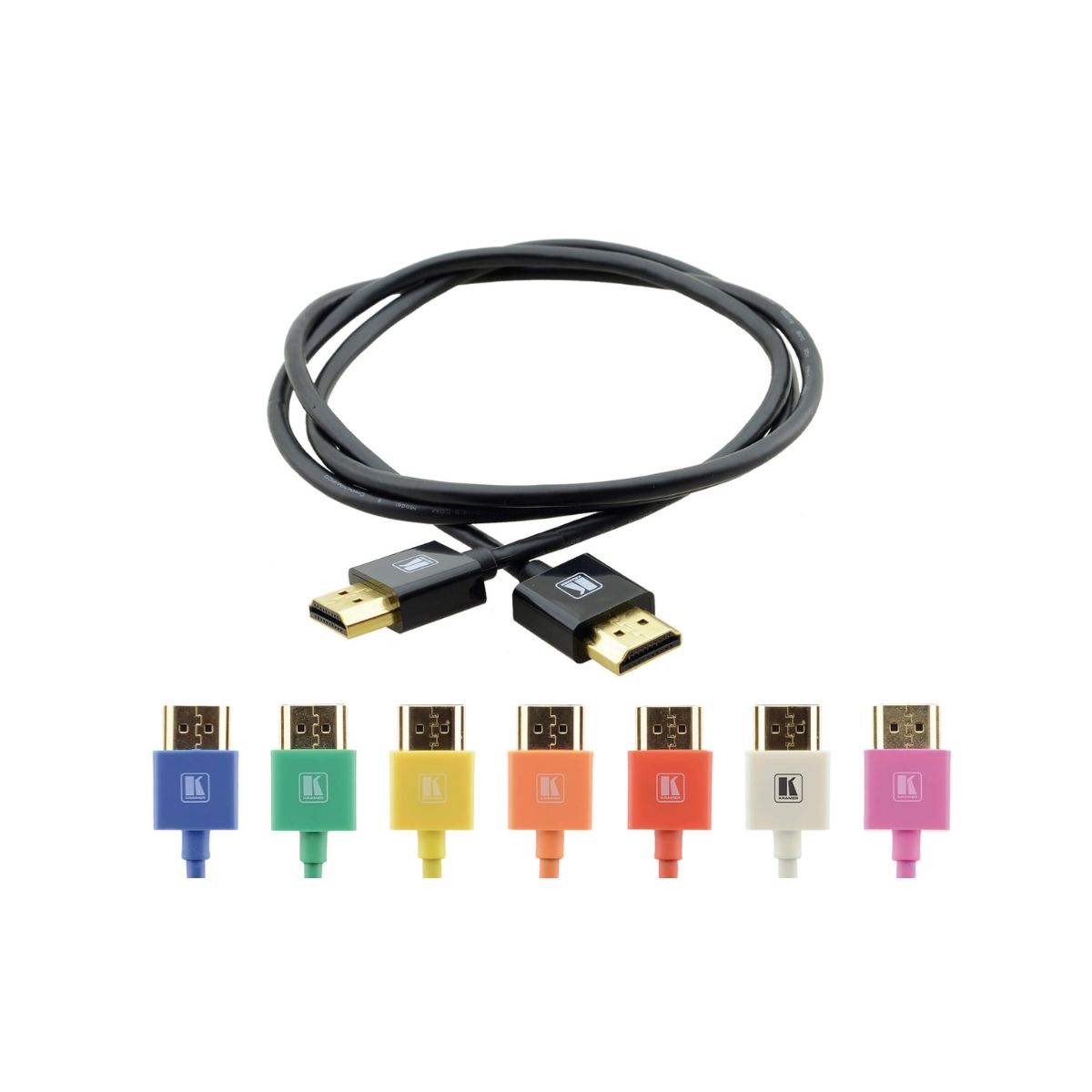

C-HM/HM/PICO HDMI Cable with Ethernet

Ultra–Slim Flexible High–Speed HDMI Cable with Ethernet

Highlights

• Max Resolution — 4K@60Hz (4:4:4).
•  Quality Performance — Kramer’s new HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as plasma display screens for high–definition TVs.
•  High–Quality Connectors — Slim HDMI connector heads 16.0 mm wide and 8.0mm thick (5/8" wide and 5/16" thick).

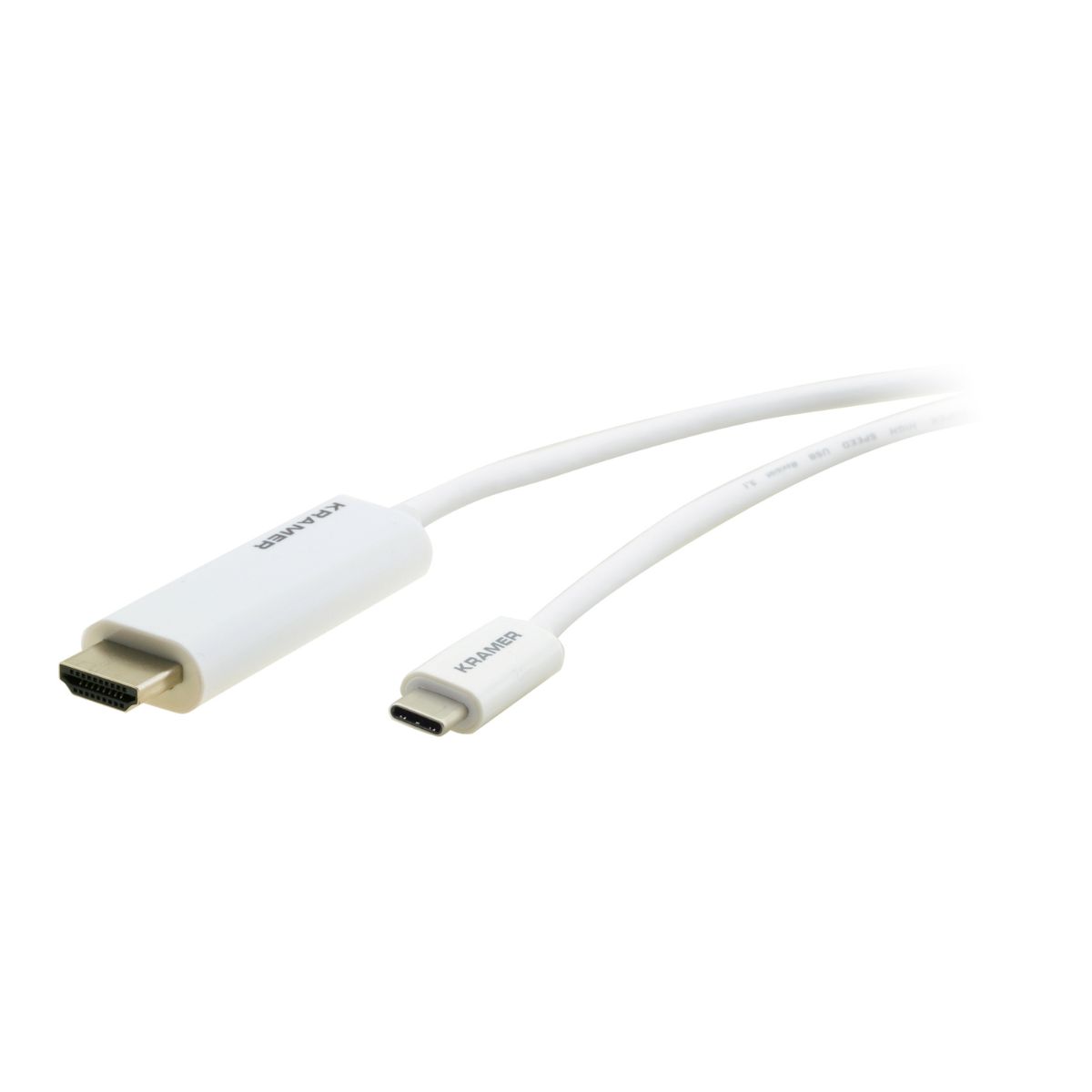

C-USBC/HM USB Type Cable

USB Type–C (M) to HDMI (M) Cable

Highlights

• Max. Resolution — 4K@60Hz (4:4:4).
•  HDCP 2.2 Support.
•  Enables connecting an HDMI equipped monitor or projector to a USB–C port using a single cable.
•  No special driver installation or additional power source is required.
•  Regulatory Standards — CE, FCC and RoHS.

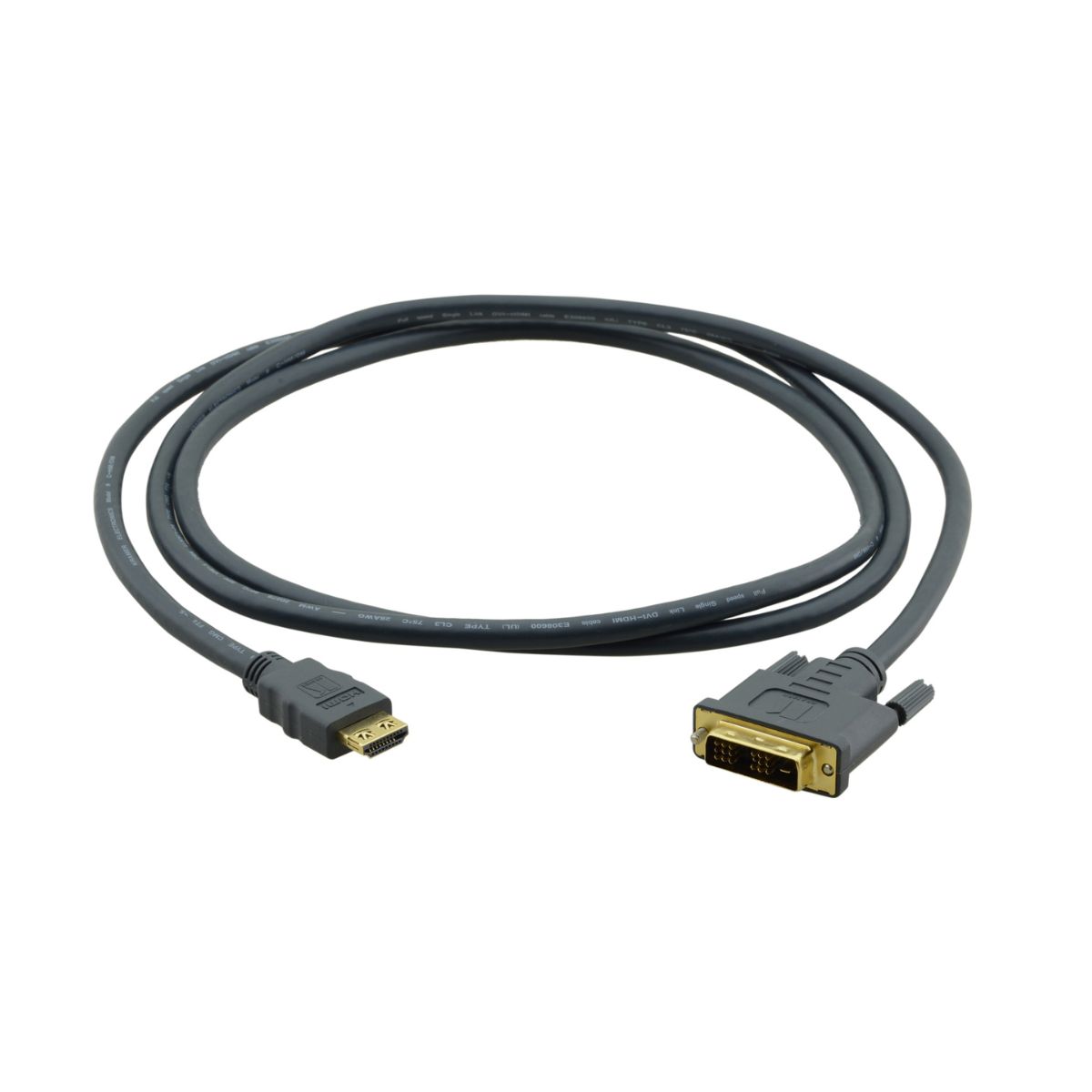

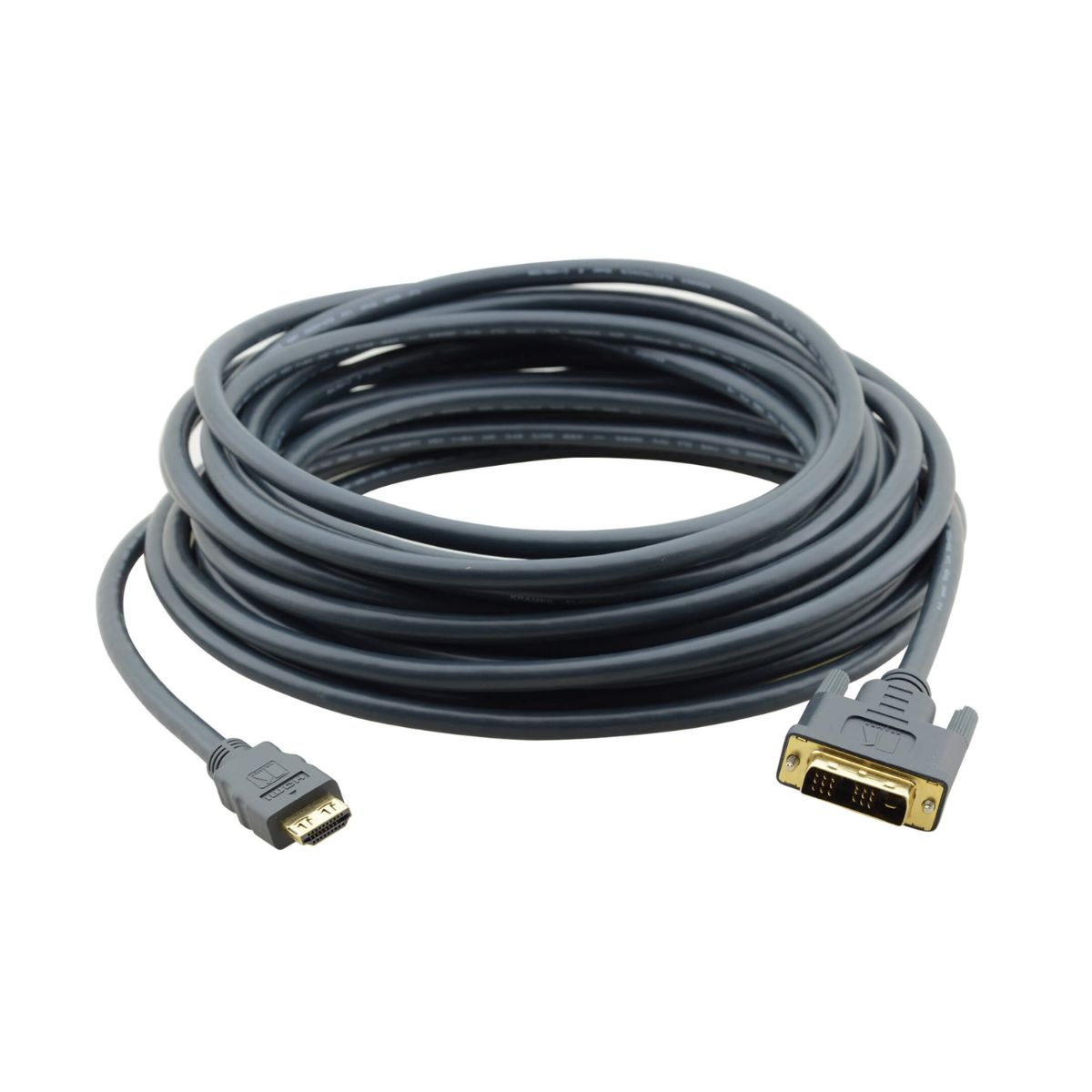

C-HM/DM HDMI to DVI Cable

HDMI to DVI Cable

Highlights

•  Quality Construction — HDMI to DVI Single Link (18+1 pin) cable provides excellent conductivity at high frequencies and longevity without degradation.
•  High Quality Connectors — Gold–plated connectors resist corrosion and offer the best possible connectivity.
•  Varied Selection of Lengths — Available in versions of 0.15 to 15.2m (0.5, 3, 6, 10, 15, 25, 35, and 50ft).

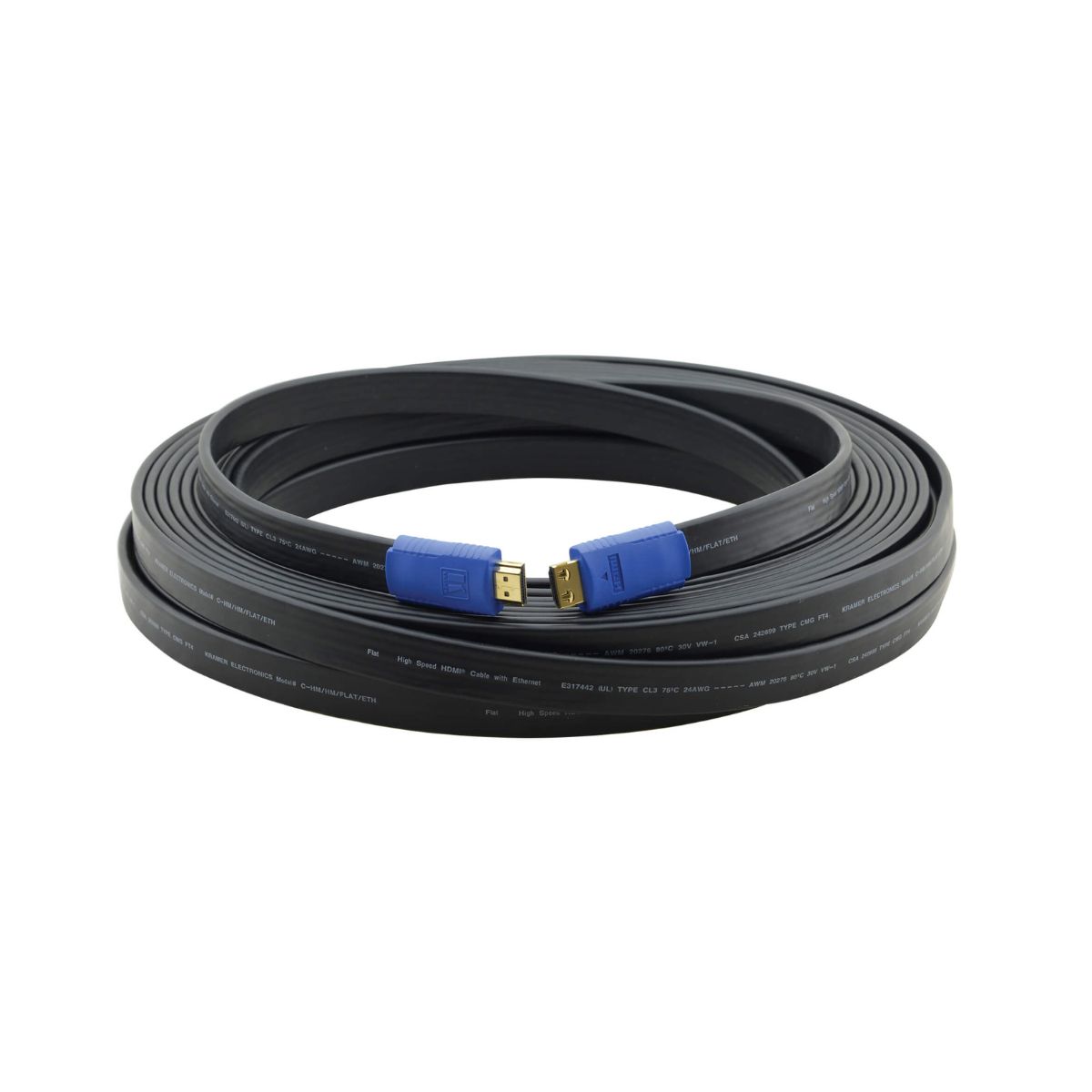

C-HM/HM/FLAT/ETH Cable with Ethernet

Flat High–Speed HDMI Cable with Ethernet

Highlights

• Quality Construction — Constructed from flexible flat cable structured to have less crosstalk and interference than with traditional round HDMI cables.
•  Max. Resolution — 4K@60Hz (4:4:4).
•  High–Quality Connectors — 24K gold–plated connectors resist corrosion, cut down on impedance and offer the best possible connectivity.
•  K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.

C-UNIKAT Cable Assembly

CAT6A U/FTP Video & LAN Cable Assembly

Highlights

• Quality Construction — 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
•  Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair digital transmitter–receiver sets (DGKat™ and HDBaseT).
•  High–Quality Shielded RJ–45 Connectors — 50u gold plated contacts.
•  Varied Selection of Length — 1.8 to 100m (6–328ft).

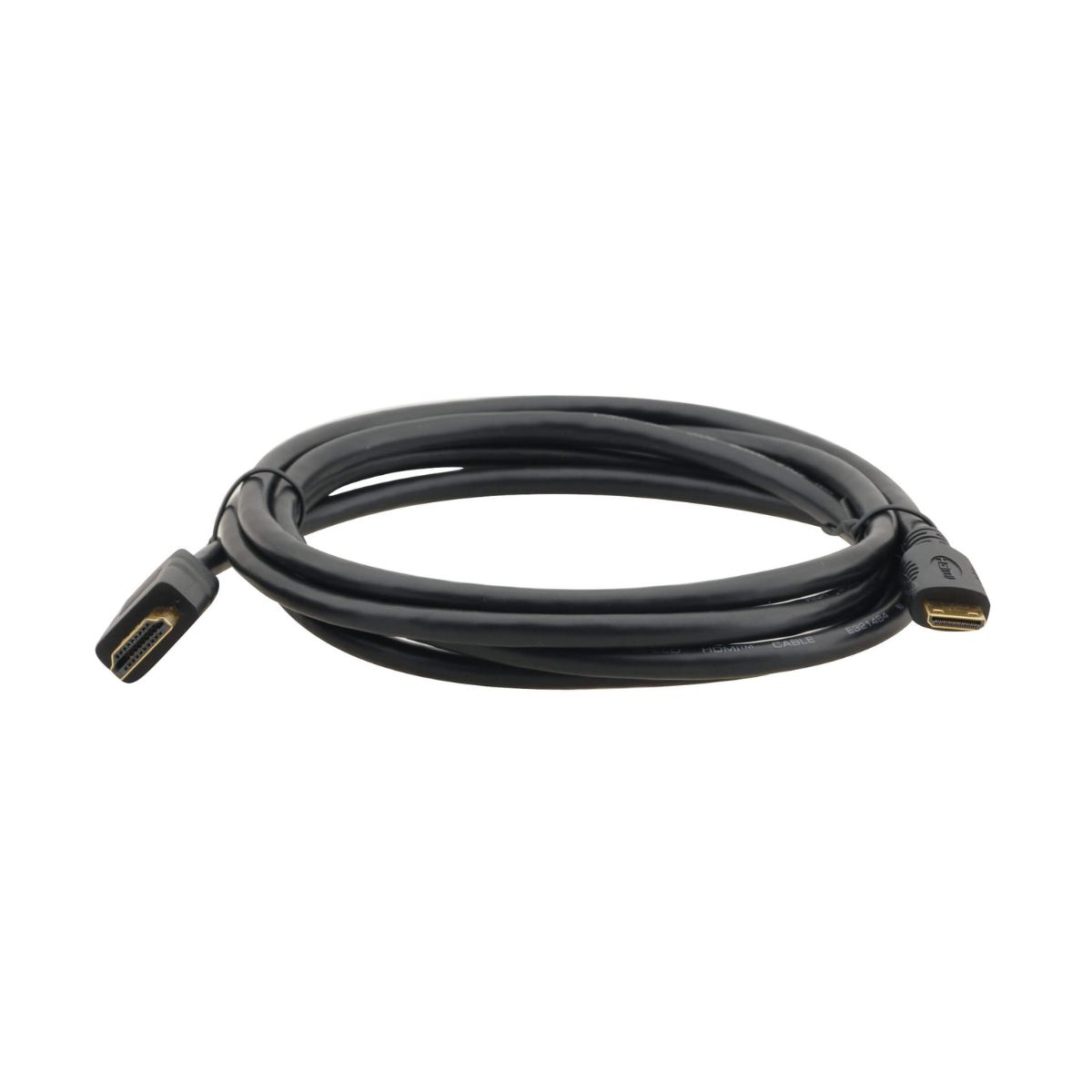

C-HM/HM/A-C HDMI with Ethernet to Mini HDMI Cable

High–Speed HDMI with Ethernet to Mini HDMI Cable

Highlights

Kramer's C−HM/HM/A−C is a high speed, high−performance HDMI with Ethernet to mini HDMI cable with molded HDMI connectors at both ends. It supports resolutions up to 4K@60Hz (4:4:4) and multi−channel audio in a single cable.

•  Max. Resolution — 4K@60Hz (4:4:4).
•  Lengths — Available in versions of 0.9 to 3m (3, 6 and 10ft).

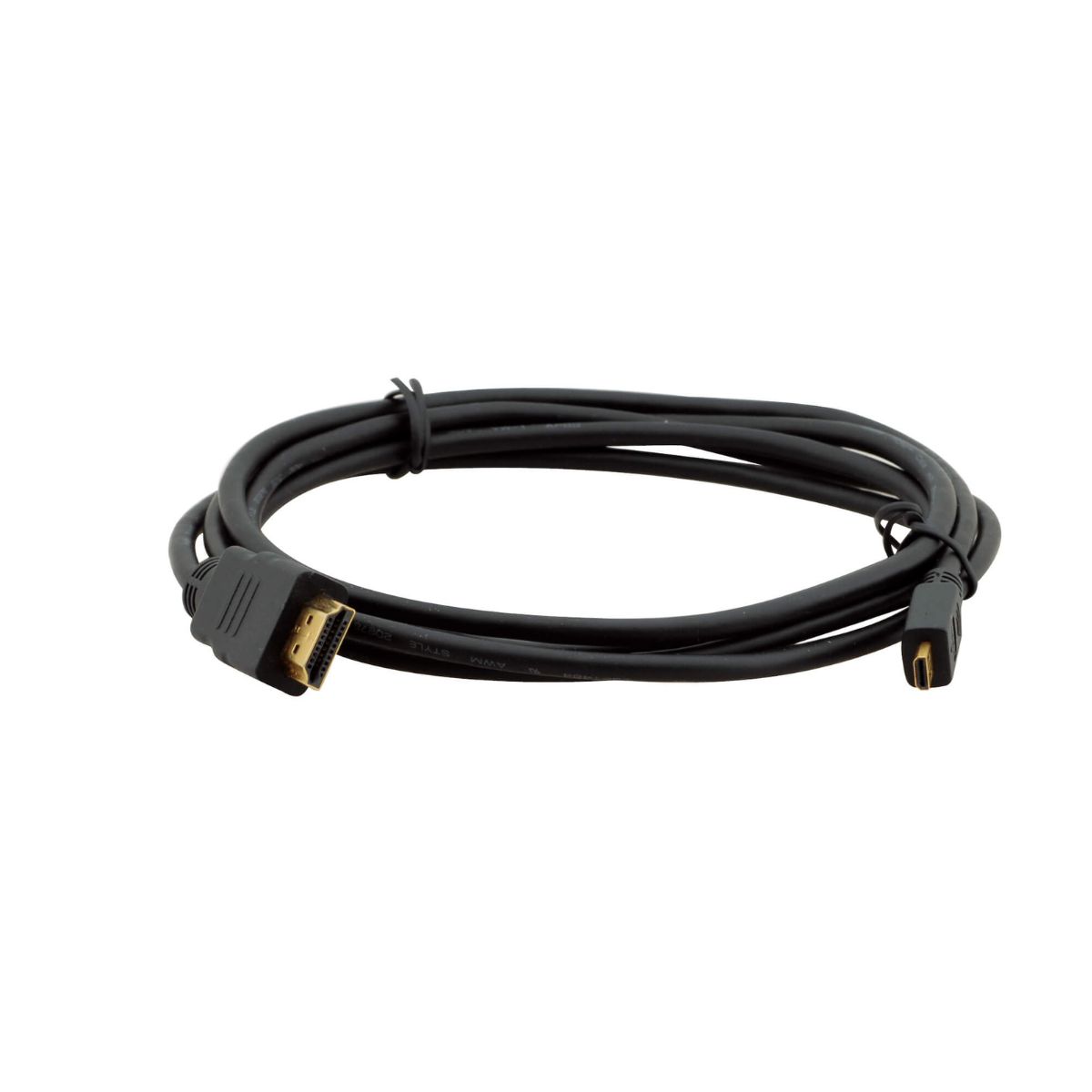

C-HM/HM/A-D Micro HDMI Cable

High–Speed HDMI with Ethernet to Micro HDMI Cable

Highlights

Kramer's C−HM/HM/A−D is a high−speed, high−performance HDMI with Ethernet cable that has a molded HDMI connector at one end and micro connector at the other. It supports resolutions up to 4K@60Hz (4:4:4) and multi−channel audio in a single cable.

•  Max. Resolution — 4K@60Hz (4:4:4).
•  Lengths — Available in versions of 0.9 to 3m (3, 6 and 10ft).

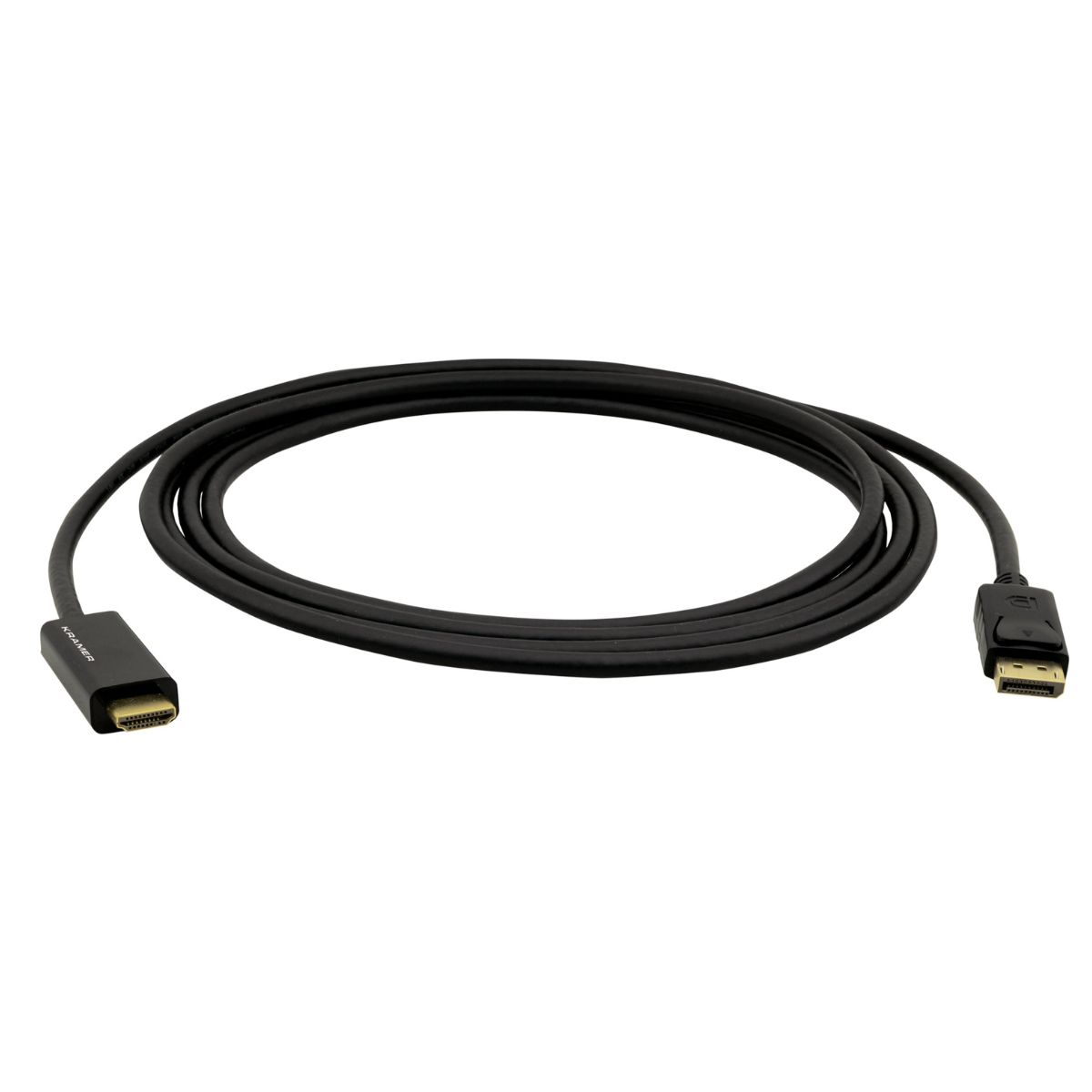

C-DPM/HM/UHD DisplayPort (M) to HDMI (M) 4K Active Cable

DisplayPort (M) to HDMI (M) 4K Active Cable

Highlights

•  Supported Resolutions — Up to 4K@60Hz (4:4:4).
•  Plug and Play Installation — no driver is required.
•  Active DisplayPort to HDMI Conversion.
•  Varied Selection of Lengths — Available in versions of 3ft to 10ft (0.9m to 3.0m).

C-USBC/DPM DisplayPort (M) Cable

USB Type–C (M) to DisplayPort (M) Cable

Highlights

•  Max. Resolution — 4K@60Hz (4:4:4).
•  HDCP 2.2 Support.
•  Enables connecting a DisplayPort-equipped monitor or projector to a USB–C port using a single cable.
•  No special driver installation or additional power source is required.
•  Regulatory Standards — CE, FCC, and RoHS.

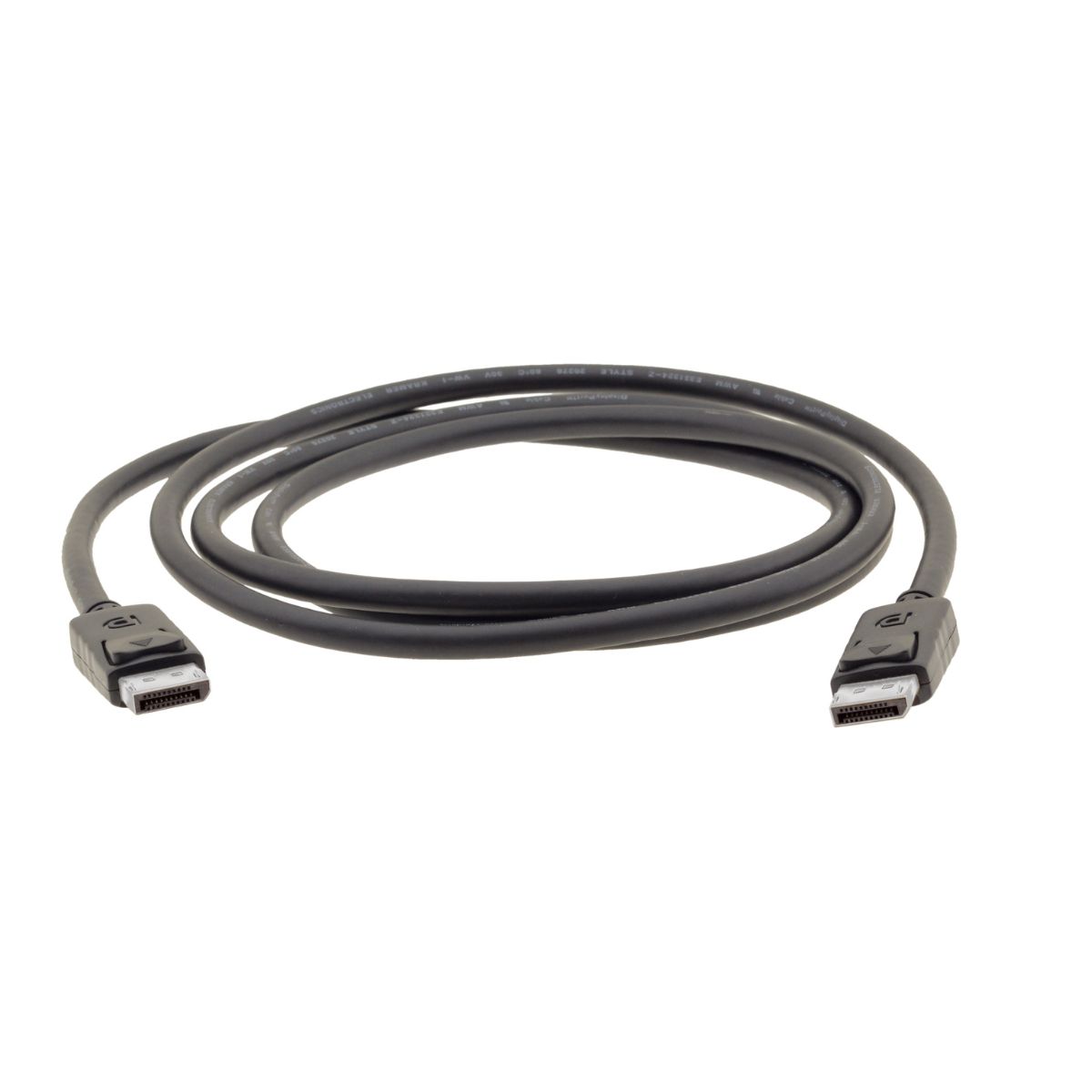

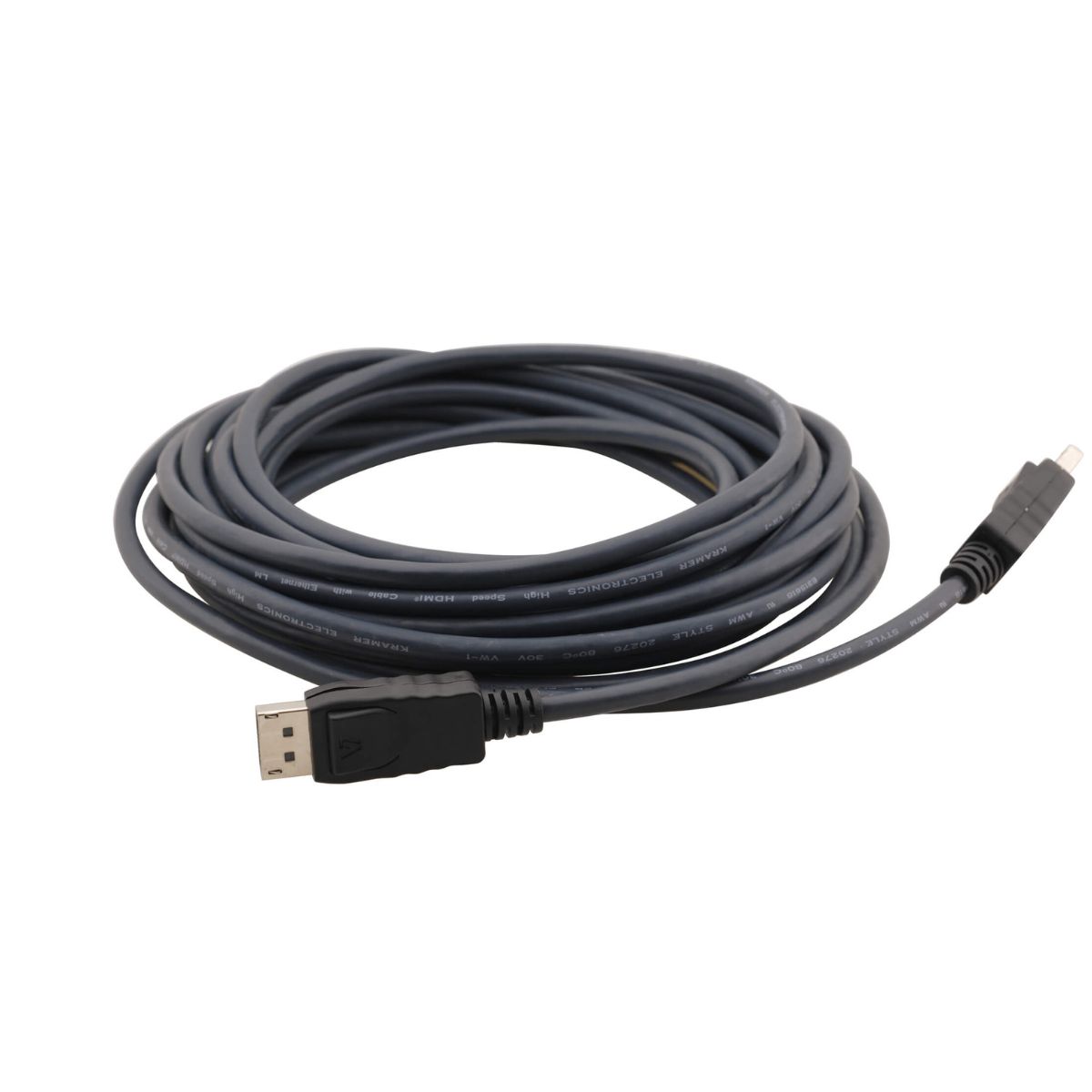

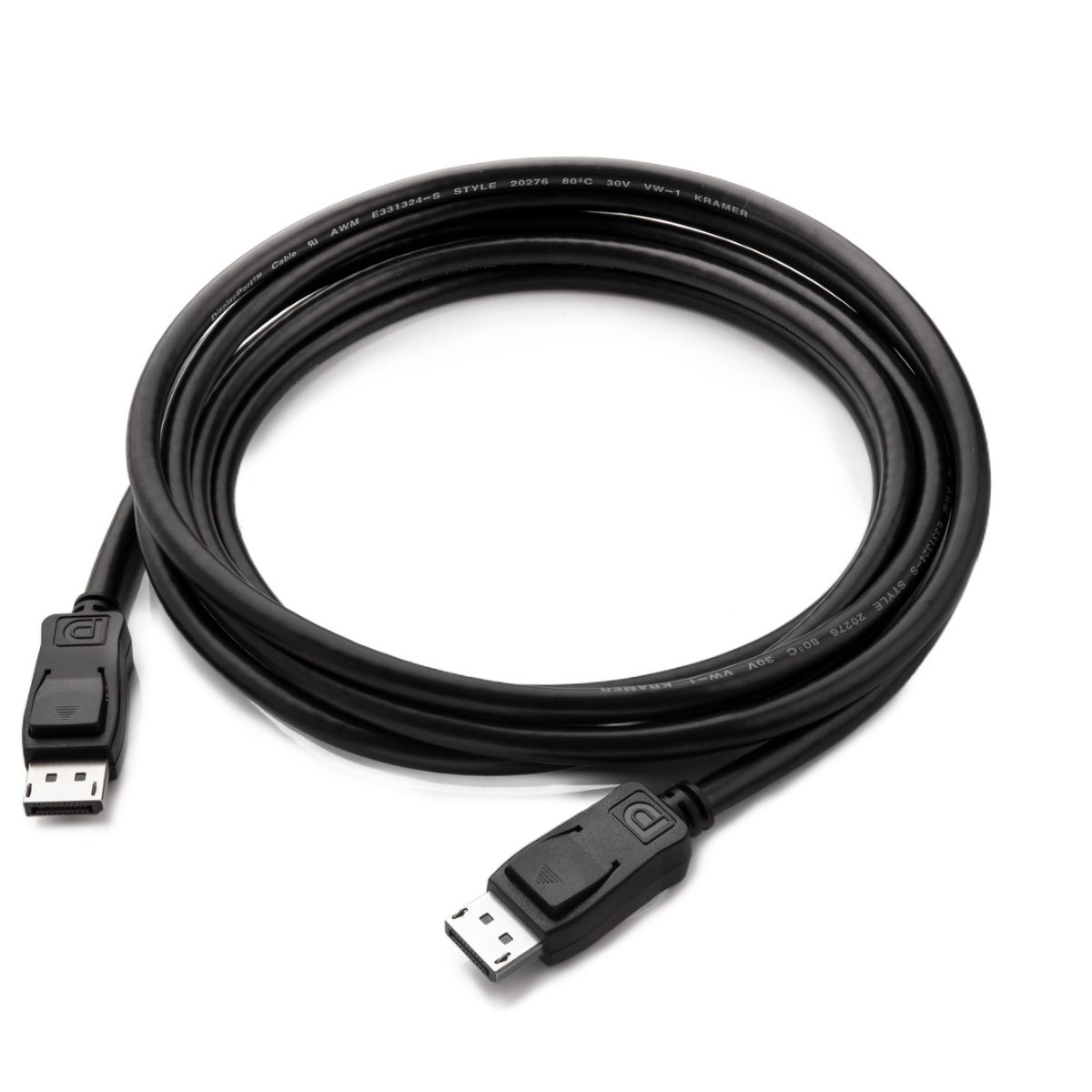

C-MDPM/MDPM Flexible DisplayPort Cable

Flexible DisplayPort Cable

Highlights

• Max. Resolution — 4K@60Hz (4:4:4).
•  Unique Thin and Flexible Cable — Ideal for use with Kramer TBUS products and rack building.
•  Varied Selection of Lengths — Available in versions of 0.3 to 7.6m (1, 2, 3, 6, 10, 15, 25ft).
•  Note — The cable’s color can vary in some cases.

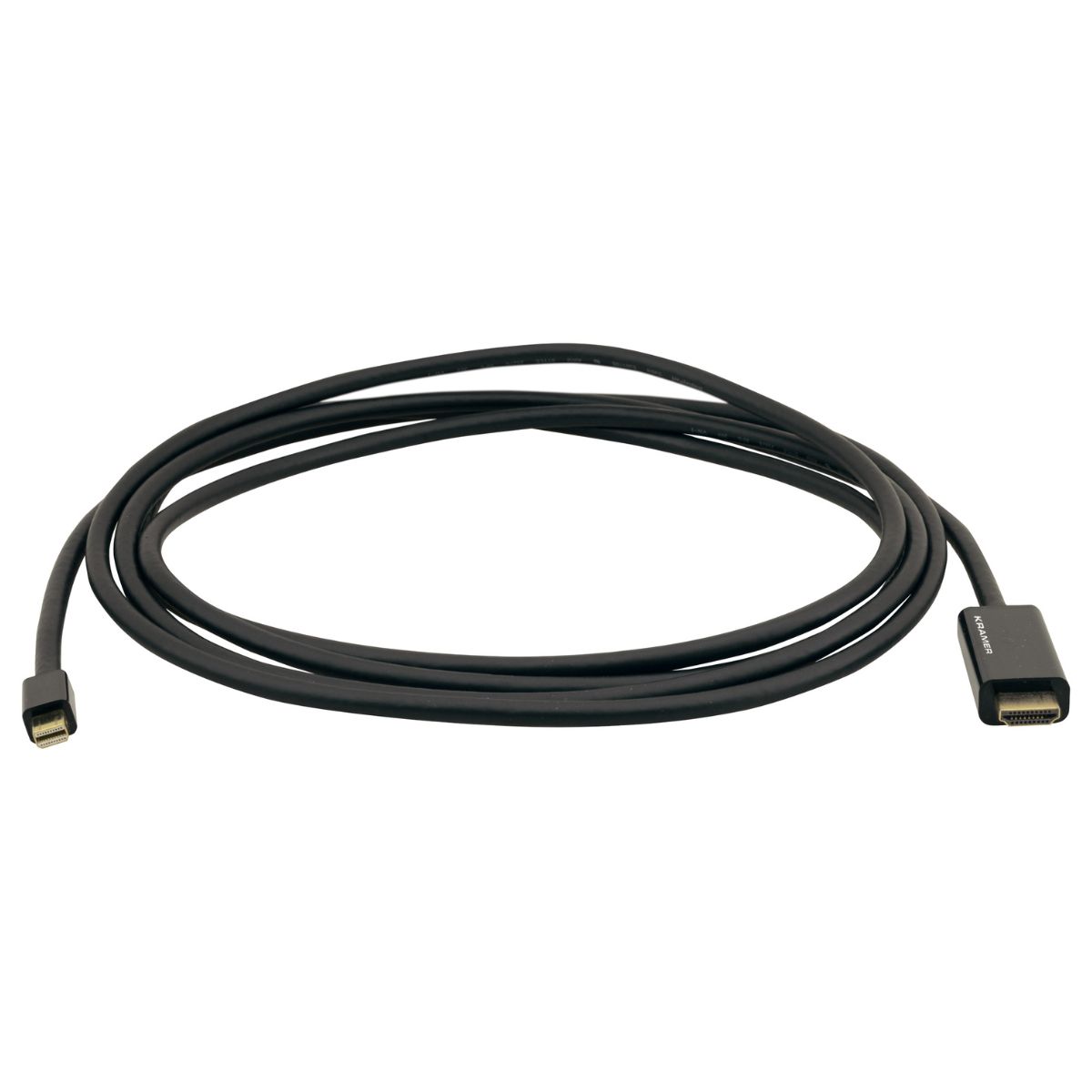

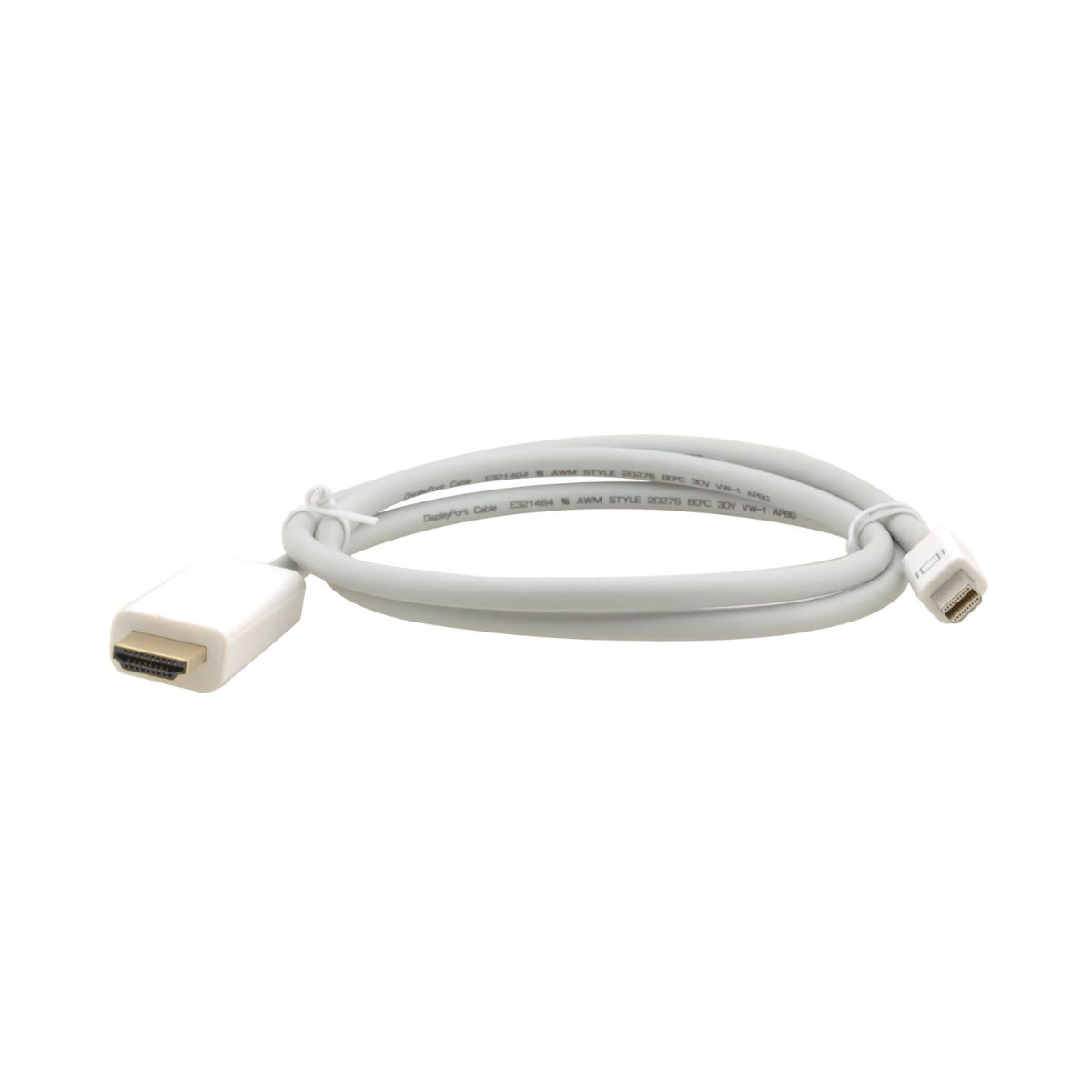

C-MDP/HM Mini DisplayPort to HDMI Cable

Mini DisplayPort to HDMI Cable

Highlights

Mini DisplayPort (M) to HDMI (M) Cable

•  Compatibility — Connects Mac® or other computer with Mini DisplayPort video output to an HDMI monitor.
•  Varied Selection of Lengths — Available in versions of 0.9 to 7.6m (3 to 25ft).
•  Note — The cable’s color can vary in some cases.

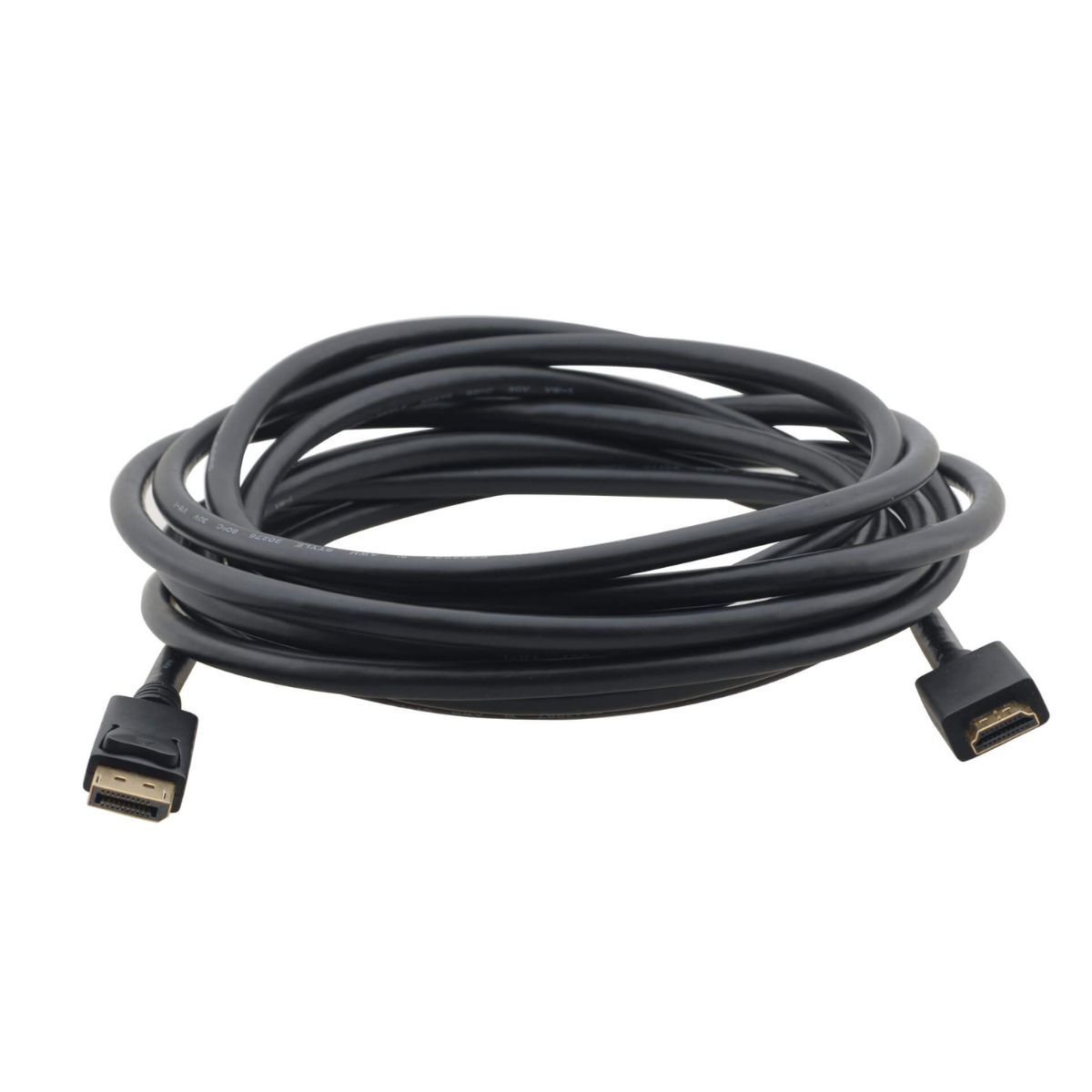

C-DPM/HM DisplayPort to HDMI Cable

DisplayPort to HDMI Cable

Highlights

• Compatibility — Requires a dual-mode DisplayPort device that implements both HDMI and DisplayPort signals. These devices are usually identified with the DP++ logo.
•  Varied Selection of Lengths — 0.9 to 4.6m (3, 6, 10 and 15ft).

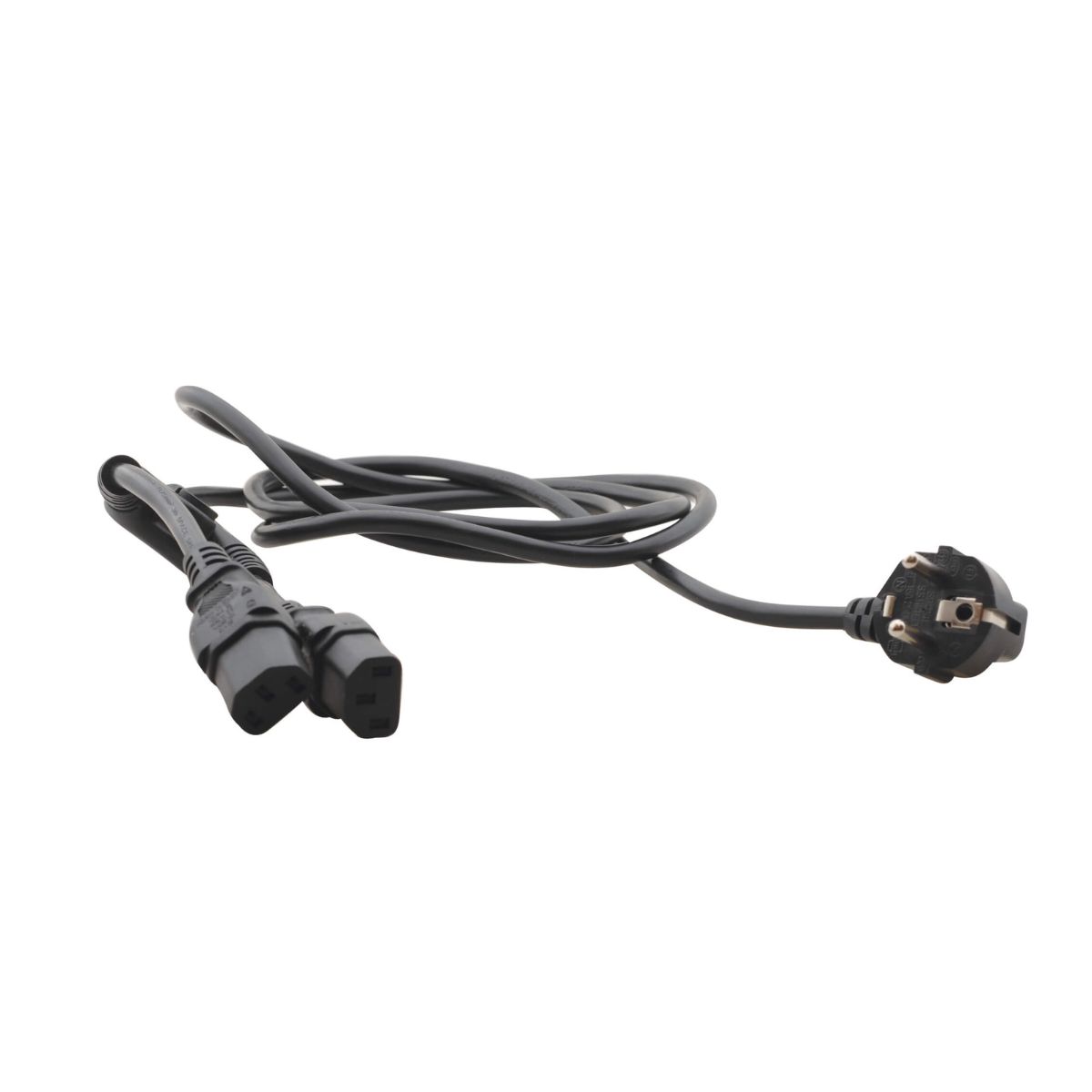

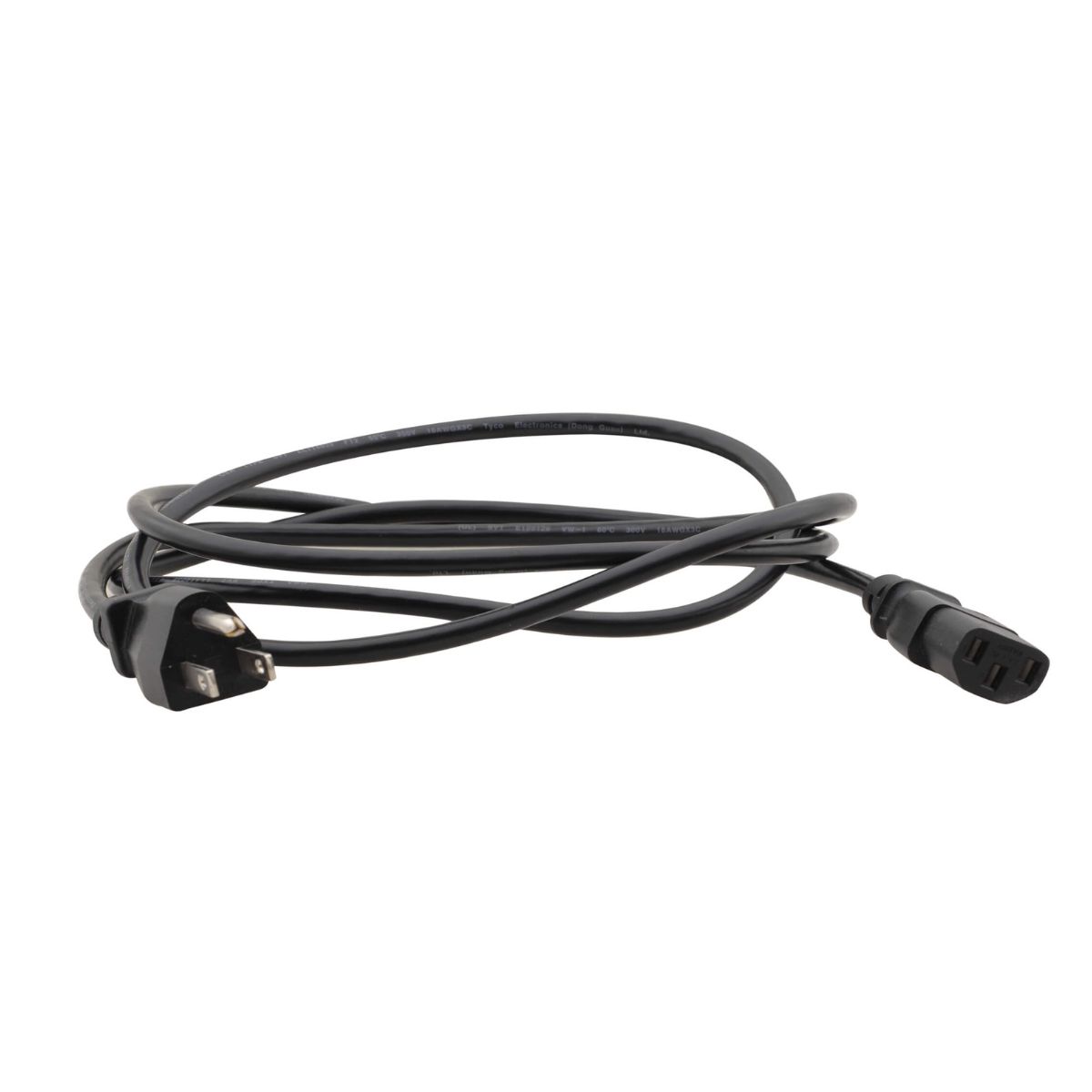

C-AC/POWERCORD TBUS AC Power Cords

TBUS AC Power Cords

Highlights

• Wide Variety of Power Cords for Modular TBUS
• AC power cords for modular TBUS units in a variety of styles.

C-MDP/HM/UHD 4K Active Cable

Mini DisplayPort (M) to HDMI (M) 4K Active Cable

Highlights

•  Supported Resolutions — Up to 4K@60Hz (4:4:4).
•  Plug and Play Installation — No driver is required.
•  Active DisplayPort to HDMI Conversion.
•  Varied Selection of Lengths — Available in 3ft to 10ft (0.9m to 3.0m).

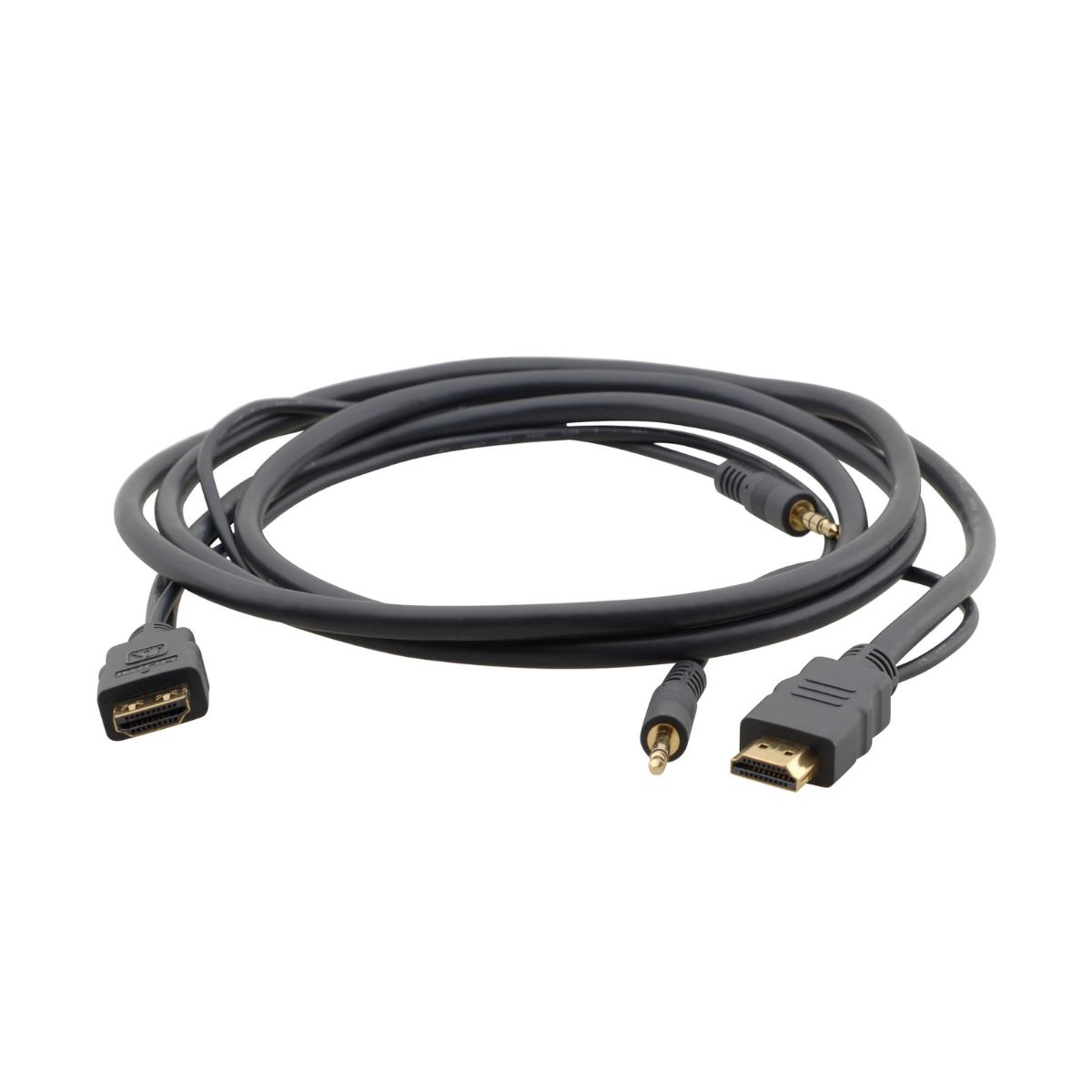

C-MHMA/MHMA Flexible High–Speed HDMI Cable

Flexible High–Speed HDMI Cable with Ethernet & 3.5mm Stereo Audio

Highlights

• Lengths — 0.9–7.5m (3–25ft)
• K–Lock Connectors
• K–Lock Pull–Resistant Connectors — Provides 15 lbs of restraining force for a non–slip connection.
•  Varied Selection of Lengths — Available in versions of 0.9 to 7.6m (3, 6, 10, 15, 25ft).

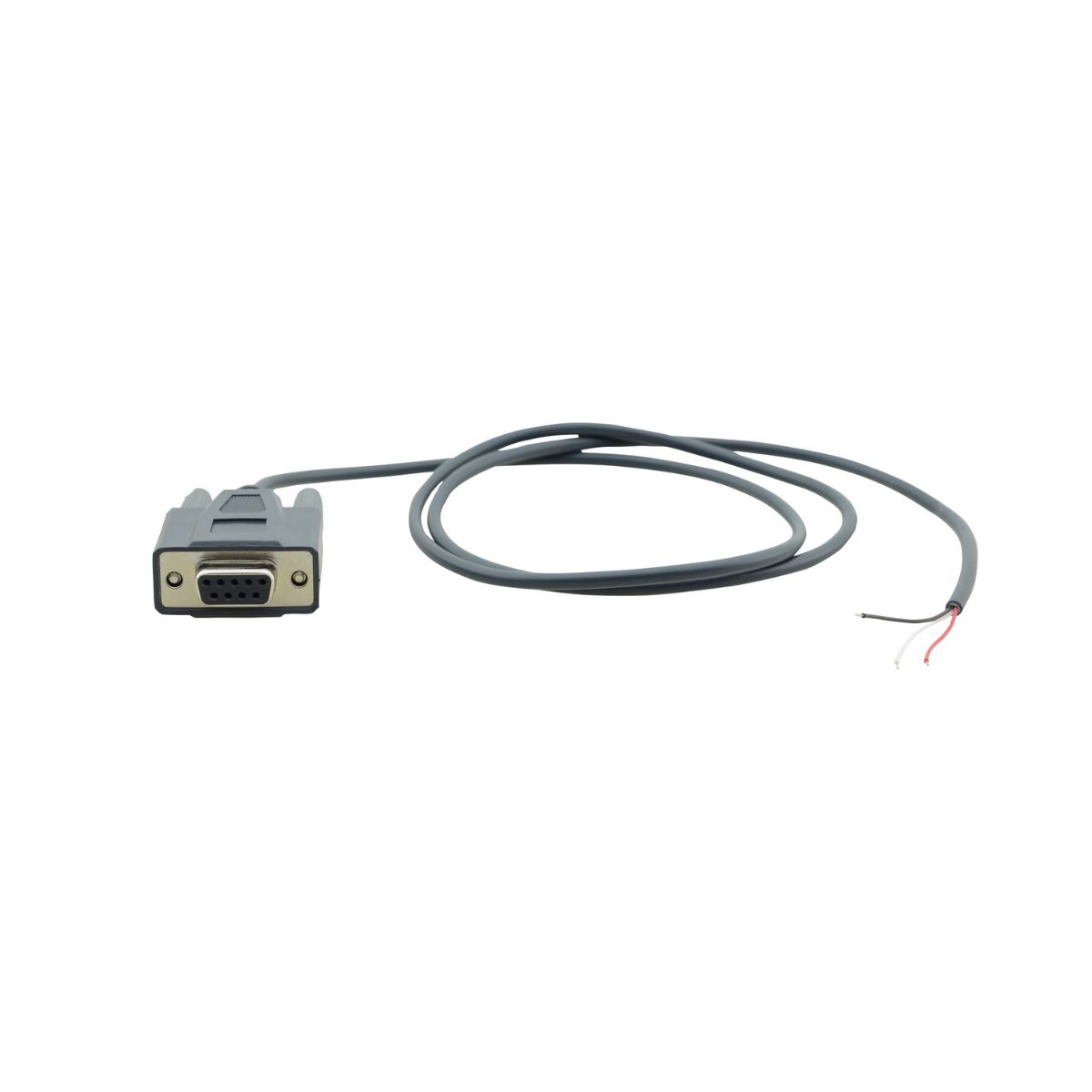

C-D9F/OPEN Open End Control Cable

RS–232 to Open End Control Cable

Highlights

• Quality Construction — Constructed using three 28AWG isolated conductors, terminated with a molded female 9–pin D–sub connector, nickel plated on one side and open end, non–terminated, on the second side.
•  Pinout — Wired pin to pin on pins 2, 3 & 5.
•  Molded Strain Relief.
•  Stripped & Tinned Wires — At the open end.
•  RoHS Compliant.

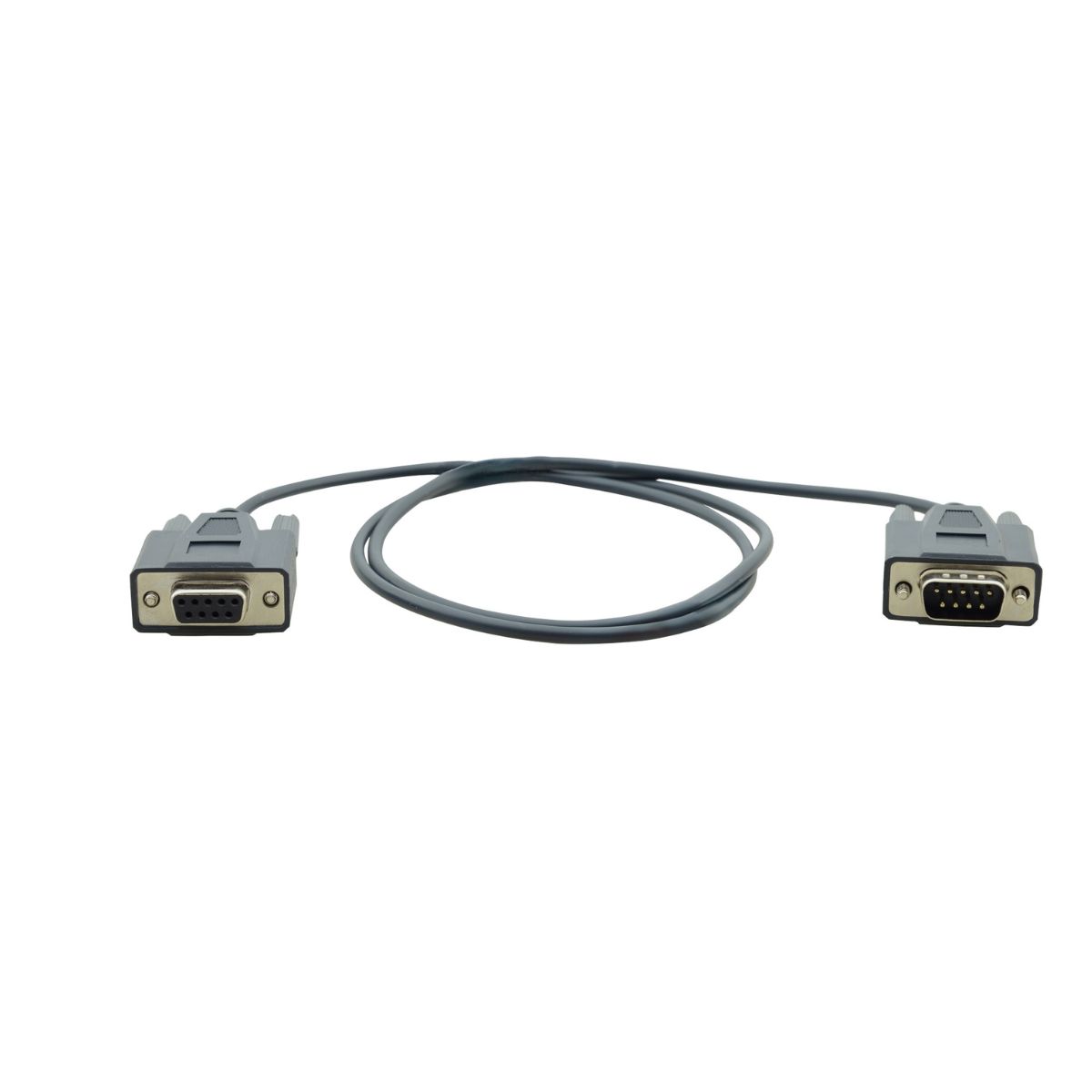

C-D9M/D9F Control Cable

RS–232 Control Cable

Highlights

• Quality Construction — Constructed using three 28AWG isolated conductors, terminated with male to female molded 9–pin D–sub connectors, nickel plated.
•  Pinout — Wired pin to pin on pins 2, 3 & 5.
•  Molded Strain Relief.
•  RoHS Compliant.
•  Varied Selection of Lengths — 3 to 50ft (1 to 15m).

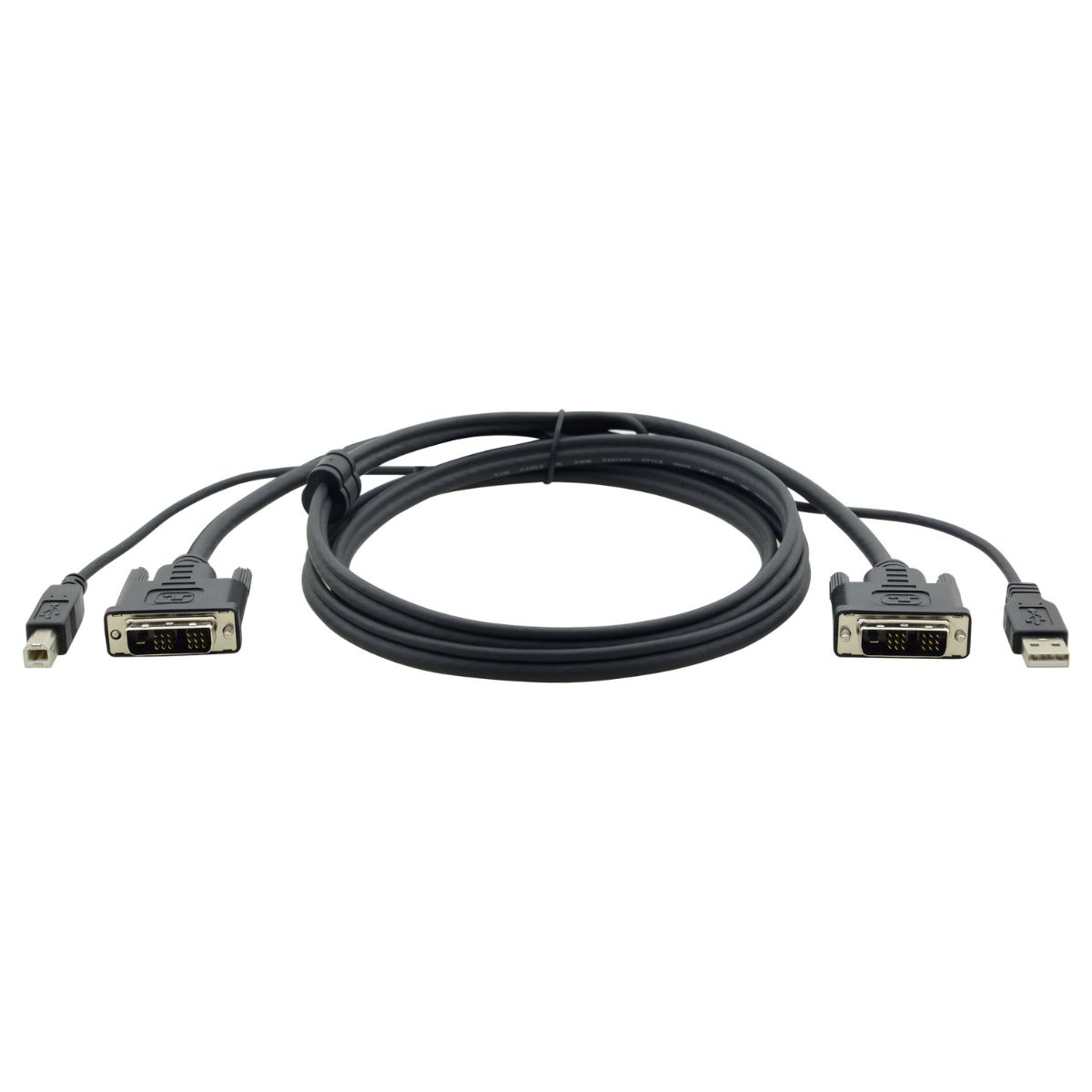

C-KVM KVM Cable

KVM Cable

Highlights

• Quality Construction — Constructed high-quality conductors and shielding in a PVC jacket, terminated with male connectors.
•  Connectors — Molded DVI, VGA, USB — gold/nickel plated.
•  Molded Strain Relief.
•  Easy Installation — 300mm — 500mm long spread at the USB end to fit large switchers.
•  RoHS Compliant.

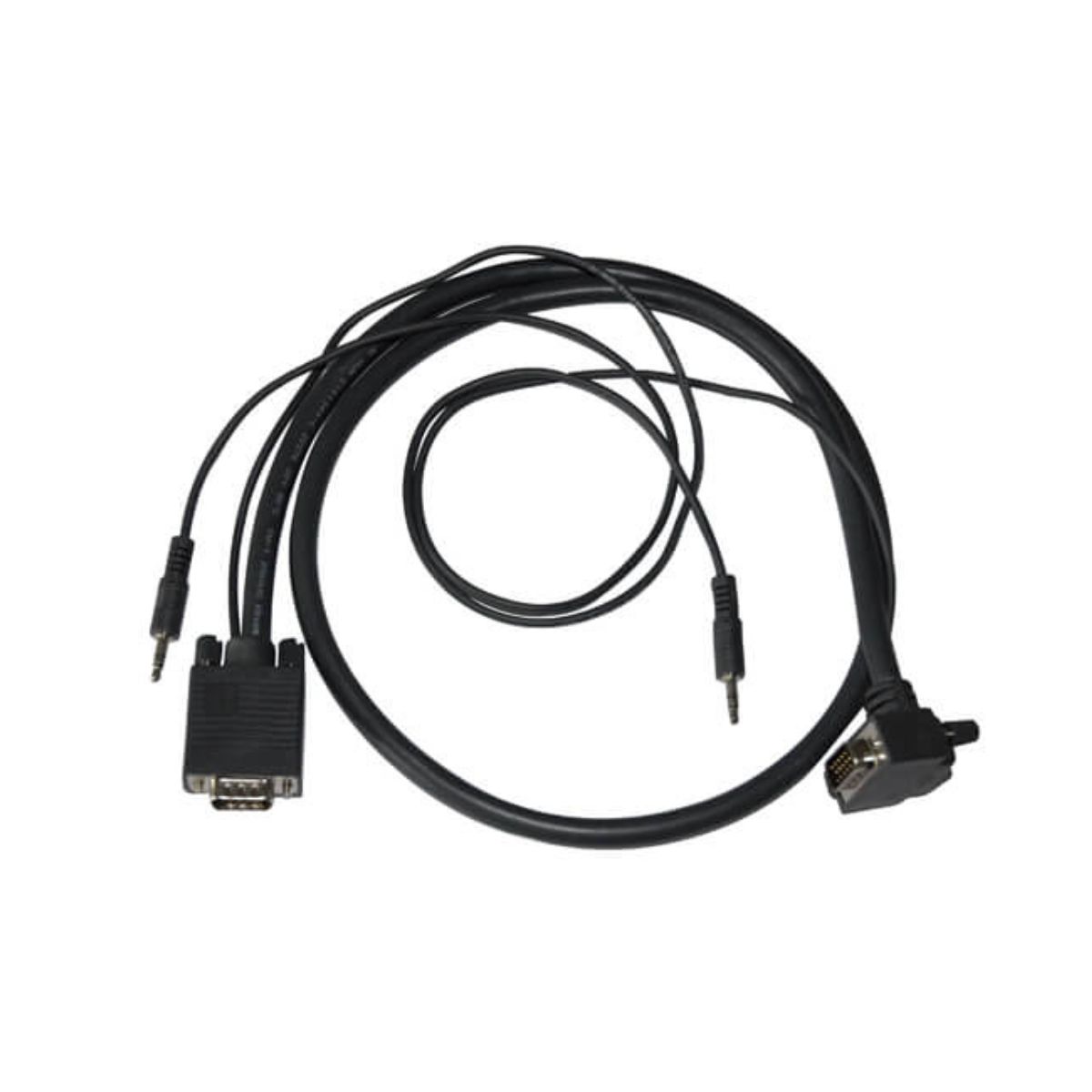

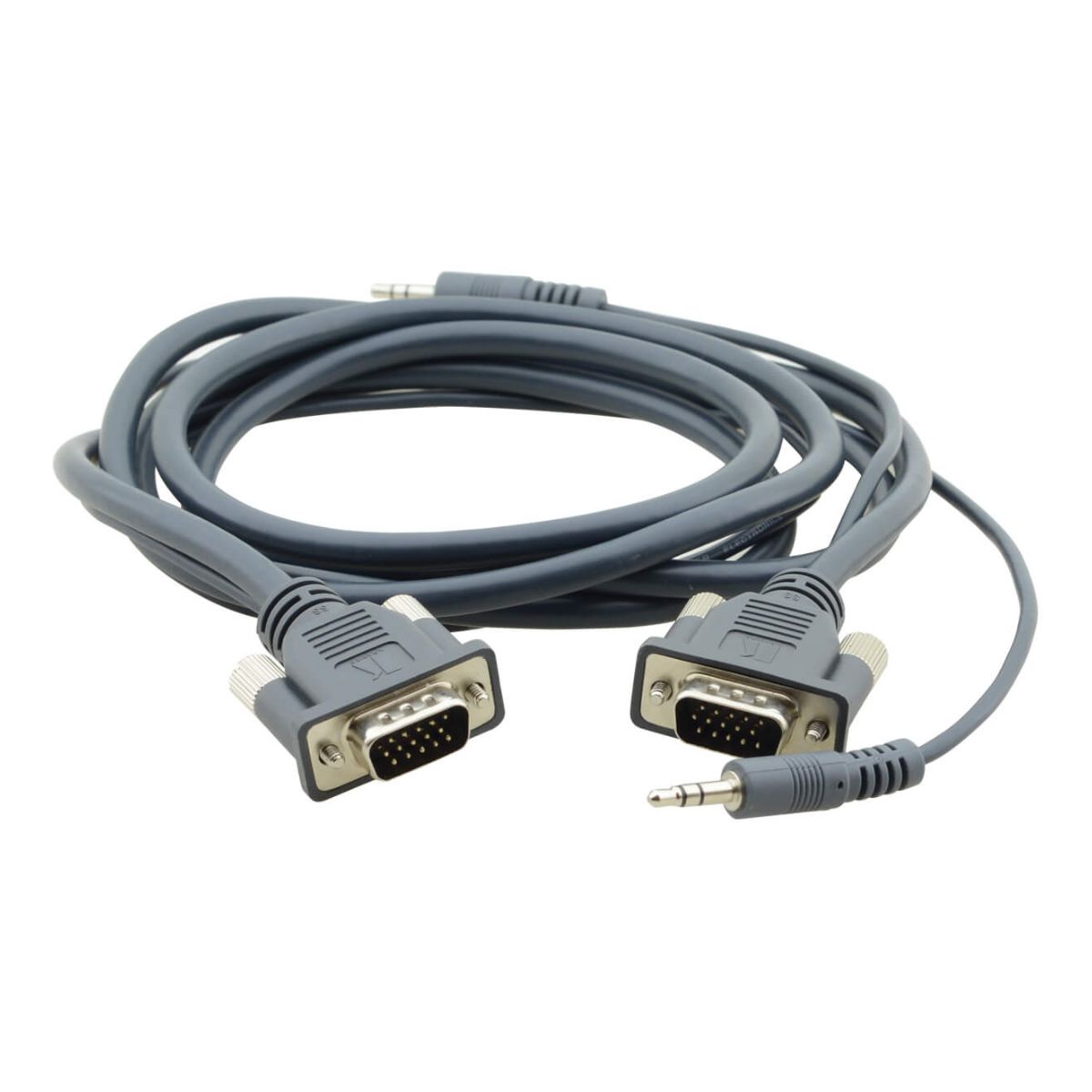

C-MGMA/MGMA

15–pin HD & 3.5mm Stereo Audio Micro Cable

Highlights

• Quality Construction — Constructed using micro coax conductors and outer diameter of 6.0mm (0.236in). The 15–pin HD connectors are specially designed with a small profile to fit any high density installation and all 15 pins are passed through the cable. The audio leads are 61.0cm (24in) long at one end and 20.3cm (8in) on the other end.
•  Multiple Applications — Ideal for video presentations, home theater and any installation in tight spaces. Use these cables with our table solutions for your convenience and efficiency.
•  All Pins Connected for DDC2 and EDID Support.
•  Varied Selection of Lengths — Available in versions of 3 to 25ft (0.9 to 7.6m).

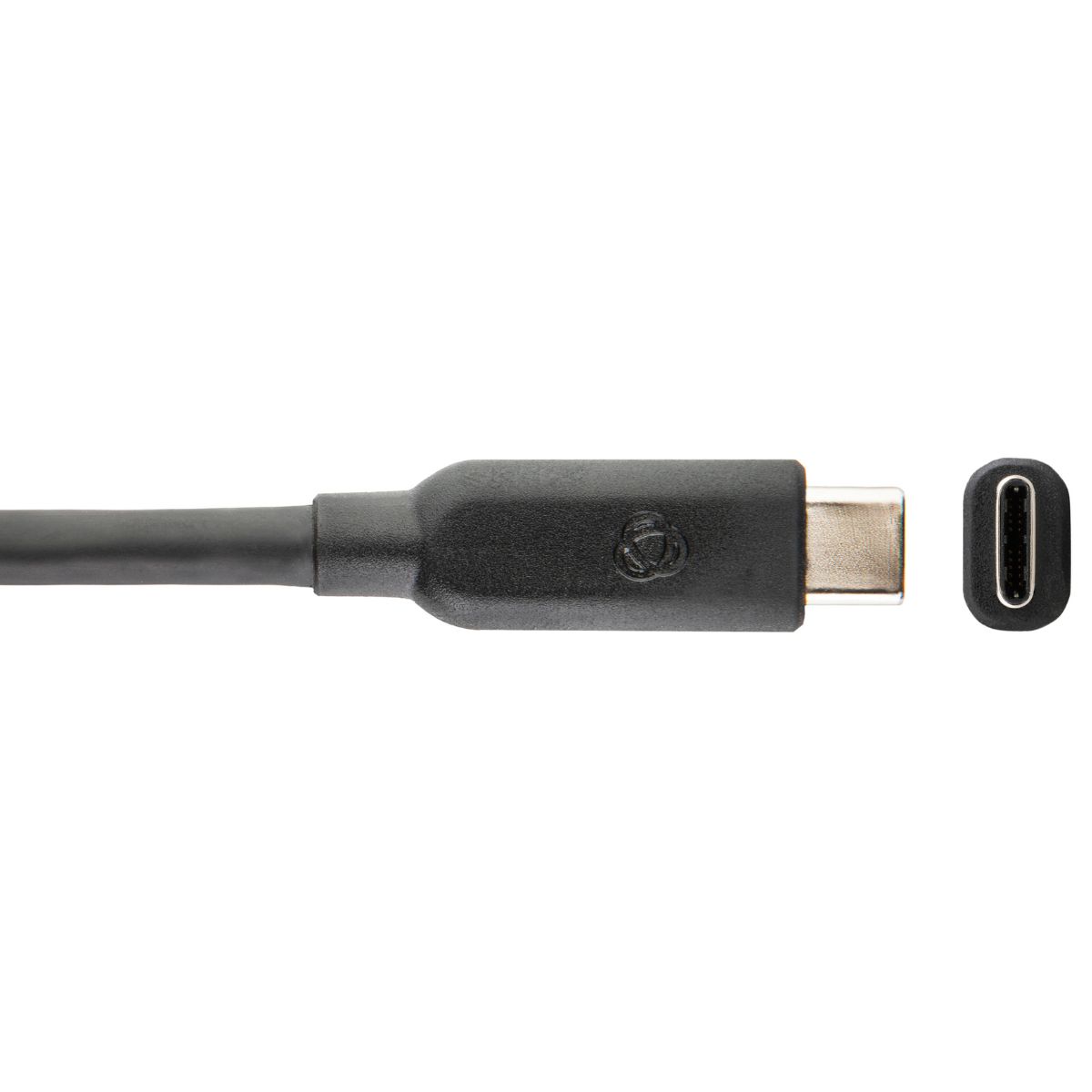

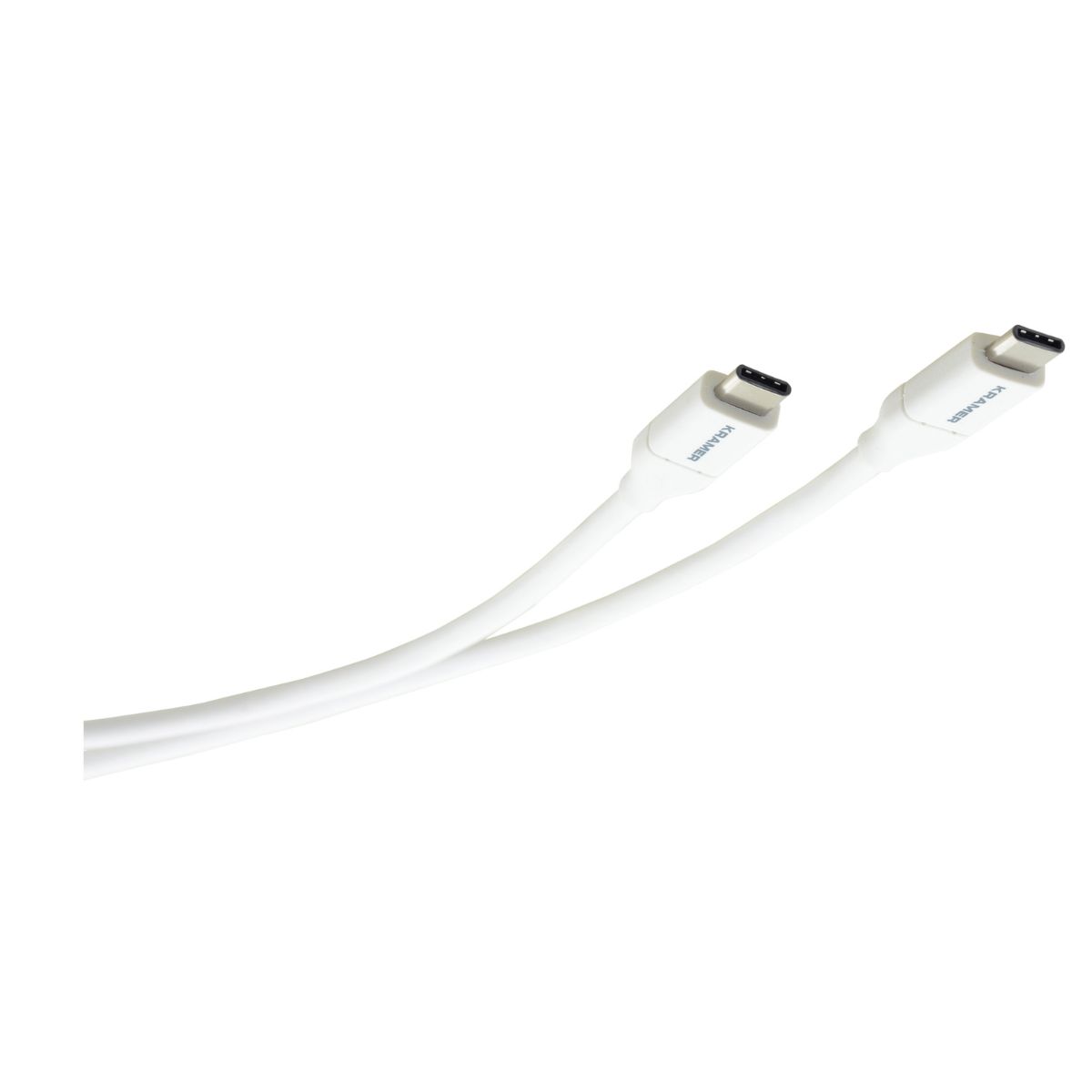

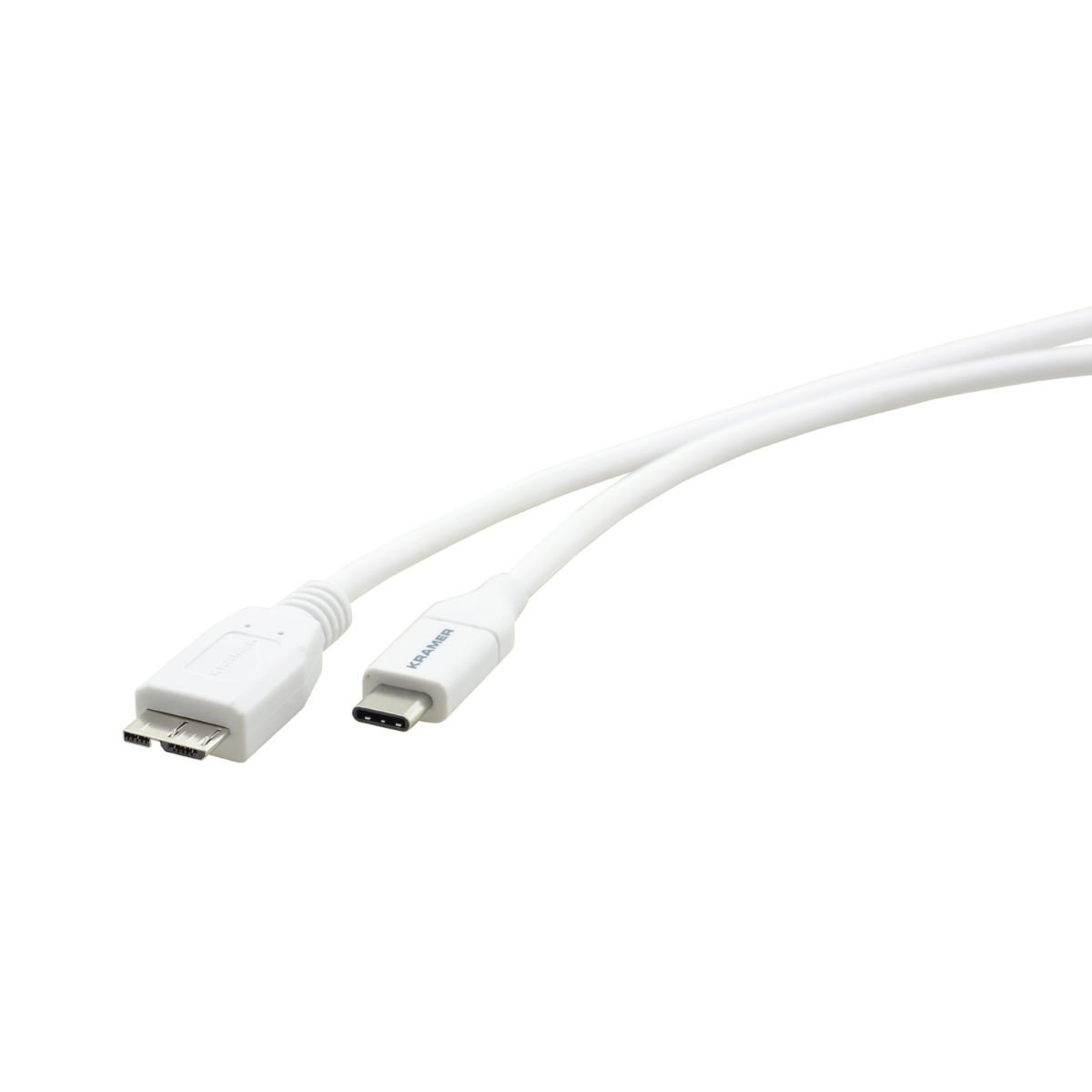

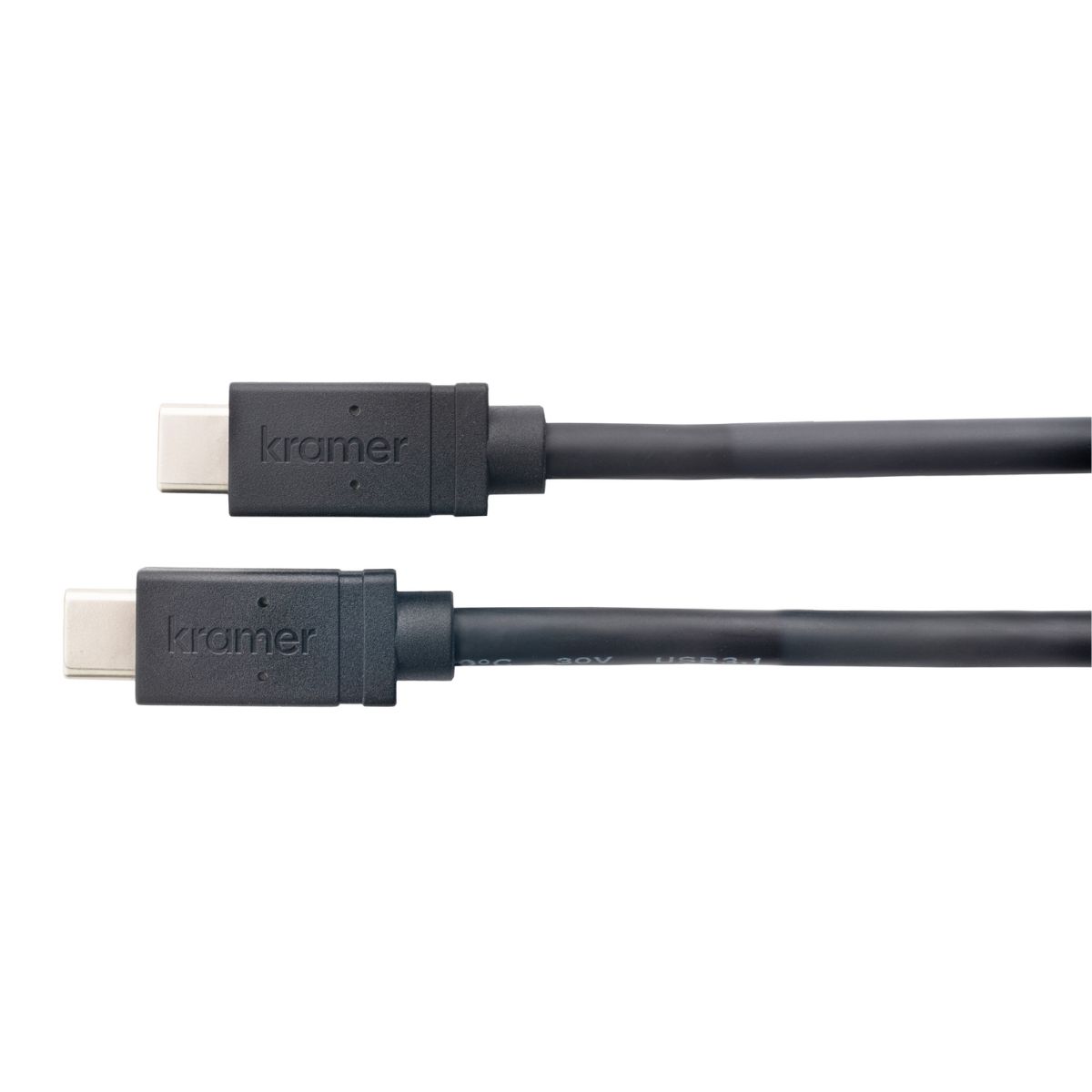

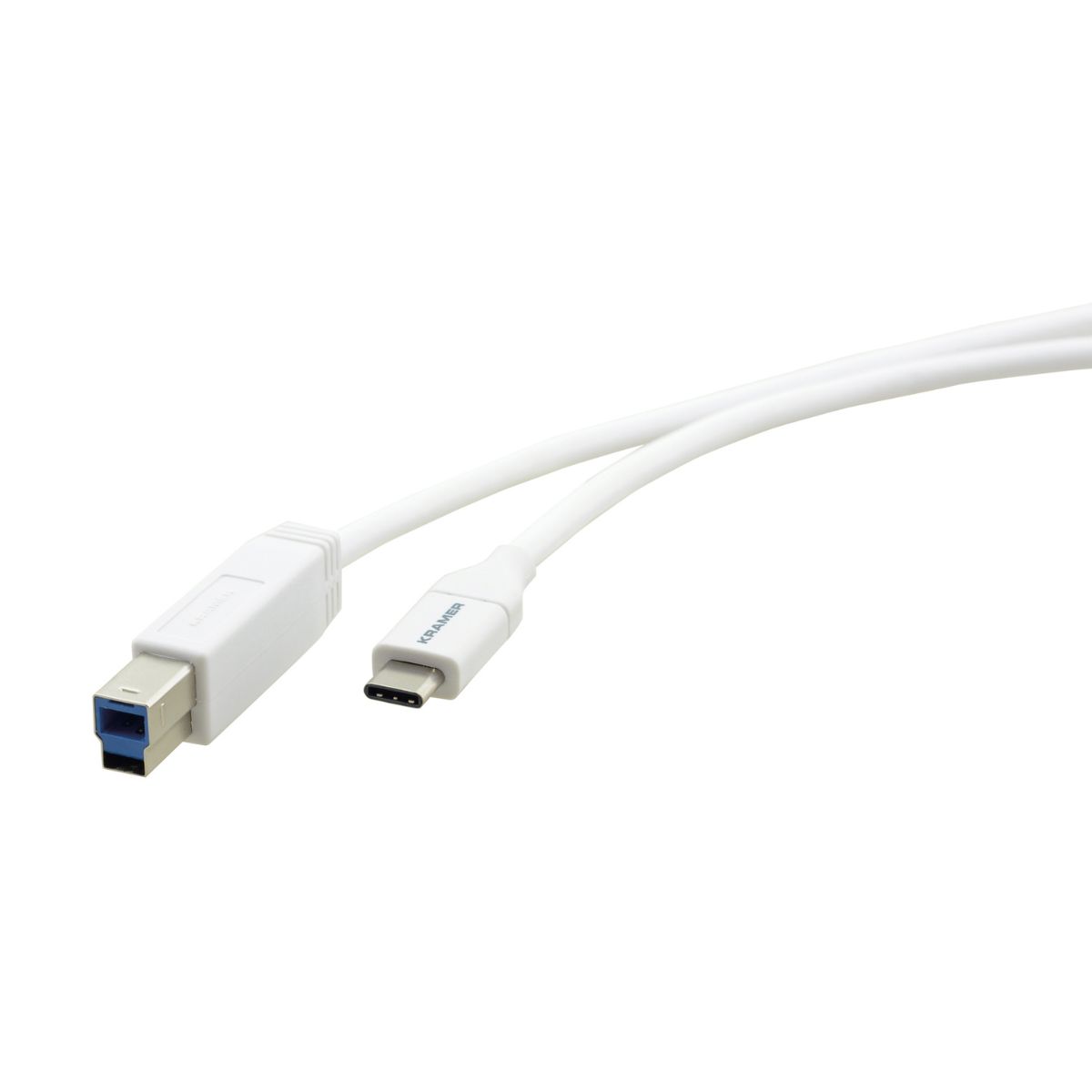

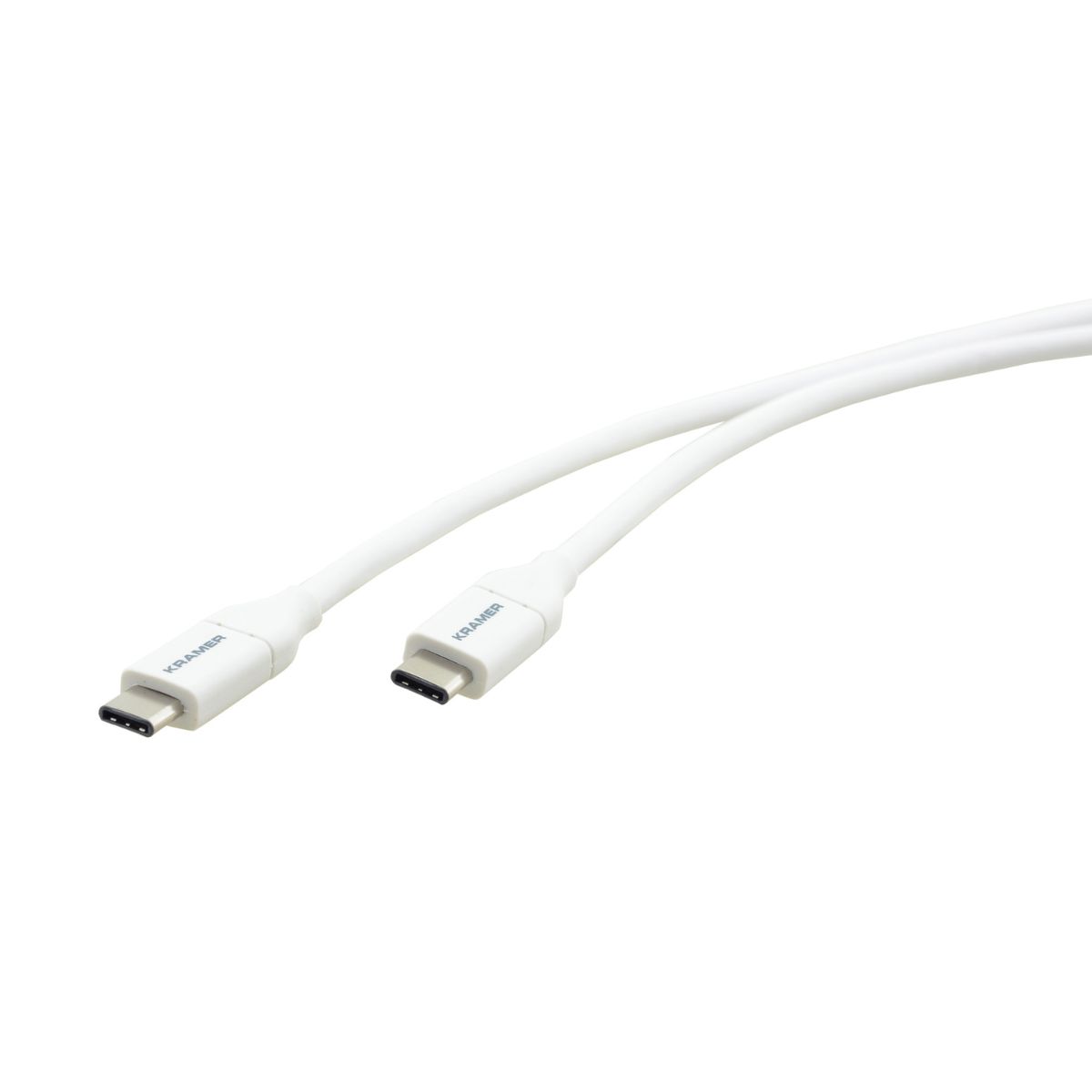

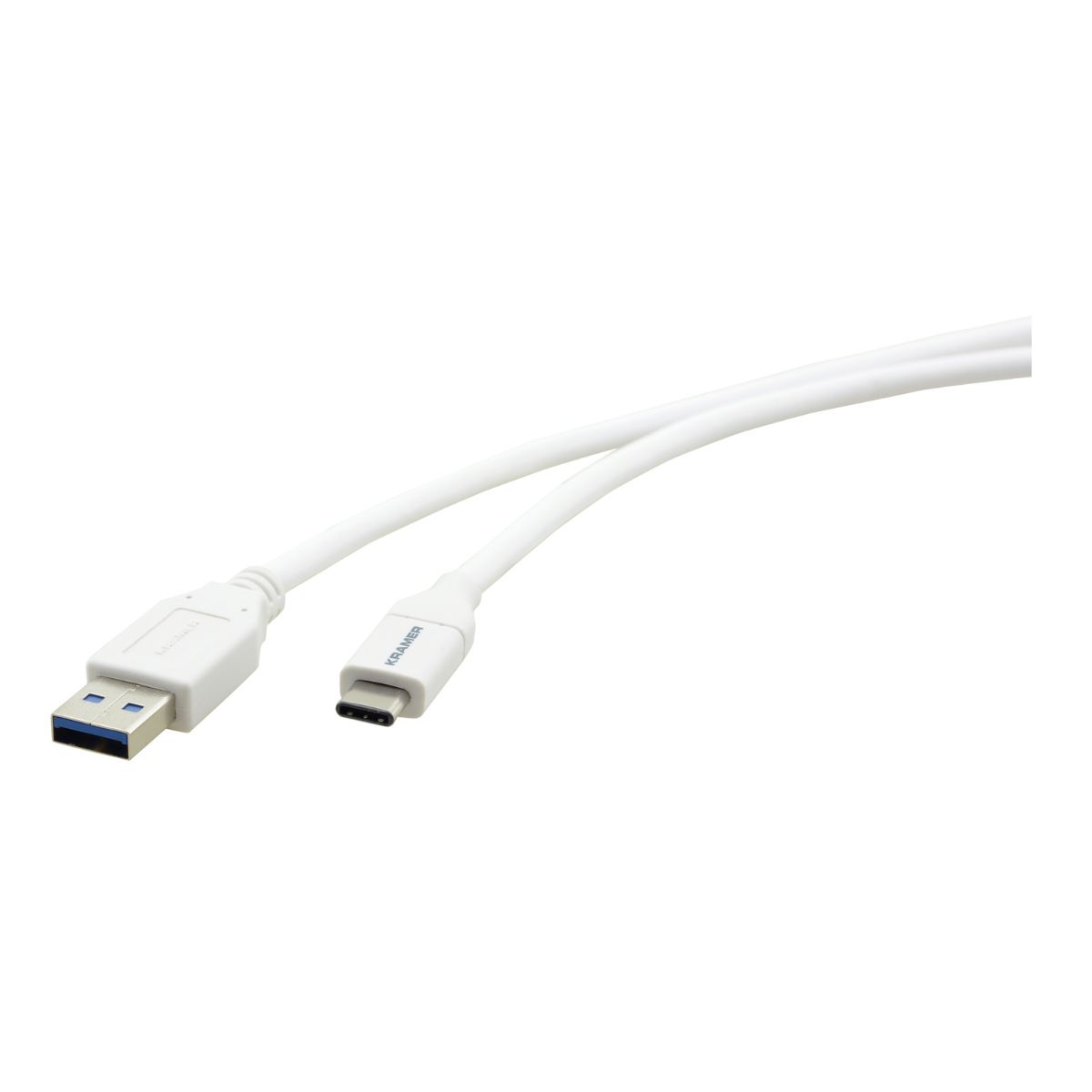

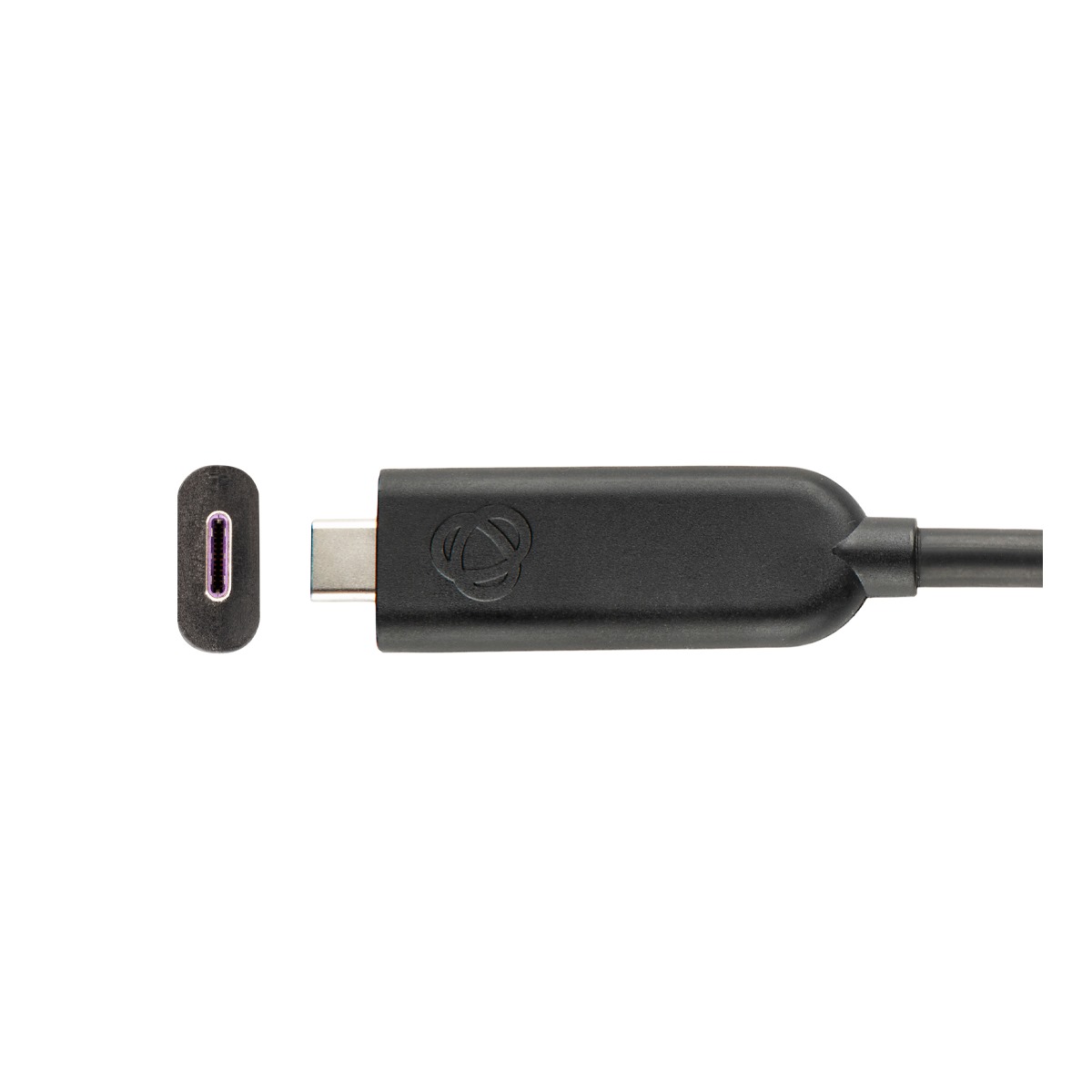

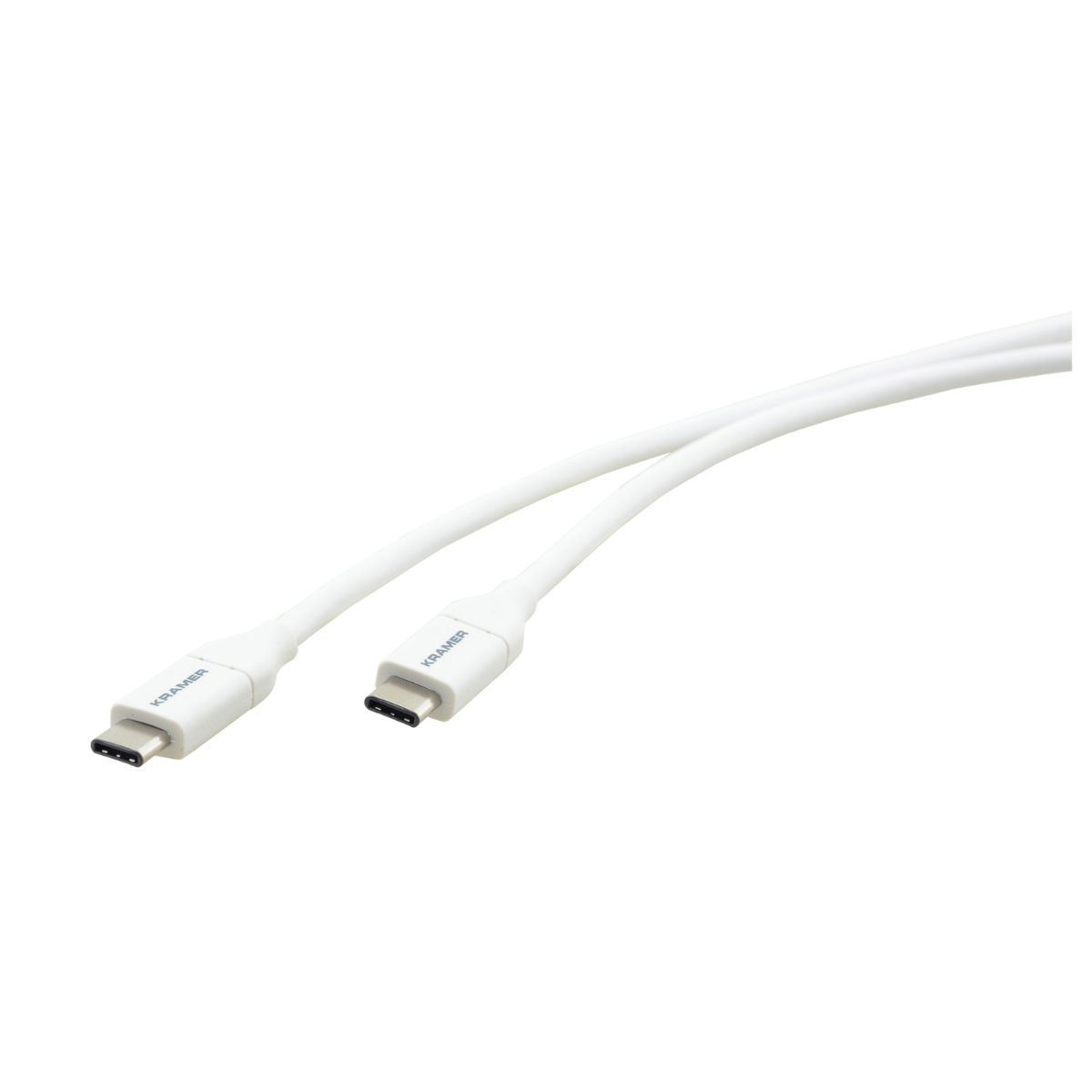

C-USB/C Type–C Cable

USB 2.0 Type–C Cable

Highlights

• Lengths — 3ft to 10ft (1m to 3m)
• USB (M) Connector A — Type–C
• USB (M) Connector B — available in the following configurations: Type–C, Type–B, Type–A, Micro–B

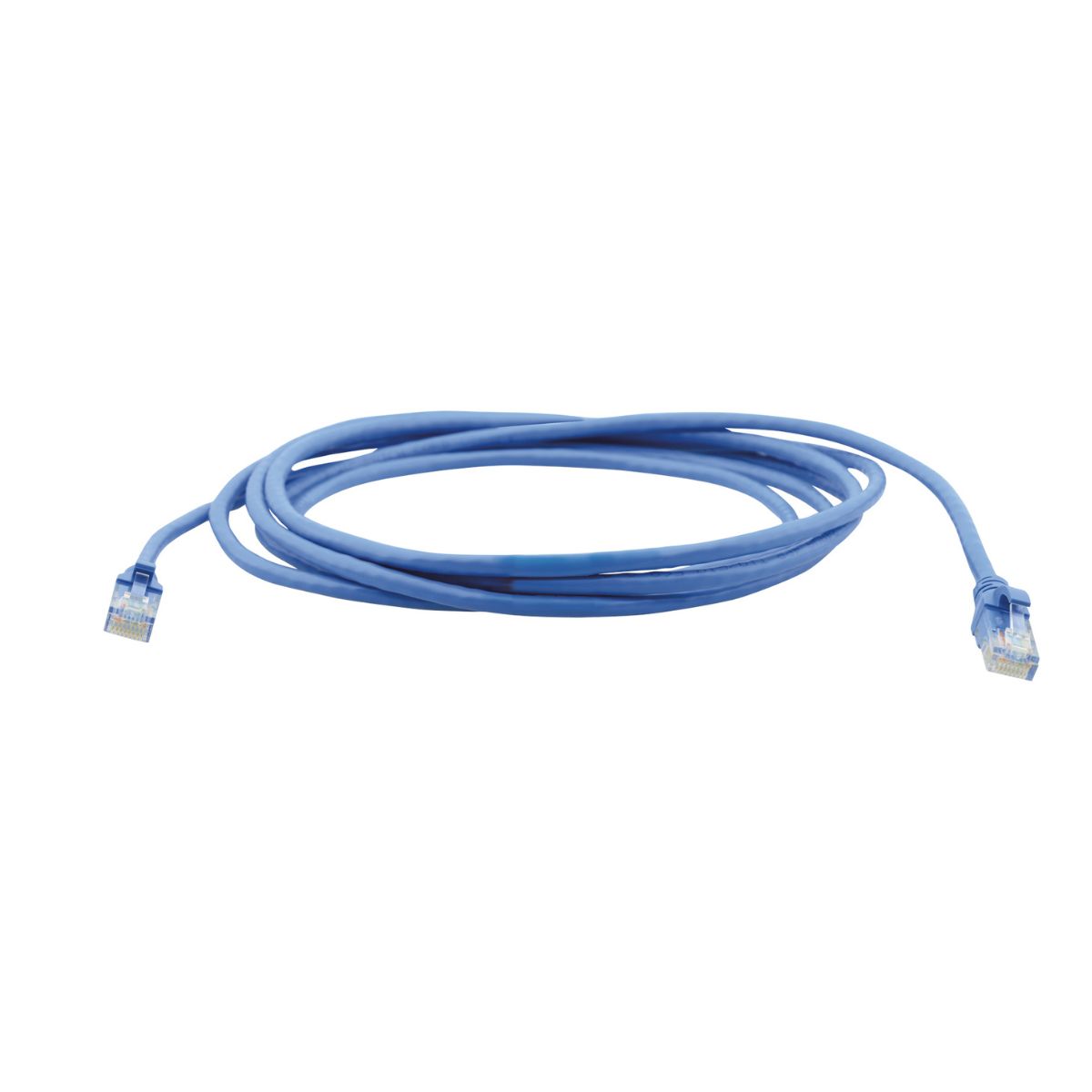

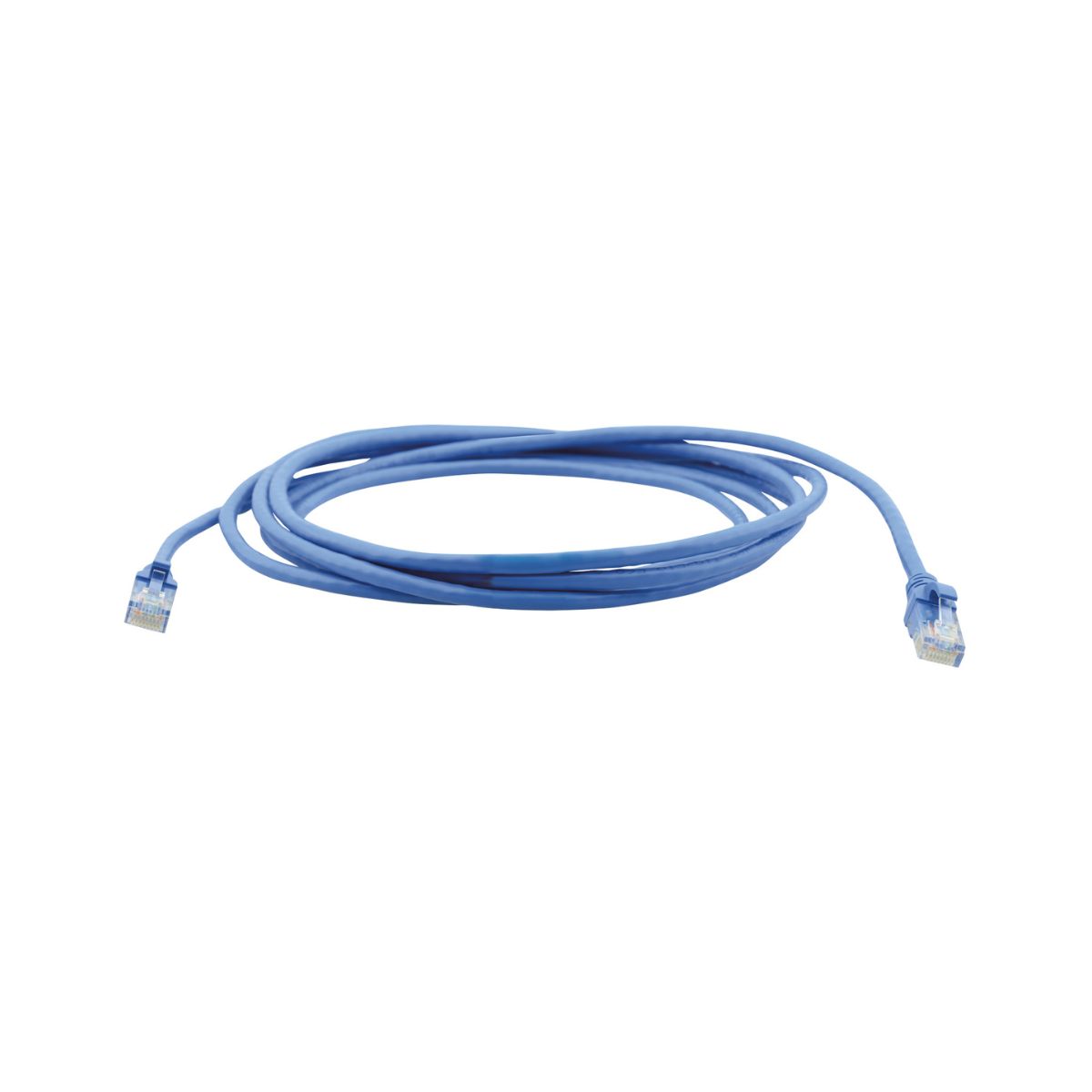

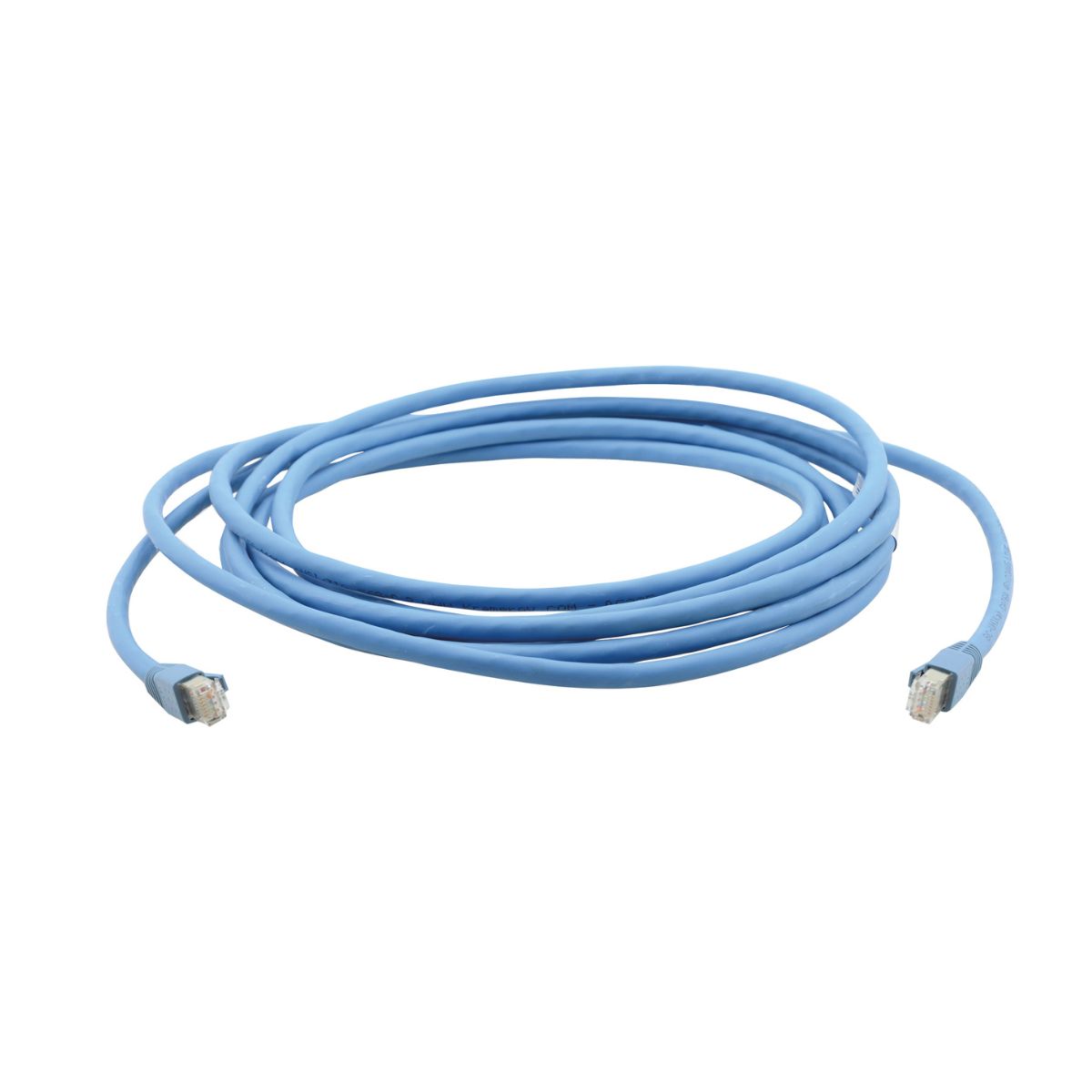

PC6-1 CAT6 UTP 250MHz CM

CAT6 UTP 250MHz CM 4x2x24AWG Patch Cord

Highlights

• Quality Construction — 4 twisted pairs (U/UTP) of 24AWG stranded copper.
•  RJ–45 Connector — Slim snagless RJ–45 connector, 50u gold plated contacts.
•  Rated UL–CM.
•  Varied Selection of Lengths — 0.15 to 4.60m (0.5 to 15ft).

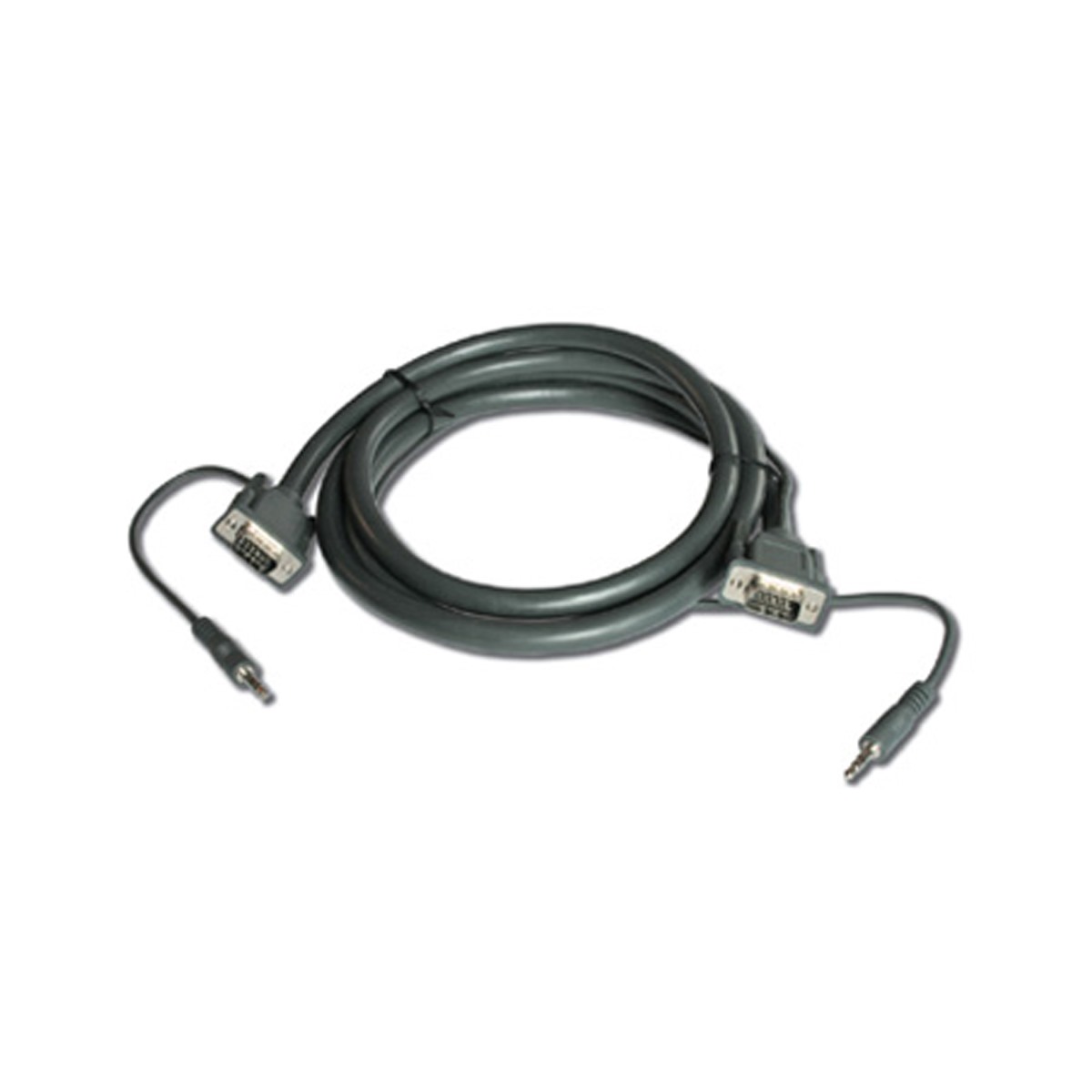

C-GMA/GMA Stereo Audio Cable

15–pin HD & 3.5mm Stereo Audio Cable

Highlights

• Quality Construction — Constructed using our rugged and flexible 14–14-conductor cable.
•  Easy Connection — Pre–terminated with molded 15–pin HD connectors (male to male), gold–plated pins and thumbscrews, and a 3.5mm stereo mini jack.
•  Easy Installation — Audio leads extend 24in (61cm) beyond the 15–pin HD head at one end, and 20cm (8in) at the other.
•  All Pins are Connected for DDC2 and EDID Support.

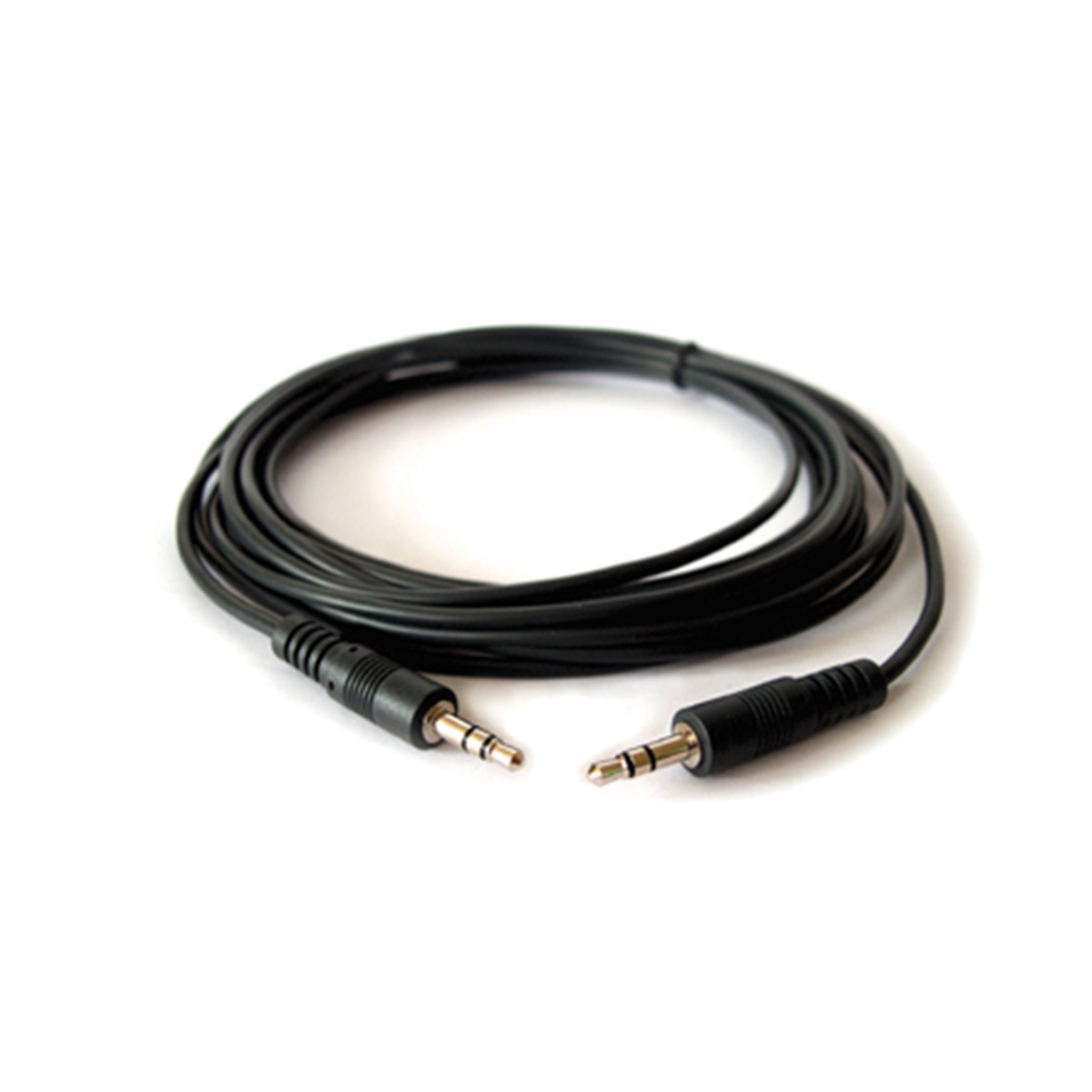

C-A35M/A35M Stereo Audio Cable

3.5mm Stereo Audio Cable

Highlights

• Quality Construction — Constructed from flexible, high–quality 28AWG cable for transparent performance with line-level audio signals.
•  Numerous Applications — Ideal for use with typical computer sound cards, projectors, portable music players, etc. It is also great for serial or IR remote control that often uses shielded pair wire for transmission of transmit, receive, and ground signals.
•  Varied Selection of Lengths — Available in versions of 3 to 100ft (0.9 to 30.5m).

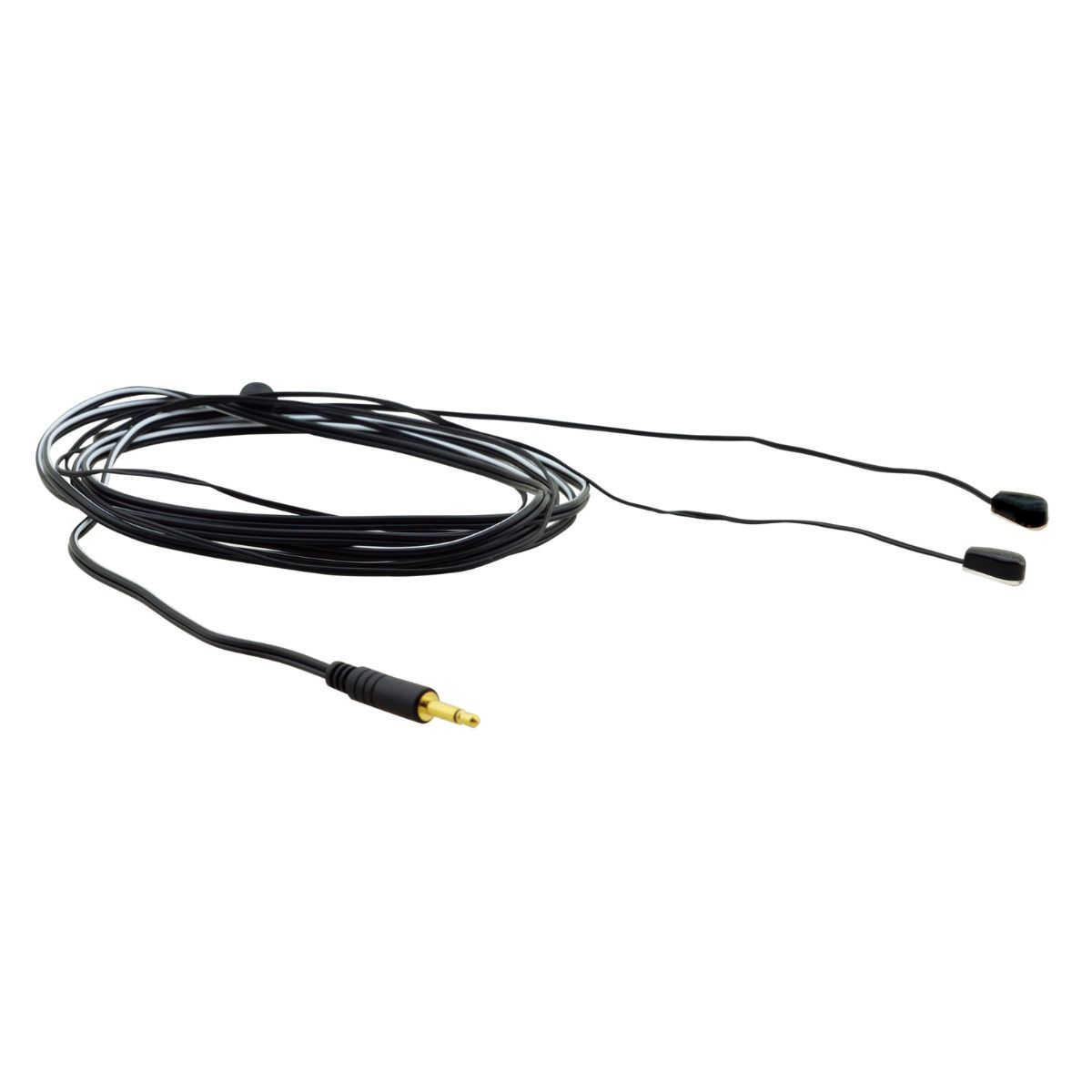

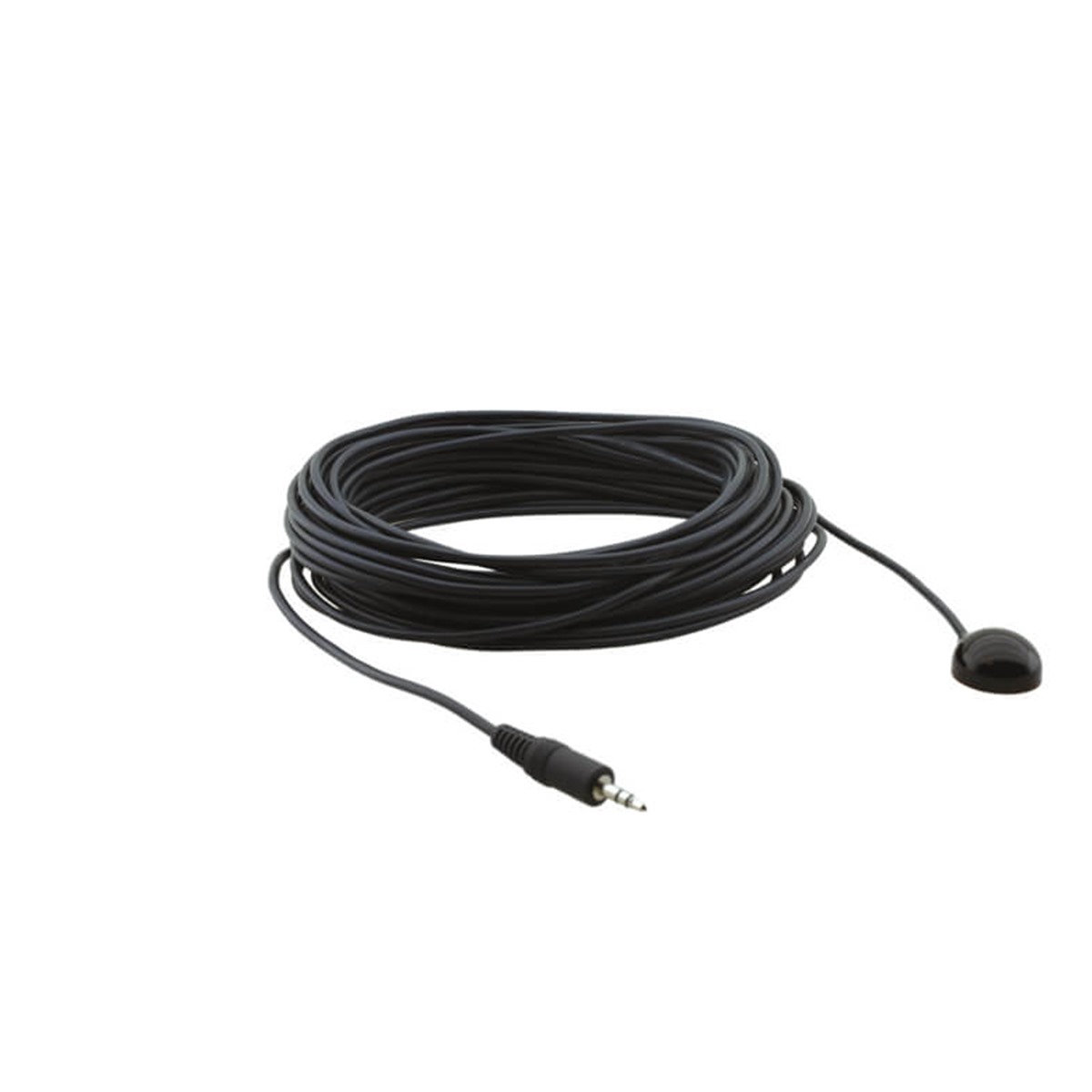

C-A35M/IRRN Male to IR Receiver Cable

3.5mm Male to IR Receiver Cable

Highlights

• Length — 0.9–15.2m (3–50ft)
• Color — Black

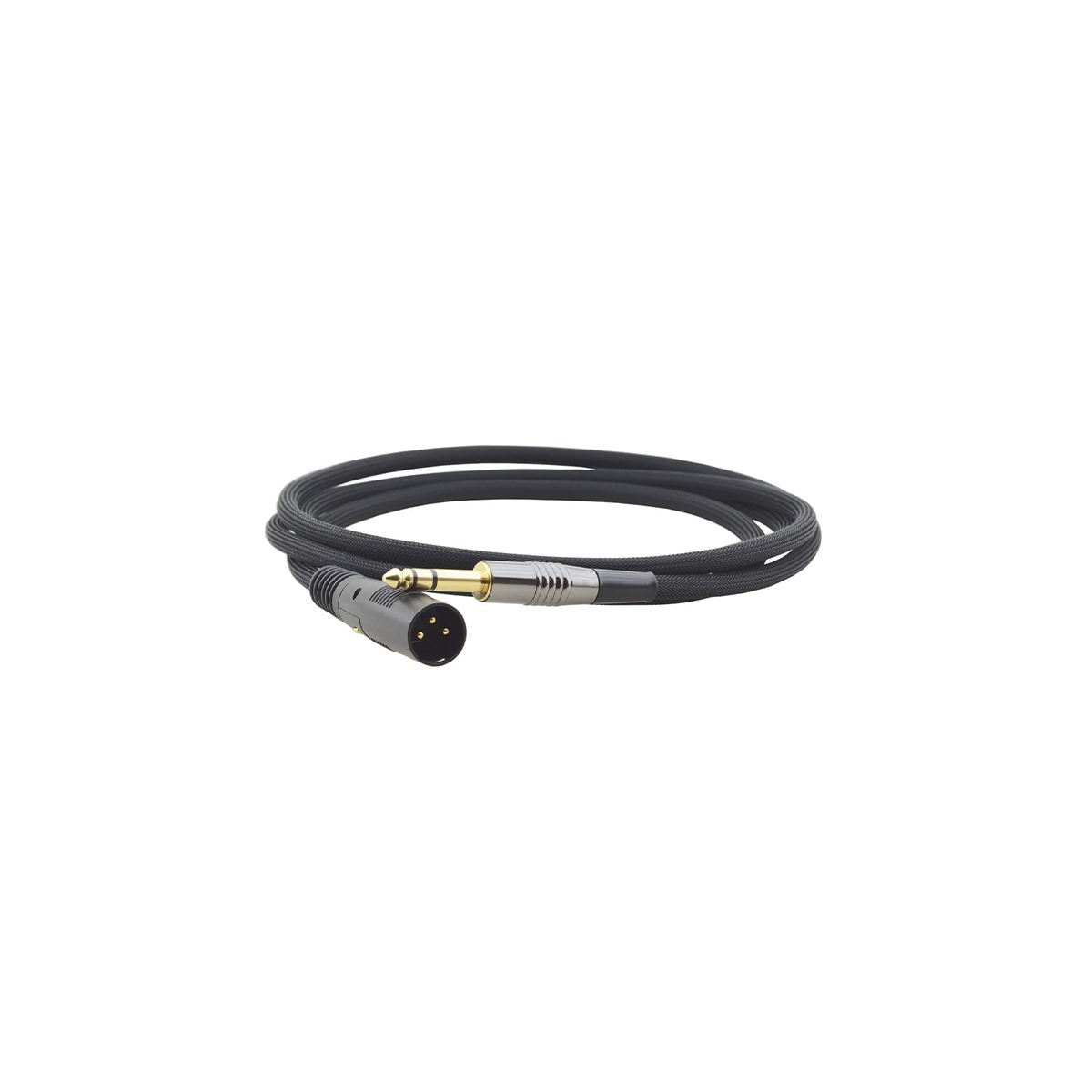

C-A63M/XLM Male Cable

6.3mm Male to 3–pin XLR Male Cable

Highlights

• Quality Construction — 26AWG tinned copper covered by a spiral tinned copper shield to protect signal quality with superior coverage.
•  PVC Jacket — Heavy–duty PVC jacket covered with cotton braid for a nice feel, terminated with high–quality assembly type connectors.
•  Varied Selections of Lengths — Available in versions of 10 to 25ft (3.0 to 7.6m).

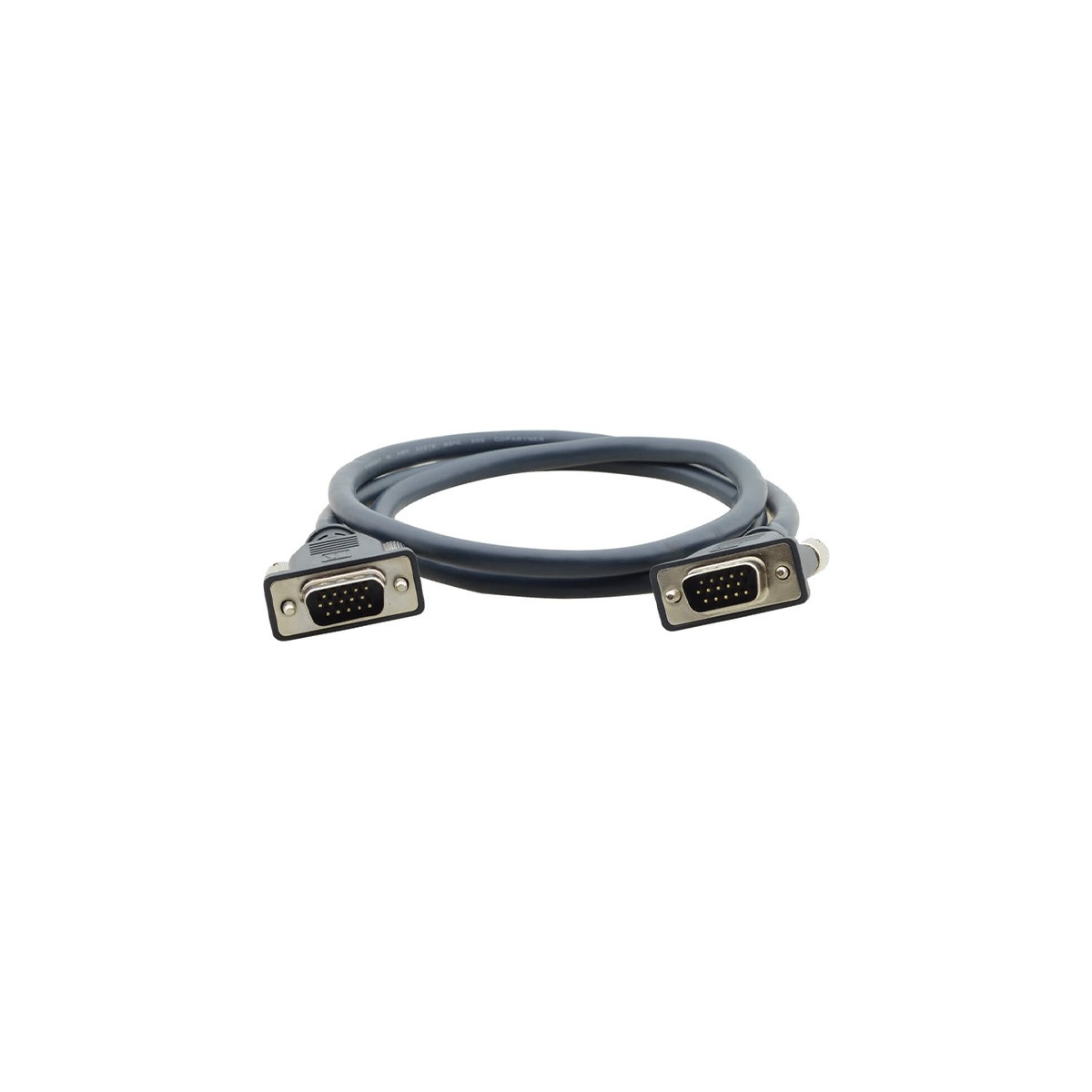

C-MGM/MGM HD Micro Cable

15–pin HD Micro Cable

Highlights

• Quality Construction — Constructed using micro coax conductors, with an outer diameter of 5.4mm (0.212in). The 15–pin HD connectors are specially designed with a small profile to fit any high–density installation and with all 15 pins passing through the cable.
•  Multiple Applications — Ideal for video presentations, home theater, and any installation in tight spaces. Use these cables with our table solutions for a convenient and efficient installation.
•  All Pins are Connected for DDC2 and EDID Support.

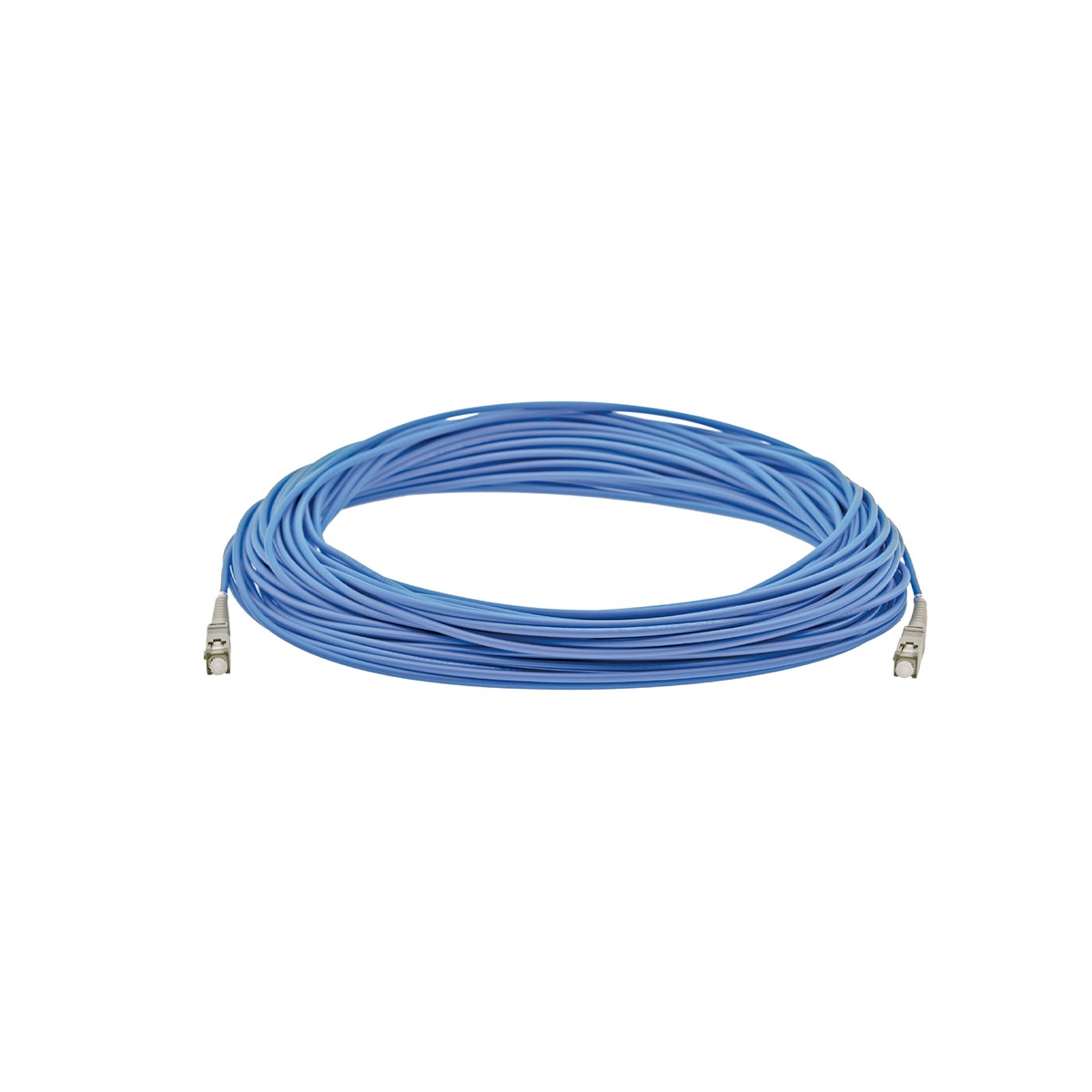

C-SC/SC/OM4 Fiber Optic Cable

OM4 Multi-Mode Fiber Optic Cable

Highlights

•  Quality Construction — Developed for 40Gbps standards. 850nm OM4 multi-mode fiber in a flexible PVC outer jacket of 3.0mm (0.118in) diameter.
•  Numerous Applications — Connects Kramer's 670T/R, 671T/R, and 673T/R transmitter/receivers for long–distance transmission of high–resolution digital video signals over fiber.
•  Varied Selection of Lengths — Available in versions of 33 to 820ft (10 to 250m).

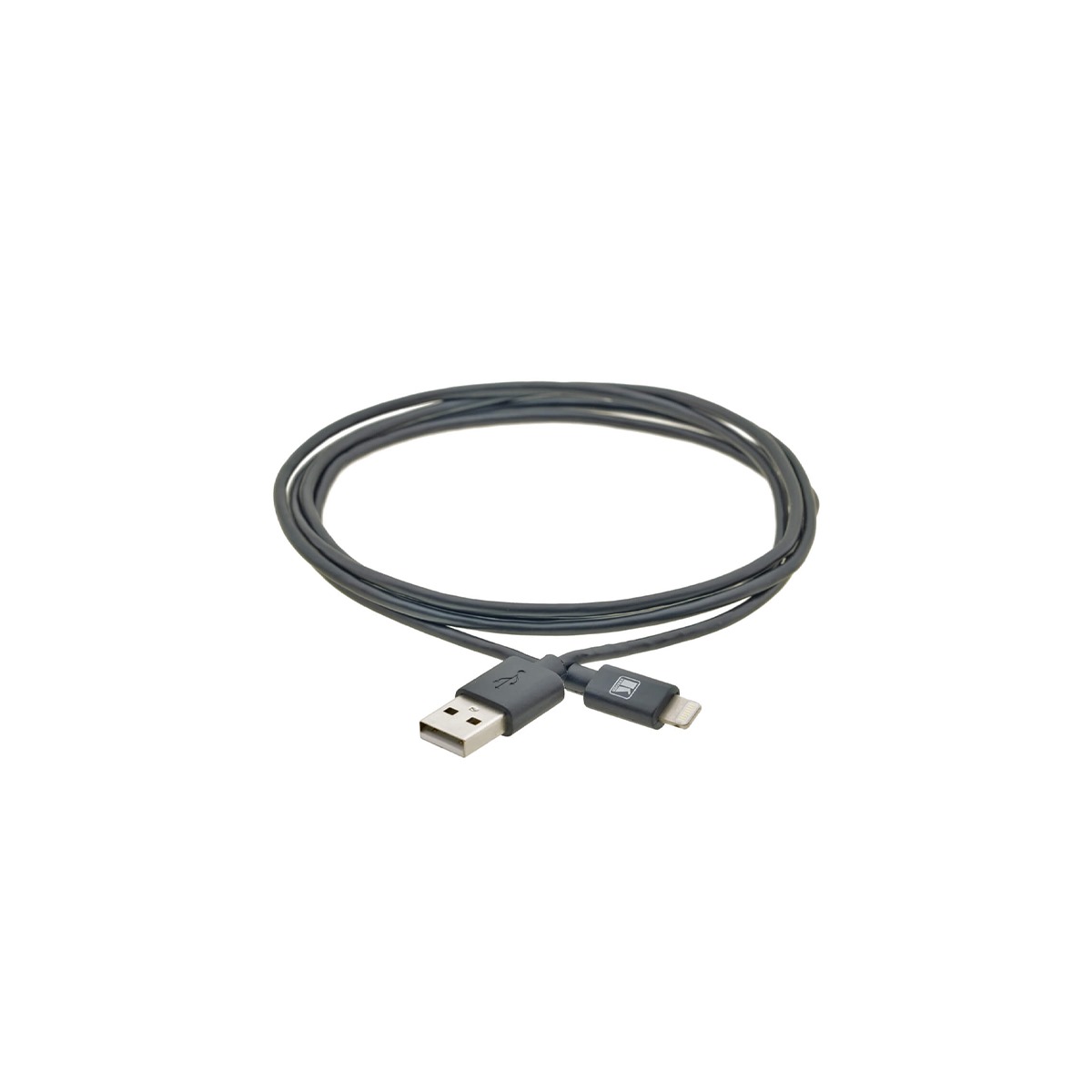

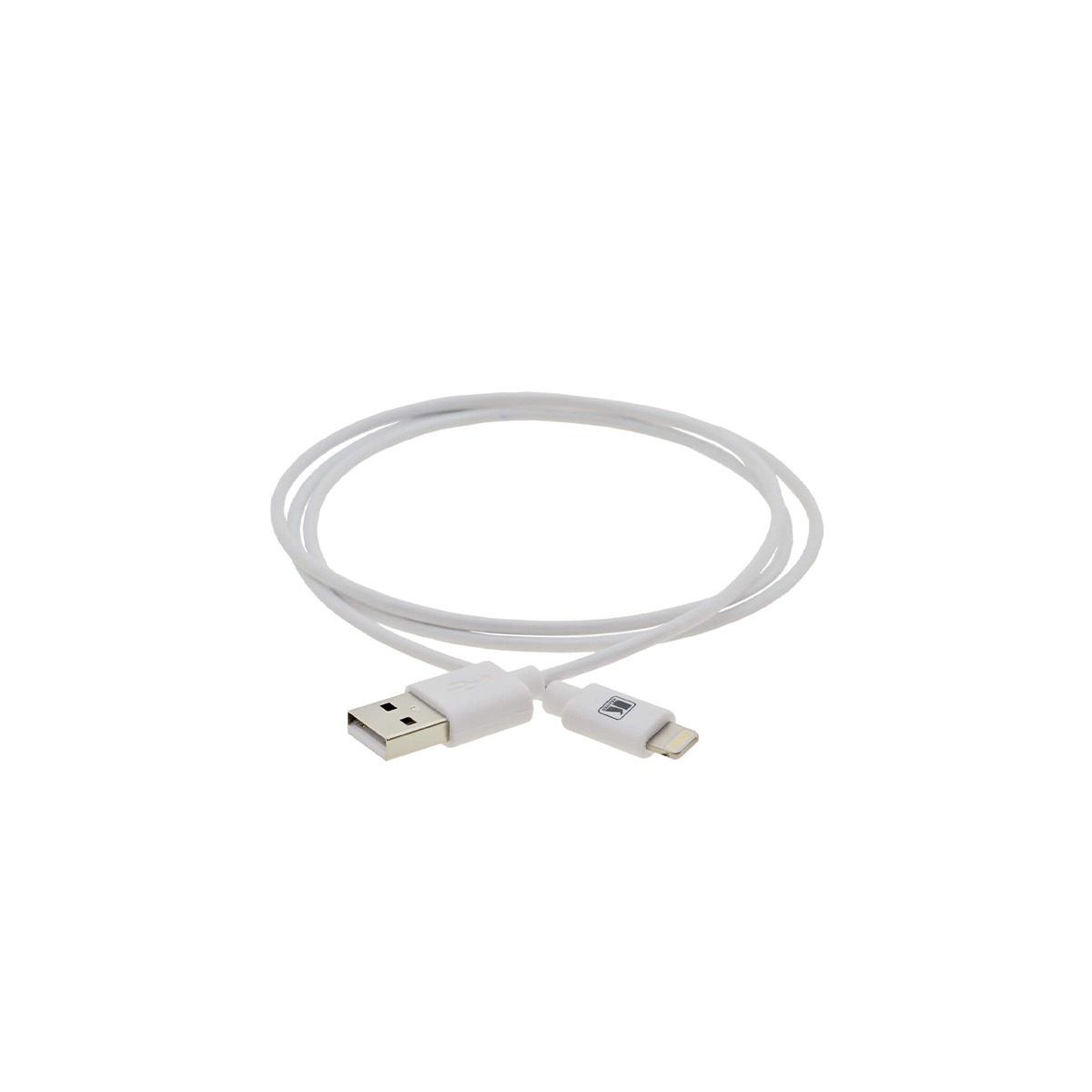

C-UA/LTN Apple Certified Lightning to USB Sync & Charge Cable

Apple Certified Lightning to USB Sync & Charge Cable

Highlights

•  Quality Performance — For reliable syncing and charging, Kramer’s C–UA/LTN cable is built using high–quality materials with durable construction for maximum flexibility.
•  Compatible Devices — iPhone 6, 6 Plus, 5, 5C, and 5S; the iPod Nano, the iPod Touch, the iPad Mini, the iPad Air and the 4th generation iPad.
•  Available Colors — White & black.
•  MFi Certified.
•  Note — The cable’s color can vary in some cases.

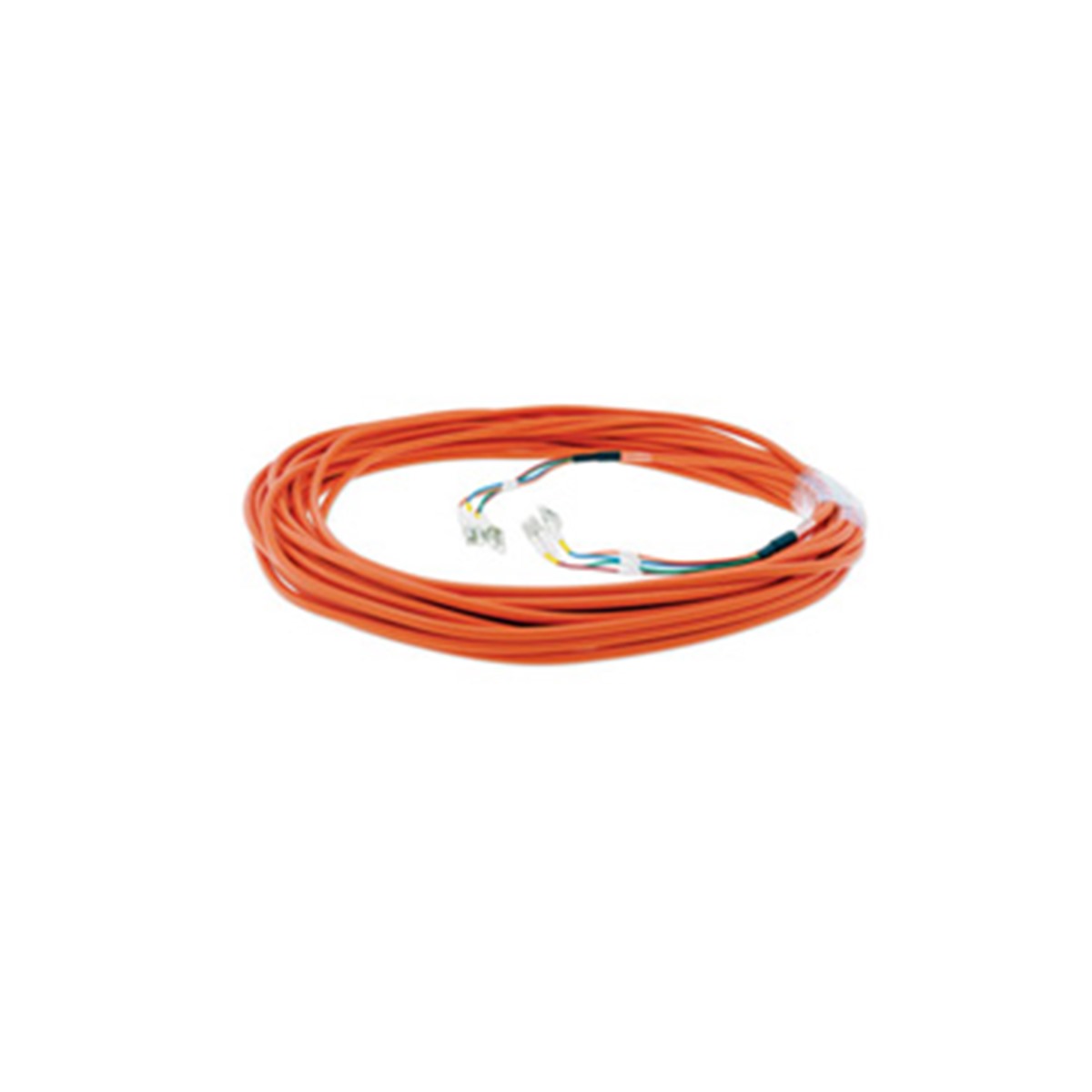

C-4LC/4LC Fiber Optic Cable

4 LC Fiber Optic Cable

Highlights

• Quality Construction — Multimode optical fiber with an operating wavelength of 850nm. Sub–cables are color-coded: red, green, blue, and orange, terminated with the popular LC connectors for easy installation, and are shipped with dust caps at the ends.
•  Numerous Applications — These cables are used to connect our optical transmitter and receivers for DVI and HDMI, such as 610T/R, 621T/R, and 631T/R.
•  Varied Selection of Lengths — Available in versions of 33 to 1640ft (10 to 500m).

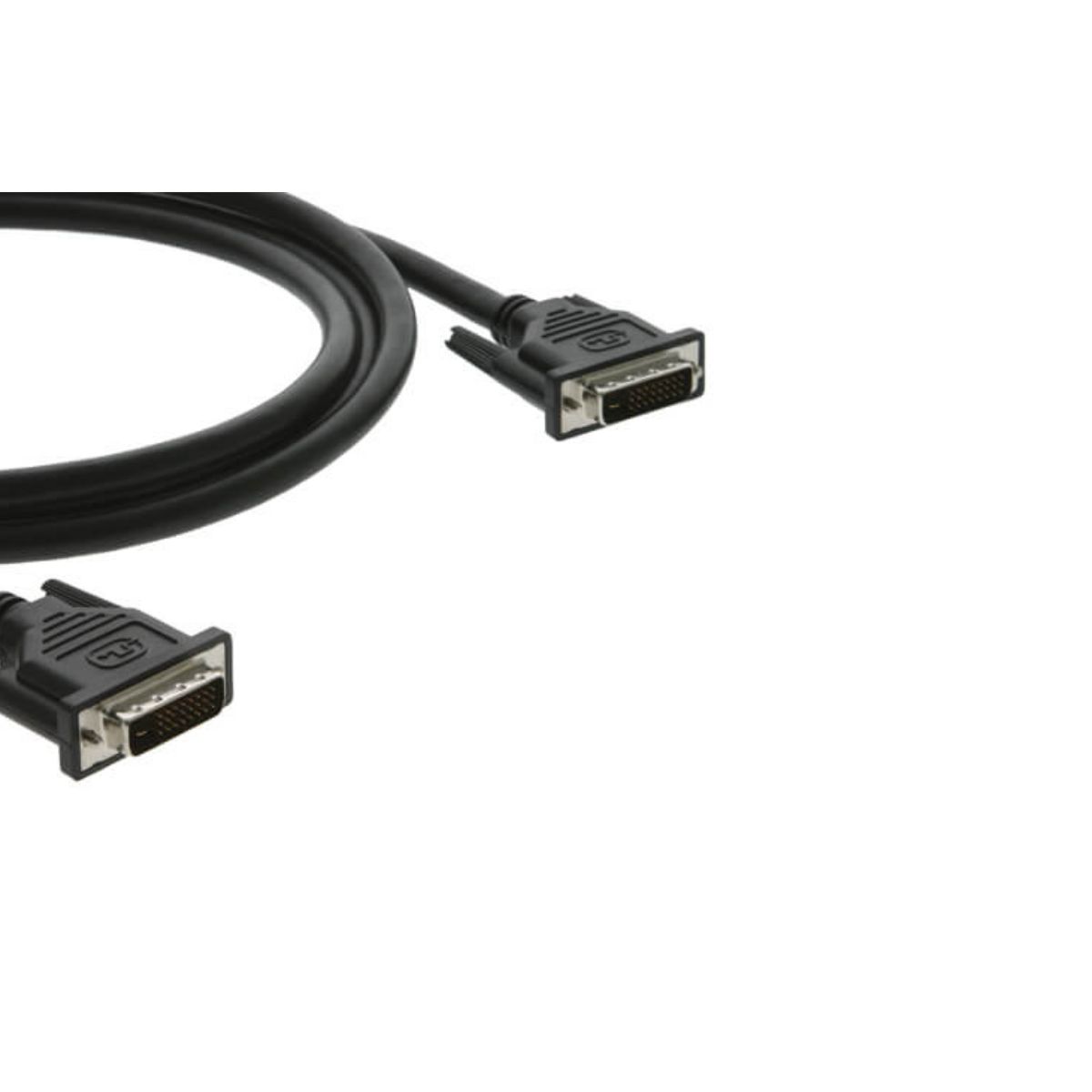

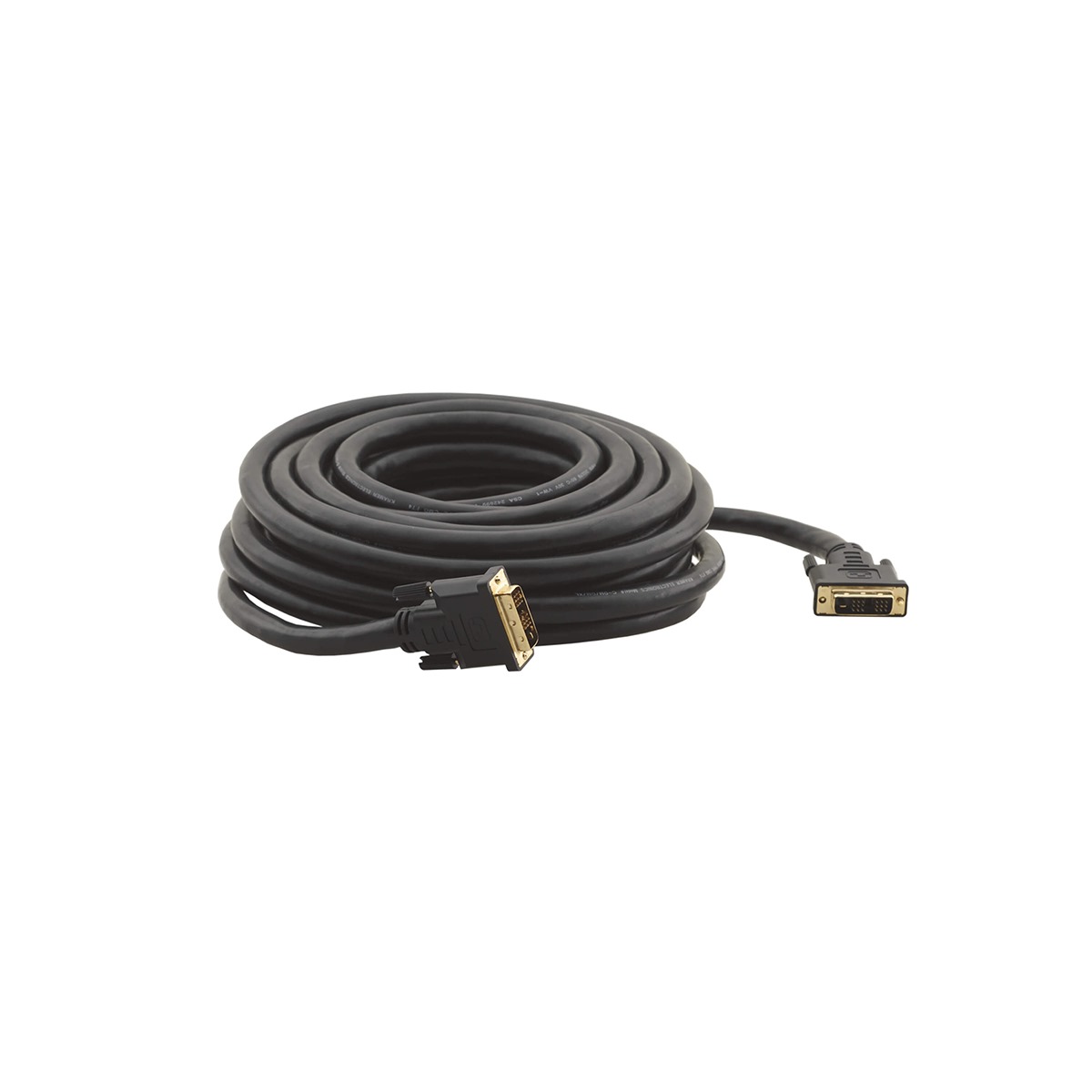

C-DM/DM/XL Copper Cable

DVI Single Link Copper Cable

Highlights

•  Quality Construction — DVI–D connection eliminates the analog conversion process providing maximum clarity and resolution in displayed images.
•  HDCP Compliant.
•  High Resolution — 1920x1200 @60Hz, 1080p (12–bit) @60Hz.
•  Fiber Optic Options — For transmission distances up to 500m (1640ft), see Kramer’s DVI–over–fiber products.

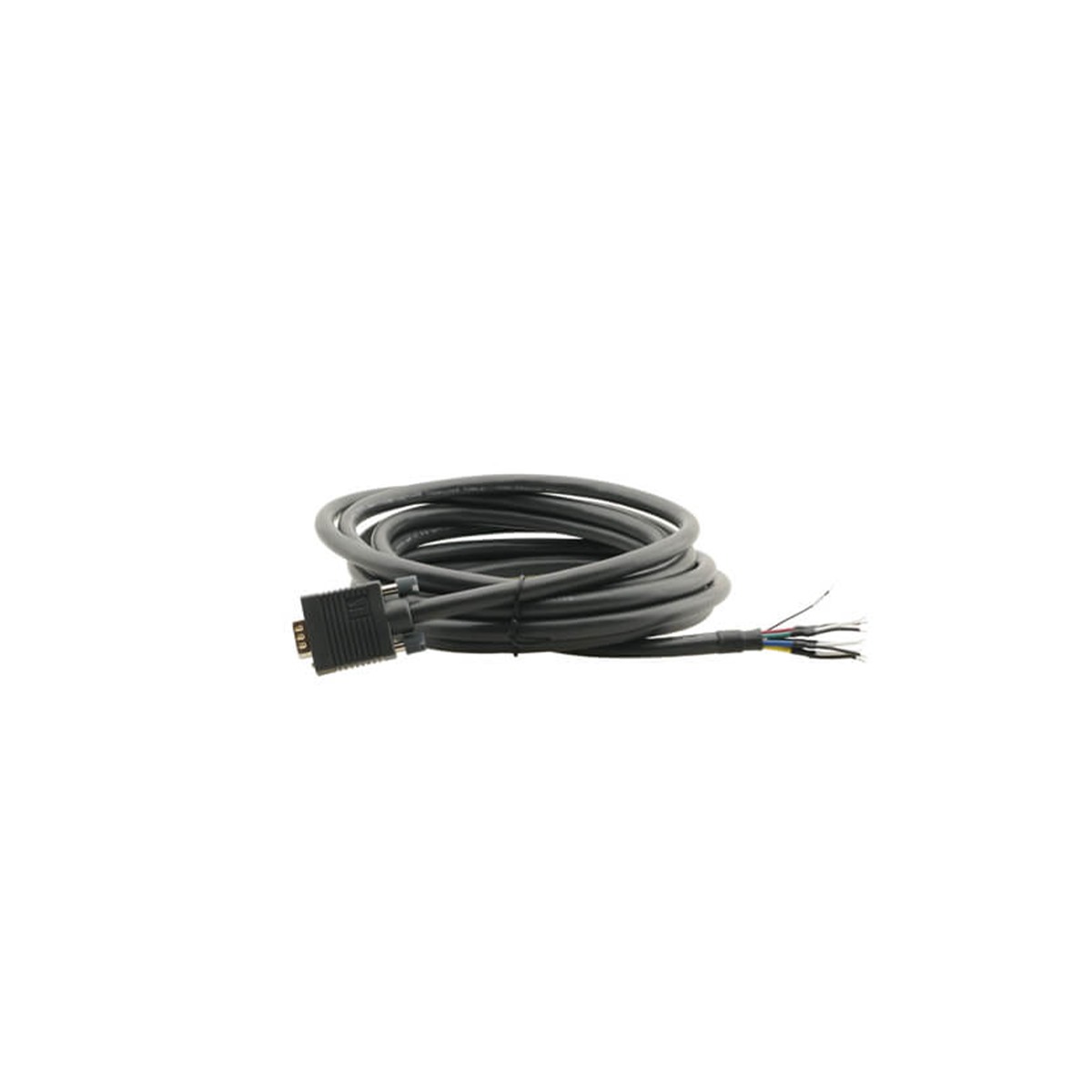

C-GM/xl Installation Cable with EDID

15–pin HD to Open End Installation Cable with EDID

Highlights

• Quality Construction — A molded male 15–pin HD connector is installed on one end, and the corresponding RGBHV coaxes are exposed, prestripped, and tinned at the other end. Includes two additional wires to connect pins 12 and 15 for EDID support.
•  Easy Installation — Pre–stripped and tinned conductors at the bare end provide the easiest possible installation of a 15–pin HD connector or to the rear of a Kramer wall plate with terminal blocks. For a typical 5 BNC installation, just cut and prepare the coaxes as usual for crimp or compression connectors on 26/28AWG mini coax.
•  Varied Selection of Lengths — Available in versions of 6 to 150ft (1.8 to 45.7m).

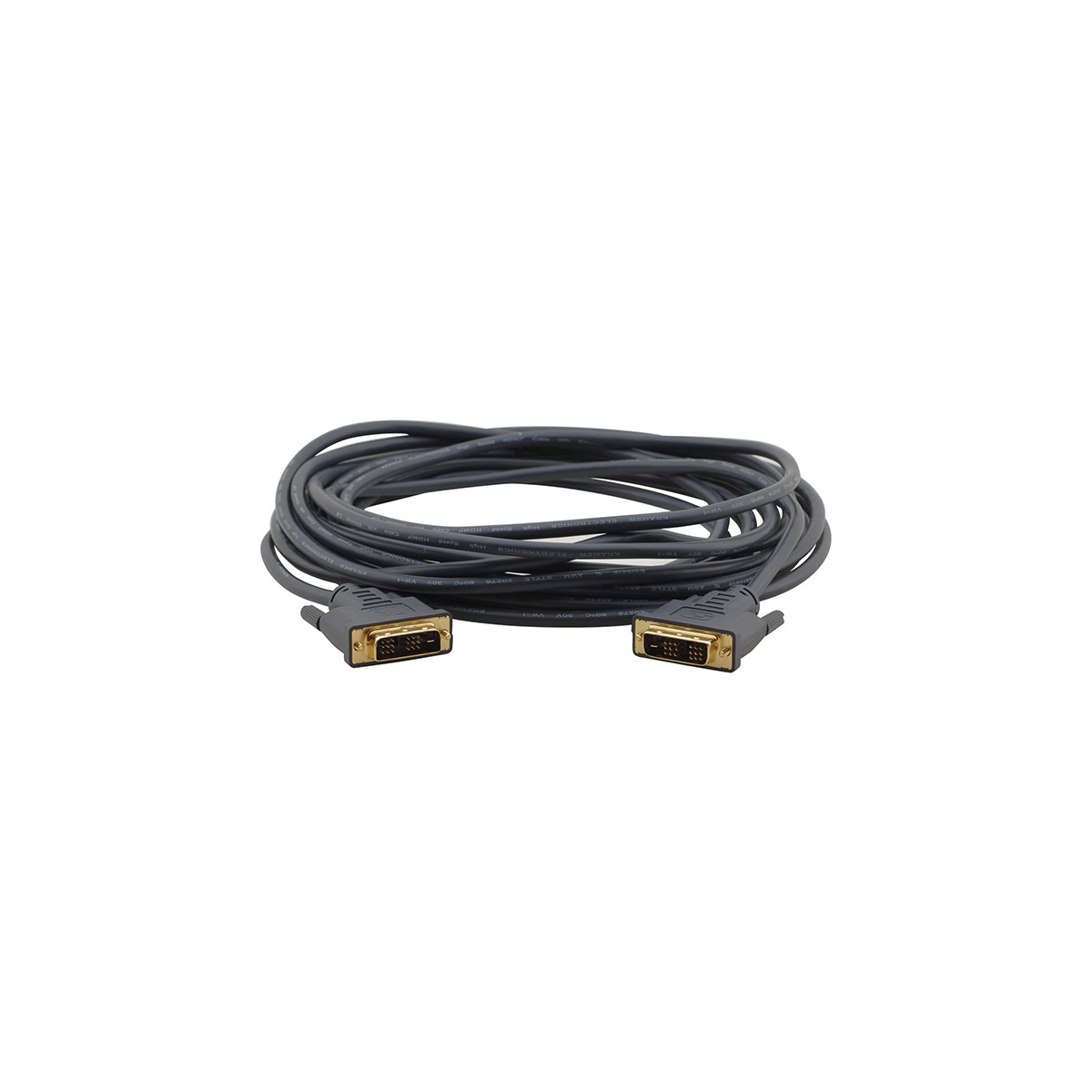

C-MDM/MDM Flexible DVI Single Link Copper Cable

Flexible DVI Single Link Copper Cable

Highlights

• Quality Construction — Tinned copper 30AWG conductors, triple shielded and flexible PVC jacket, terminated with molded DVI–D connectors.
•  HDCP Compliant.
•  Fiber Optic Options — Also see Kramer’s DVI–over–fiber products for transmission distances up to 500m (1640ft).
•  Unique Thin & Flexible Cable — Ideal for use with Kramer TBUS products and rack building.

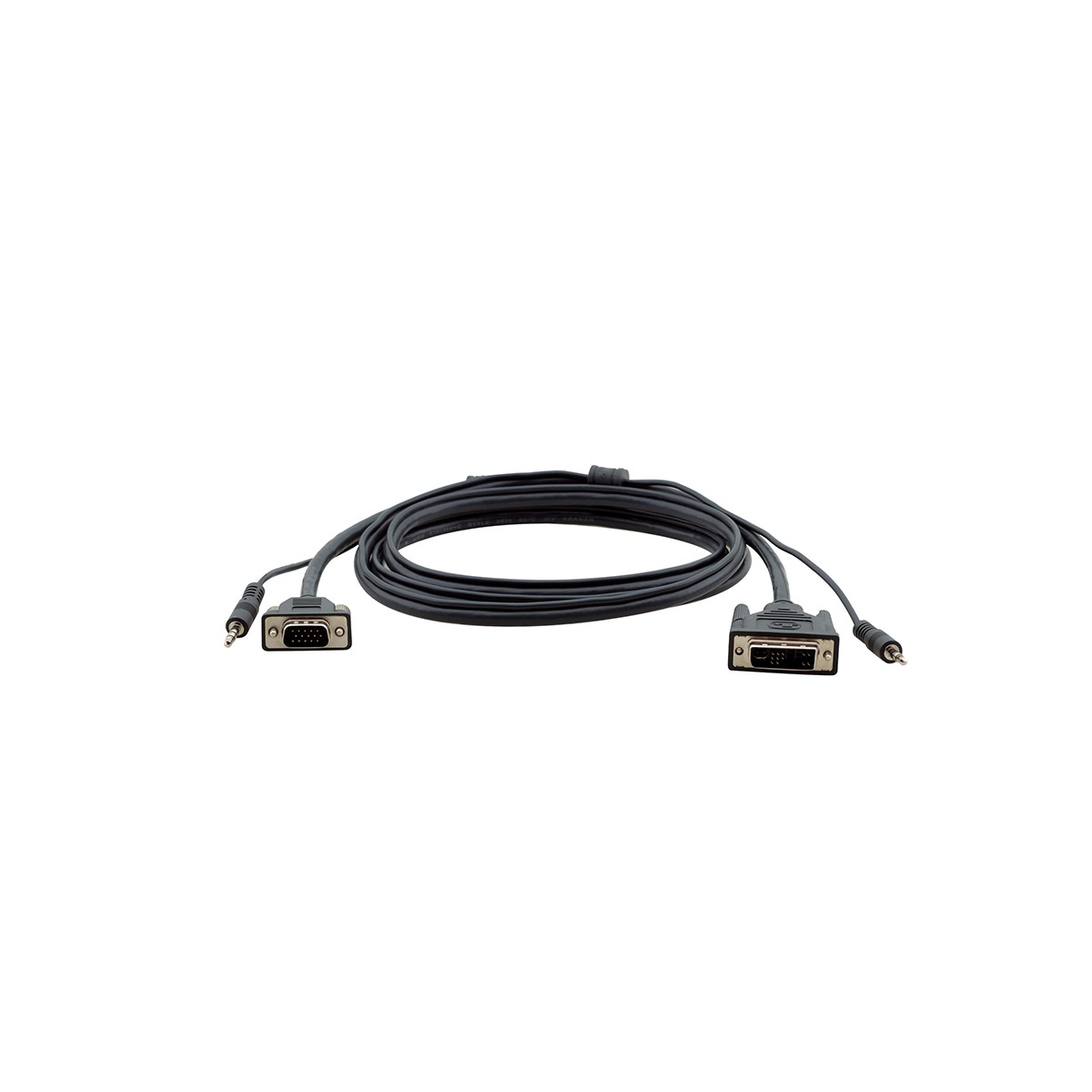

C-MDMA/MGMA Stereo Audio Cable

15–pin HD to DVI & 3.5mm Stereo Audio Cable

Highlights

•  Quality Construction — Rugged cable with molded connectors.
•  Compatibility — Use this adapter when you need access to the analog signal present at a DVI–I source, or when you need to connect analog RGBHV to a display that provides only a DVI–I input. Note that this adapter does not convert analog to digital or digital to analog. Always verify compatibility details for the source/destination in your application.
•  Varied Selection of Lengths — Available in lengths of 3, 6, 10, 15, 25 and 35ft (0.9 to 10.7m).

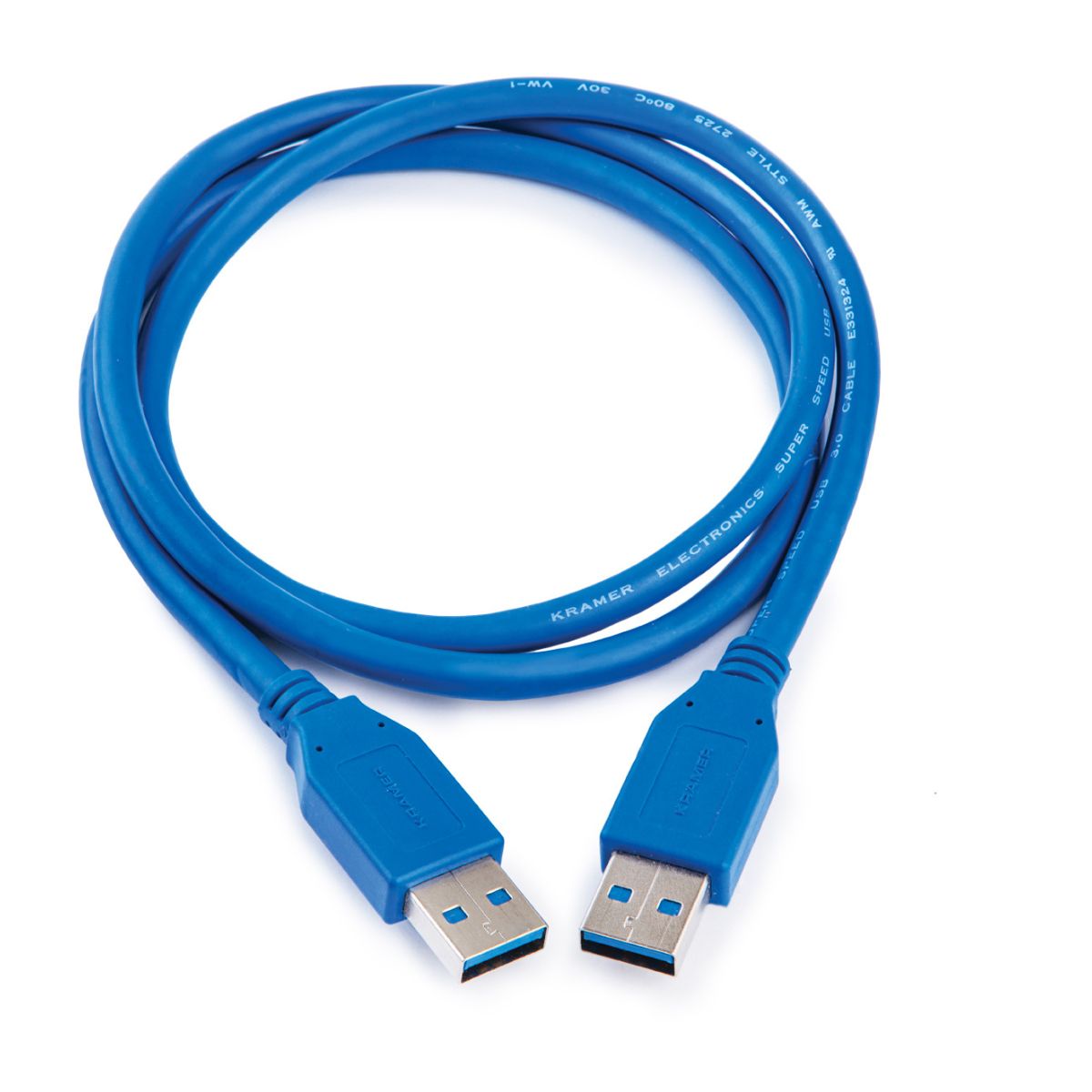

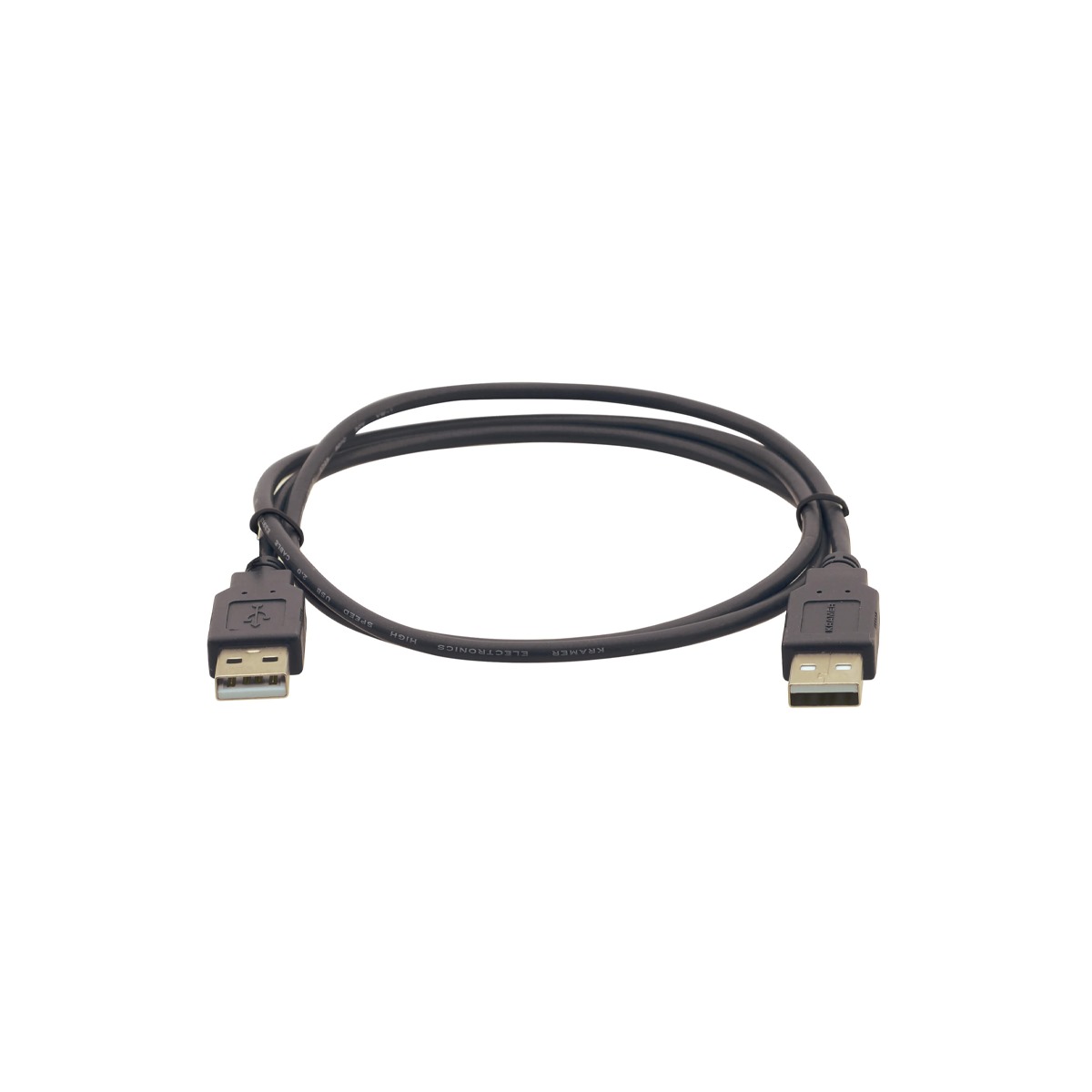

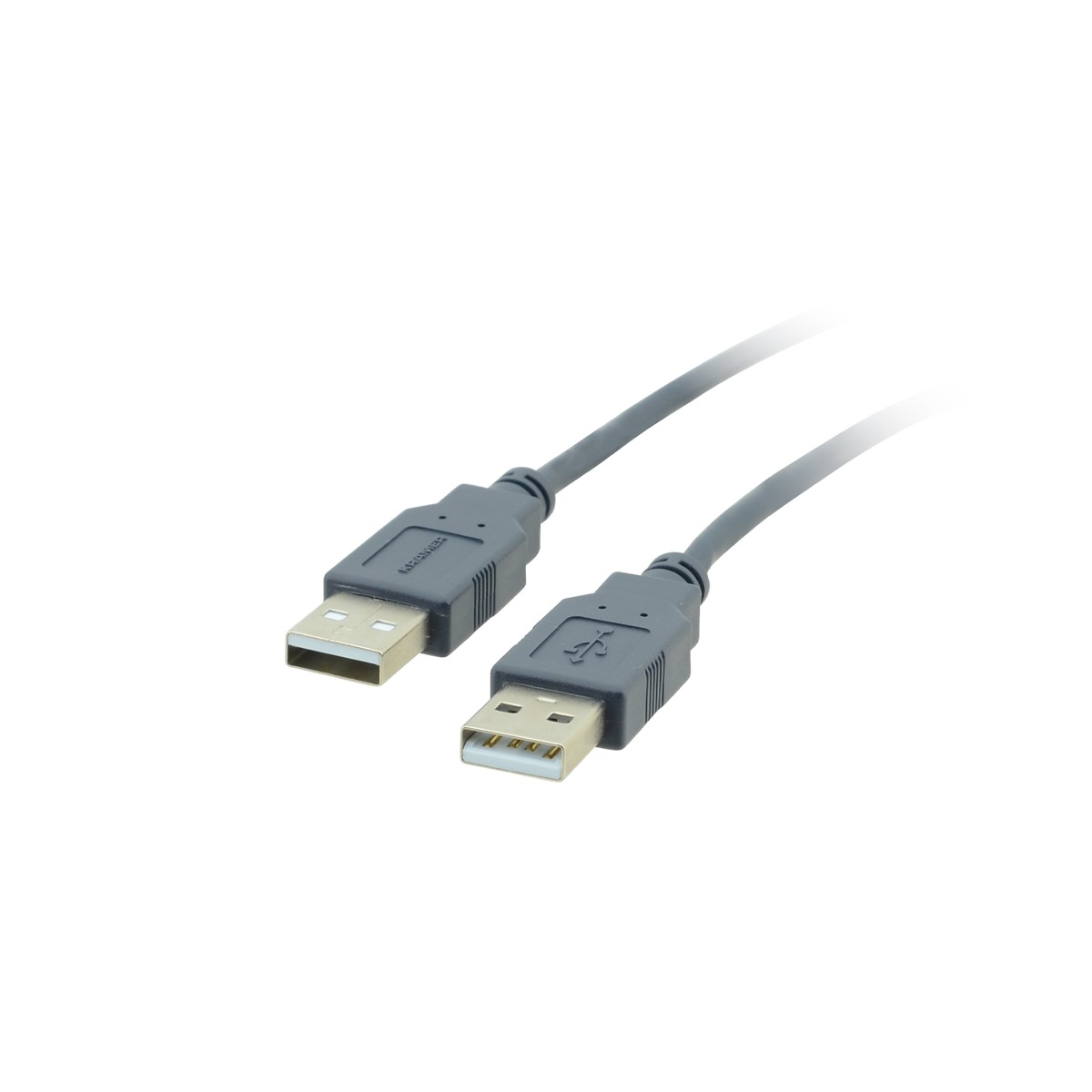

C-USB/AA USB Type–A Male to Type–A Male.

USB 2.0 A (M) to A (M) Cable

Highlights

• USB Type–A Male to Type–Male.
•  Transfer Rates up to 480Mbps.
•  Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
•  Molded Strain Relief.
•  Compatible with USB Specifications 1.0 & 1.1.
•  RoHS Compliant.

C-USB/AAE Extension Cable

USB 2.0 A (M) to A (F) Extension Cable

Highlights

• USB Type–A Male to Type–A Female.
•  Transfer Rates up to 480Mbps.
•  Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
•  Molded Strain Relief.
•  Compatible with USB Specifications 1.0 and 1.1.
•  RoHS Compliant.

C-USB/AB Cable

USB 2.0 A (M) to B (M) Cable

Highlights

• USB Type–A Male to Type–B Male.
•  Transfer Rates up to 480Mbps.
•  Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
•  Molded Strain Relief.
•  Compatible with USB Specifications 1.0 and 1.1.
•  RoHS Compliant.

C-USB/MicroB Cable

USB 2.0 A (M) to Micro–B (M) Cable

Highlights

• USB Type–A Male to Micro–B Male.
•  Transfer Rates up to 480Mbps.
•  Suitable for Charging Cell Phones & PDAs.
•  Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
•  Molded Strain Relief.
•  Backward Compatibility — USB Specifications 1.0 and 1.1.

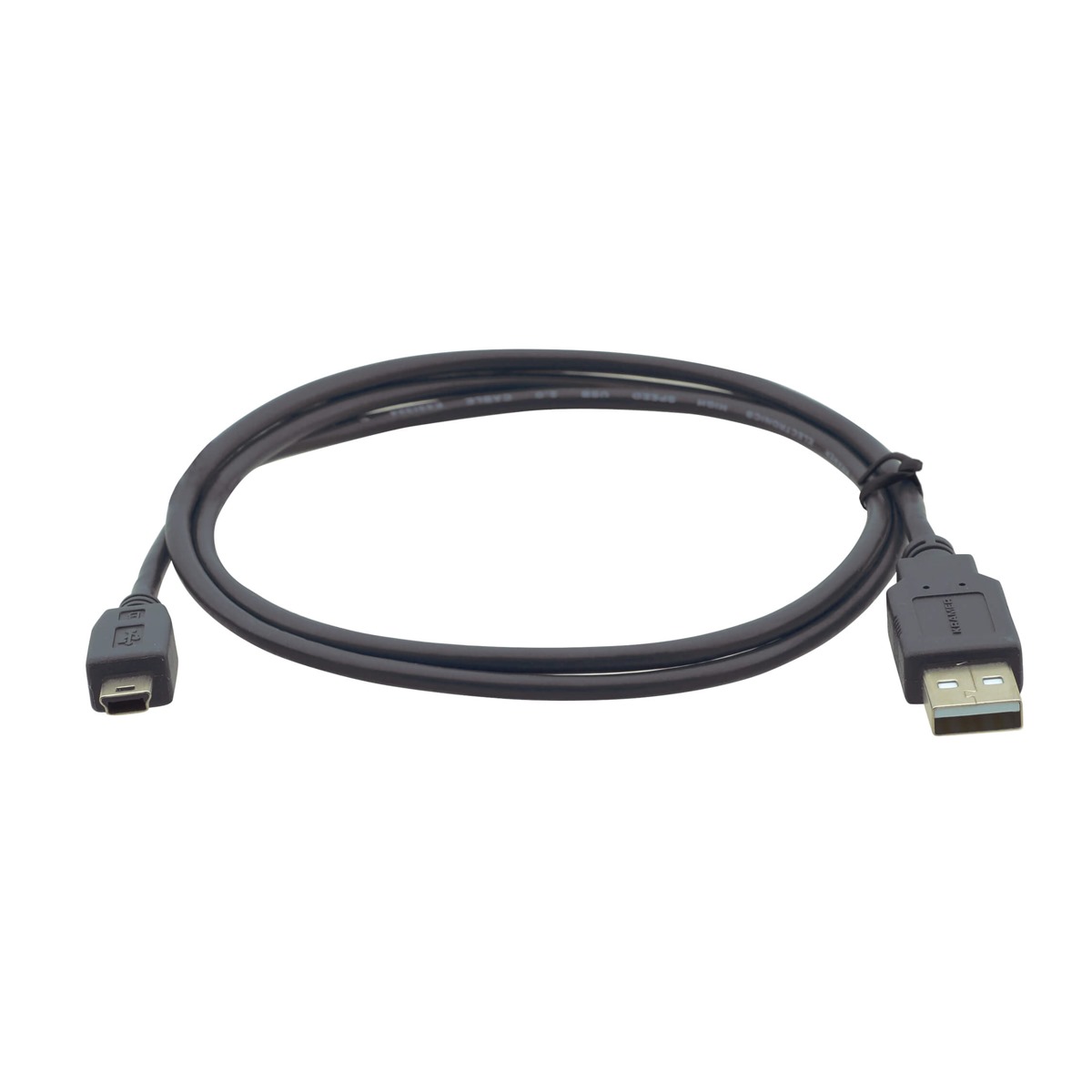

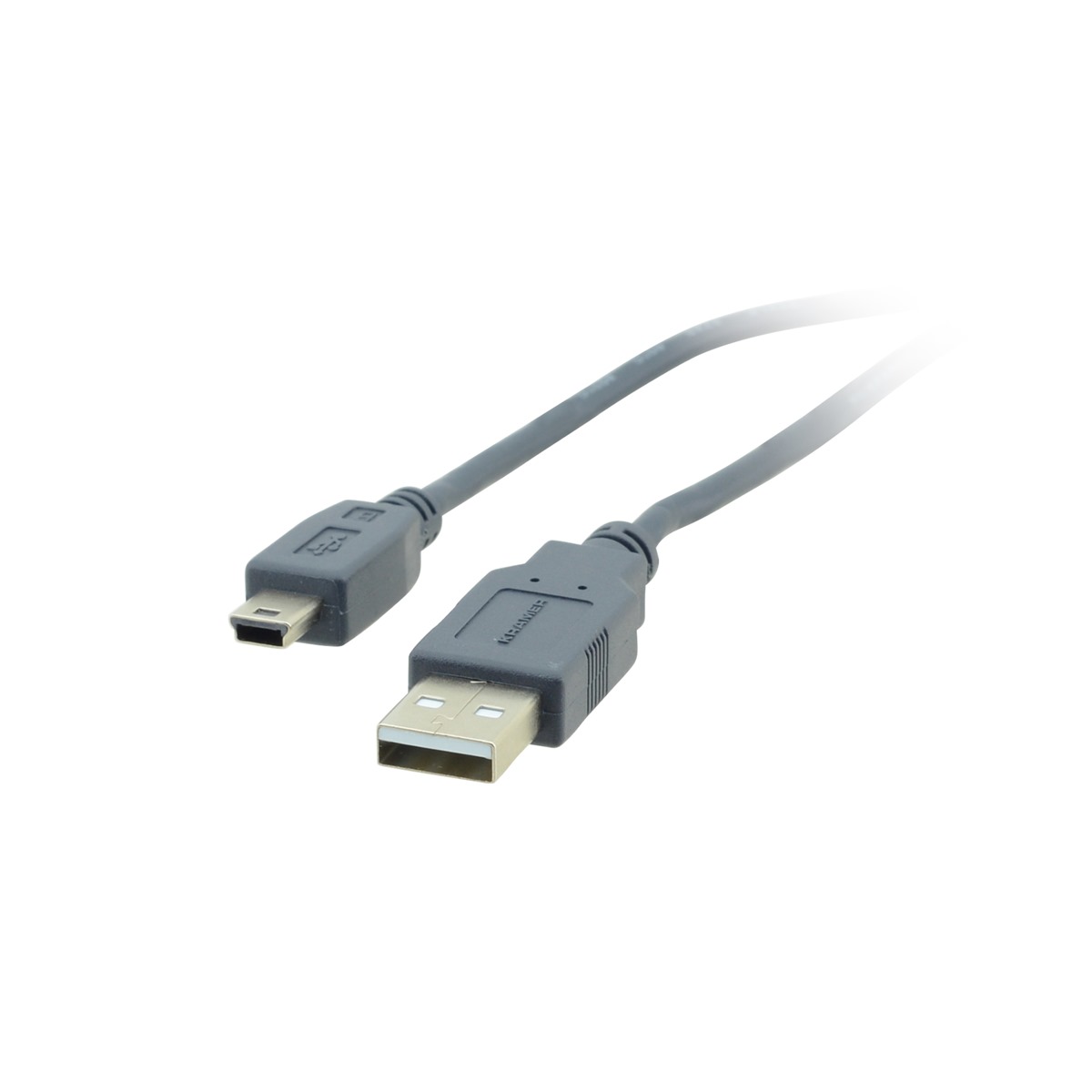

C-USB/Mini5 Cable

USB 2.0 A (M) to Mini–B 4–pin (M) Cable

Highlights

•  USB Type–A Male to Mini–B 5–pin Male.
•  Transfer Rates up to 480Mbps.
•  Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
•  Molded Strain Relief.
•  Backward Compatibility — USB Specifications 1.0 and 1.1.
•  RoHS Compliant.

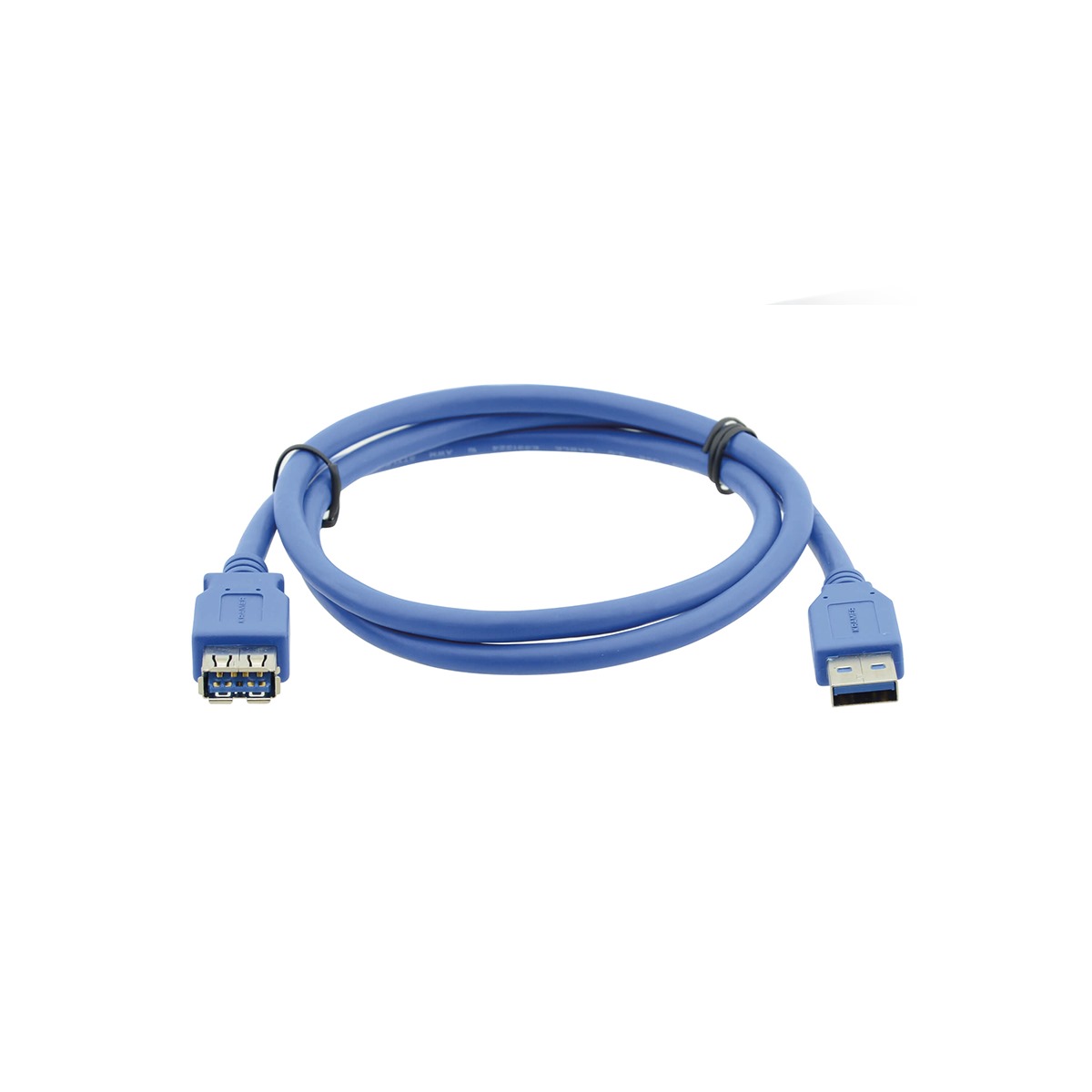

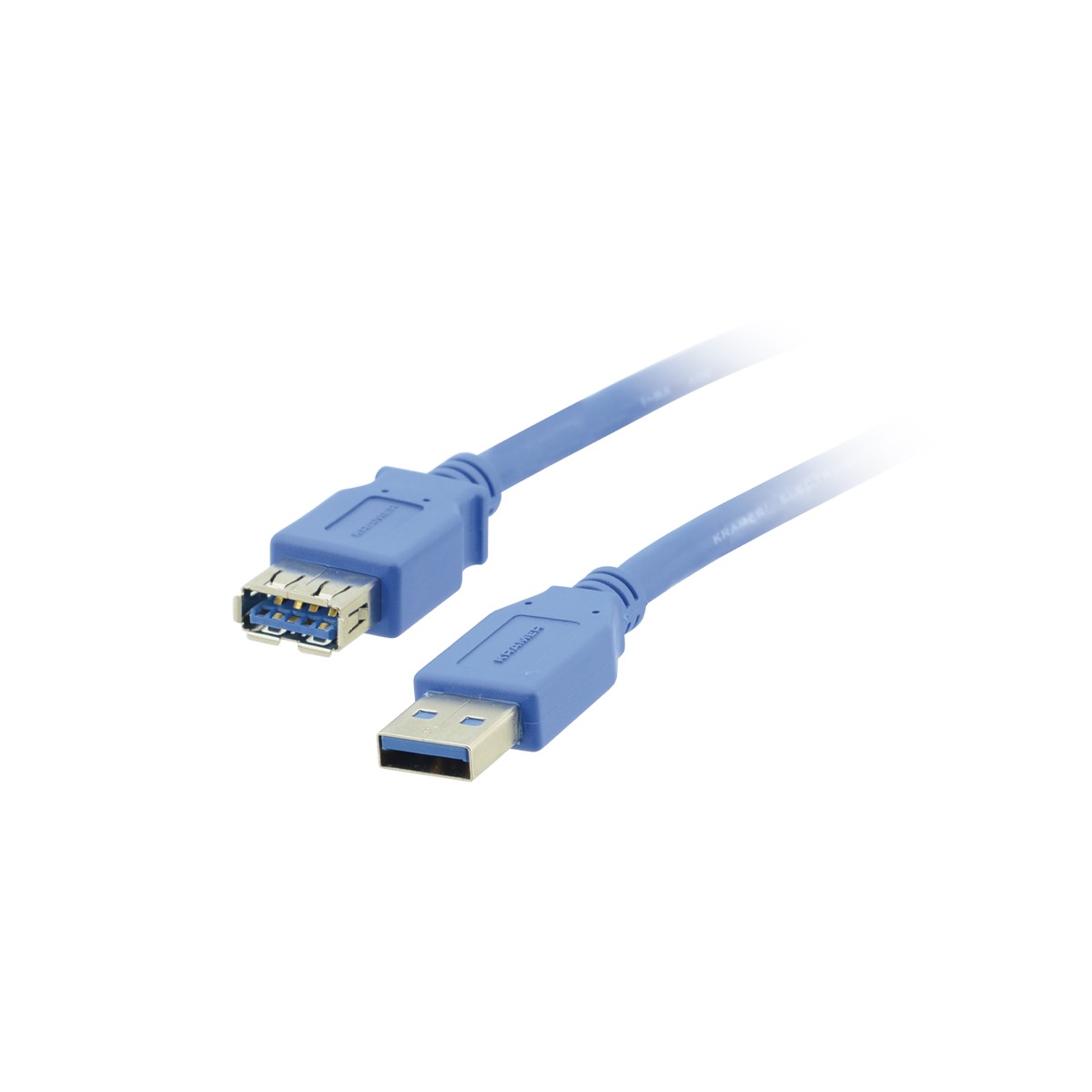

C-USB3/AAE Extension Cable

USB 3.0 A (M) to A (F) Extension Cable

Highlights

• USB 3.0 A Male to A Female.
•  Transfer Rates up to 4.8Gbps — 10x the capability of USB 2.0.
•  Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
•  Molded Strain Relief.
•  Backward Compatibility — USB Specifications 1.0, 1.1 and 2.0.
•  RoHS Compliant.

C-USB3/AB Cable

USB 3.0 A (M) to B (M) Cable

Highlights

• USB 3.0 A Male to B Male.
•  Transfer Rates up to 4.8Gbps — 10x the capability of USB 2.0.
•  Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
•  Molded Strain Relief.
•  Backward Compatibility — USB Specifications 1.0, 1.1 and 2.0.

C-USB3/MicroB Cable

USB 3.0 A (M) to Micro–B (M) Cable

Highlights

• USB 3.0 A (Male) to Micro–B (Male).
•  Transfer Rates up to 4.8Gbps — 10x the capability of USB 2.0.
•  Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
•  Molded Strain Relief.
•  Backward Compatibility — USB Specifications 1.0, 1.1 and 2.0.
•  RoHS Compliant.

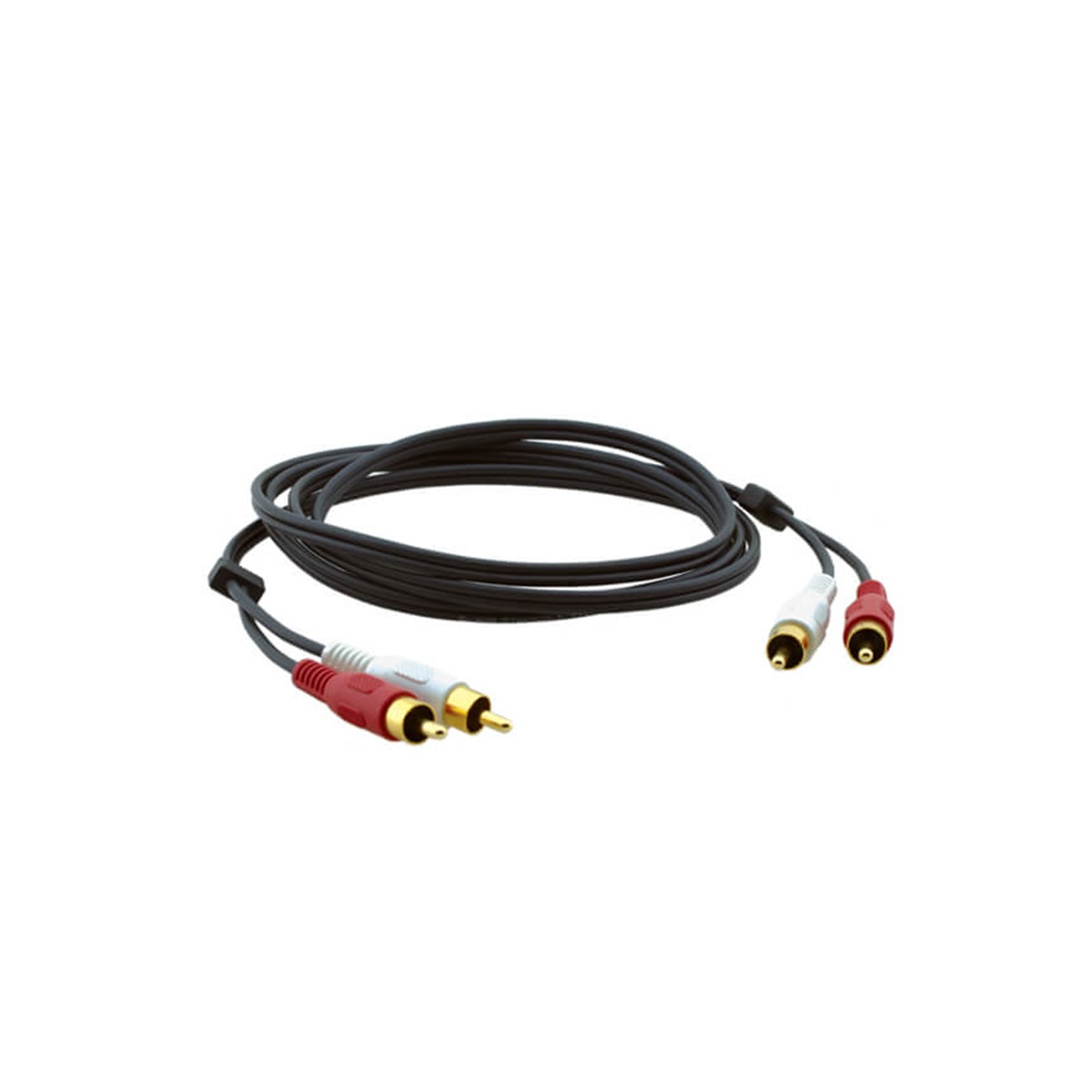

C-2RAM/2RAM Audio Cable

RCA Stereo Audio Cable

Highlights

•  Quality Construction — Constructed using 2 coaxial conductors for L/R audio signals terminated with male RCA connectors on both ends.
•  Precision Connectors — Gold–plated RCA connectors are featured for the best possible signal transmission without corrosion.
•  Easy to Use — Connectors are molded and color–coded red and white to match audio connectors found on most consumer style equipment.
•  Varied Selection of Lengths — Available in versions of 1 to 50ft (0.3 to 15.2m).­

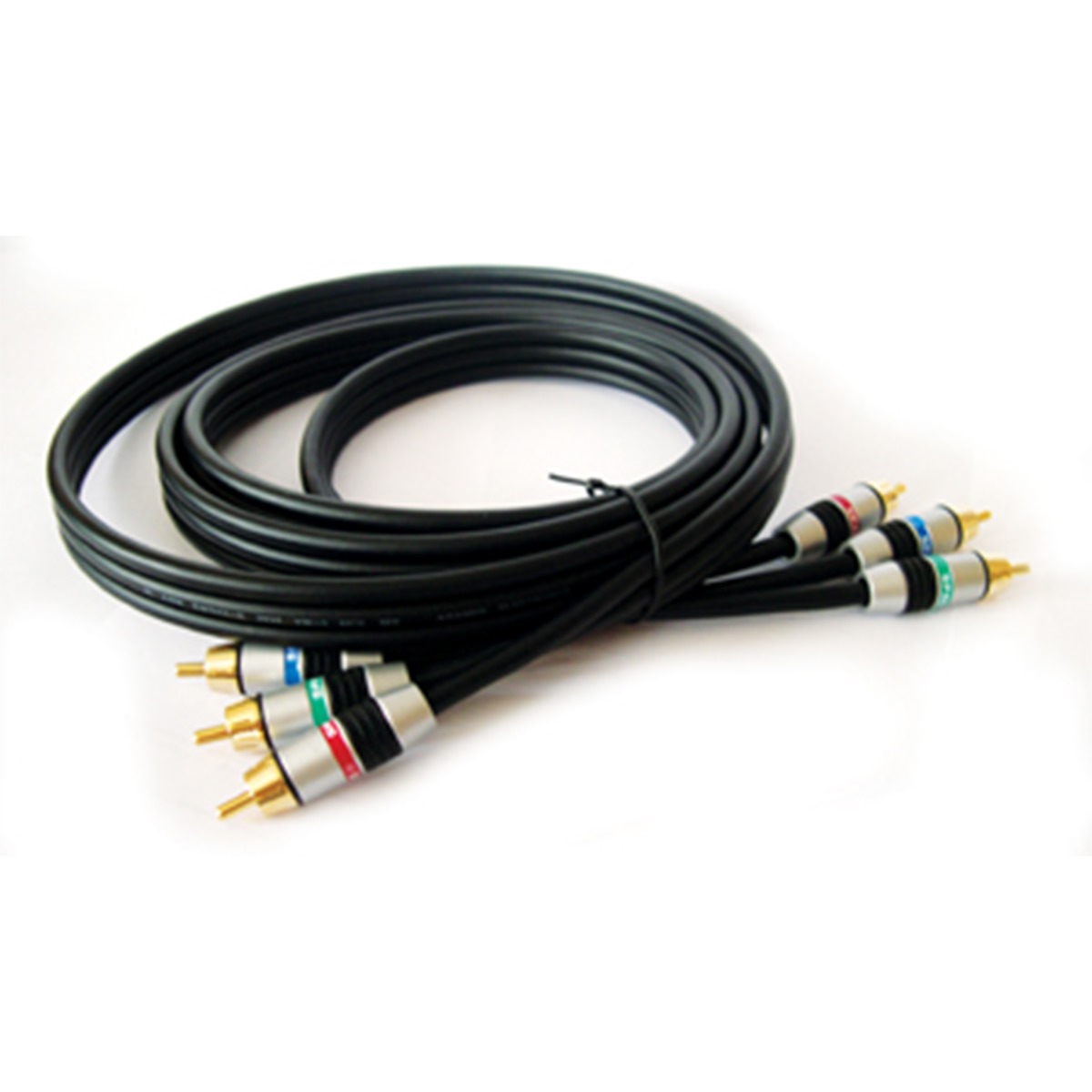

C-3RVM/3RVM Component Video Cable

3 RCA Component Video Cable

Highlights

•  Quality Construction — Constructed from triple RG–59 cables for perfect transmission of any interlaced or high-definition component video signal.
•  High-Quality Connectors — Rugged gold–plated RCA connectors are color-coded red, green, and blue to match component video connectors on typical equipment.
•  Multiple Applications — This cable is compatible with any standard or high–definition analog component video signal including YUV, Y B–Y R–Y, YPbPr, and YCbCr. It is also great for composite video and stereo audio use.

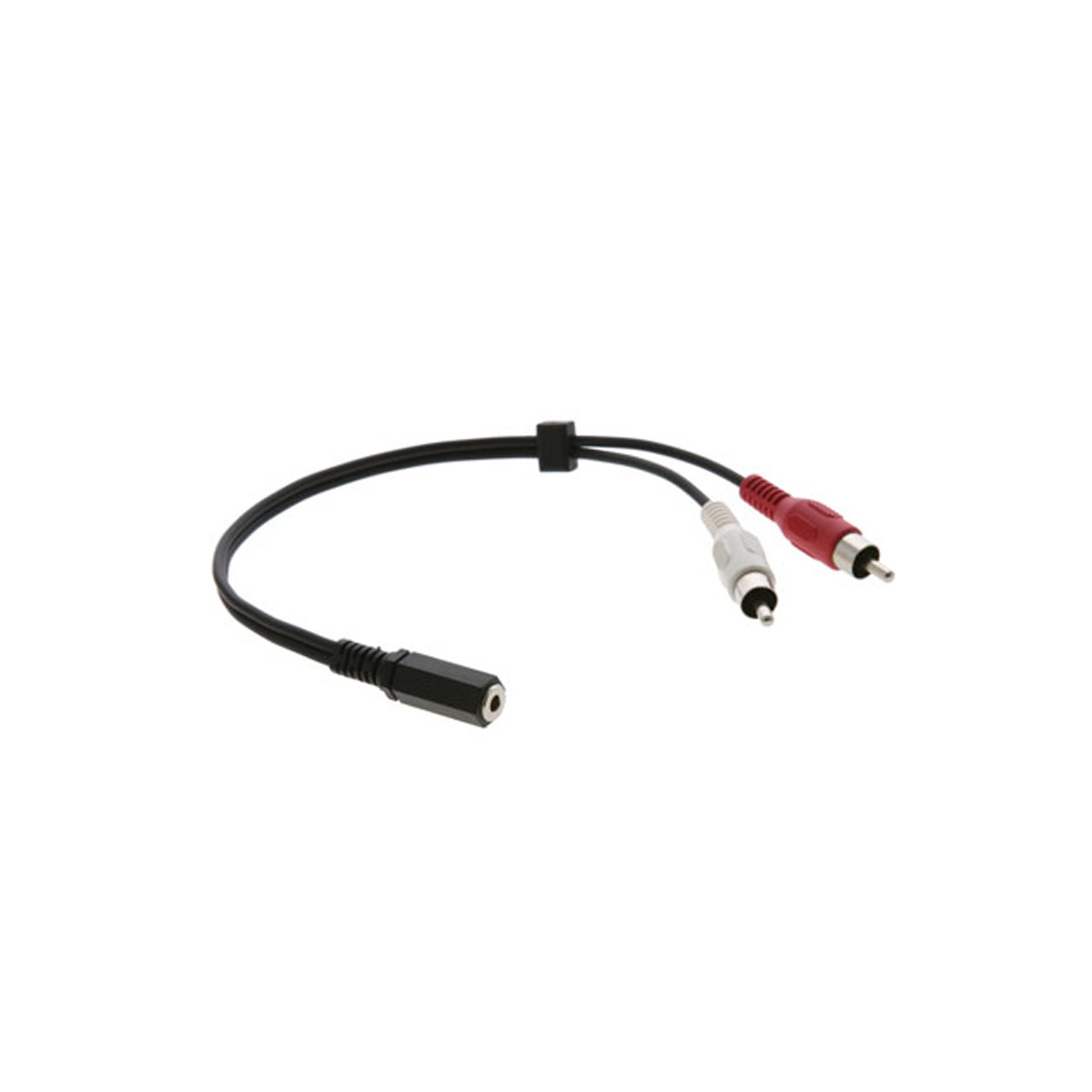

C-A35F/2RAM RCA Breakout Cable

3.5mm to 2 RCA Breakout Cable

Highlights

• Quality Construction — Molded male dual RCAs on one end and molded 3.5mm on the other.
•  High–Quality Connectors — RCA connectors are color-coded red, and white to match audio connectors on typical equipment.
•  Varied Selection of Lengths — Available in lengths of 1, 6, 10, 15, 25, 35 and 50ft (0.3 to 15.2m).

C-A35M/2IRE Emitter Cable

3.5mm to Dual IR Emitter Cable

Highlights

•  Application — Use the C–A35M/2IRE with any remote control system that has a port for transmitting IR control information via hard wire. The 3m (10ft) cable is terminated with a 3.5mm mini connector that can be removed if needed. The transparent emitters adhere to the IR receiving device with double–sided tape.
•  Kramer Control System — Use this IR emitter with Kramer RC series remote control panels.
•  Length — Available in a 3m (10ft) version.

C-A35M/2RAM RCA Breakout Cable

3.5mm to 2 RCA Breakout Cable

Highlights

• Quality Construction — Molded male dual RCAs on one end and molded 3.5mm on the other.
•  High–Quality Connectors — RCA connectors are color-coded red, and white to match audio connectors on typical equipment.
•  Varied Selection of Lengths — Available in lengths of 3 to 50ft (0.9 to 15.2m).

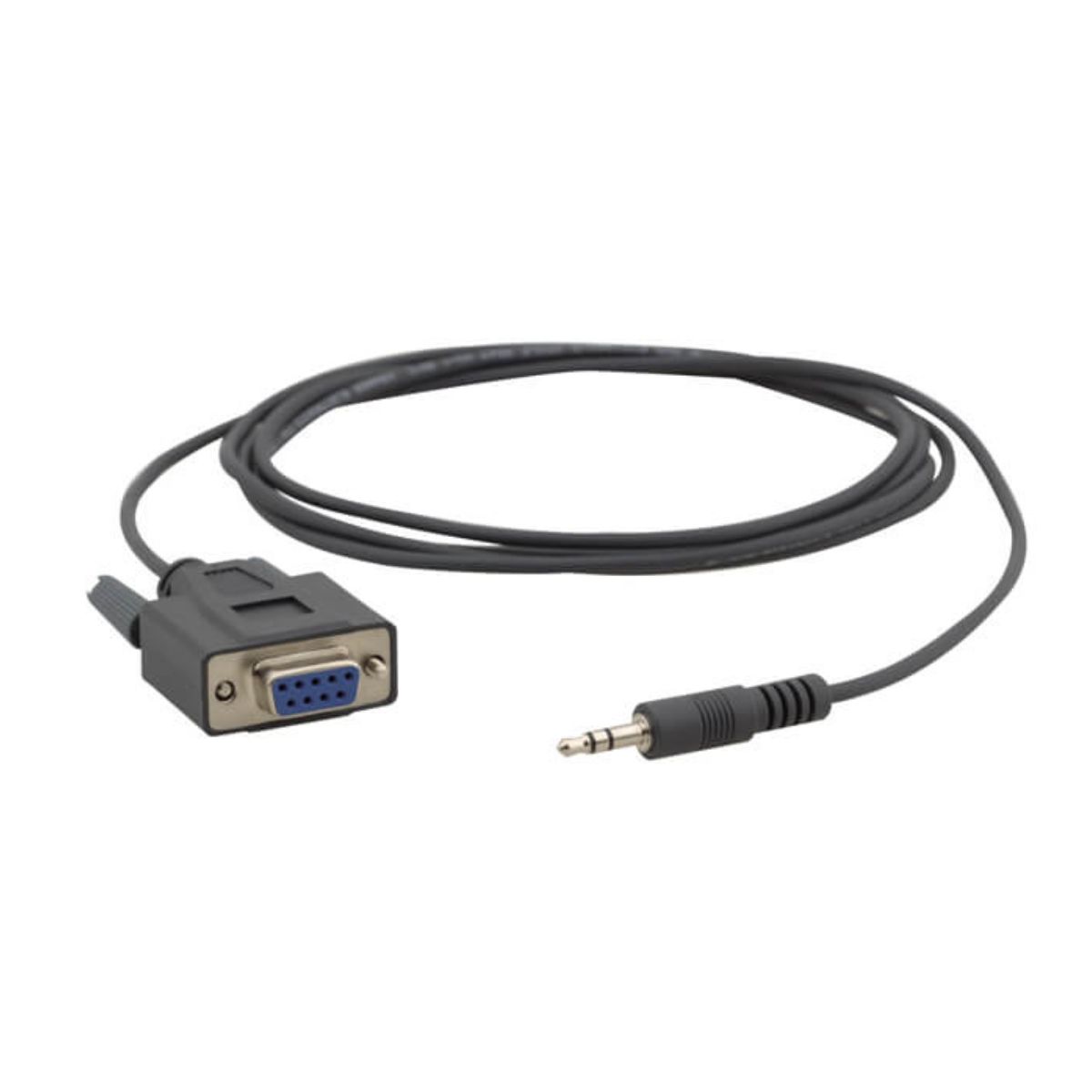

C-A35M/D9F Adapter Cable

9–pin D–sub to 3.5mm Adapter Cable

Highlights

• Length — 1.8m (6ft)
•  Quality Construction — Data cable with a molded 3.5mm stereo plug at one end and a 9–pin D–sub female at the other.

C-A35M/IRE Emitter Cable

3.5mm to Single IR Emitter Cable

Highlights

•  Application — Use the C–A35M/IRE with any remote control system that offers a port for transmission of IR control information via hard wire to an IR controllable device. The 3m (10ft) cable is terminated with a 3.5mm mini connector that can be removed if needed. The transparent emitter adheres to the IR receiving device with double–sided tape.
•  Kramer Control System — Use this IR emitter with Kramer RC series remote control panels and VP–23RC presentation switcher.

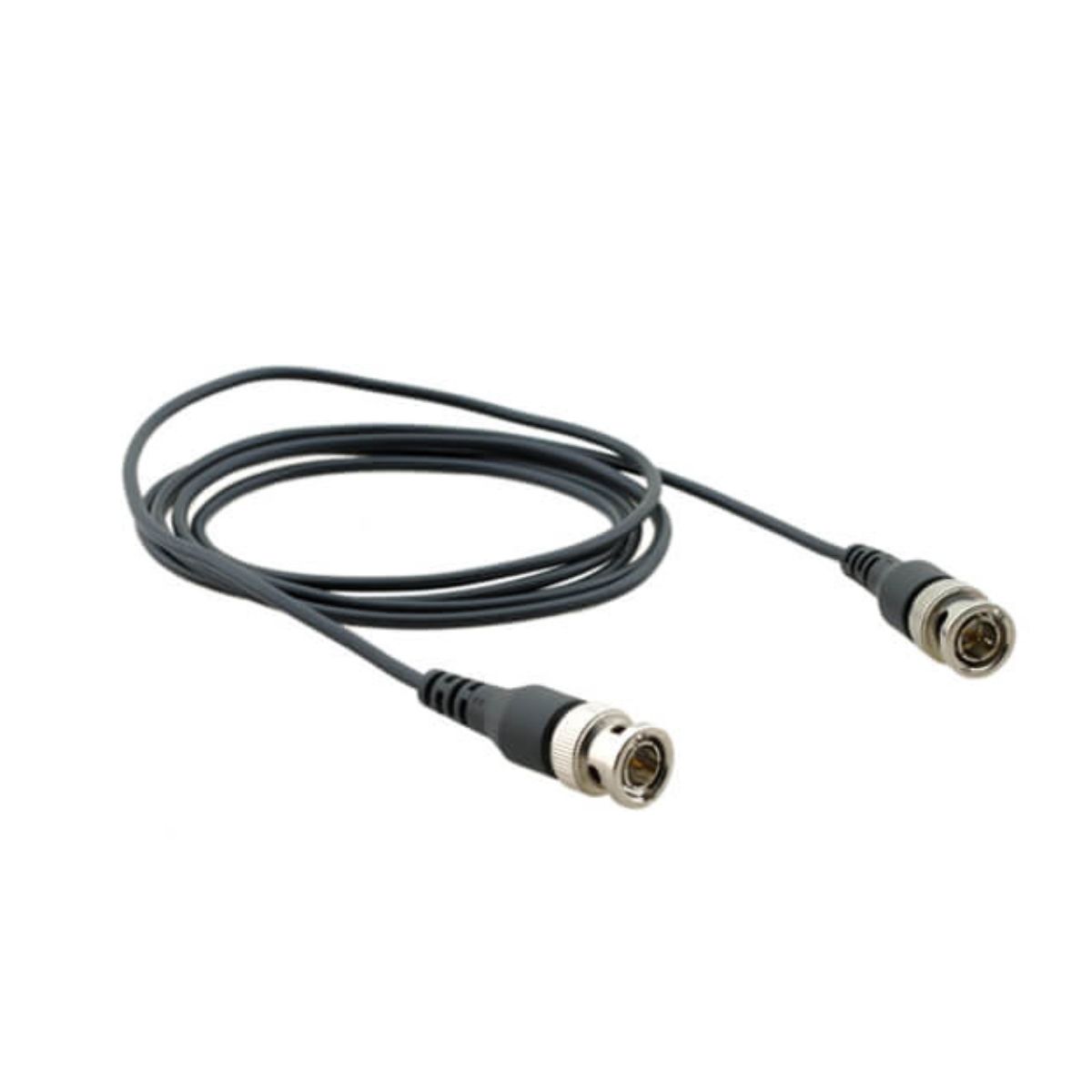

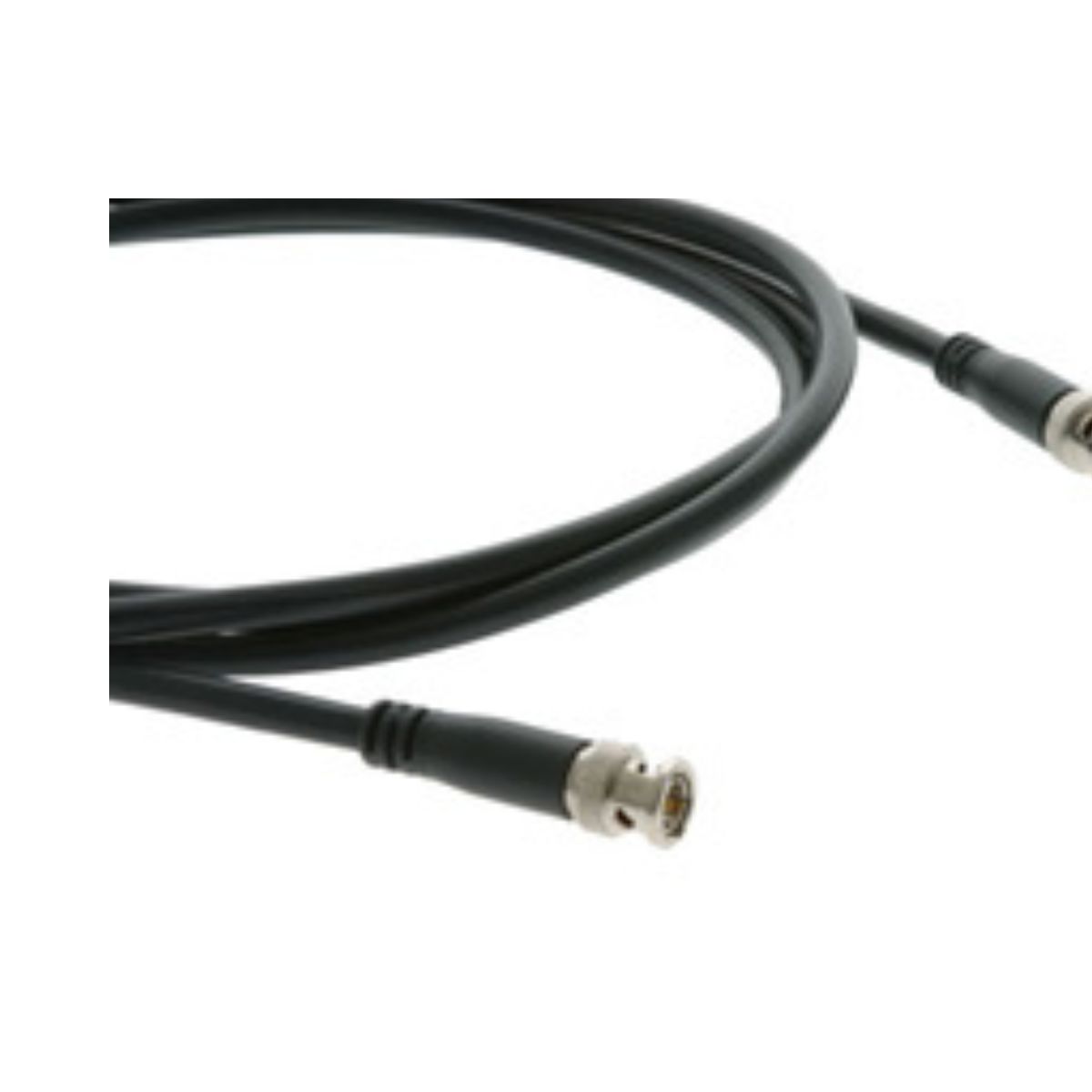

C-BM/BM Video Cable

BNC Coax Video Cable

Highlights

•  Quality Construction — RG–6 cable for the highest resolution signals.
•  High–Quality Connectors — True 75Ω BNC connectors maintain correct impedance end–to–end.
•  Varied Selection of Lengths — Available in versions of 1.5 to 150ft (0.5 to 45.7m).
•  Cable Specs — Tested to 3G. For detailed cable specs, see Kramer BC–1X.

C-D9F/3PM Adapter Cable

9–pin D–sub (F) to 3–pin Adapter Cable

Highlights

• High–Quality Construction — Data cable with an assembled 9–pin D–sub female connector at one end and a molded 3–pin header at the other.
•  Standard 0.6ft (0.18m) Length.

C-DM/DM Copper Cable

DVI Dual Link Copper Cable

Highlights

•  Quality Construction — DVI–D connection eliminates the analog conversion process providing maximum clarity and resolution in displayed images.
•  HDCP & Dual Link Compliant.
•  Fiber Optic Options — Also see Kramer’s DVI–over–fiber products for transmission distances up to 500m (1640ft).
•  Varied Selection of Lengths — Available in versions of 0.9 to 19.8m (3, 6, 10, 15, 25, 33, 40, 50 and 65ft).

C-DMA/5BM Breakout Cable

DVI–A to 5 BNC Breakout Cable

Highlights

• Quality Construction — Rugged cable with molded connectors and gold–plated pins.
•  Compatibility — Use this adapter when you need access to the analog signal present at a DVI–I source, or when you need to connect analog RGBHV to a display that provides only a DVI–I input. Note that this adapter does not convert analog to digital or digital to analog. Always verify compatibility details for the source/destination in your application.
•  Varied Selection of Lengths — Available in versions of 0.9 to 4.6m (3, 6, 10 and 15ft).

C-GM/GF HD Cable

15–pin HD to 15–pin HD Cables

Highlights

•  Quality Construction — High–resolution 26 gauge mini coax for video.
•  Easy Installation — Pre–Pre-terminated with molded 15–pin HD connectors, gold-plated pins, and thumbscrews for easy connection.
•  Varied Selection of Lengths — Available in versions of 3 to 100ft (0.9 to 30.5m).
•  Cable Specs — See Kramer BC–3X2T7S for detailed cable specs.

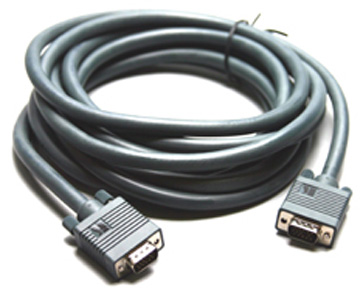

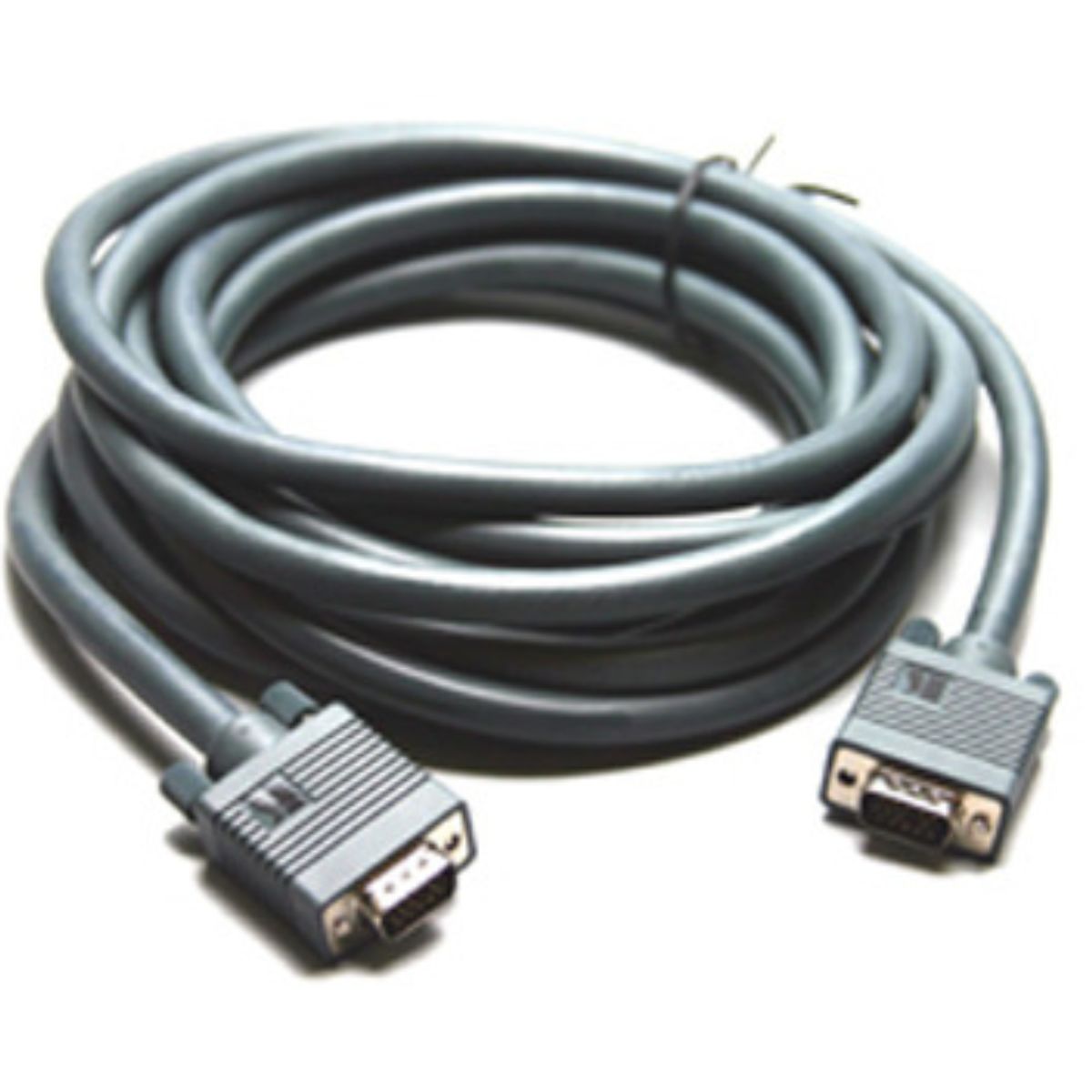

C-GM/GM HD Cables

15–pin HD to 15–pin HD Cables

Highlights

• Quality Construction — High–resolution 26AWG mini coax for video.
•  Easy Installation — Pre–terminated with molded 15–pin HD connectors, gold–plated pins, and thumbscrews for easy connection.
•  Varied Selection of Lengths — Available in 1 to 150ft versions (0.3 to 45.7m).
•  Cable Specs — See Kramer BC–3X2T7S for detailed cable specs.

C-MBM/MBM Video Cable

BNC Mini Coax Video Cable

Highlights

• Quality Construction — Built from compact, durable, and flexible 28AWG mini coax cable with molded 75Ω BNC connectors.
•  Compatibility — Use this cable to patch together with sources and destinations that use BNC connectors for video signals.
•  Varied Selection of Lengths — Available in versions of 1 to 25ft (0.3 to 7.6m).

C-R3VM/R3VM Mini High–Resolution Cable

3 RCA Component Video Mini High–Resolution Cable

Highlights

•  Quality Construction — Constructed using rugged and flexible 28AWG cable containing 3 mini coaxes.
•  High–Quality Connectors — Coaxes are contained in a single round jacket, and are terminated with premium quality gold–plated, color–coded RCA connectors.
•  Multiple Applications — This cable is compatible with any standard or high definition analog component video signal including YUV, Y B–Y R–Y, YPbPr and YCbCr.
•  Varied Selection of Lengths — Available in versions of 3 to 50ft (0.9 to 15.2m).

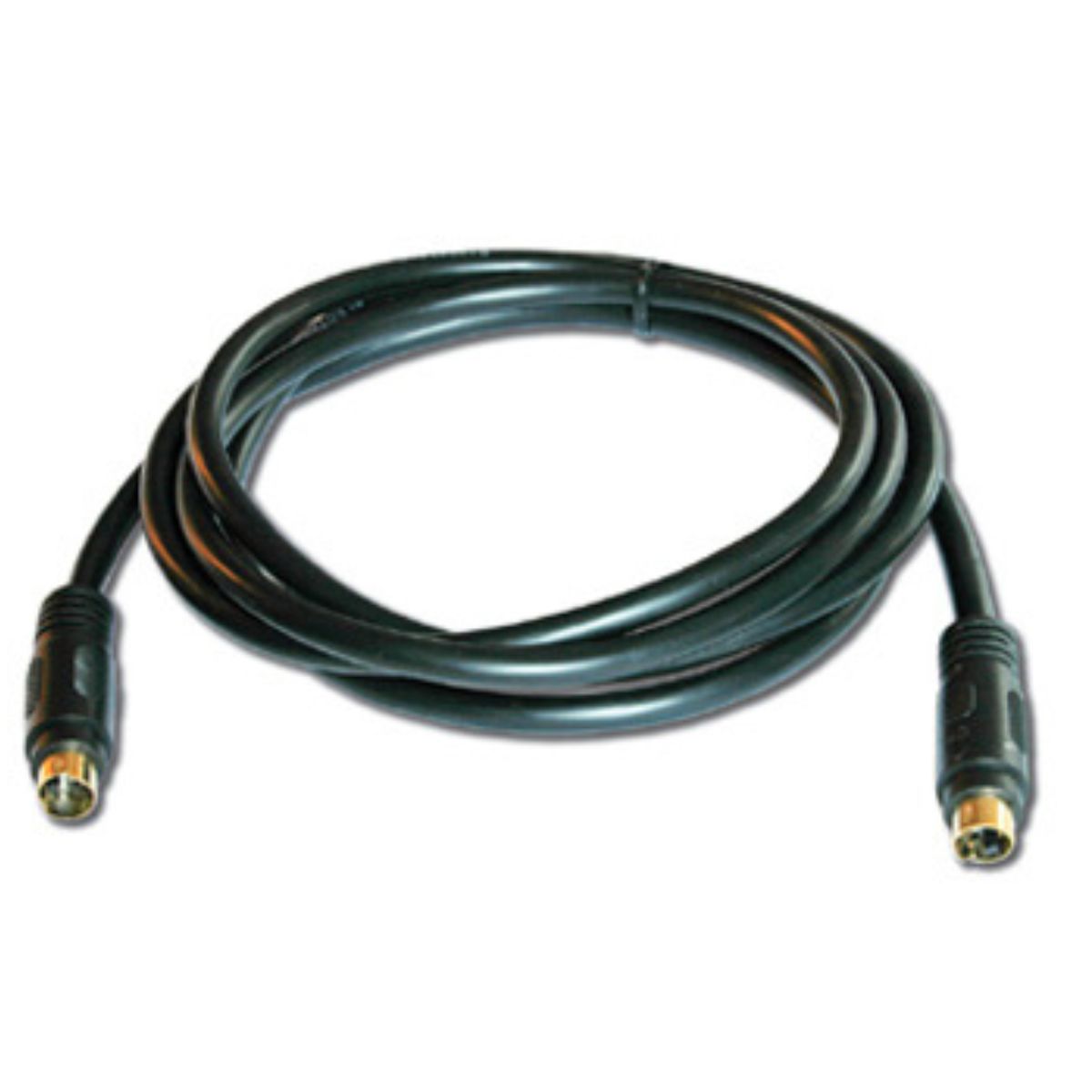

C-SM/SM Video Cable

s–Video Cable

Highlights

• Quality Construction — Passes luminance (Y) and chrominance (C) signals over a high–quality 26AWG dual coax cable terminated with 4–pin mini DIN connectors.
•  High–Quality Connectors — Gold–plated connectors for corrosion resistance and the best possible connection.
•  Cable Specs — For detailed cable specs, see Kramer BC–2X.
•  Varied Selection of Lengths — Available in versions of 0.9 to 30.5m (3 to 100ft).

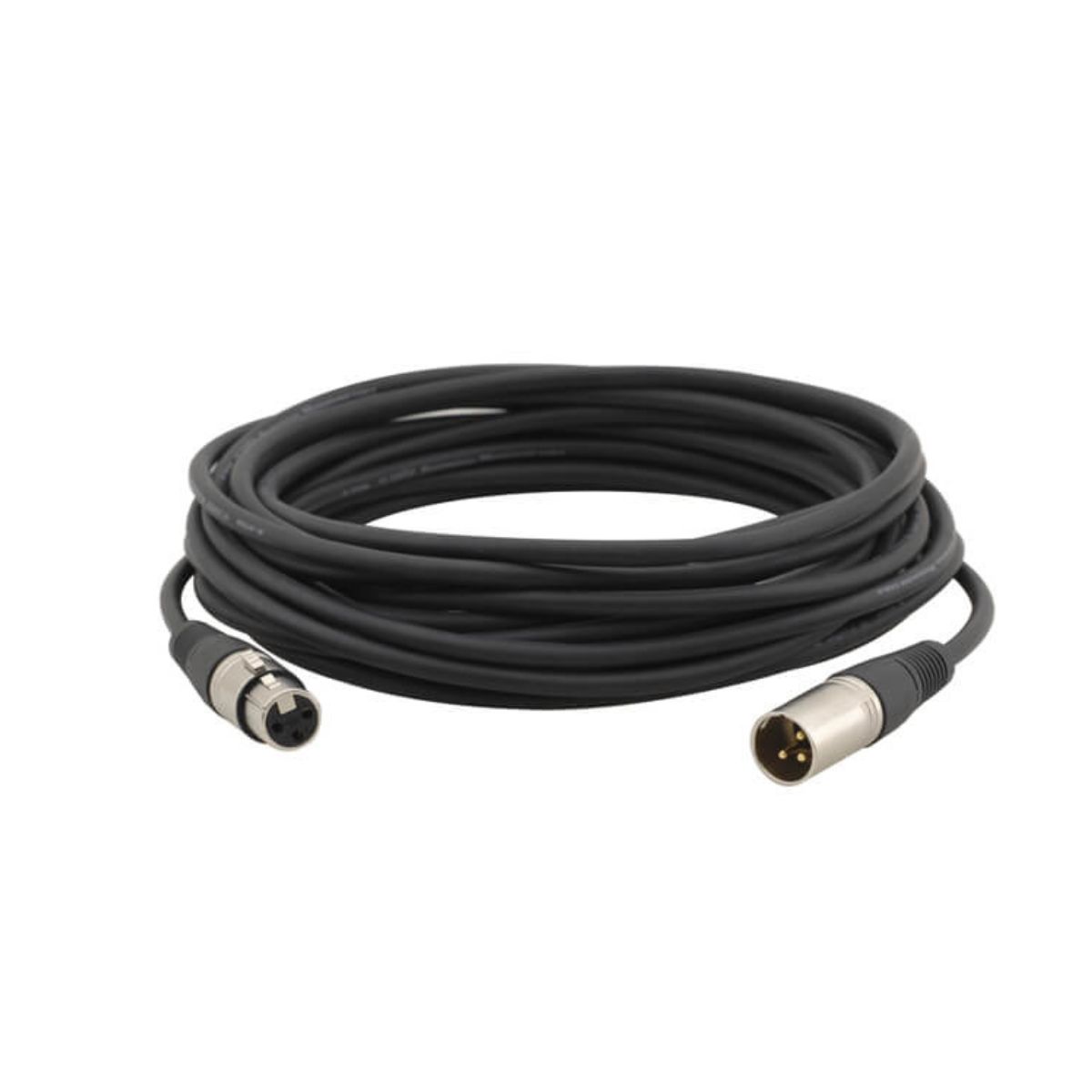

C-XLQM/XLQFXLR Quad Cable

XLR Quad Cable

Highlights

• Quality Construction — The four-cor–conductor quad style arrangement cancels electromagnetically induced noise from fluorescent lighting ballasts and AC power transformers.
•  Super Flexibility — Large numbers of thin bare copper wire strands in both the conductors and shield produce a highly flexible cable.
•  Special XLPE Insulation — Excellent electrical characteristics and no shrink–back during soldering. Hand–soldered premium XLR connectors.

C-GMA/GMA (90) Audio Cable

15–pin HD & 3.5mm Stereo Audio Cable with a 90° Down–Angled Connector

Highlights

• Length — 3ft (0.9m)
• One 90° Down–Angled Connector
• Angled Connector — 90° connector with the cable angled down provides a shallower profile for tight quarters behind a wall plate or rack mounted equipment.
•  Quality Construction — With 28AWG conductors and an outer diameter of 8.5mm, this cable has a slightly slimmer construction than our regular C–GMA/GMA cables.

C-A35M/IRRW Receiver Cable

3.5mm Male to Wide–Hz–Range IR Receiver Cable

Highlights

• Hz Range — 20–60kHz
• Length — 3ft (0.90m)
• Color — Gray

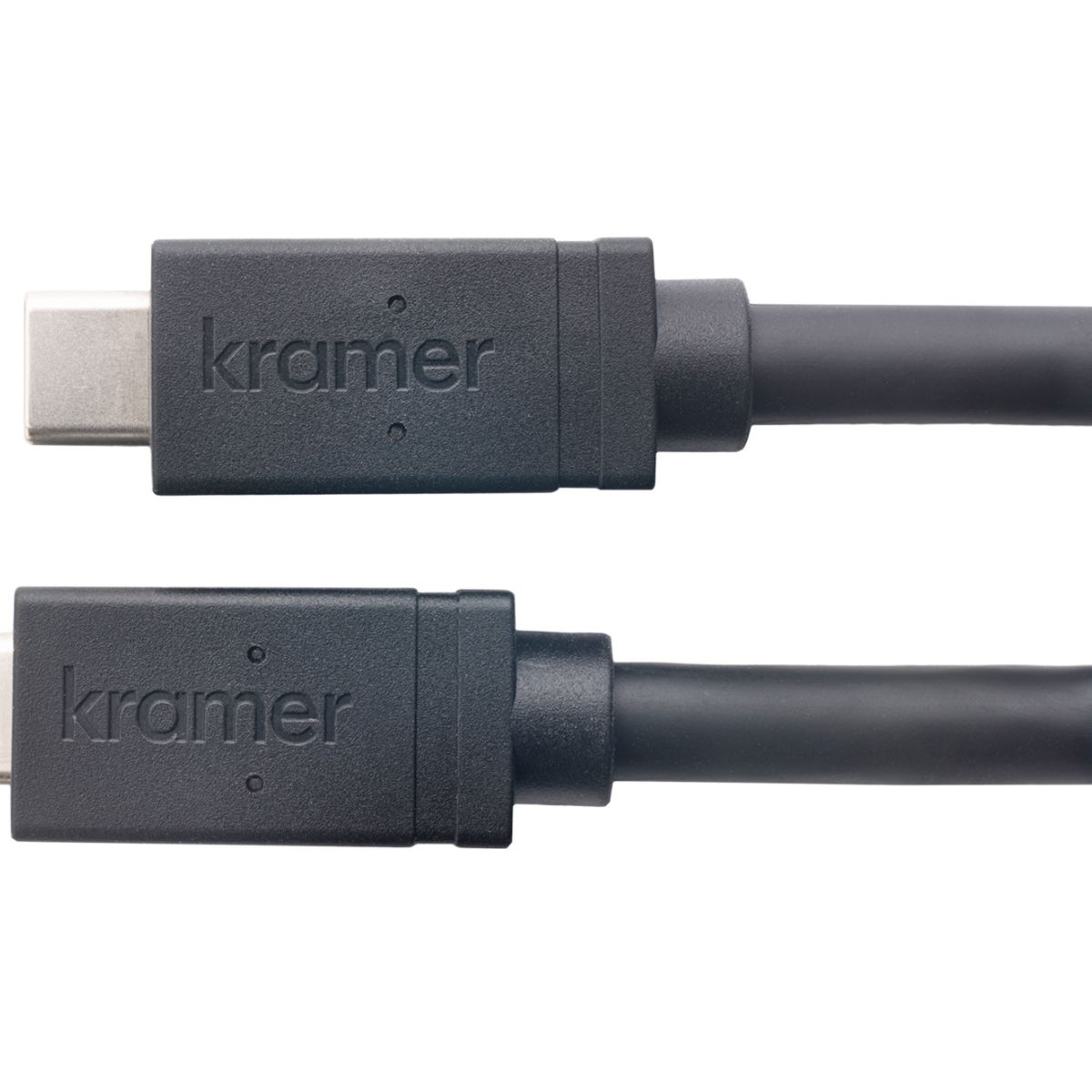

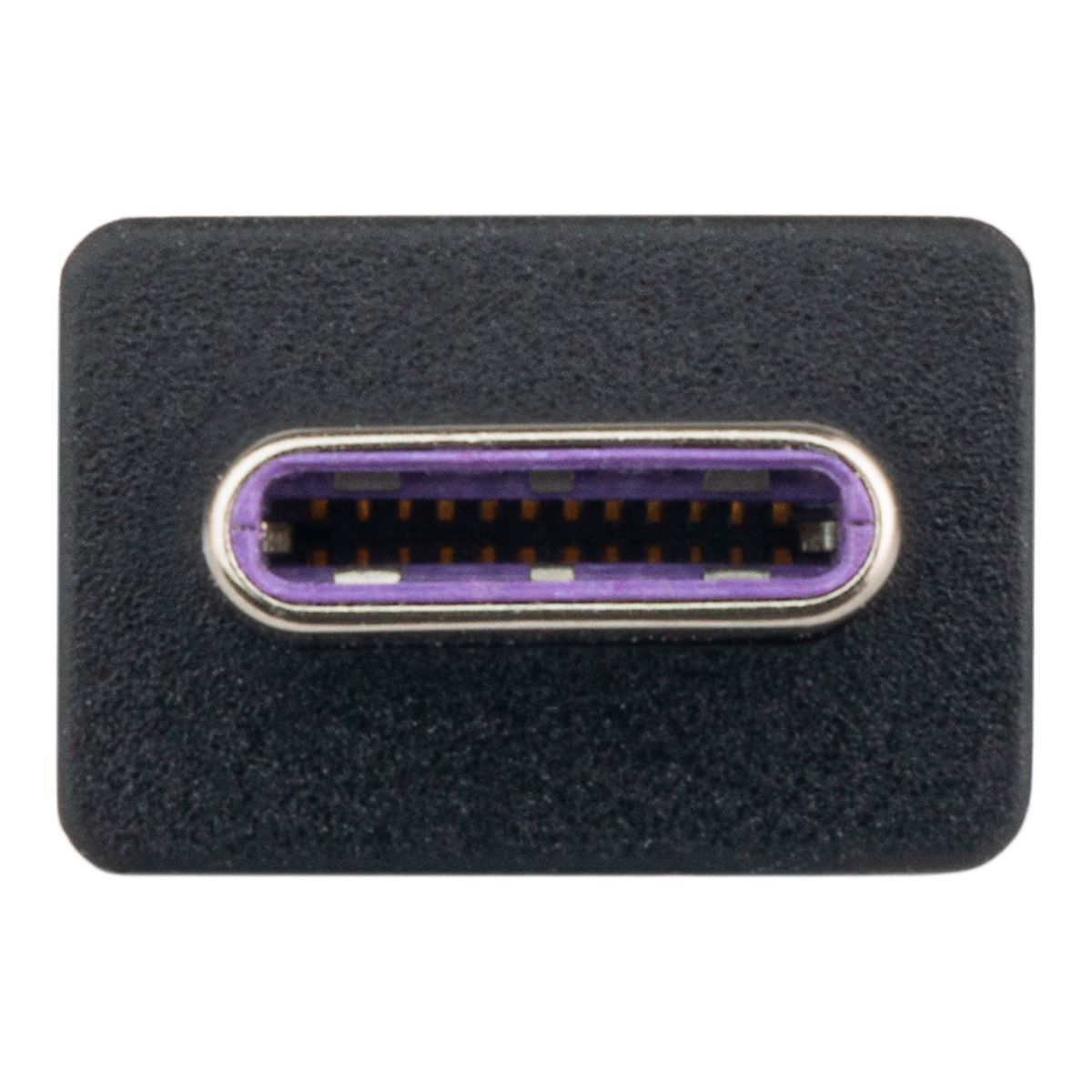

CA-U32/FF Active Cable

USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M) Active Cable

Highlights

• Quality Construction — High–quality shielded twisted pair (STP) construction helps prevent electromagnetic interference and ensures reliable data communication.
•  Reversible USB Type-C–C Connector with integrated locking mechanism.
•  Transfer Rates — Up to 10Gbps.
•  100W power (5A, 20V).
•  PC, Mac & Mobile Compatible.

CA-USB3/AAE Extender Cable

USB 3.0 Active Extender Cable

Highlights

• Enables USB cable up to 15m (50ft)
• No external power needed
• Plug and play
• Available lengths — 3 to 15.2m (10 to 50ft)

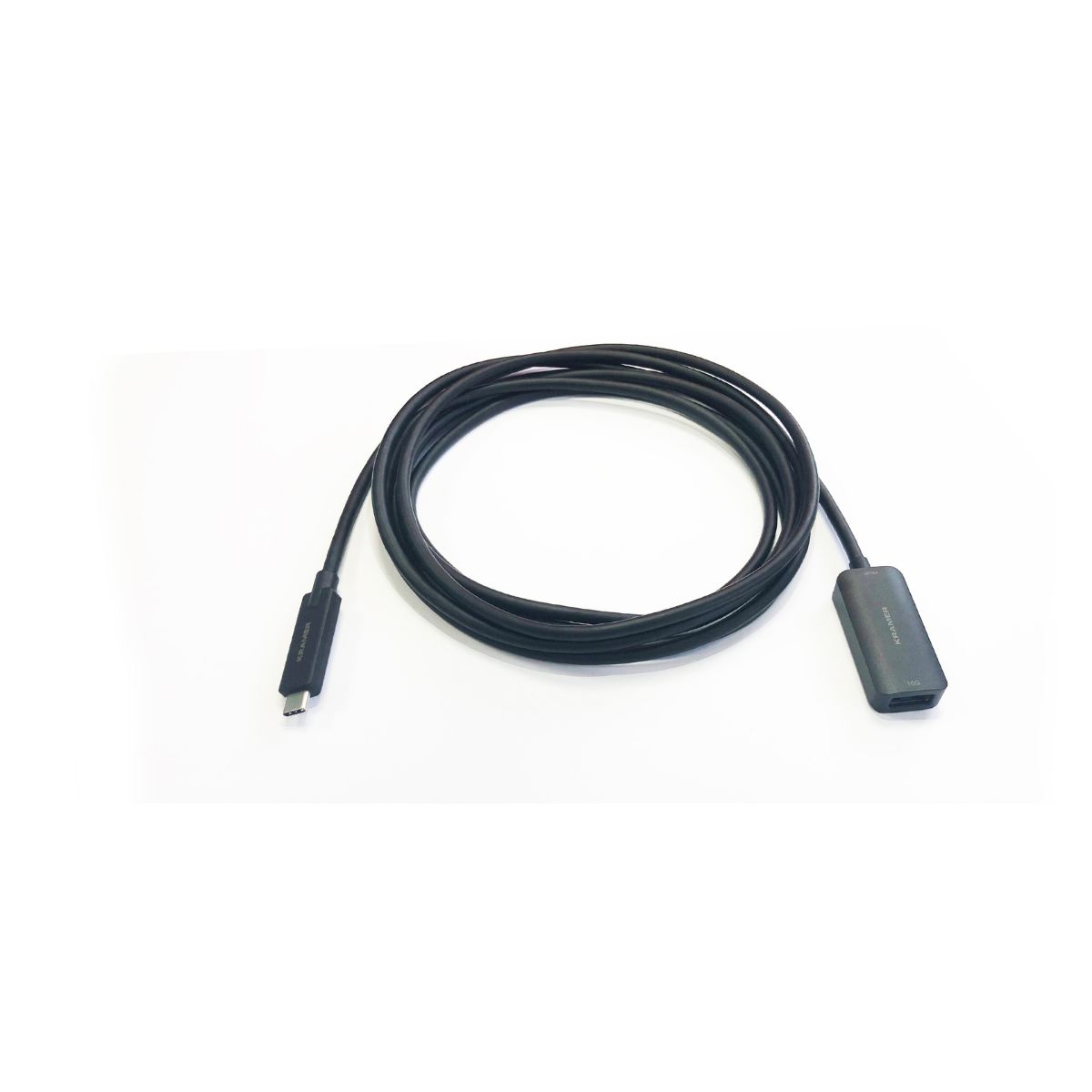

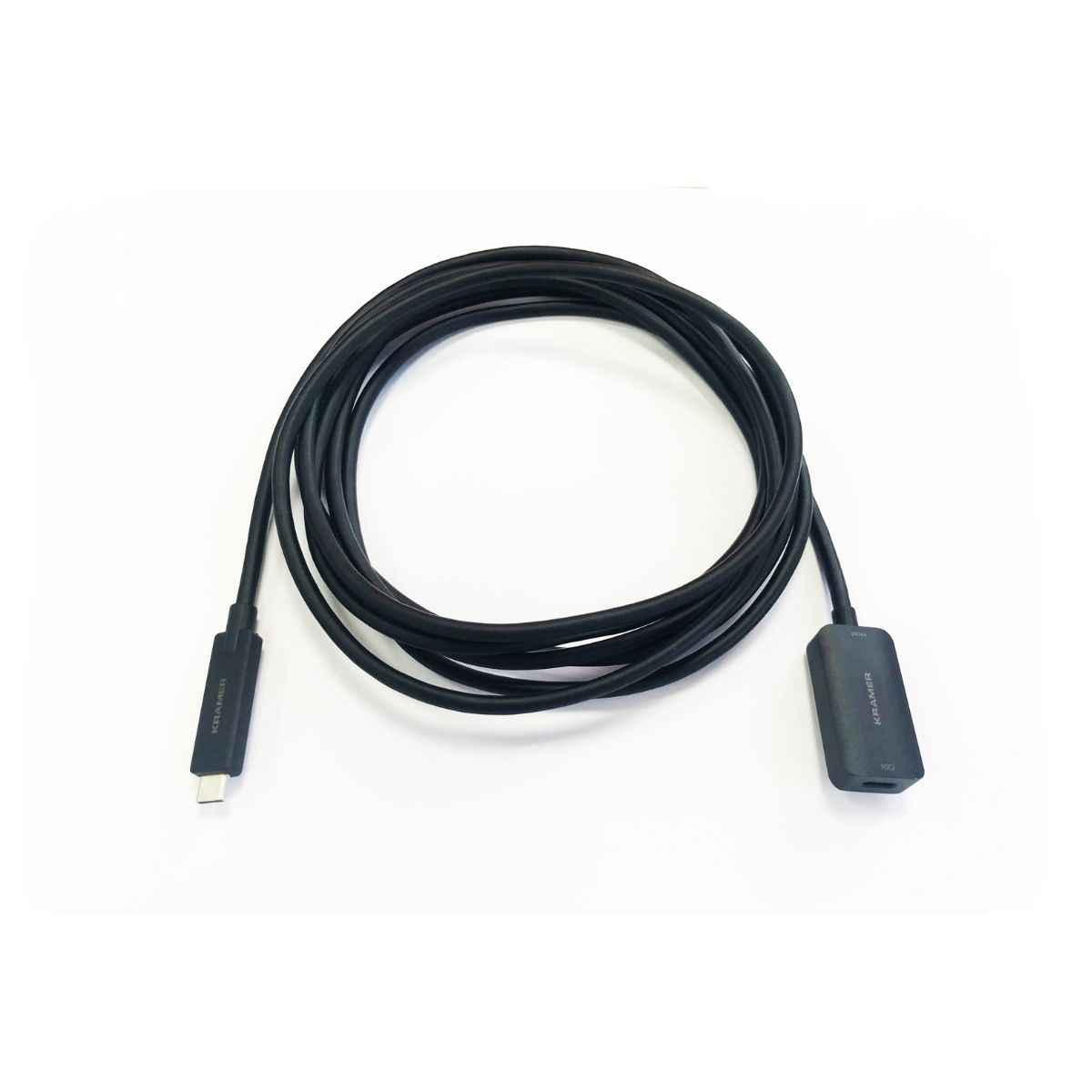

CA-USB31/CAE Extender Cable

USB 3.1 Active Extender Cable

Highlights

• Enables USB cable up to 4.7m (15ft)
• No external power needed
• Plug and play
• Available lengths — 3m & 4.7m (10ft to 15ft)

CA-USB31/CCE Extender Cable

USB 3.1 Active Extender Cable

Highlights

•  True Plug–and–Play — No additional drivers needed
•  USB 3.1 Super Speed (10Gbps) Standard — Compliant with USB 3.0 and USB 2.0.
•  No External Power — Pulls power from the USB source device.
•  Buffers Incoming & Outgoing Signal
•  CE & FCC certified

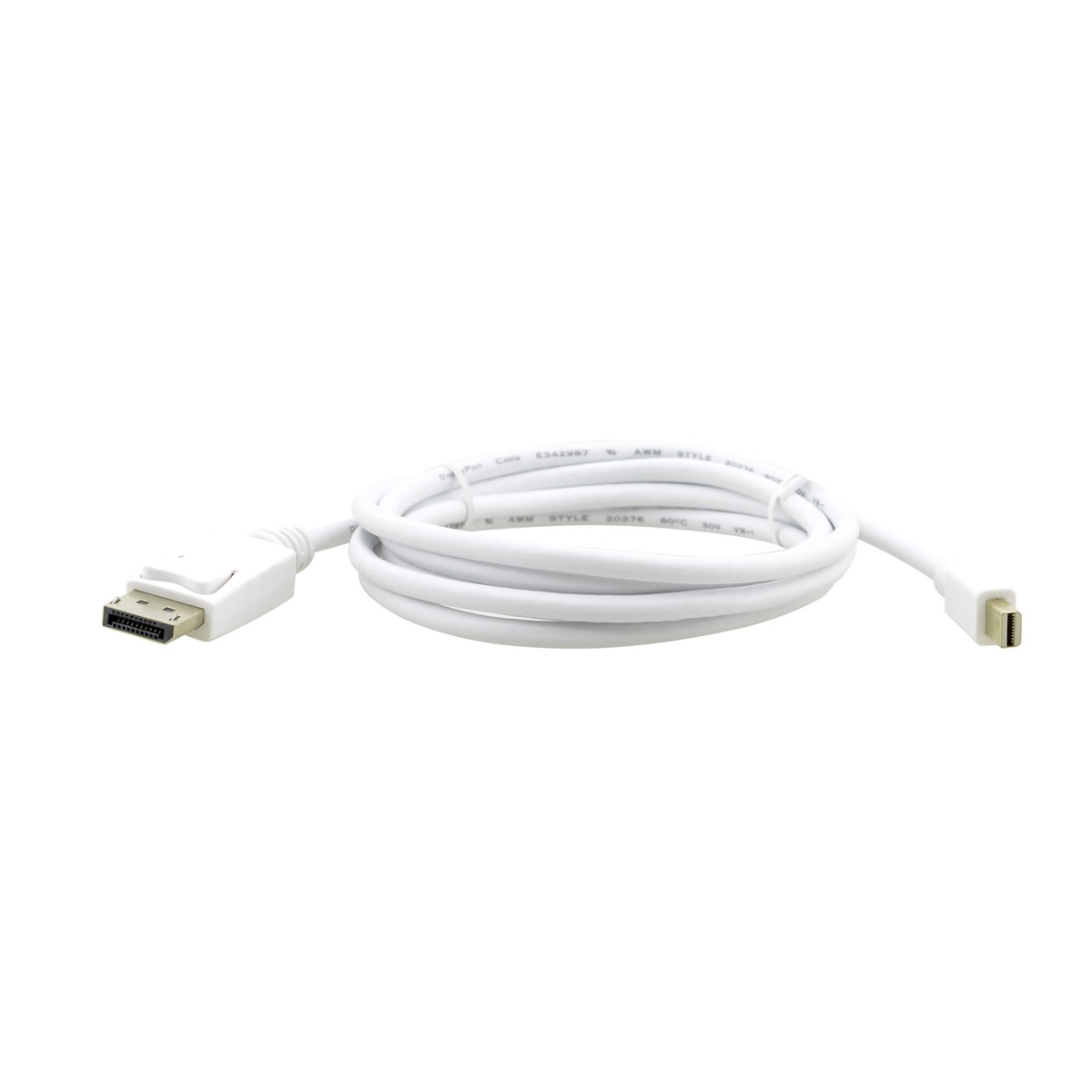

C-DP DisplayPort Cable

4K DisplayPort Cable

Highlights

• Max. Resolution — 4K@60Hz (4:4:4)
• Max. Data Rate — 21.6 Gpbs
• Triple shielded
• Varied lengths available

C-DPU DisplayPort Cable

8K DisplayPort Cable

Highlights

• Max. Resolution — 8K@60Hz
• Max. Data Rate — 32.4 Gpbs
• Triple shielded
• Varied lengths available

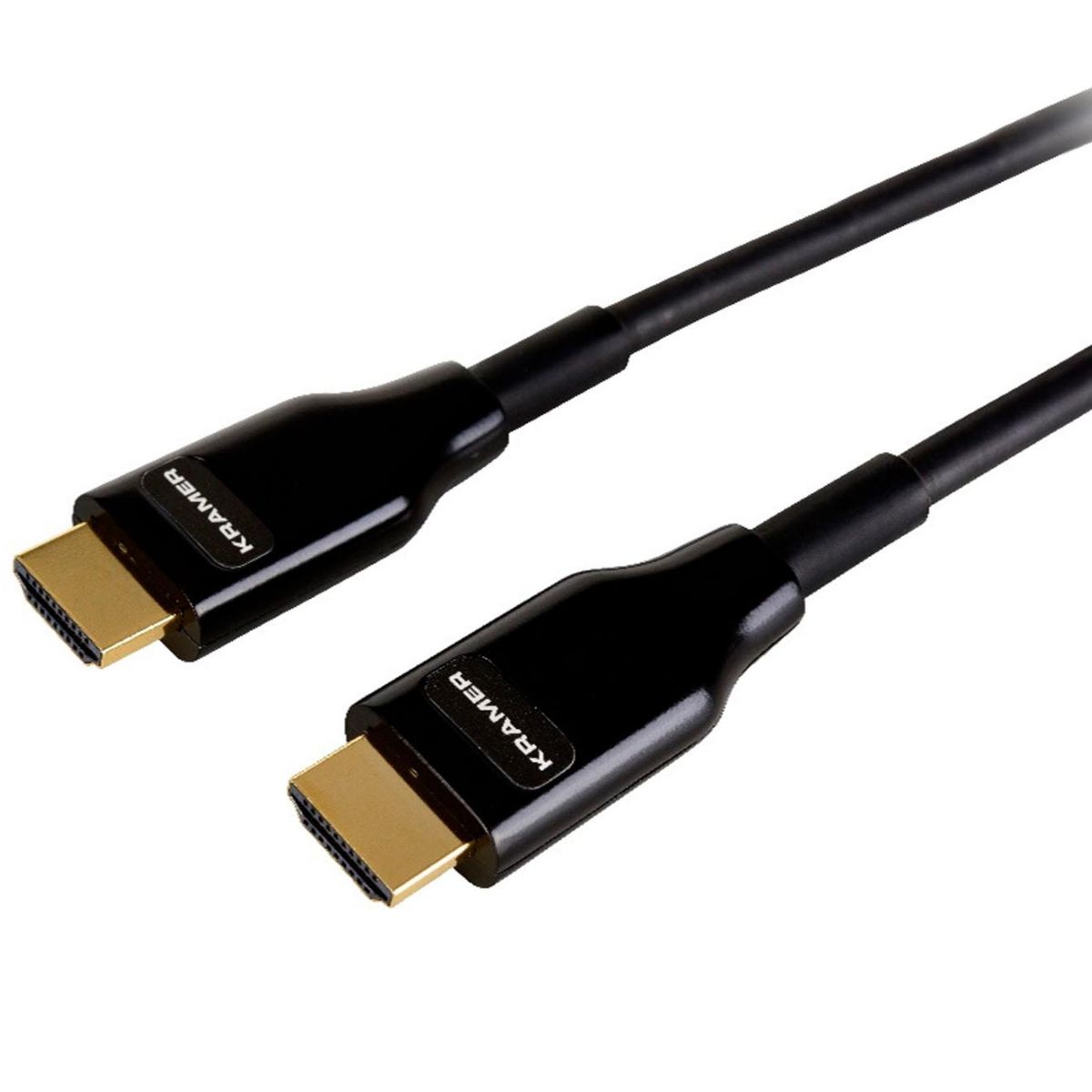

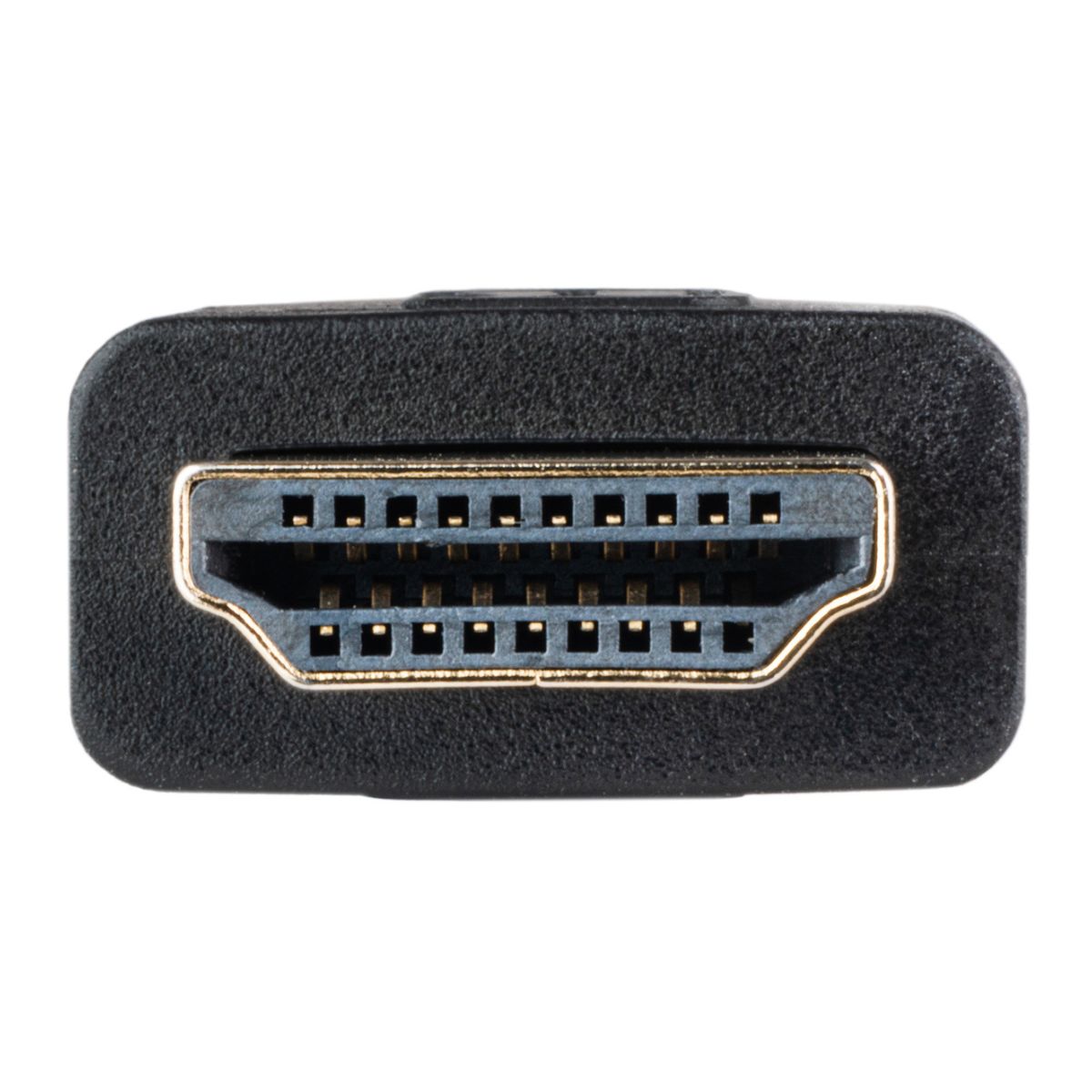

C-HM/ETH HDMI Cable with Ethernet

High–Speed HDMI Cable with Ethernet

Highlights

• Quality Performance — Kramer’s HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as plasma display screens for high–definition TVs.
•  Max. Resolution — 4K@60Hz (4:4:4).
•  High–Quality Connectors — Gold–plated connectors resist corrosion and offer the best possible connectivity.
•  Varied Selection of Lengths — Available in versions of 0.9 to 15.2m (3, 6, 10, 15, 25, 35, and 50ft).

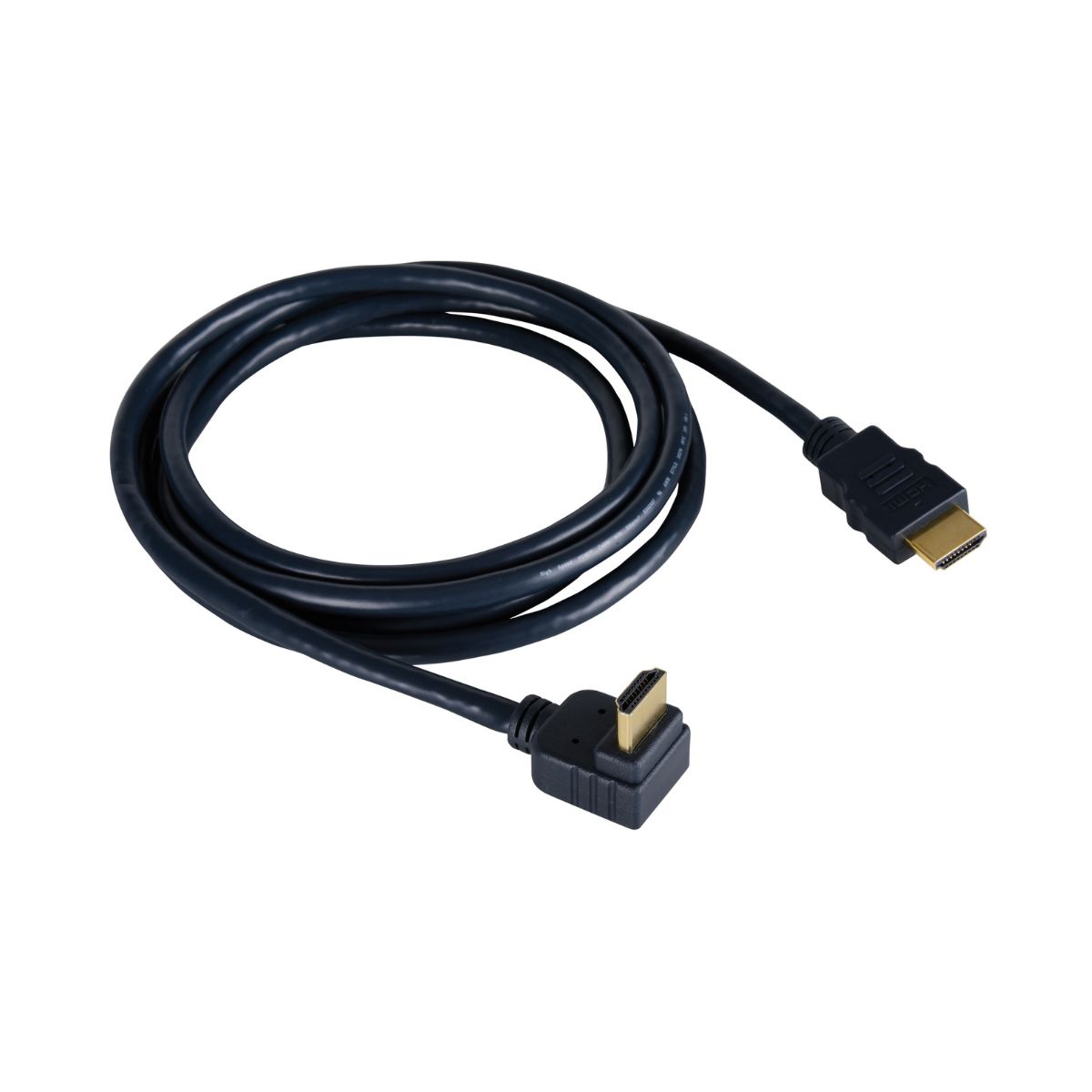

C-HM/RA Cable with Ethernet

High–Speed HDMI Right Angle Cable with Ethernet

Highlights

• Max. Resolution — 4K@60Hz (4:4:4).
•  High–Quality Connectors — 24K gold–plated connectors resist corrosion, and offer the best possible connectivity.
•  Minimizes Installation Depth — The right angle design makes it the perfect cable for connecting a flat panel display to a Kramer low profile wall–plate extender when the extender is installed behind the display.
•  Supports HDCP 2.2, HDR, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, and CEC.

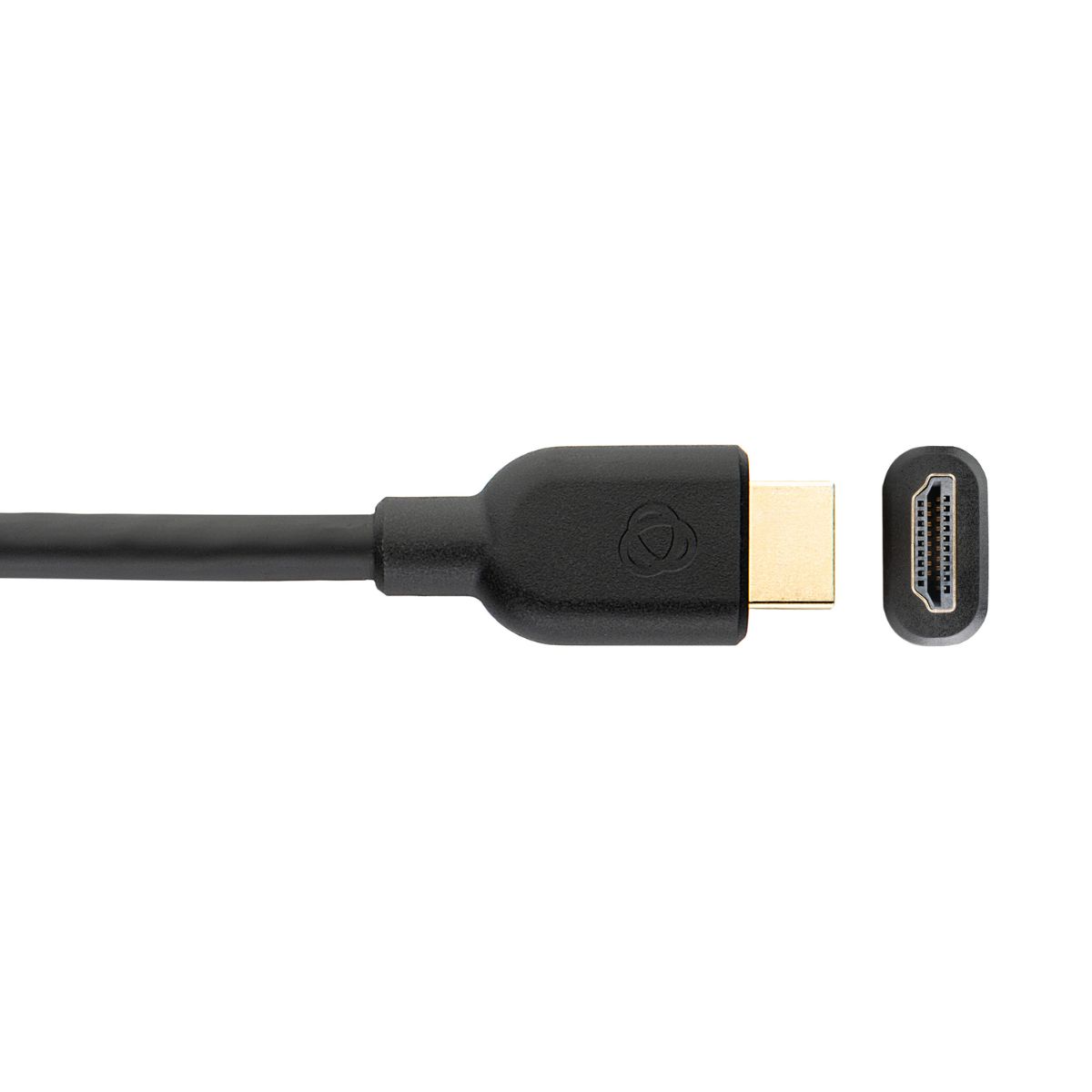

C-HMU HDMI Cable with Ethernet

Ultra high–speed HDMI Cable with Ethernet

Highlights

• Max. Data Rate: 48Gbps
• Max. Resolution: 8K@60Hz
• Short Connectors
• K–Lock Connectors
• Lengths — 0.9–4.6m (3–15ft)

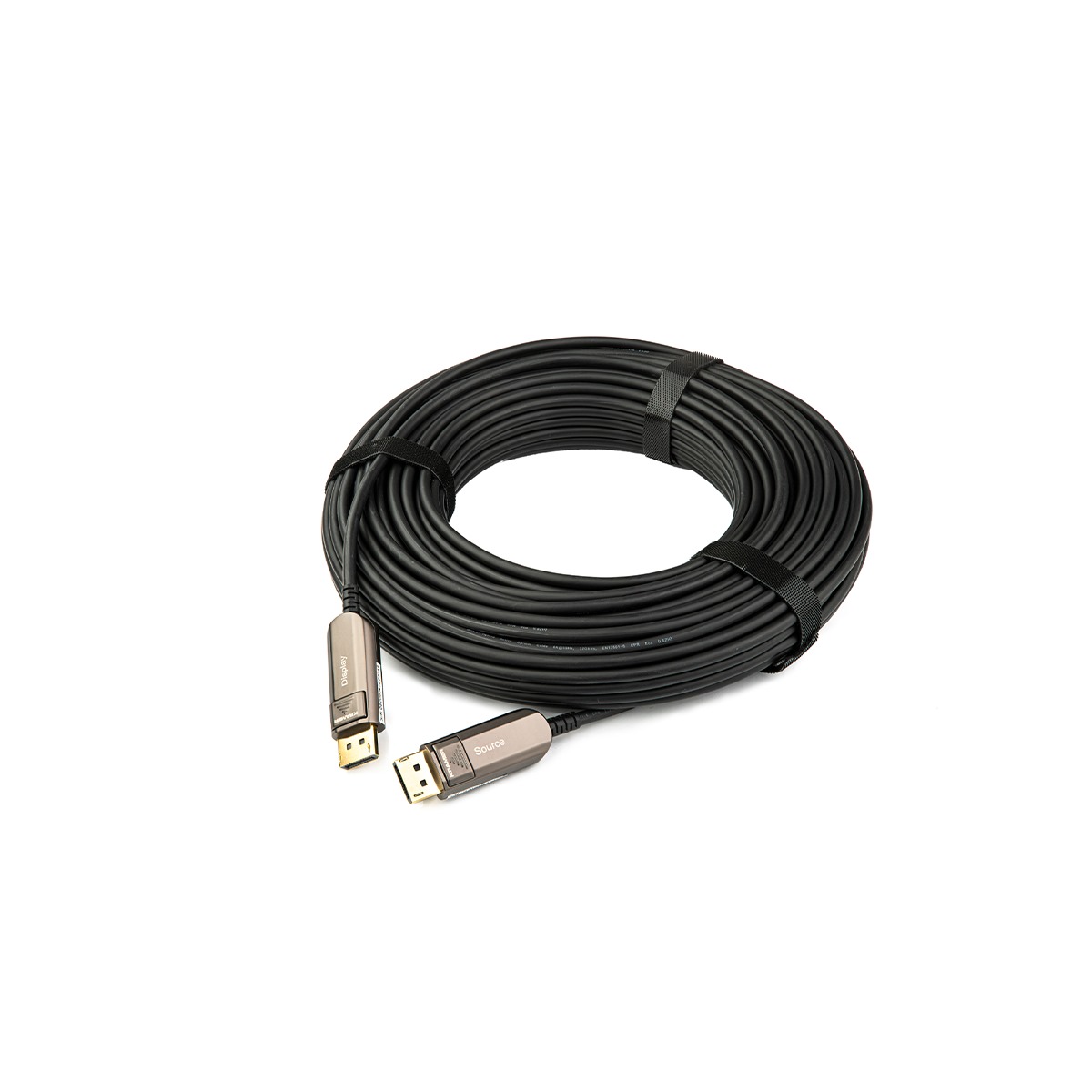

CLS-AOCDP/UF DisplayPort Cable

Active Optical DisplayPort Cable

Highlights

• Max. Resolution — 8K@60Hz
• Max. Data Rate — 32.4Gbps
• HDCP 1.4/2.2
• Low smoke & halogen-free
• Latest DisplayPort Technology — Supports 3D, HDCP, EDID, HBR3, DSC, and 8K@60Hz resolution.

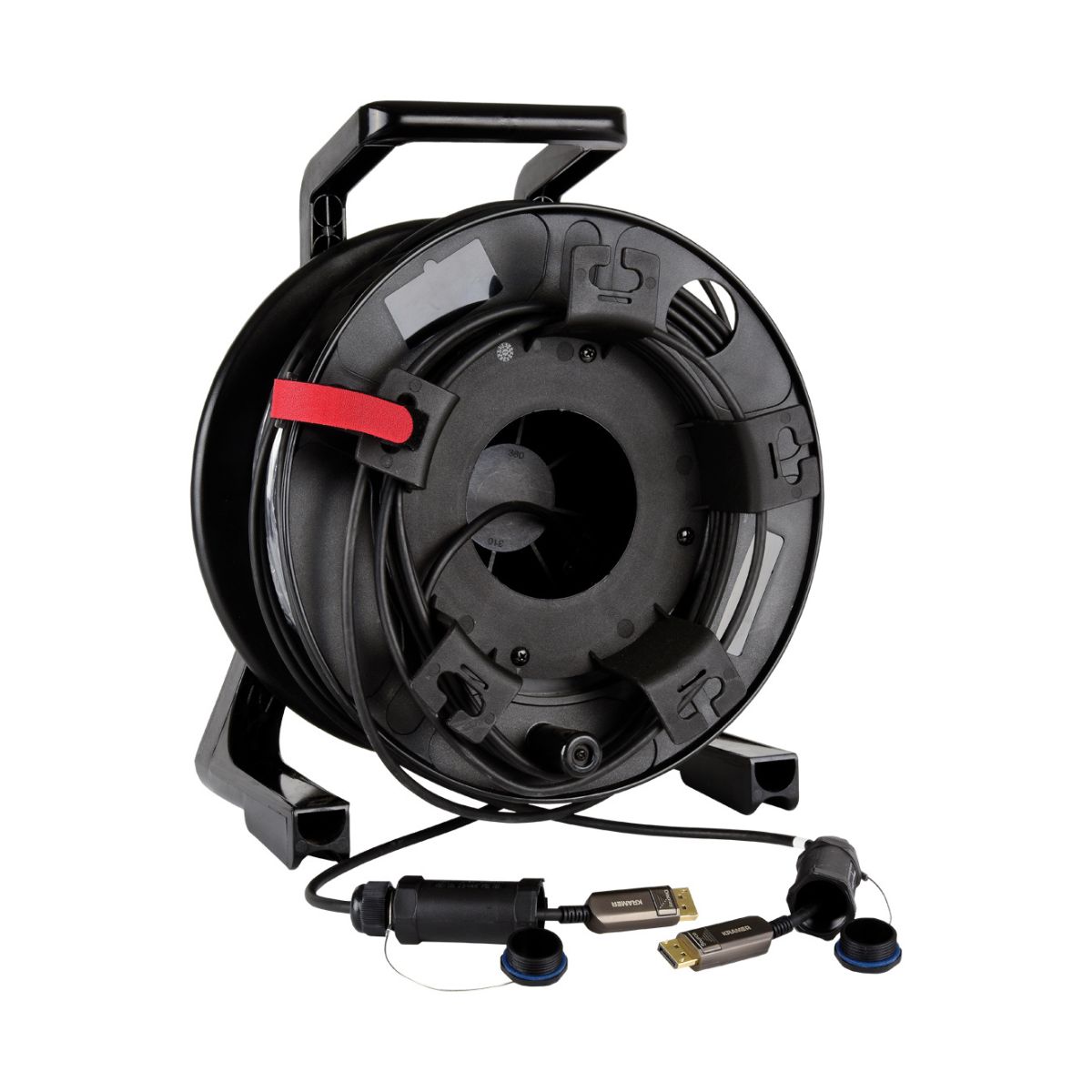

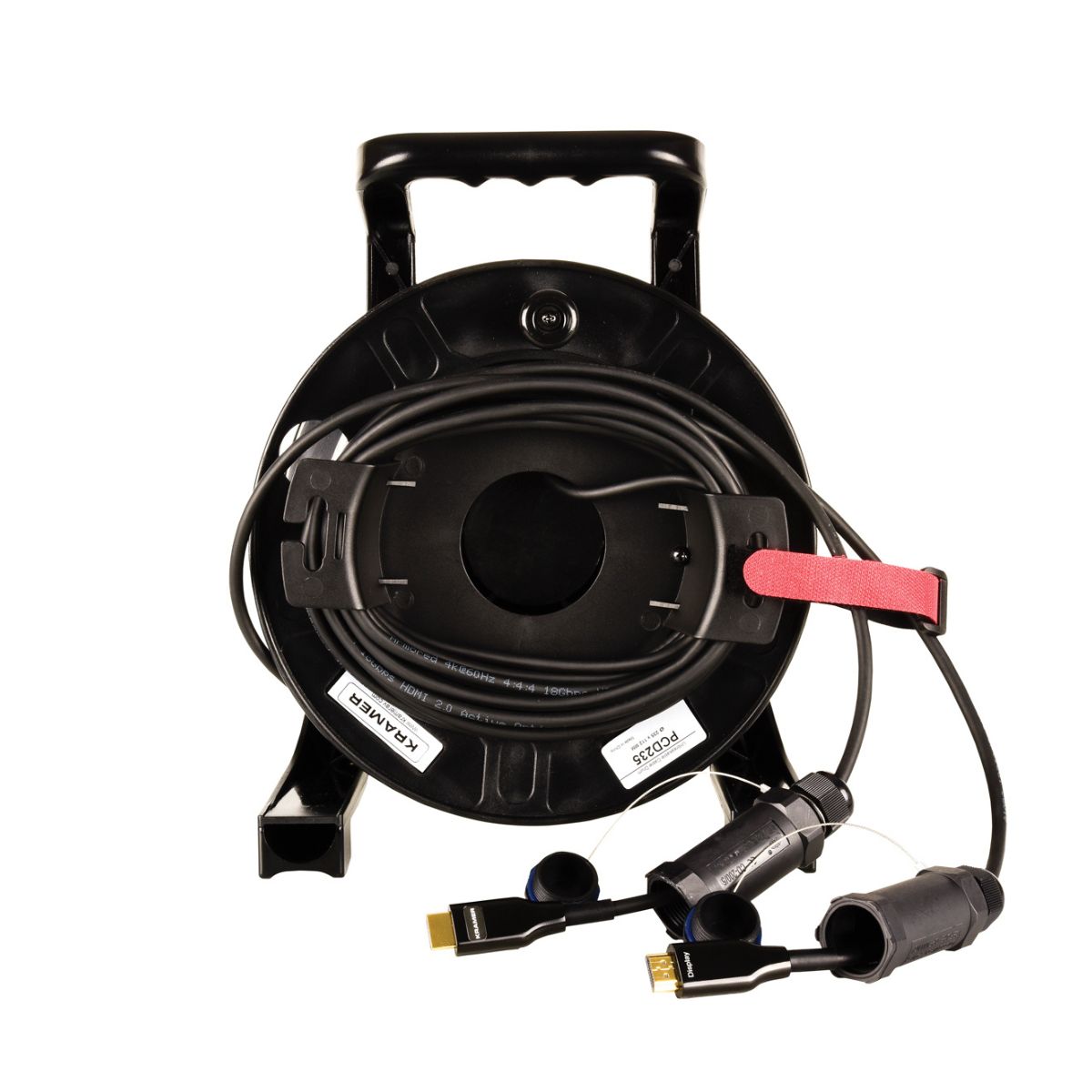

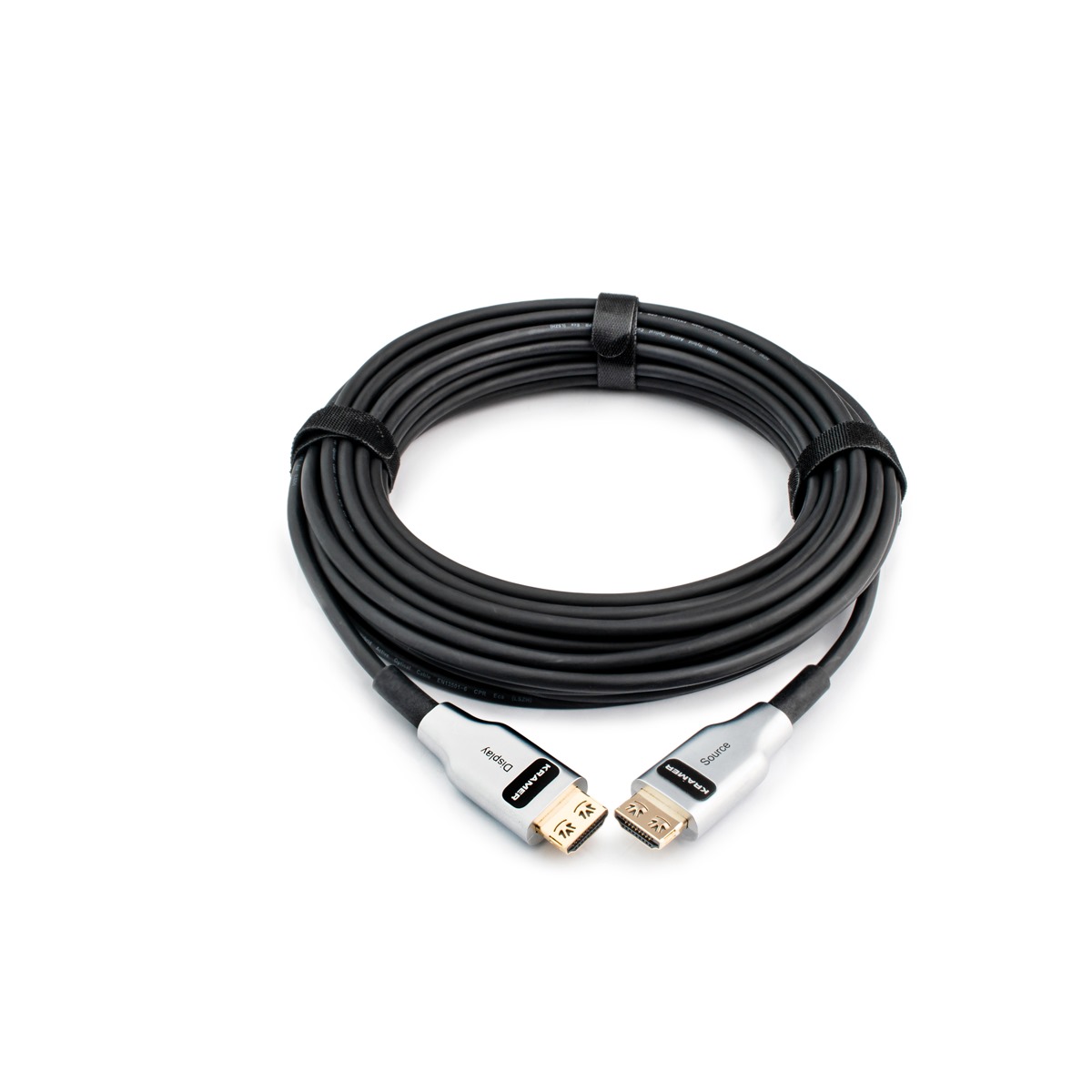

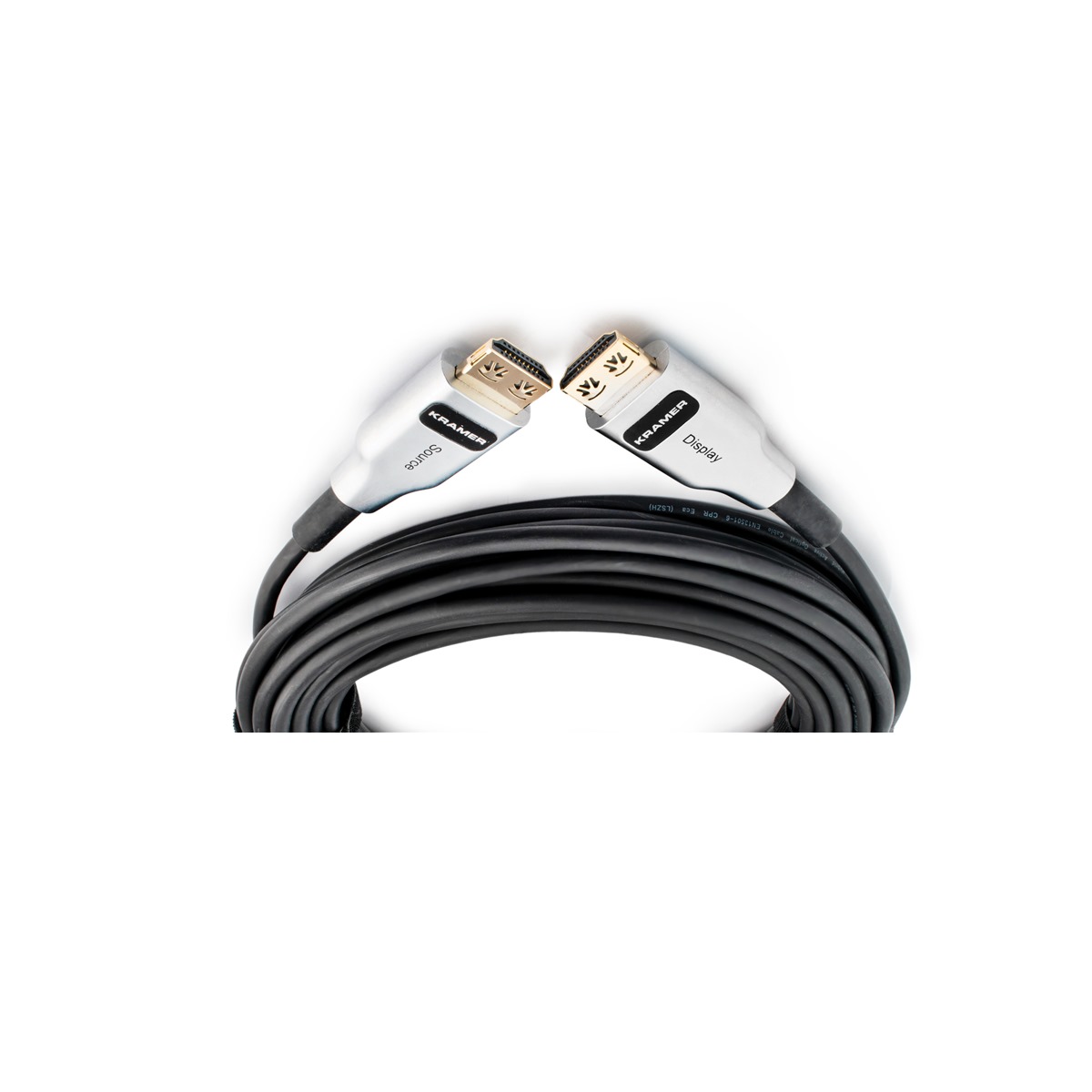

CLS-AOCH/UF HDMI Optic Hybrid Cable

Ultra High–Speed HDMI Optic Hybrid Cable — LSHF

Highlights

• Max. data rate: 48Gbps
• Max. resolution: 8K@60Hz
• Low Smoke & Halogen Free
• K–Lock connectors
• Lengths — 10–100m (33–328ft)
• No external power required

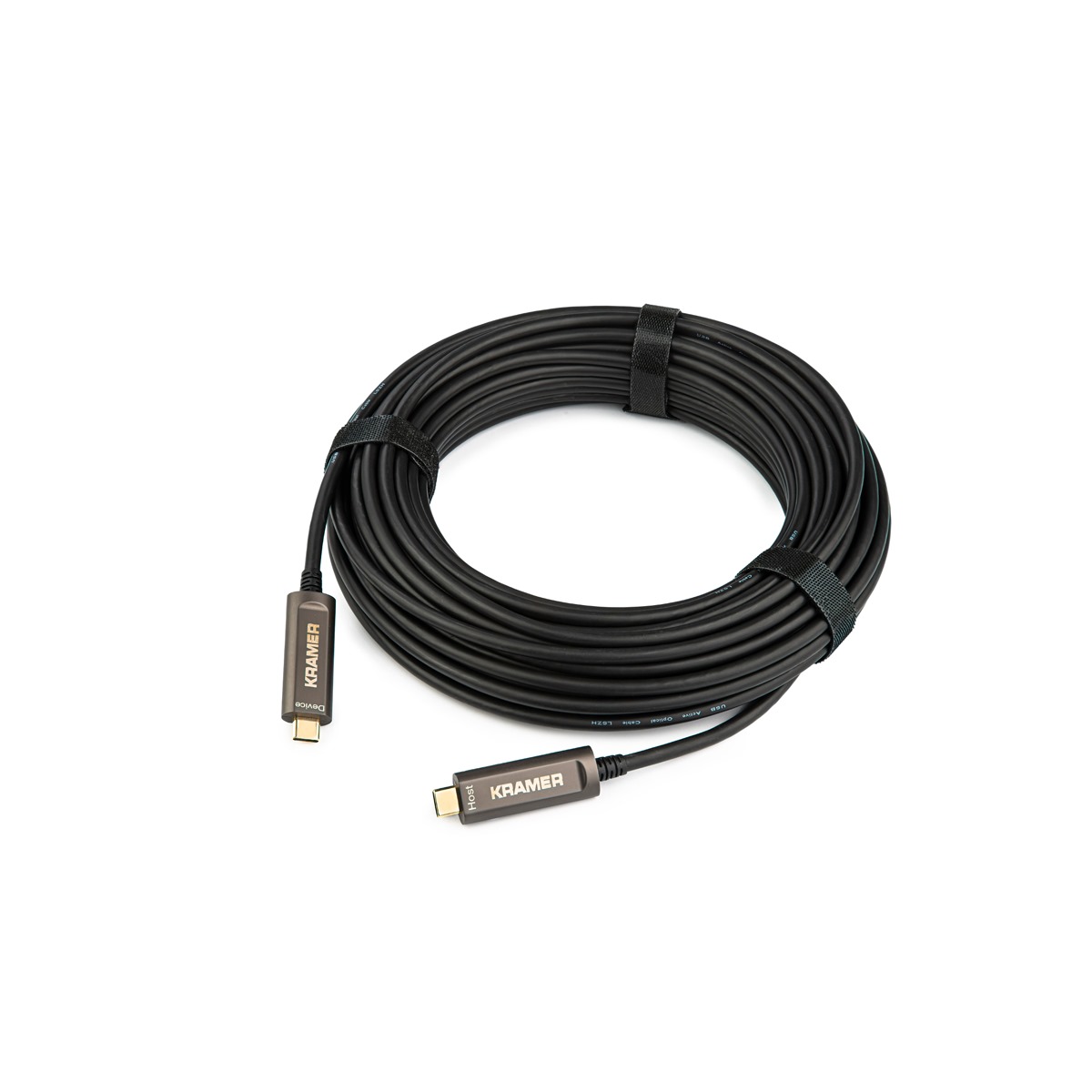

CLS-AOCU31/CC GEN–2Cable

USB 3.1 GEN–2 Optical USB–C (M) to USB–C (M) Cable

Highlights

• True Plug–and–Play — No additional drivers needed.
•  No External Power Needed — Pulls power from the USB source device.
•  High Transfer Rates — Up to 10Gbps.
•  USB Backward Compatibility — 1.1, 2.0, and 3.0.
•  Hybrid Cable — Fiber and copper.
•  Current Rating — 3A.

CLS-AOCU32/FF Active AOC Cable

USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M) Active AOC Cable

Highlights

• 4K@60 Video
•  Reversible USB Type–C Connector — With integrated locking mechanism.
•  Transfer Rates — Up to 10Gbps.
•  Current Rating — 100W power (5A, 20V).
•  Compatibility — PC, Mac & Mobile.
•  Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices.

C-MDP/DPM DisplayPort Cable

Mini DisplayPort to DisplayPort Cable

Highlights

• Video Resolution — Supports up to a 4K@60Hz (4:4:4) resolution with a maximum HBR2 bandwidth of 21.6Gbps.
•  Standards Compliance — DisplayPort 1.2.
•  Gold Plated Connectors.
•  Varied Selection of Lengths — Varied Selection of Lengths — 0.9 and 1.8m (3 and 6ft).
•  Note — The cable’s color can vary in some cases.

CRS-PlugNView-DP DisplayPort Cable

Active Optical Armored 8K DisplayPort Cable

Highlights

• High Resolution over Long Range — Active cable supports resolutions up to 8K@60Hz over long cable runs up to 100 meters.
•  High Data Transfer Rate — Up to 32 Gbps.
•  No External Power Needed — Powers the active units via the DisplayPort connector with a power consumption of less than 0.5W for each end.
•  Supported Features — HDCP 1.4/2.2, HDR–10, HLG, Dolby Vision™, deep color, x.v.Color™, 5.1/7.1 lossless Dolby® TrueHD, DTS–HD Master Audio®, and EDID.

CRS-PlugNView-H 4K HDMI Cable

Active Optical Armored 4K HDMI Cable

Highlights

• High Resolution over Long Range — Active cable supports resolutions up to 4K@60 (4:4:4) over long cable runs up to 100 meters.
•  High Data Transfer Rate — Up to 18 Gbps.
•  No External Power Needed — Powers the active units via the HDMI connector with a power consumption of only 0.25W:50mA @5V.
•  Comprehensive HDMI Support — HDCP 2.2, HDR–10, HLG, Dolby Vision™, deep color, x.v.Color™, 5.1/7.1 lossless Dolby® TrueHD, DTS–HD Master Audio®, EDID and CEC.

CT-HM Speed HDMI Cable

PREMIUM certified High–Speed HDMI Cable

Highlights

• TAA compliance
• Lengths: 3 to 35ft (0.9–10.7m)
• HDMI
• 4K/60 UHD (4:2:0)
• 4K/60 UHD (4:4:4)

CT-U32/FF Featured USB–C Cable

USB 3.2 GEN–2 Full Featured USB–C Cable

Highlights

•  Quality Construction — High–quality Tripple shielded twisted pair (STP) construction helps prevent electromagnetic interference and ensures reliable data communication.
•  Reversible USB Type–C Connector
•  4K@60 (4:4:4)
•  Transfer Data Rates — Up to 10Gbps
•  60W power (20V, 3A)
•  PC, Mac & Mobile Compatible

C-U32/FF High–quality Cable

USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M) Cable

Highlights

• Quality Construction — High–quality shielded twisted pair (STP) construction helps prevent electromagnetic interference and ensures reliable data communication.
•  Reversible USB Type–C Connector with integrated locking mechanism.
•  Transfer Rates — Up to 10Gbps.
•  100W power (5A, 20V).
•  PC, Mac & Mobile Compatible.
•  Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices.

C-USB3/AA Cable

USB 3.0 A (M) to A (M) Cable

Highlights

•  USB 3.0 Type–A — Male to Type–A Male
•  Transfer Rates up to 4.8Gbps — 10x the capability of USB 2.0
•  Foil & Overall Braid Provide Maximum Protection Against EMI/RFI
•  Molded Strain Relief
•  Backward Compatibility — USB Specifications 1.0, 1.1 and 2.0
•  RoHS Compliant

C-USB31/CA-3 High–quality shielded Cables

USB 3.1 GEN–2 Cables USB–C (M) to USB–A (M) — 3ft

Highlights

• Quality Construction — High–quality shielded twisted pair (STP) construction, helps prevent electromagnetic interference and ensure reliable data communication.
•  Reversible USB Type–C Connector.
•  Transfer Rates — Up to 10Gbps.
•  3A Current Rating.
•  PC, Mac & Mobile Compatible.
•  Plug and Play — For printers, scanners, keyboards, and other digital devices.

C-USB31/CB Cables USB 2 Cables

USB 3.1 GEN–2 Cables USB–C (M) to USB–B (M) — 3ft

Highlights

• Quality Construction — High–quality shielded twisted pair (STP) construction, helps prevent electromagnetic interference and ensure reliable data communication.
•  Reversible USB Type–C Connector.
•  Transfer Rates — Up to 10Gbps.
•  3A Current Rating.
•  PC, Mac & Mobile Compatible.

C-USB31/CC Cable

USB 3.1 GEN–2 Cable USB–C (M) to USB–C (M) — 3ft

Highlights

•  Quality Construction — High–quality shielded twisted pair (STP) construction, helps prevent electromagnetic interference and ensure reliable data communication.
•  Reversible USB Type–C Connector.
•  Transfer Rates — Up to 10Gbps.
•  3A Current Rating.
•  PC, Mac & Mobile Compatible.

C-USB31/CMicroB Cables

USB 3.1 GEN–2 Cables USB–C (M) to USB–MicroB (M) — 3ft

Highlights

• Quality Construction — High–quality shielded twisted pair (STP) construction, helps prevent electromagnetic interference and ensure reliable data communication.
•  Reversible USB Type–C Connector.
•  Transfer Rates — Up to 10Gbps.
•  3A Current Rating.
•  PC, Mac & Mobile Compatible.

PC6A-LS508 ow Smoke & Halogen Free

CAT6A S/FTP 500MHz 4x2x26AWG Patch Cord Low Smoke & Halogen Free

Highlights

•  Quality Construction — — 4 twisted pairs of 26AWG annealed bare copper, each individually screened and overall braided (S/FTP).
•  RJ–45 Connector — Slim snagless shielded RJ–45 connector, 50u gold plated contacts.
•  Rated — Low Smoke & Halogen free rated.
•  Varied Selection of Lengths — 0.15m to 30m (0.45 to 98ft).
