DisplayPort & DVI Extenders Product Listing Details

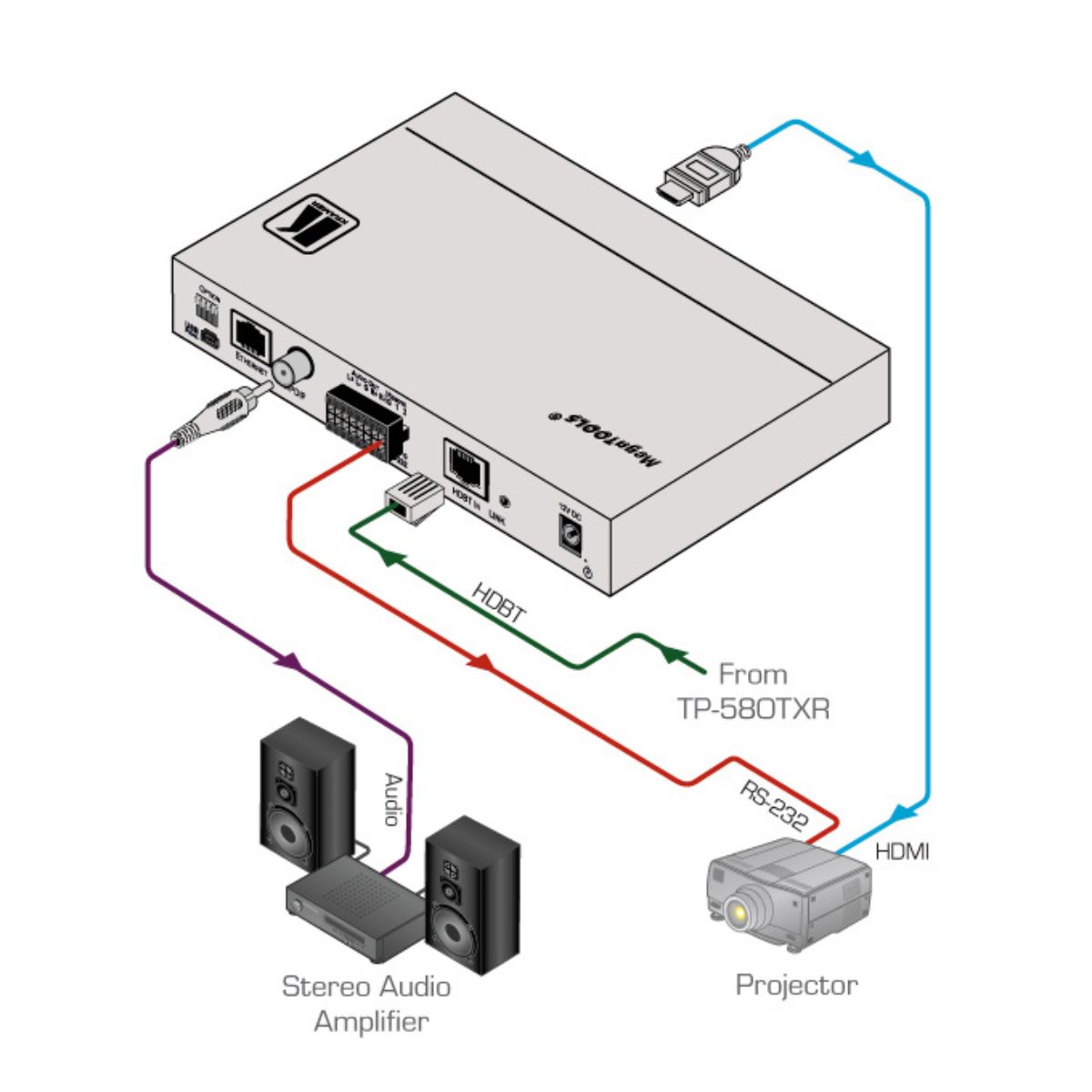

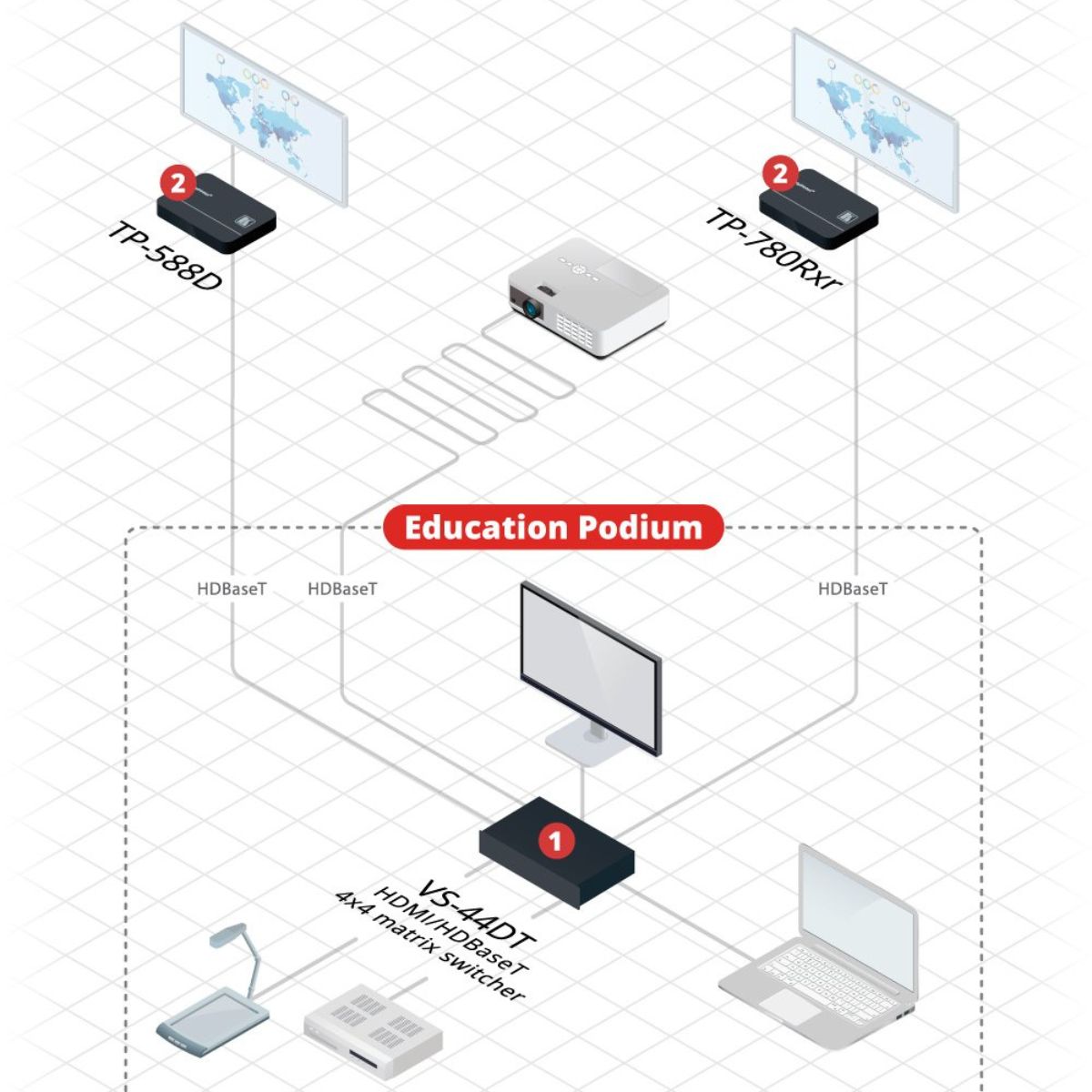

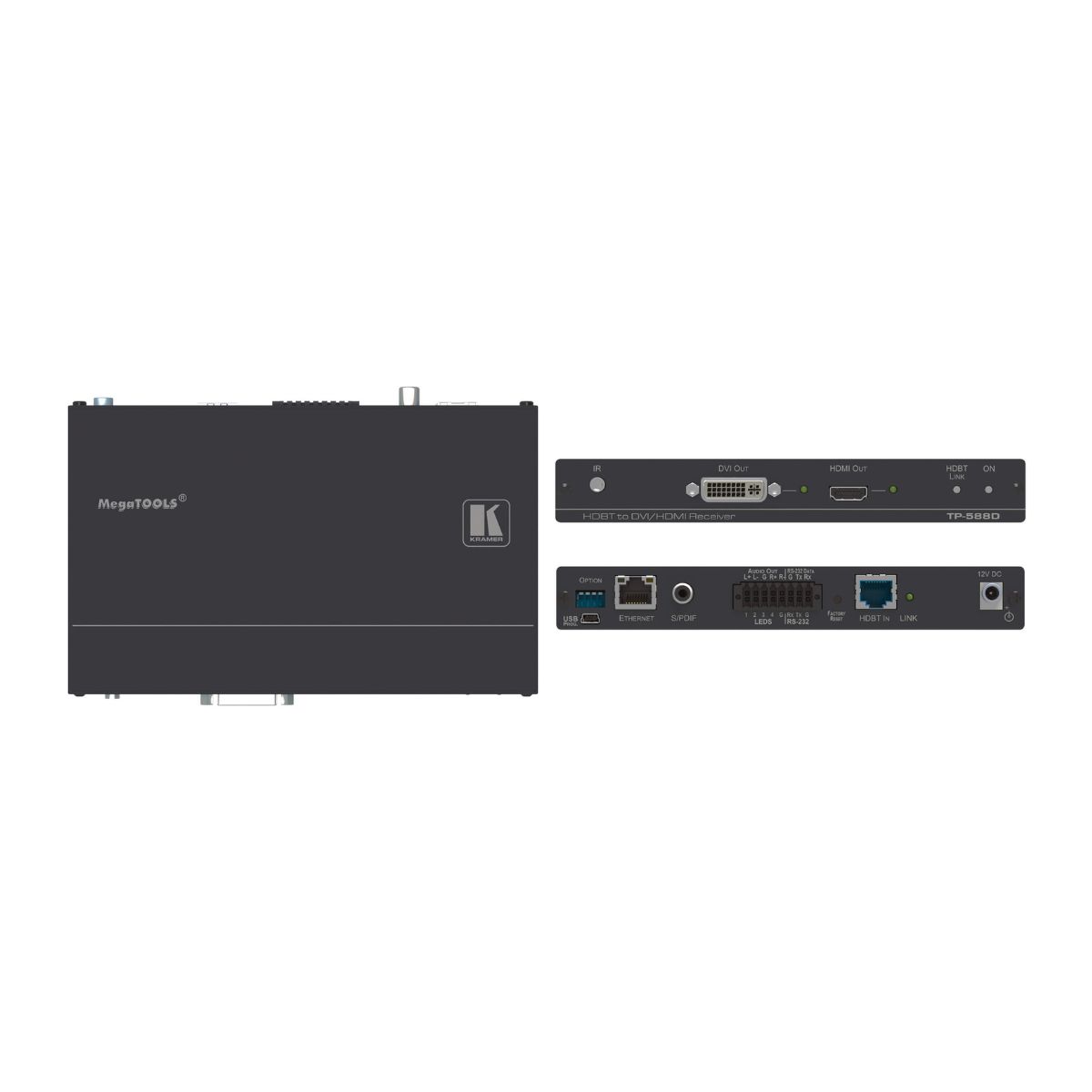

TP-588D 4K60 4:2:0 HDMI/DVI PoE Receiver

4K60 4:2:0 HDMI/DVI PoE Receiver with Ethernet, RS–232, IR & Stereo Audio De–embedding over Extended–Reach HDBaseT

Highlights

• HDBaseT 1.0 receiver
• Up to 180m (590ft) at 1080p
• Up to 100m (330ft) at 4K@60Hz (4:2:0)
• Up to 4K@60Hz (4:2:0) 24bpp video resolution
• Ethernet & control signal extension

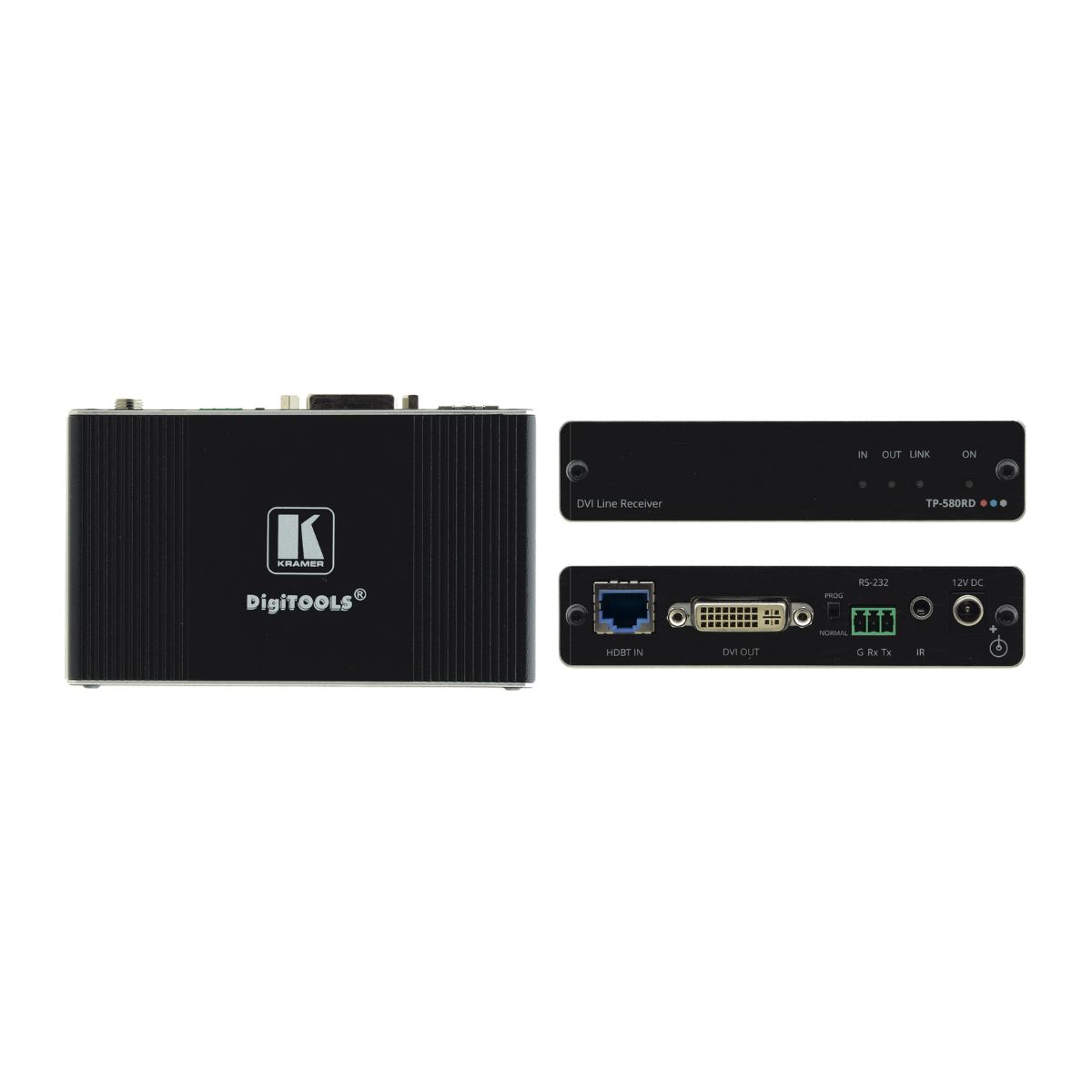

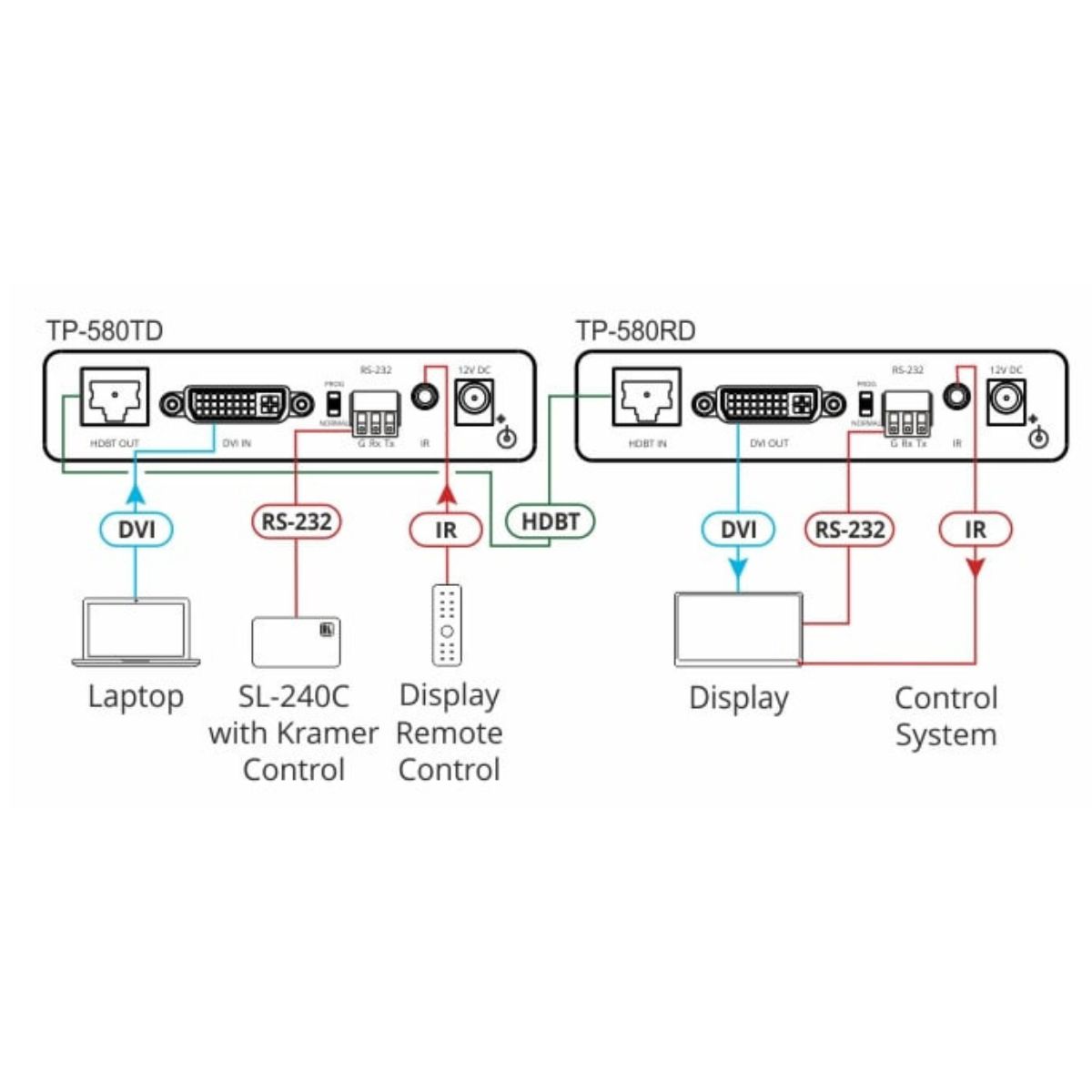

TP-580RD 4K60 4:2:0 DVI HDCP 2.2 Receiver

4K60 4:2:0 DVI HDCP 2.2 Receiver with RS–232 & IR over Long–Reach HDBaseT

Highlights

• HDBaseT 1.0 receiver
• Lockable wiring connection
• Up to 70m (230ft) at 1080p
• Up to 40m (130ft) at 4K@60Hz (4:2:0)
• Up to 4K@60Hz (4:2:0) 24bpp video resolution

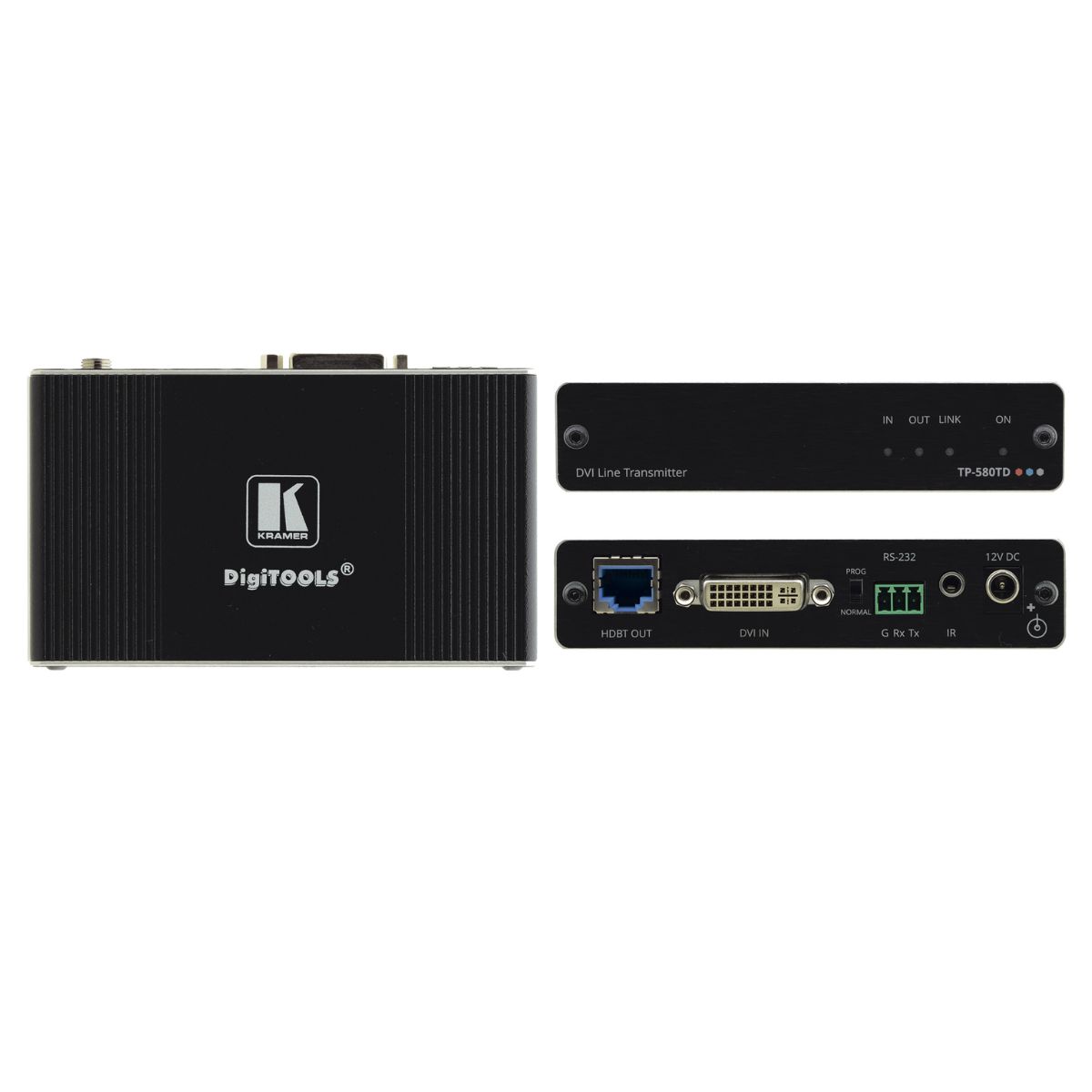

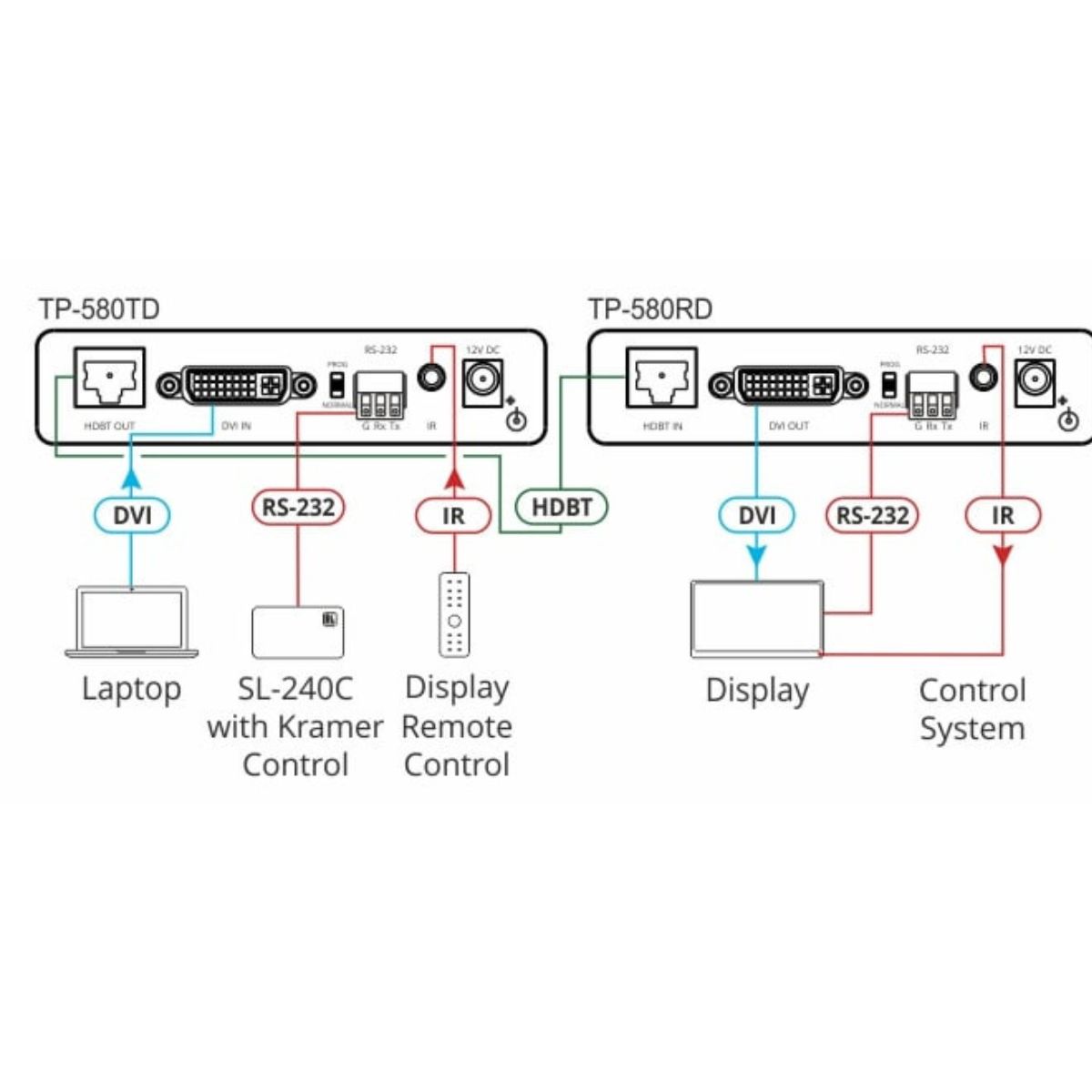

TP-580TD 4K60 4:2:0 DVI HDCP 2.2 Transmitter

4K60 4:2:0 DVI HDCP 2.2 Transmitter with RS–232 & IR over Long–Reach HDBaseT

Highlights

• HDBaseT 1.0 transmitter
• Lockable wiring connection
• Up to 70m (230ft) at 1080p
• Up to 40m (130ft) at 4K@60Hz (4:2:0)
• Up to 4K@60Hz (4:2:0) 24bpp video resolution

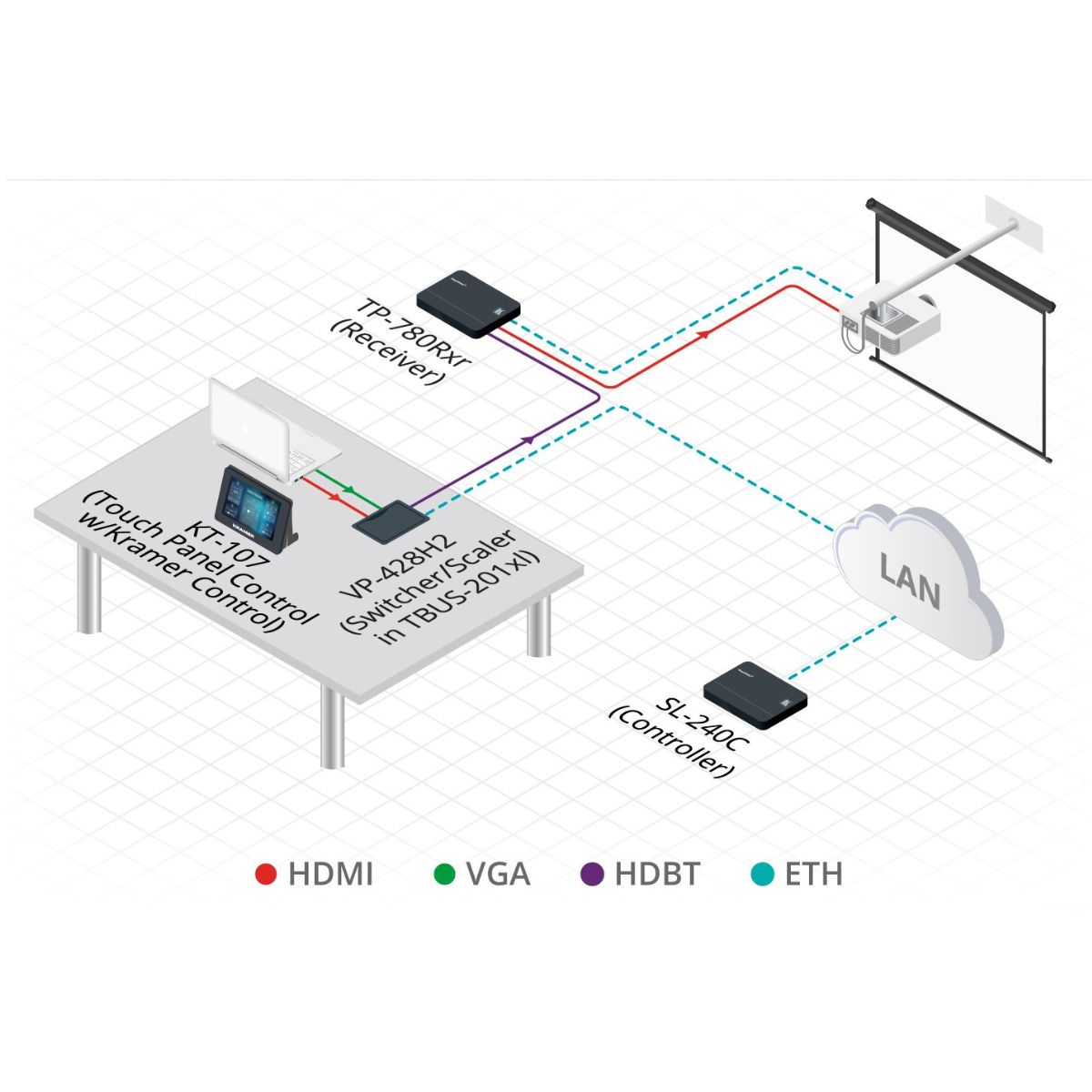

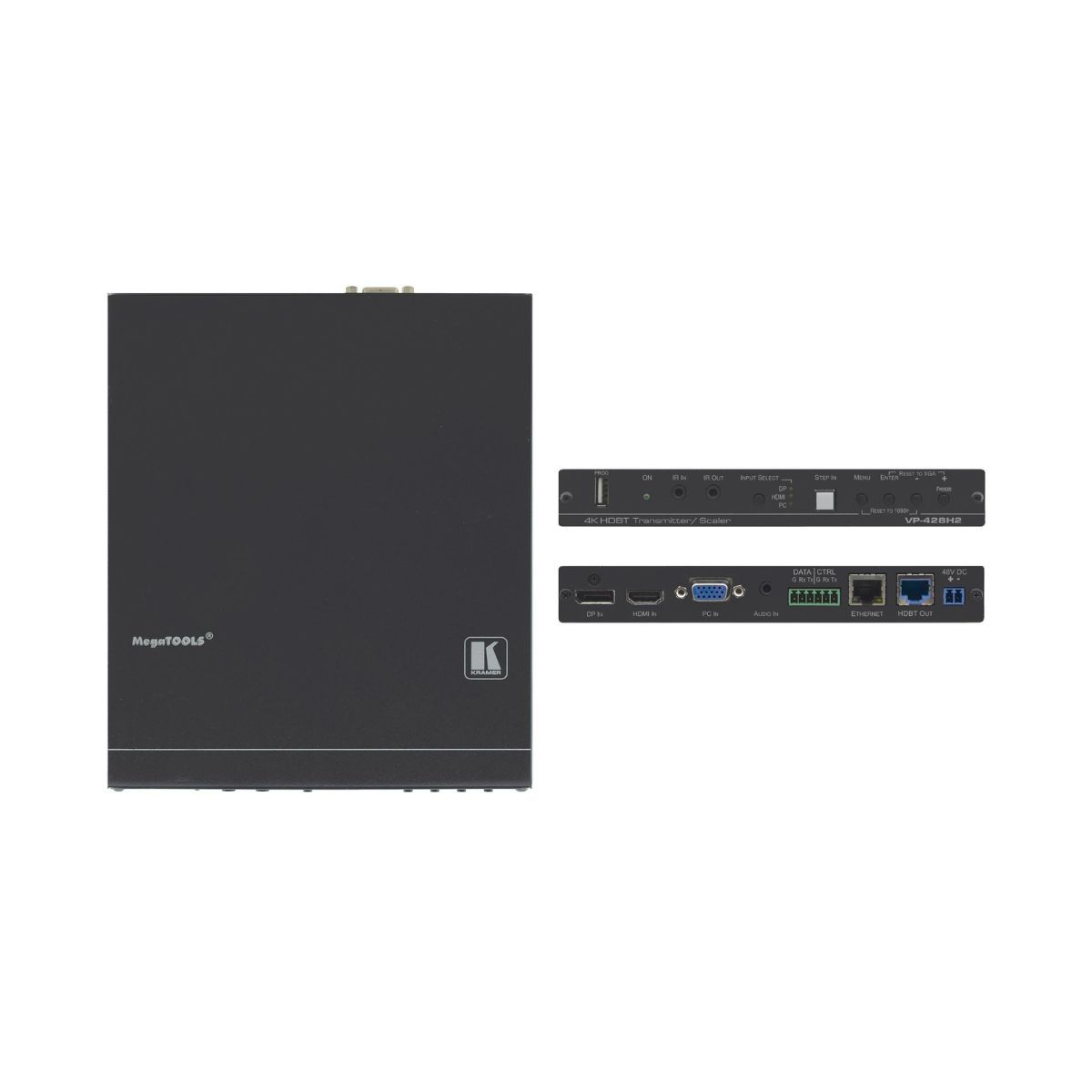

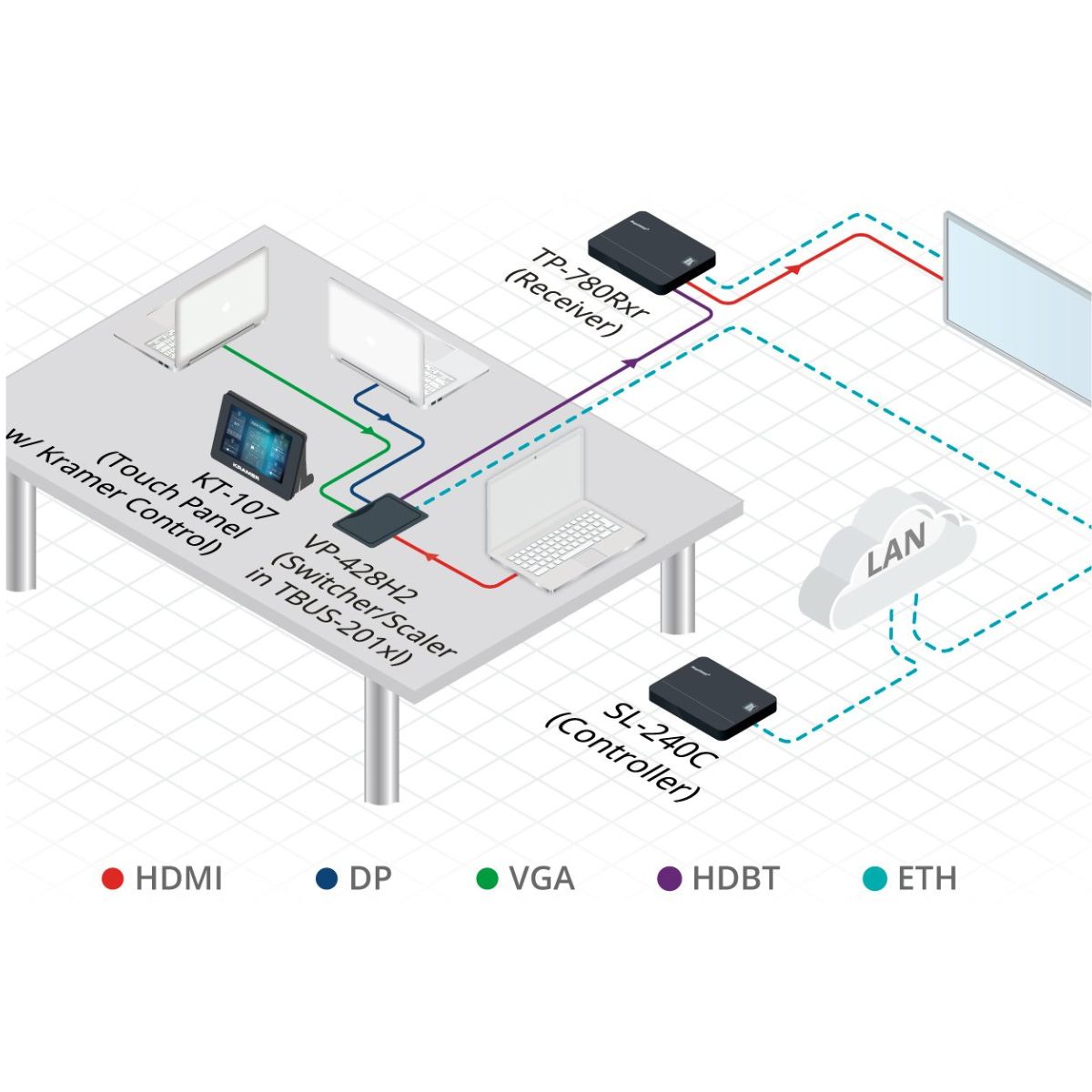

VP-428H2DisplayPort,

Highlights

• HDMI, DP, VGA Inputs
• HDBaseT Tunneling of Ethernet, RS–232 and IR signals, and PoE
• Supports up to 4K@60 4:4:4 on the HDMI and DP inputs
• Supports up to 4K@60 4:2:0 on the HDBaseT output
• Upscales and downscales to/from all resolutions

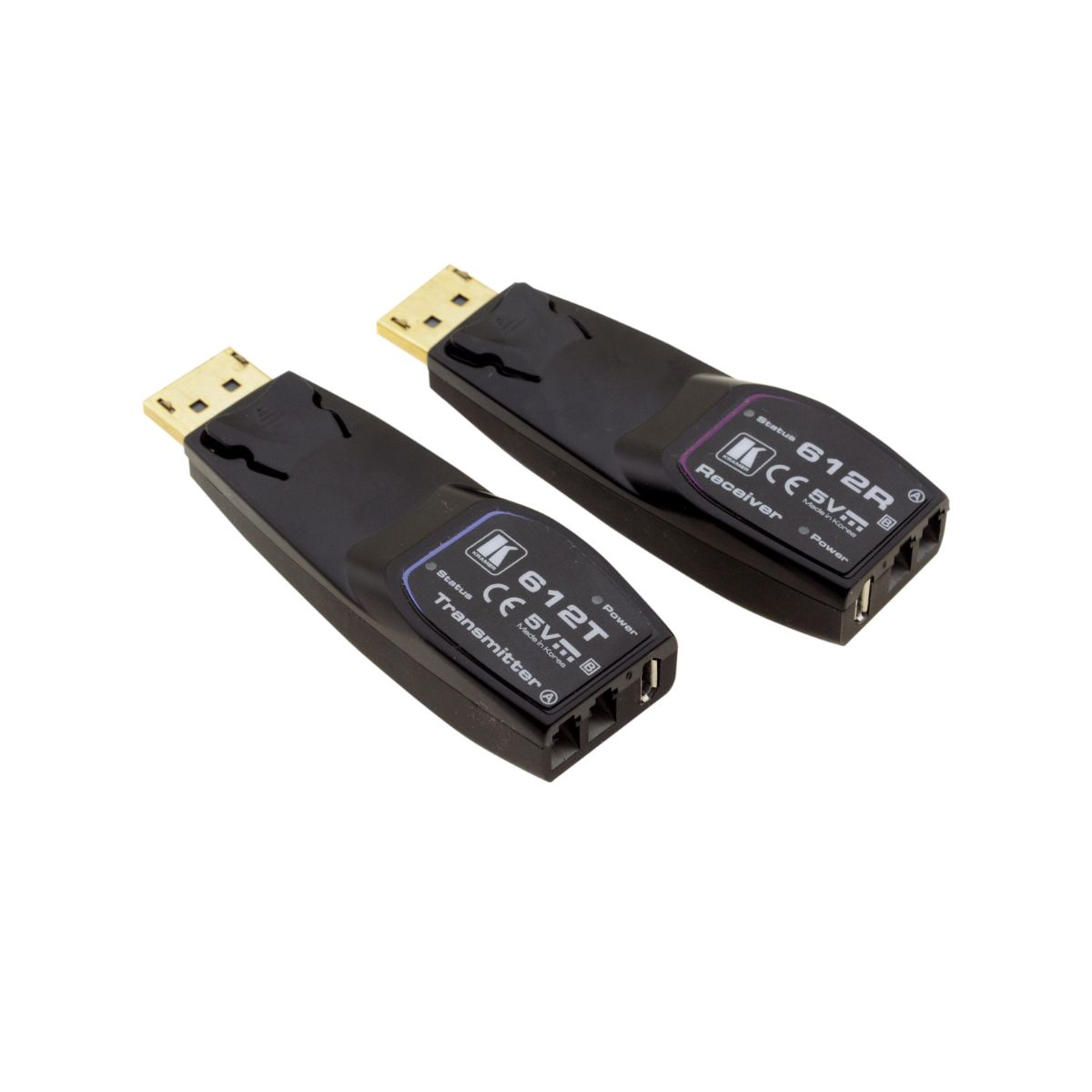

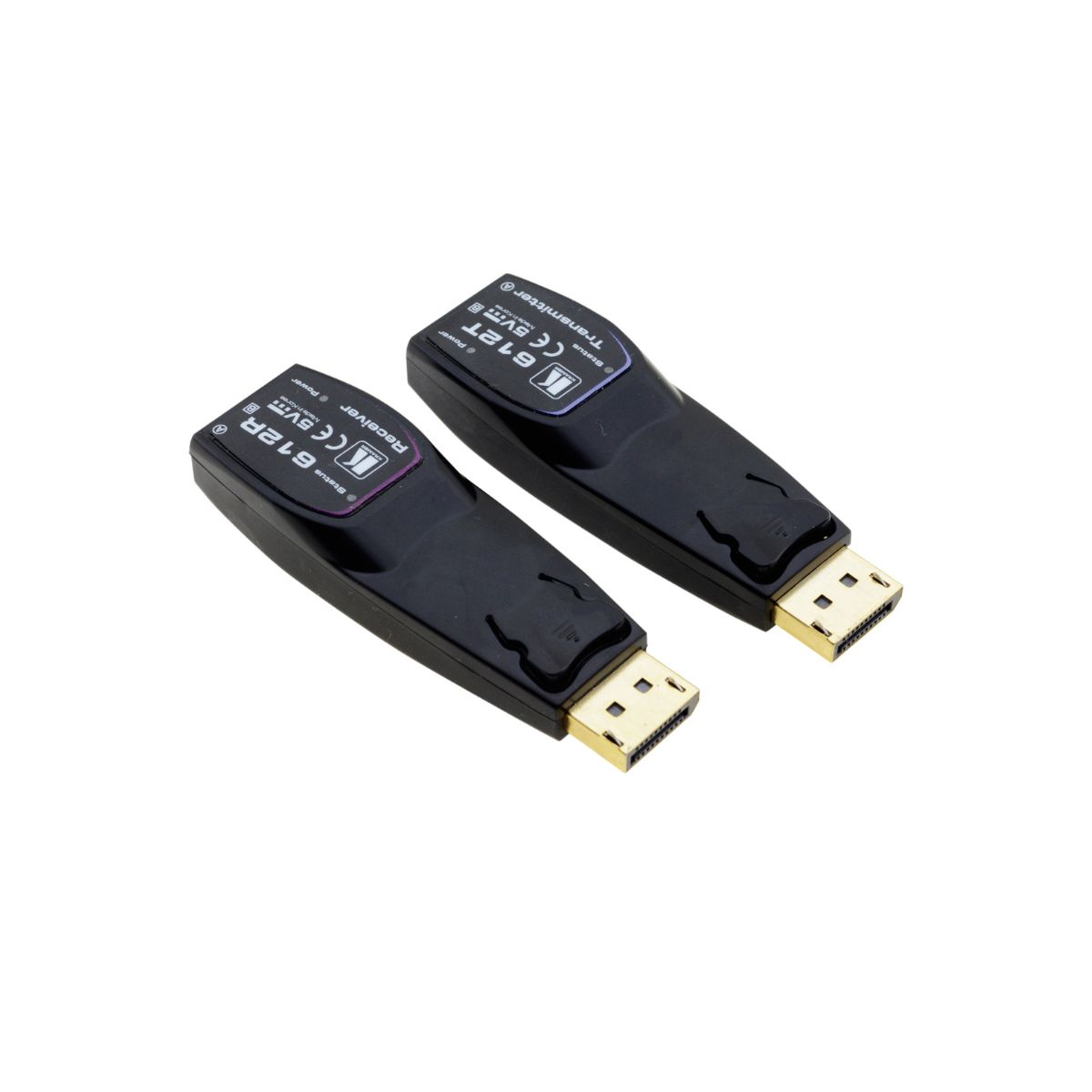

612R/T 4K60 4:4:4 DP Transmitter/Receiver

4K60 4:4:4 DP Transmitter/Receiver over Extended–Reach MM Fiber Optic

Highlights

• Compliant with DisplayPort™ v1.2 specifications.
•  Max. Resolution — 4096x2160@60Hz.
•  Max. Data Rate — 21.6Gbps (5.4Gbps per lane).
•  Supports Dual–mode DP (DP++).
•  Max. Extension — 656ft (200m) over dual LC multi–mode OM3 fiber optic cable.

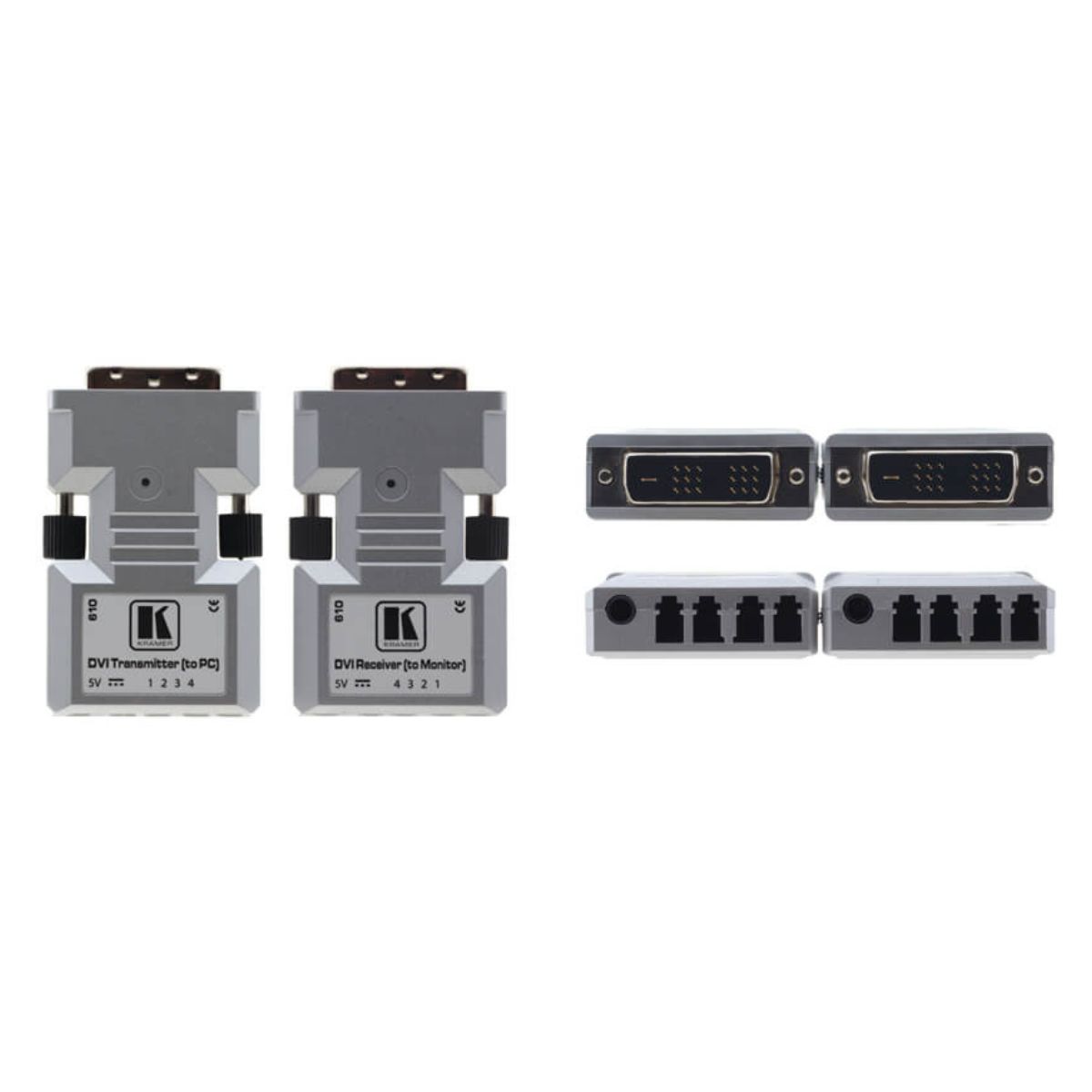

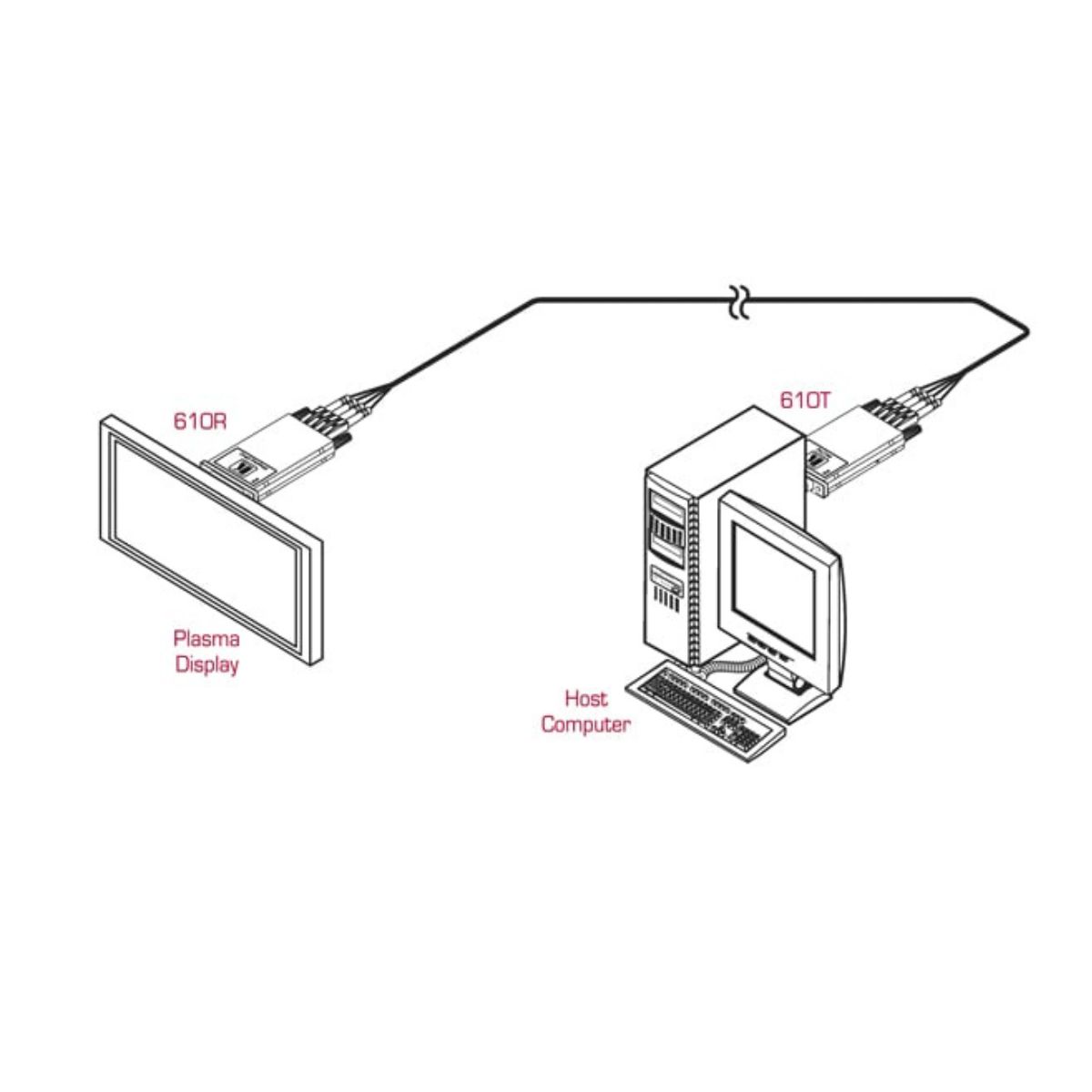

610R/T DVI Rx/Tx Extender

DVI Rx/Tx Extender over Ultra–Reach MM Fiber

Highlights

• Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel)
• Range — Up to 400m (1312ft)
• EDID Capture
• 610T — DVI to 4 LC
• 610R — 4 LC to DVI

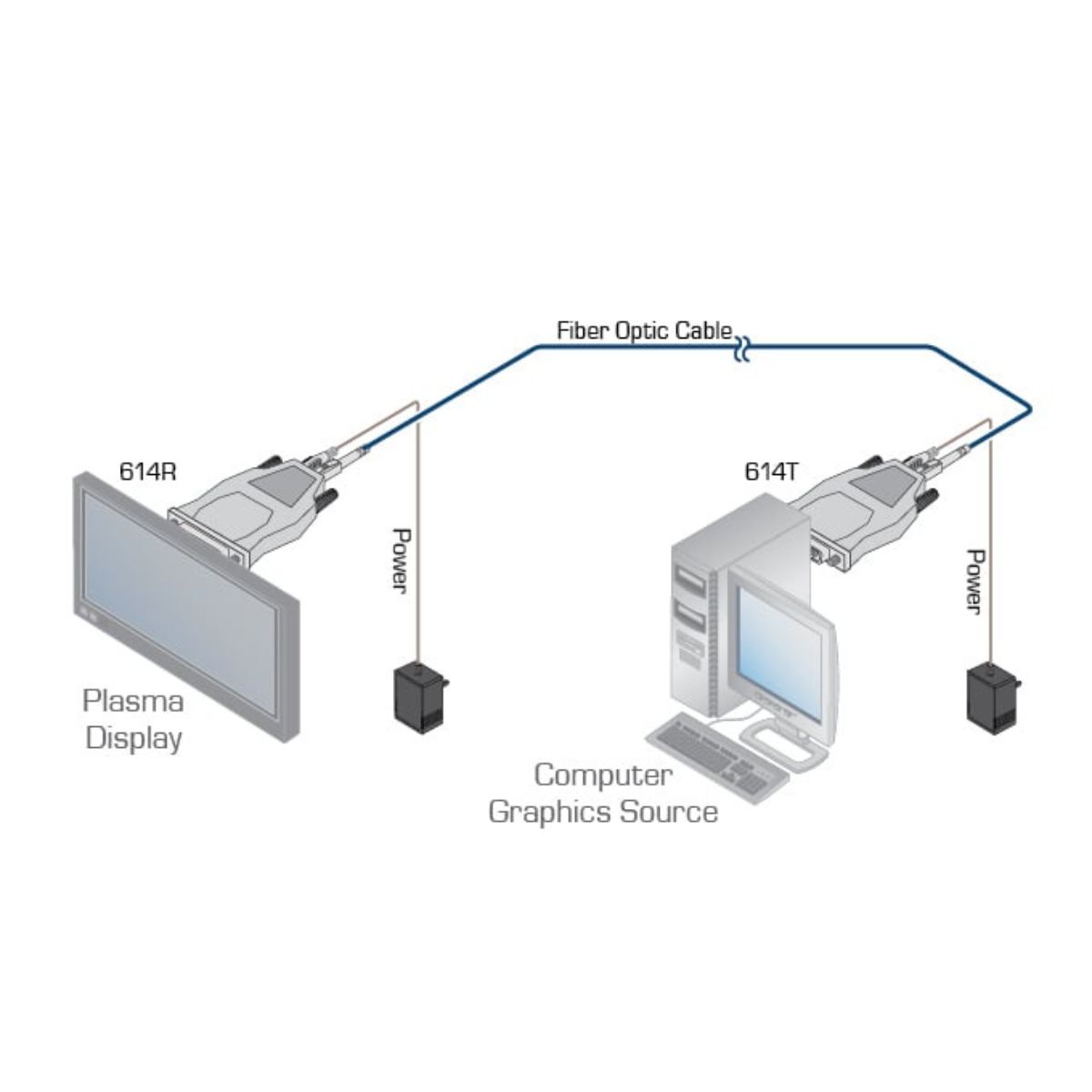

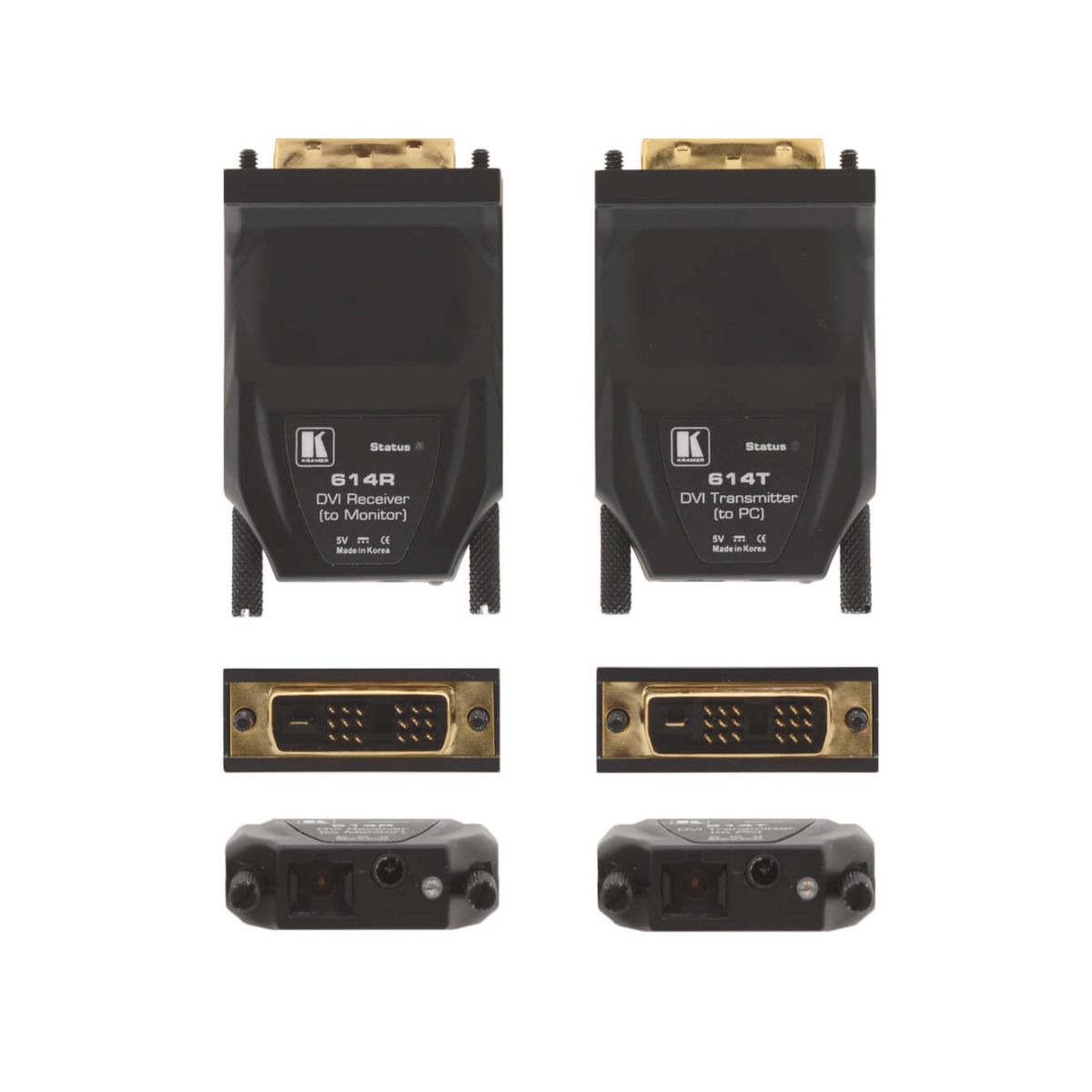

614R/T Single–Fiber Detachable DVI Optical

Single–Fiber Detachable DVI Optical Transmitter & Receiver

Highlights

• Max Data Rate — 4.95Gbps (1.65Gbps per graphic channel)
• Max Resolution — WUXGA, 2K or 1080p
• EDID Capture
• Range — 500m (1640ft)
• Multimode fiber

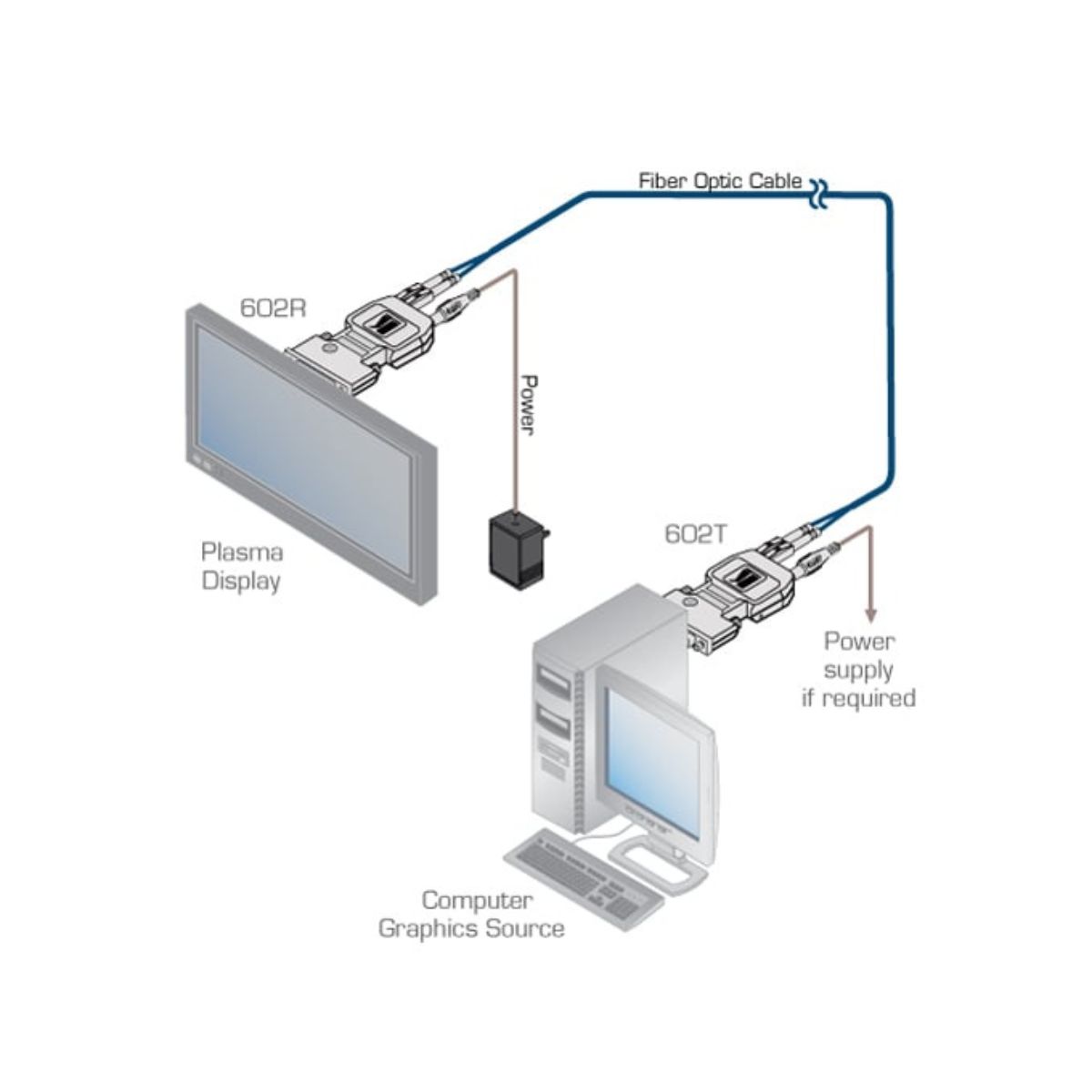

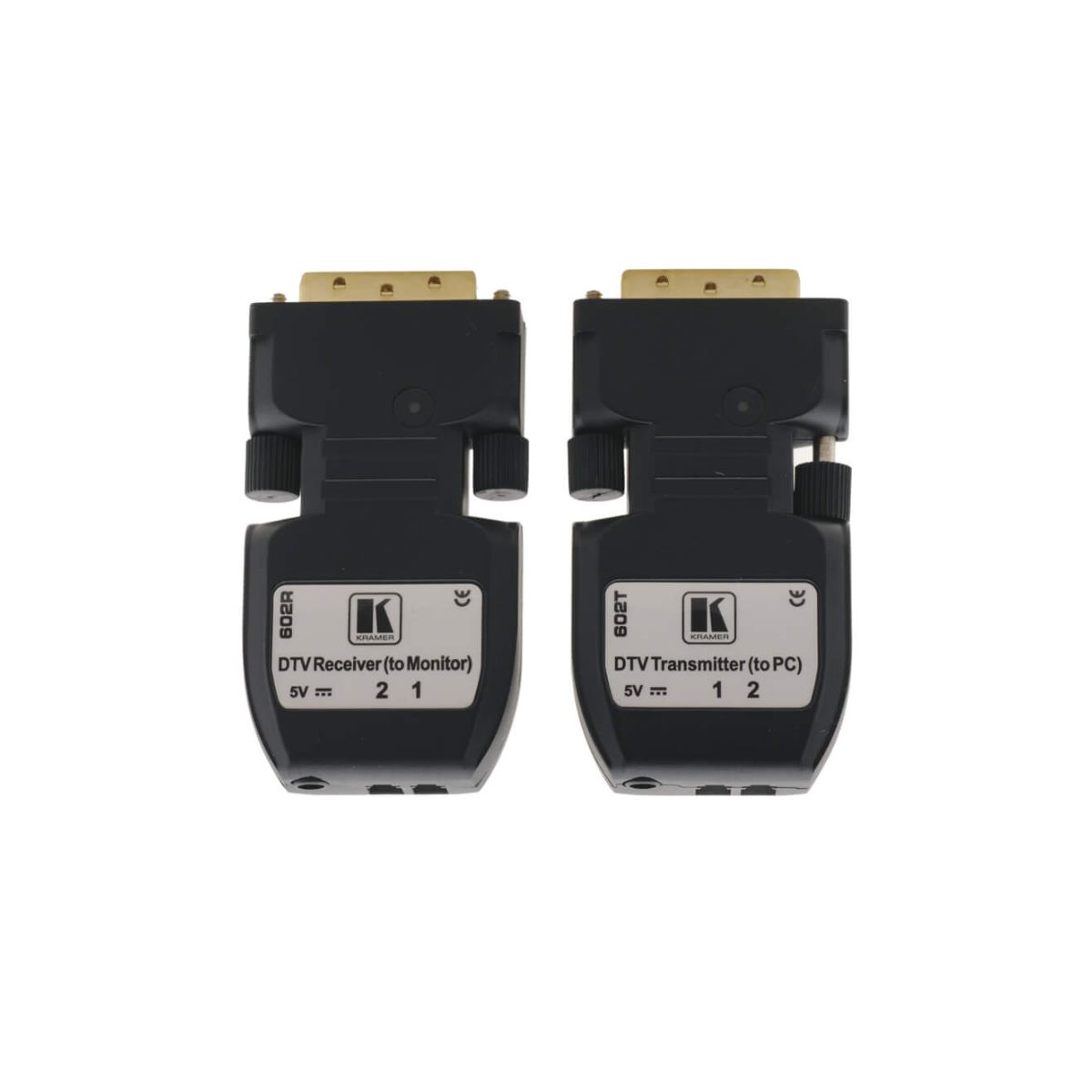

602R/T Detachable DVI Optical Transmitter & Receiver

Detachable DVI Optical Transmitter & Receiver

Highlights

• Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel)
• Range — Up to 400m (1312ft) (multimode); up to 1500m (5000ft) (single–mode)
• 602T — DVI to 2 LC
• 602R — 2 LC to DVI
• Single or multimode

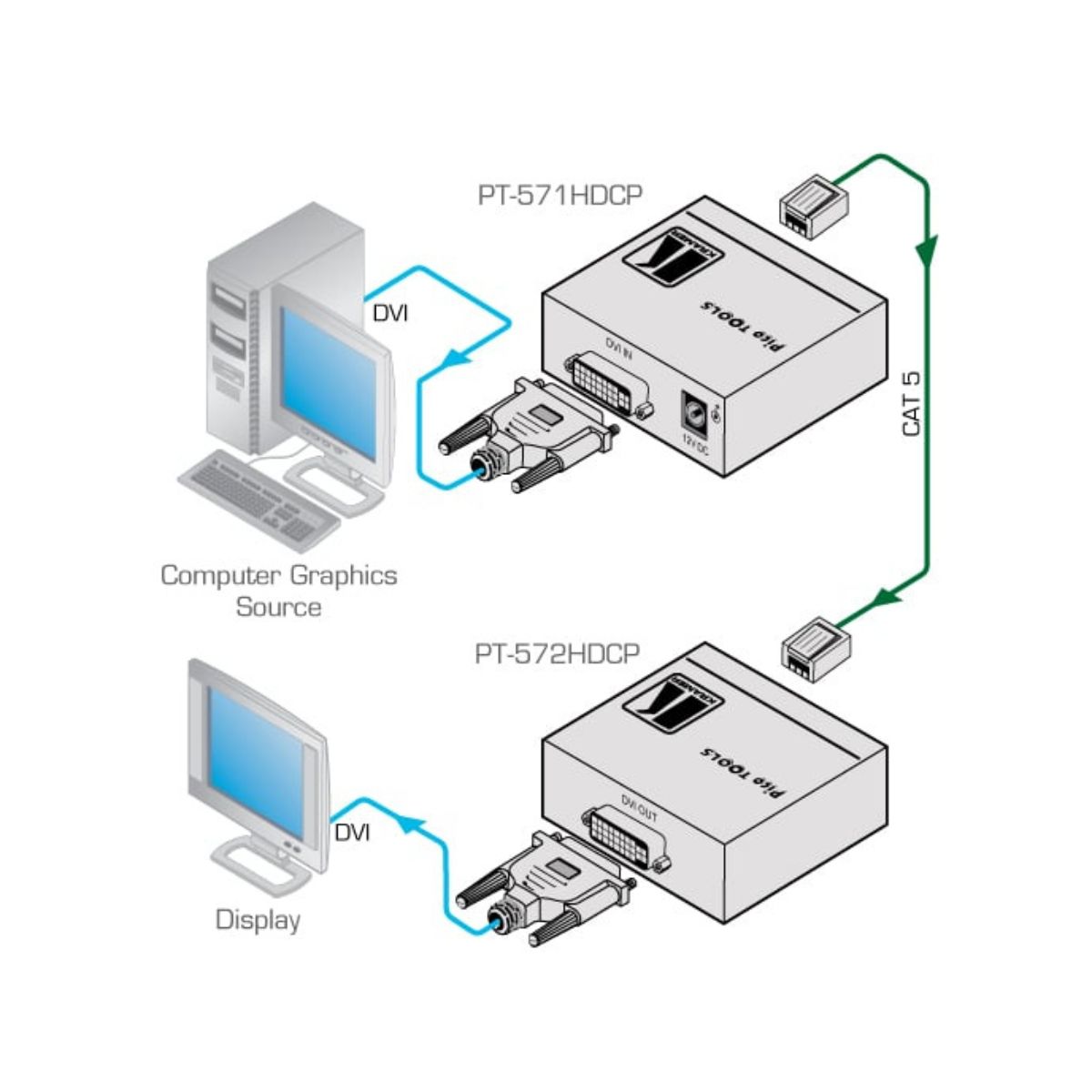

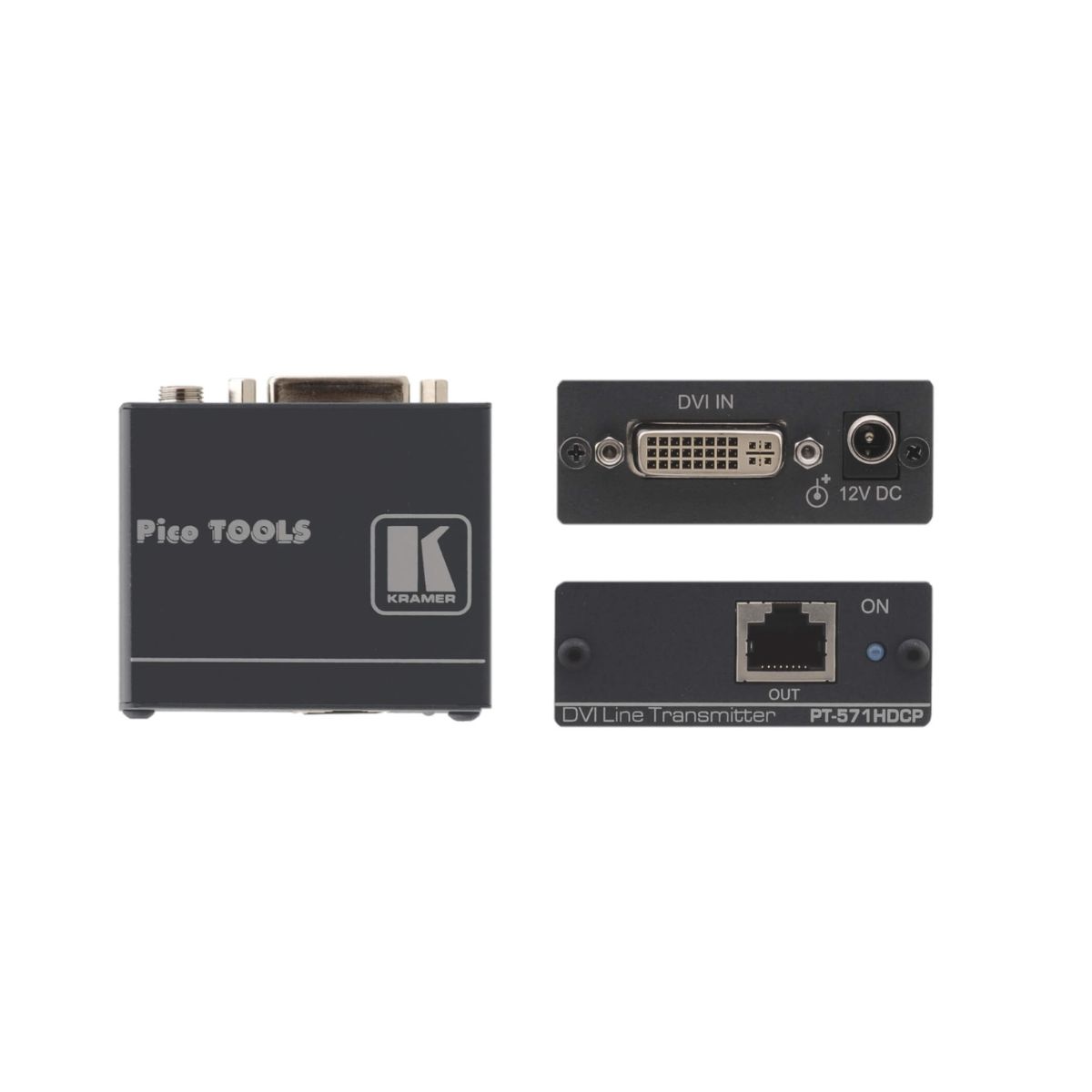

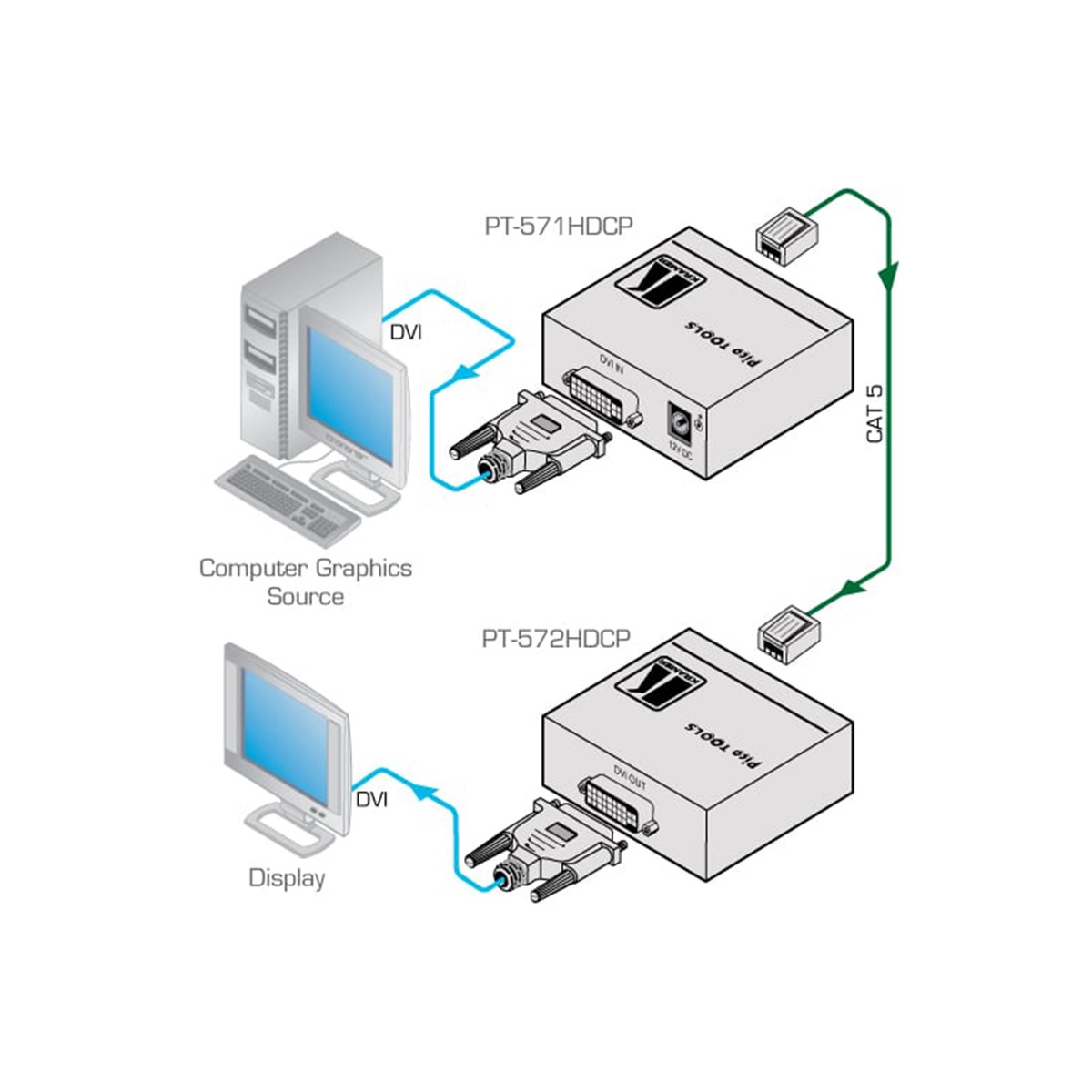

PT-571 HDCPDVI HDCP 2.2 Compact Transmitter

HDCPDVI HDCP 2.2 Compact Transmitter over PoC Long–Reach DGKat

Highlights

• Requires Shielded Twisted Pair Cable
• Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel)
• HDCP Compliant
• Passes EDID

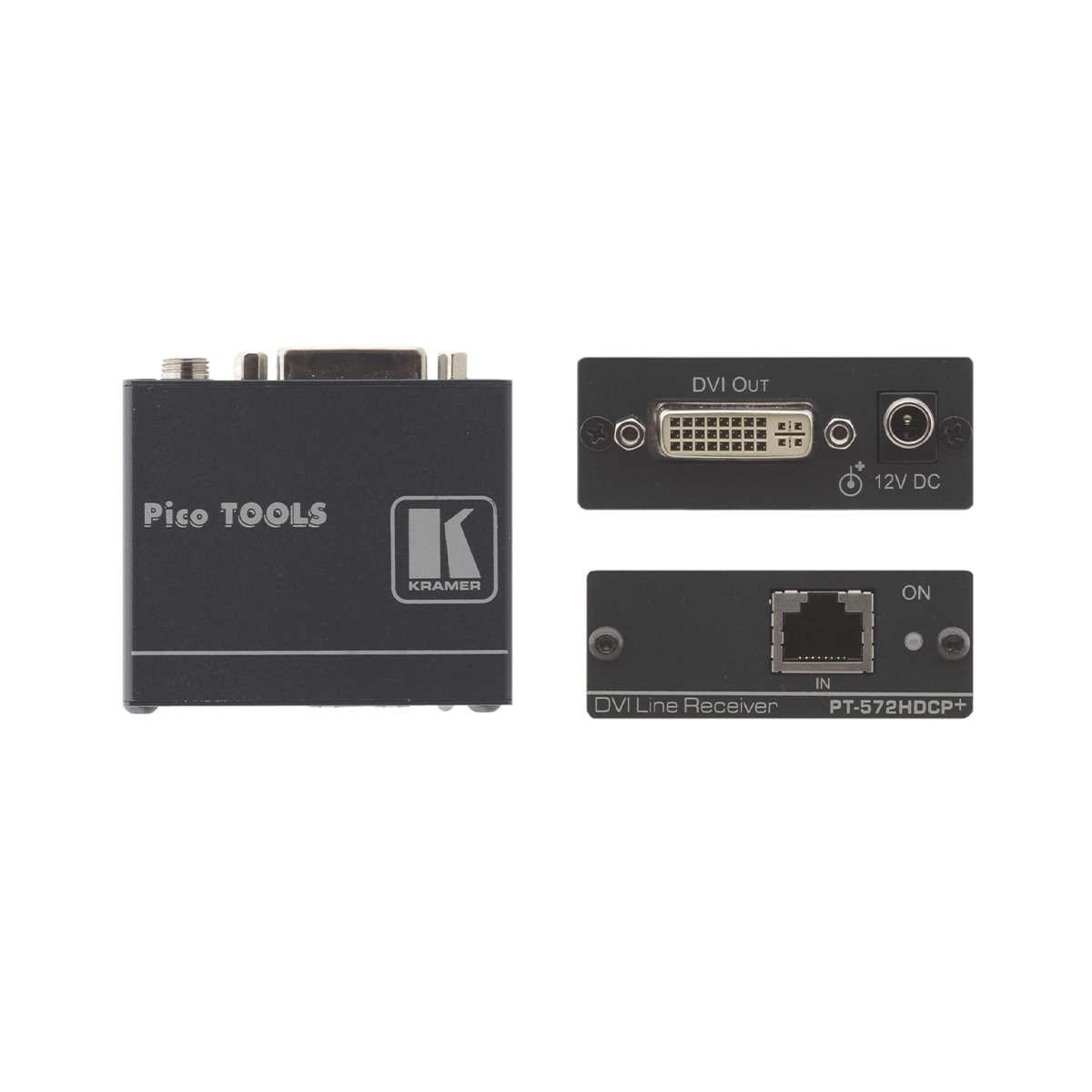

PT-572 Compact Receiver

HDCP+DVI HDCP 2.2 Compact Receiver over PoC Long–Reach DGKat

Highlights

• Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel)
• HDCP Compliant
• EDID Pass–Thru
• Requires STP Cable

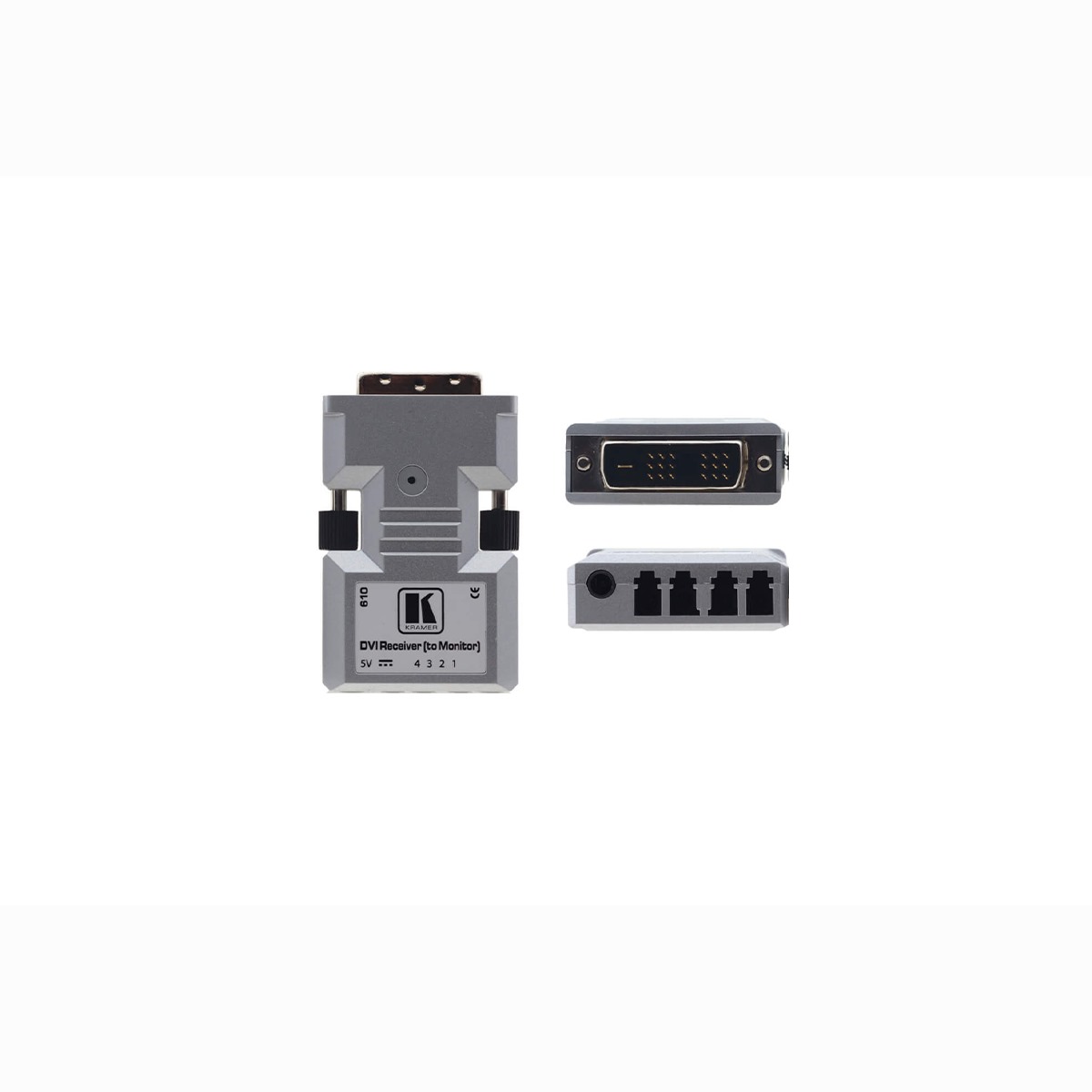

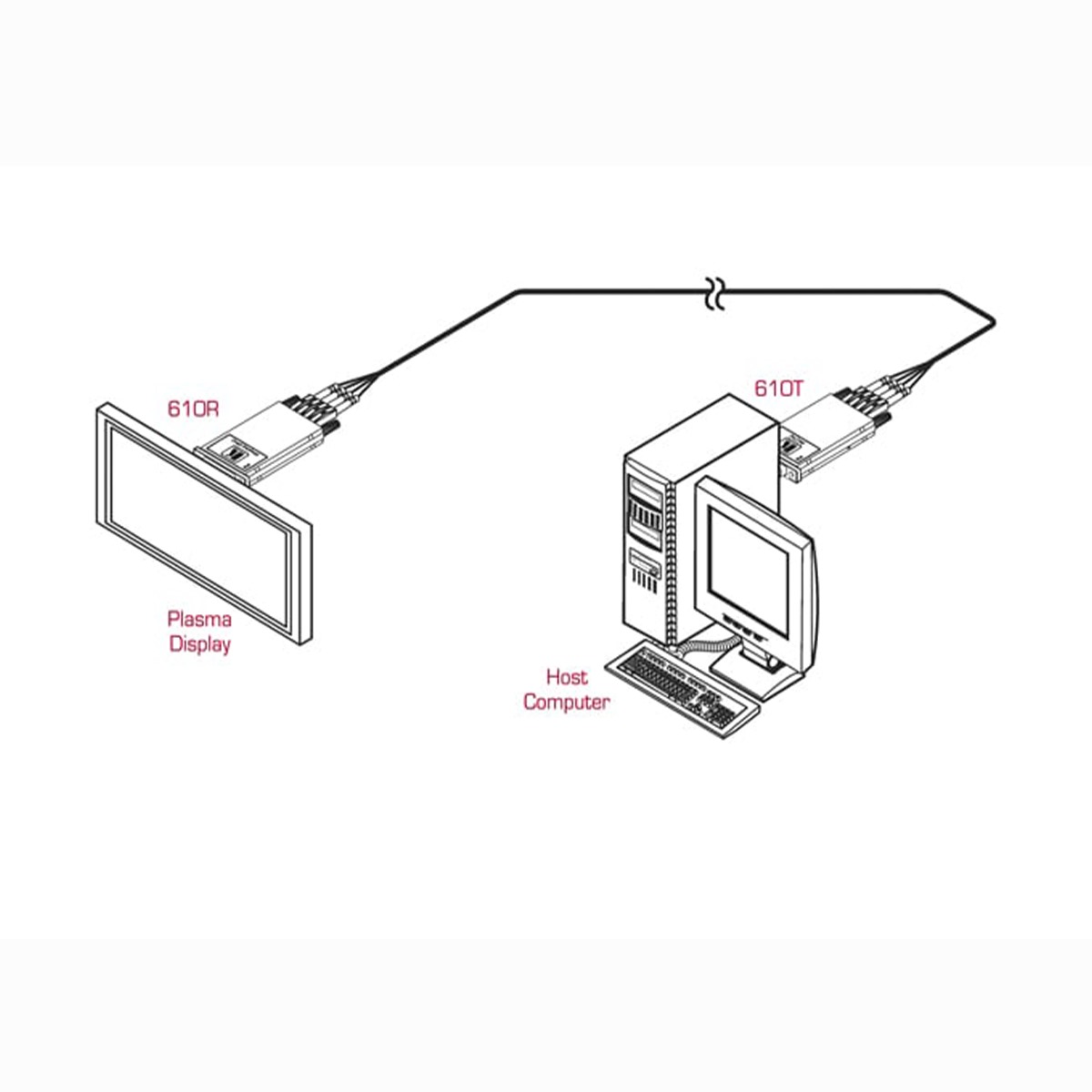

610R Detachable DVI Optical Receiver

Detachable DVI Optical Receiver

Highlights

• Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel)
• Range — Up to 1640ft
• EDID Capture
• Multimode fiber

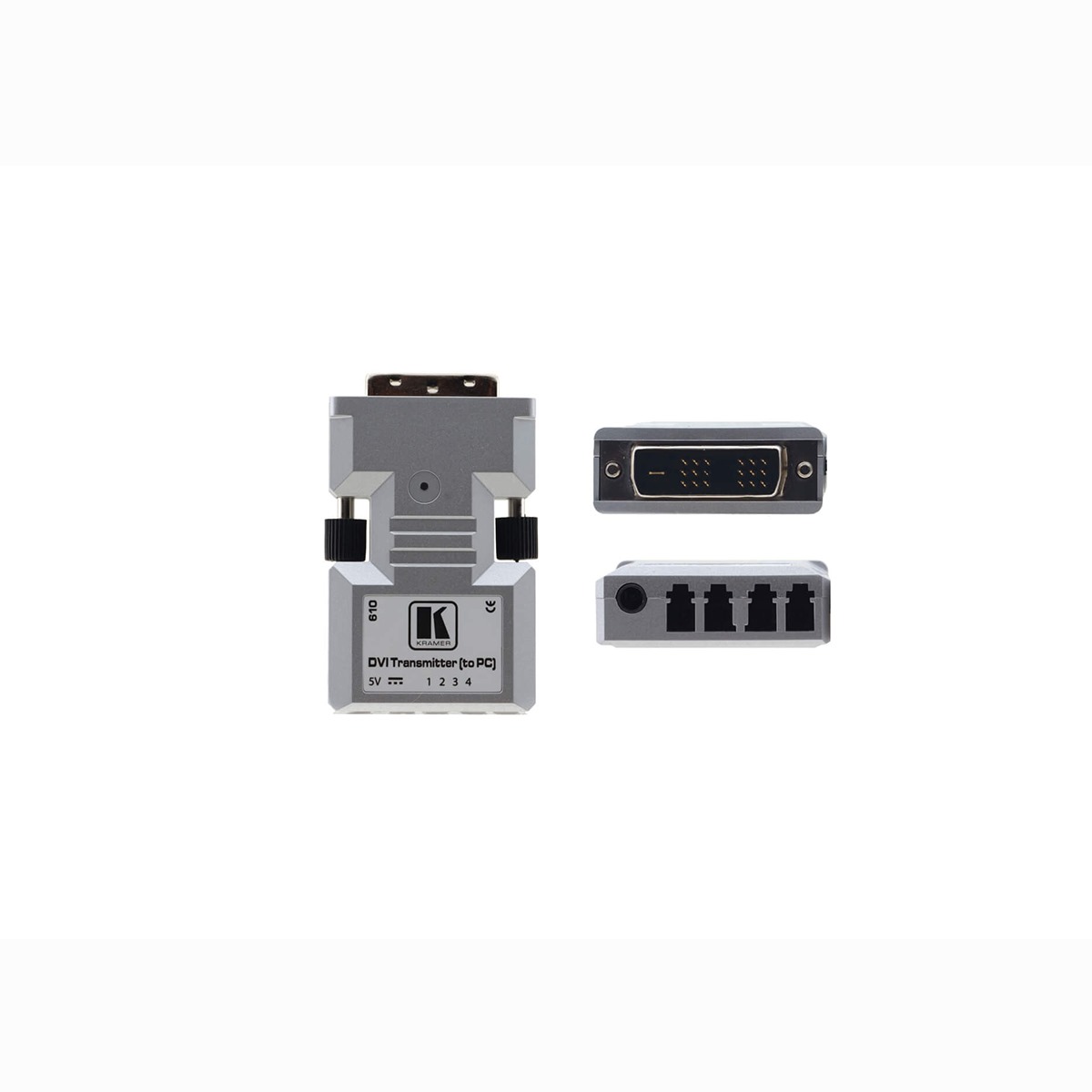

610T Detachable DVI Optical Transmitter

Detachable DVI Optical Transmitter

Highlights

• Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel)
• Range — Up to 1640ft
• EDID Capture
• Multimode fiber
• Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).

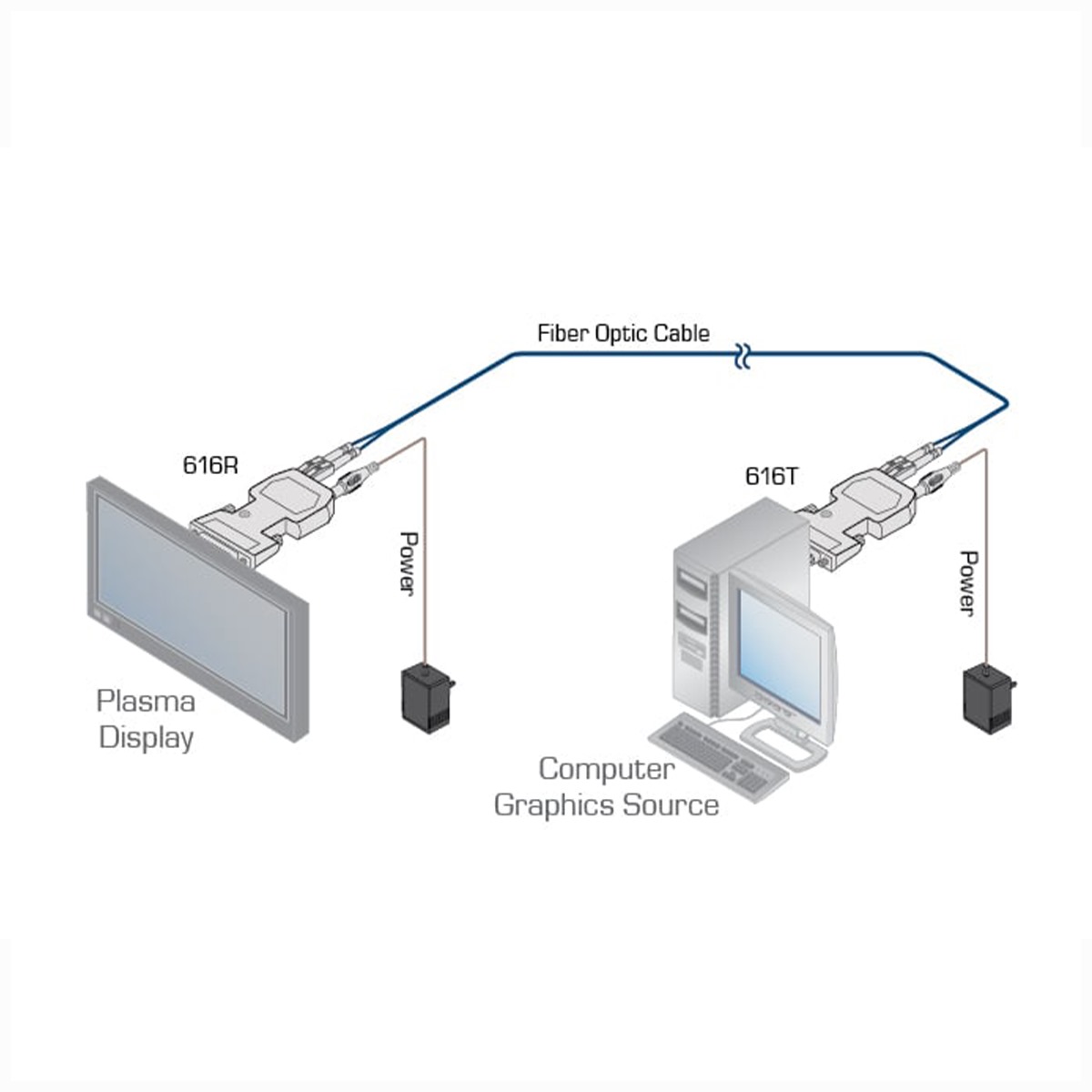

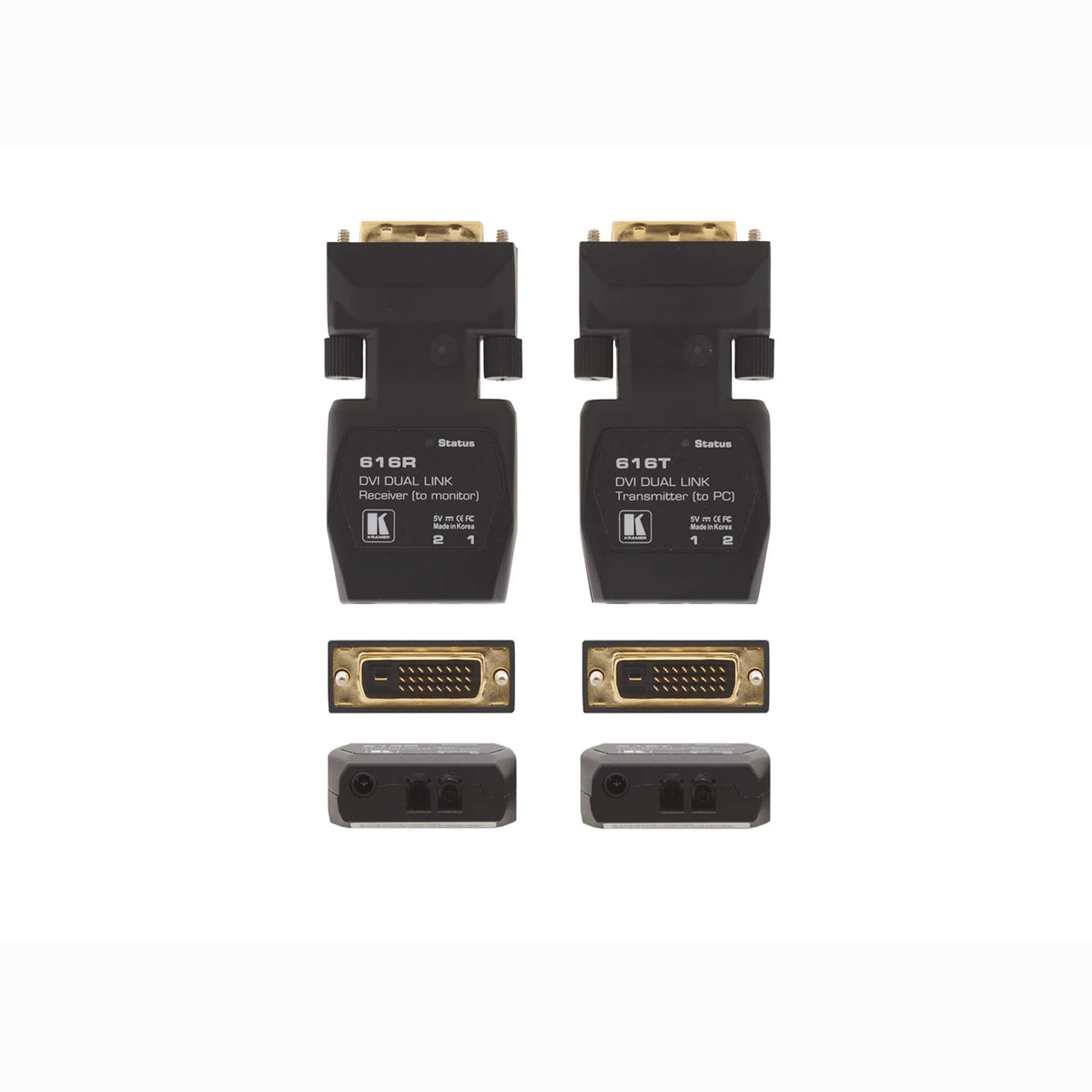

616T/616R Dual–link DVI Tx/Rx Extender

Dual–link DVI Tx/Rx Extender over Ultra–Reach MM Fiber

Highlights

• Max Data Rate — 13.5Gbps (2.25Gbps per graphic channel)
• Range 500m (1640ft)
• EDID Capture
• Multimode fiber
• Max. Data Rate — 13.5Gbps (2.25Gbps per graphic channel).
