PT-120xl Computer Graphics Video over Twisted Pair Receiver
Computer Graphics Video over Twisted Pair Receiver
Highlights
Extended Range — Up to 250m (820ft), Level & EQ Controls
HDTV Compatible.
Max. Resolution — WUXGA & 1080p.
Level (Gain) & EQ (Peaking) Controls.
System Range — Up to 250m (820ft). Greater distances possible depending on signal resolution and cable.

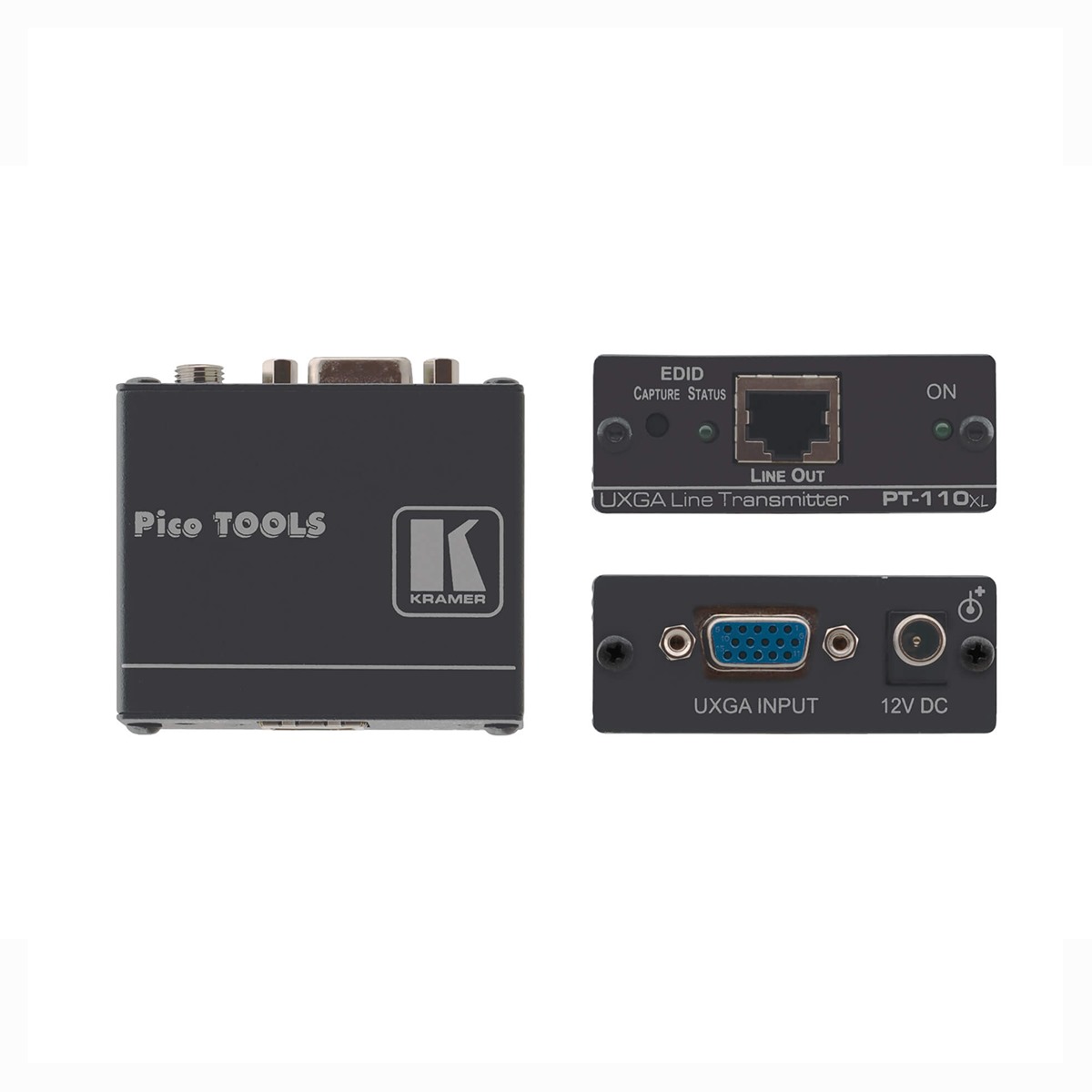

PT-110xl Computer Graphics Video over Twisted
Computer Graphics Video over Twisted Pair Transmitter with EDID
Highlights
Max Resolution — WUXGA & 1080p
Extended Range — Up to 250m (820ft)
EDID Capture
Resolution — Up to WUXGA & 1080p.
HDTV Compatible.

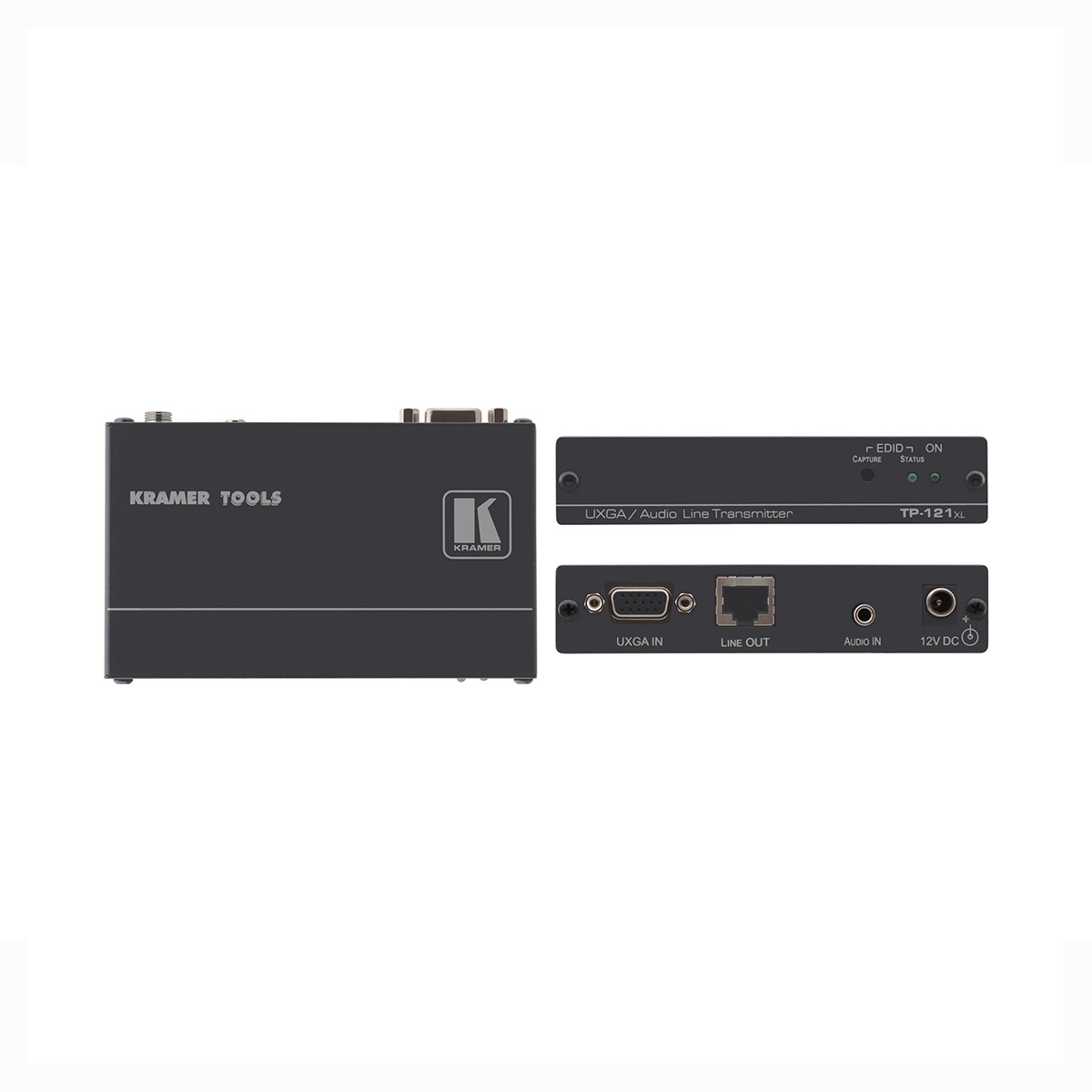

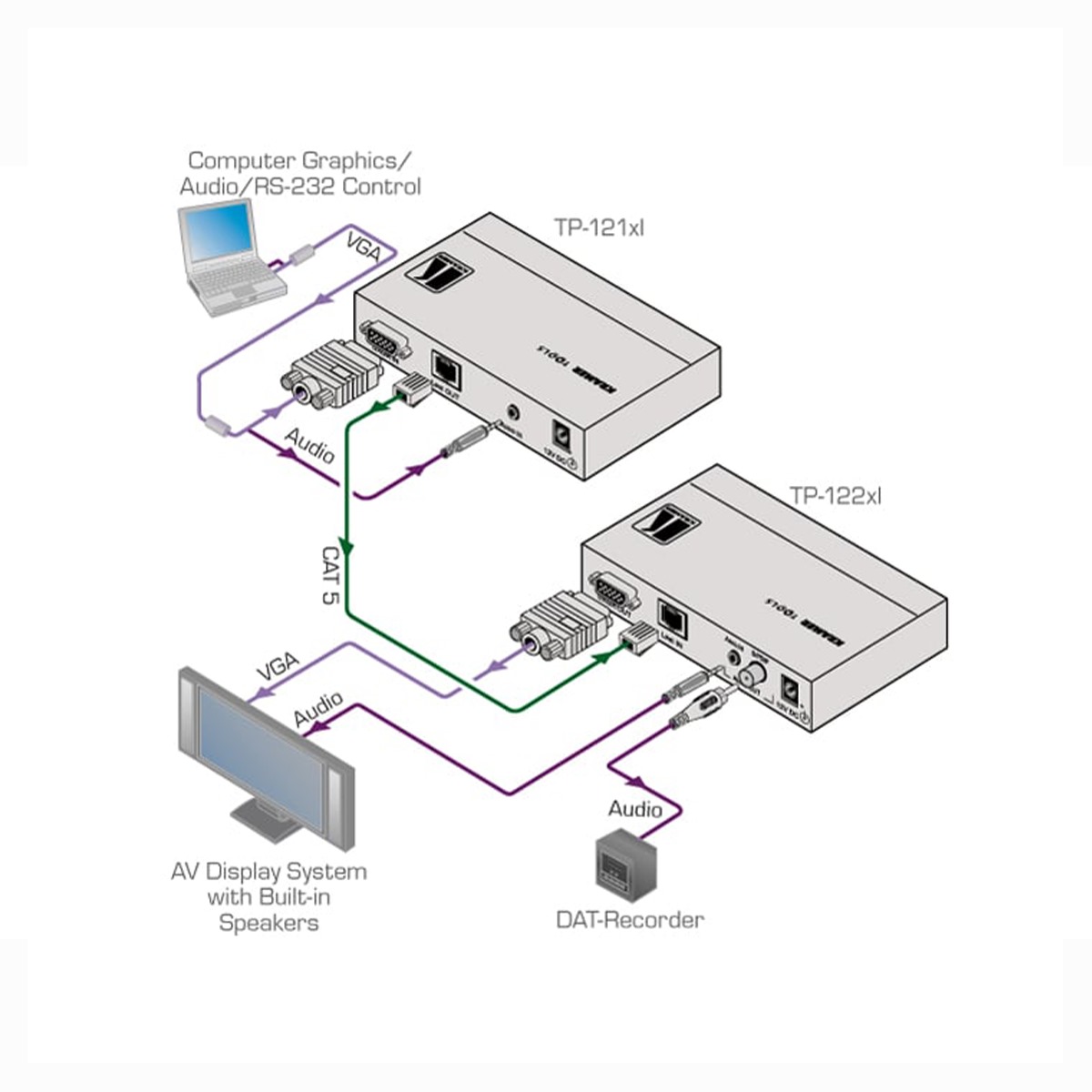

TP-121xl Computer Graphics Video & Stereo
Computer Graphics Video & Stereo Audio over Twisted Pair Transmitter
Highlights
Enhanced EDID, Max. Resolution — WUXGA & 1080p
Max. Resolution — WUXGA & 1080p.
HDTV Compatible.
EDID Capture — Captures EDID from the display or uses pre–programmed default EDID.
Interference Protection — Increased level of protection against noise, spikes and interference in adverse environments.

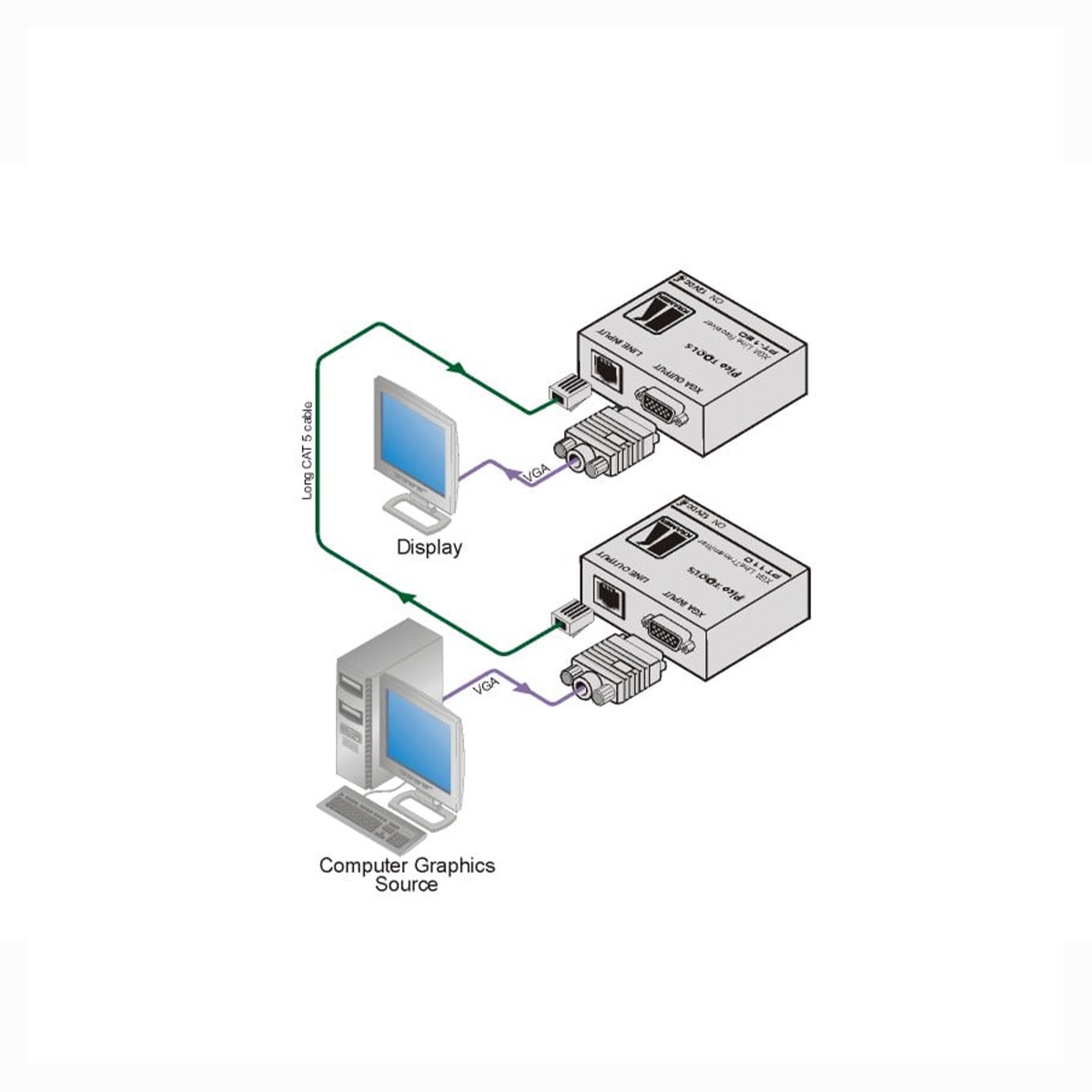

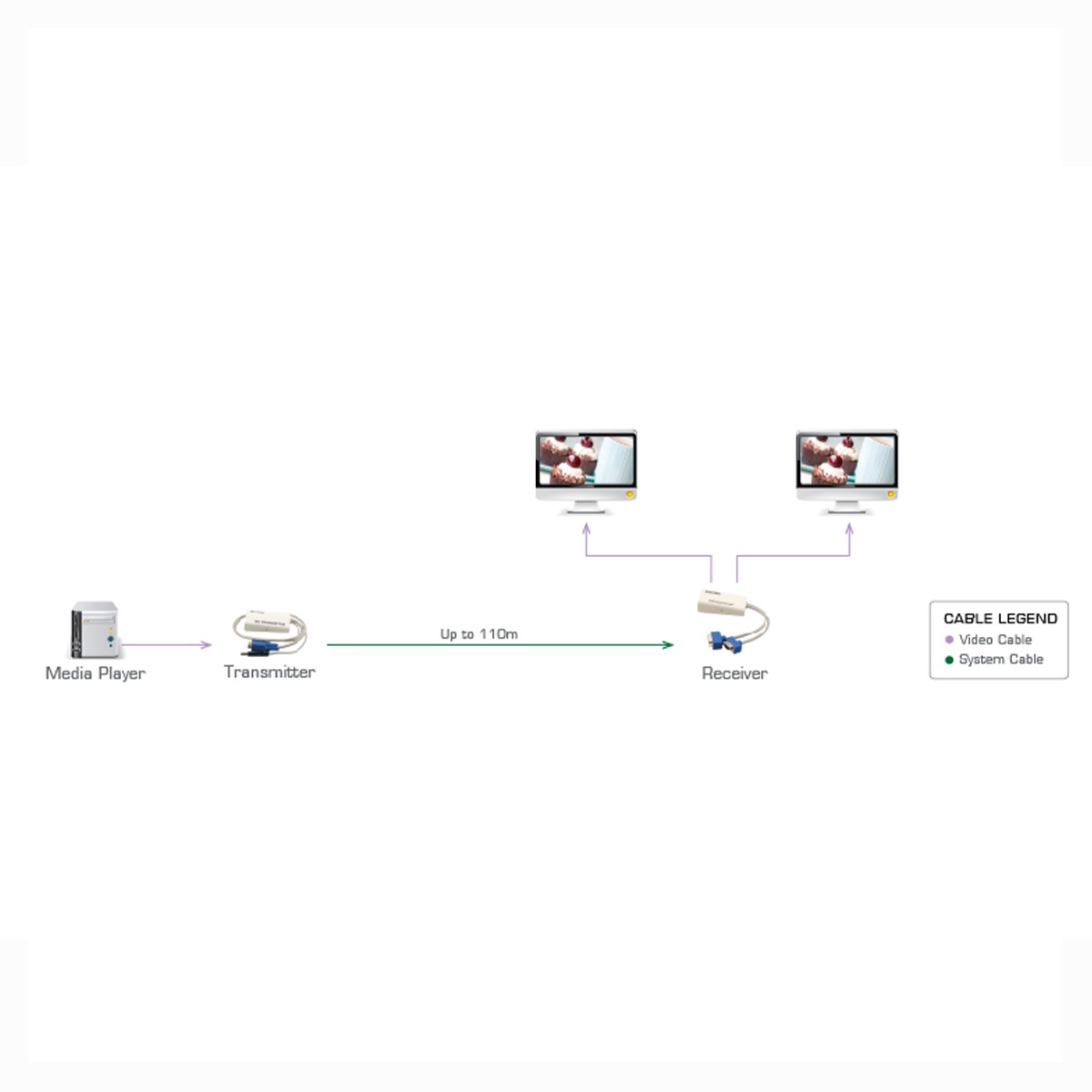

EXT-VGA Computer Graphics Video over Twisted Pair Extender
Computer Graphics Video over Twisted Pair Extender
Highlights
Extends Video to 110m (360ft)
Max. Resolution — 1080p
System Range — 110m (360ft).
Max. Resolution — 1080p.
Place Screens Up Front & Players In Back Rooms.

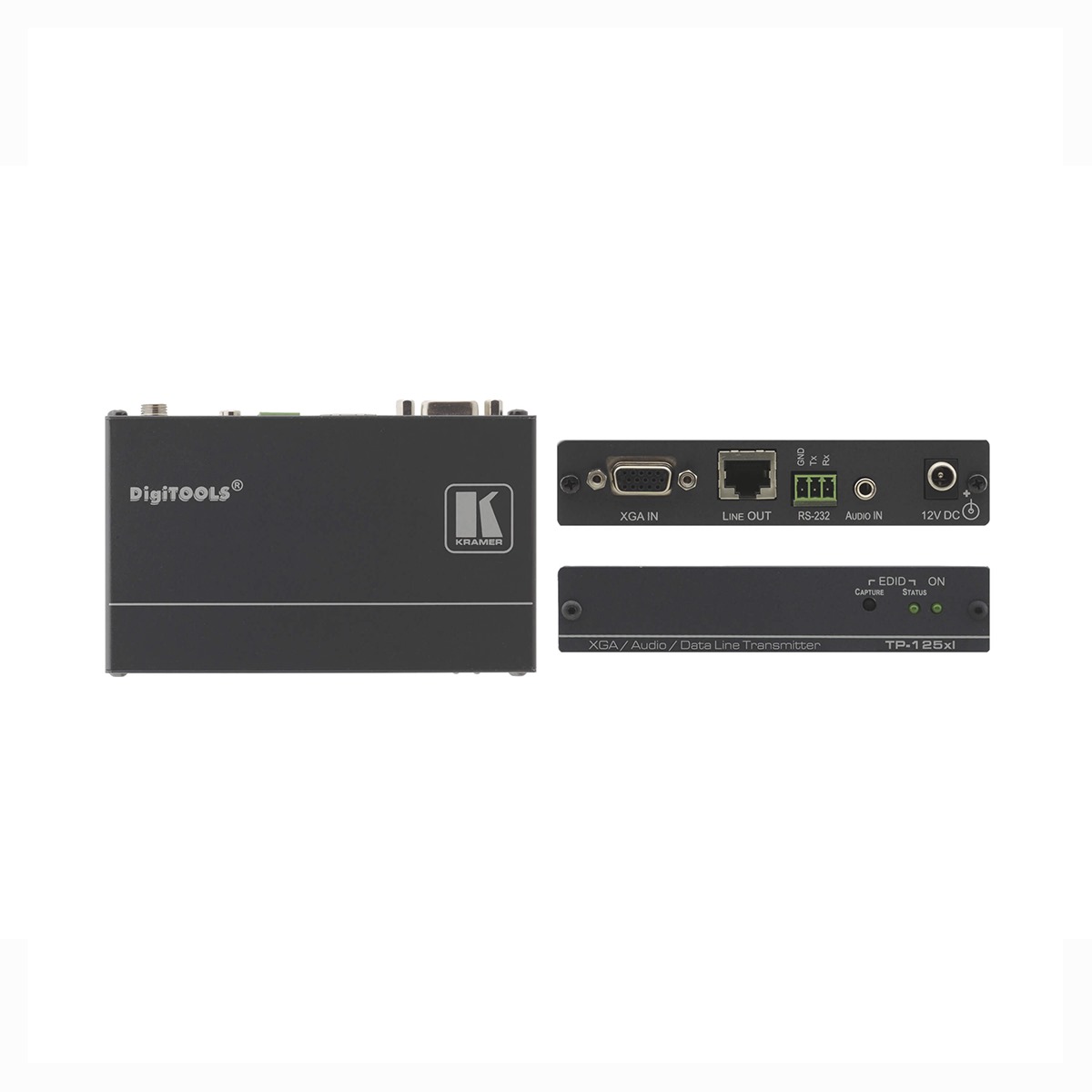

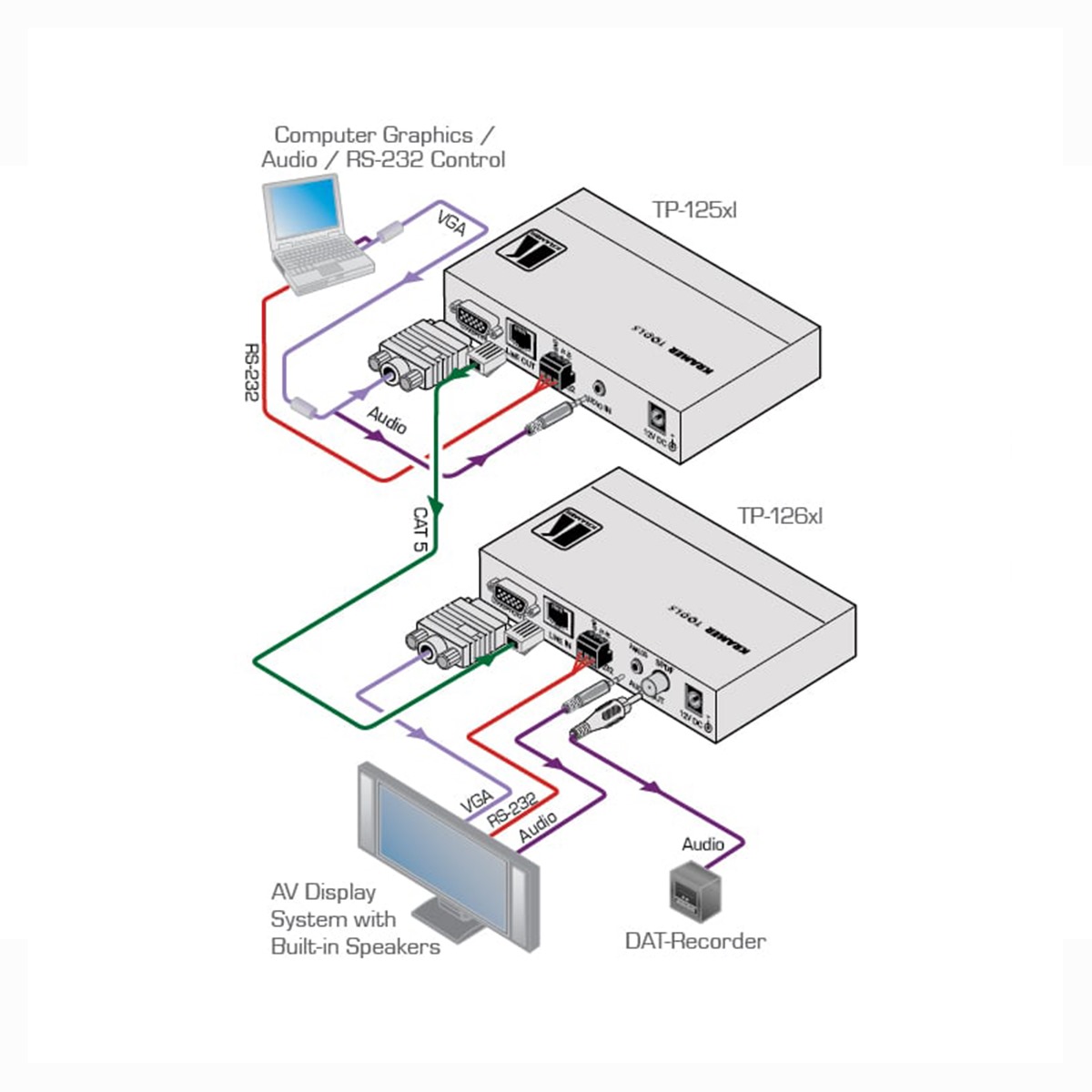

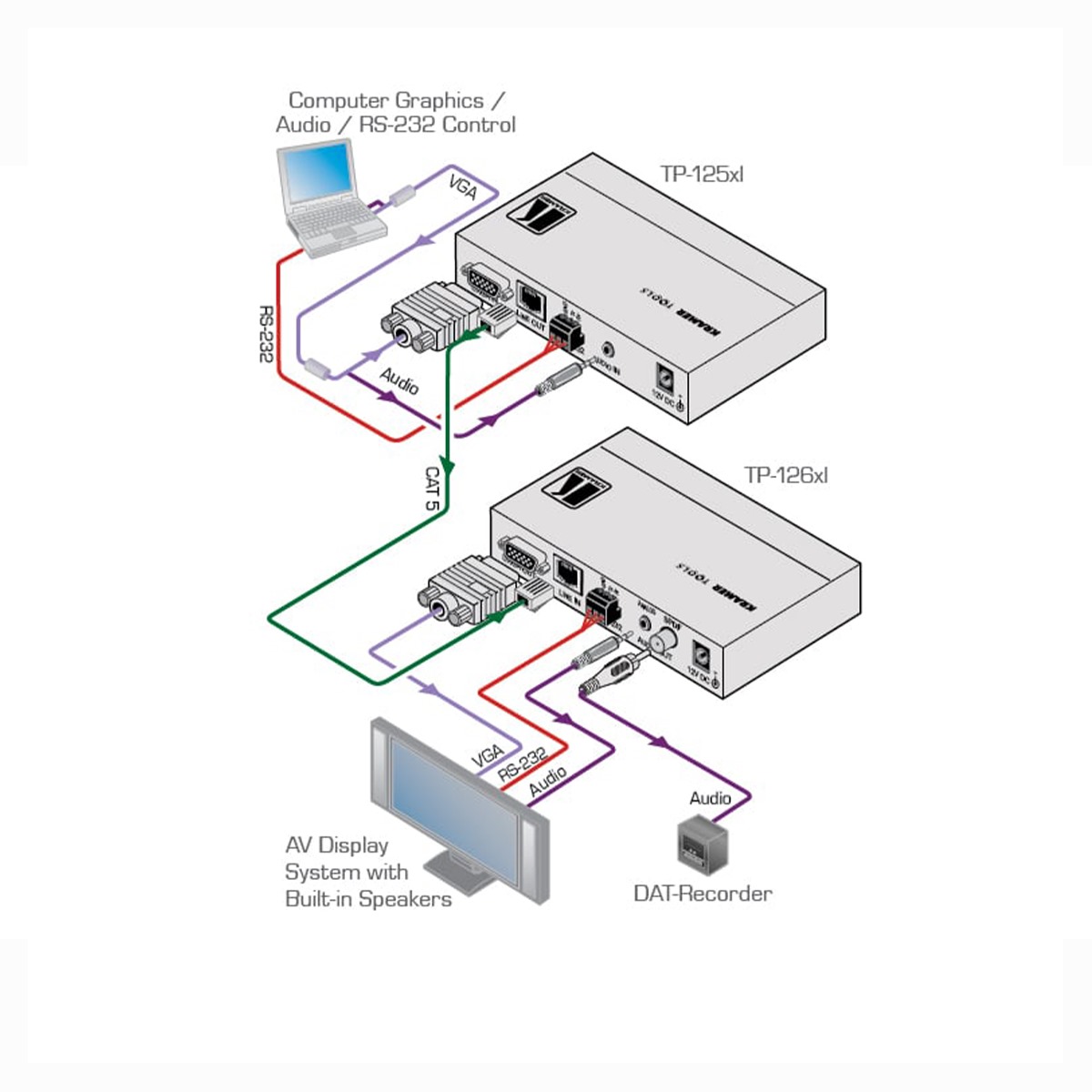

TP-125xl Computer Graphics Video, Stereo Audio
Computer Graphics Video, Stereo Audio & Bidirectional RS–232 over Twisted Pair Transmitter with EDID
Highlights
Enhanced EDID
Bidirectional RS–232
Max. Resolution — WUXGA & 1080p.
HDTV Compatible.
System Range — More than 820ft (more than 250m).

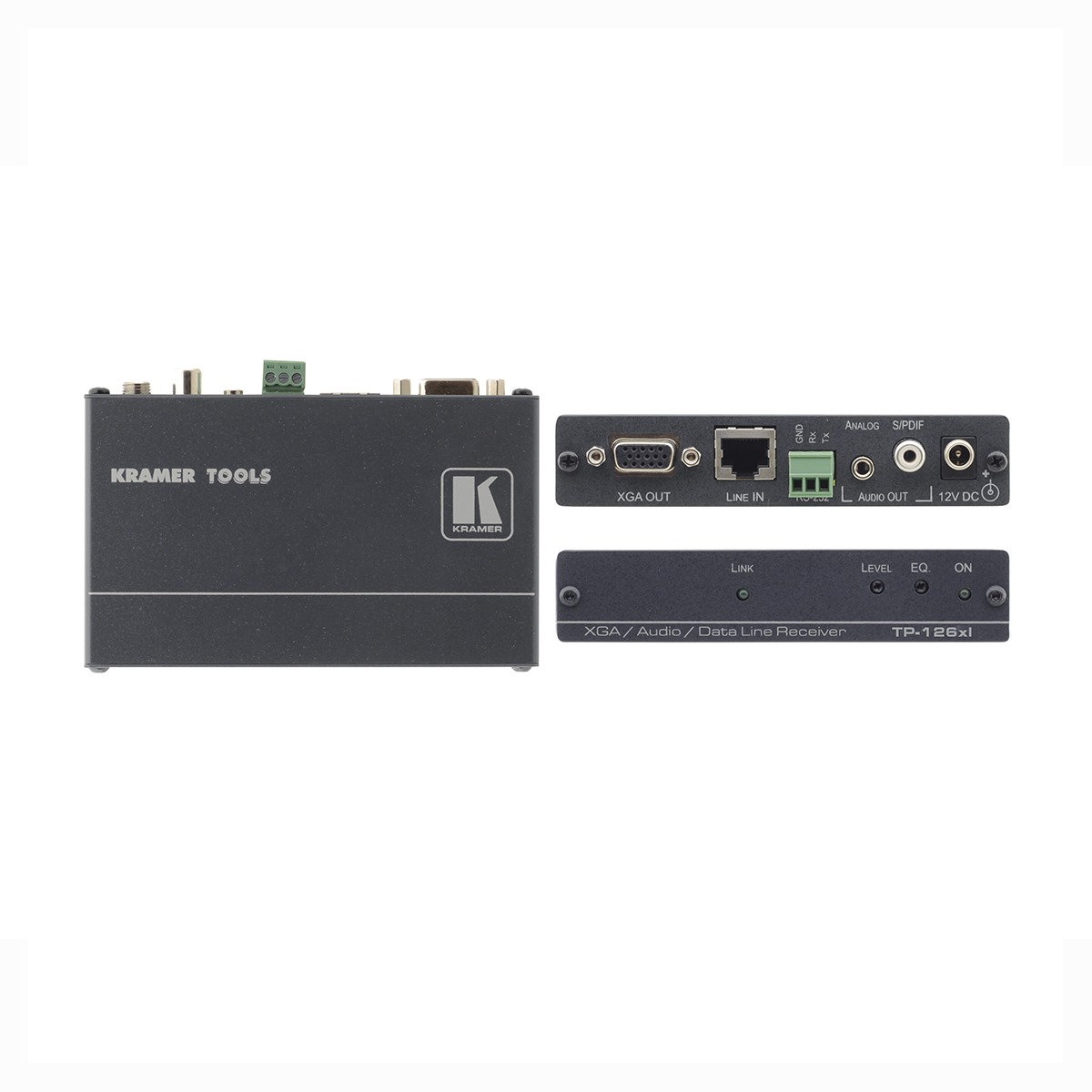

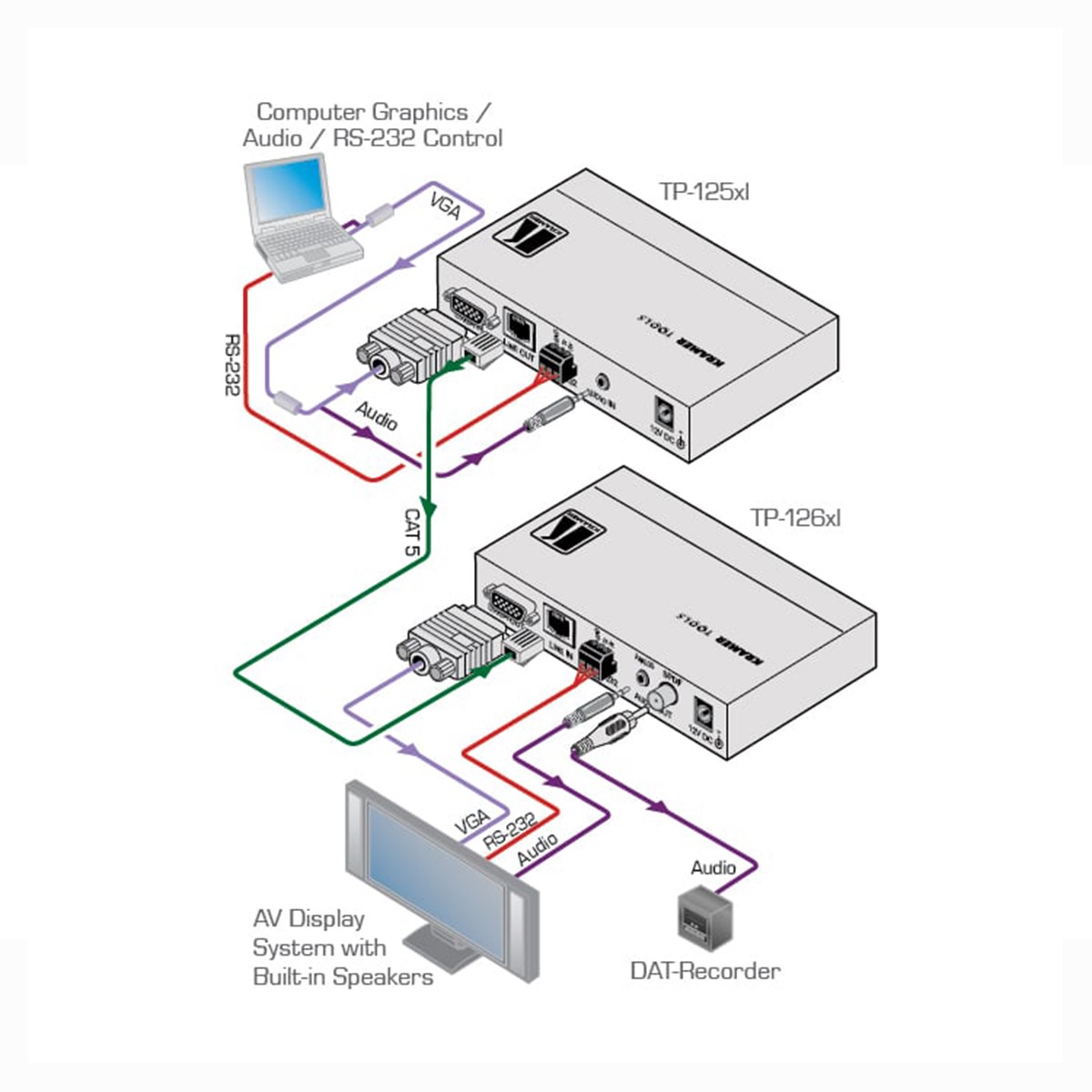

TP-126xl Computer Graphics Video, Stereo
Computer Graphics Video, Stereo Audio & Bidirectional RS–232 over Twisted Pair Receiver with EDID
Highlights
Enhanced EDID
Bidirectional RS–232
Max. Resolution — WUXGA & 1080p.
HDTV Compatible.
System Range — More than 820ft (more than 250m).

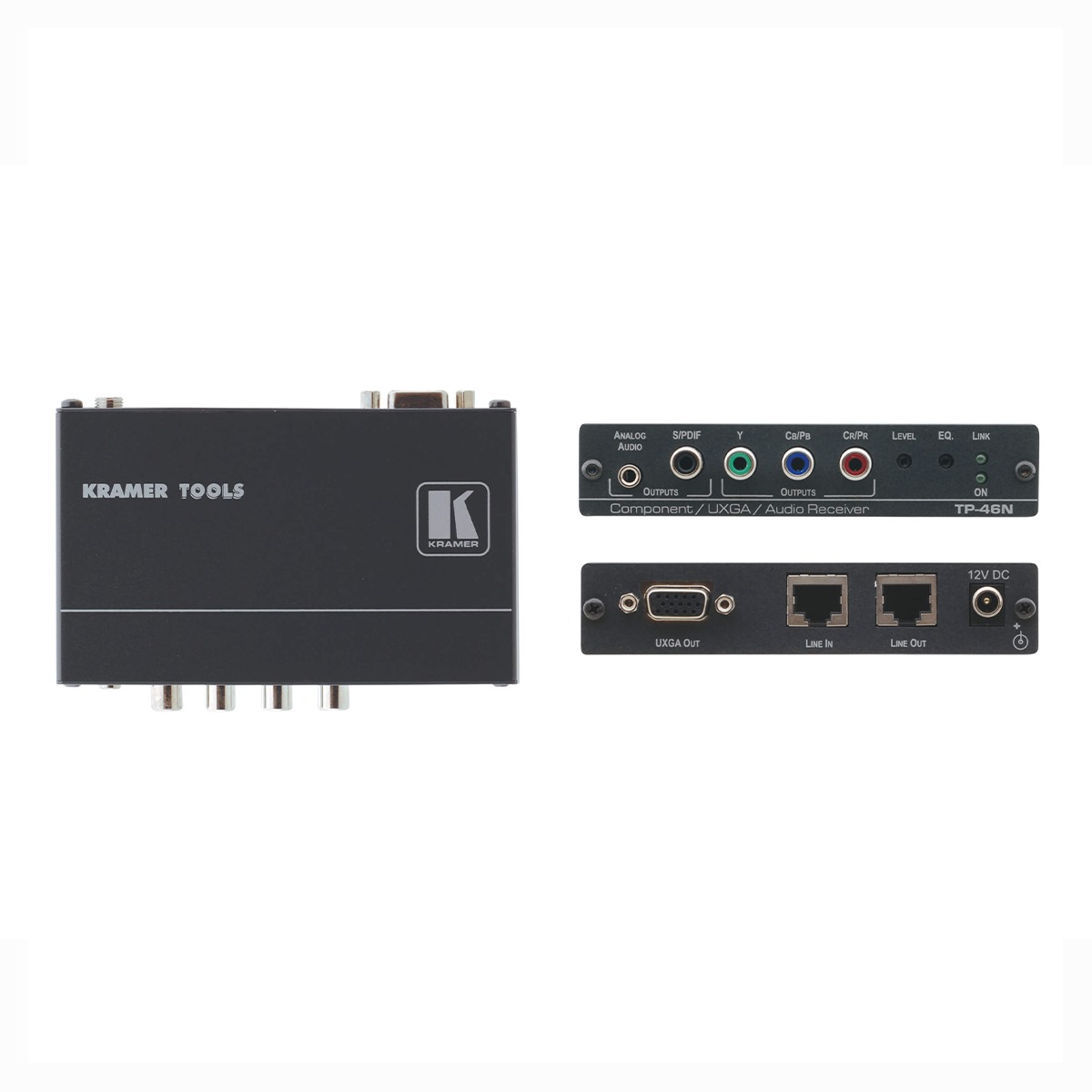

TP-46N Component Video or Computer Graphics
Component Video or Computer Graphics Video with Audio over Twisted Pair Receiver
Highlights
S/PIDF & Stereo Outputs
Level & EQ Controls
Compatible Model — TP–45
HDTV Compatible.
Max. Resolution — WUGXA (15–pin HD) & 1080p (component).

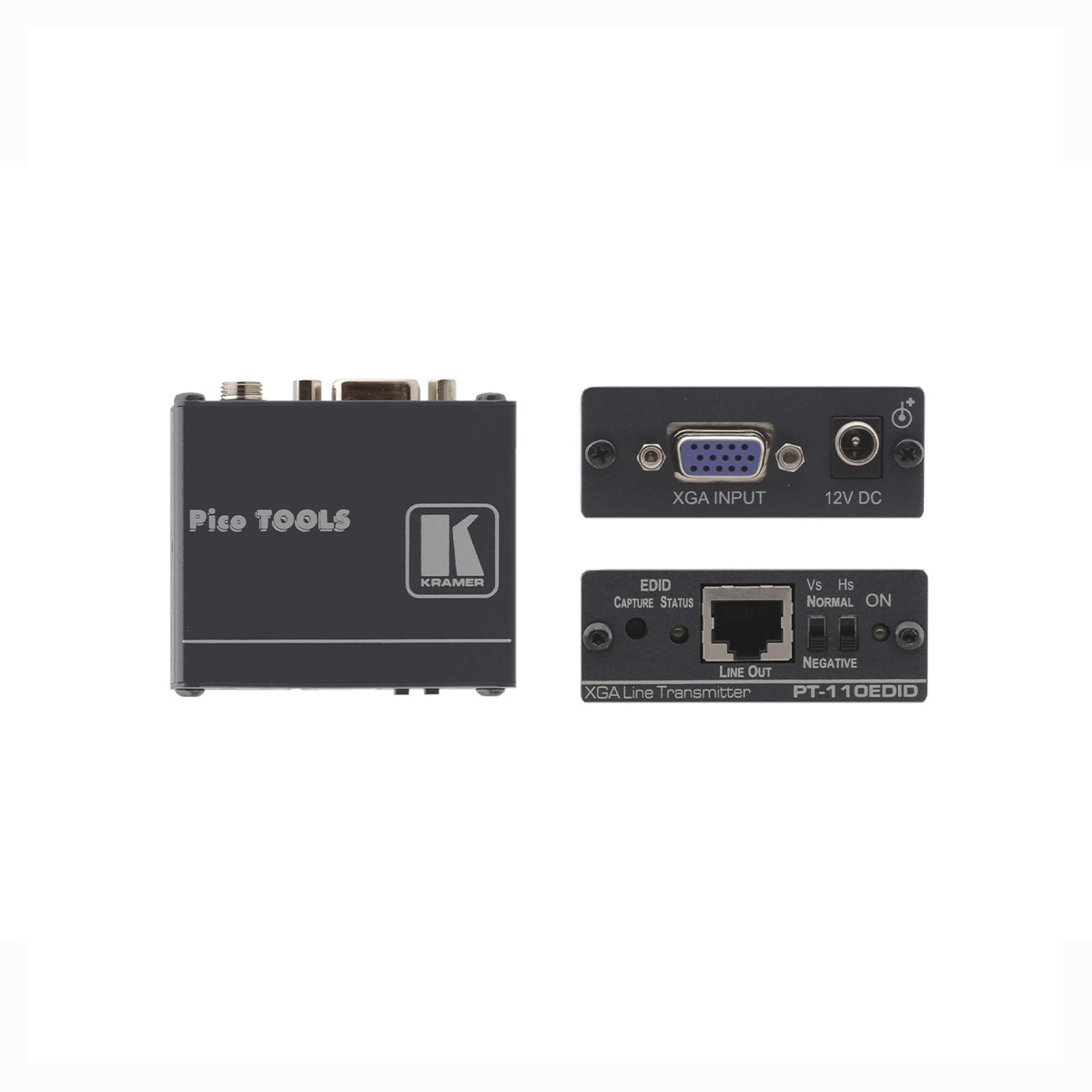

PT-110EDID Computer Graphics Video over Twisted
Computer Graphics Video over Twisted Pair Transmitter with EDID
Highlights
H & V Polarity Settings
Enhanced EDID
Max. Resolution — WUXGA & 1080p.
HDTV Compatible.
EDID Capture — Copies and stores the EDID from a display device.

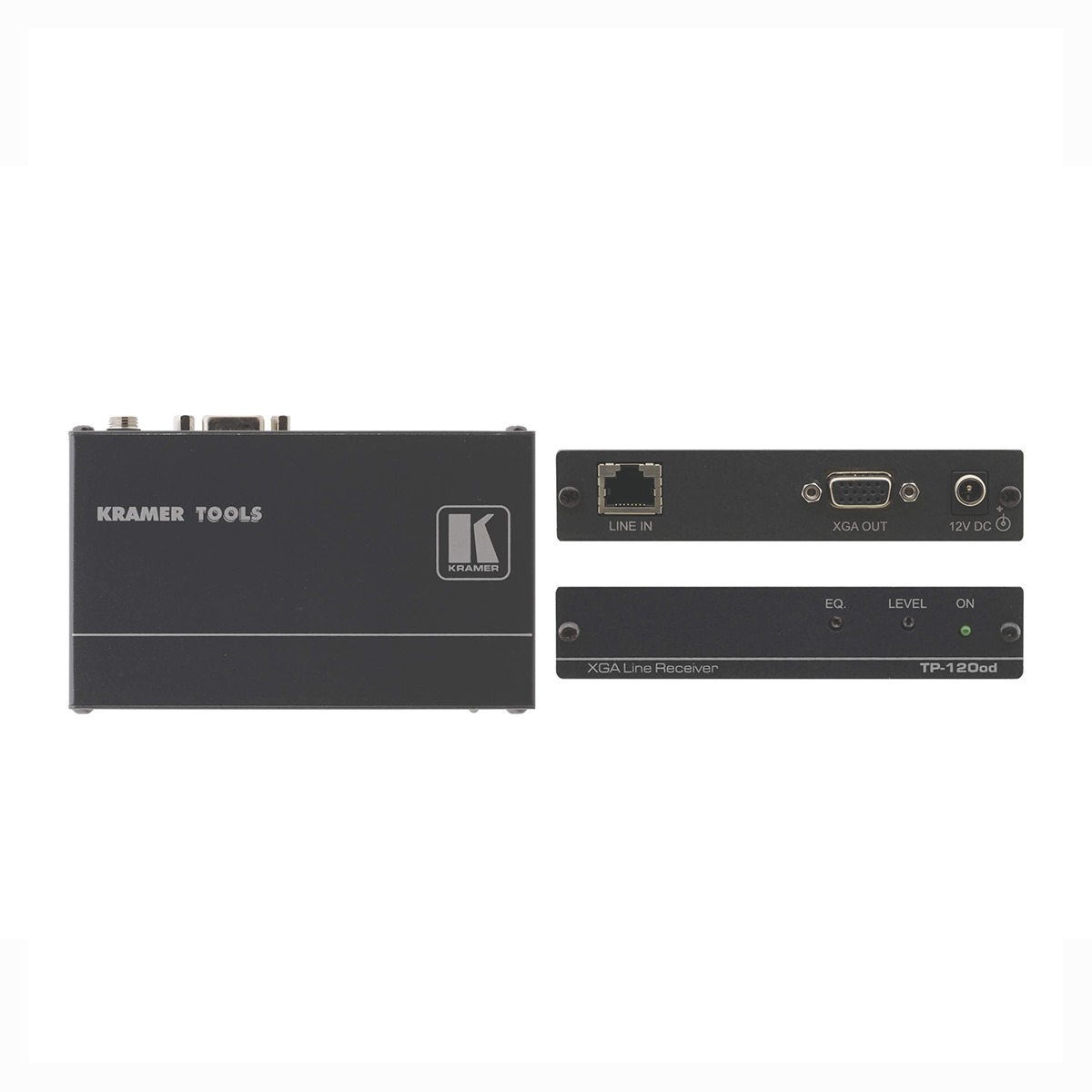

TP-120-od Computer Graphics Video
Computer Graphics Video over Twisted Pair Receiver with EMP Protection
Highlights
Level & EQ Controls
Max. Resolution — WUXGA & 1080p.
HDTV Compatible.
EMP Protection — Protected from voltage surges induced by the electromagnetic field of nearby lightning. The system does not protect against direct lightning strikes.
Twisted Pair Input — RJ–45.

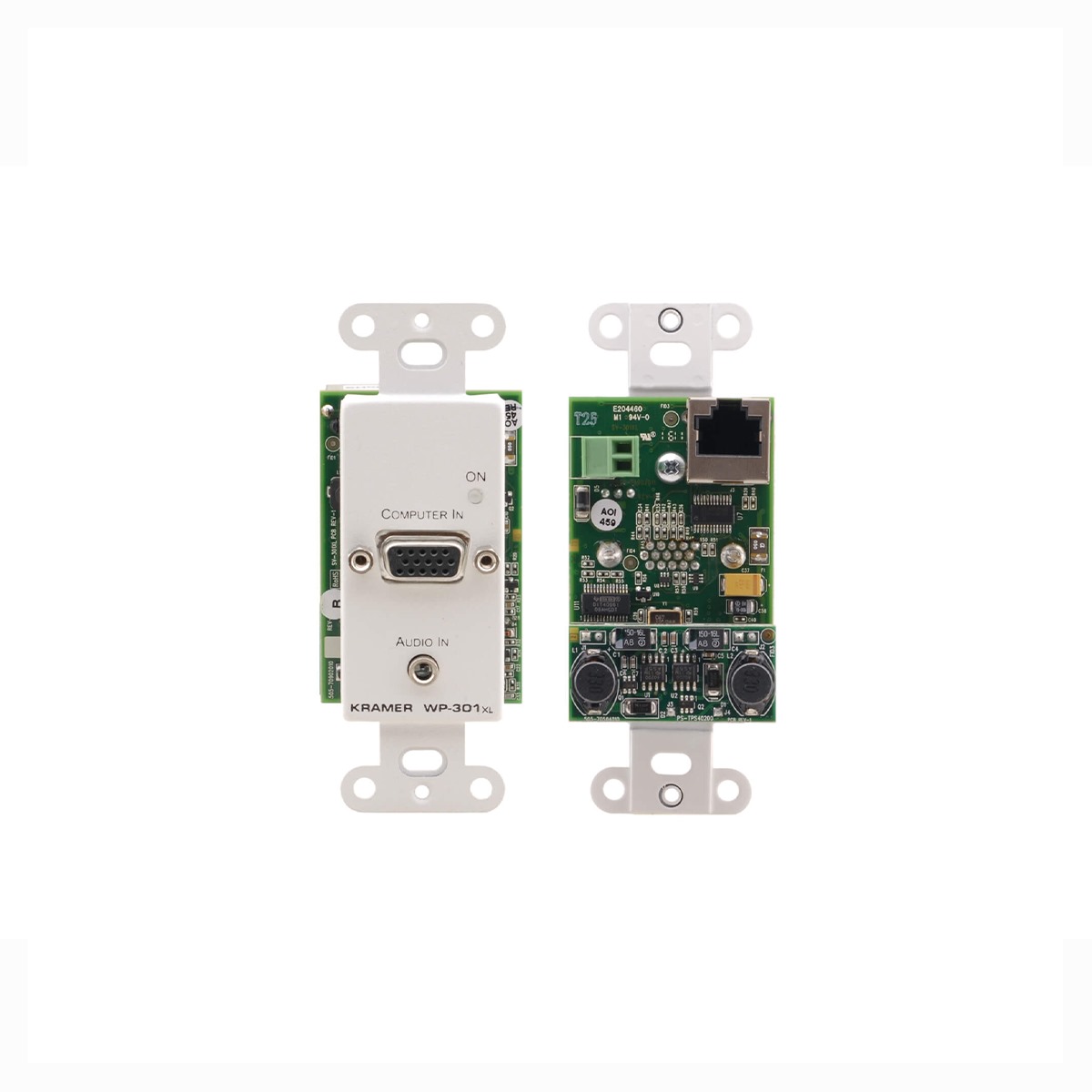

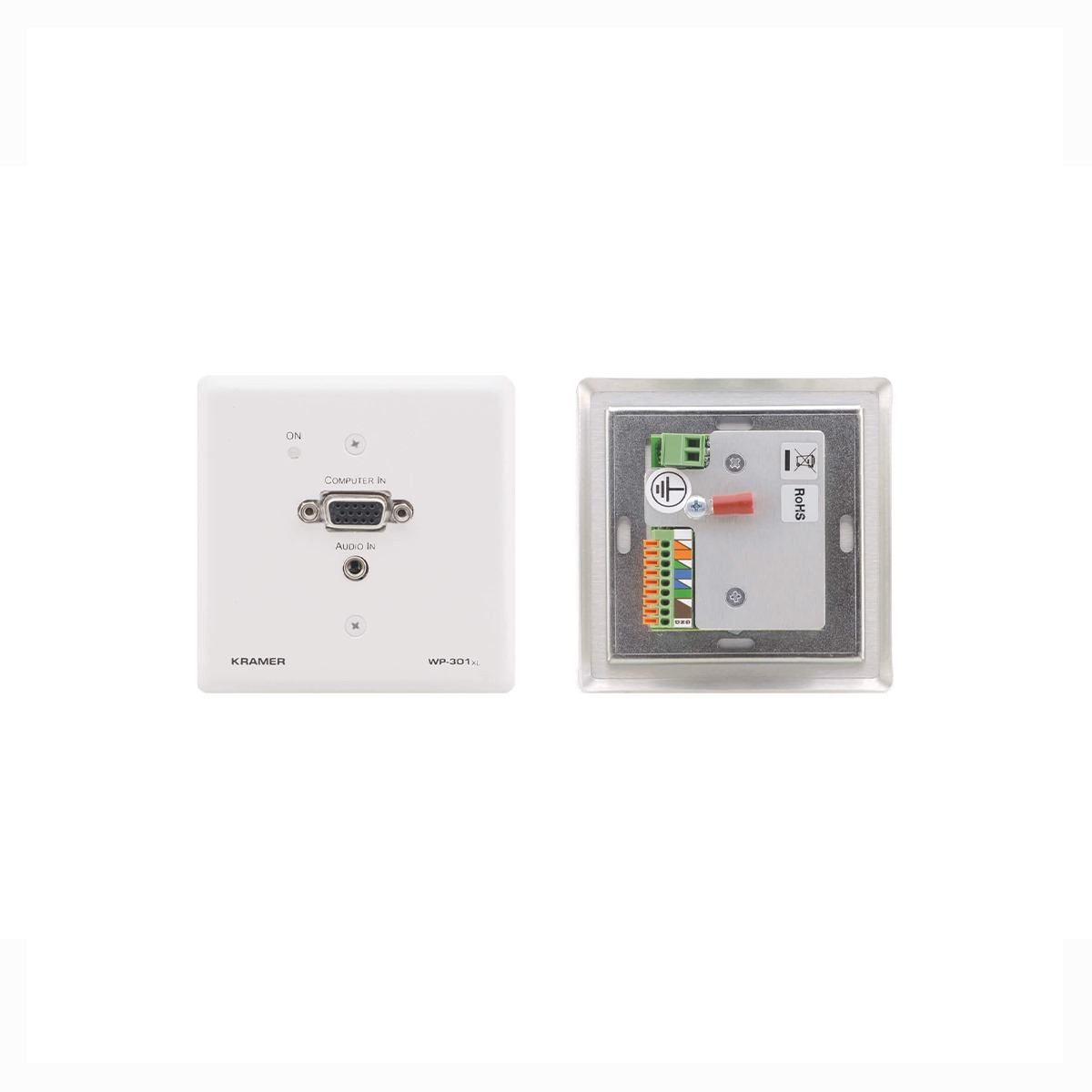

WP-301xl Active Wall Plate — Computer Graphics
Active Wall Plate — Computer Graphics Video & Stereo Audio Transmitter
Highlights
Front — 15–Pin HD & stereo 3.5mm
Rear — 1 RJ–45
EDID Enhanced
Front Panel Connections — 15–pin HD & stereo 3.5mm.
Rear Panel Connections — RJ–45 on US version, easy–insert CAT 5 terminal on EU version, power.
