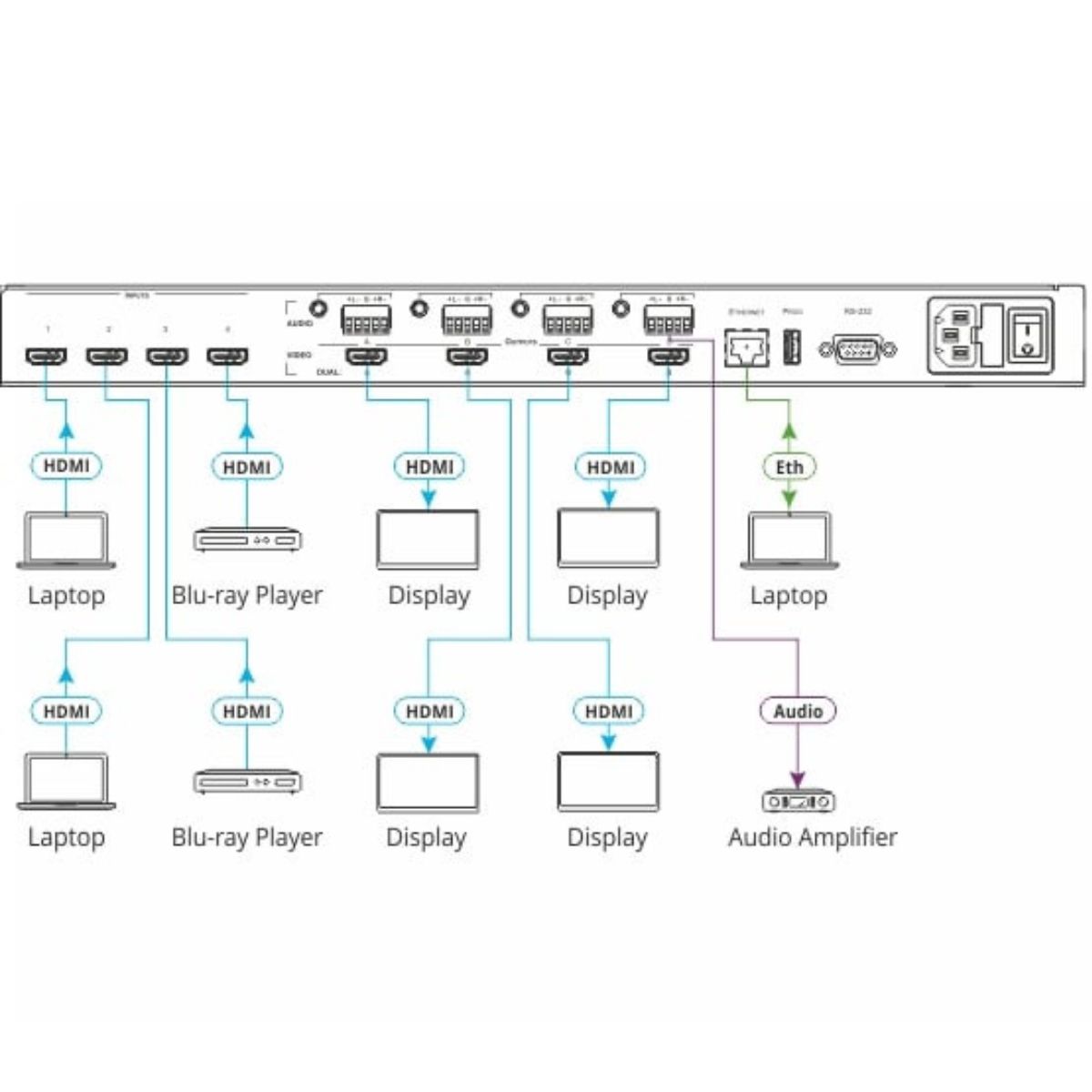

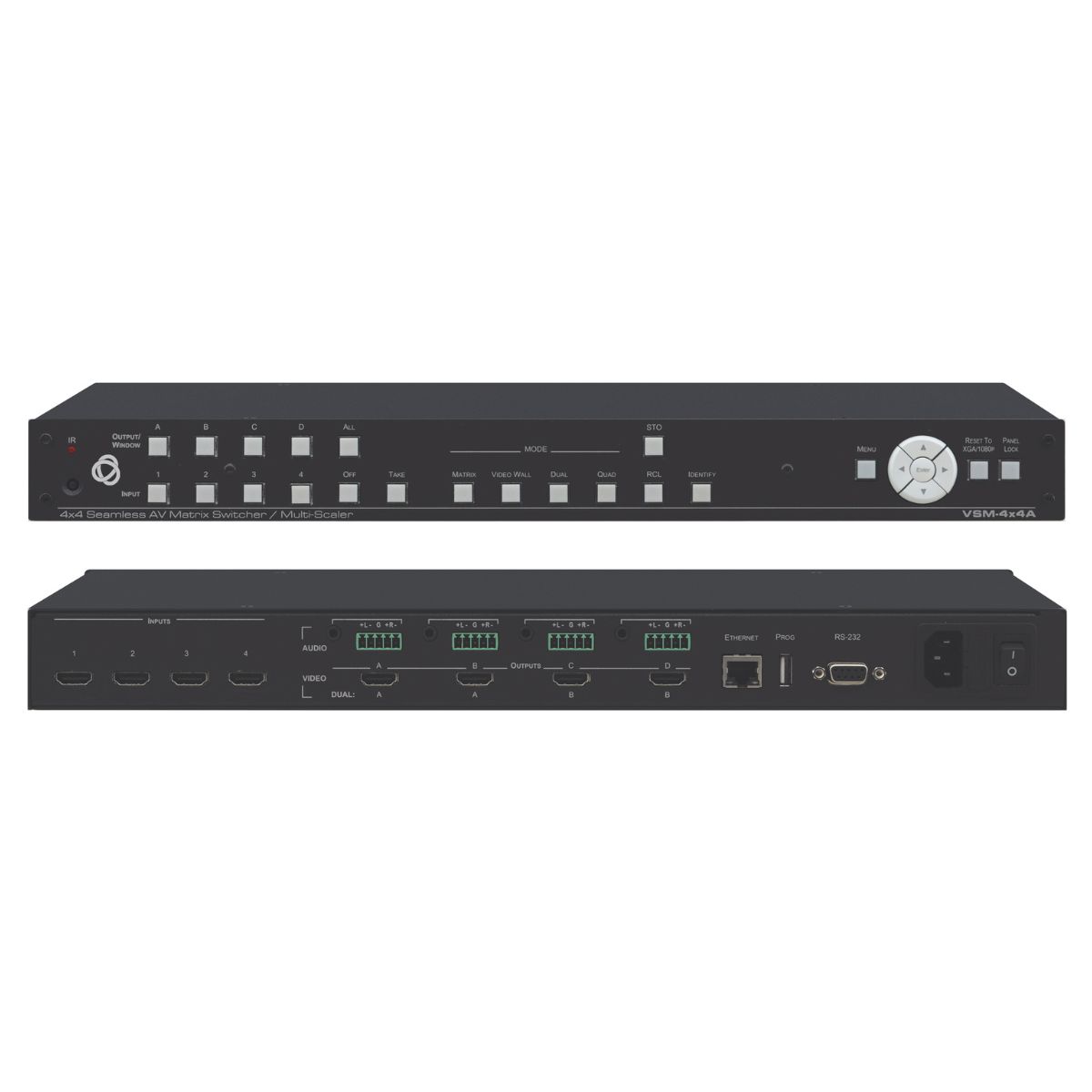

VSM-4x4A Kramer’s precision pixel mapping
PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality scaling technology.
Highlights
PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality scaling technology.
HDTV Compatible.
HDCP Compliant.
4 HDMI Inputs & 4 Scaled HDMI Outputs.
Audio — 4 balanced and 4 unbalanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.
Selectable Operation Modes — 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), dual display (Split/PIP/POP) or quad display.

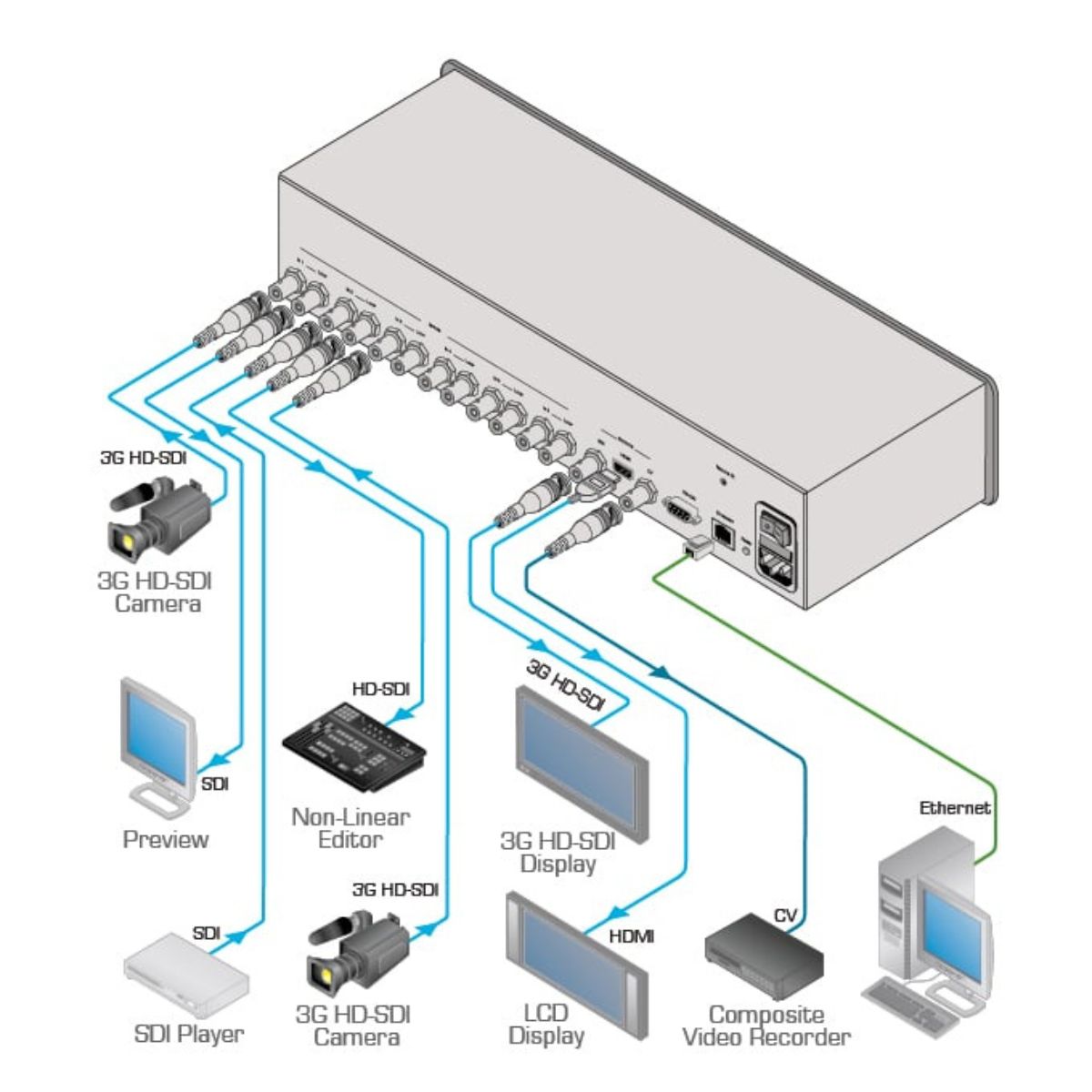

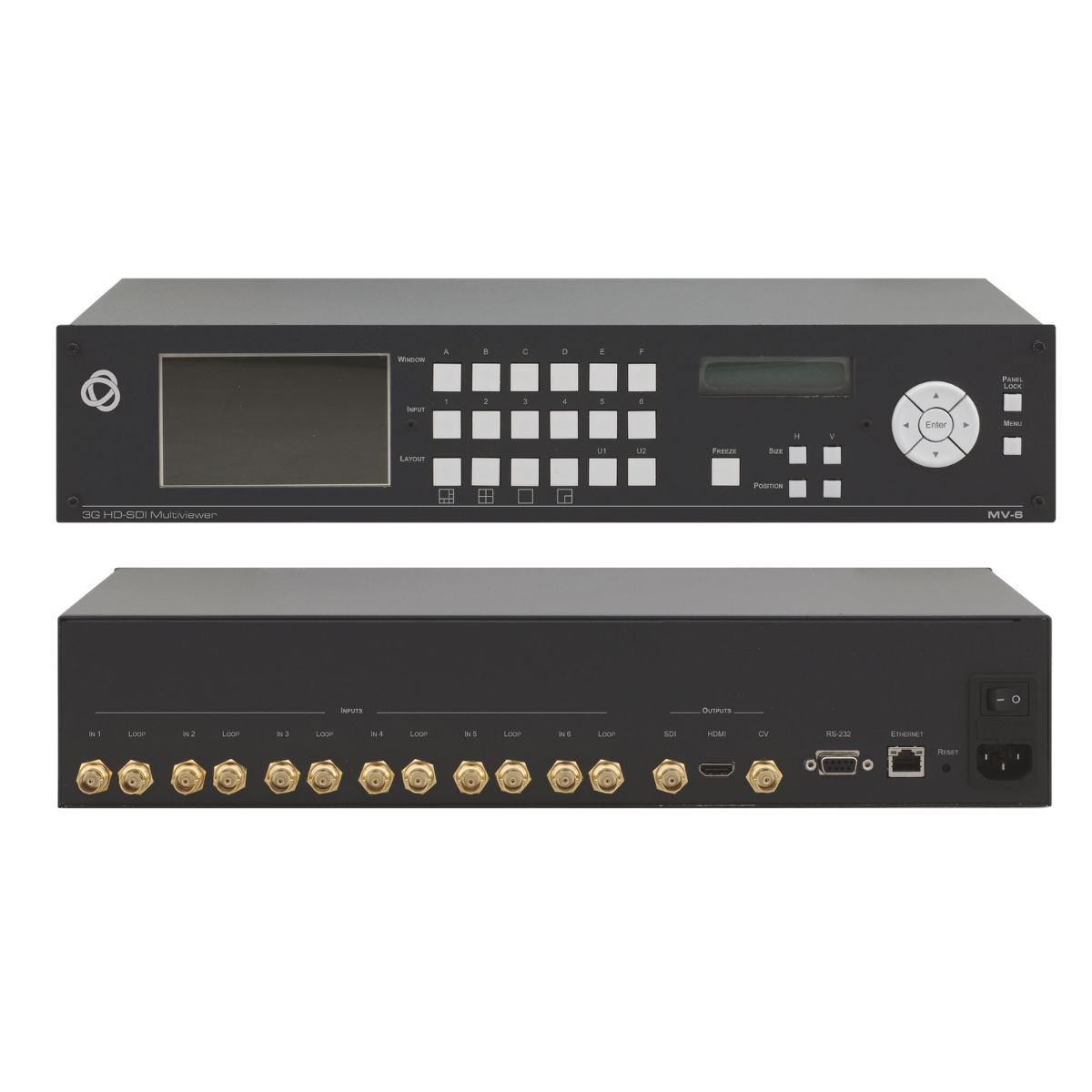

MV-6 3G HD–SDI Multiviewer
3G HD–SDI Multiviewer
Highlights
Max. Data Rate — 3Gbps.
HDTV Compatible.
Standards Compliance — Certified for medical applications according to IEC 60601–1–2 (Electromagnetic Compatibility).
Kramer re–Klocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
Re–Clocking Looping Inputs.
PIP-4 Composite Video Picture–in–Picture Inserter
4) Composite Video Picture–in–Picture Inserter
Highlights
Picture–In–Picture Options — All inputs can be displayed simultaneously with variable window sizing and positioning and freeze frame capability. Quad button displays 4 equal–sized images.
Multi–Format Operation — s–Video and composite video outputs.
Multi–Standard Operation — PAL & NTSC compatible inputs & outputs (no format conversion).
USB Mouse Connector — For convenient navigation and control, including the OSD.
Built–In ProcAmp — Brightness, contrast, and saturation for each input.
Flexible Control Options — Front panel, IR remote, mouse (with OSD), RS–232 & Ethernet.
MV-5 Multiviewer
5–Channel Multiviewer
Highlights
Max Data Rate — 3Gbps
Kramer Equalization & re–Klocking™
Format Conversion
Input Cable Equalization
Chroma–Key
Window & Image Scaling
Independent Layer Transparency Control
Proc Amp
16 Screen Layouts.
Control — Ethernet & RS–232.

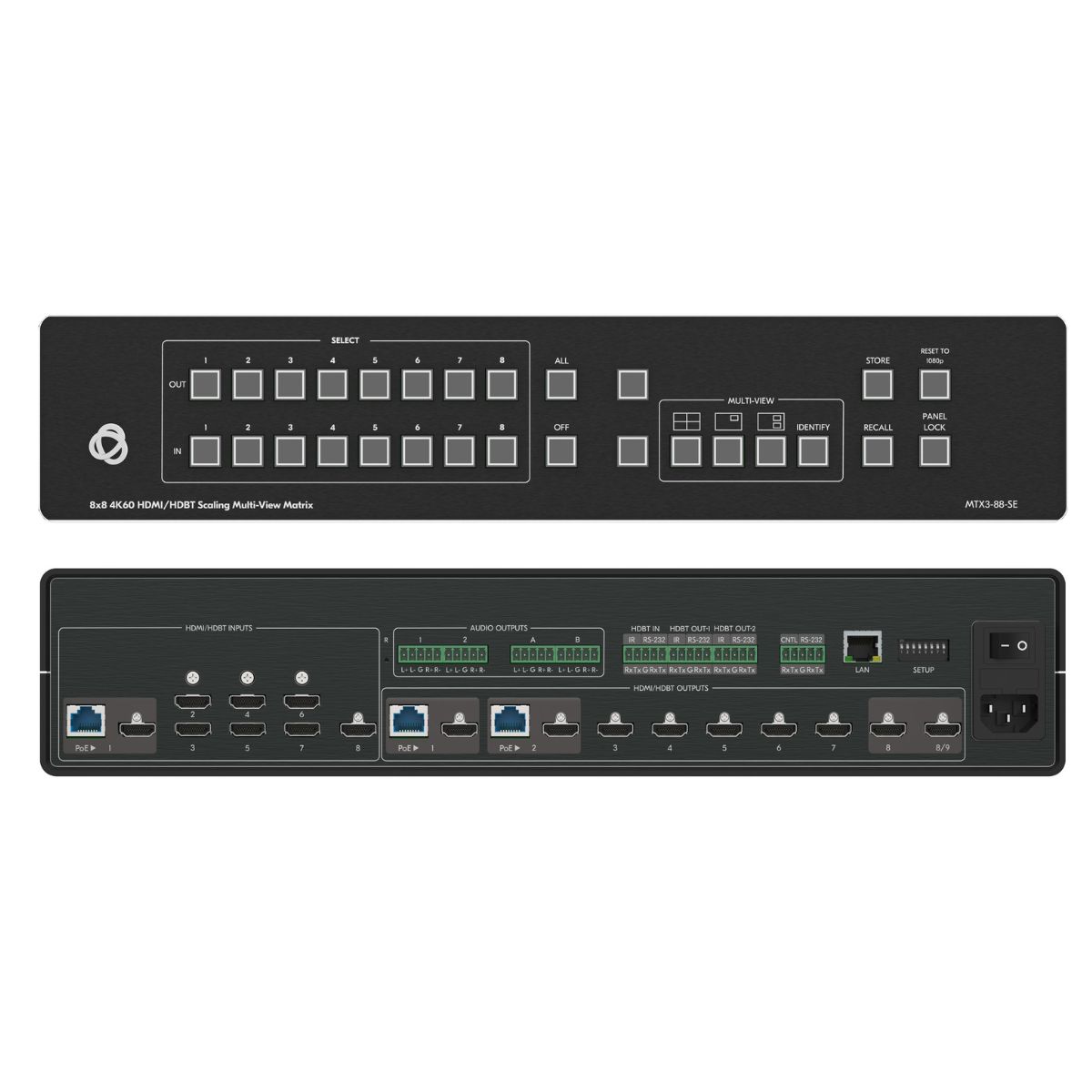

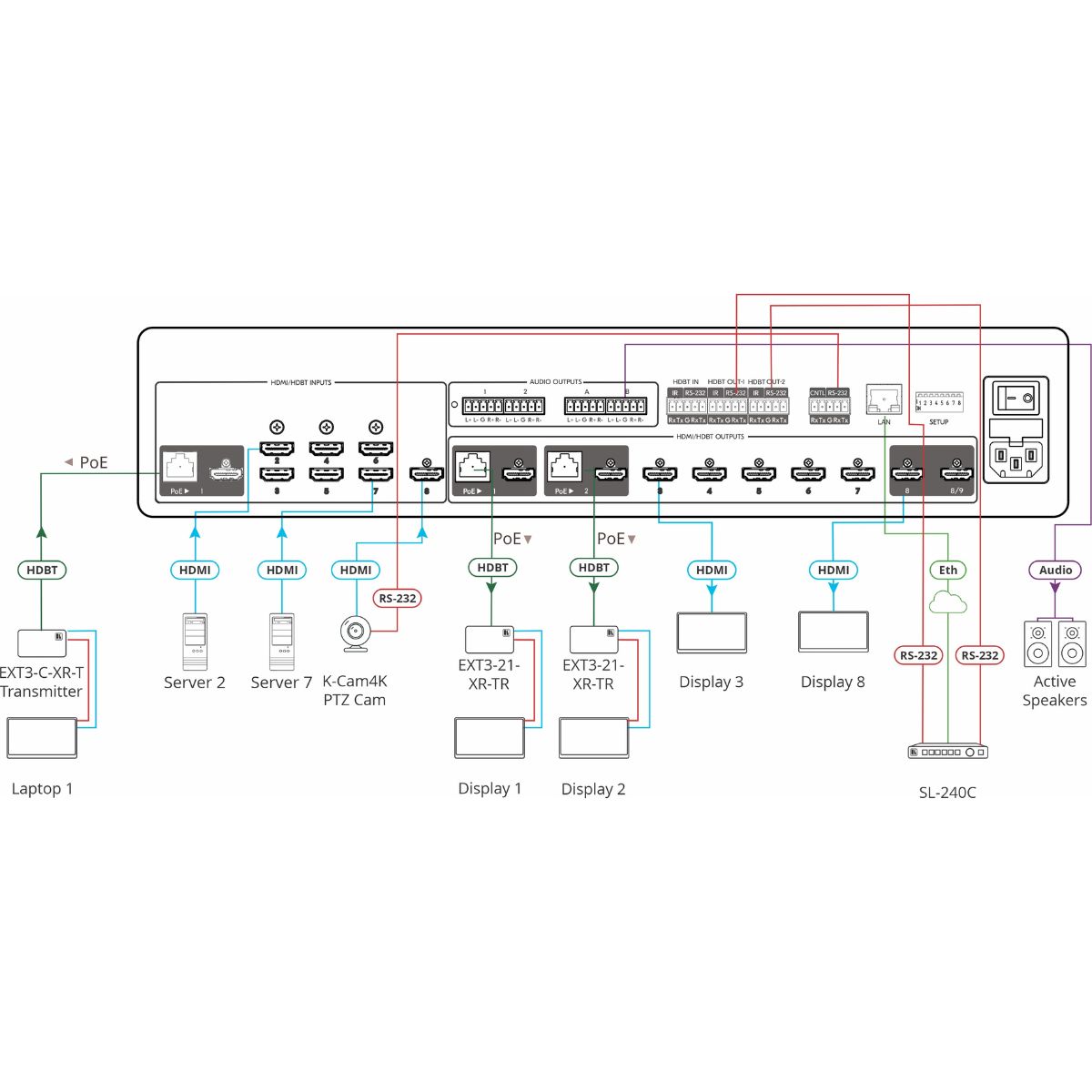

MTX3-88-SE Multi–viewer Matrix
8x8 Seamless Multi–viewer Matrix
Highlights
Seamless 8X8 matrix
8x2 quad–view seamless matrix
4K60 4:4:4 scaling resolution
Dual mirrored HDBT 3.0 outputs
Secured remote control and management

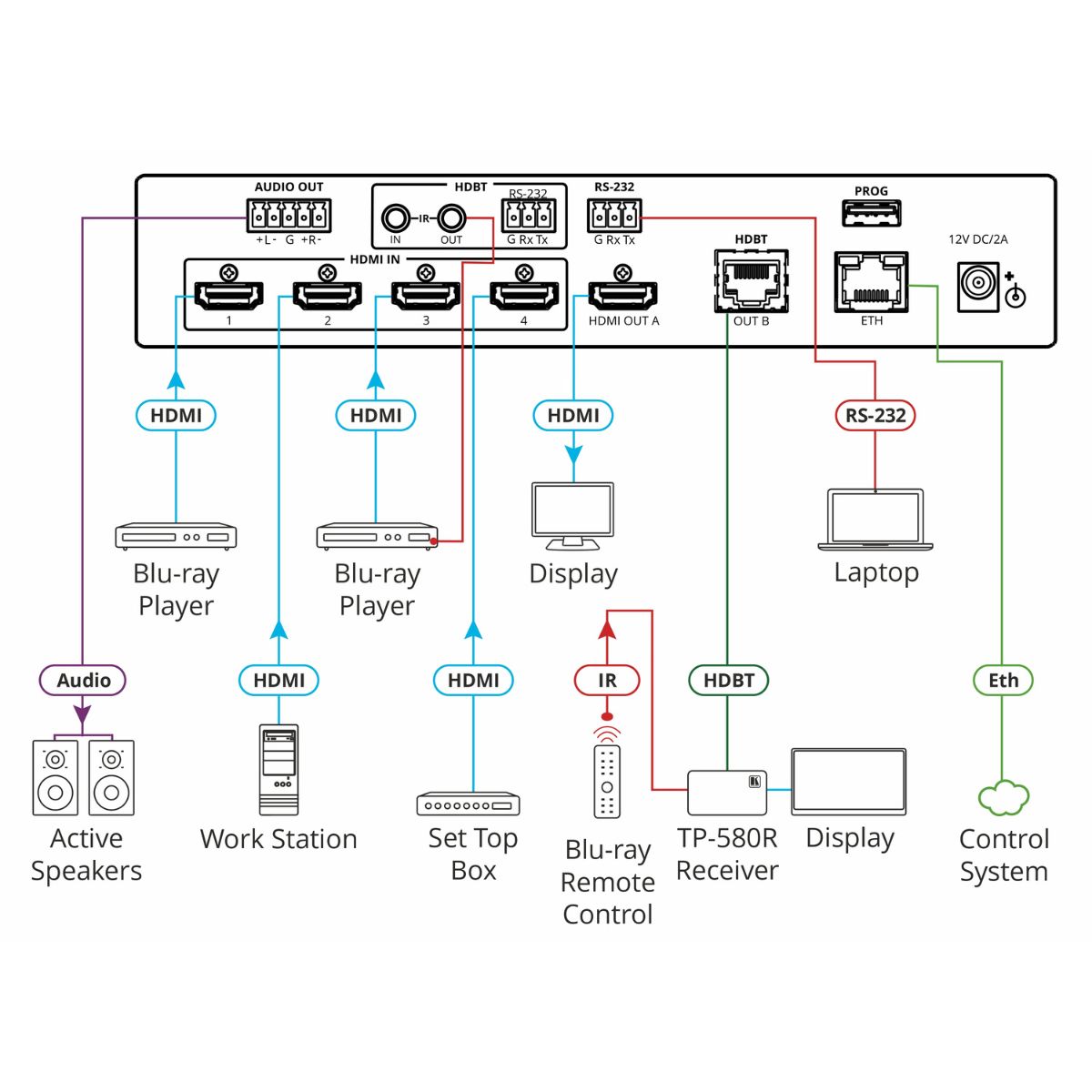

MV-4X 4 Window Multi–viewer/4x2 Seamless Matrix Switcher
4 Window Multi–viewer/4x2 Seamless Matrix Switcher
Highlights
18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs.
Matrix mode operation as well as fully customizable multi–window operation modes.
Supports HDMI up to 4K@50/60Hz 4:4:4 and HDBT up to 4K@50/60Hz 4:2:0.
Supports chroma keying and an on–screen logo generator.
