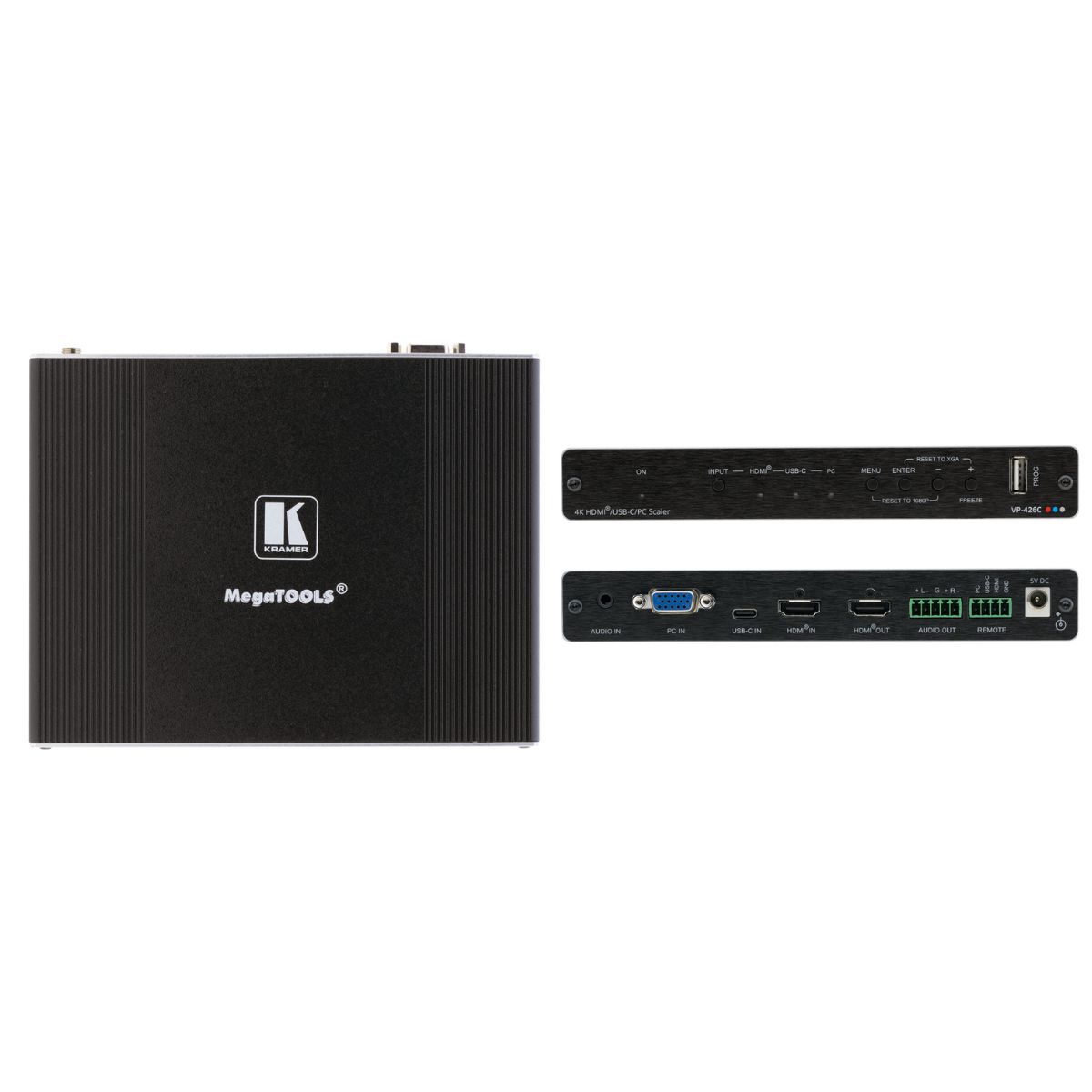

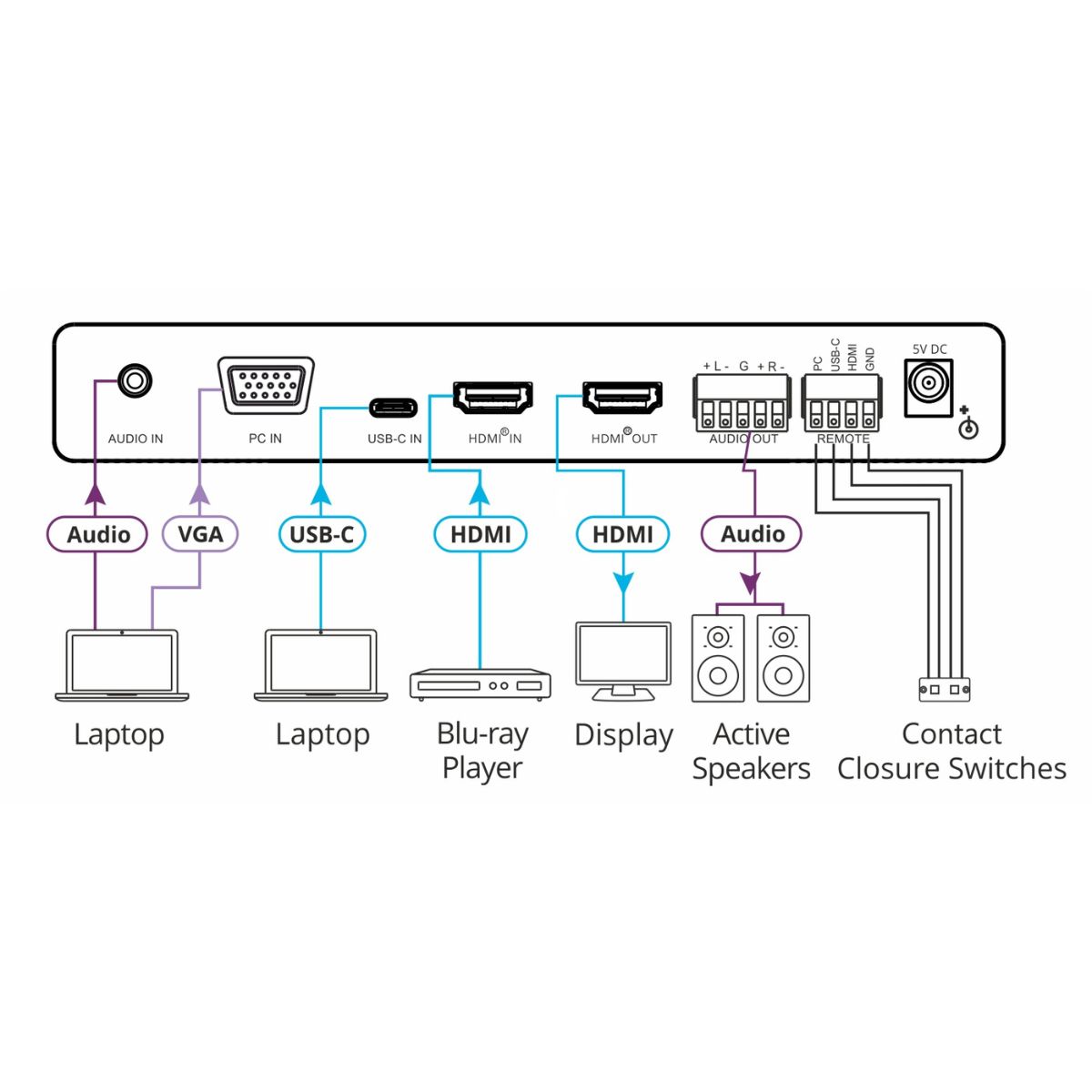

VP-426C 18G 4K HDR HDMI ProScale
18G 4K HDR HDMI ProScale™ Digital Scaler with HDMI, USB–C and VGA Inputs
Highlights
Max. input resolution:4K@60 (4:4:4)
Max. data rate:18Gbps (6Gbps per graphic channel)
HDCP 2.2 & 1.4 compliant
USB–C, HDMI and, legacy, VGA inputs
Analog audio embedding and de–embedding
OSD menu and front panel input selection

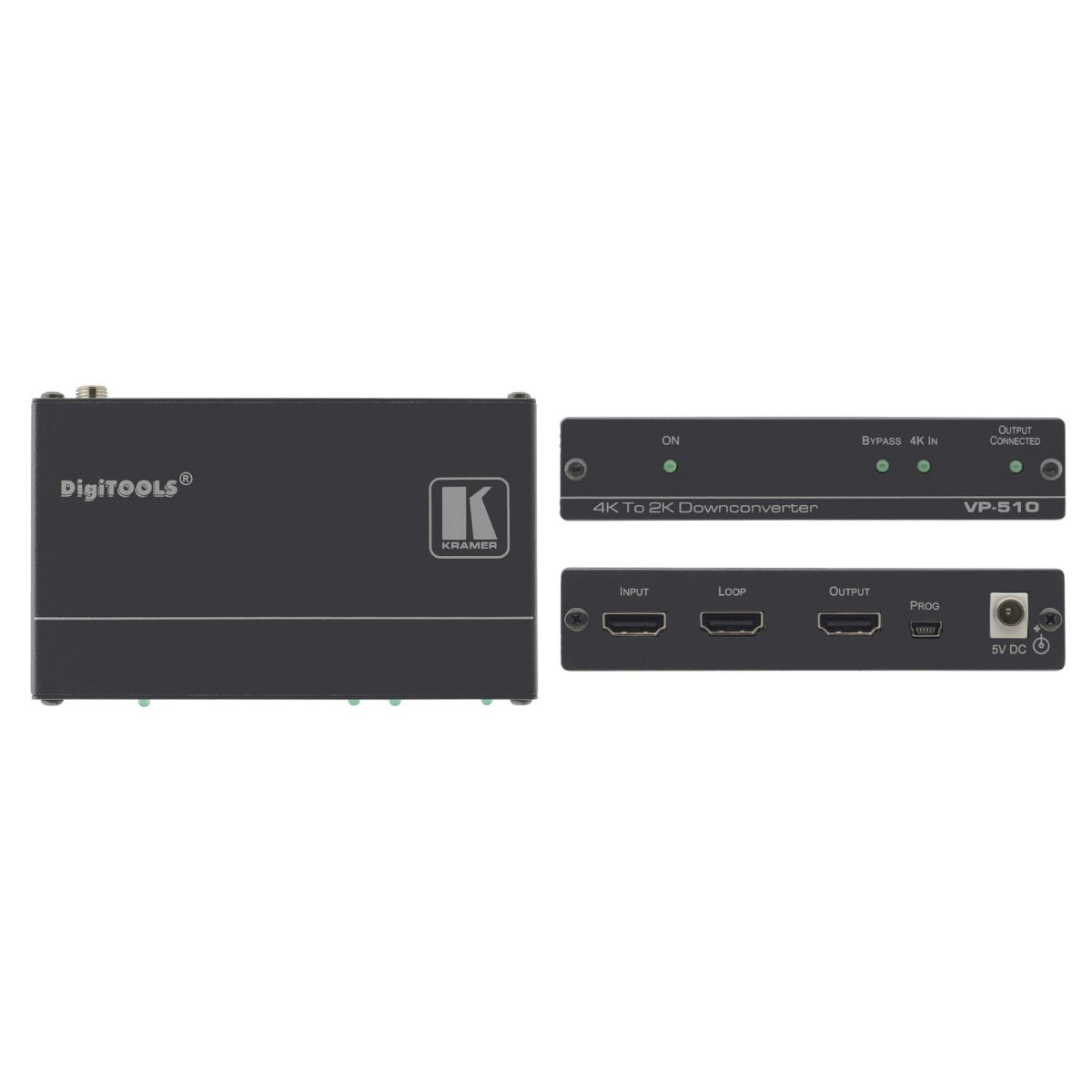

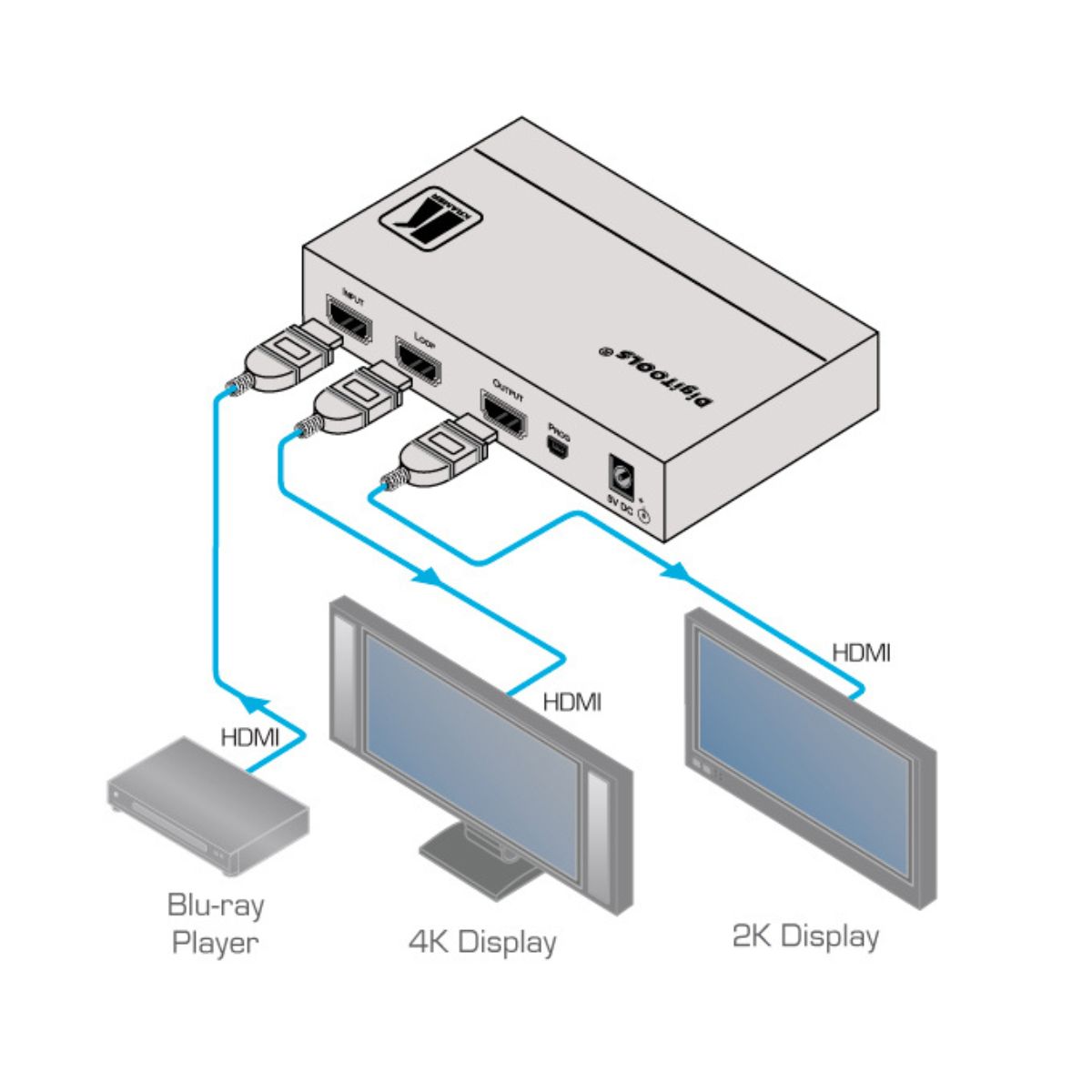

VP-510 4K to 2K Down–Converter
4K to 2K Down–Converter
Highlights
Max Data Rate — 10.2Gbps (3.4Gbps per graphic channel)
4K UHD support — 4096×2160p@24Hz & 3840×2160p@24/25/30Hz
HDMI Signal Bypass — For non–4K resolutions
HDMI looping Input
HDMI Support — 3D, Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS–HD® and 7.1 multi–channel audio

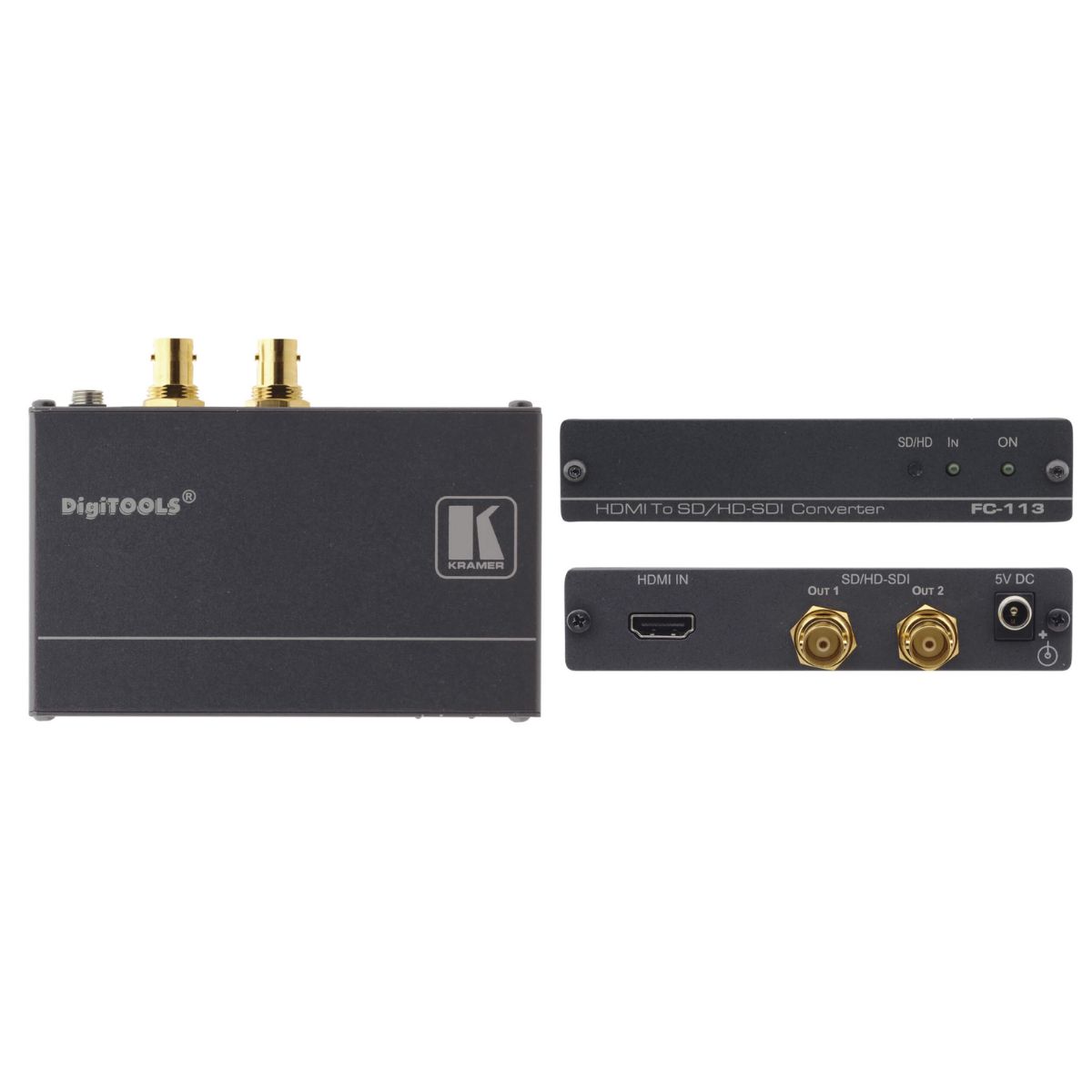

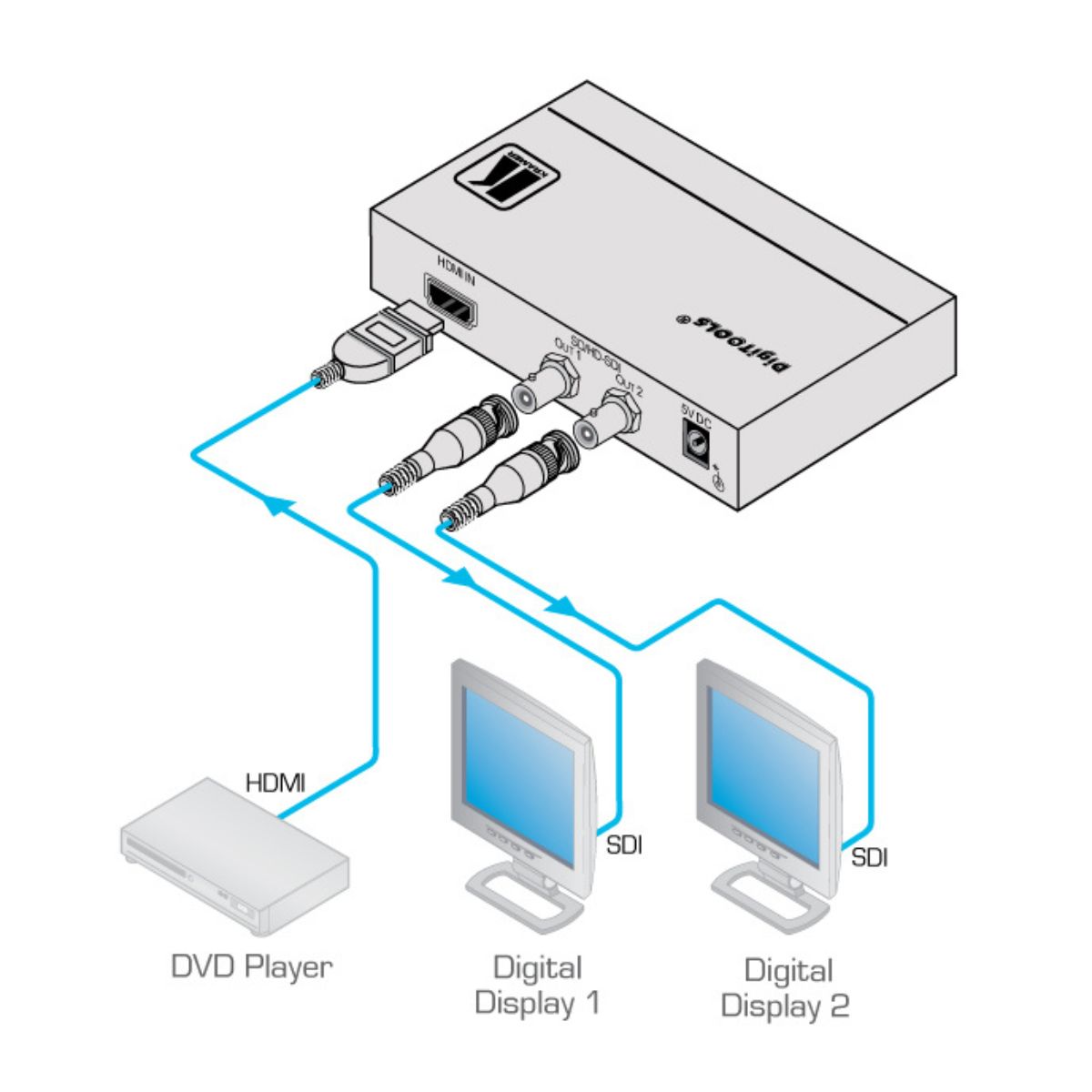

FC-113 SDI Format Converter
HDMI to 3G HD–SDI Format Converter
Highlights
Max. Data Rate — 3Gbps.
HDTV Compatible.
Multi–Standard Operation — SDI (SMPTE 259M), HD‑SDI (SMPTE 292M), and 3G HD–SDI (SMPTE 424M).
Certified for Medical Applications — According to IEC 60601–1–2 (Electromagnetic Compatibility), (FC–113–MD).

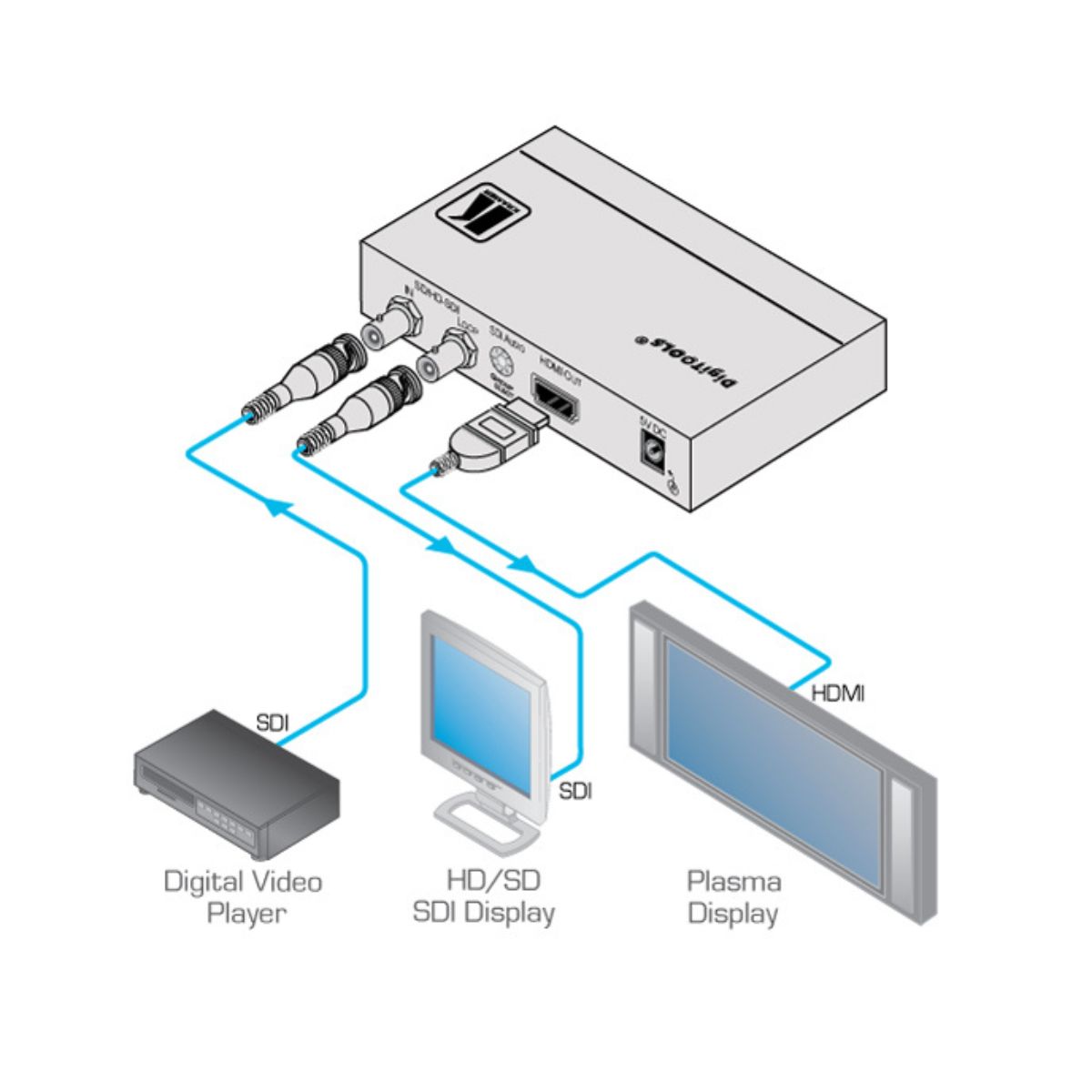

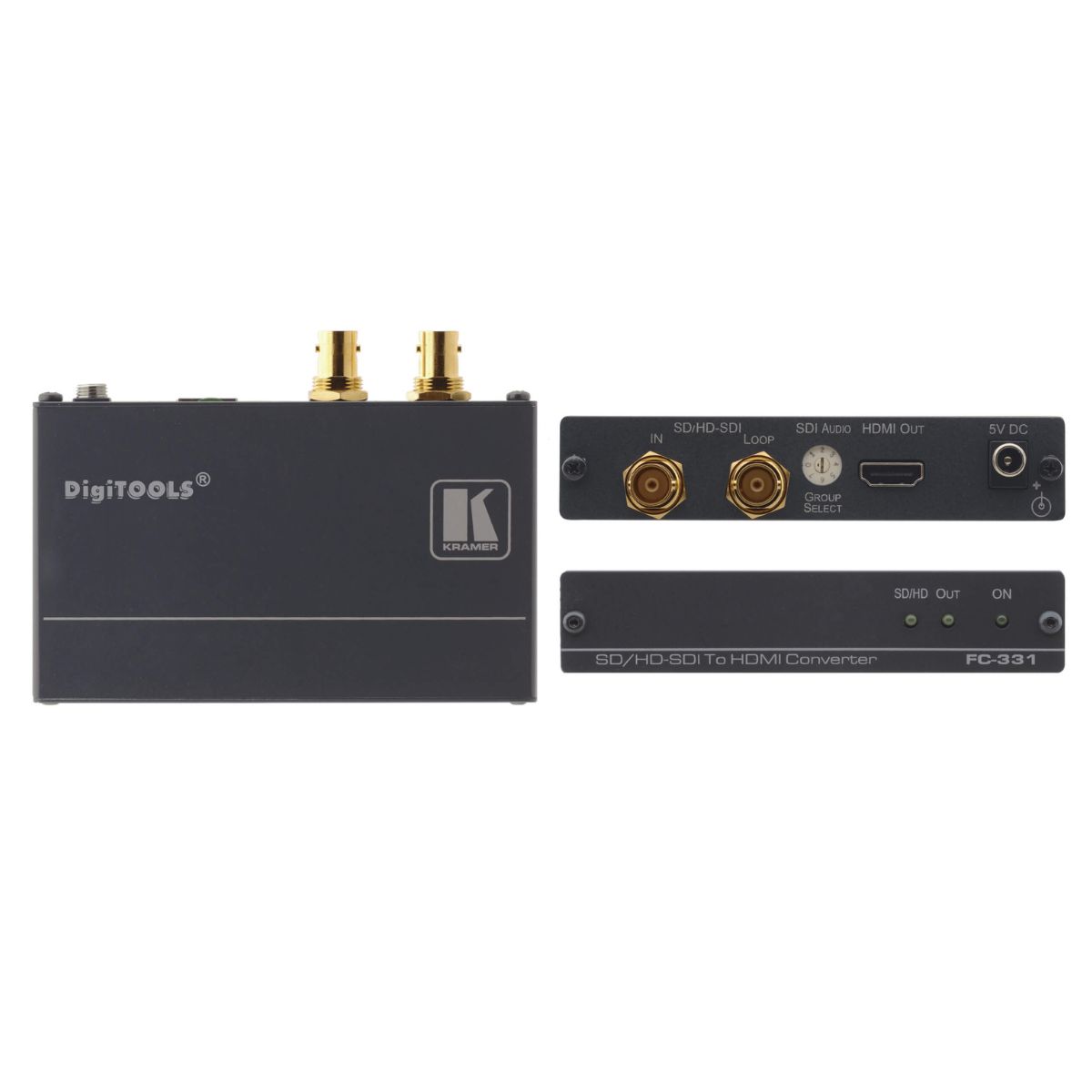

FC-331 HDMI Format Converter
3G HD–SDI to HDMI Format Converter
Highlights
Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
SDI Level A Support.
Looping Input with Reclocking.
HDTV Compatible.

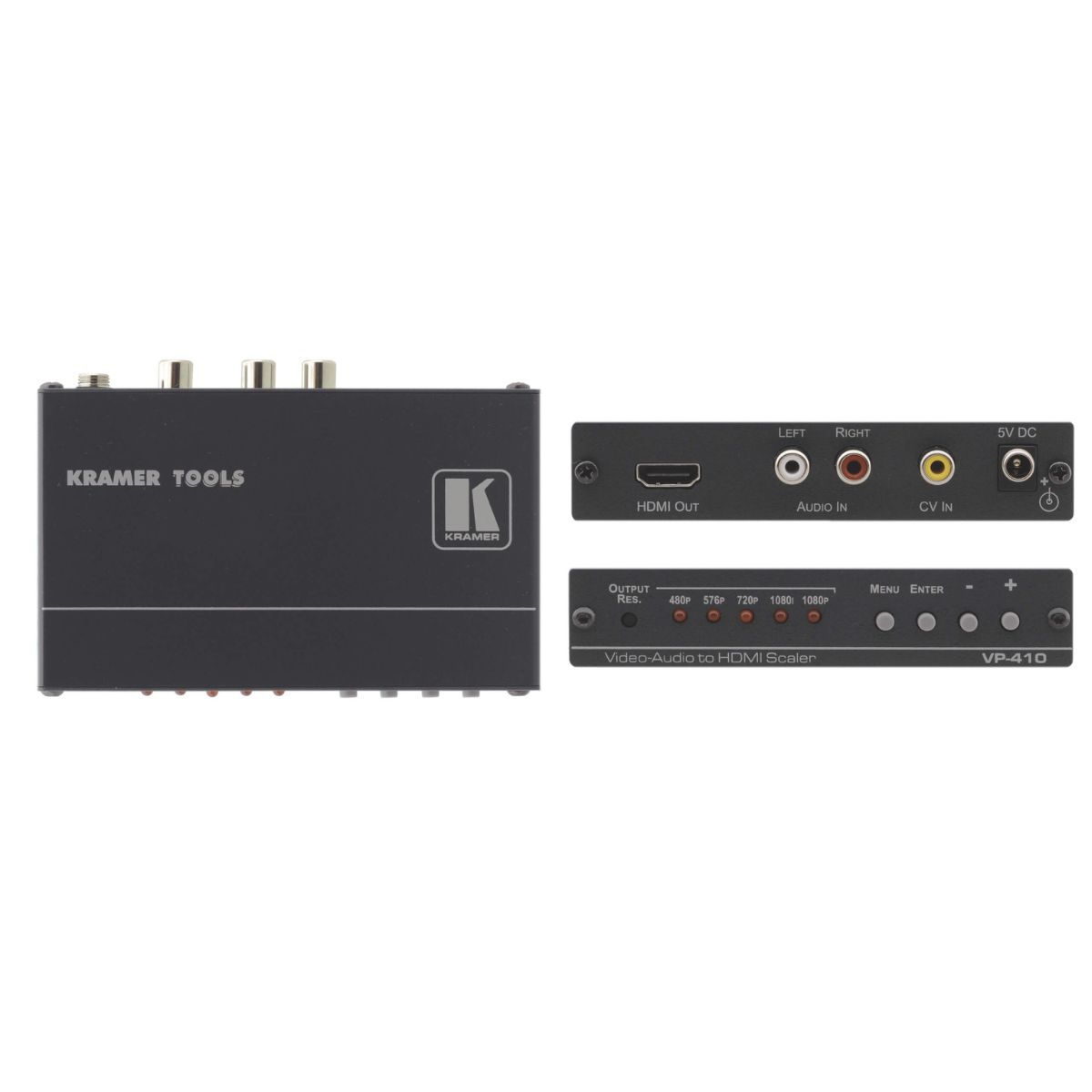

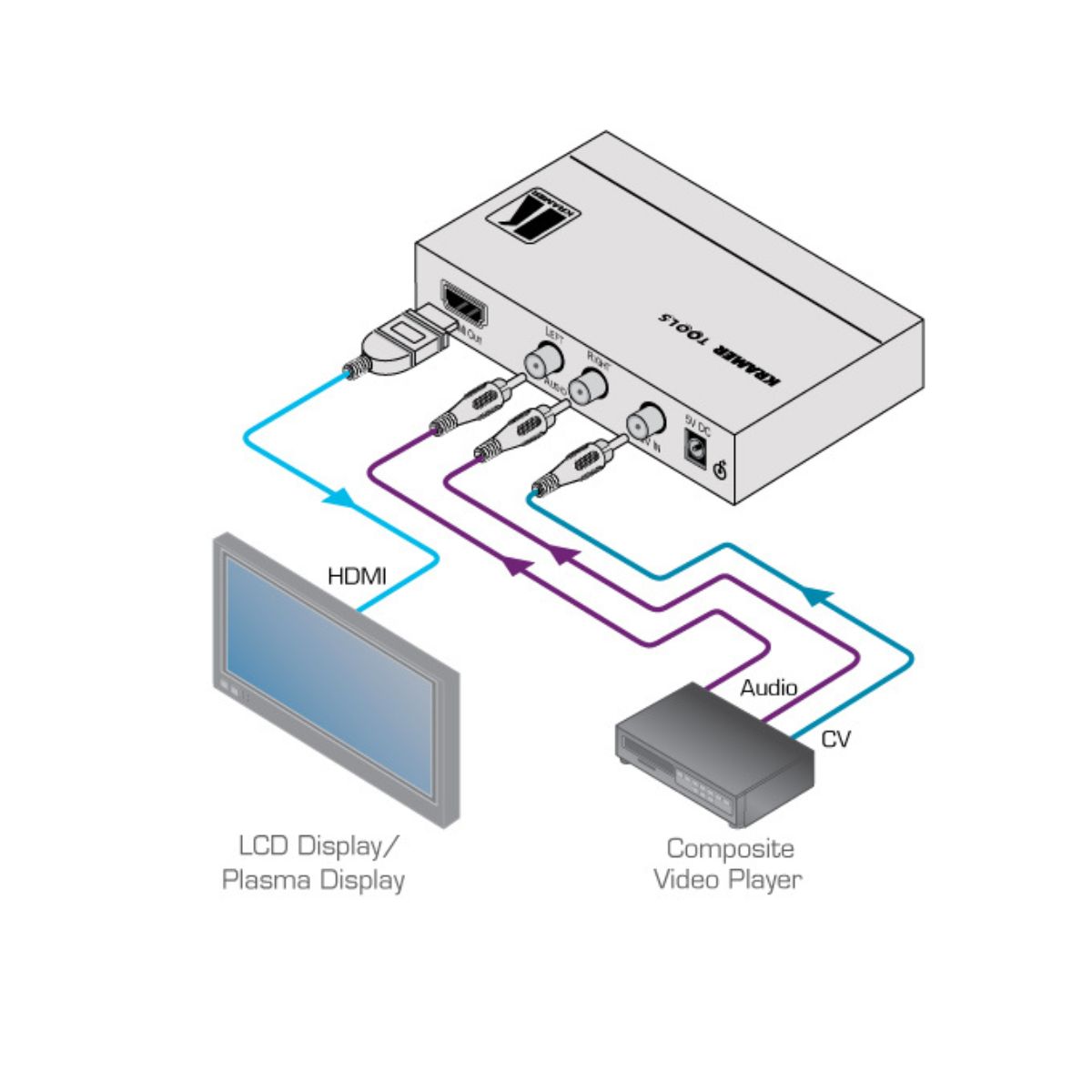

VP-410 Audio to HDMI Scaler
Composite Video & Stereo Audio to HDMI Scaler
Highlights
HDTV Compatible.
Output Resolutions — 480p, 576p, 720p, 1080i and 1080p.
Controls — Front panel with On–Screen Display (OSD).
Built–in ProcAmp — Color, sharpness, brightness, contrast, etc.

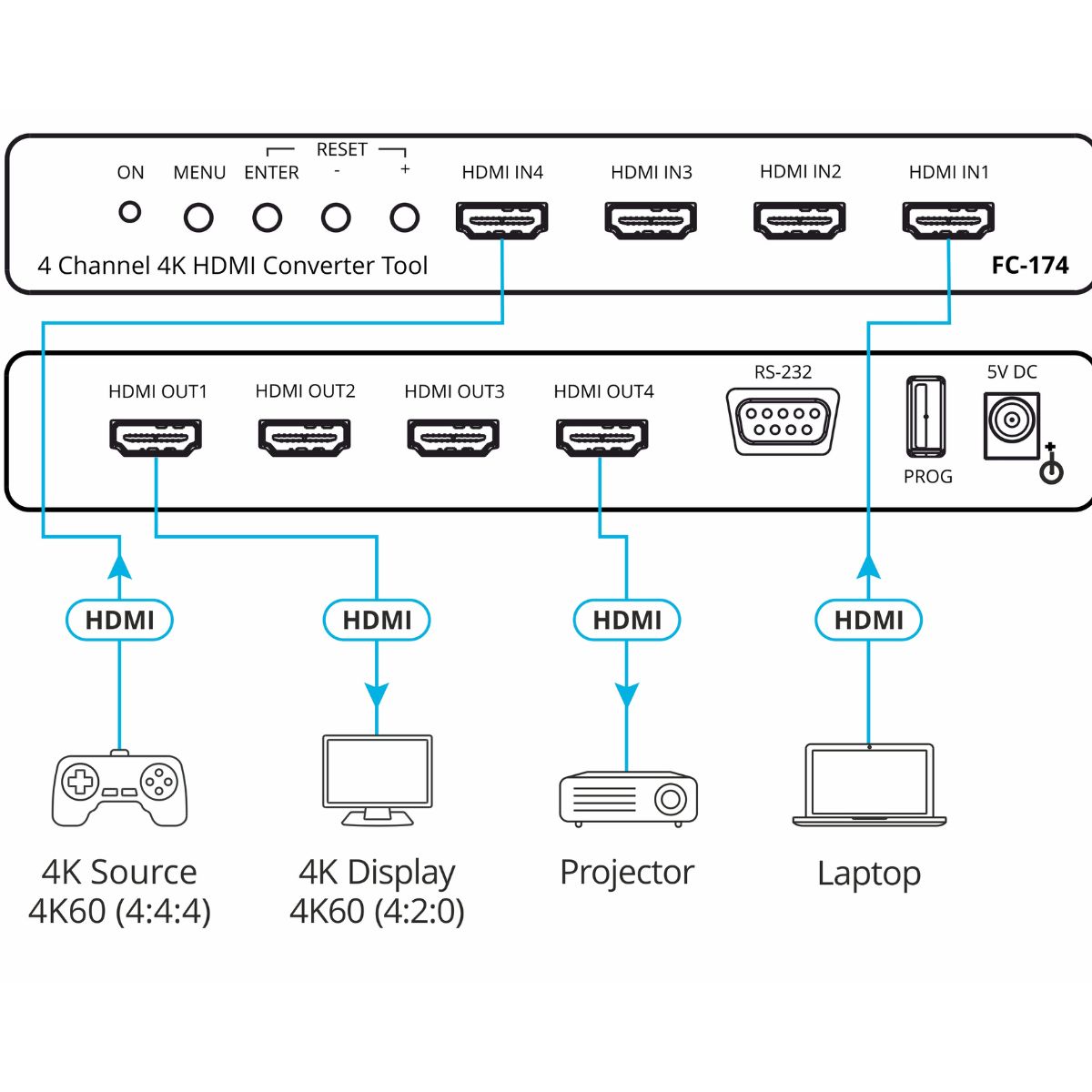

FC-174 Converter
4–Channel HDMI 4K60 4:4:4/4:2:0 Converter with HDCP 1.4 & 2.2
Highlights
Compatibility between HDCP 1.4 and HDCP 2.2
Enables 4K60 4:4:4 to 4K60 4:2:0 Chroma Sampling Reduction
EDID Management
HDMI Extender
Pattern Generator

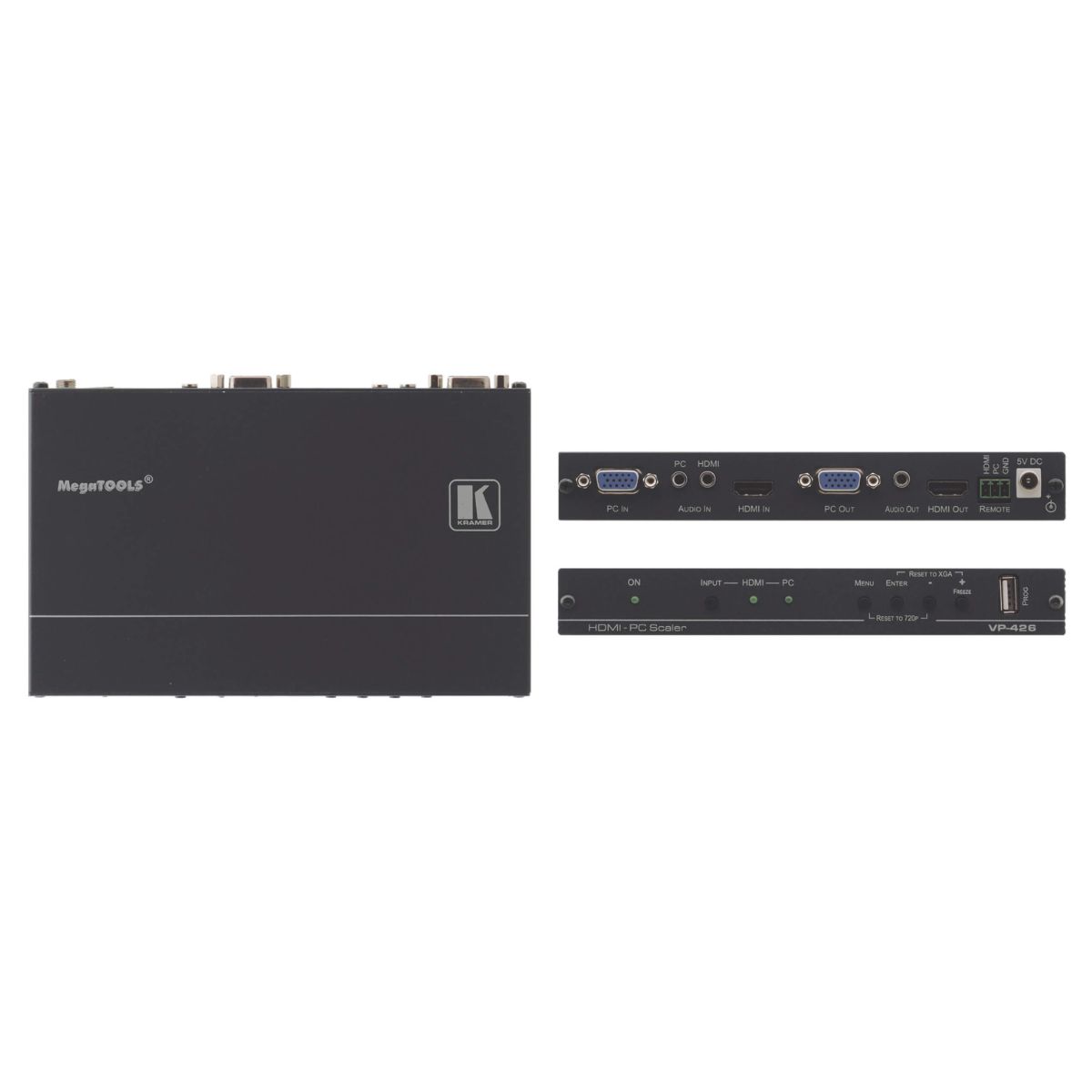

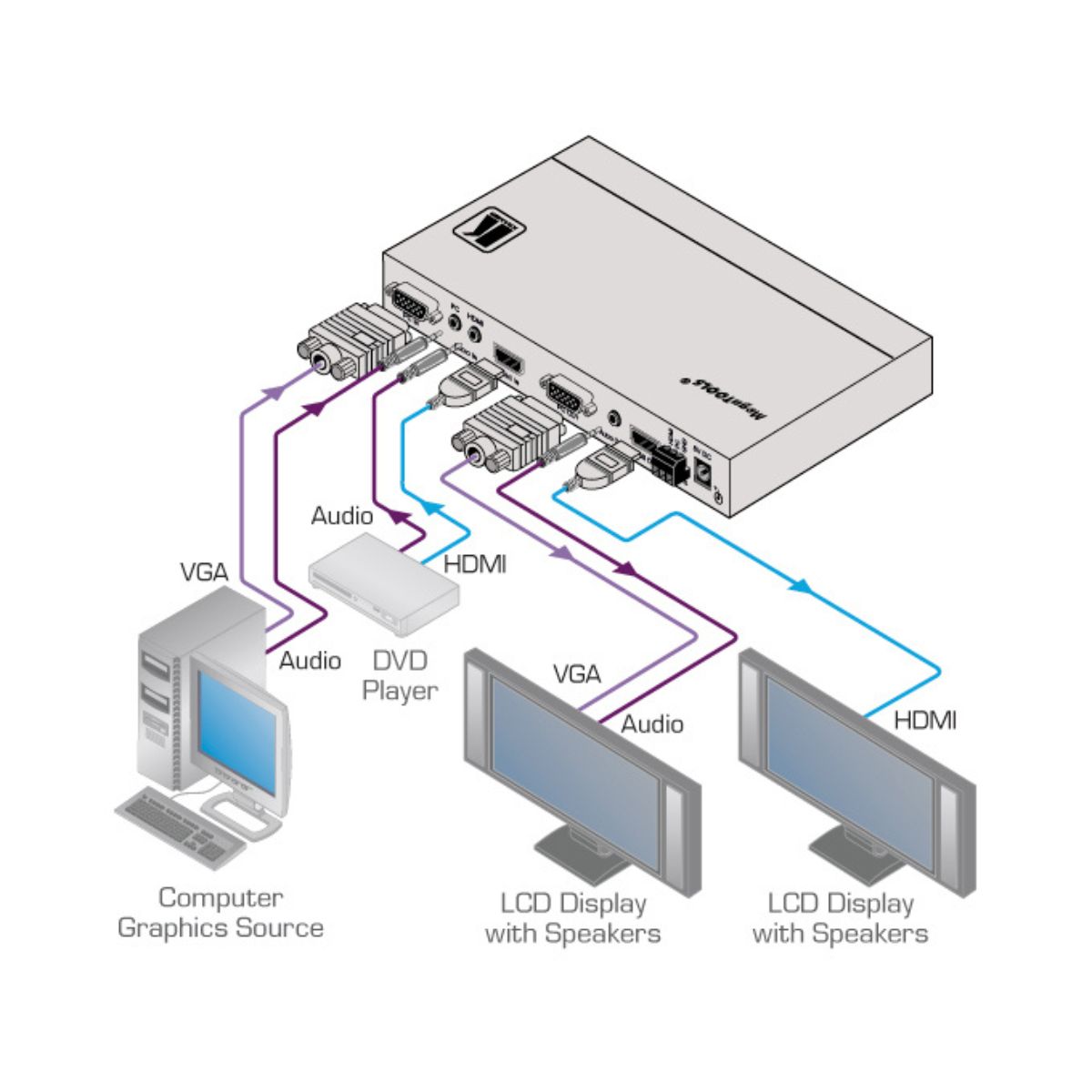

VP-426 HDMI/Computer Graphics Video
HDMI/Computer Graphics Video & HDTV ProScale™ Digital Scaler
Highlights
Inputs — RGBHV, YPbPr or HDMI.
Outputs — RGBHV and HDMI simultaneously.
HDTV Compatible.
HDCP Compliant.
Input Auto–Scanning.

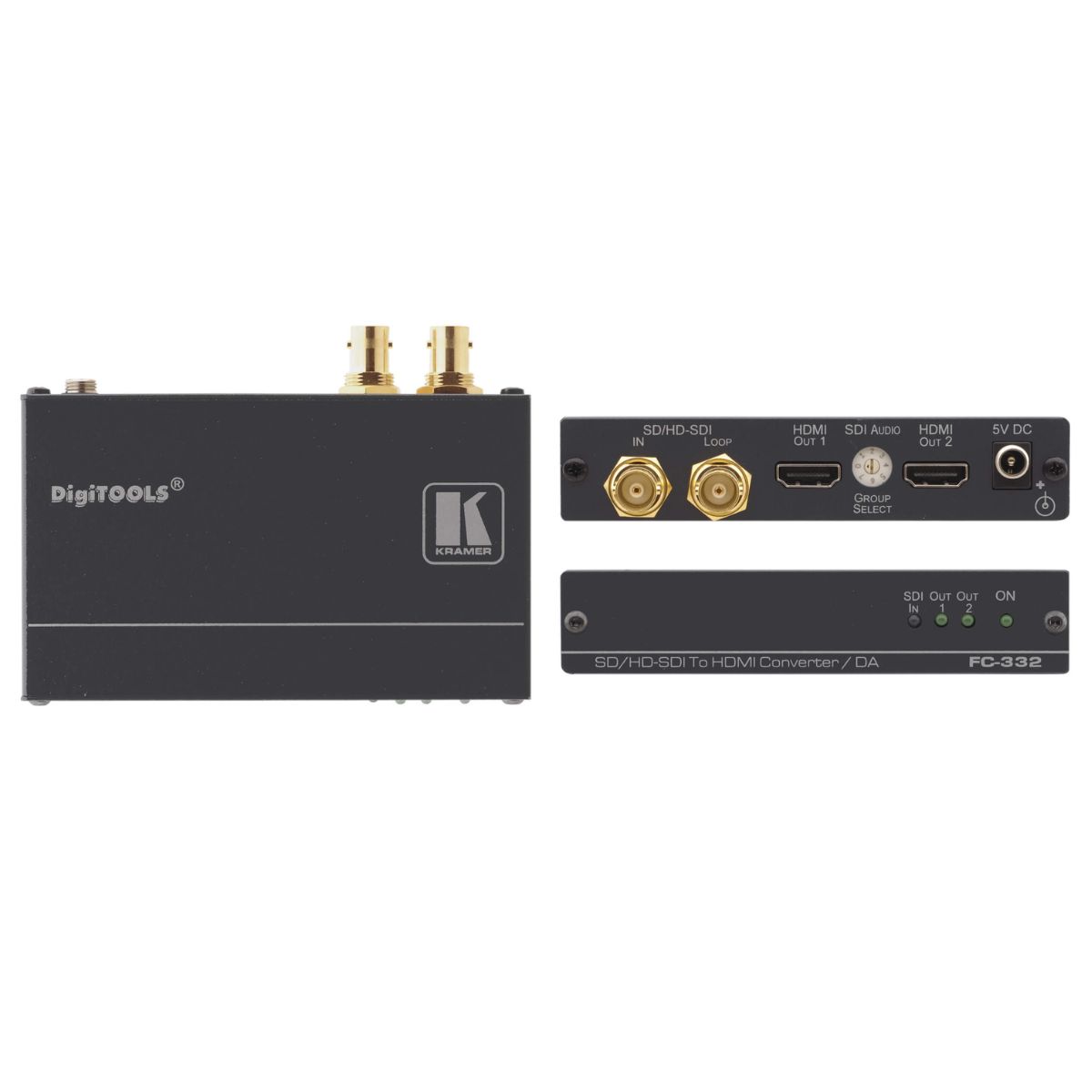

FC-332 HDMI Format Converter
3G HD–SDI to HDMI Format Converter
Highlights
HDTV Compatible.
Looping Input.
Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M) compliance and support for data rates of 270Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps.

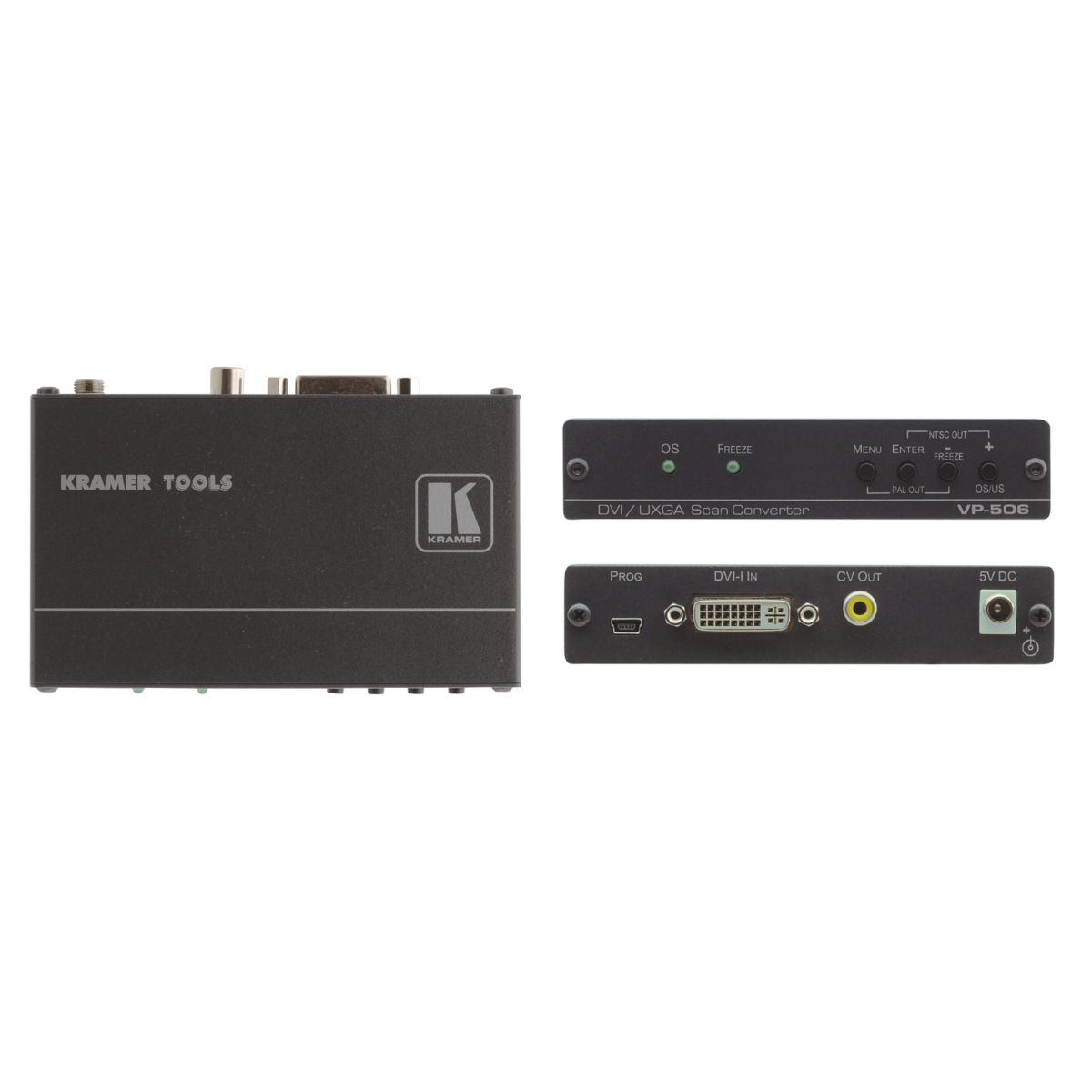

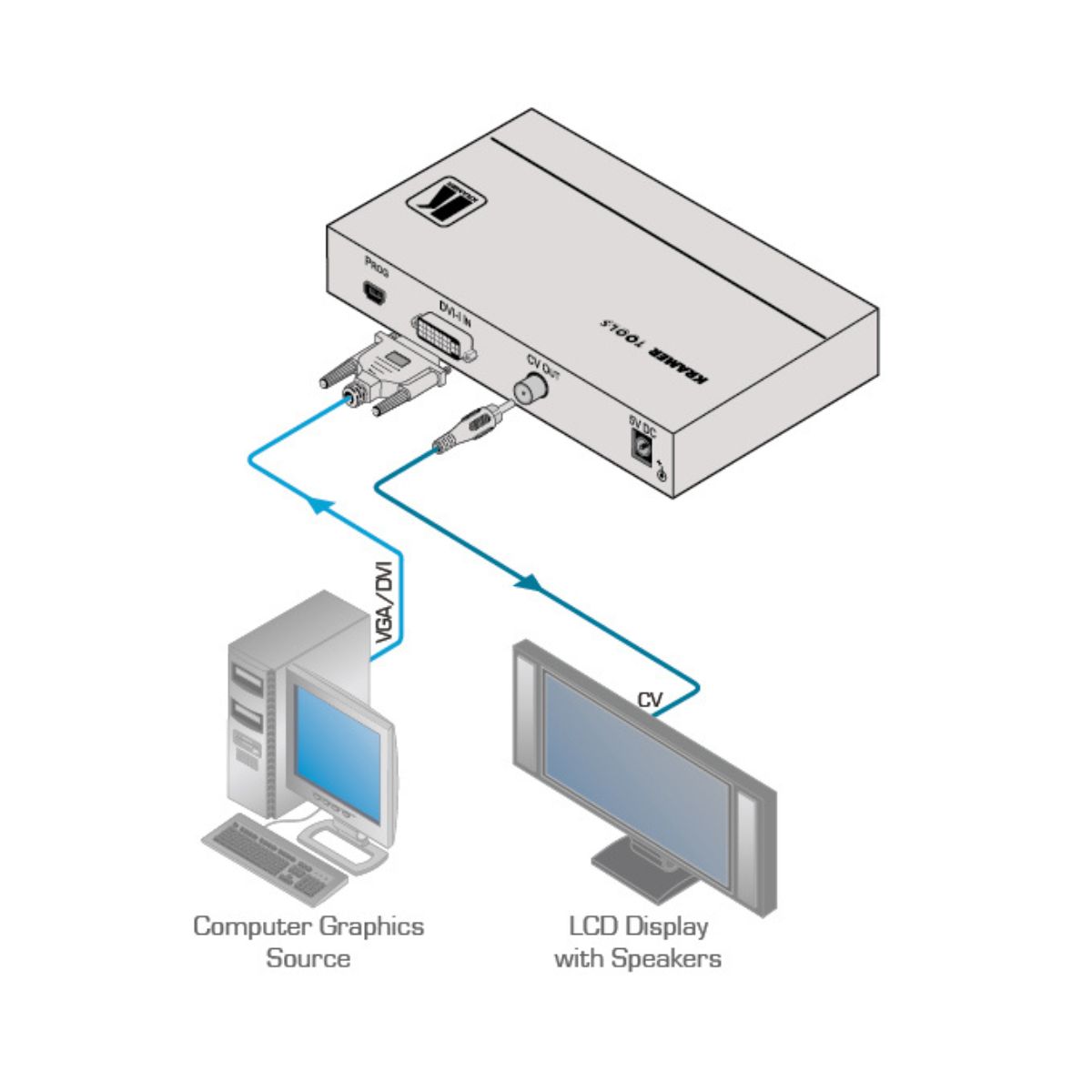

VP-506 DVI & Computer Graphics Video
DVI & Computer Graphics Video Scan Converter
Highlights
Max. Resolution — UXGA & 1080p.
HDTV Compatible Input.
Selectable Video Standards — PAL or NTSC.
Memory Locations — Saves and recalls up to four setups, including picture, input, output, zoom and advanced feature setups.

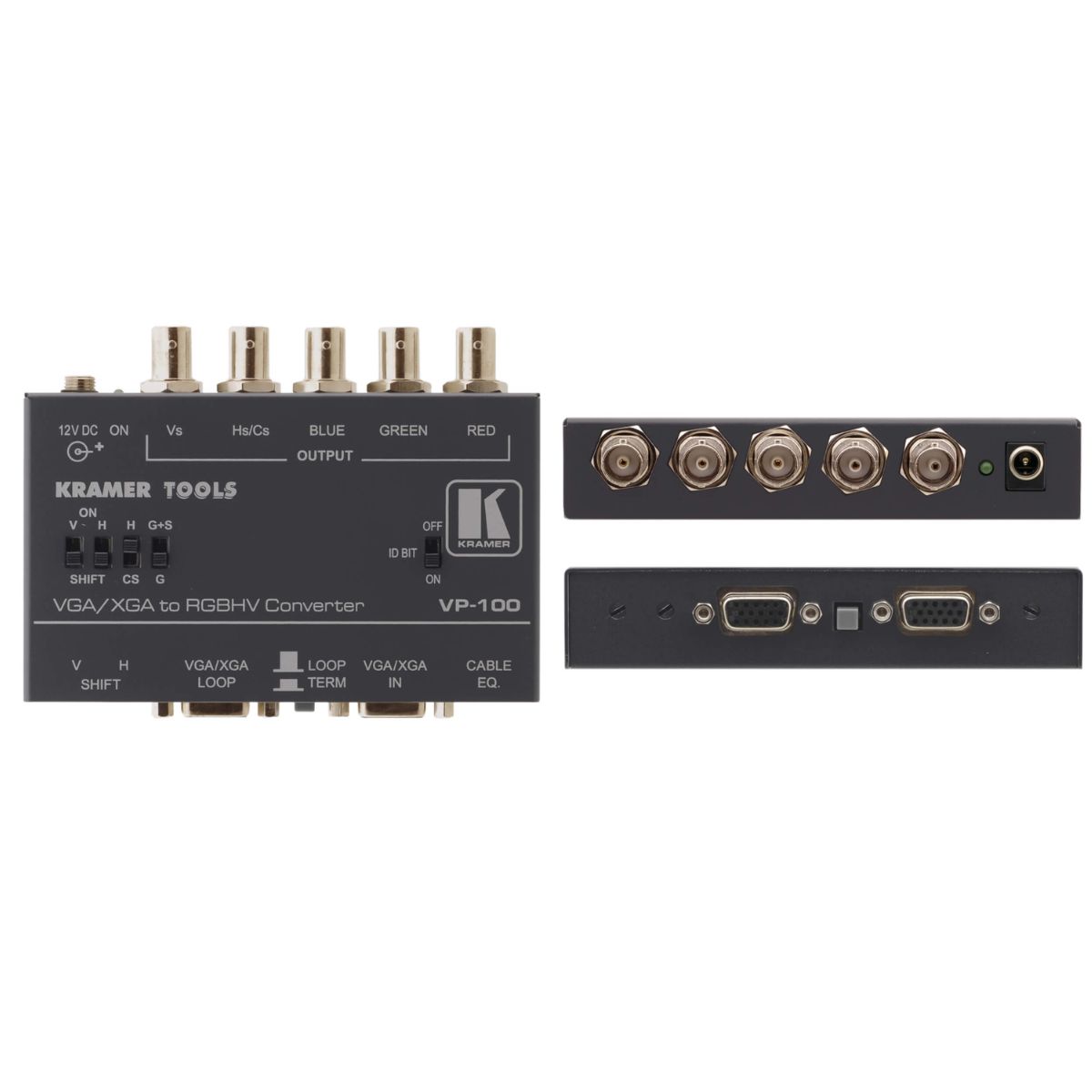

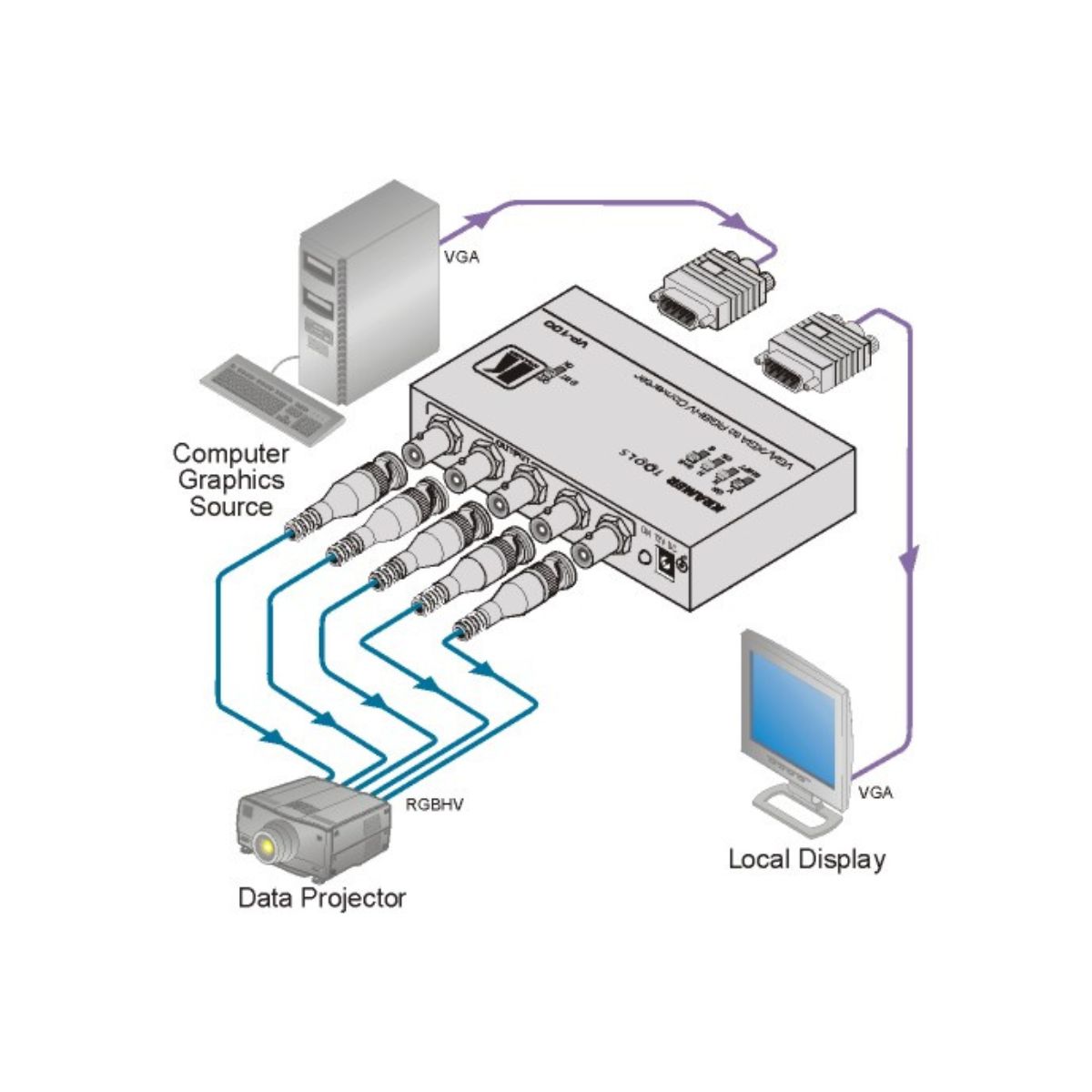

VP-100 Computer Graphics Video
Computer Graphics Video to RGB/HV/S Format Converter
Highlights
High Bandwidth — 350MHz (–3dB).
Control — H/V sync shift & sync selection.
Looping Input.
Selectable Input Signal Termination.
ID Bit Control.

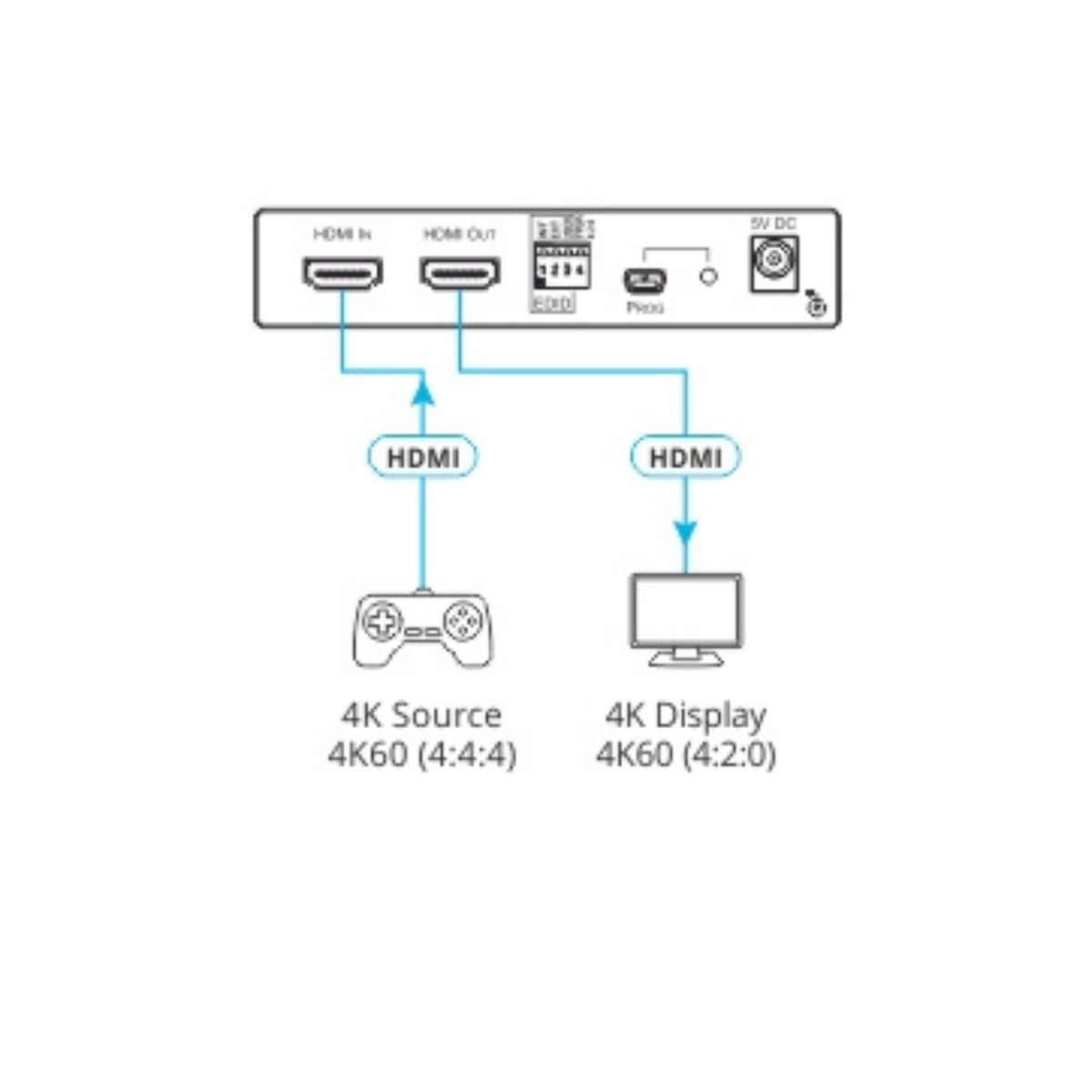

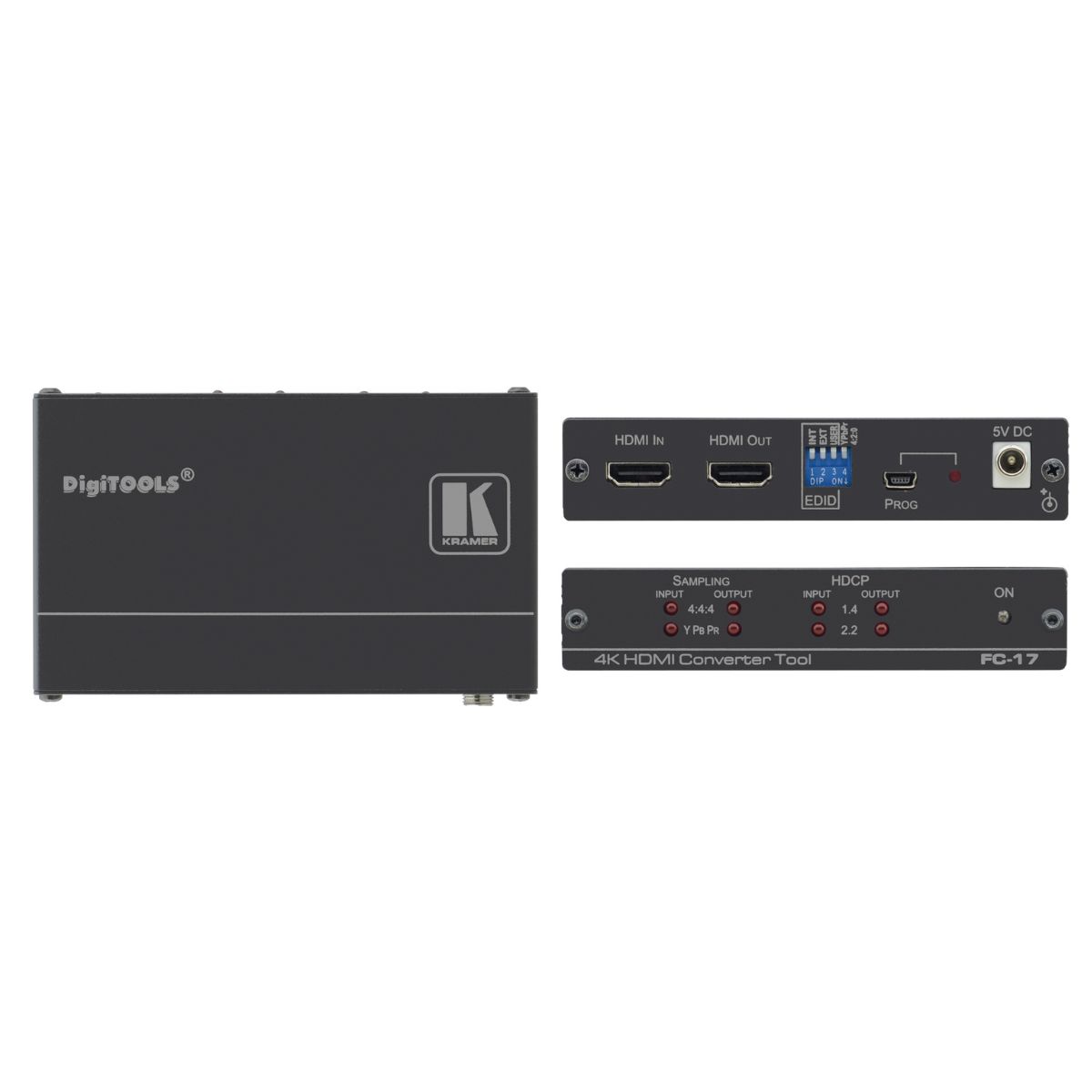

FC-17 HDMI Converter
HDMI 4K60 4:4:4 / 4:2:0 Converter with HDCP 1.4 & 2.2
Highlights
Max. Resolution — 4K@60Hz (4:4:4).
HDMI Support — HDR, CEC (by–pass), Dolby Vision (by–pass) as specified in HDMI 2.0.
HDCP 1.4 & 2.2 Compliant.
HDMI Embedded Audio.

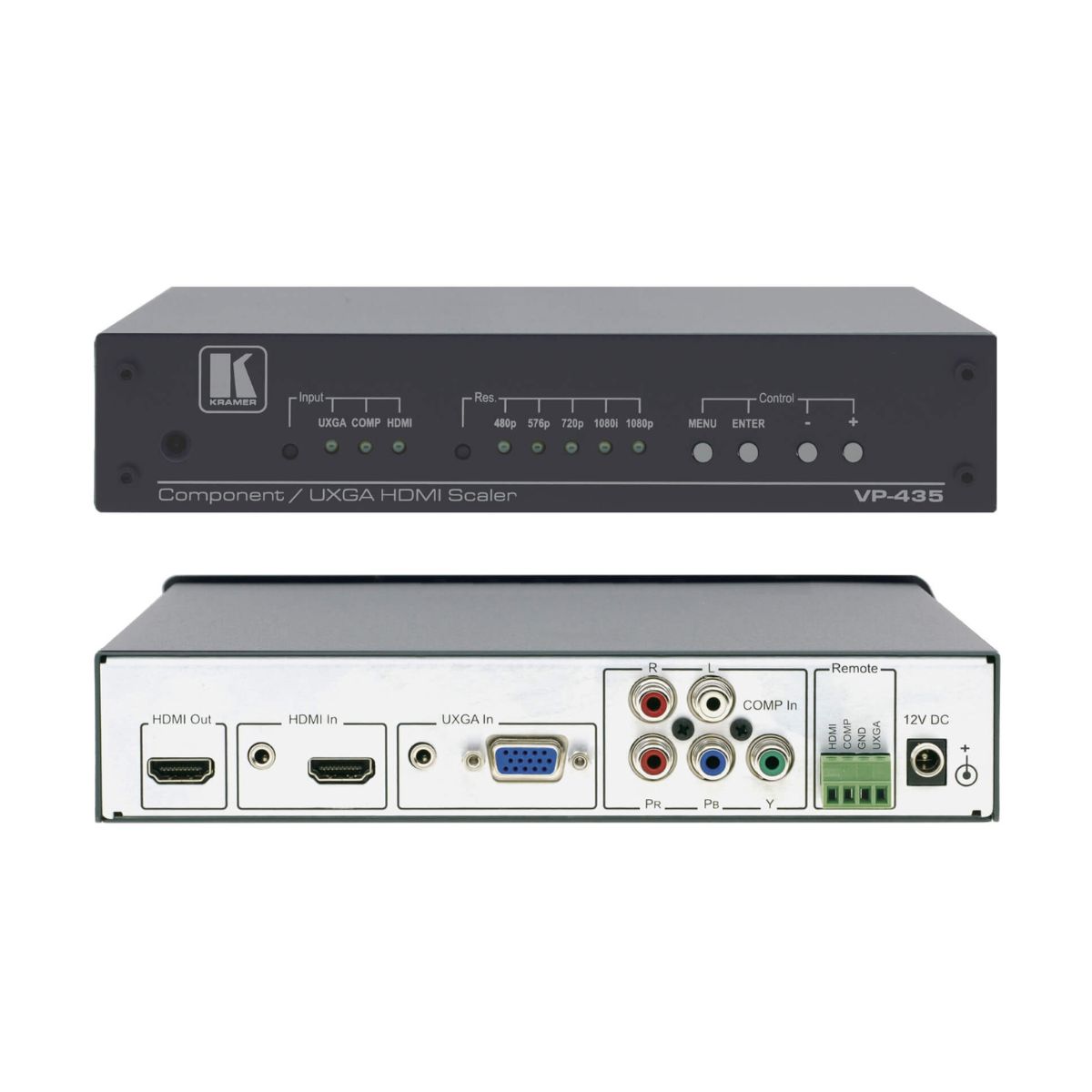

VP-435 HDMI, Component & Computer Graphics
HDMI, Component & Computer Graphics Video to HDMI ProScale™ Digital Scaler
Highlights
Computer Graphics & HDTV Output Resolutions.
Control — Contact Closure Switching & IR
Embeds Audio to HDMI Output
Rack Kit — RK–1

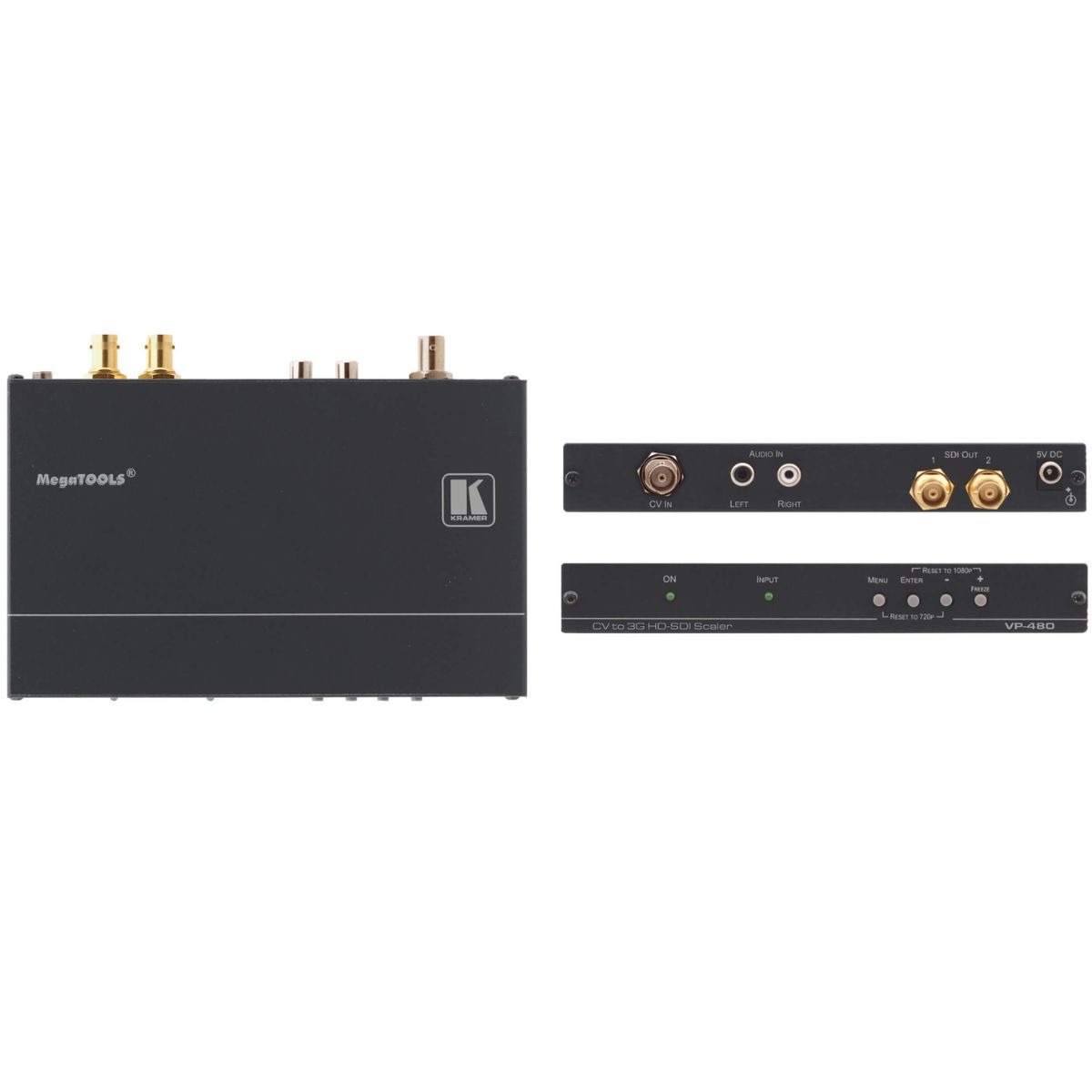

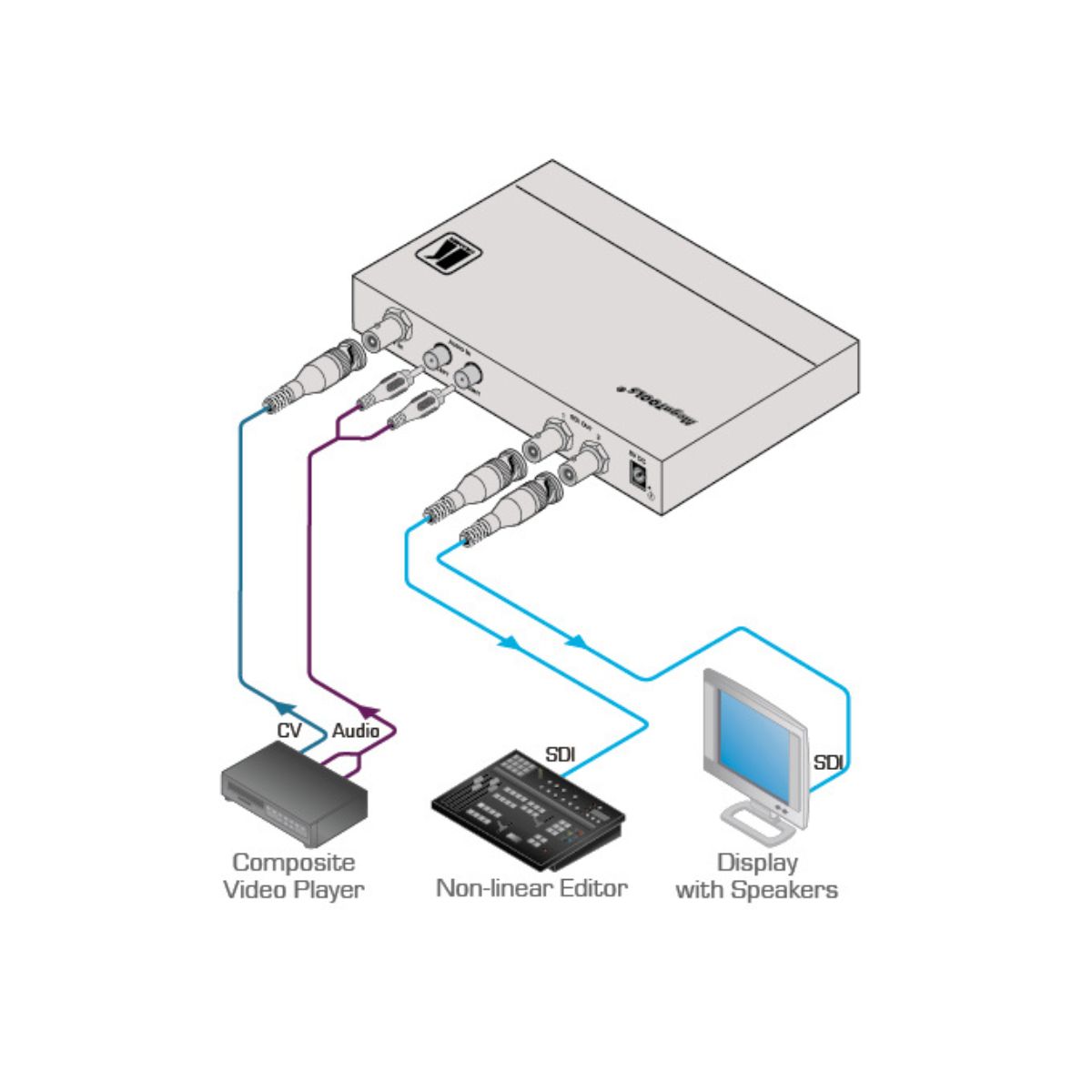

VP-480 Composite Video & Stereo Audio
Composite Video & Stereo Audio to 3G HD–SDI ProScale™ Digital Scaler
Highlights
Max. Data Rate — 3Gbps
Max Resolution — 1080p
Built–In Proc Amp
Control — Front Panel with OSD
Dual HD–SDI Outputs

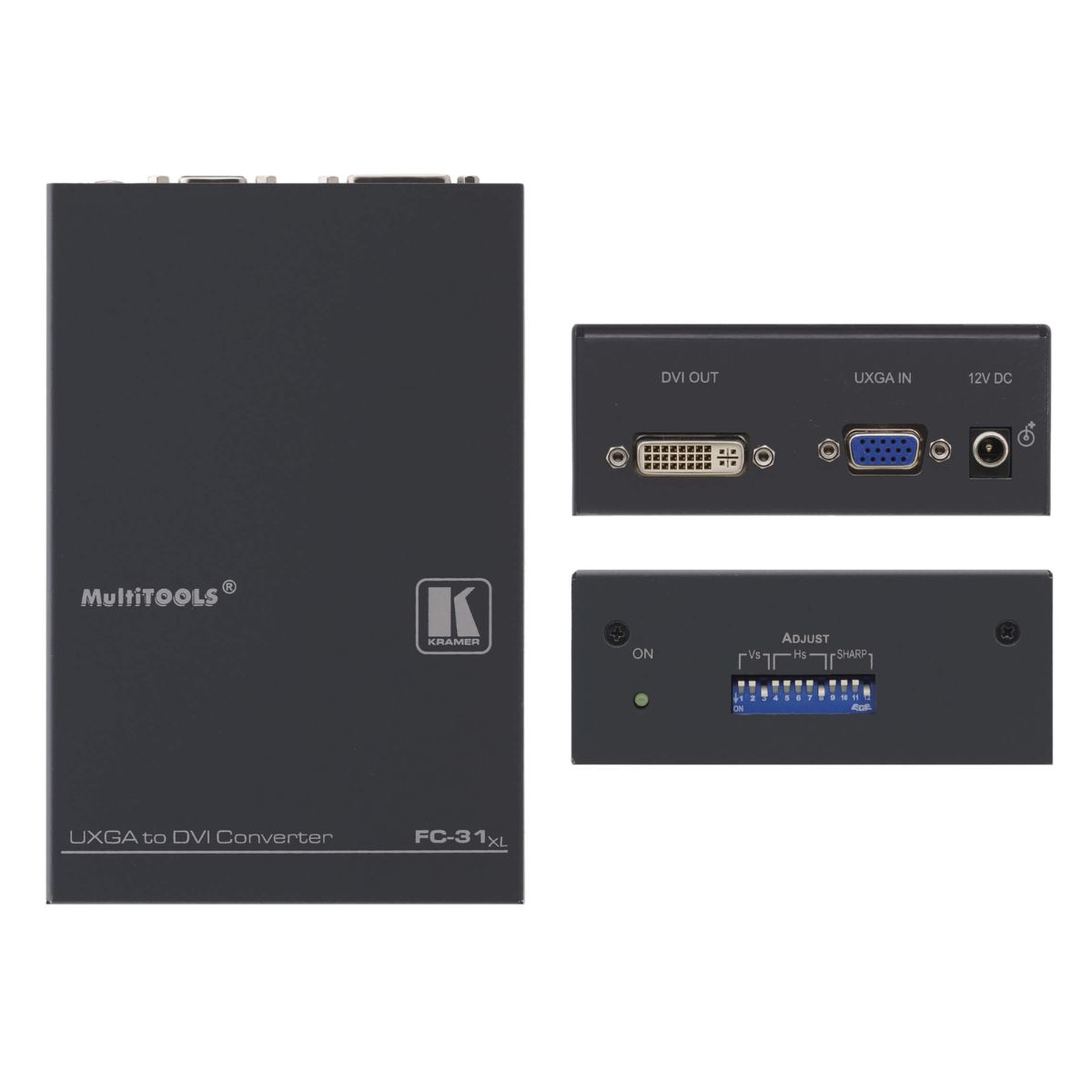

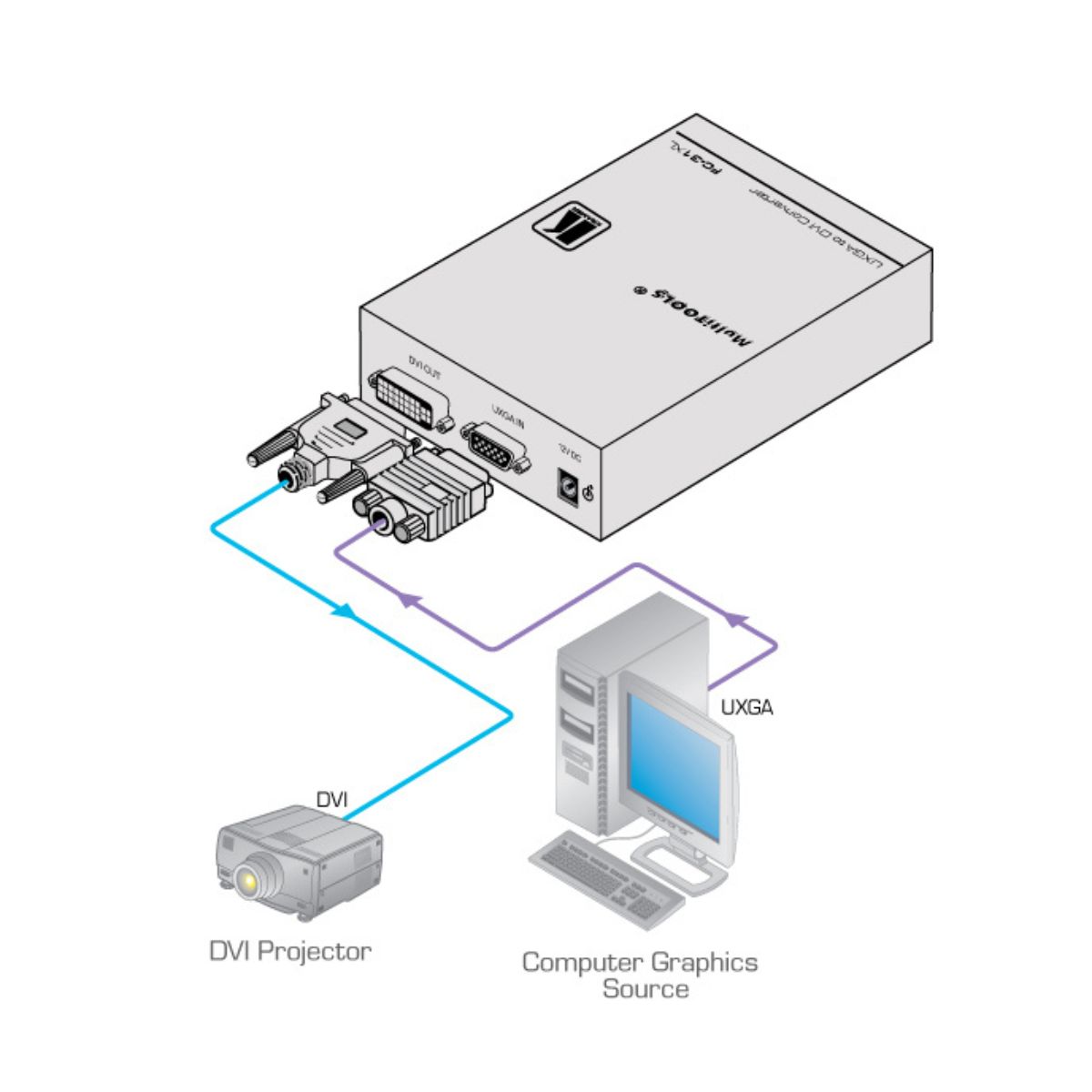

FC-31xl Computer Graphics Video
Computer Graphics Video to DVI Format Converter
Highlights
Max. Data Rate (DVI) — 4.95Gbps (1.65Gbps per graphic channel).
Controls — H & V position and sharpness via DIP–switches.
Compact MultiTOOLS® — 4 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.

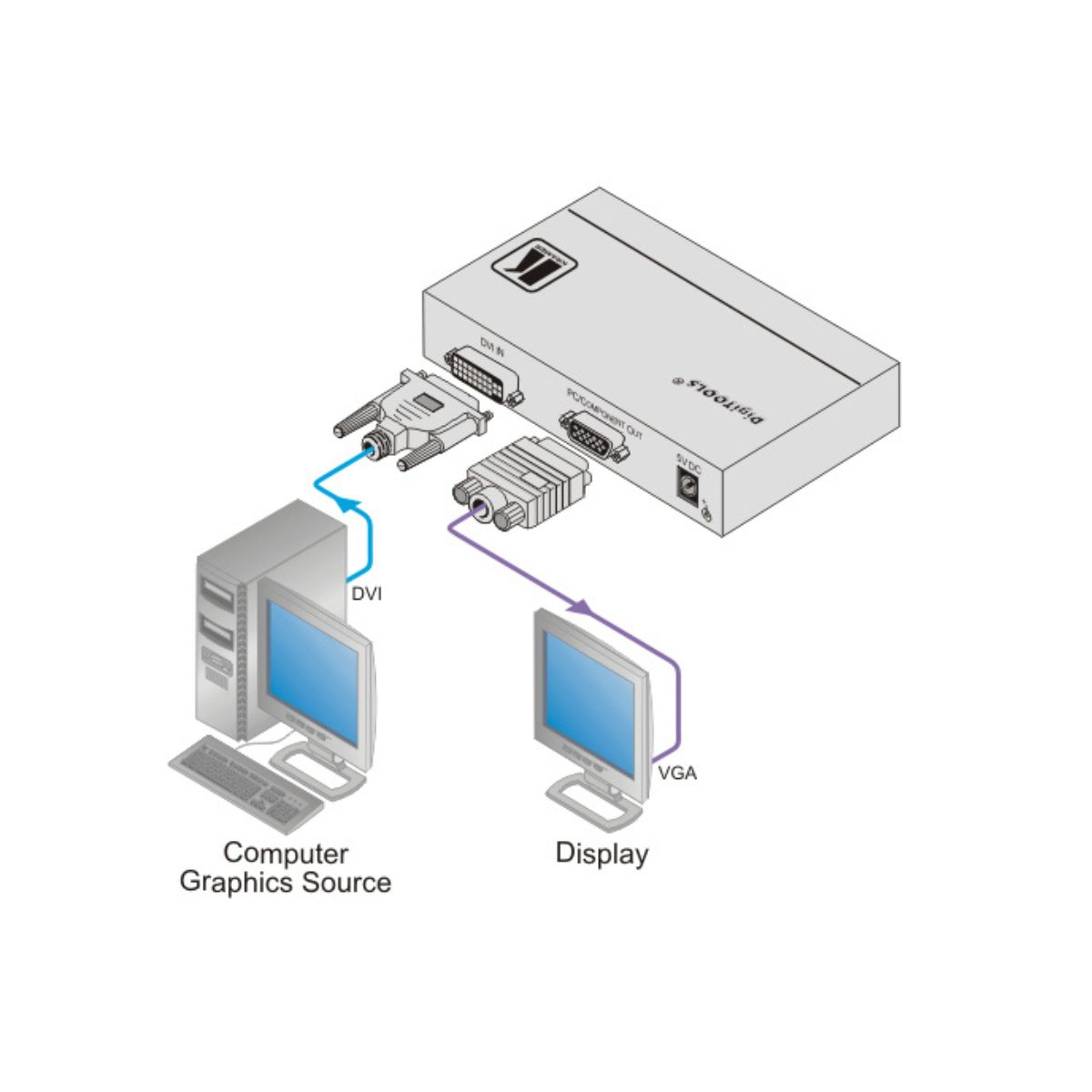

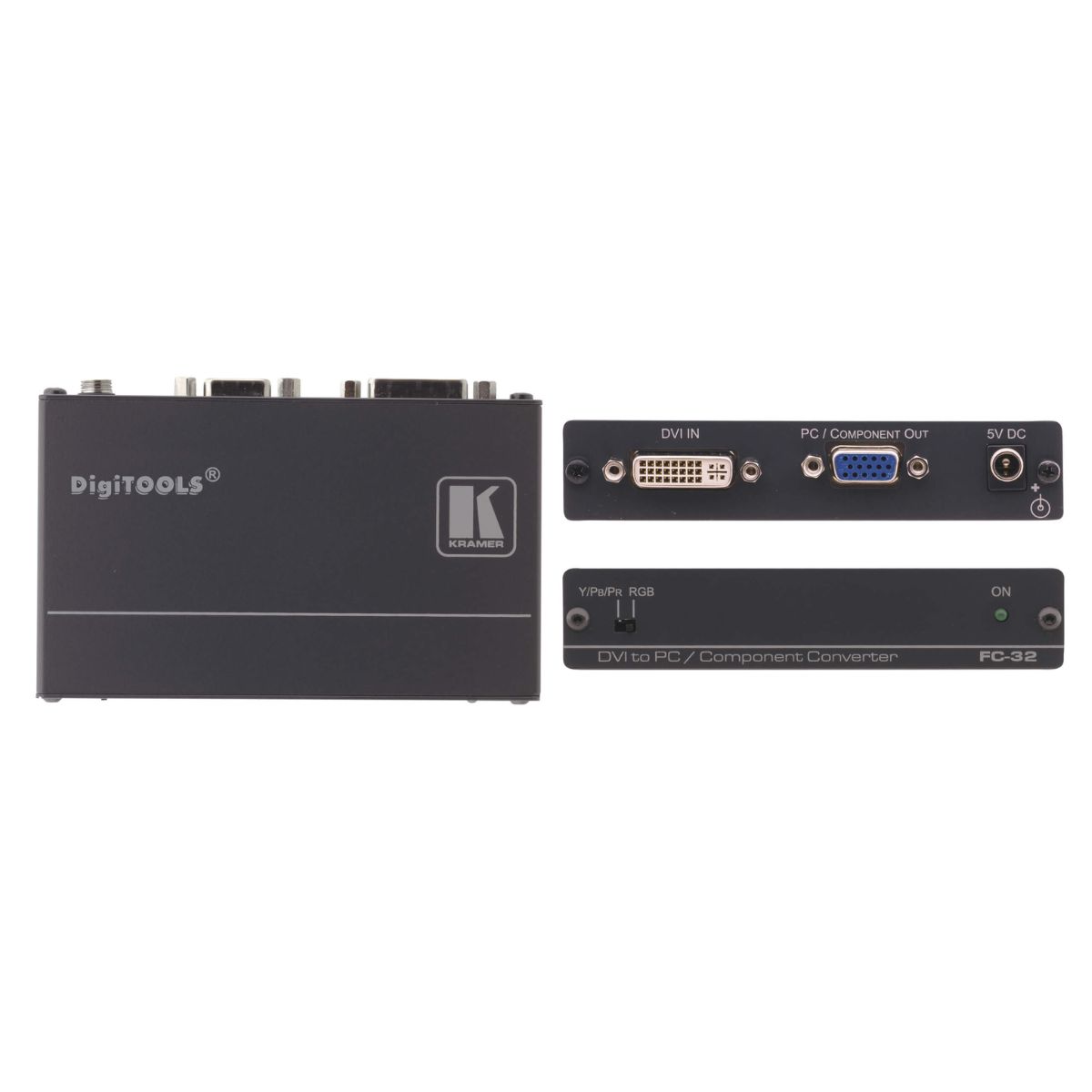

FC-32 DVI to Computer Graphics/Component
DVI to Computer Graphics/Component/HDTV Video Format Converter
Highlights
HDTV Compatible.
Max. Resolution — WUXGA & 1080p.
Computer Graphics Video or Component (HDTV) Selector Switch.
Compact DigiTOOLS® — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.

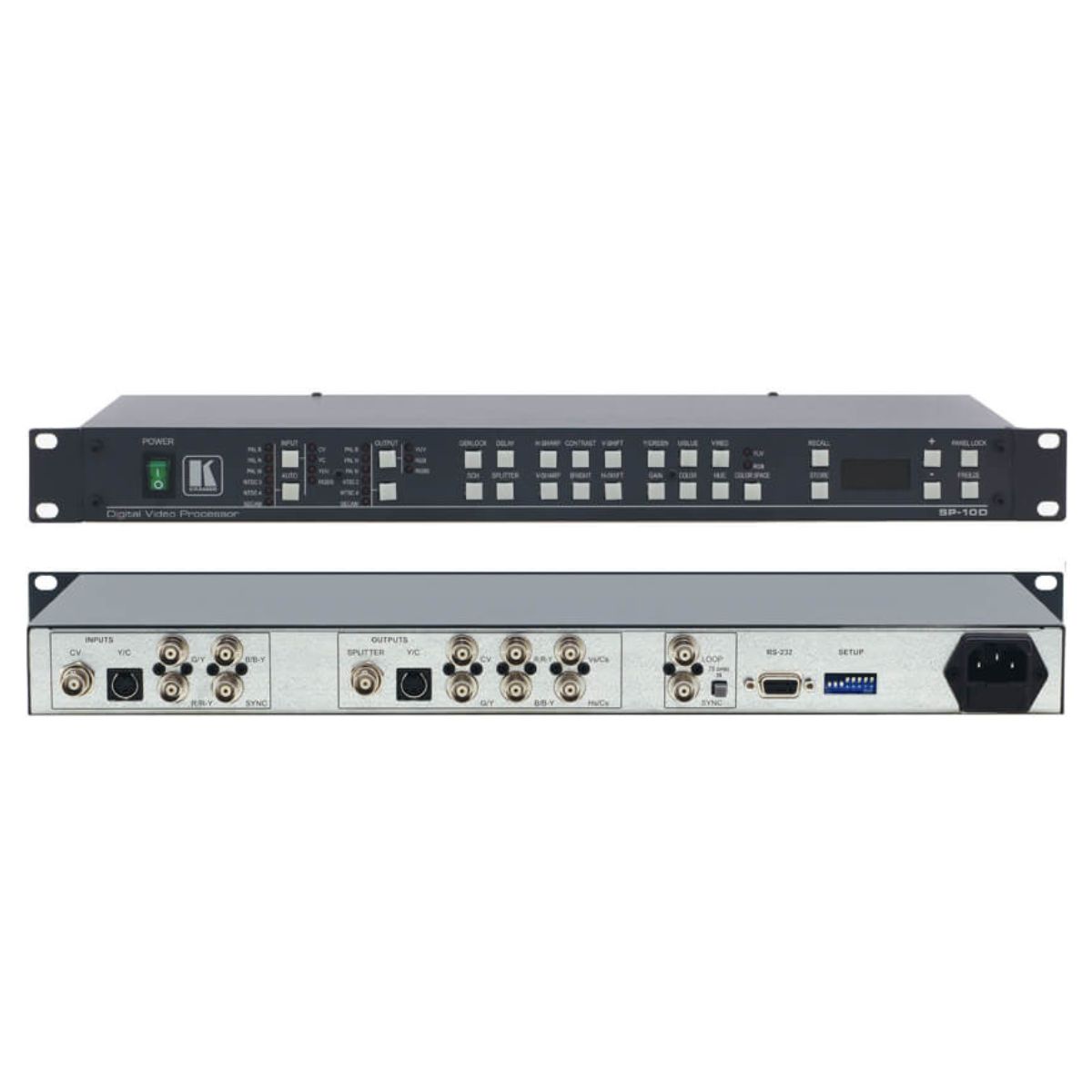

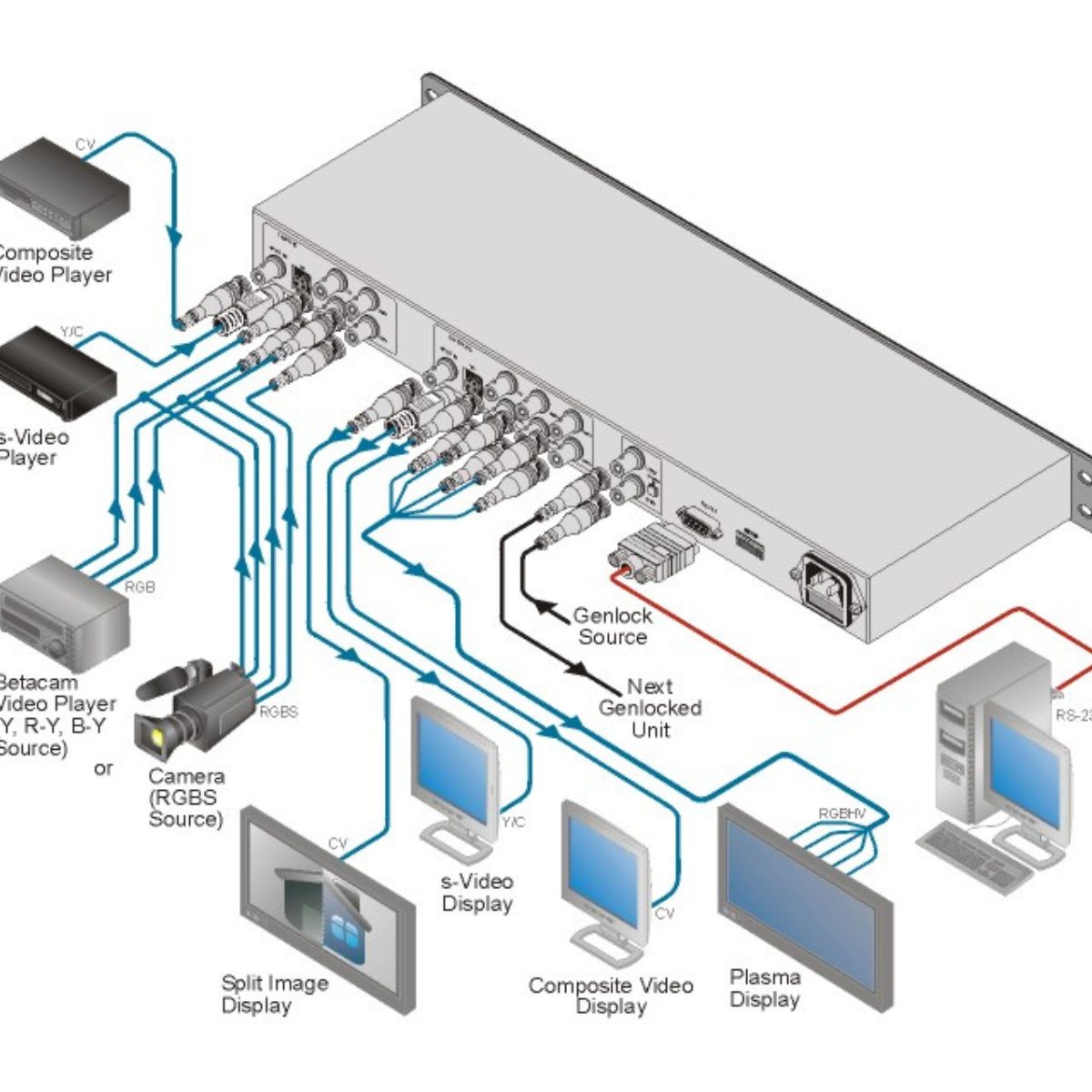

SP-10D Multi–Format Analog Video Processor
Multi–Format Analog Video Processor/ProcAmp/TBC/Format & Standards Converter
Highlights
Video Processor
Format Converter
ProcAmp
TBC
Standards Converter
Genlock Input
Split–Screen
Control — RS–232

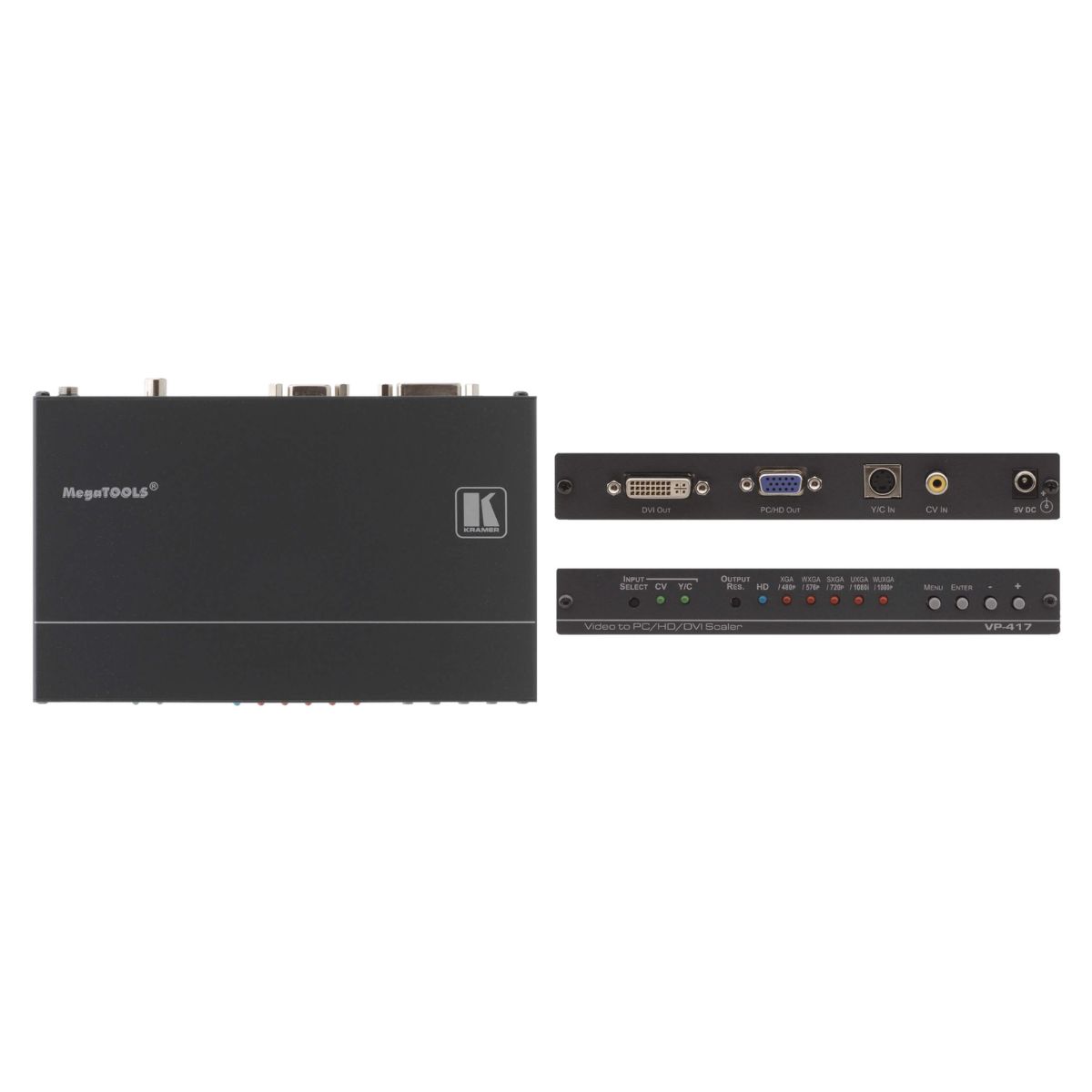

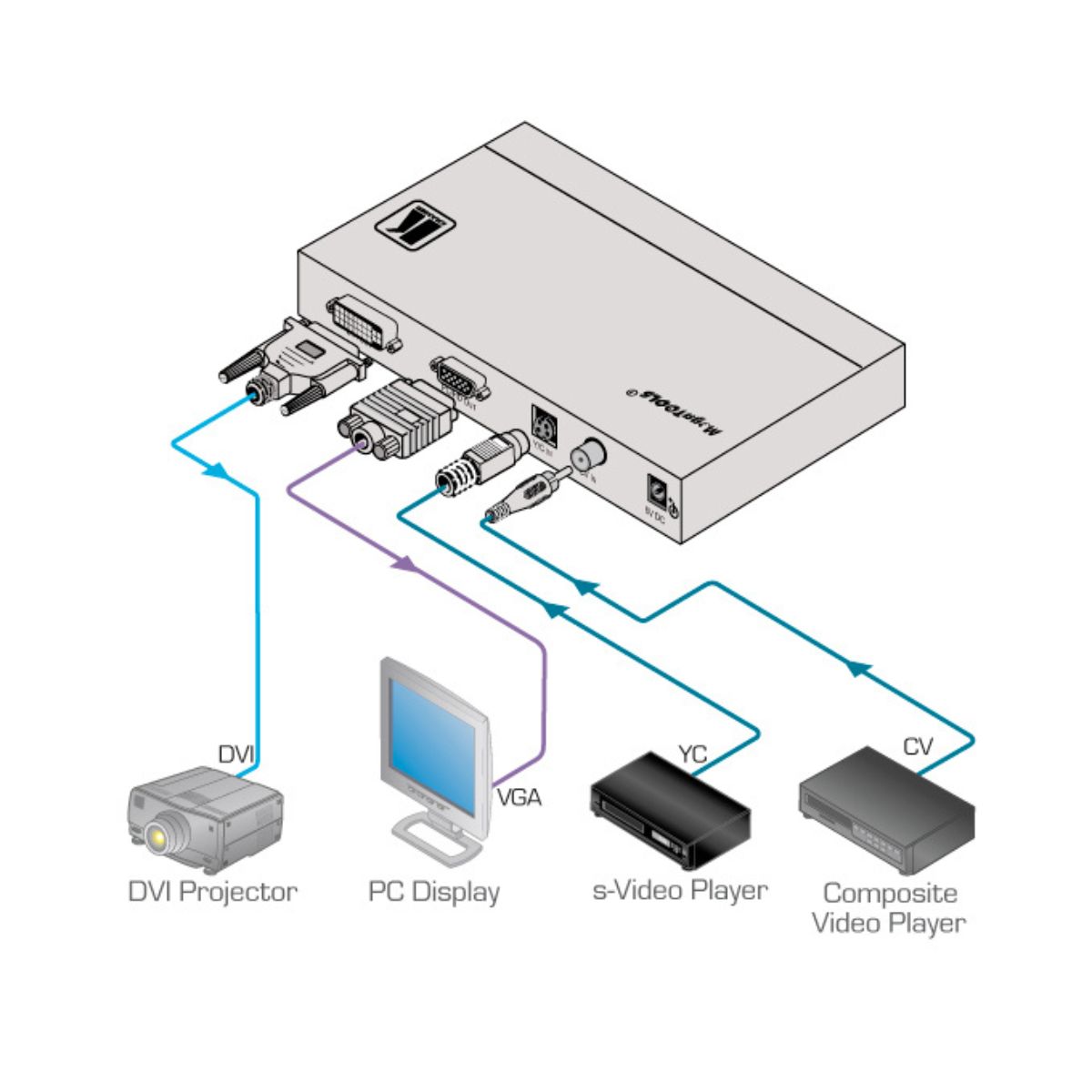

VP-417 Video to Computer Graphics, DVI
Video to Computer Graphics, DVI & HDTV ProScale™ Digital Scaler (up to WUXGA/1080p)
Highlights
Max. Resolution — WUXGA & 1080p.
HDTV Compatible.
Multiple Formats — Supports composite and s–Video inputs and computer, HDTV and DVI outputs.
Built–in ProcAmp — Color, sharpness, brightness, contrast, etc.
Non–Volatile Memory — Saves final settings.

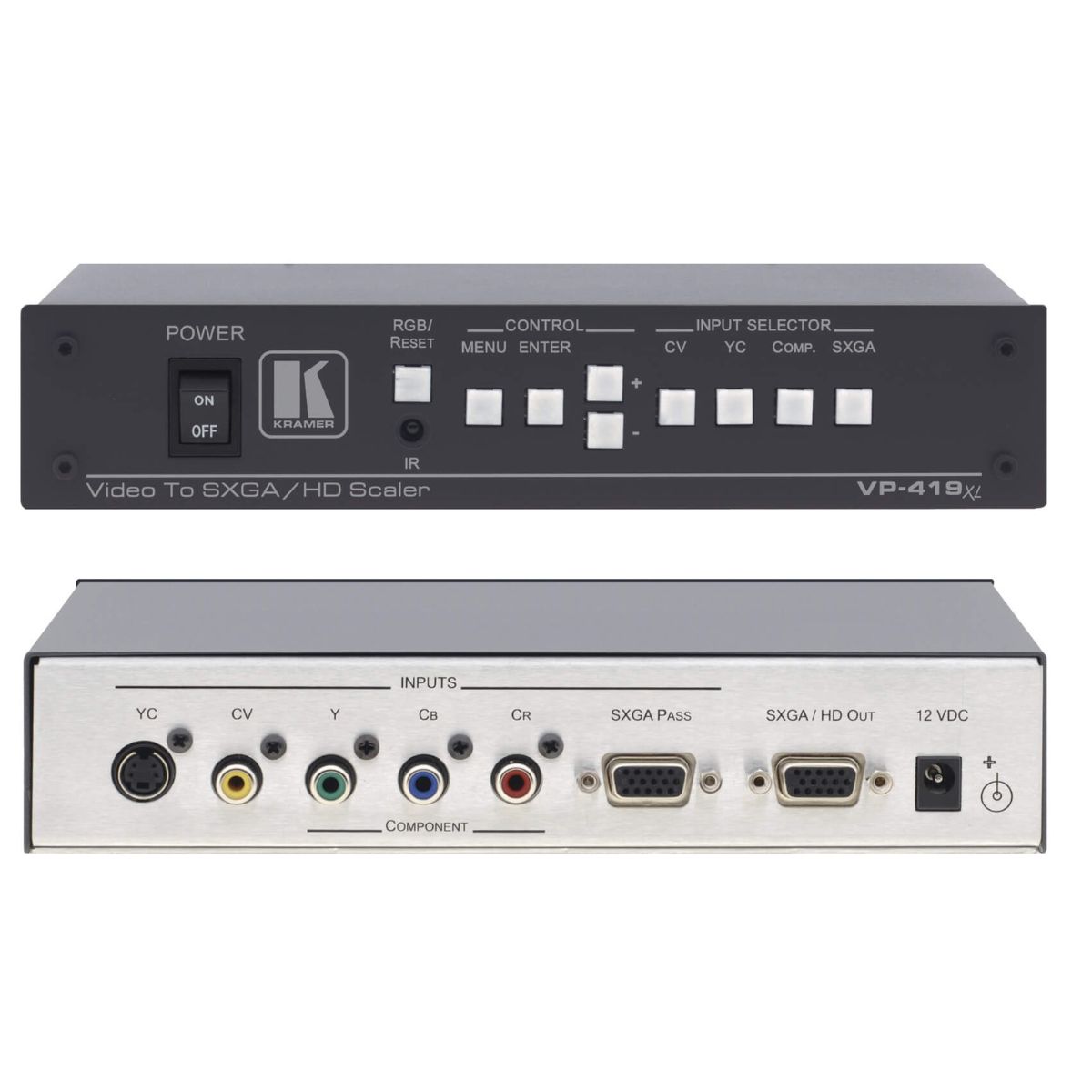

VP-419xl Video to Computer Graphics
Video to Computer Graphics/HDTV ProScale™ Digital Scaler
Highlights
Computer or HDTV Output
VGA Input — Pass–Through
Multi–Standard — NTSC & PAL
Built–In Proc–Amp
3D Comb Filter
3:2 Pull Down
Control — IR Remote

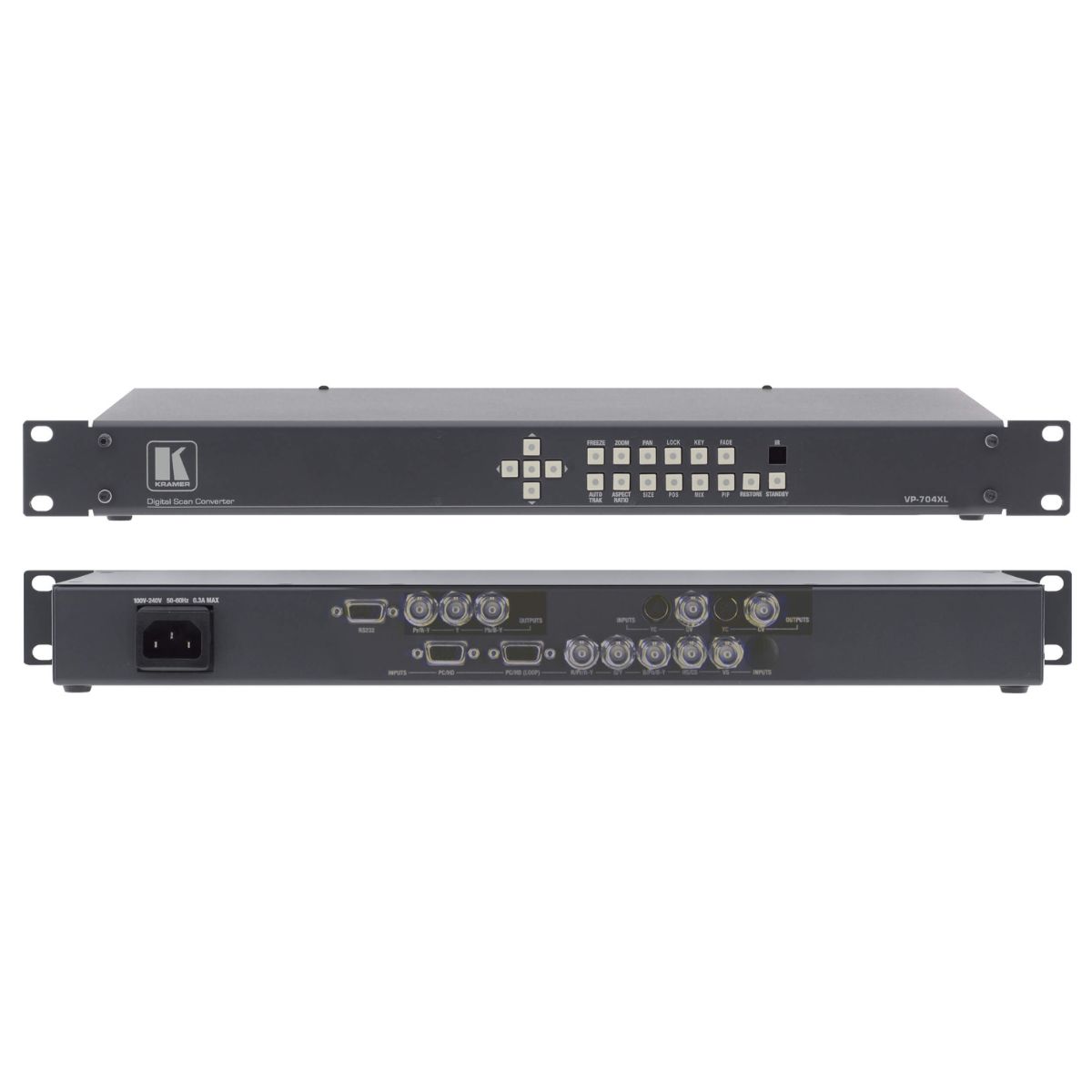

VP-704xl Computer Graphics Video & HDTV
Computer Graphics Video & HDTV Scan Converter with Video Overlay
Highlights
Computer Input — Up to 2048x2048
HDTV Input — Up to 1080p
Looping 15–Pin HD Input
Proc Amp Controls
Multi–Standard Output — PAL or NTSC
Flicker Reduction
Freeze Frame
