Sierra Video Matrices Product Listing Details

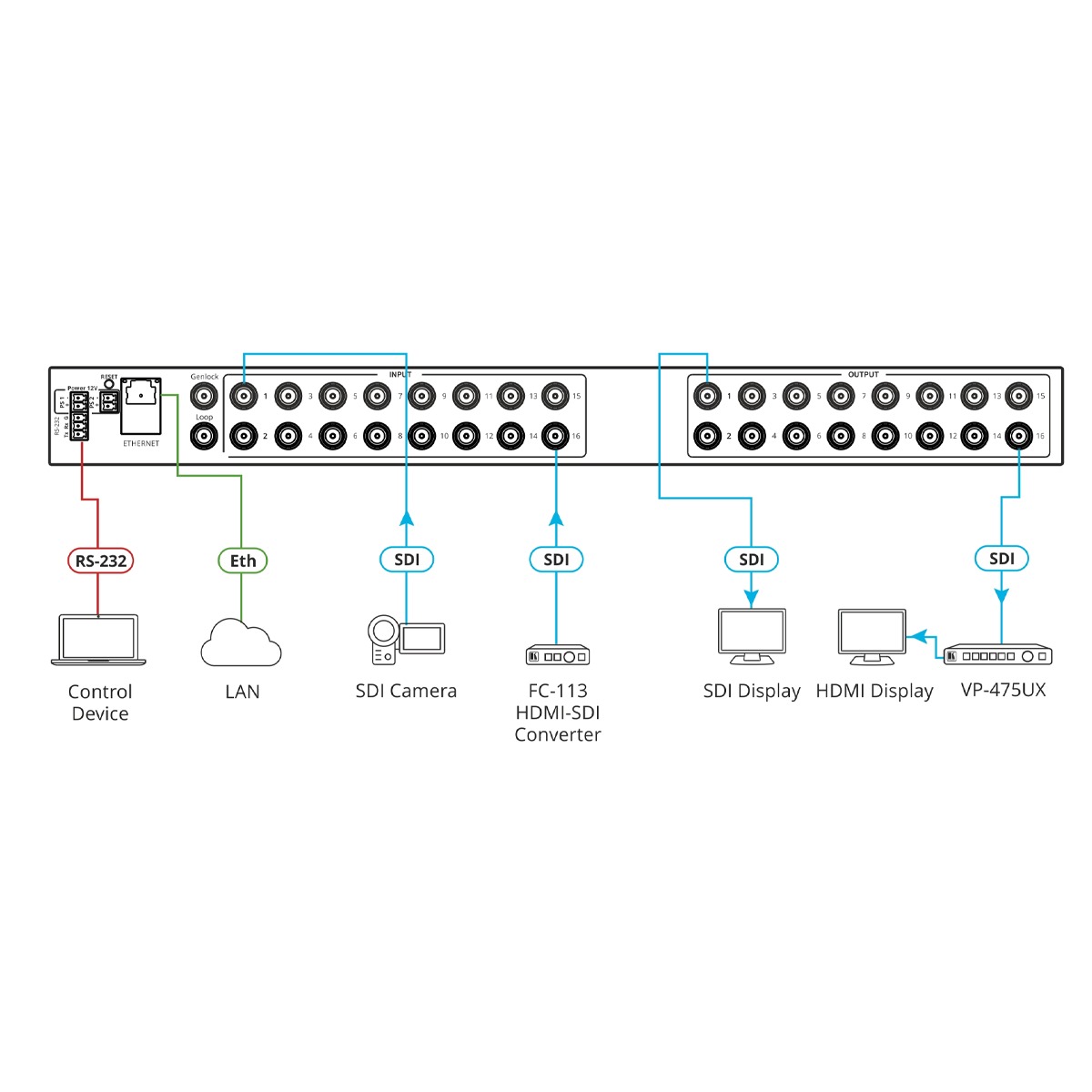

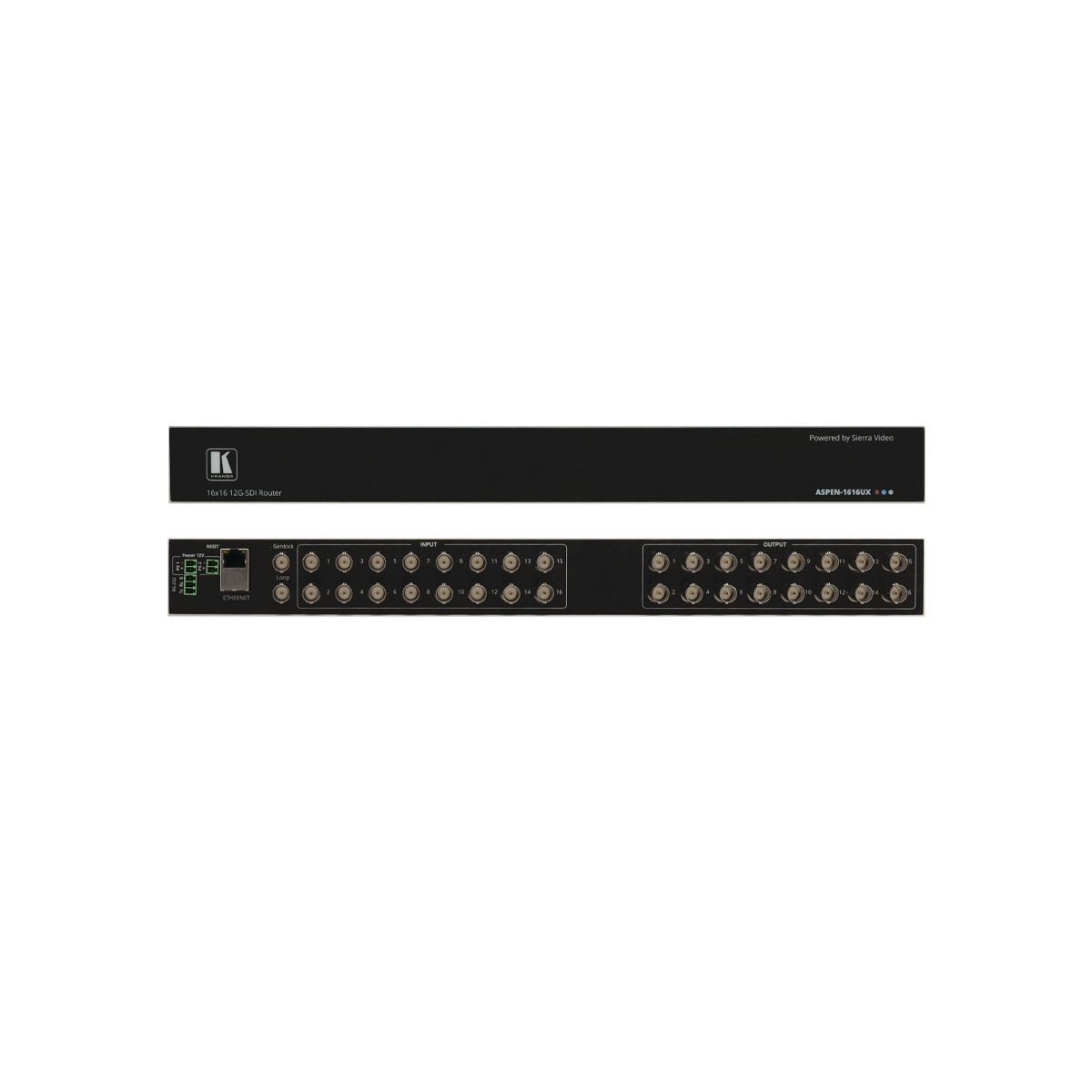

ASPEN-1616UX Matrix Switcher

16X16 12G SDI Matrix Switcher

Highlights

• SDI signals up to 12G
• Multi–Standard Operation — SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI
• Depth — 4 inches
• Genlock clean switching and versatility

ASPEN-32UFX Inputs & Outputs

32–Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs

Highlights

•  Max. Data Rate — 12Gbps.
•  HDTV Compatible.
•  Multi-Standard Operation — 12G–SDI — SMPTE ST–2082–1, 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M/344M
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
•  It supports ANC Data, such as embedded audio, teletext, time code, etc.

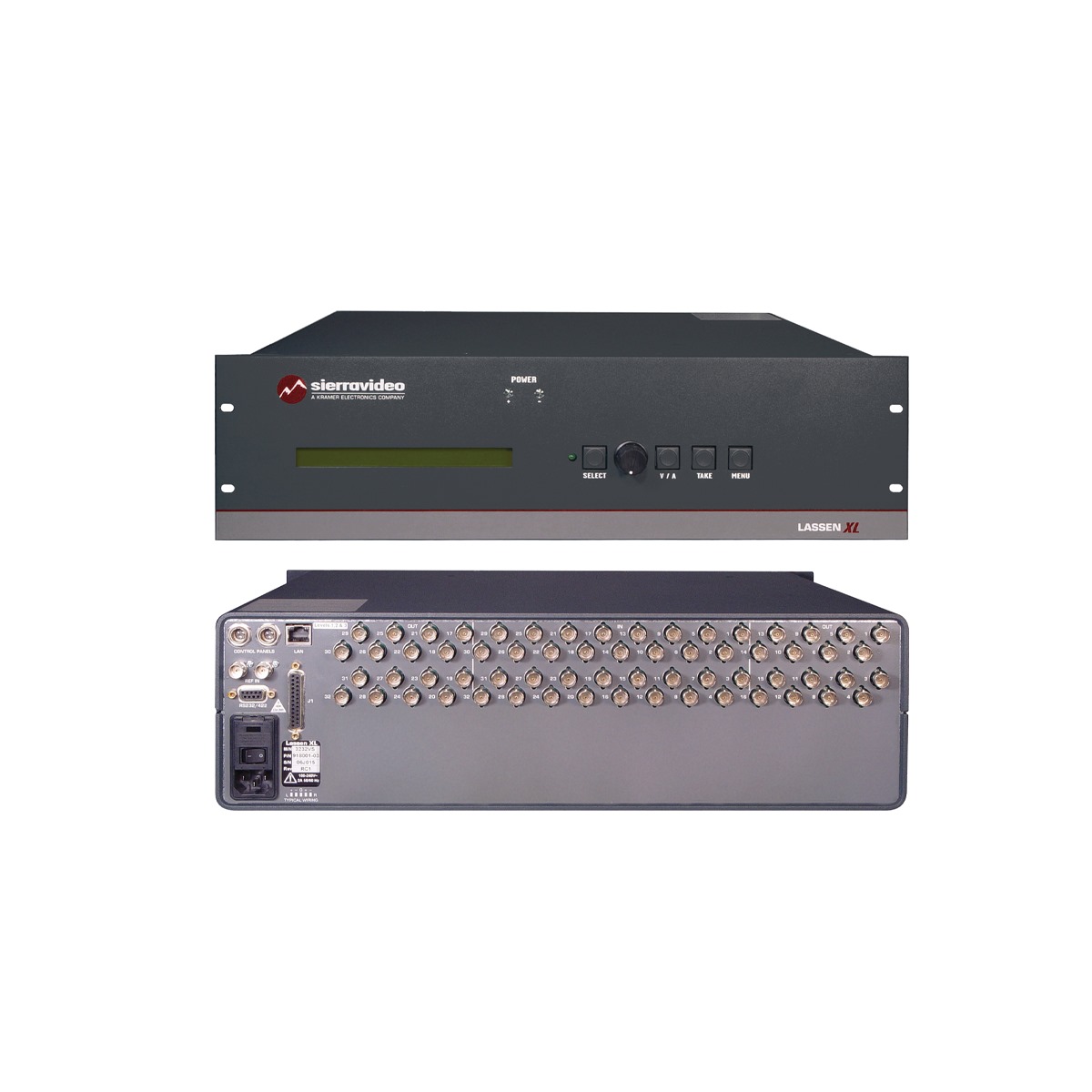

3232V-XL Video Matrix Switcher

32x32 Composite Video Matrix Switcher (No Audio)

Highlights

• Lassen XL Series
• Bandwidth — 300MHz (–3dB)
• available in a compact 3RU frame.
• Control — RS–232, RS–422 & Ethernet

3232VS-XL Audio Matrix Switcher

32x32 Composite Video & Analog Balanced Stereo Audio Matrix Switcher

Highlights

• Lassen XL Series
• Bandwidth — 300MHz (–3dB)
• Input and output gain and attenuation
• Control — RS–232, RS–422 & Ethernet

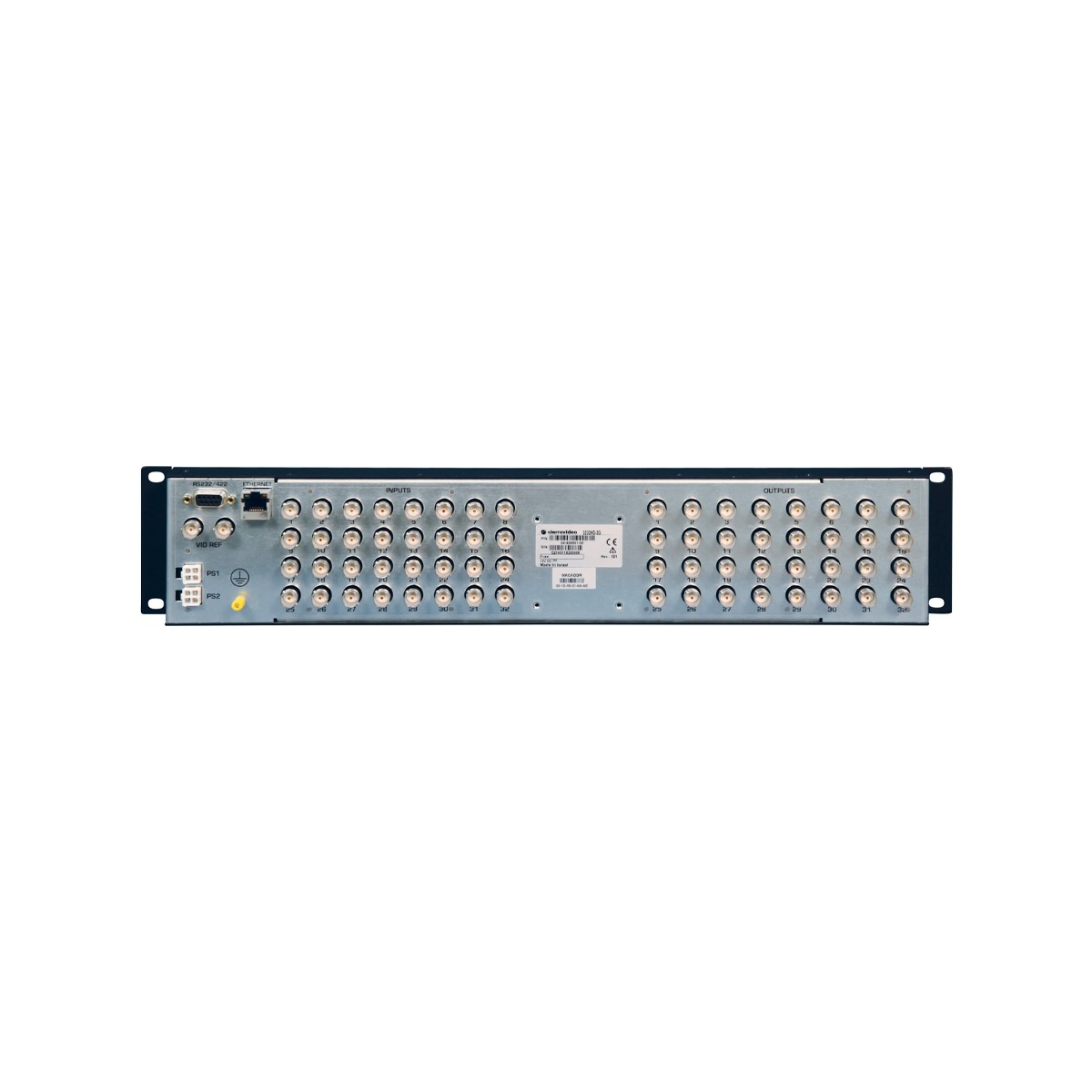

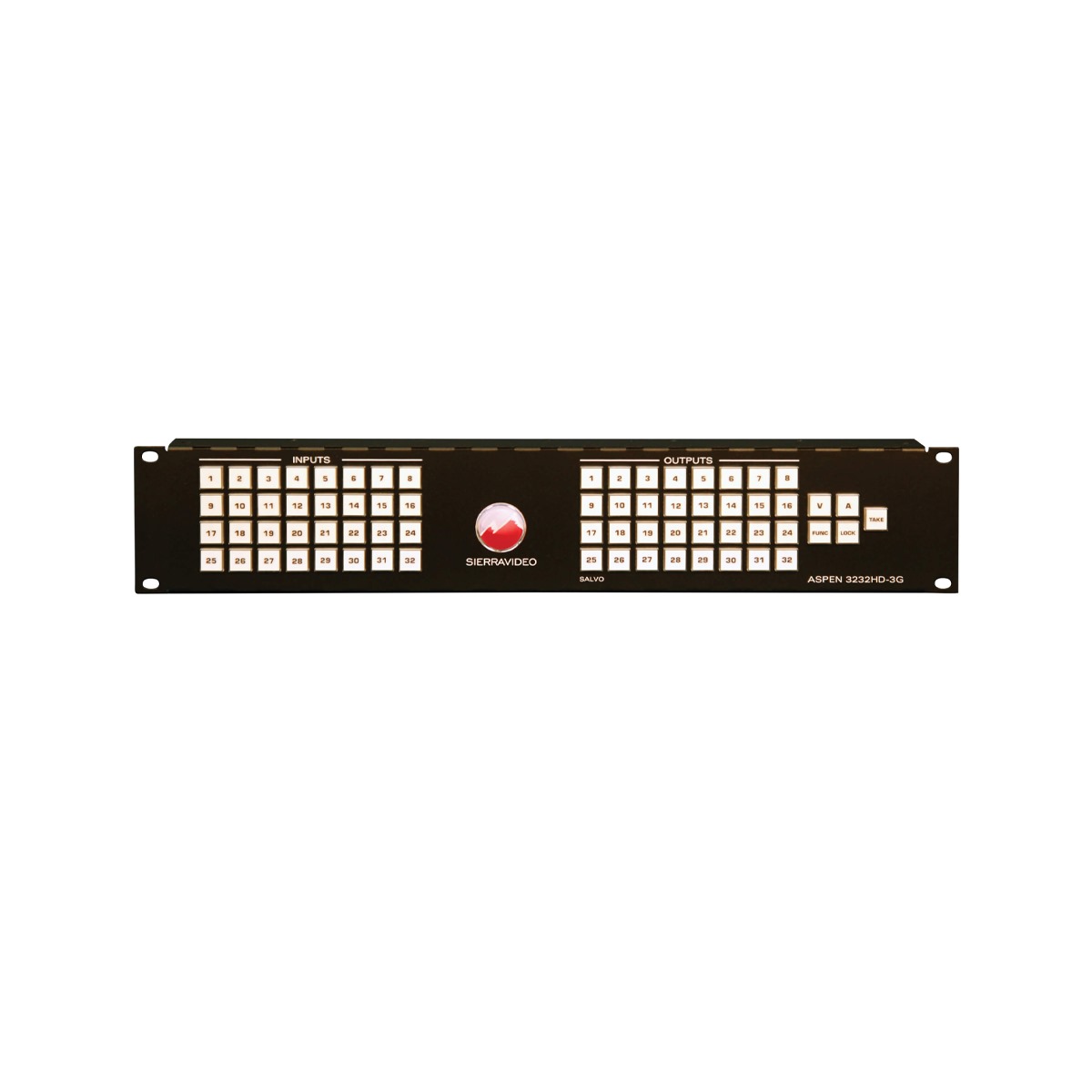

Aspen 3232HD-3G SDI Router

32x32 3G HD–SDI Router

Highlights

• Max. Data Rate — 3Gbps.
•  HDTV Compatible.
•  Multi-Standard Operation — 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M–C/344M, DVB–ASI
•  Advanced Equalization & re–clocking Technology — Rebuilds the digital signal to travel longer distances.

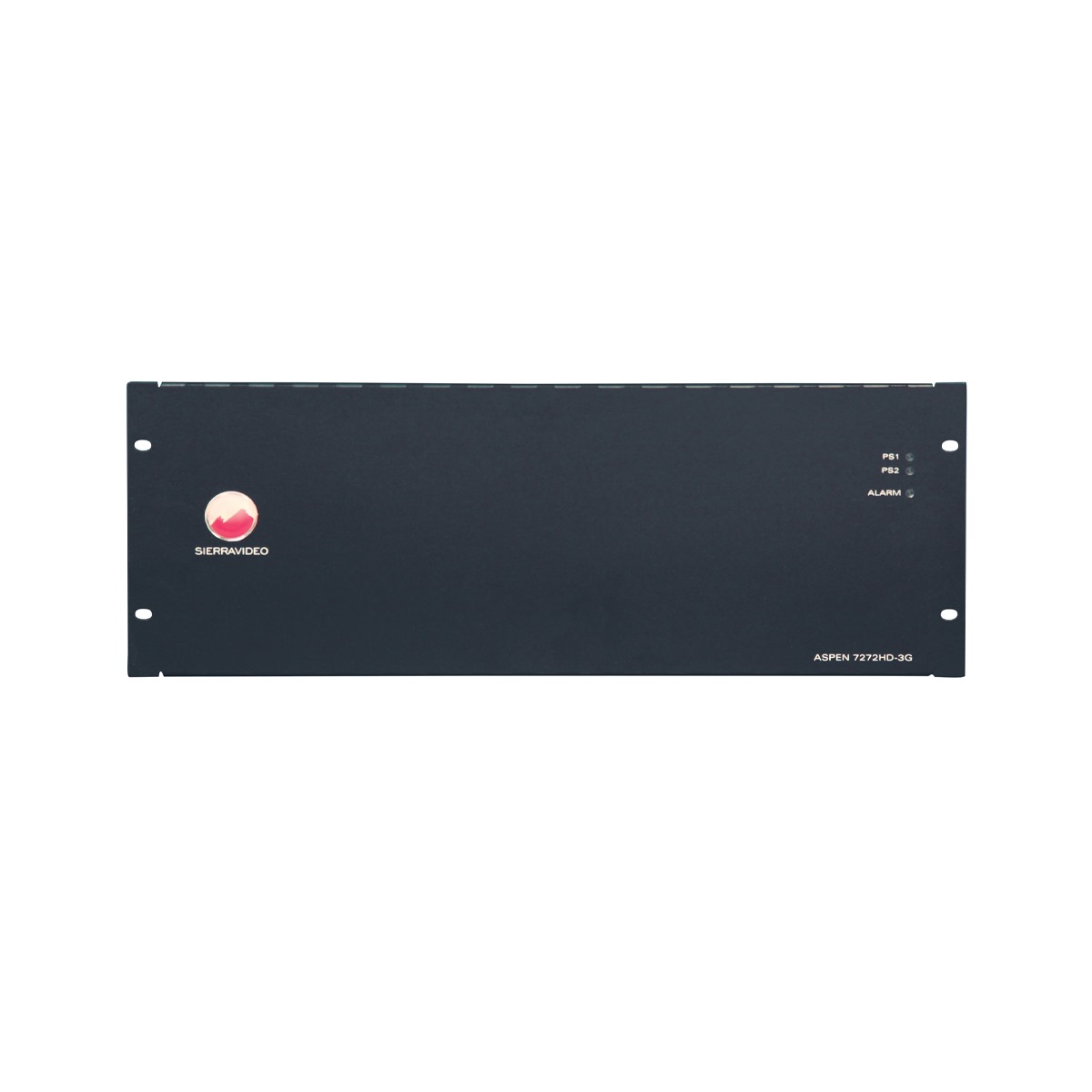

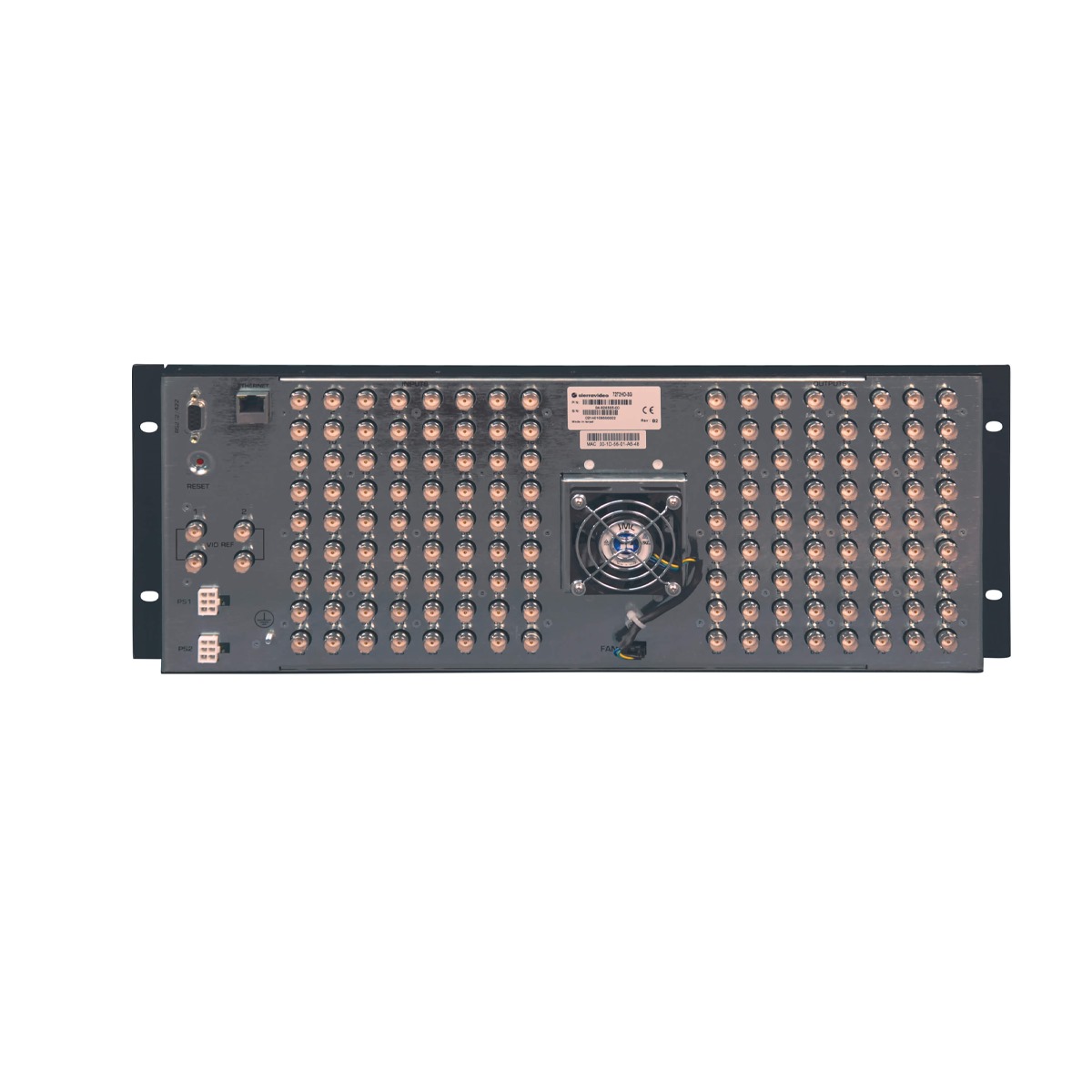

Aspen 7272HD-3G SDI Router

72x72 3G HD–SDI Router

Highlights

• Max. Data Rate — 3Gbps.
•  HDTV Compatible.
•  Multi-Standard Operation — 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M–C/344M, DVB–ASI
•  Advanced Equalization & re–clocking Technology — Rebuilds the digital signal to travel longer distances.
•  It supports ANC Data, such as embedded audio, teletext, time code, etc.

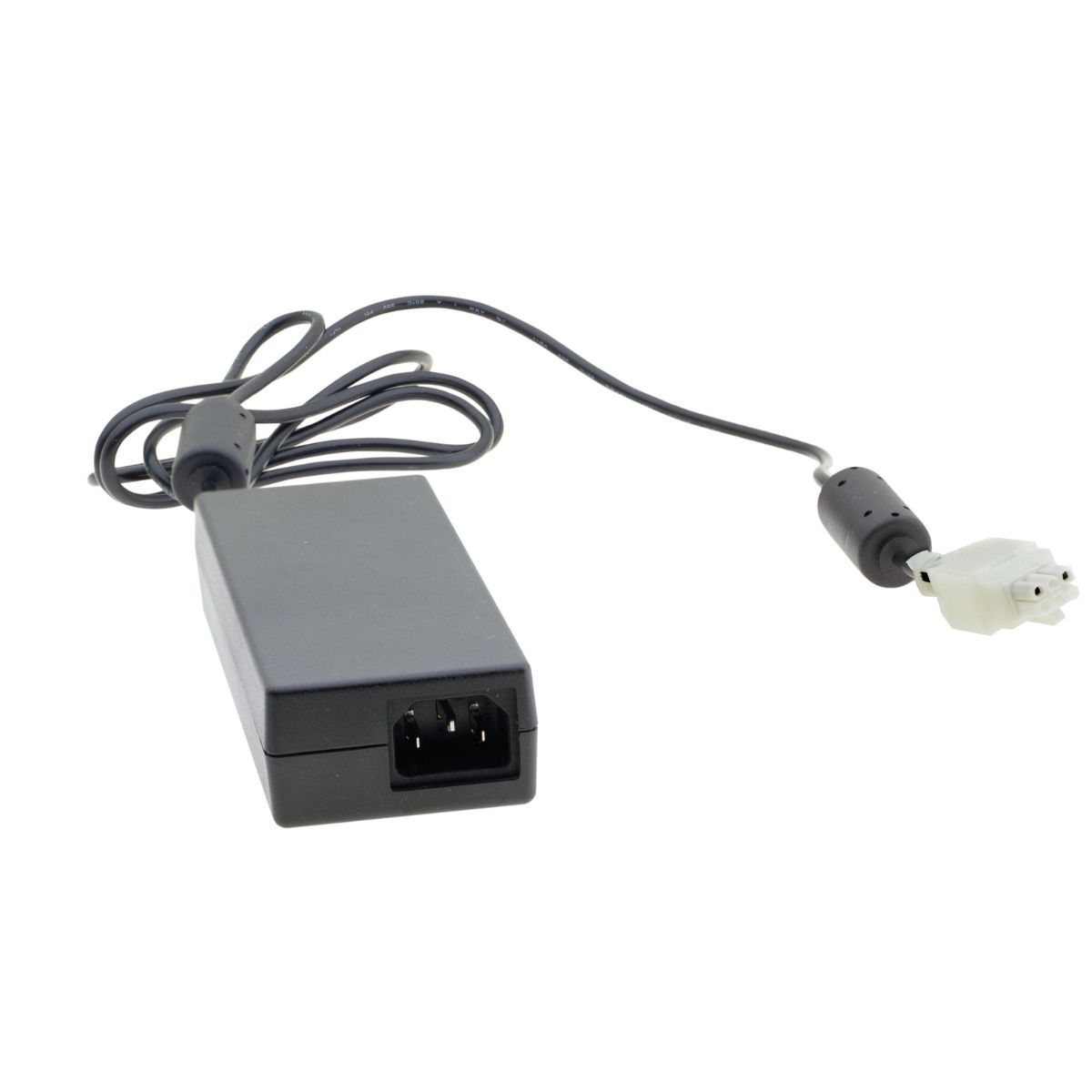

RPS-16/32 Redundant Power Supply

Redundant Power Supply for ASPEN 1616HD–3G & ASPEN 3232HD–3G

Highlights

RPS−16/32 is a 12V/5A redundant power supply for ASPEN 1616HD−3G and ASPEN 3232HD−3G HD–SDI routers. The power supply has a universal 100VAC− 240VAC input.

RPS-72 Redundant Power Supply

Redundant Power Supply for ASPEN 7272HD–3G

Highlights

RPS−16/32 is a 12V/5A redundant power supply for the ASPEN 7272HD−3G HD–SDI router. The power supply has a universal 100VAC− 240VAC input.
