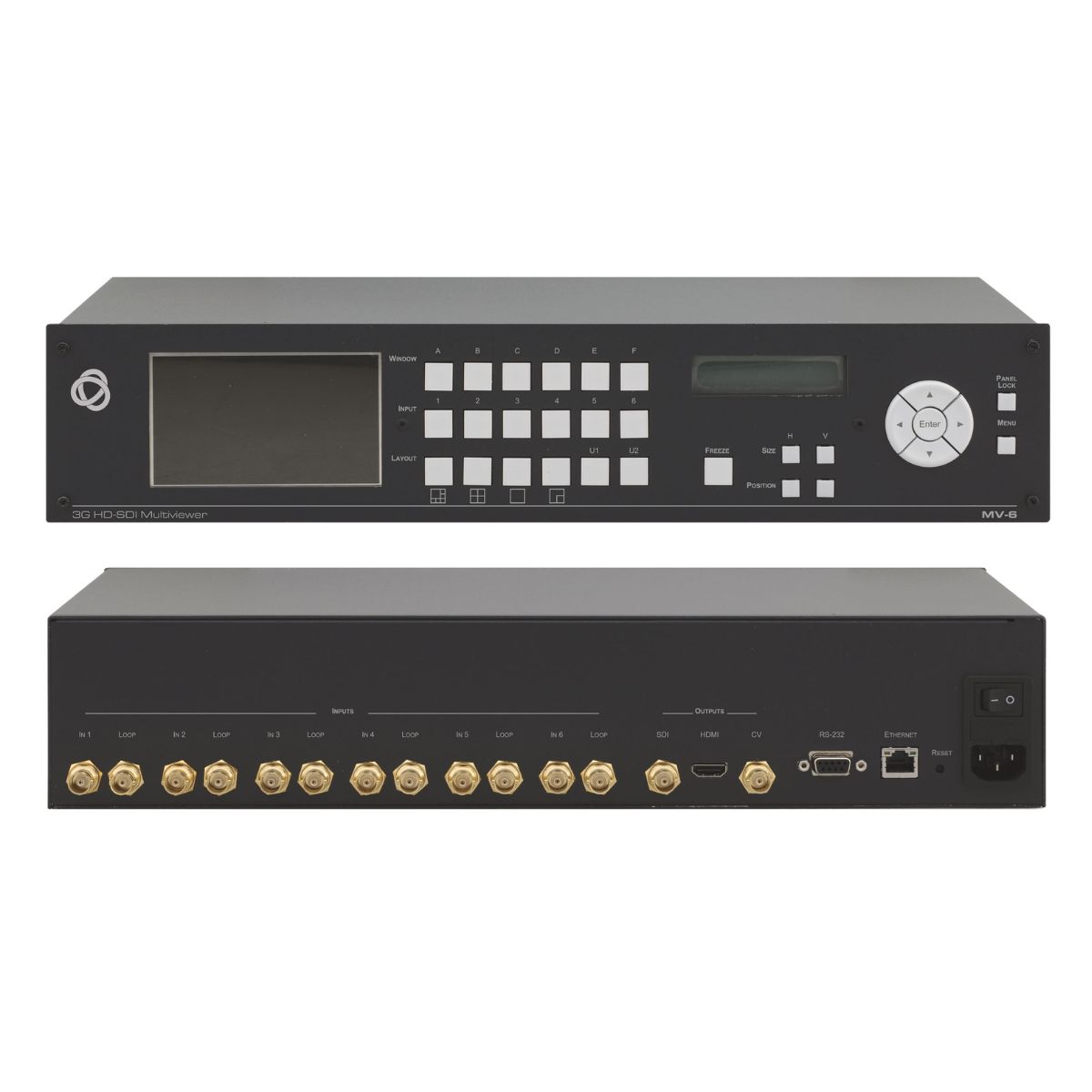

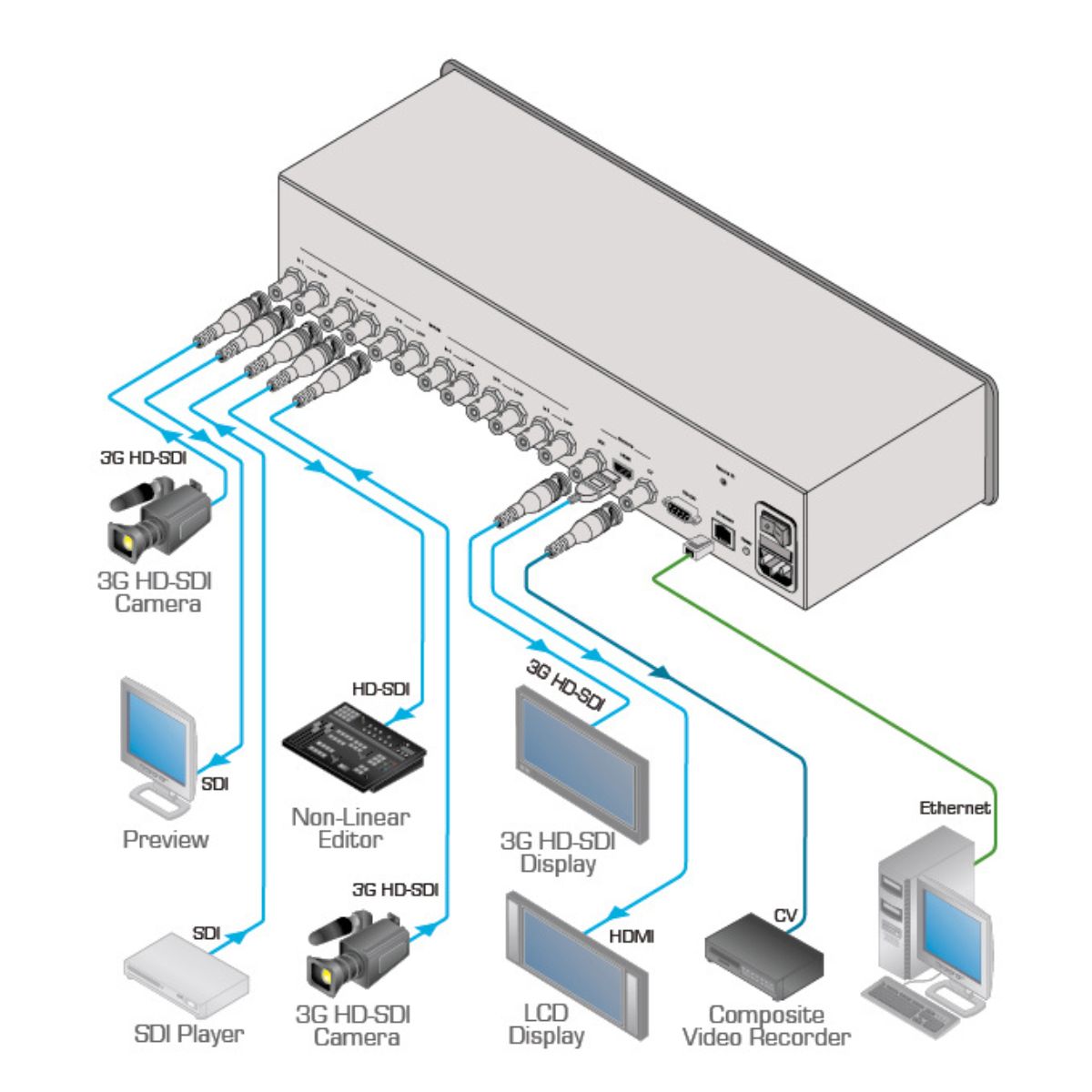

MV-6 SDI Multiviewer

3G HD–SDI Multiviewer

Highlights

• Max. Data Rate — 3Gbps.
•  HDTV Compatible.
•  Standards Compliance — Certified for medical applications according to IEC 60601–1–2 (Electromagnetic Compatibility).
•  Kramer re–Klocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.

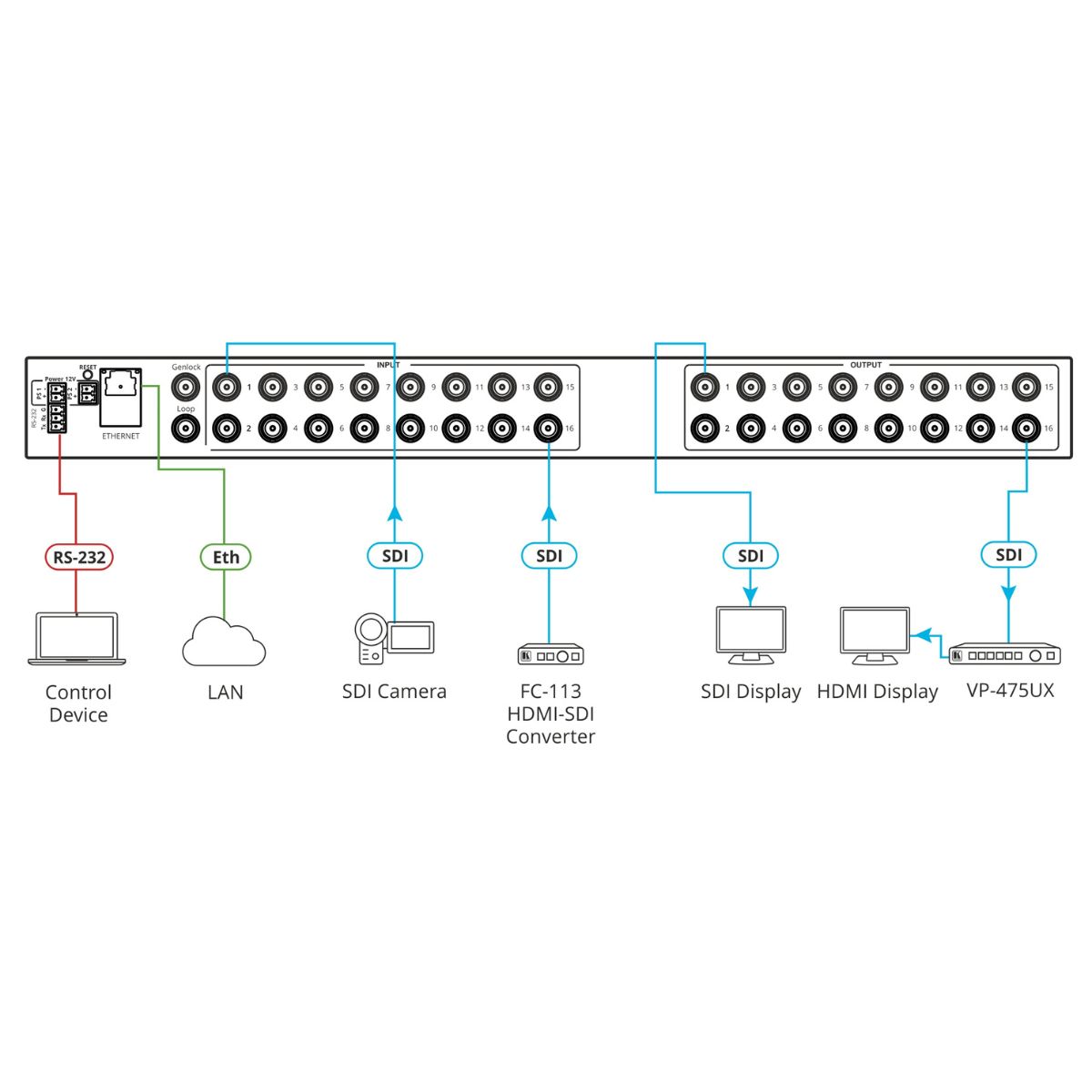

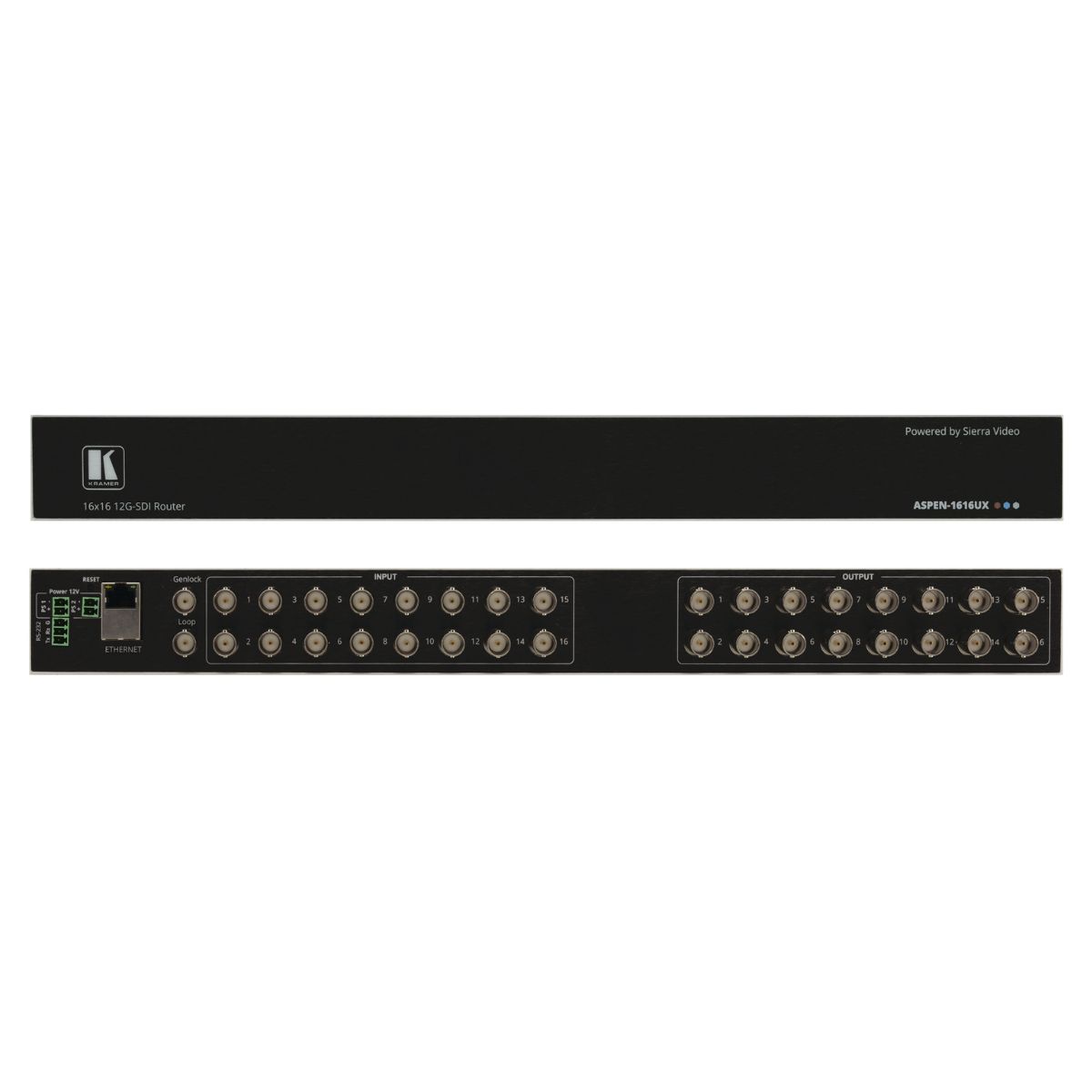

ASPEN-1616UX SDI Matrix Switcher

16X16 12G SDI Matrix Switcher

Highlights

• SDI signals up to 12G
• Multi-Standard Operation — SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI
• Depth — 4 inches
• Genlock clean switching and versatility

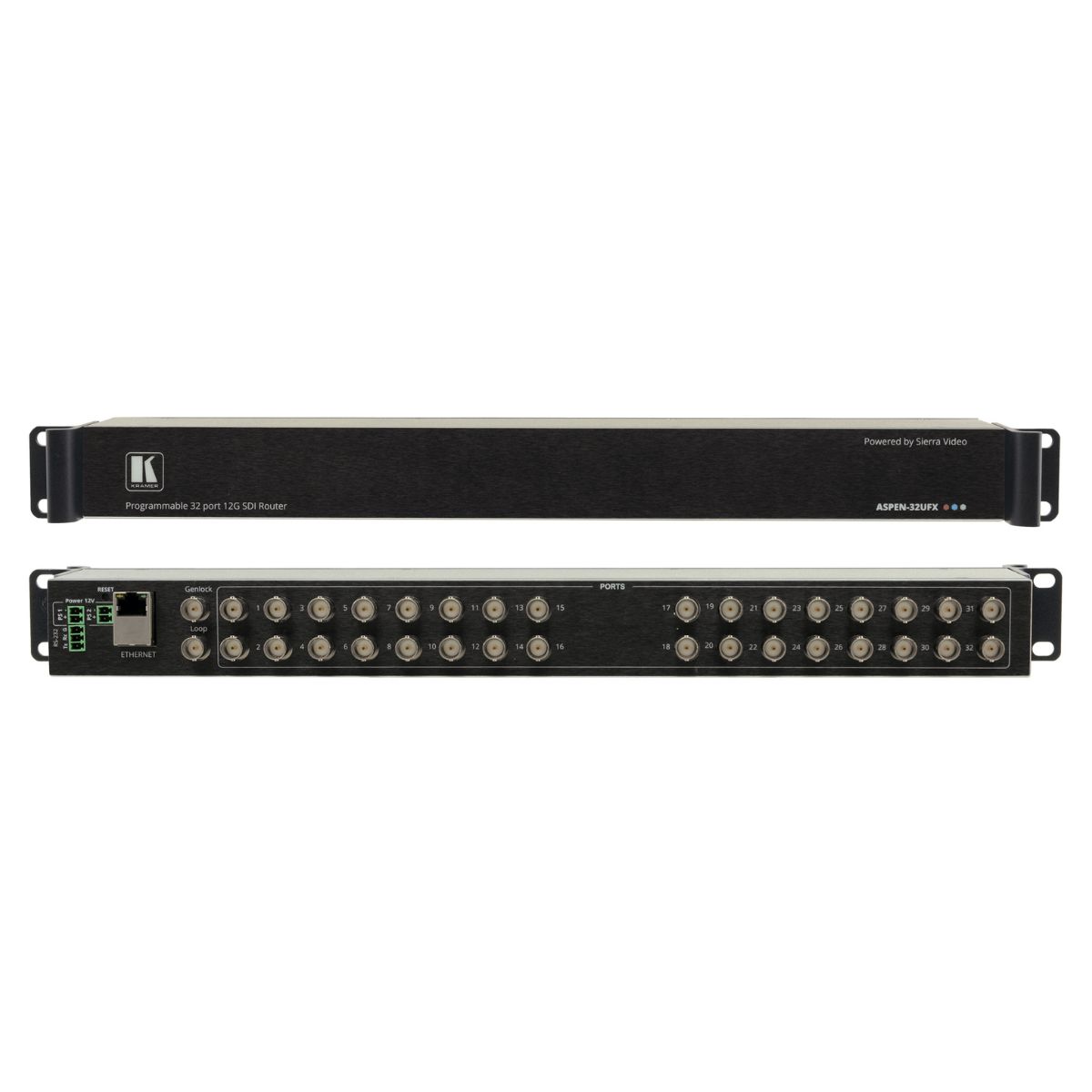

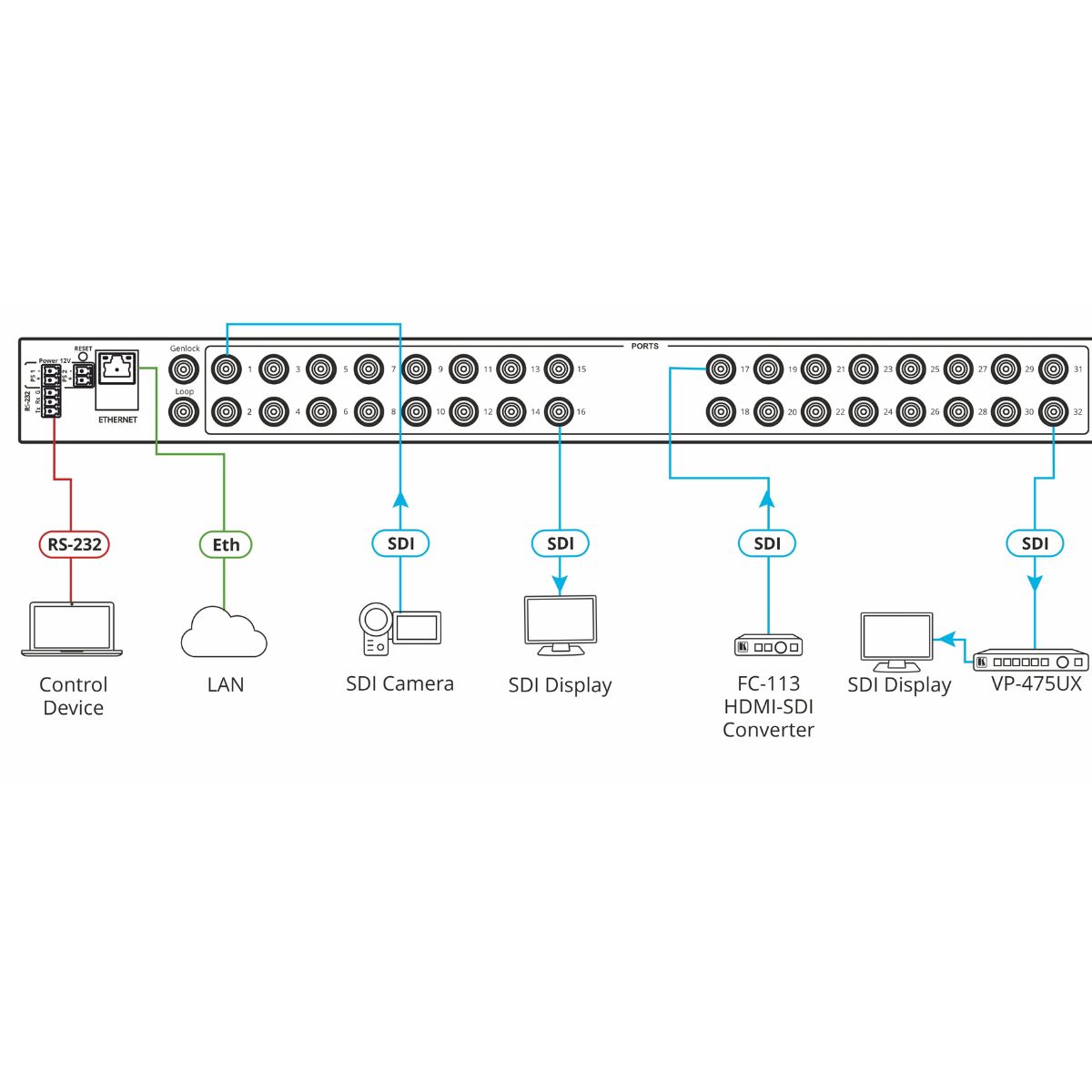

ASPEN-32UFX SDI Matrix Switcher

32–Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs

Highlights

• Max. Data Rate — 12Gbps
• Multi-Standard Operation
• Cable Equalization
• Clean Switching with Genlock

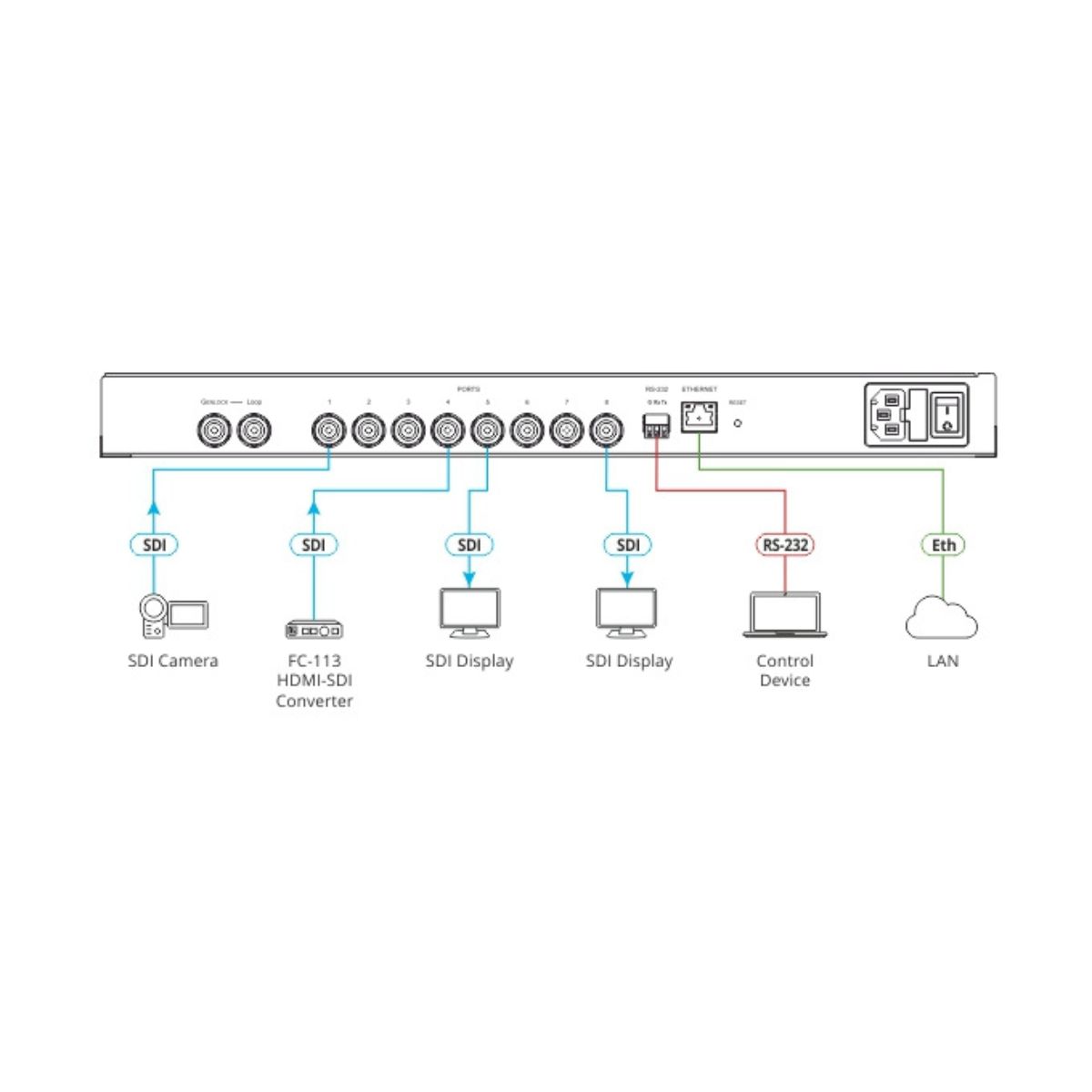

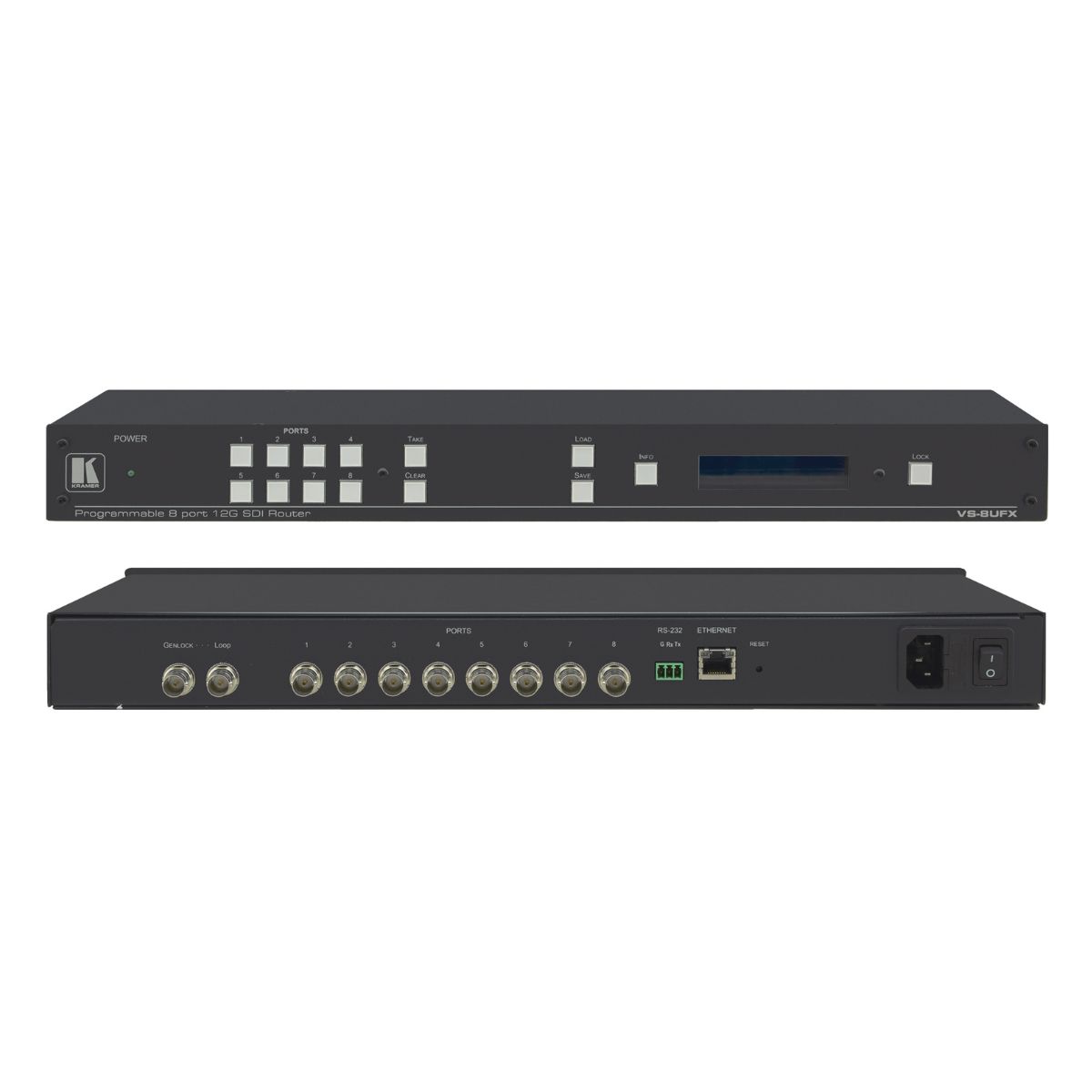

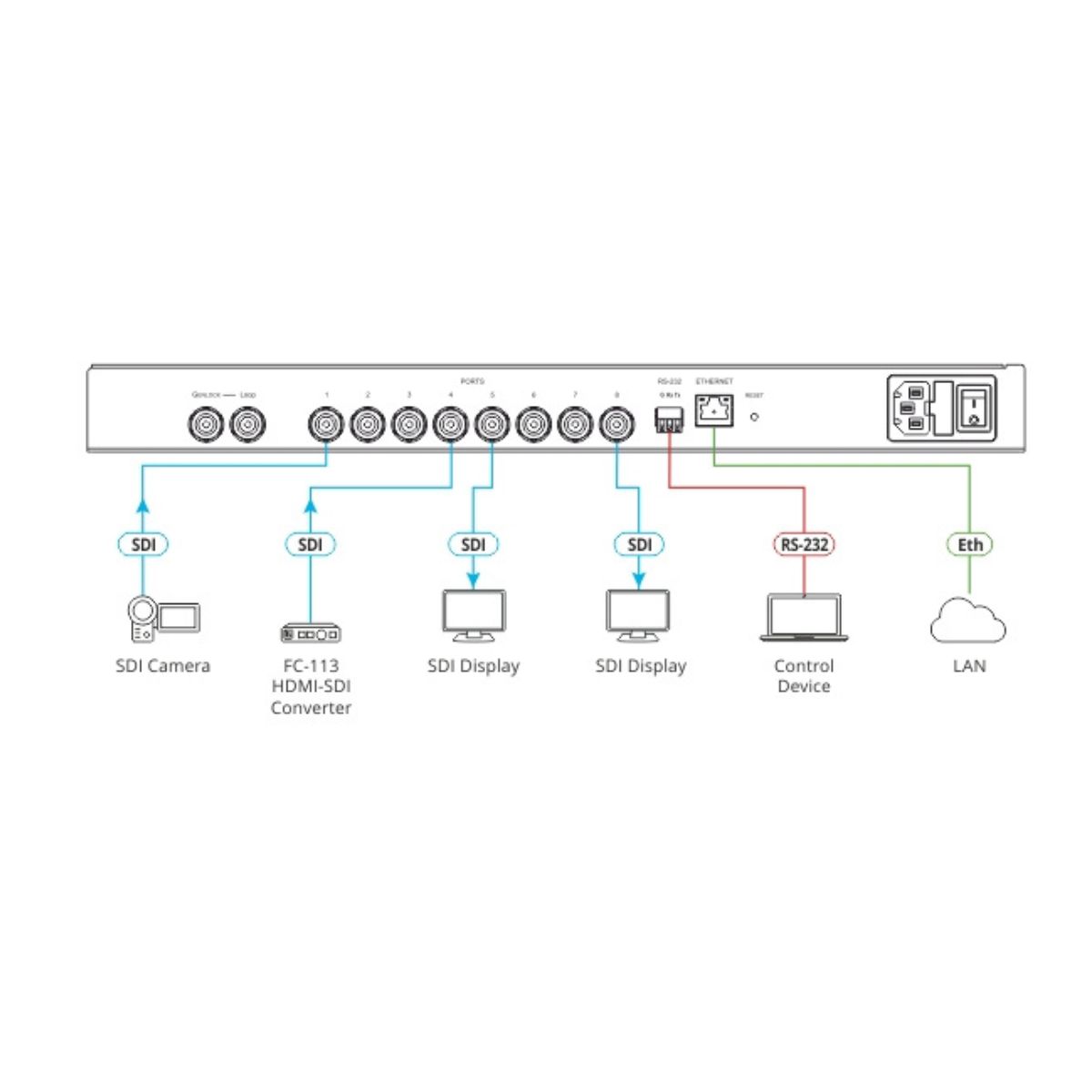

VS-8UFX SDI Matrix Switcher

8–Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs

Highlights

• Max Data Rate 12Gbps
• All 8 SDI ports are configurable as inputs or outputs
• Multi-Standard Operation — SDI, HD–SDI, 3G SDI, 6G SDI, 12G SDI
• Cable Equalization
• Genlock versatility and clean–switching

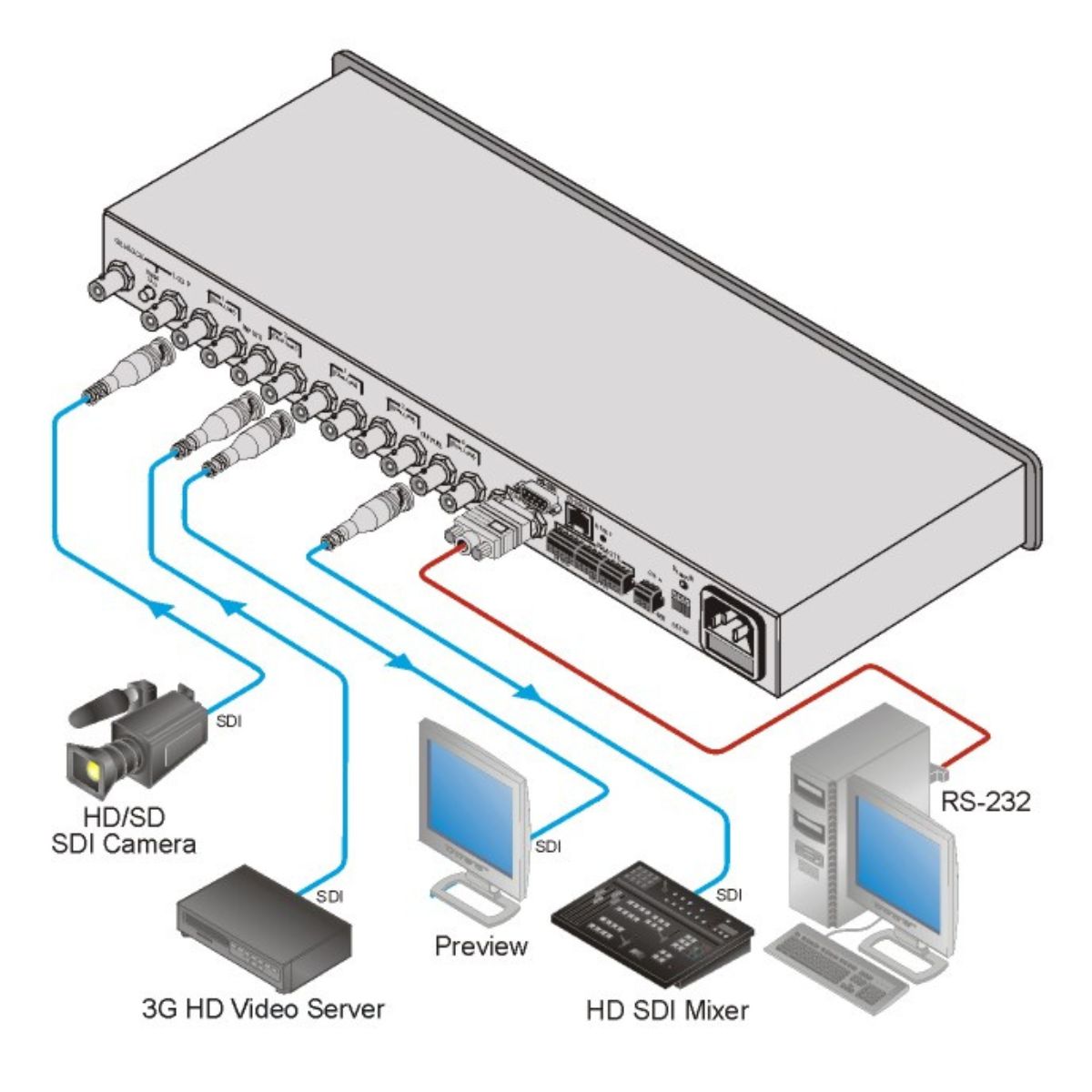

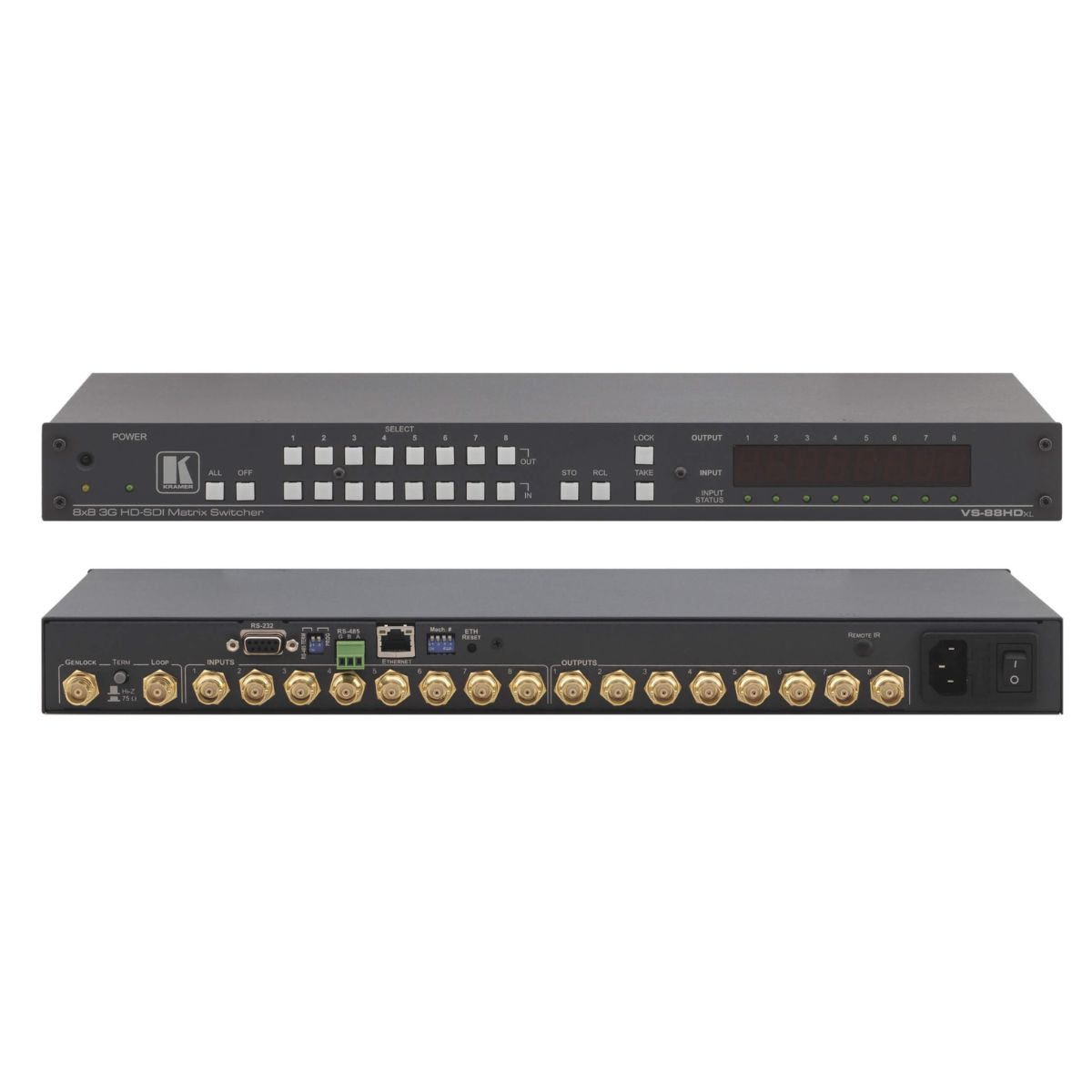

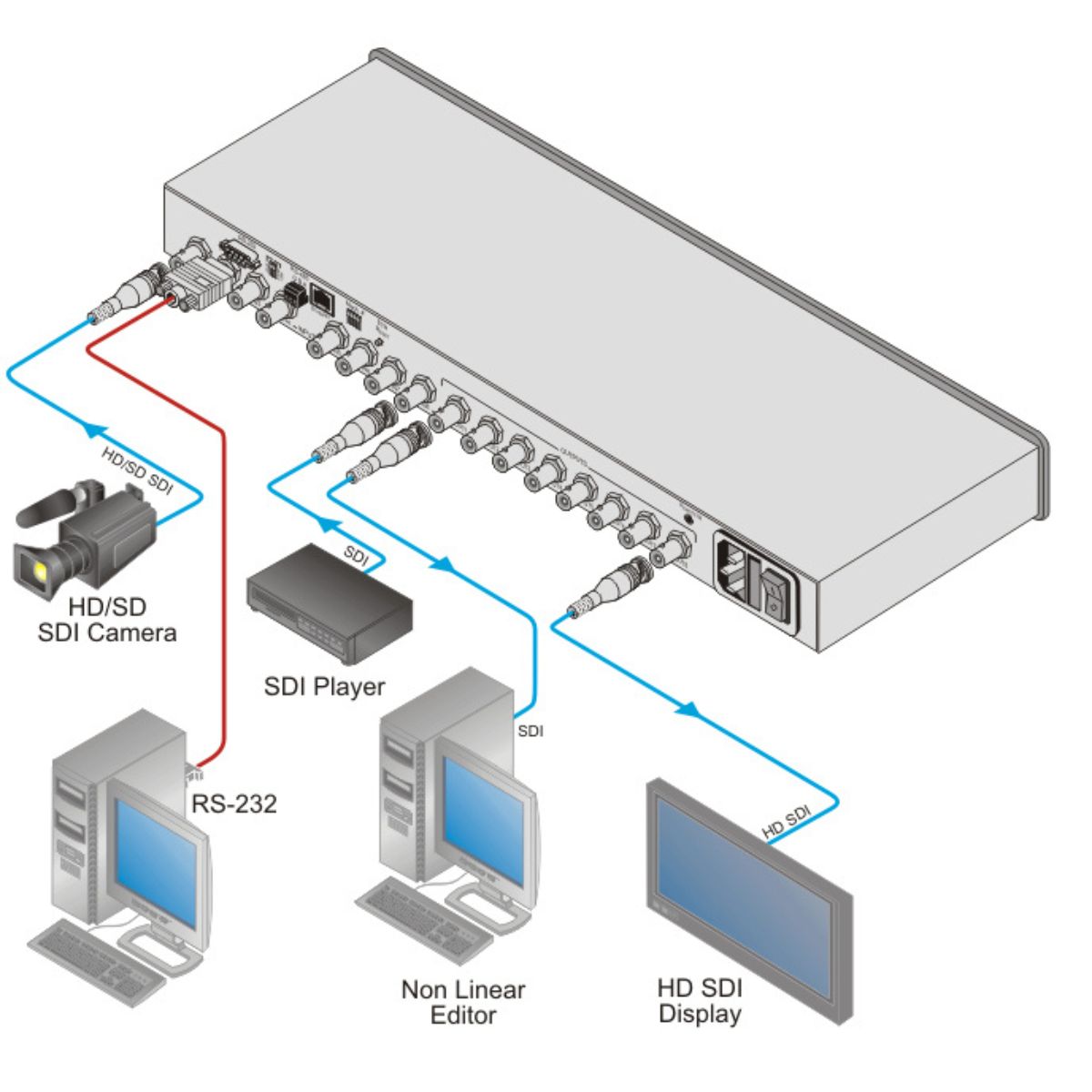

VS-88HDxl SDI Matrix Switcher

8x8 3G HD–SDI Matrix Switcher

Highlights

• Max. Data Rate — 3Gbps.
•  Multi–Standard Operation — SDI (SMPTE 259M & SMPTE 344M),  HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M) and dual link HD–SDI (SMPTE 372M).
•  Automatic Equalization Technology.
•  Looping Analog Sync Input.
•  Selectable Sync Signal Termination.

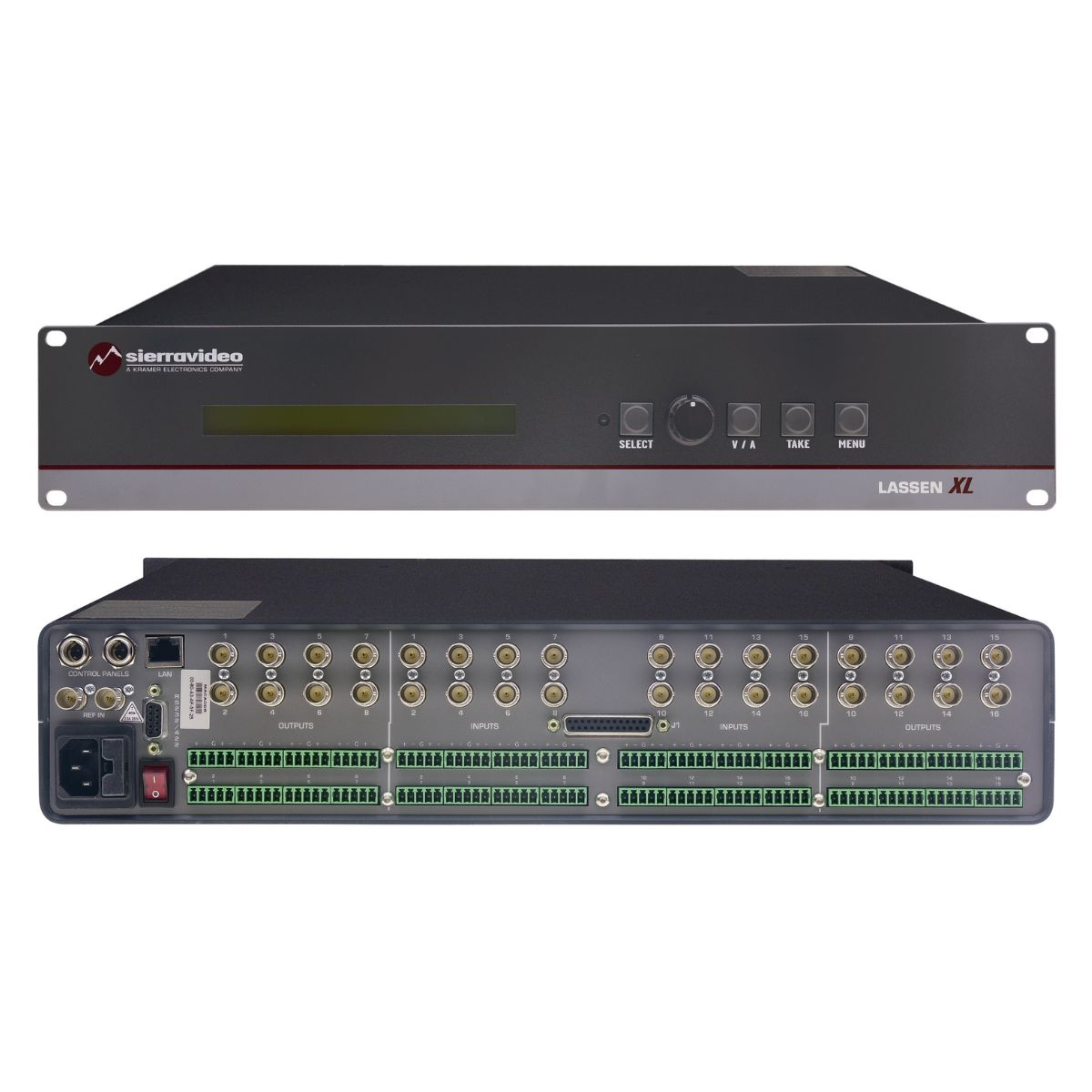

1616HDS-XL Audio Matrix Switcher

16x16 HD–SDI (1.5G) & Analog Balanced Stereo Audio Matrix Switcher

Highlights

The Lassen HD XL Series offers flexibility and adaptability to any application where saving space and costs are important. 1616HDS−XL is a 16x16 HD−SDI (1.5G) & Analog Balanced Stereo Audio matrix switcher, available in a compact 2RU frame. 1616HDS−XL also supports breakaway stereo audio switching whereby the Digital Video, Audio Left, and Audio Right can all be routed independently. It offers control via the front panel or remotely via RS−232 or Ethernet.

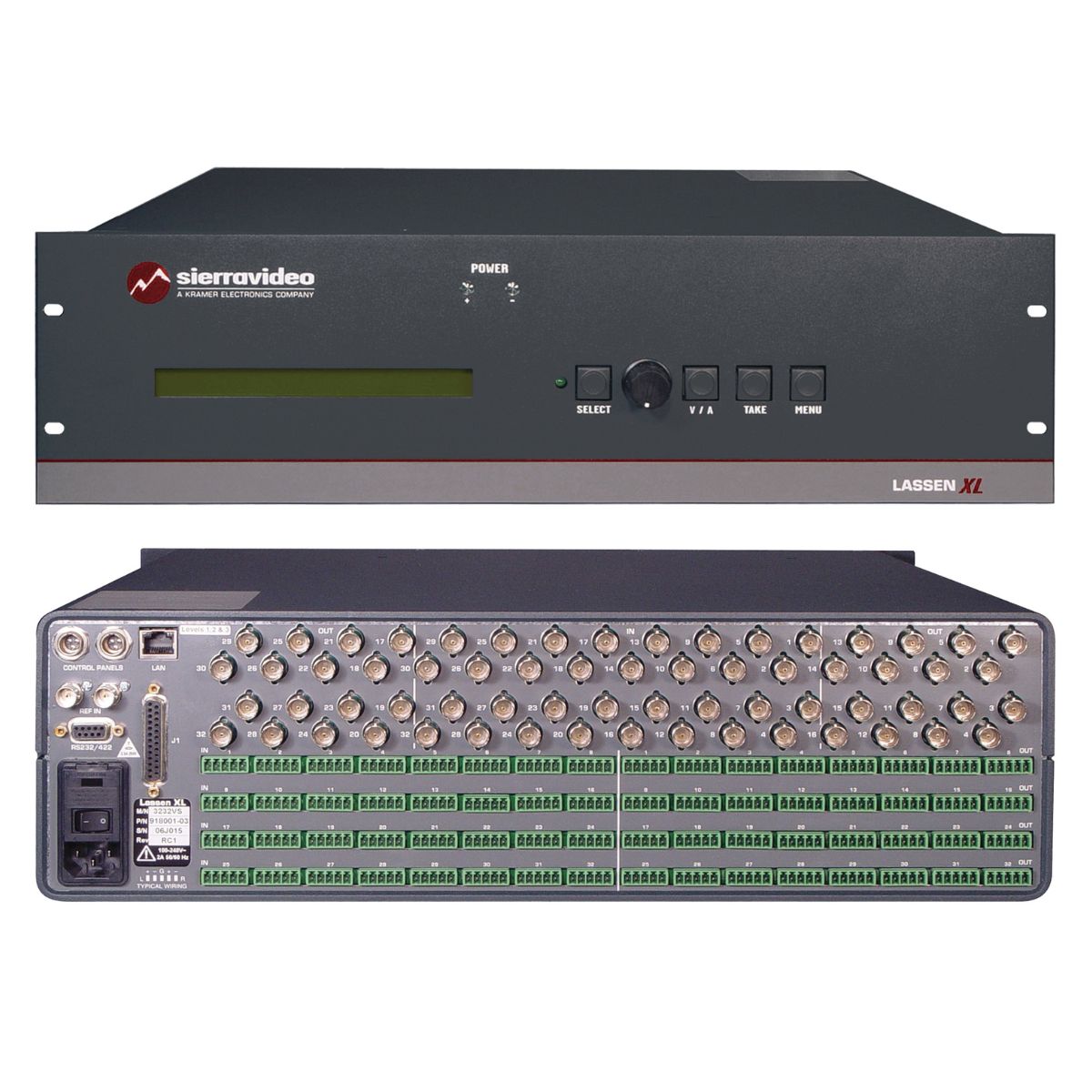

3232HDS-XL Audio Matrix Switcher

32x32 HD–SDI (1.5G) & Analog Balanced Stereo Audio Matrix Switcher

Highlights

The Lassen HD XL Series offers flexibility and adaptability to any application where saving space and costs are important. 3232HDS−XL is a 32x32 HD−SDI (1.5G) & analog balanced stereo audio matrix switcher, available in a compact 3RU frame. 3232HDS−XL also supports breakaway stereo audio switching whereby the digital video, audio left, and audio right can all be routed independently. It offers control via the front panel or remotely via RS−232 or Ethernet.

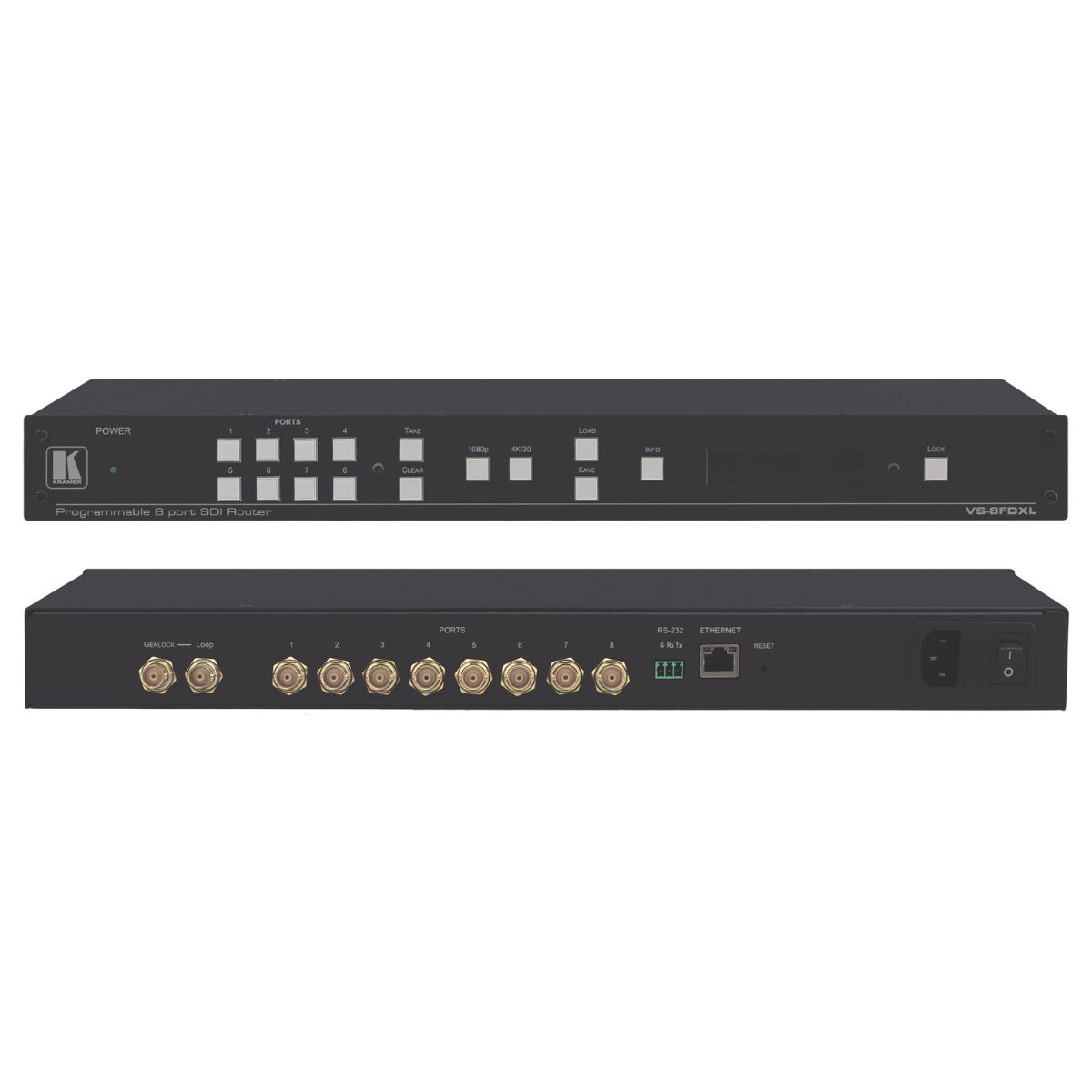

VS-8FDxl SDI Matrix Switcher

Revolutionary 8–Port SDI Matrix Switcher with Interchangeable Inputs and Outputs

Highlights

• Max. Data Rate — 3Gbps.
•  HDTV Compatible.
•  Multi-Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
•  It supports ANC Data, such as embedded audio, teletext, time code, etc.

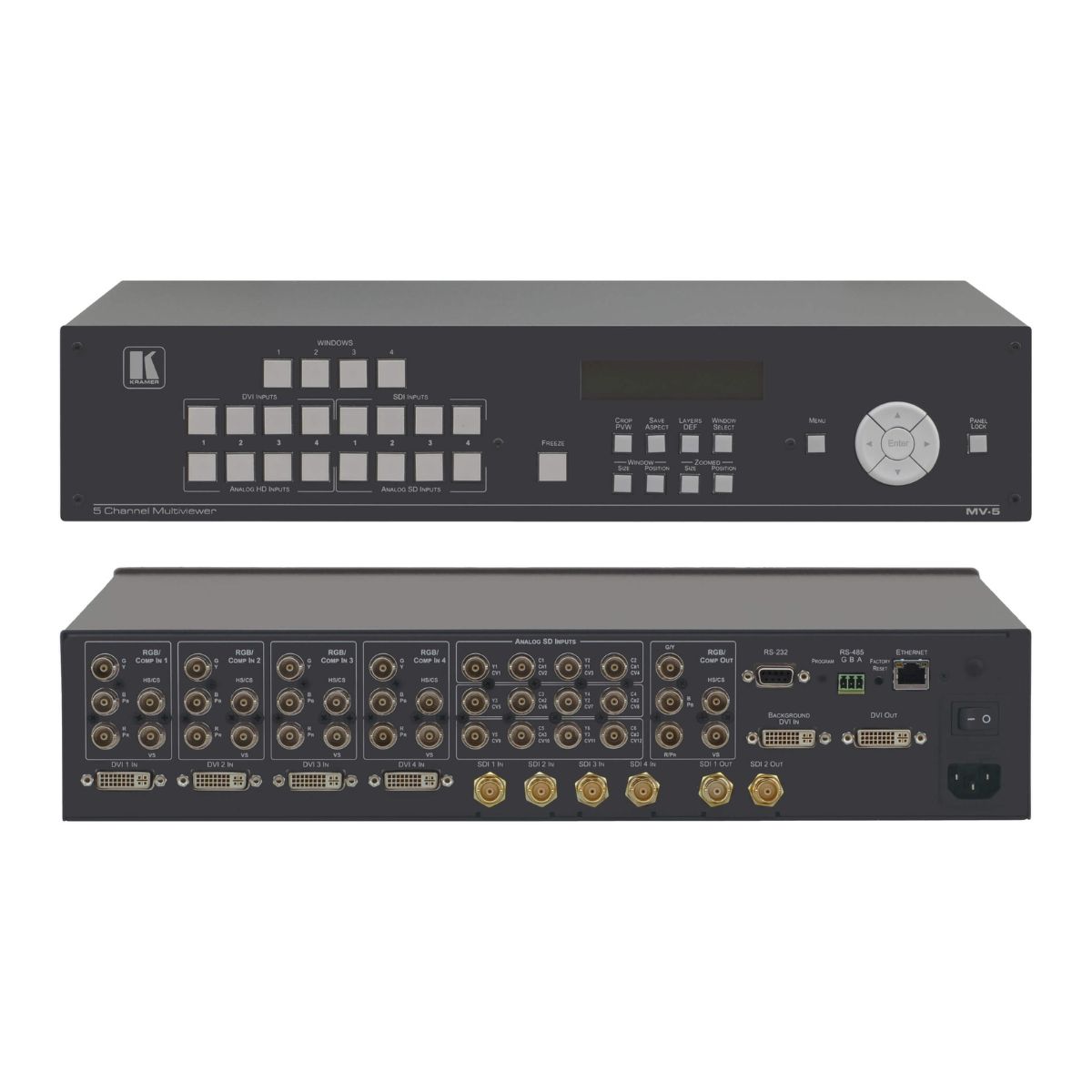

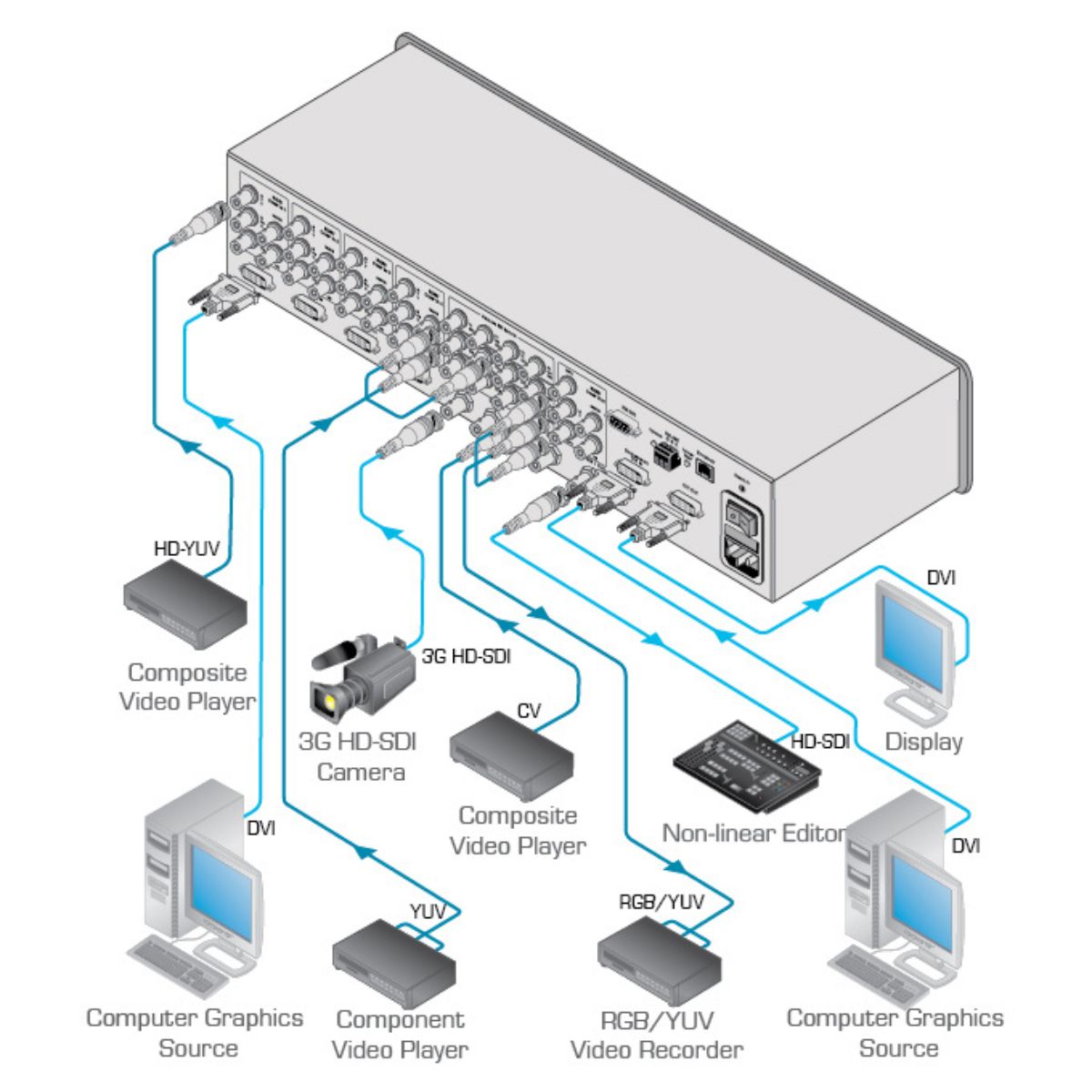

MV-5 Multiviewer

5–Channel Multiviewer

Highlights

• Max Data Rate — 3Gbps
• Kramer Equalization & re–Klocking™
• Format Conversion
• Input Cable Equalization
• Chroma–Key
• Window & Image Scaling
• Independent Layer Transparency Control
• Proc Amp

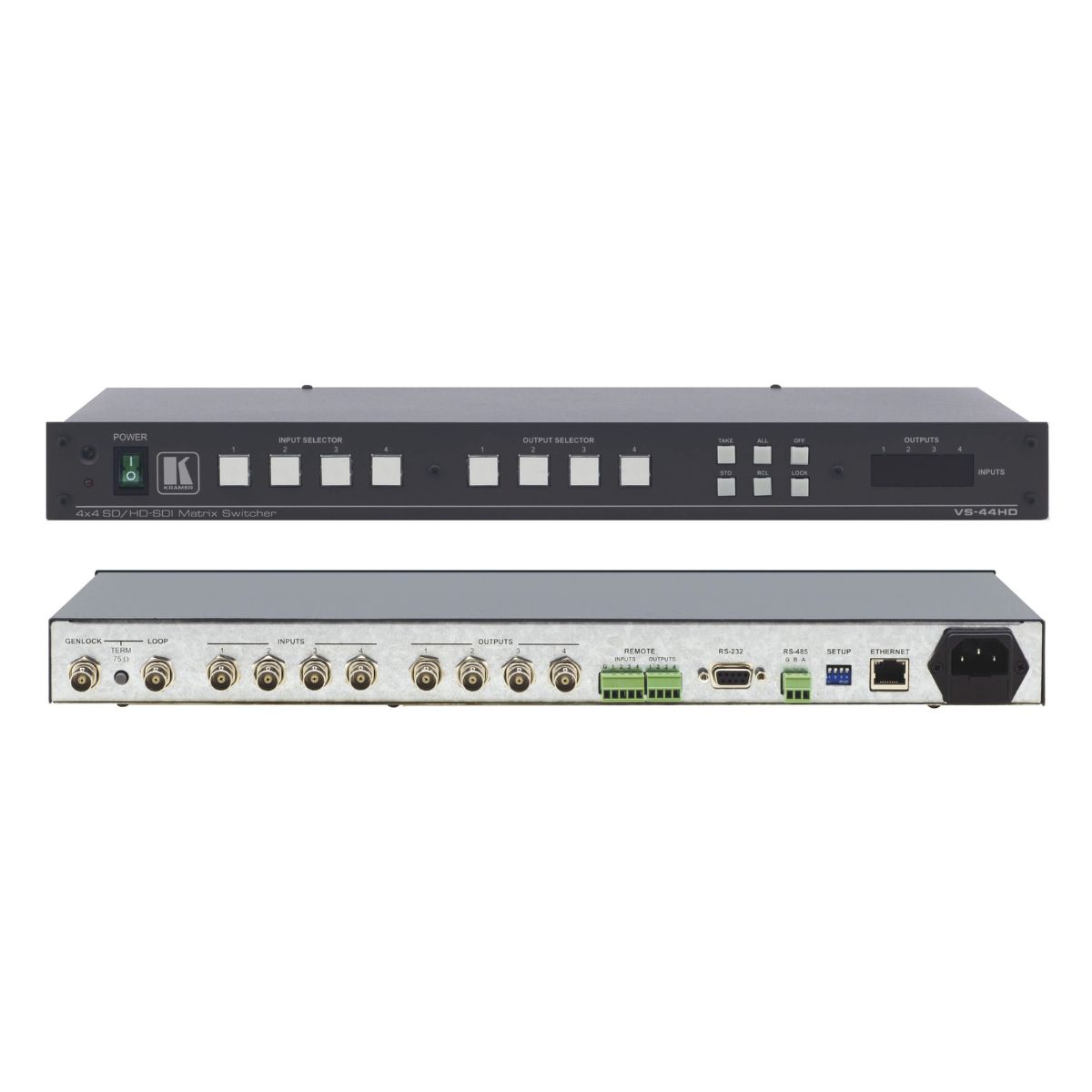

VS-44HD SDI Matrix Switcher

4x4 HD–SDI Matrix Switcher

Highlights

• Max. Data Rate — 1.485Gbps.
•  HDTV Compatible.
•  Multi-Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M) & dual link (SMPTE 372M).
•  Reclocking & Equalization — Automatic.
•  Switching Synchronization — Synchronizes either to external reference or incoming video.

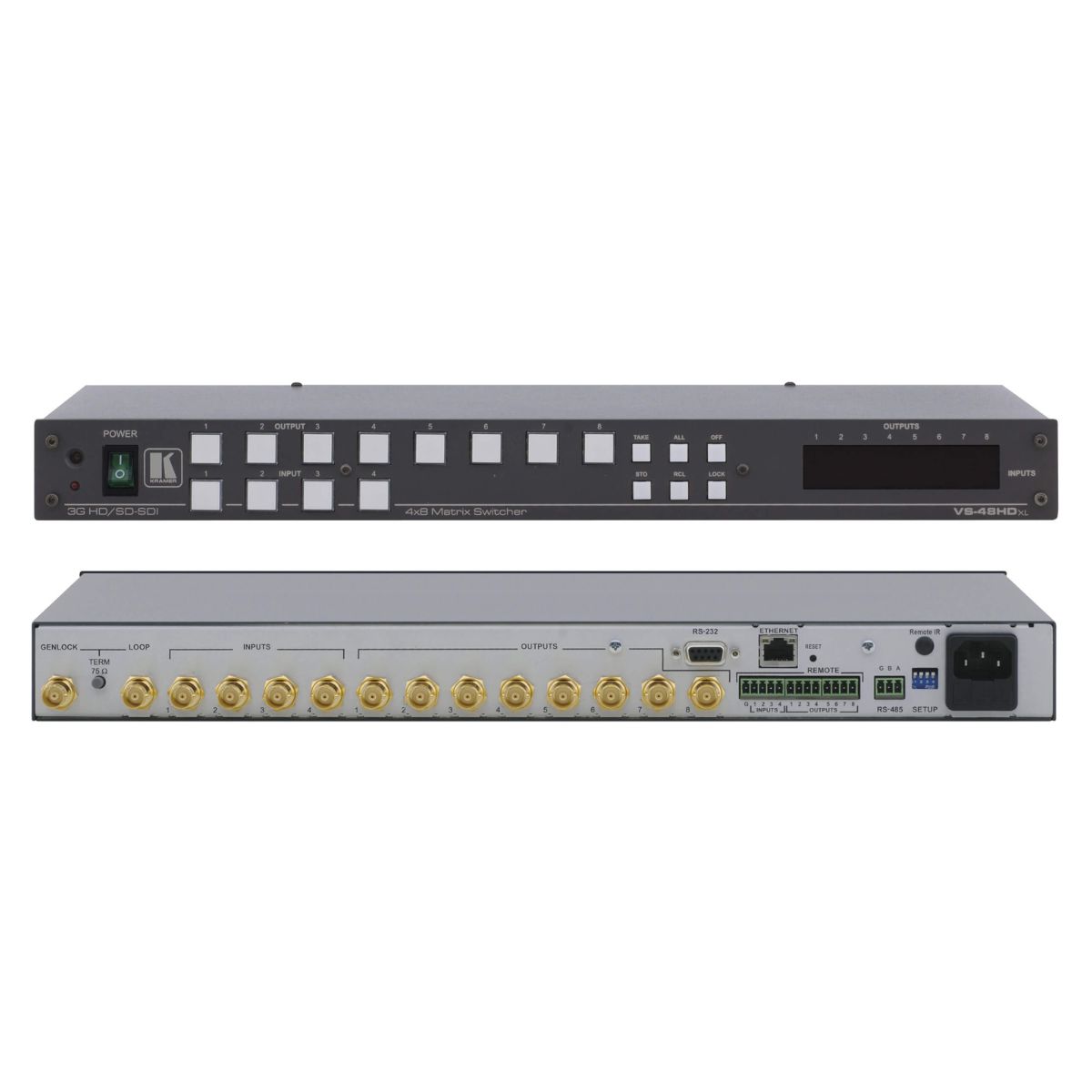

VS-48HDxl SDI Matrix Switcher

4x8 3G HD–SDI Matrix Switcher

Highlights

• Max. Data Rate — 3Gbps.
•  HDTV Compatible.
•  Multi-Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M), and Dual Link HD–SDI (SMPTE 372M).
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.

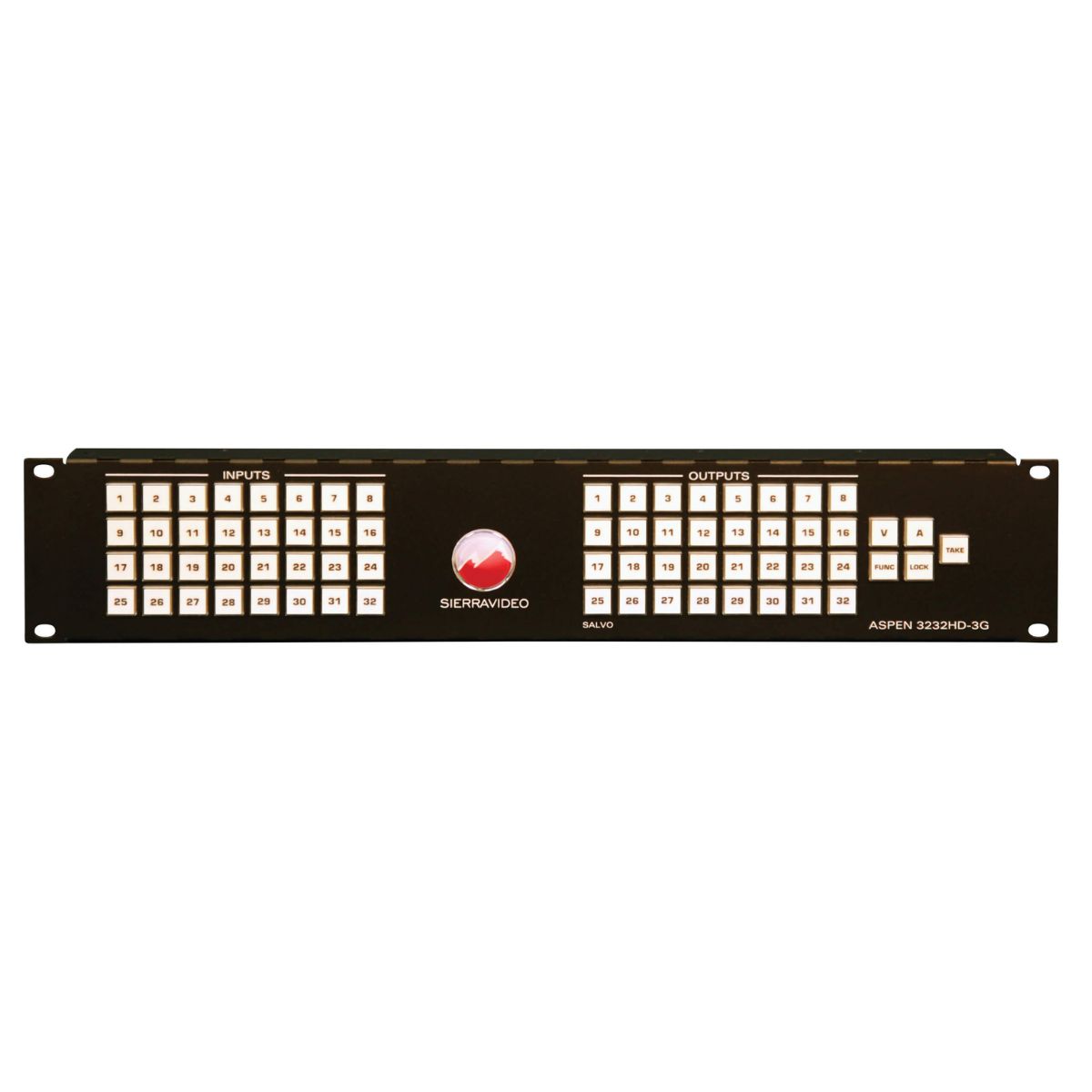

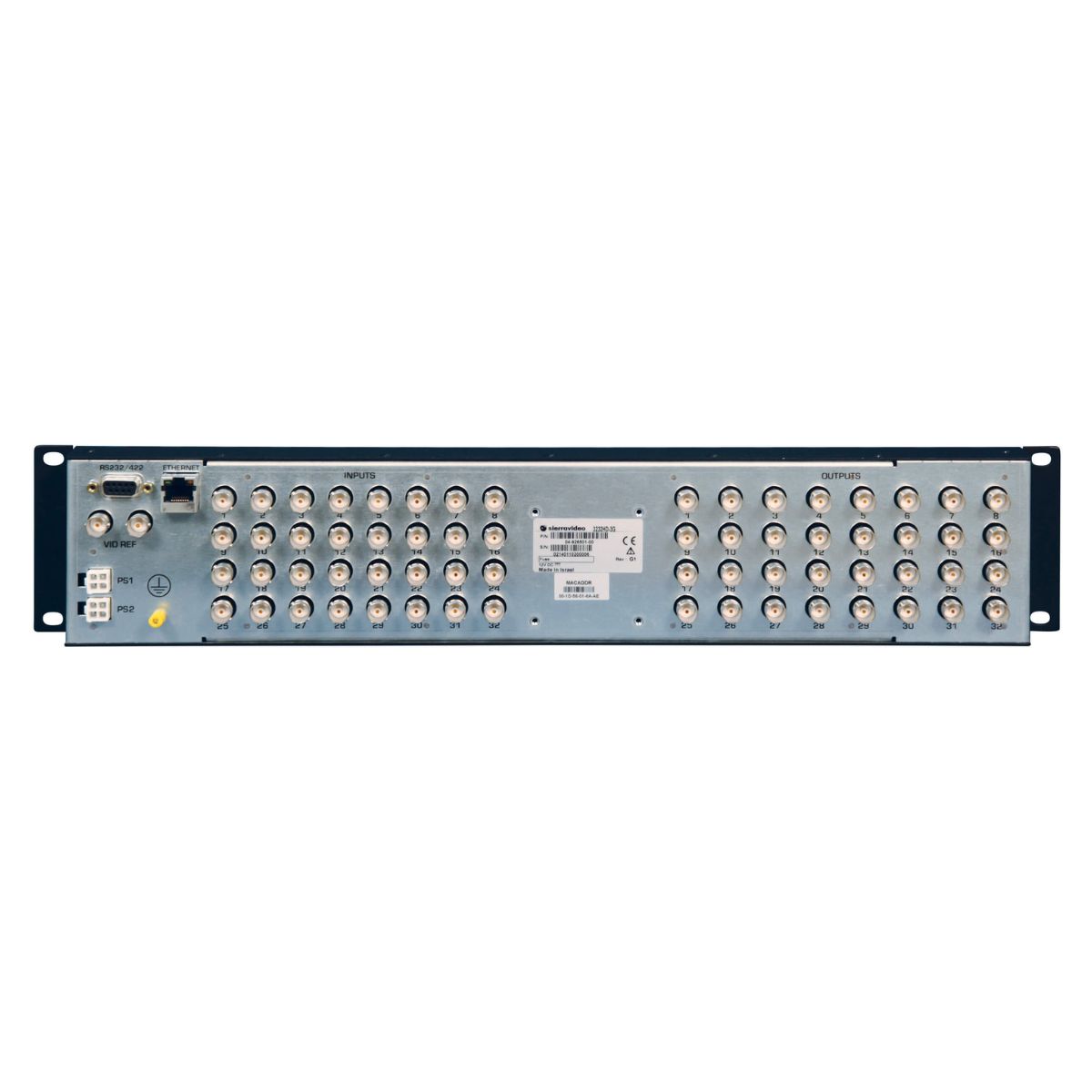

Aspen 3232HD-3G HD–SDI Router

32x32 3G HD–SDI Router

Highlights

• Max. Data Rate — 3Gpbs (Fully loaded)
• Control — RS–232, RS–422, Ethernet and Front panel XY.
• Advanced Browser Interface — Control & Set up
• Depth — 2.5 Inches

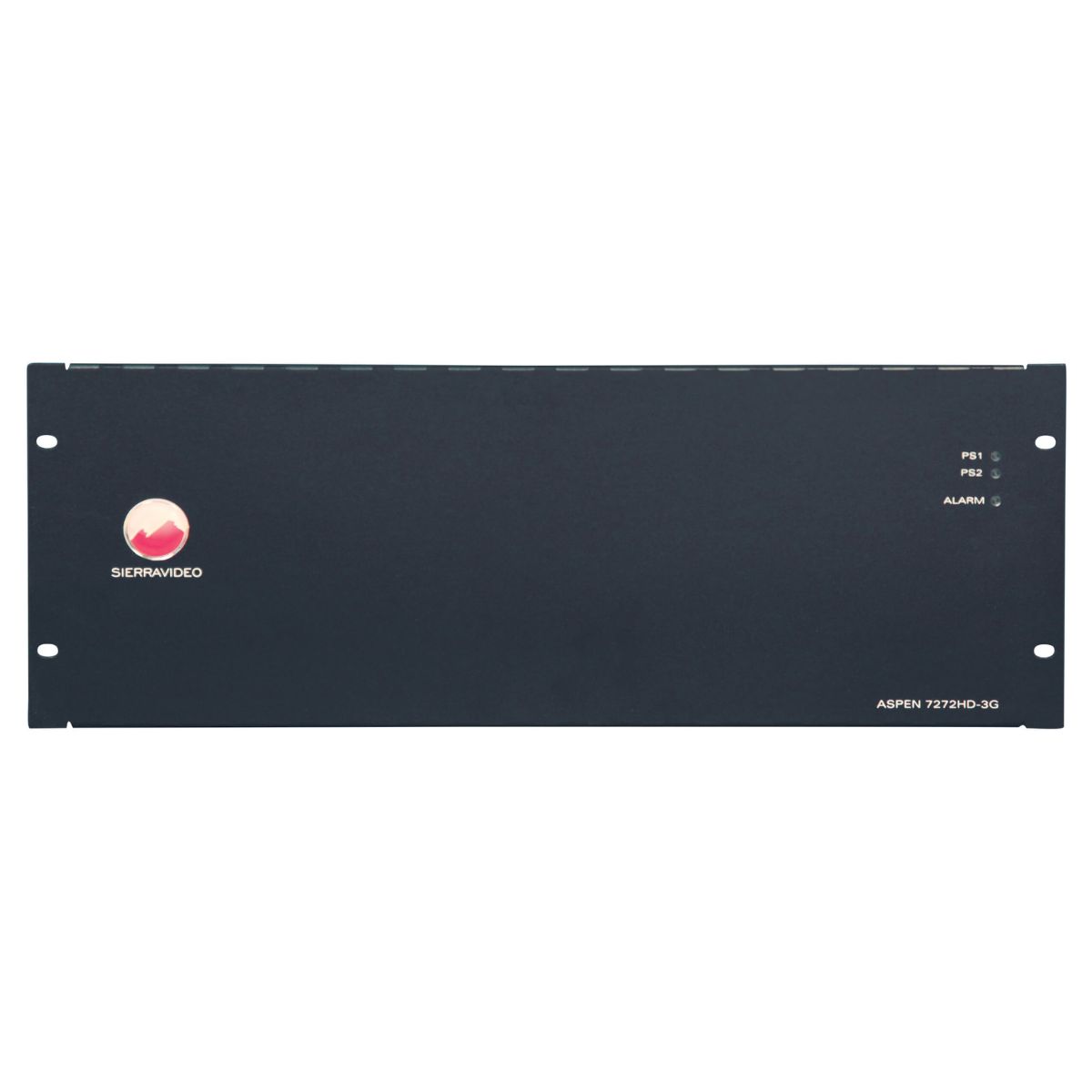

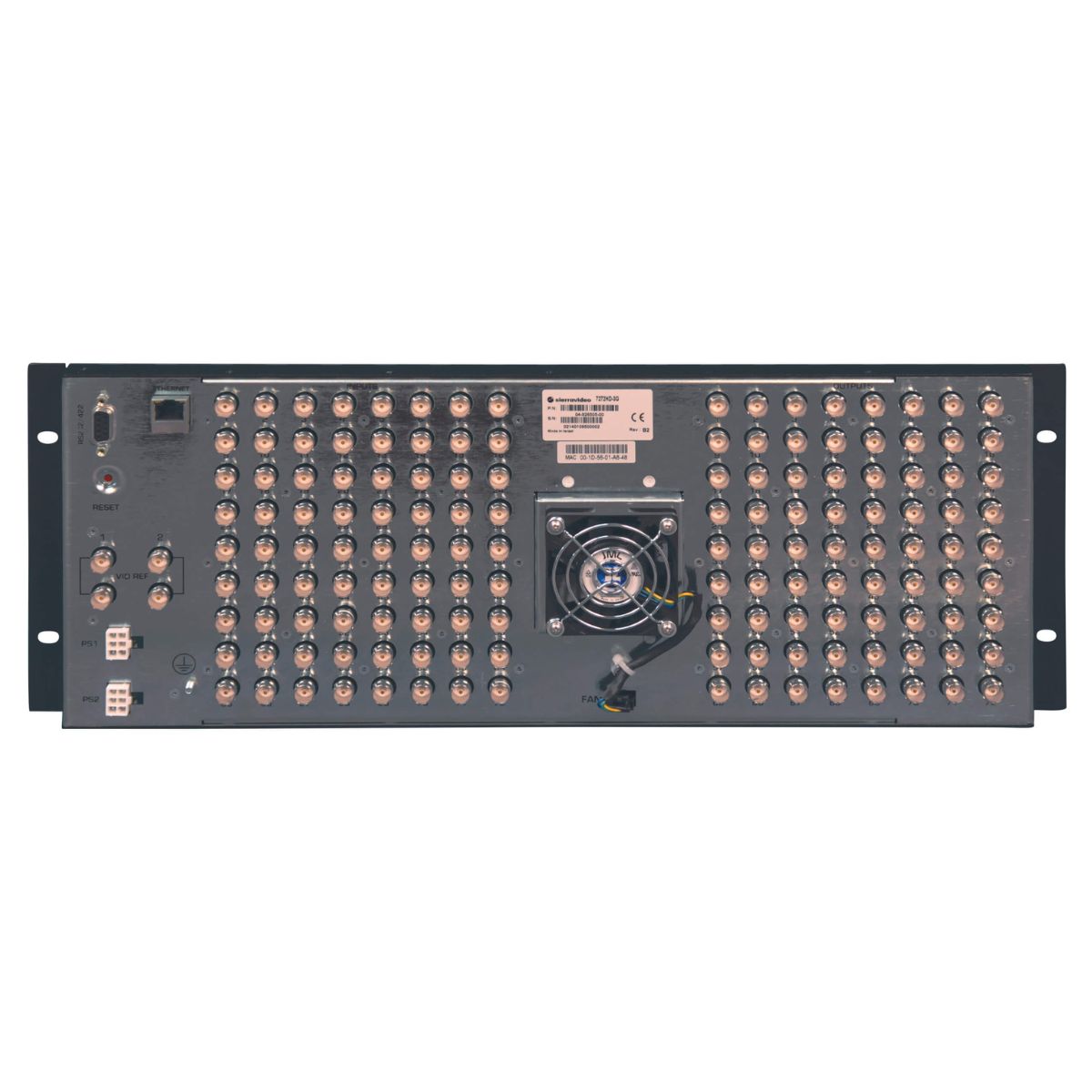

Aspen 7272HD-3G

72x72 3G HD–SDI Router

Highlights

• Max. Data Rate — 3Gpbs (Fully loaded)
• Control — RS–232, RS–422, Ethernet
• Advanced Browser Interface — Control & Set up
• Depth — 2.5 Inches
