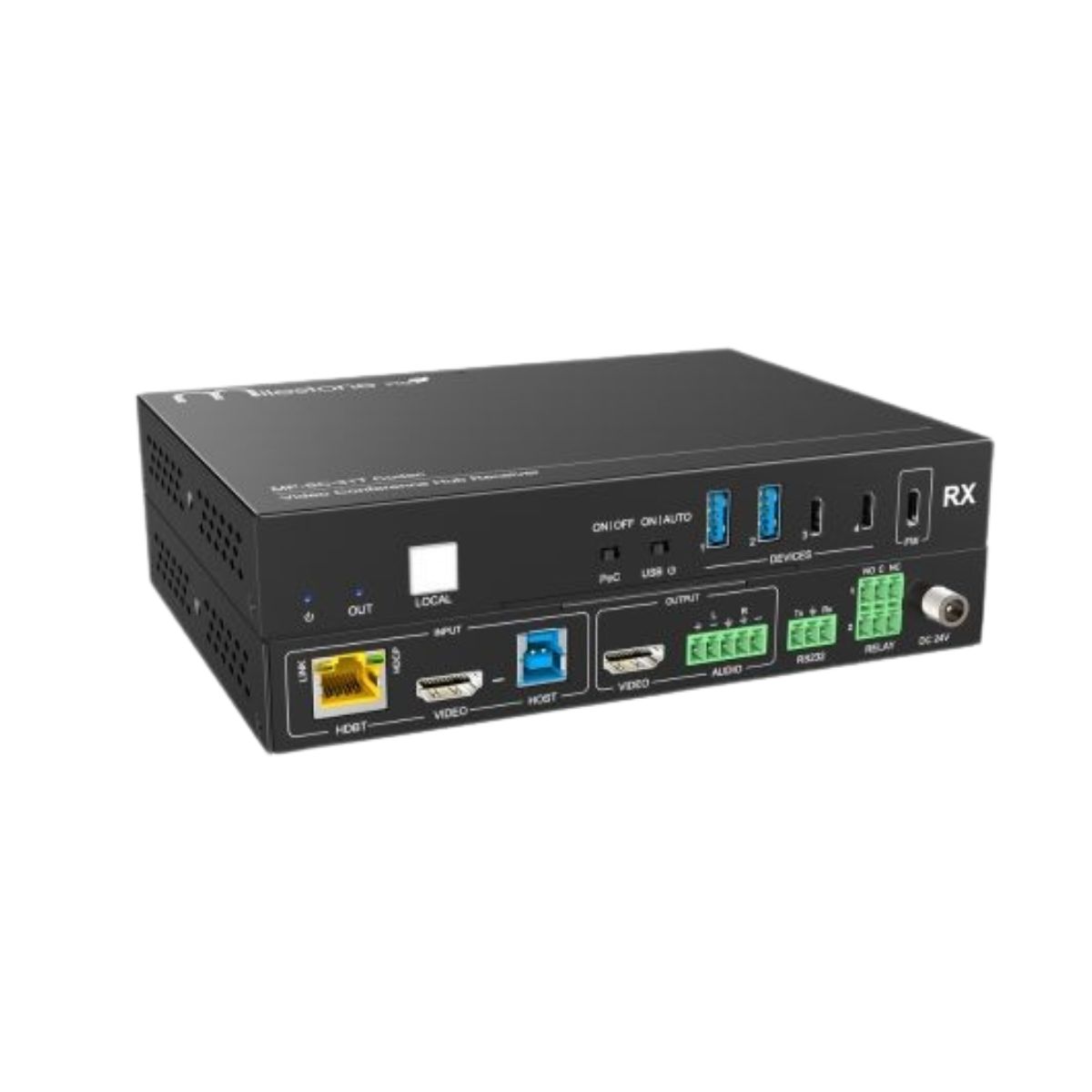

MP-SC-31T CODEC
MP-SC-31T CODEC
Highlights
3x1 18G presentation switcher with HDBaseT output.
18Gbps high bandwidth, HDMI 2.0, HDCP2.2.
HDMI and USB-C video resolution up to 4K@60Hz 4:4:4, HDR10, Dolby Vision.
Supports transmission up to 40m at 4K@60Hz or 70m at 4K@30Hz.
Controlled by a button on the front panel, GUI (via TCP/IP), and RS232.
Supports audio volume adjustment for both TX and RX.
Supports two-way IR and 24V PoC.
Provides HDMI loop out.
Supports upgrading both the MCU and HDBaseT at the same time.

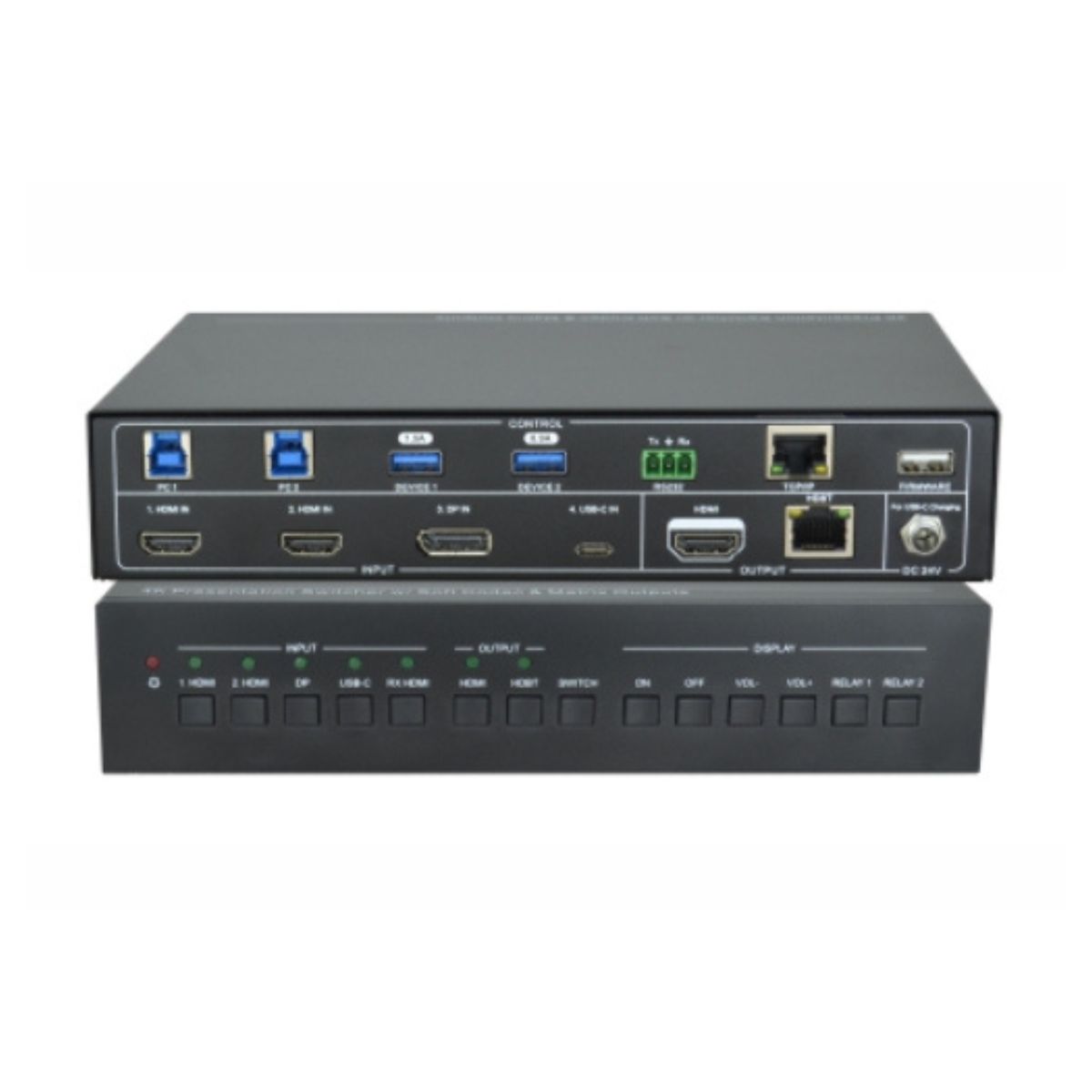

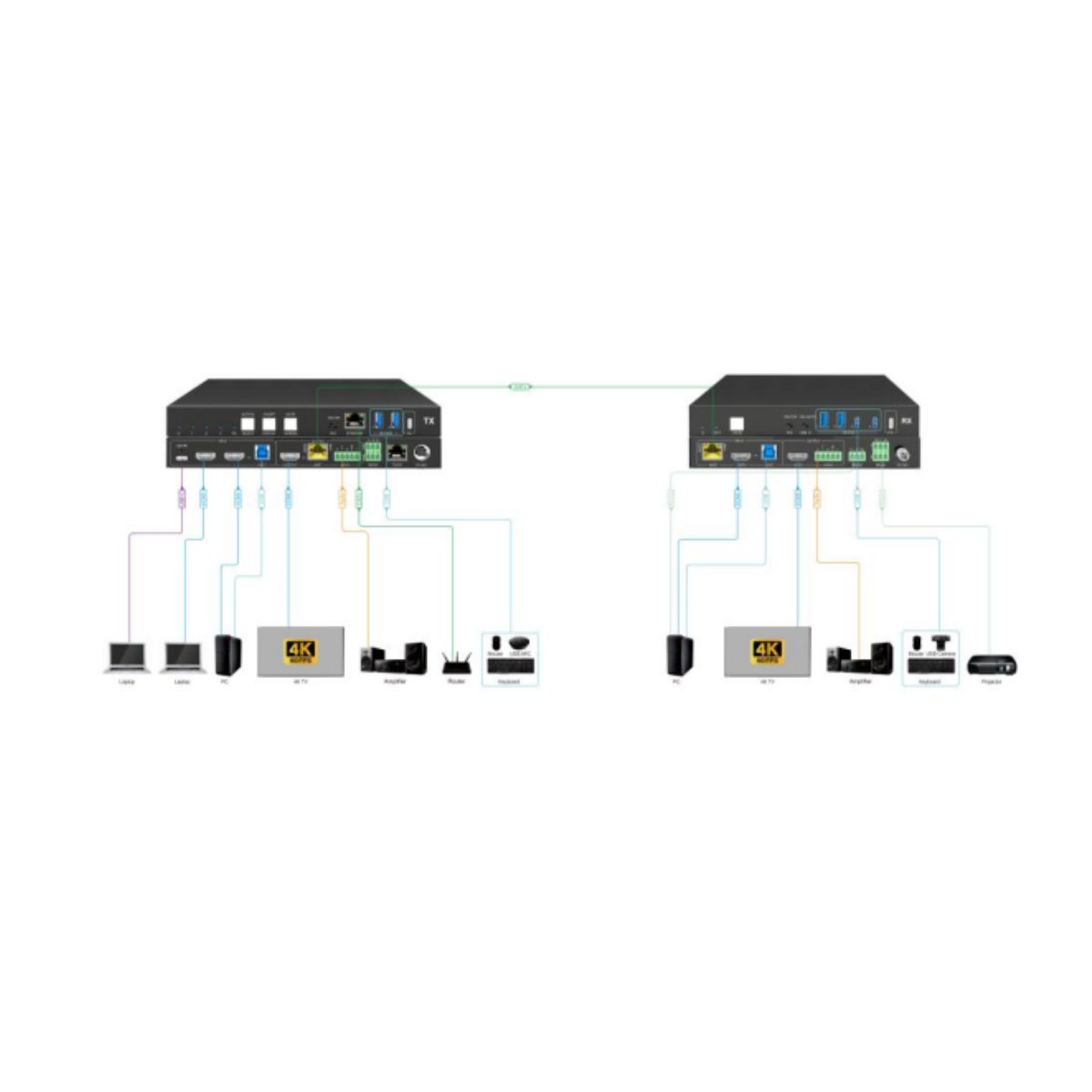

MP-SC-42T-CODEC
MP-SC-42T-CODEC
Highlights
4K Presentation Switcher with Soft Codec & Matrix Outputs.

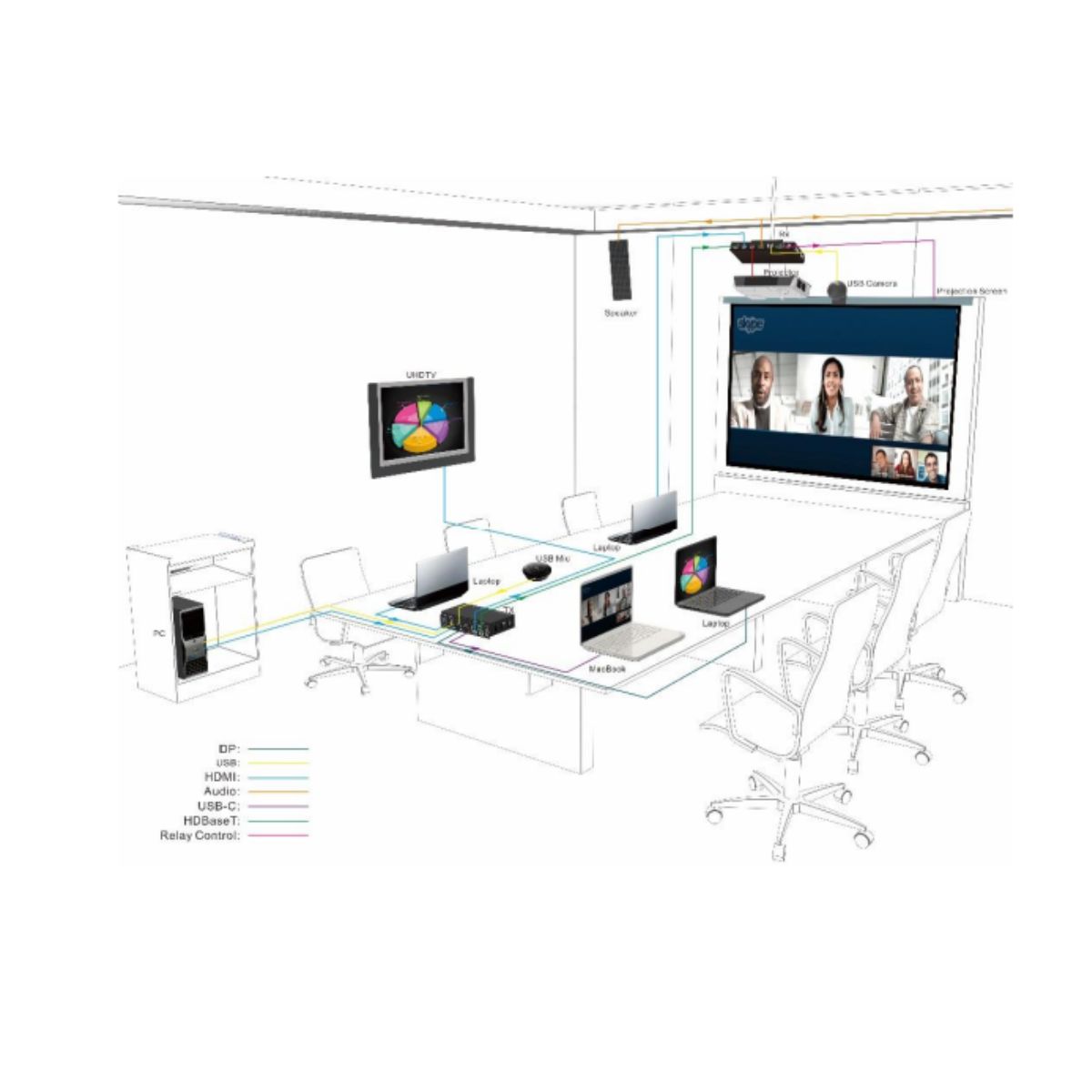

The teleconference system transmitter connects to a laptop and a USB MIC or speaker, while the receiver connects to a display and a USB camera.
Automatic display control.
HDMI 2.0b, 4K/60 Hz/4:4:4 8bit, HDR 10, HDCP 2.2
Transmits 4K to 40m and 1080P to 70m.
Audio de-embedding on the receiver.
EDID management for individual input.
PoC technology allows the Transmitter HDBT OUT port to be powered by the Receiver.
The receiver HDBT IN port supports two ways of 24V PoC technology.

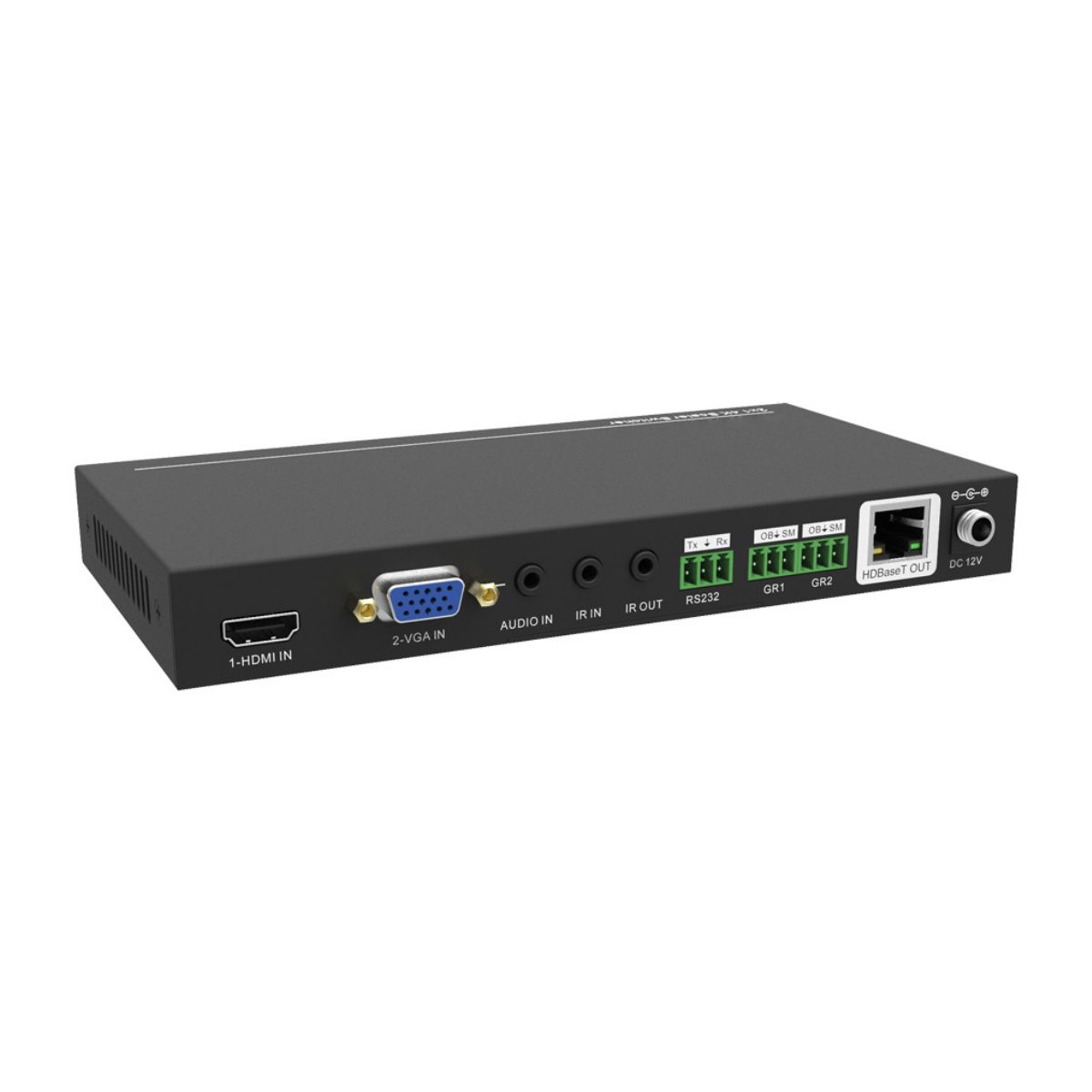

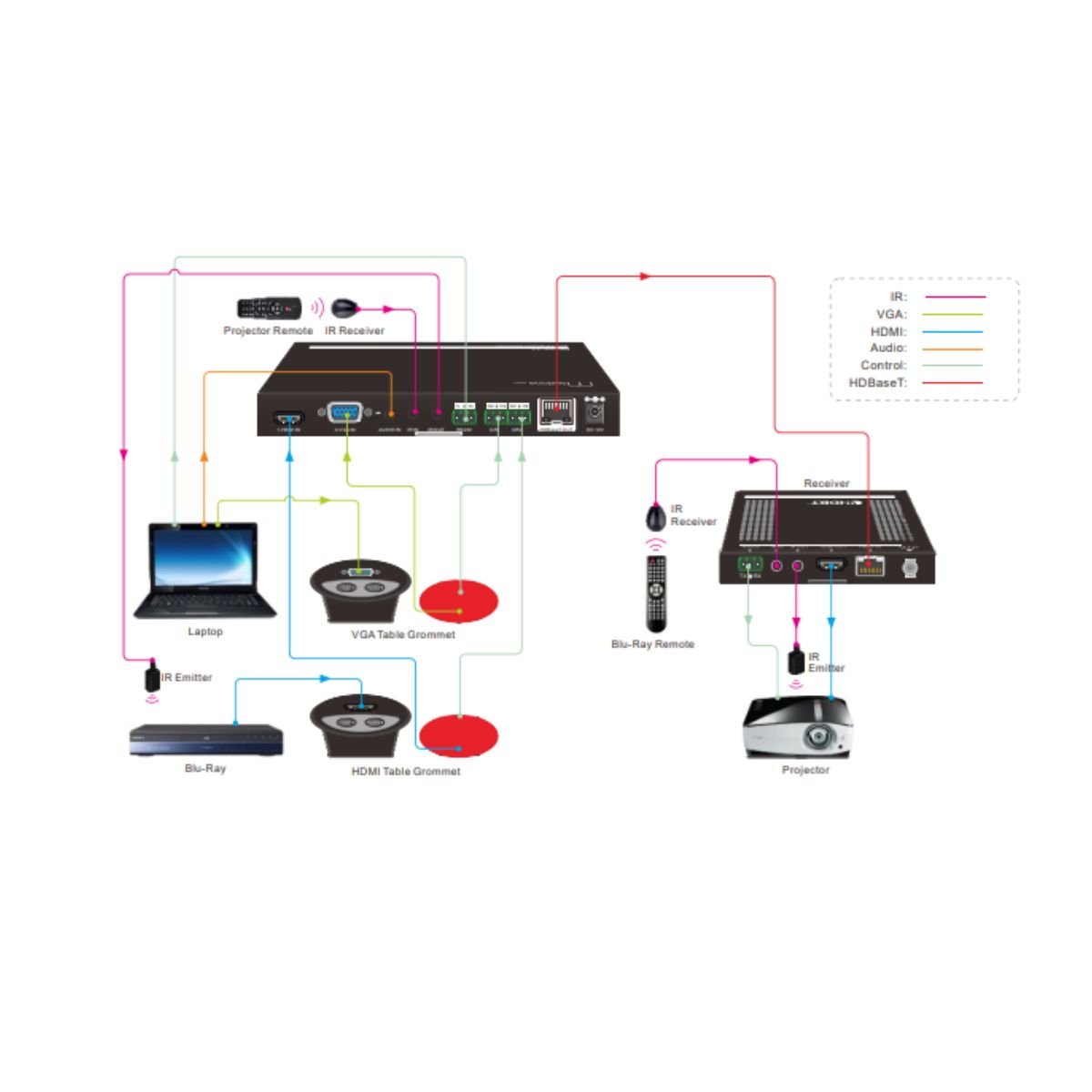

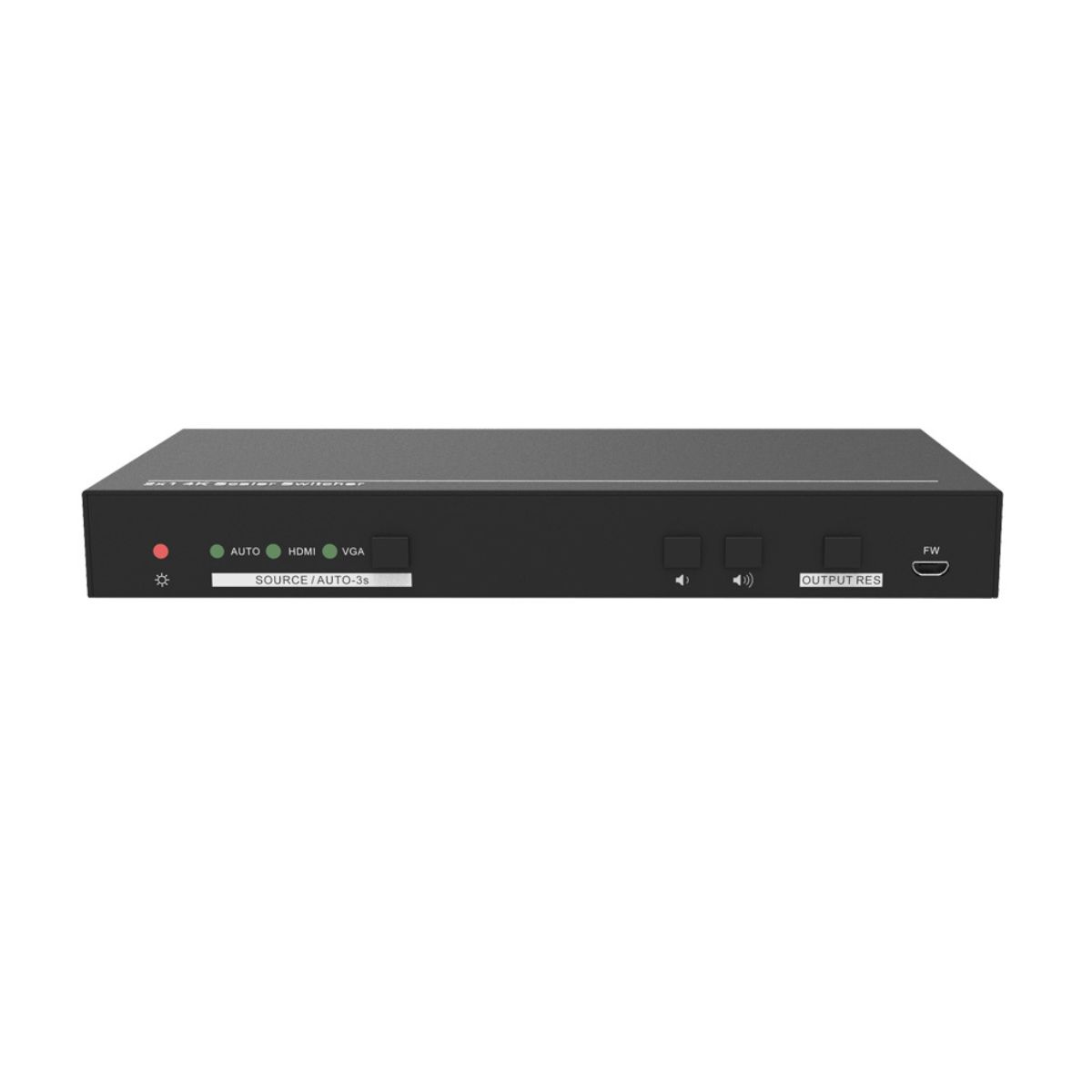

MP-SC-21
MP-SC-21
Highlights
Features 1 HD MI input and 1 VGA input, along with an auxiliary audio input.
The output resolution can be selected from 720p to 4k x 2k @30Hz 4:4:4 to assure preferred output.
Transmits 4Kx2K up to 131ft (40m) or 1080p up to 230ft (70m) via HDBaseT port.
Supports volume control via buttons.
Supports HDMI/VGA table grommets to control source switching and black screen showing.
Automatically switch based on video sensing.
Supports RS232 pass-through to communicate control signals between the scaler and the connected HDBaseT matrix or receiver.
Allows the connected source and display to be controlled remotely via bi-directional IR pass-through.

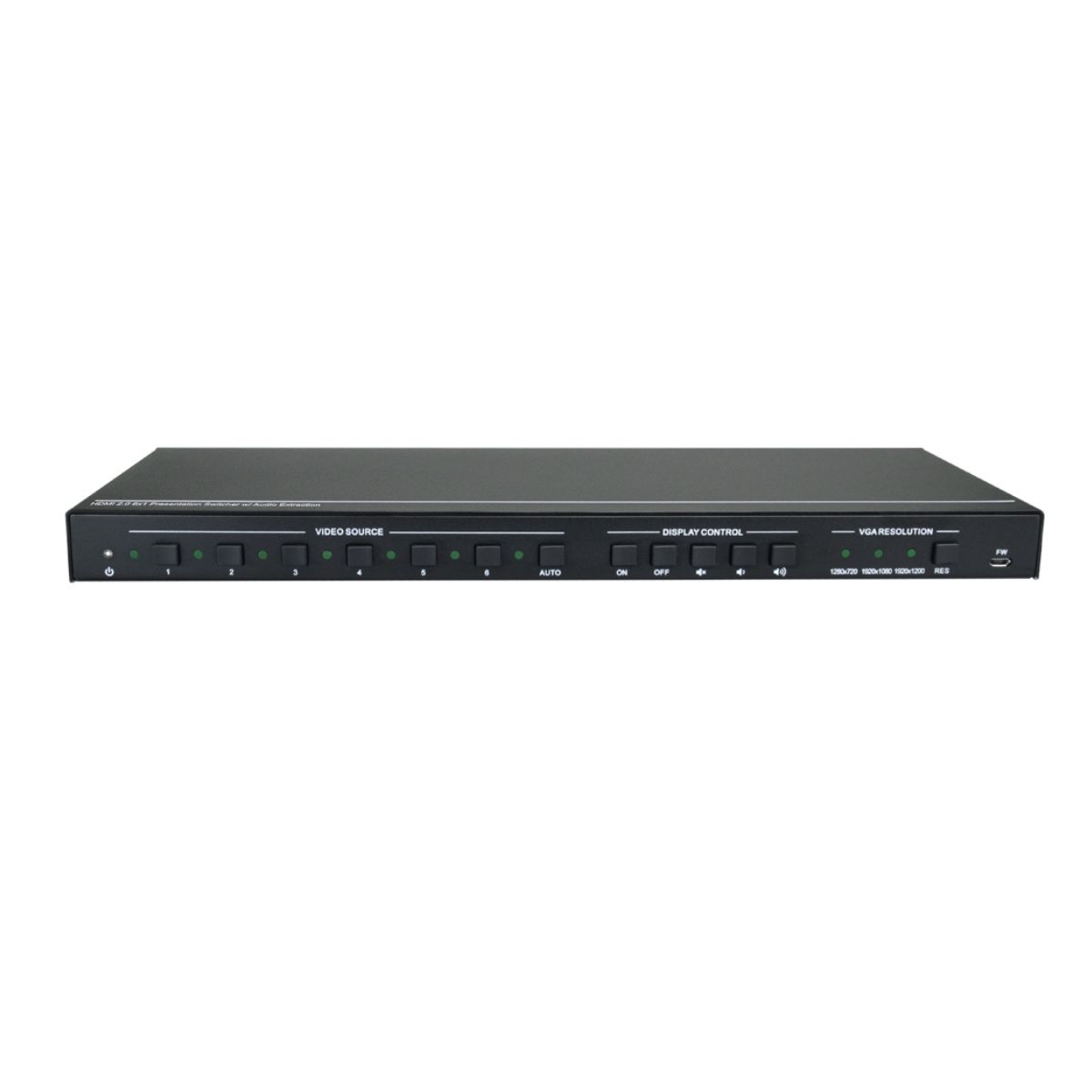

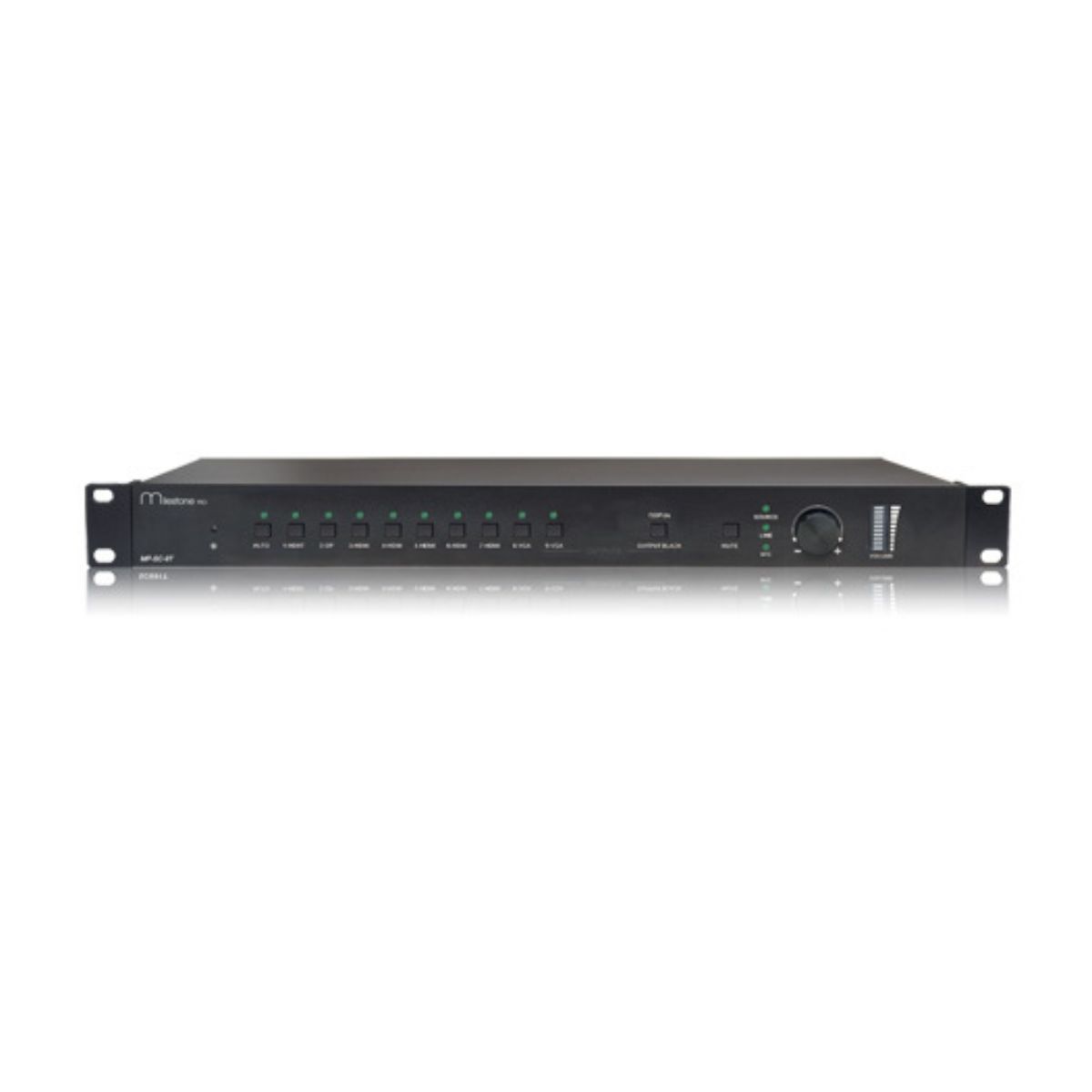

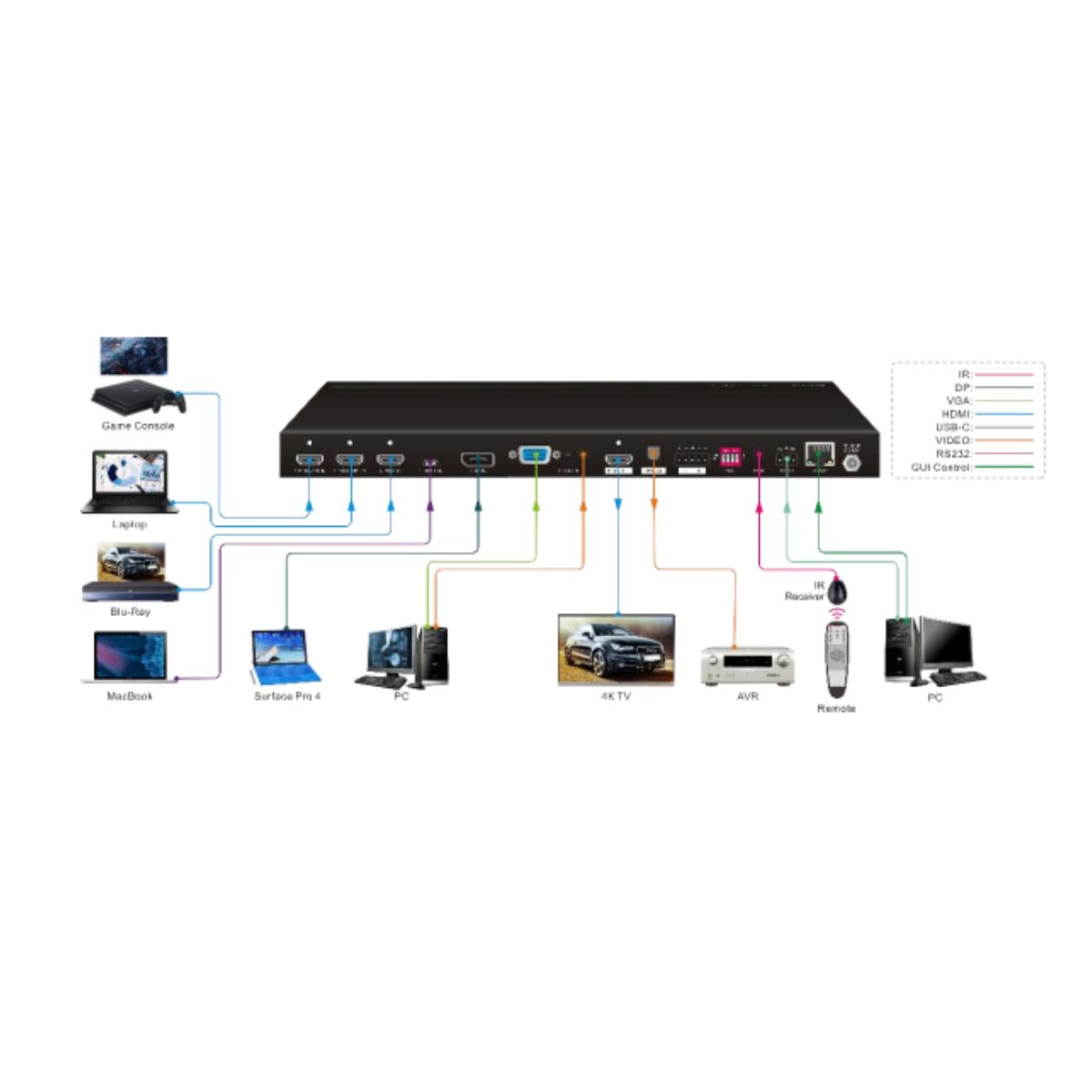

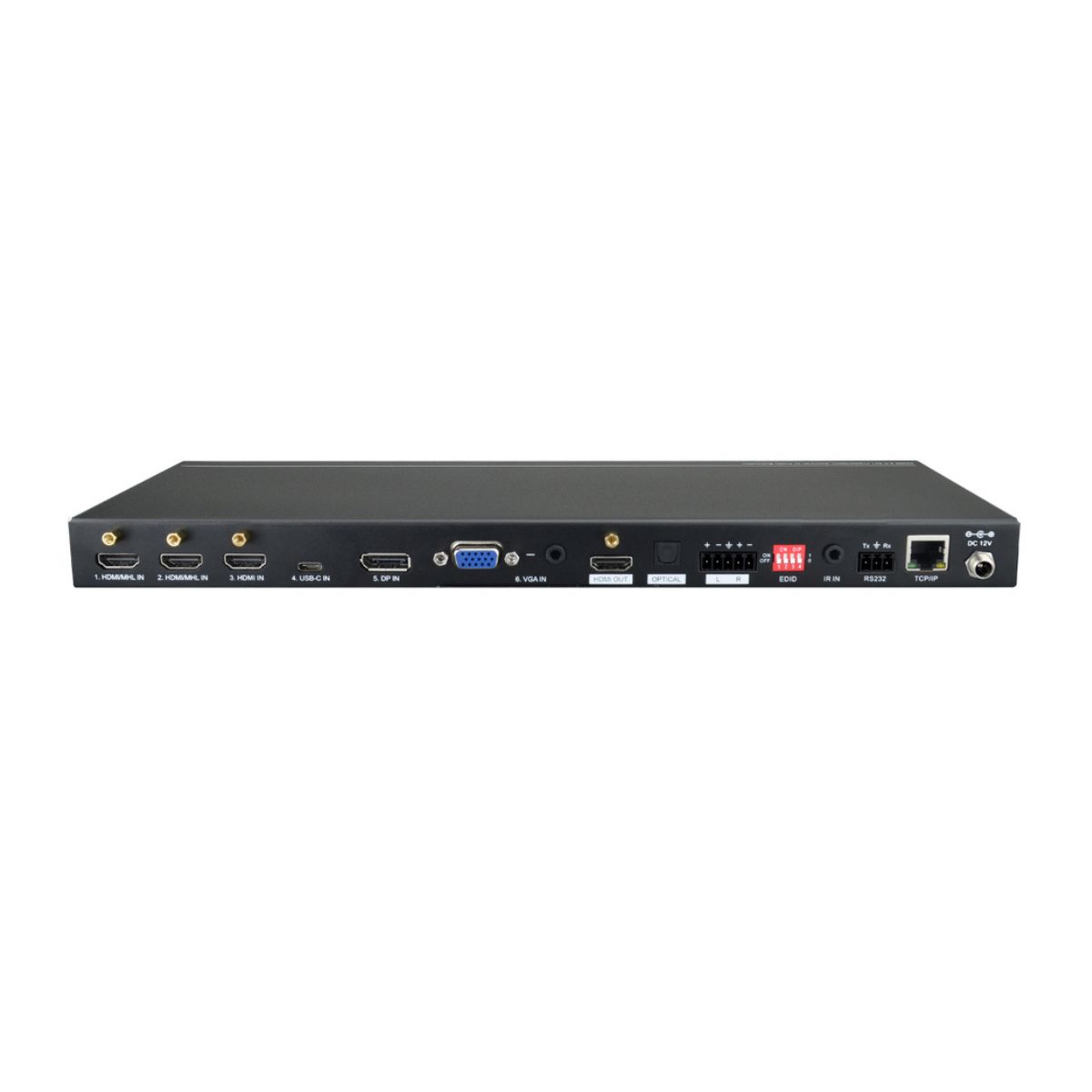

MP-SC-61E
MP-SC-61E
Highlights
Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4 8-bit 1080P and 3D
18Gbps high bandwidth and supports HDR 10.
HDCP 2.3 compliant.
Supports automatic switching
CEC control for display volume and ON/ O FF.
Controllable via RS232 and IR.
VGA resolution is selectable on the front panel.
Optical and balanced analog audio for audio de-embedding.
Smart EDID management for various applications and customized settings.

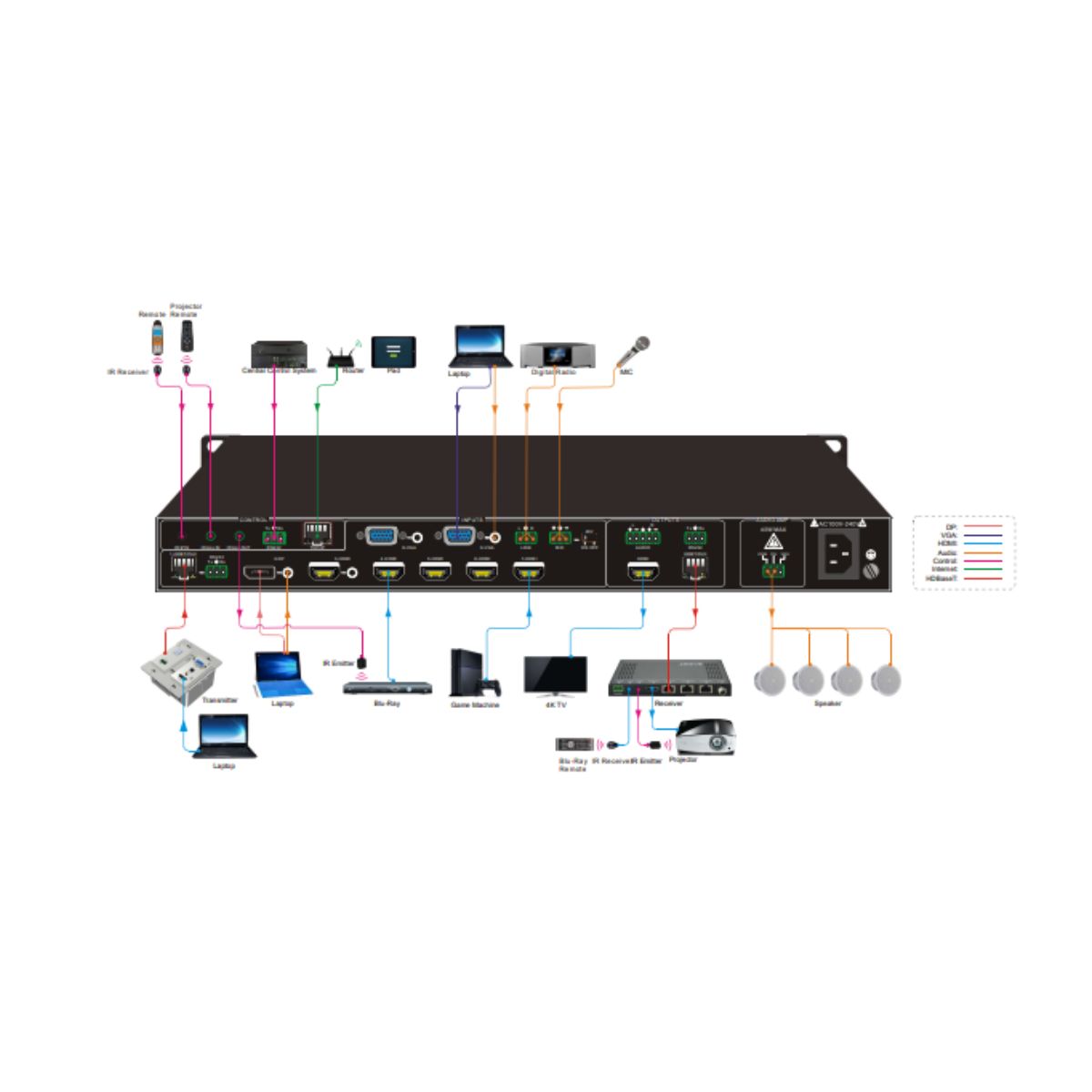

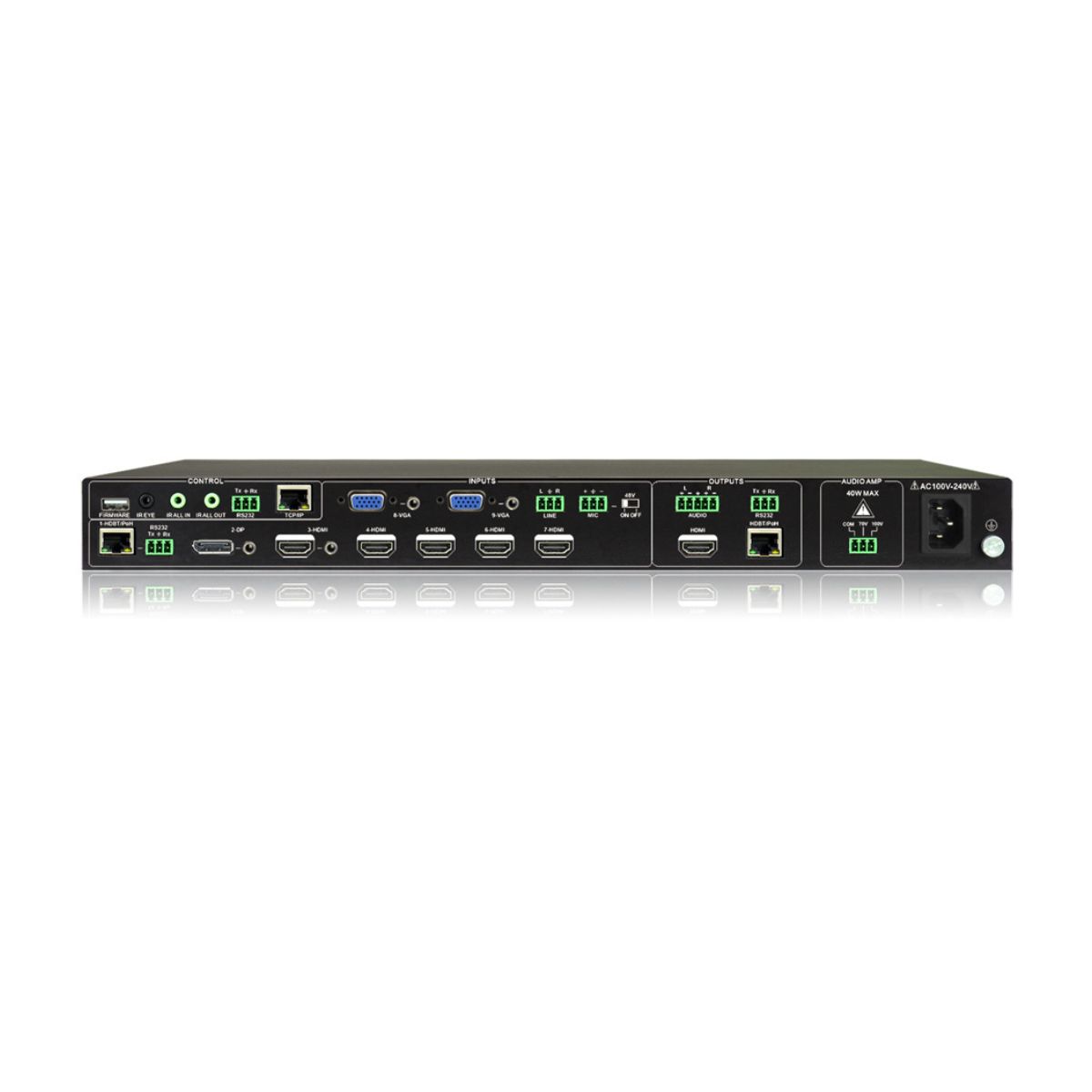

MP-SC-9T
MP-SC-9T
Highlights
Compliant with HDMI 1.4 and HDCP 2.2.
Supports video source auto-switching function.
HDBaseT input with distances up to 70m (230ft) at 1080p and 40m (131ft) at 4K on a single CAT5e/6/7 cable.
HDBaseT output with distances up to 100m (328ft) at 1080p and 70m (230ft) at 4Kx2K on a single CAT5e/6/7 cable.
Output resolutions selectable to assure preferred output, and supports various output resolutions, such as 1280x720(default), 1920x1080, 1024x768, 1360x768, 3840x2160@30Hz, 3840x2160@60Hz.
DP, HDMI, and VGA video inputs can be embedded with external audio.
Support Line or Mic audio inputs, and the MIC port supports balanced/unbalanced signal, suppressing the external noise effectively.
Controllable via buttons, IR Remote, RS232, and GUI.

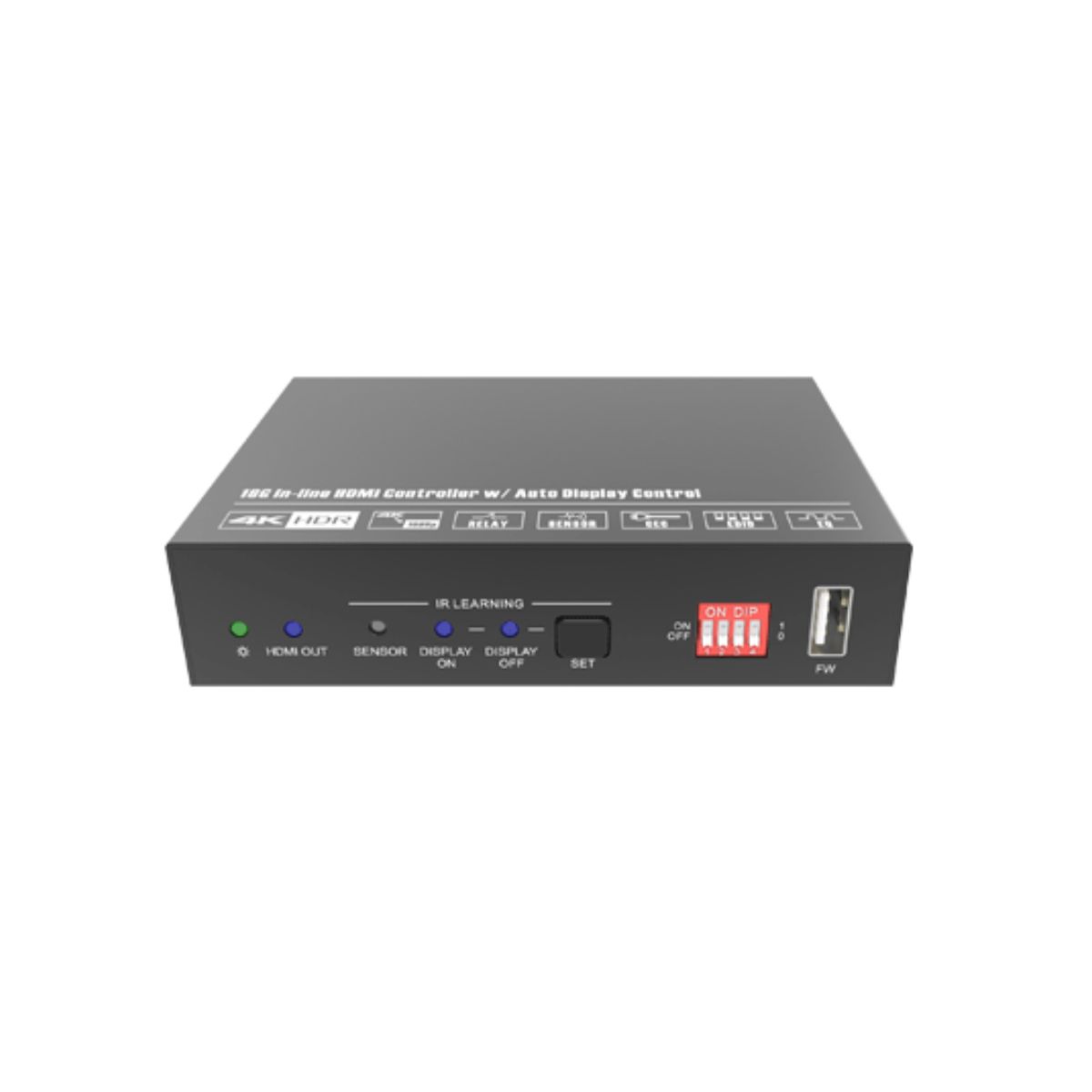

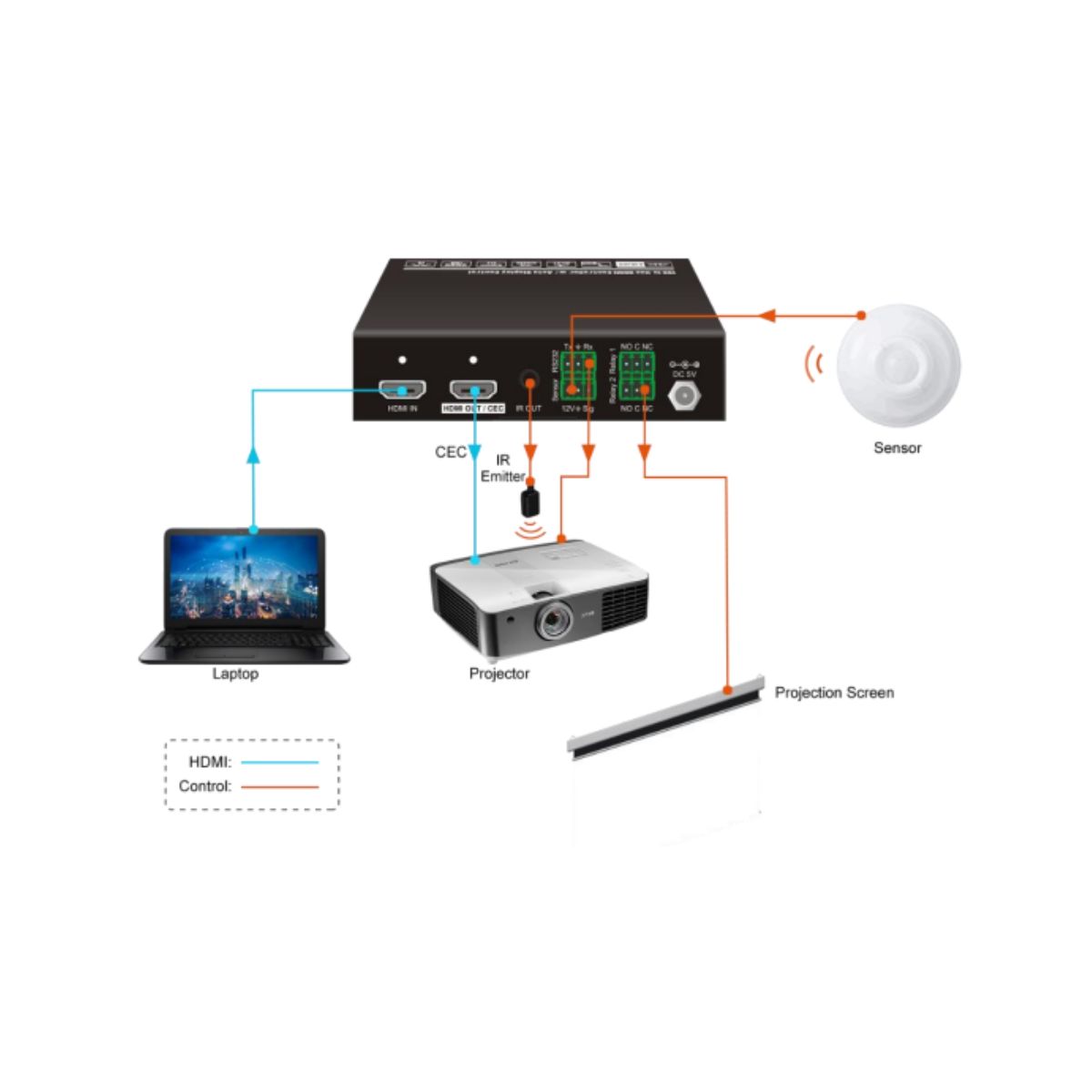

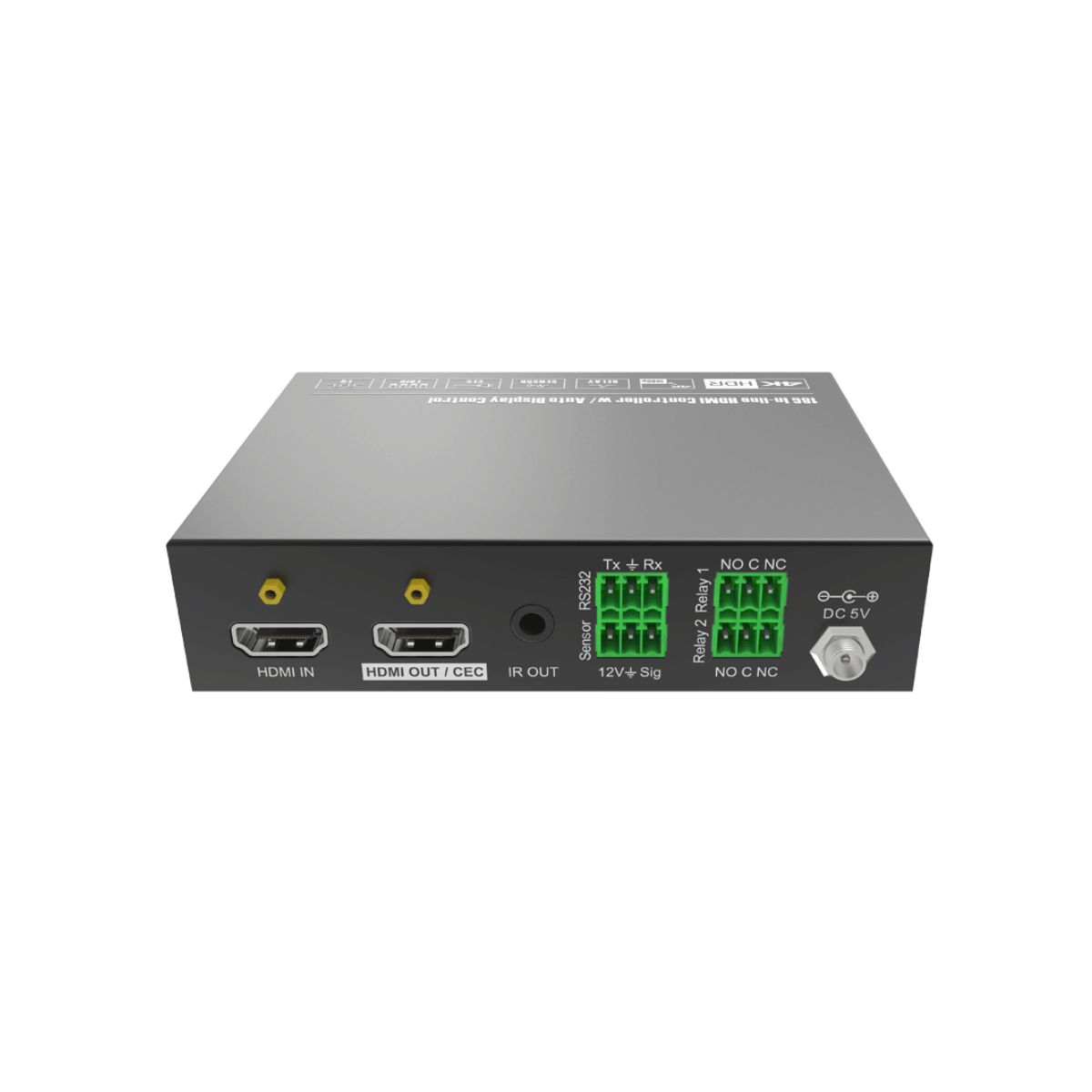

MP-SC-CONTROL
MP-SC-CONTROL
Highlights
Supports up to 4Kx2K@ 60Hz 4:4:4 HDR10 and Dolby Vision, HDCP 2.2 compliant.
HDCP pass-through or converted to HDCP 1.4 for better compatibility.
Supports 4K to 1080p downscaling.
Comprehensive EDID management with 8 EDID Options for various applications.
Automation display control via CEC, RS-232, and IR.
Contact Closure input for connections with a variety of devices, such as sensors and switches.
Relay control for a device like a projection screen.
Built-in signal equalizer provides the capability to use a longer range HDMI cable.

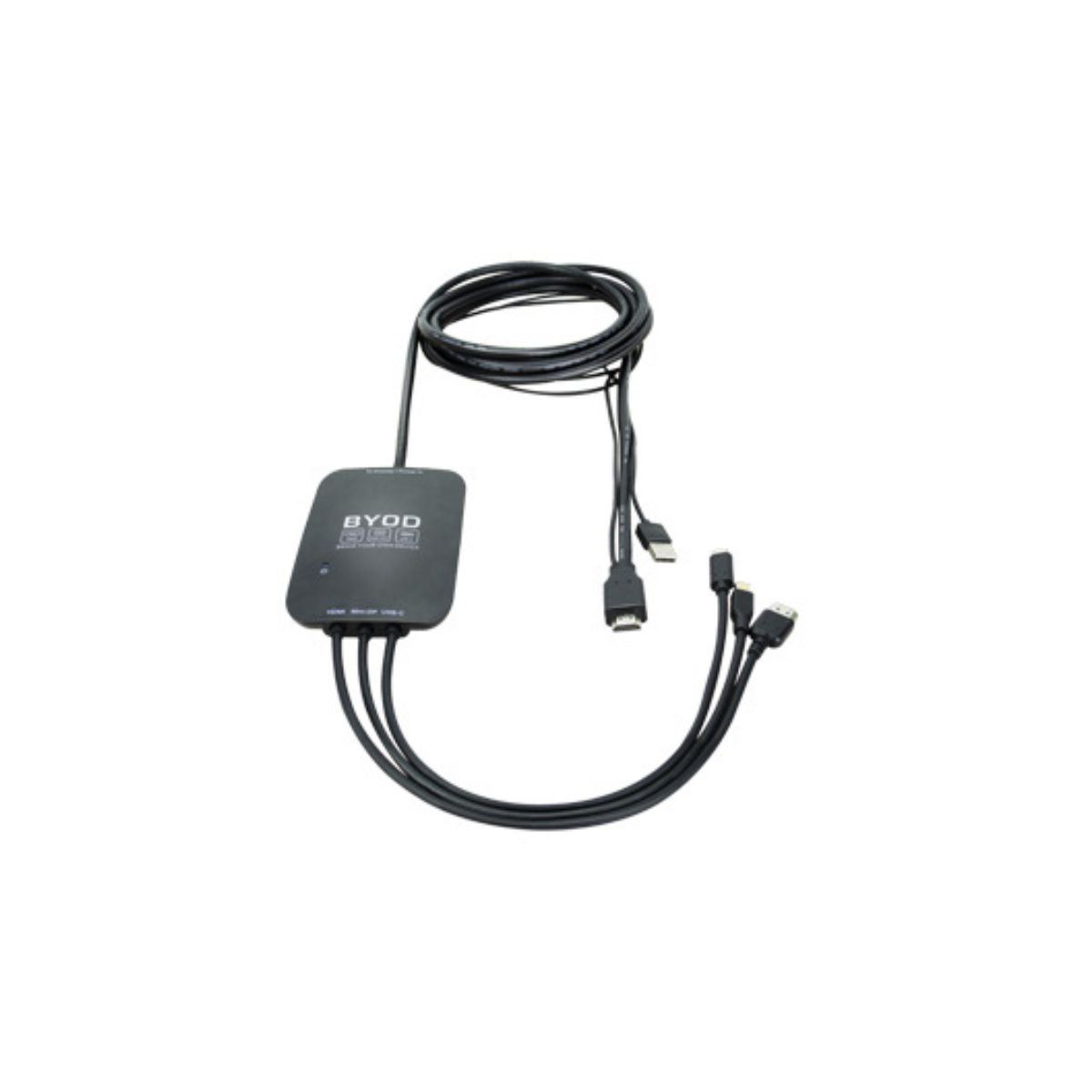

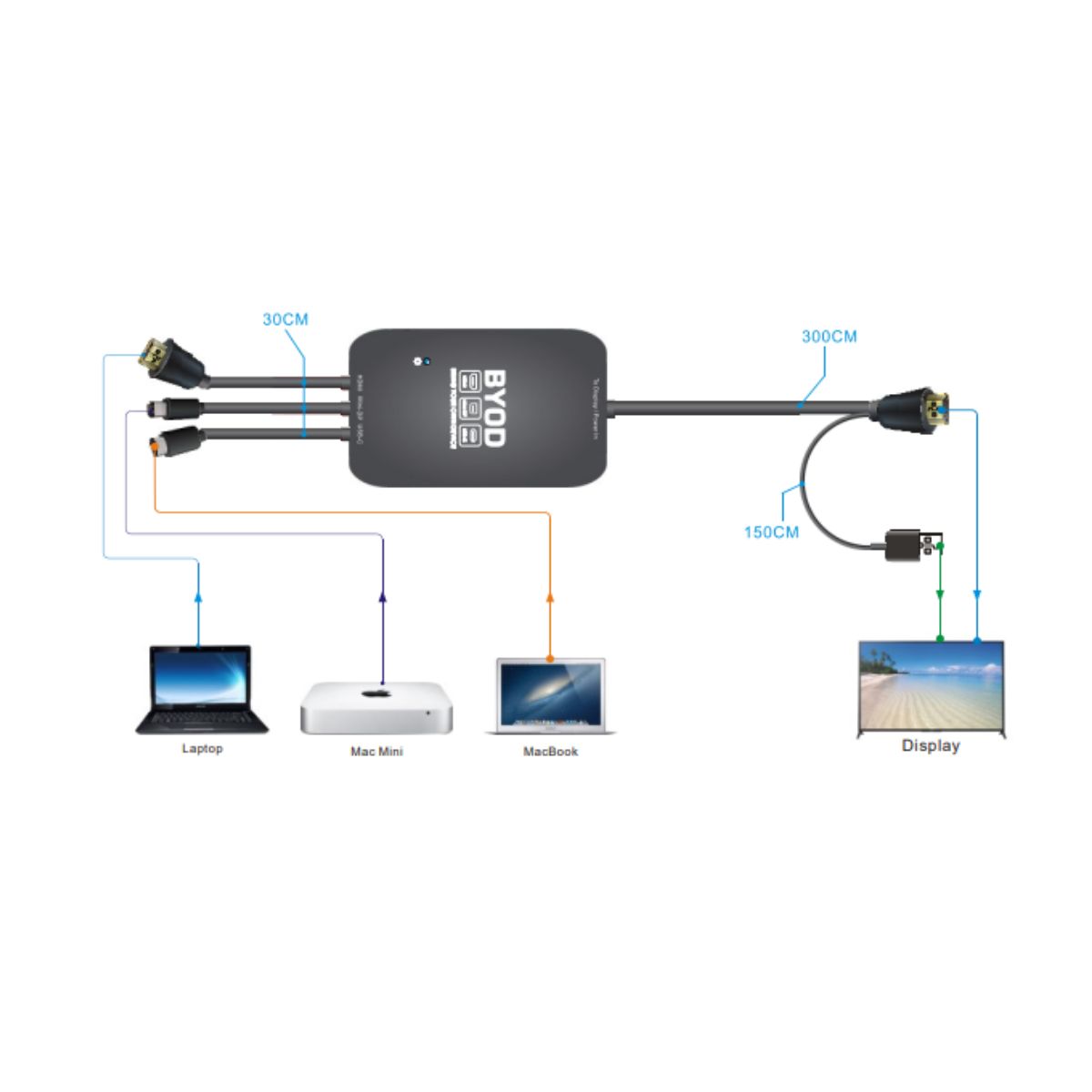

MP-BYOD
MP-BYOD
Highlights
Supports HDMI, Mini DP, and USB-C input signals to be converted to HDMI signals.
Auto-detects the input signal; the last connected signal source will be switched to the output automatically.
Starts to scan from HDMI to USB-C and switches the first detected source to output.
Supports Mini DP and USB-C input video resolution up to 4K@60Hz 4:4:4.
Supports HDMI input and output video resolutions up to 4K@60Hz 4:4:4 HDR and Dolby Vision.
HDCP 2.2 compliant.
Powered via USB-A from the display end.
LED for power indicating.

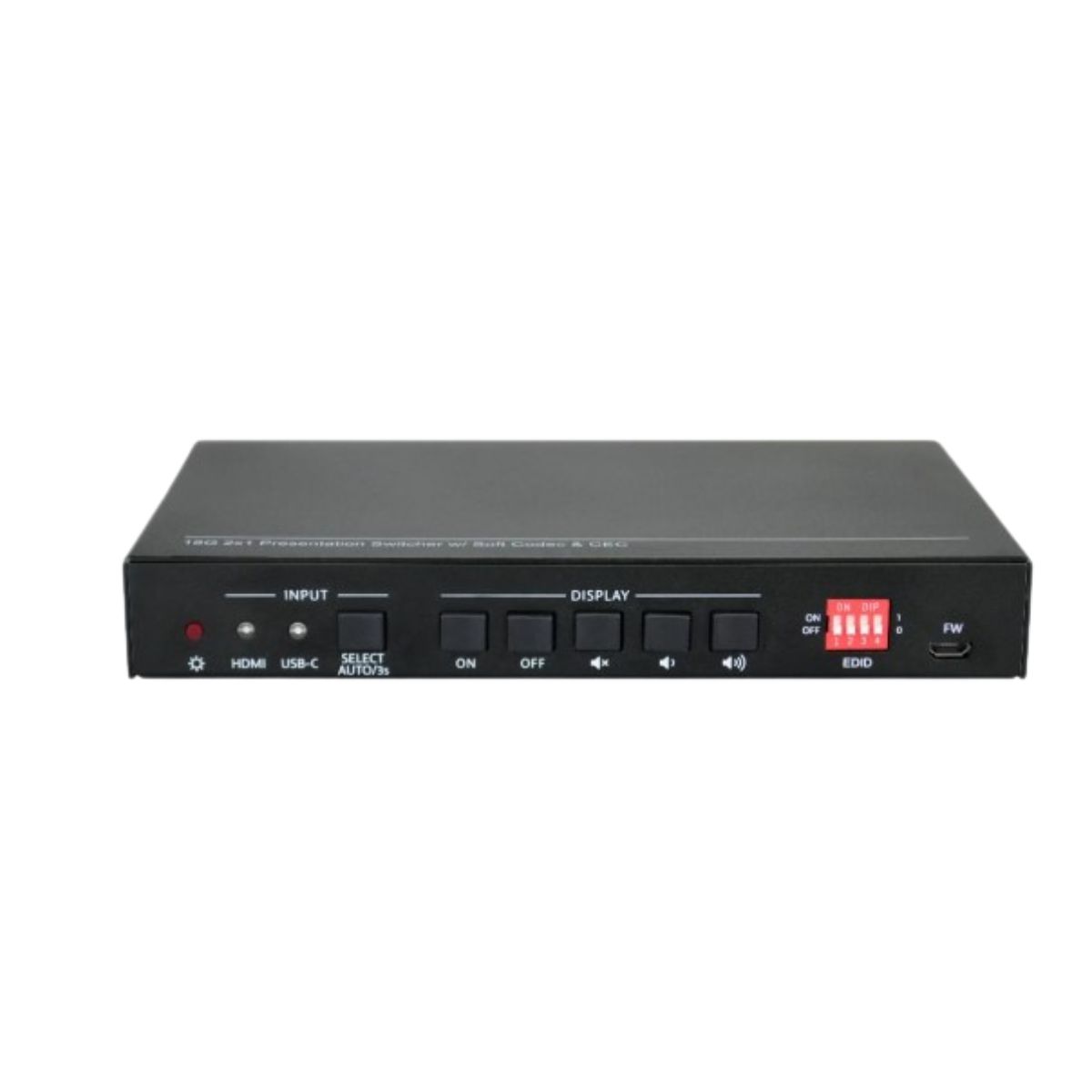

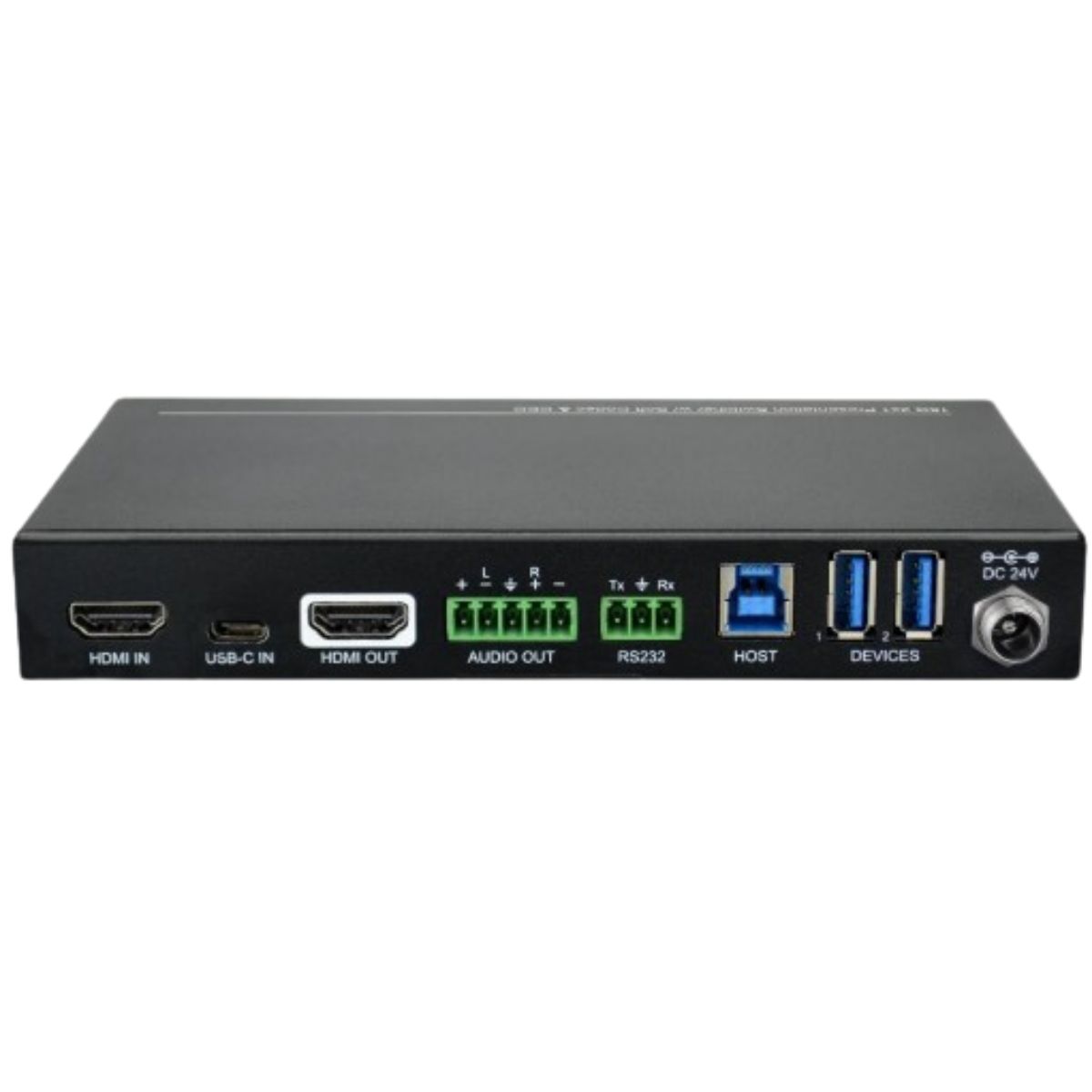

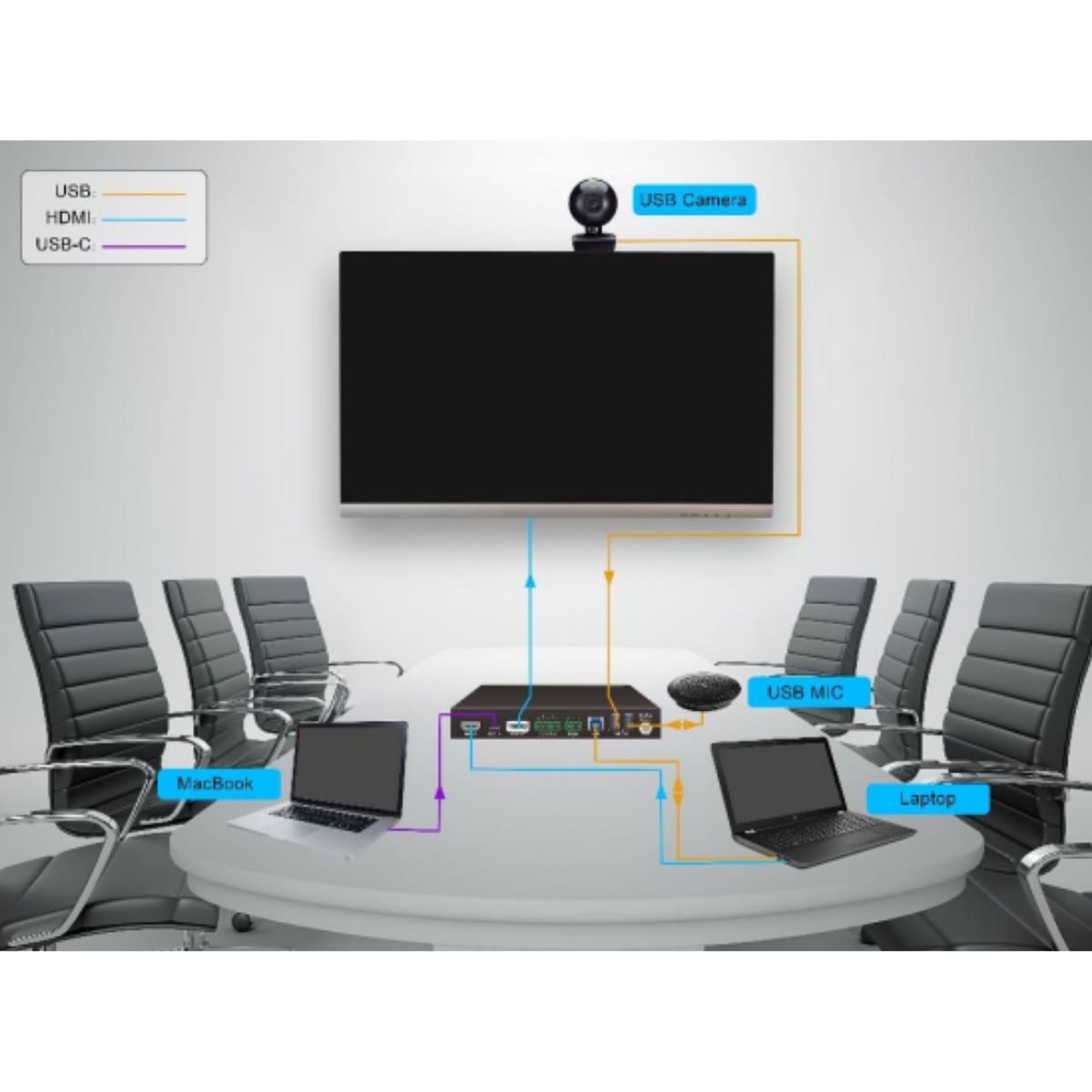

MP-SC-21CODEC
MP-SC-21CODEC
Highlights
18G 2x1 switcher with HDMI and USB-C inputs.
Supports automatic switching.
Controllable via front panel buttons and RS232.
Supports HDMI 2.0, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision, HDCP 2.2.
Provides charging on the USB-C port up to 40W.
Provides USB data (USB 3.0/2.0) and 4K video transmission on USB-C port.
Balanced analog audio for audio de-embedding.
Peripheral units (e.g., microphone and camera) can be connected by type A USB (USB 3.0/2.0) ports and automatically switched along with HDMI and USB-C input as USB DEVICES for the corresponding HOST.

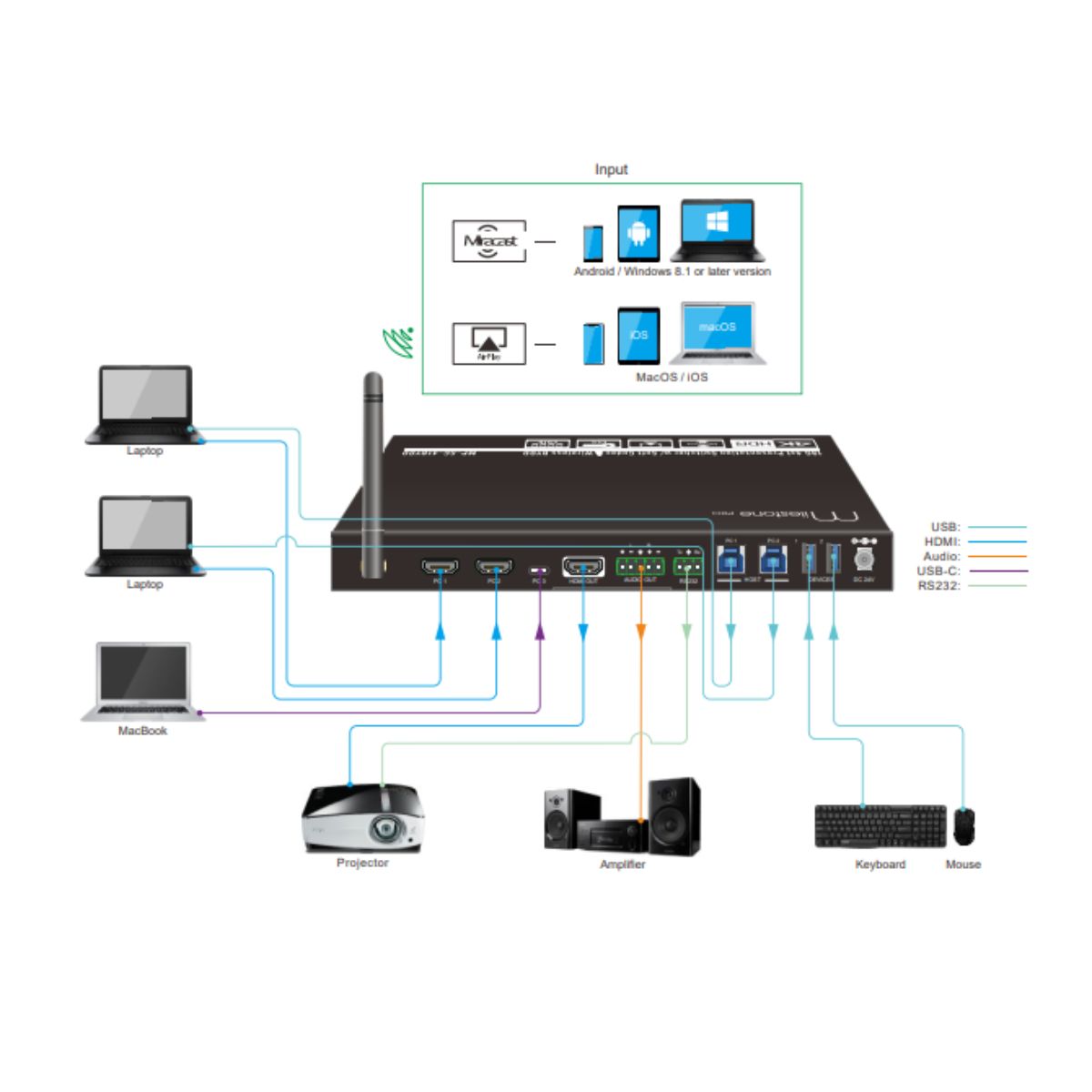

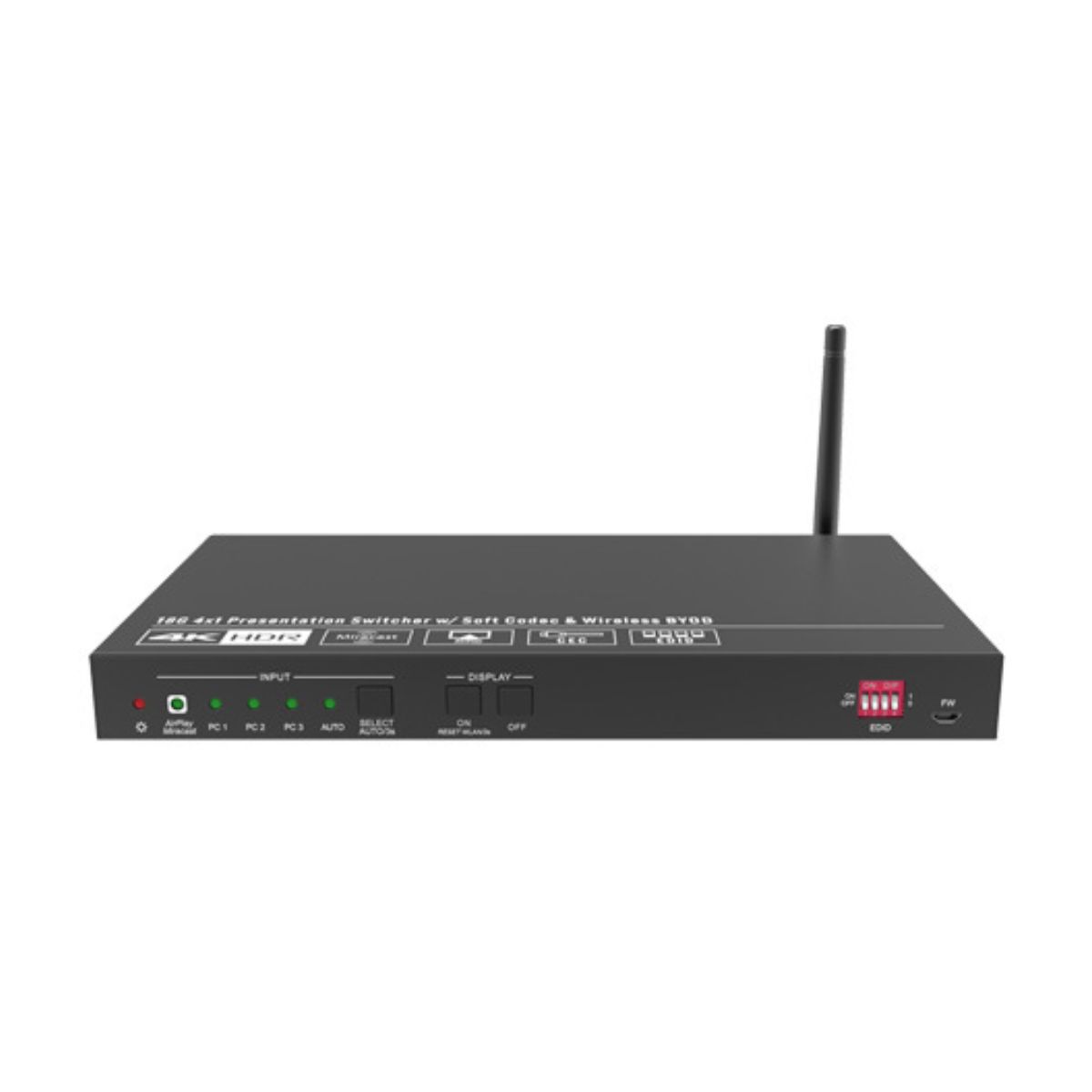

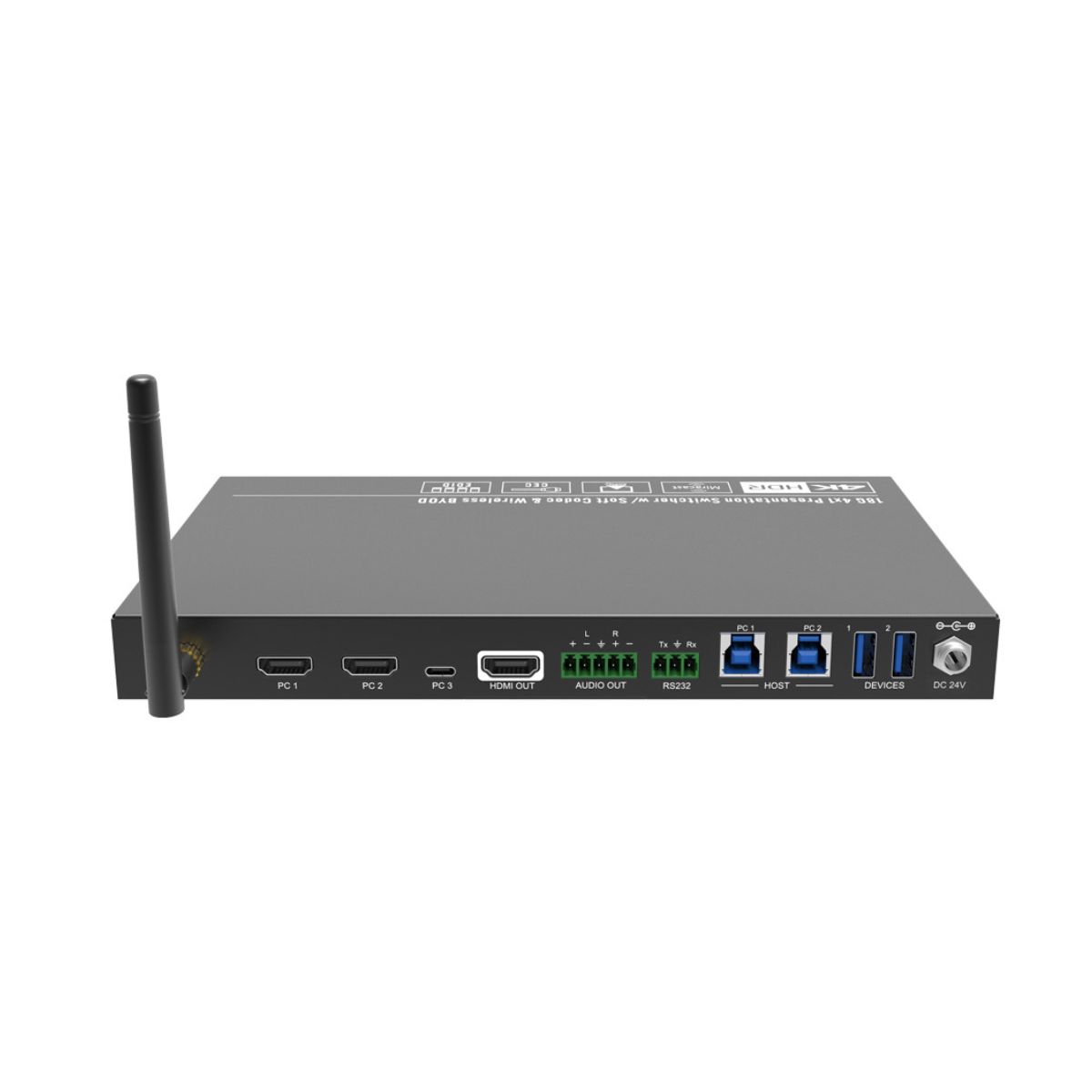

MP-SC-41BYOD
MP-SC-41BYOD
Highlights
18G 4x1 presentation switcher with soft codec & wireless BYOD.
Supports HDMI 2.0 b, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision, and HDCP 2.2
Wireless BYOD (Bring Your Own Device) capability via AirPlay and Miracast.
Provide up to 60W charging, USB data (USB 3.0/2.0), and 4K video transmission on the USB-C port.
HDMI output audio can be embedded via the balanced analog audio port.
Two type-B USB ports for host connection, and two type-A USB ports for USB devices like webcam, mic, and keyboard.
Supports video source auto-switching.
