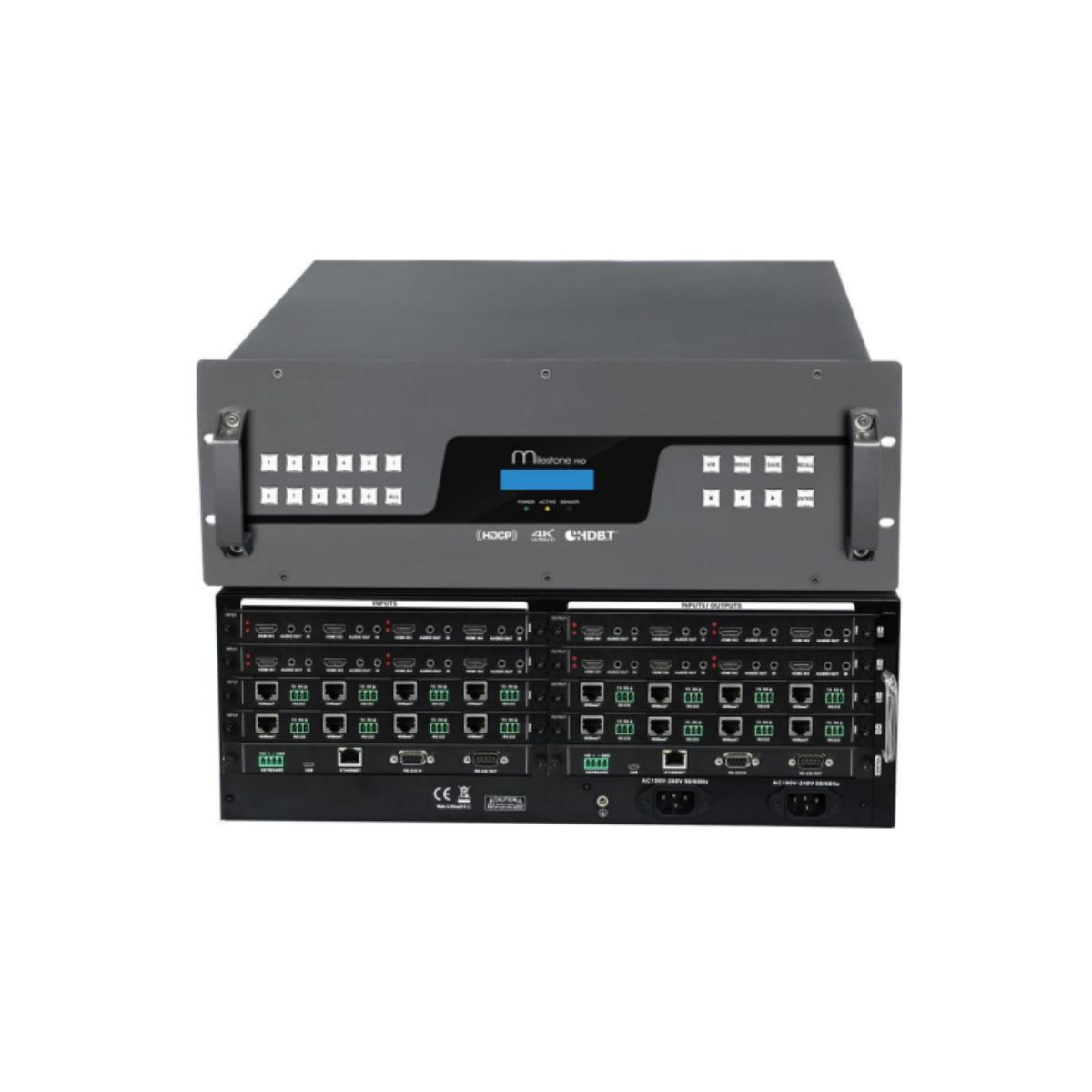

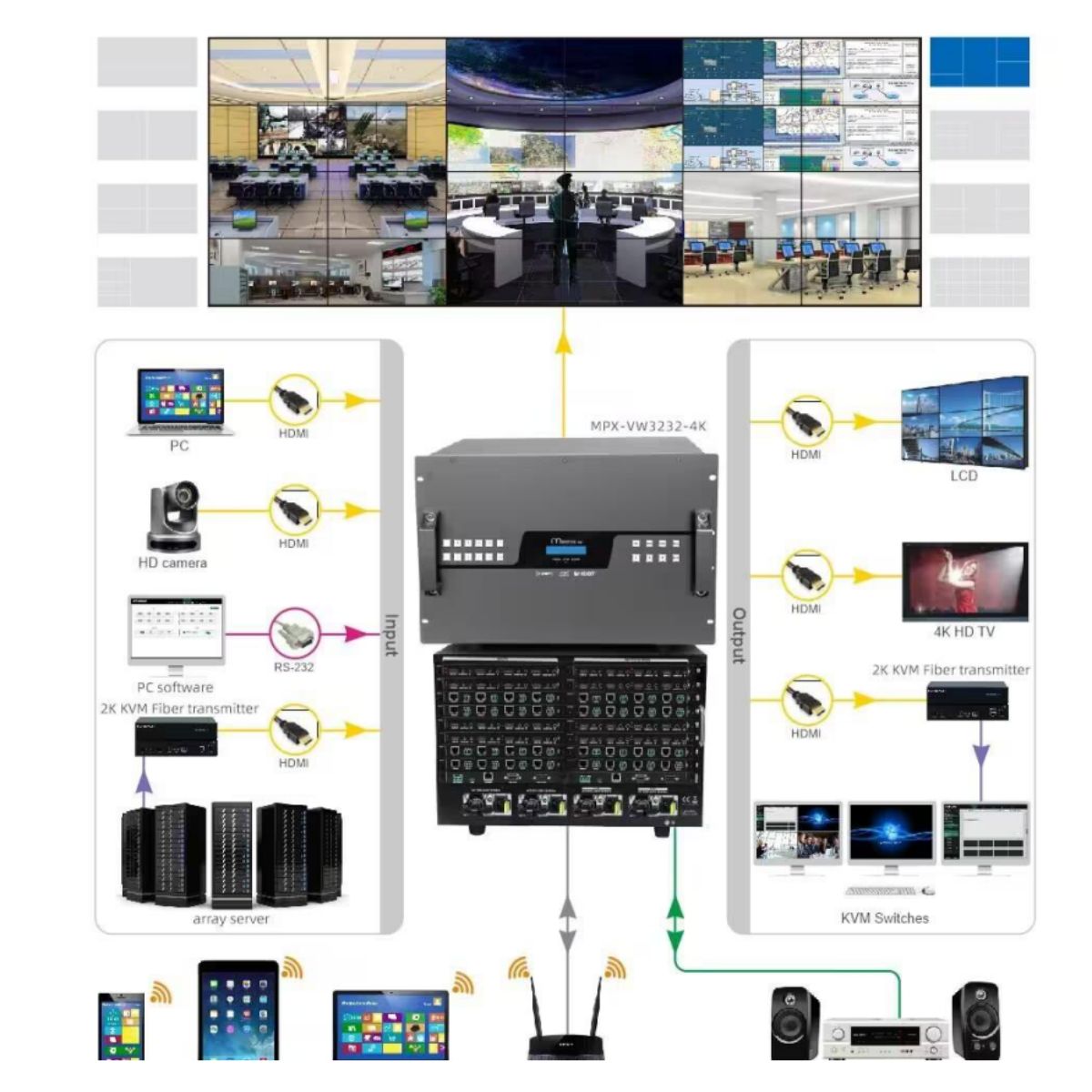

mpx-vw-1616

mpx-vw-1616

Highlights

  • Multiple chassis size options are available: 3.5U, 6.5U, and 11U, supporting up to 12, 32, or 52 channels for mixed insertion.
  • Hardware audio-video switcher and splicing processor based on FPGA architecture
  • Front panel equipped with an LCD and buttons, providing a real-time display of device IP addresses and control over device switching
  • Modular design supporting mixed insertion of input/output cards, online maintenance expansion, and redundant power supply
  • Cross-conversion of various signals, including fiber, DVI, HDMI, and HDBaseT.
  • Support for 4K resolution input signal capture, seamless output, and splicing output
Download

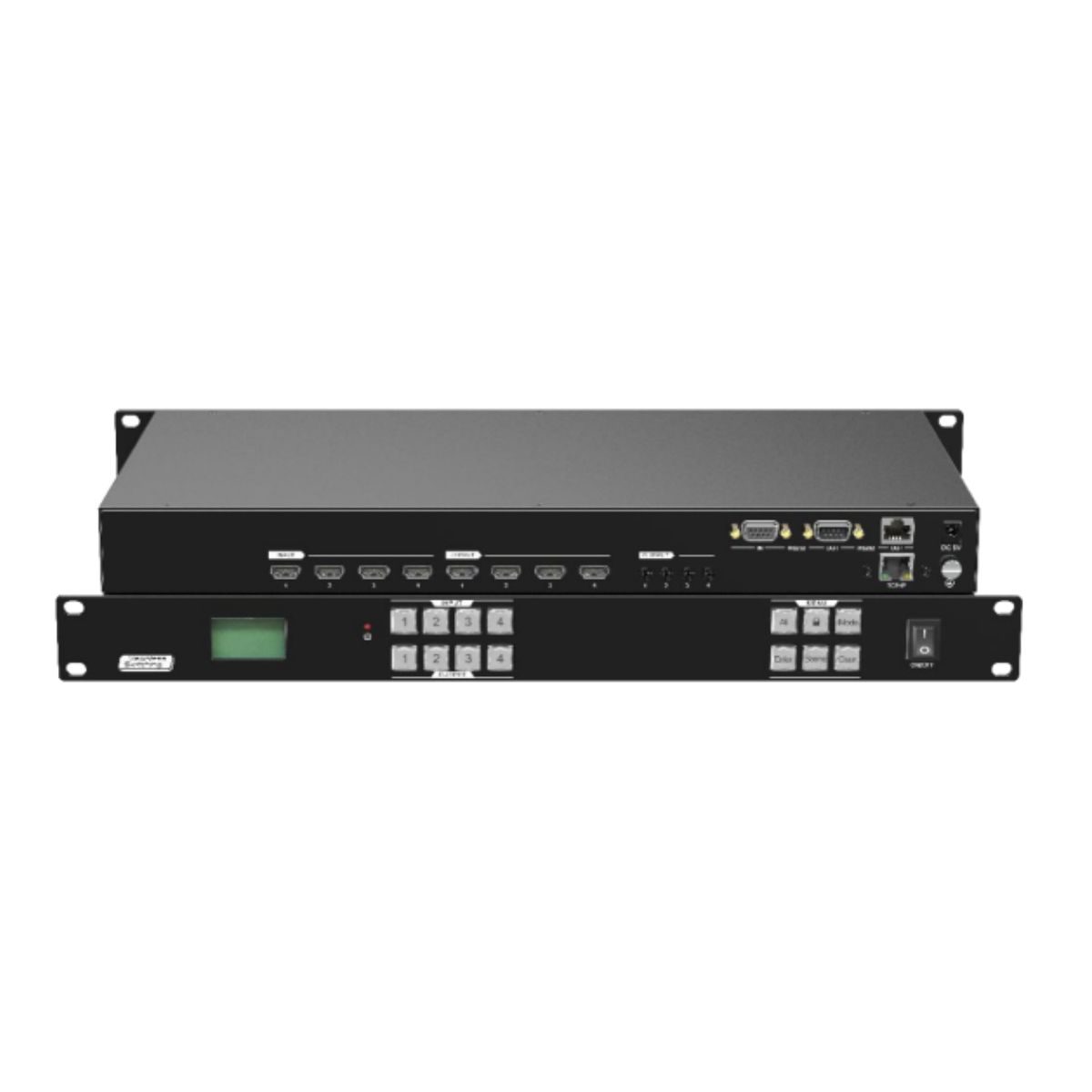

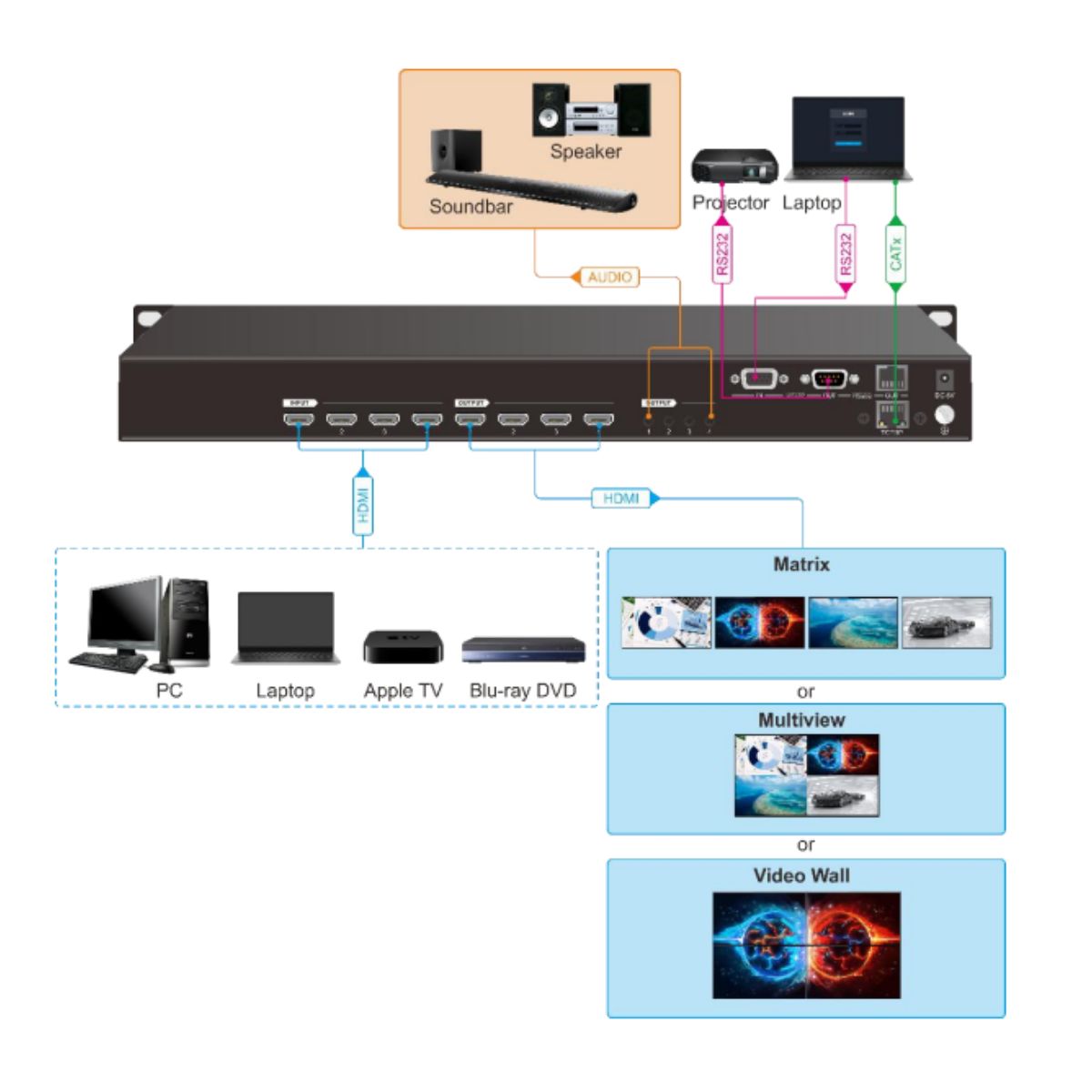

MP-44MV-VW-4K

MP-44MV-VW-4K

Highlights

  • Support seamless switching
  • Support Multiview with 12 layouts
  • Support 12 output resolutions
  • Support the power-off memory function
  • Support 7 built-in EDIDs and custom EDID
  • Support CEC control for the first input/ output port
  • Support Video Wall with Bezel adjustable function
  • Support 4 output channels, audio and video separation
  • Support HDMI1.4 and resolution up to 3840 x 2160@30Hz
Download

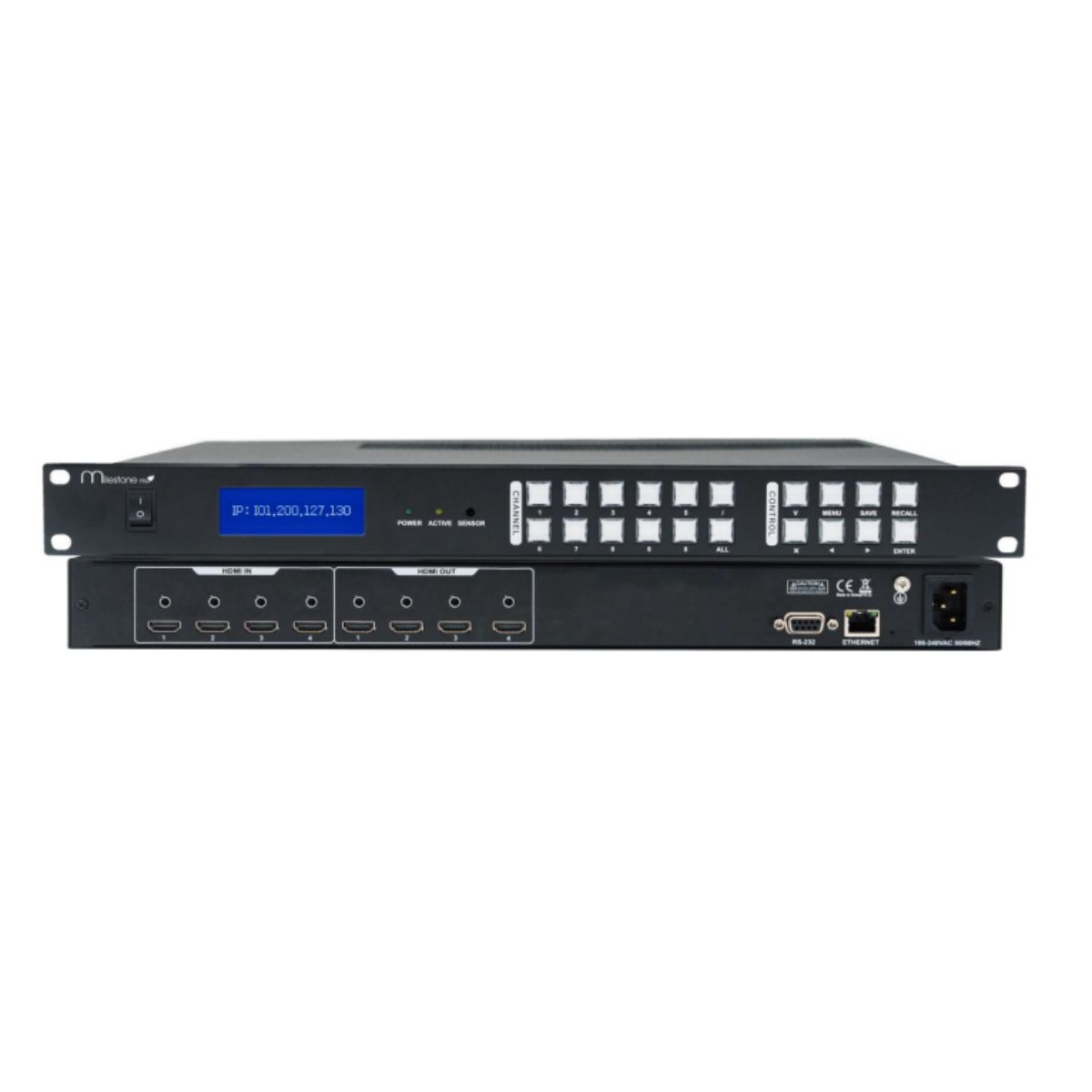

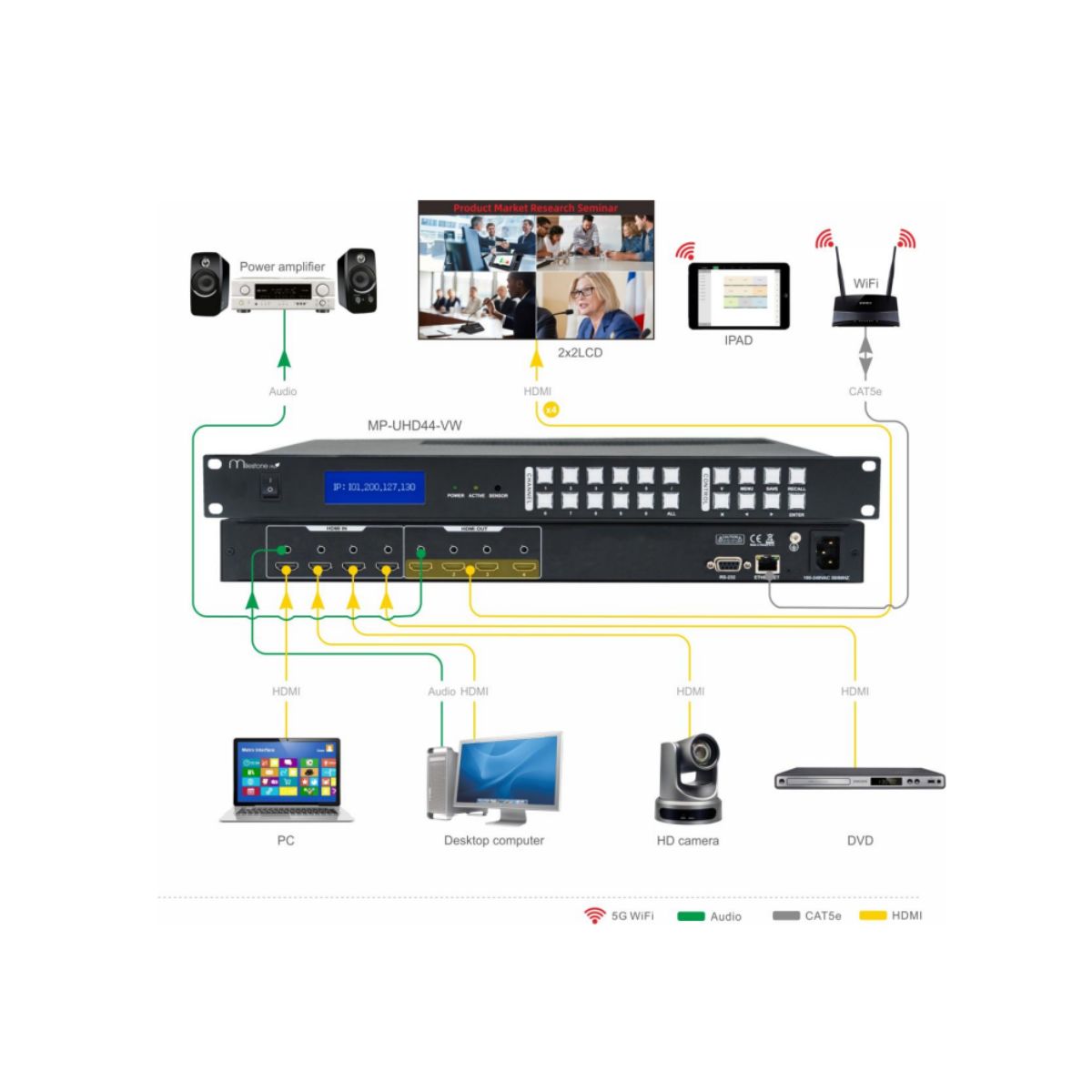

MP-UHD44-VW

MP-UHD44-VW

Highlights

  • 4 HDMI inputs and 4 HDMI outputs with real-time seamless switching;
  • Input and output support up to 4K@60, 4:4:4, compatible with HDMI 2.0 and HDCP 2.2;
  • Intelligent analysis that automatically determines the EDID of display devices and outputs the best resolution.
  • EDID management that supports selecting from multiple built-in EDID files, reading the EDID of output display devices into the input, and updating EDID files;
  • Supports input image clipping, allowing part of the input image to be displayed as a signal.
  • Supports adding logos to input images;
Download

MP-UHD810-VW

MP-UHD810-VW

Highlights

  • 8 HDMI inputs and 9 HDMI outputs, and 1 HDMI preview output for 9-split signal monitoring, along with analog audio output.
  • Input/output supports up to 4K@30Hz, 4:4:4, compliant with HDMI 1.4 and HDCP 1.4.
  • Visual management with built-in preview for real-time monitoring and video wall status feedback.
  • Flexible layout: customizable windows, roaming, scaling, seamless switching, and layer overlay.
  • Layer management: up to 8 layers per output, max 16 layers across the wall (Inputs 1–8 share 16 layers; Output 9 shares 8 layers with Inputs 5–8).
  • EDID management: selectable built-in EDID, reads and applies display EDID, supports updates.
  • Image cropping allows for partial display of the input image.
  • Logo overlay: supports custom logos with adjustable language, font, and size.
Download

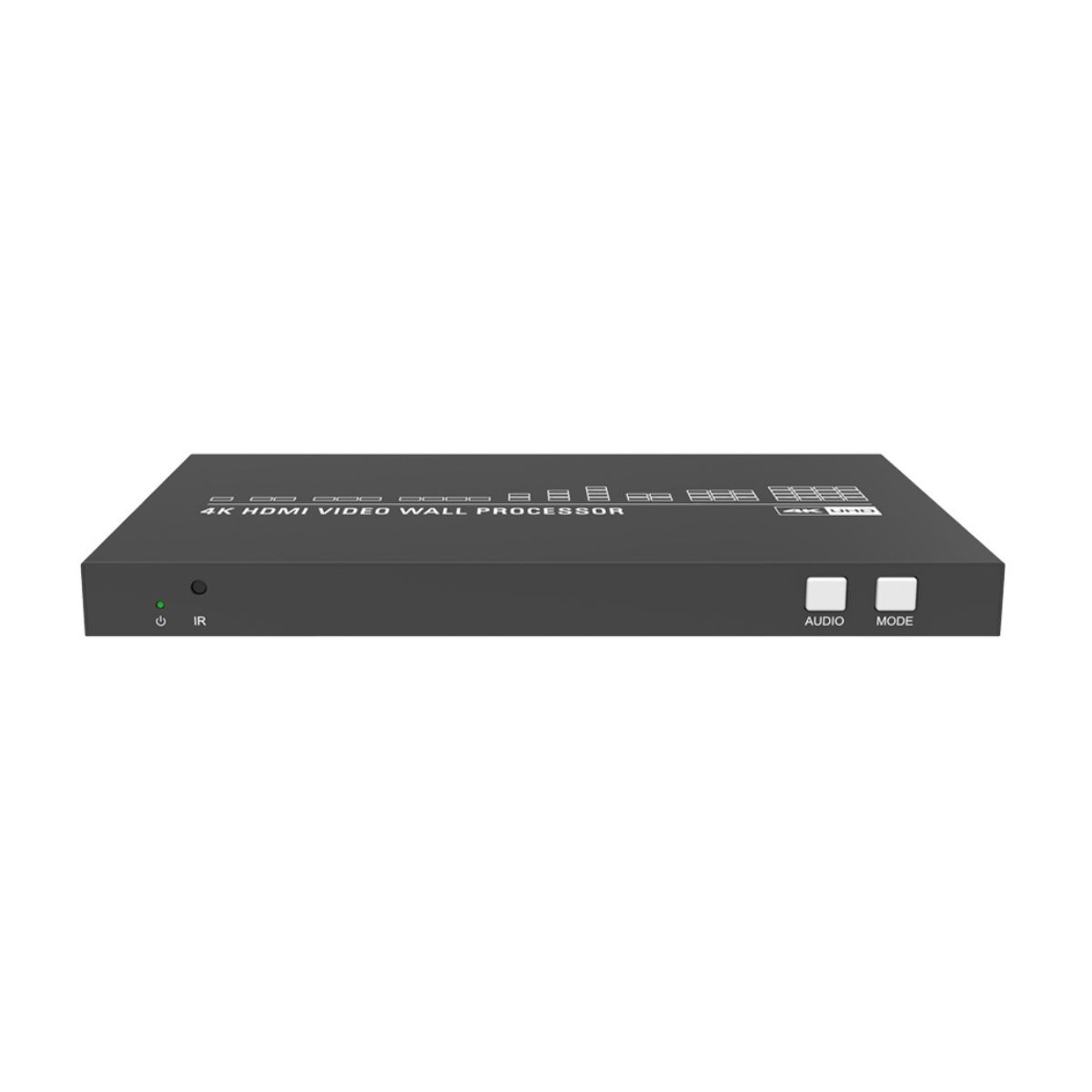

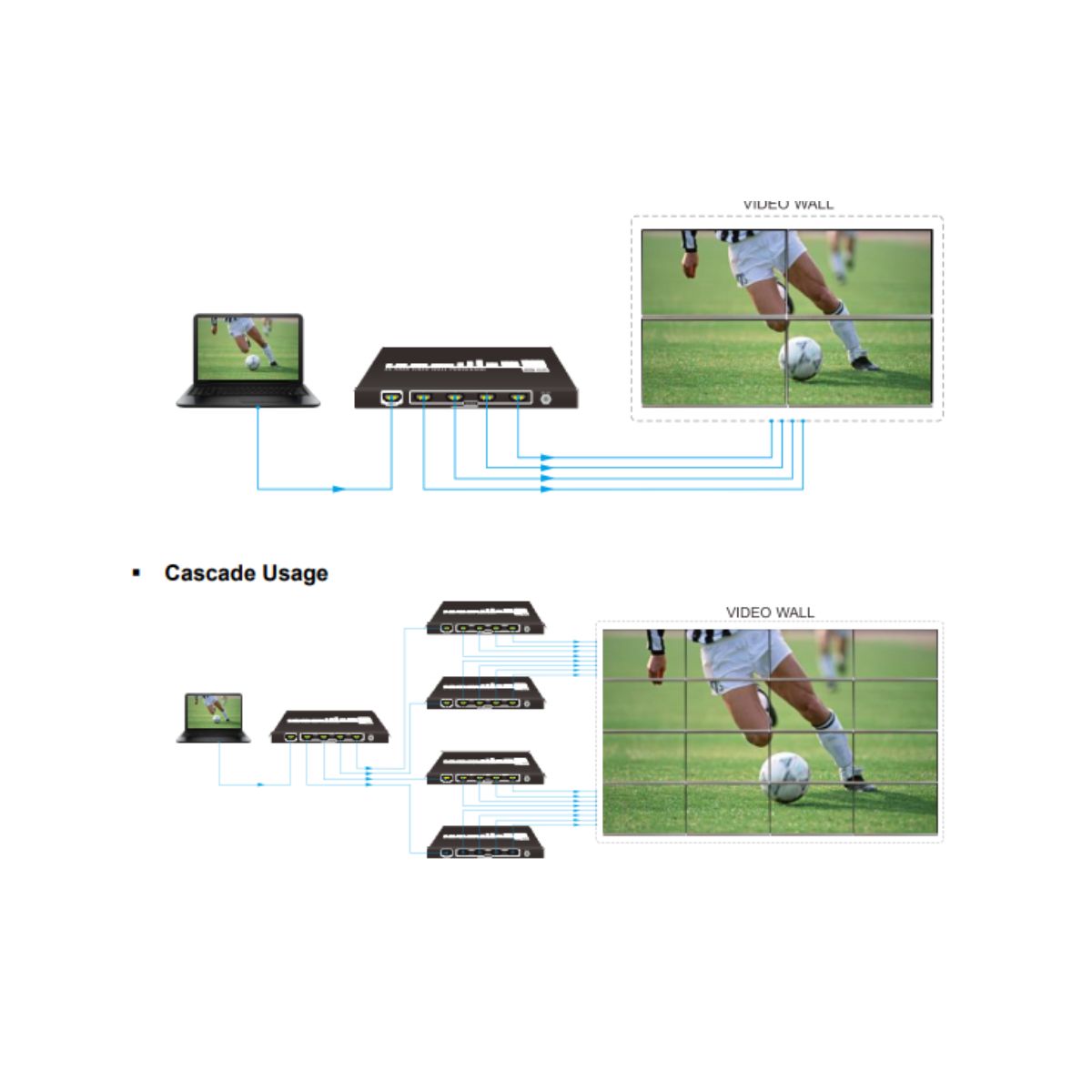

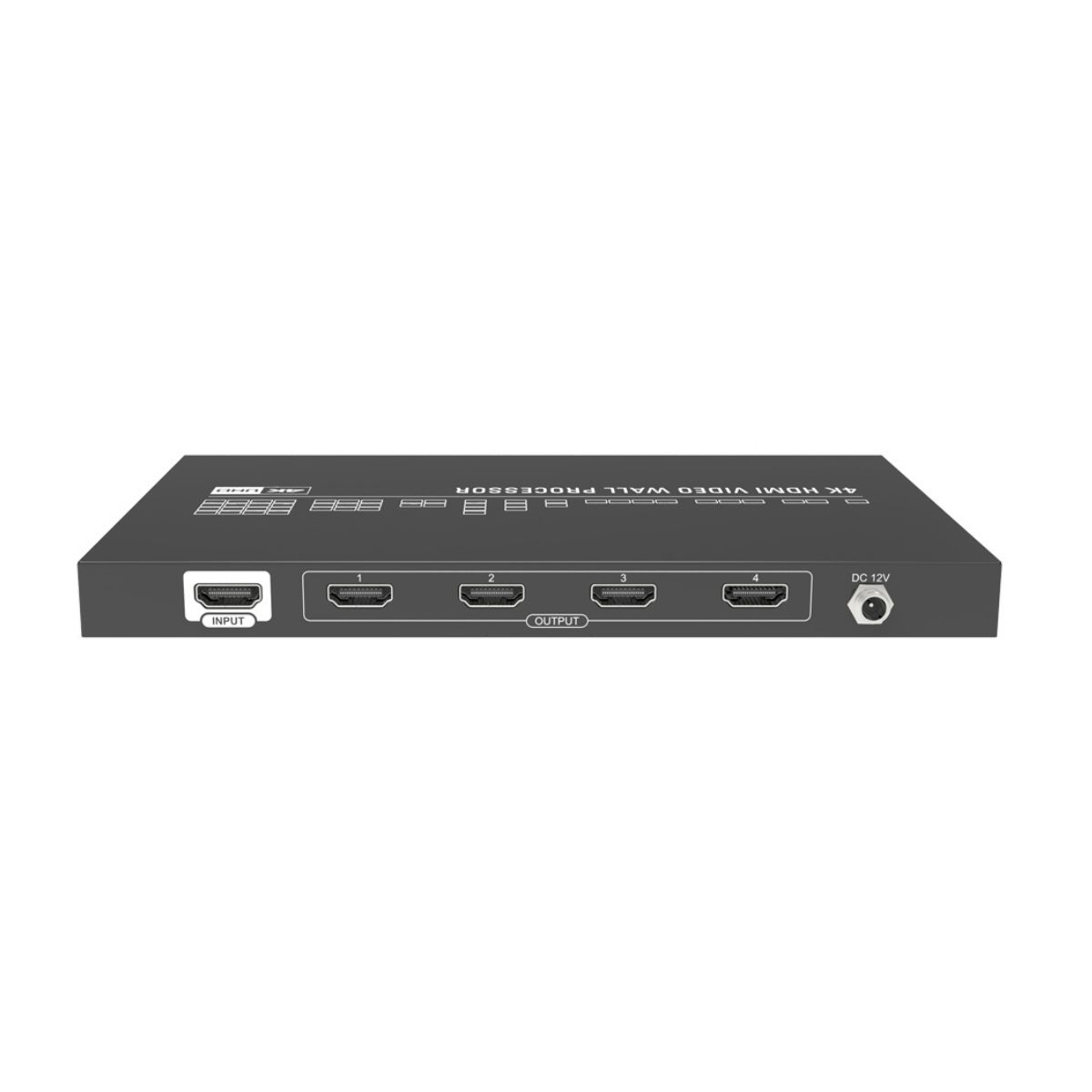

MP-VW22

MP-VW22

Highlights

  • HDMI input up to 4Kx2K@60Hz 4:4:4.
  • HDCP 2.2 and 1.x compliant.
  • Four HDMI output resolutions are fixed to be 1920x1080p.
  • Built-in automatic up & down-scaling to 1080p output.
  • Controlled by the front panel button and the IR remote.
  • Nine video wall modes (1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2, 2x2 Rotation) selectable.
  • Cascadable for a larger system.
  • Mute & Unmute are optional for audio output.
Download

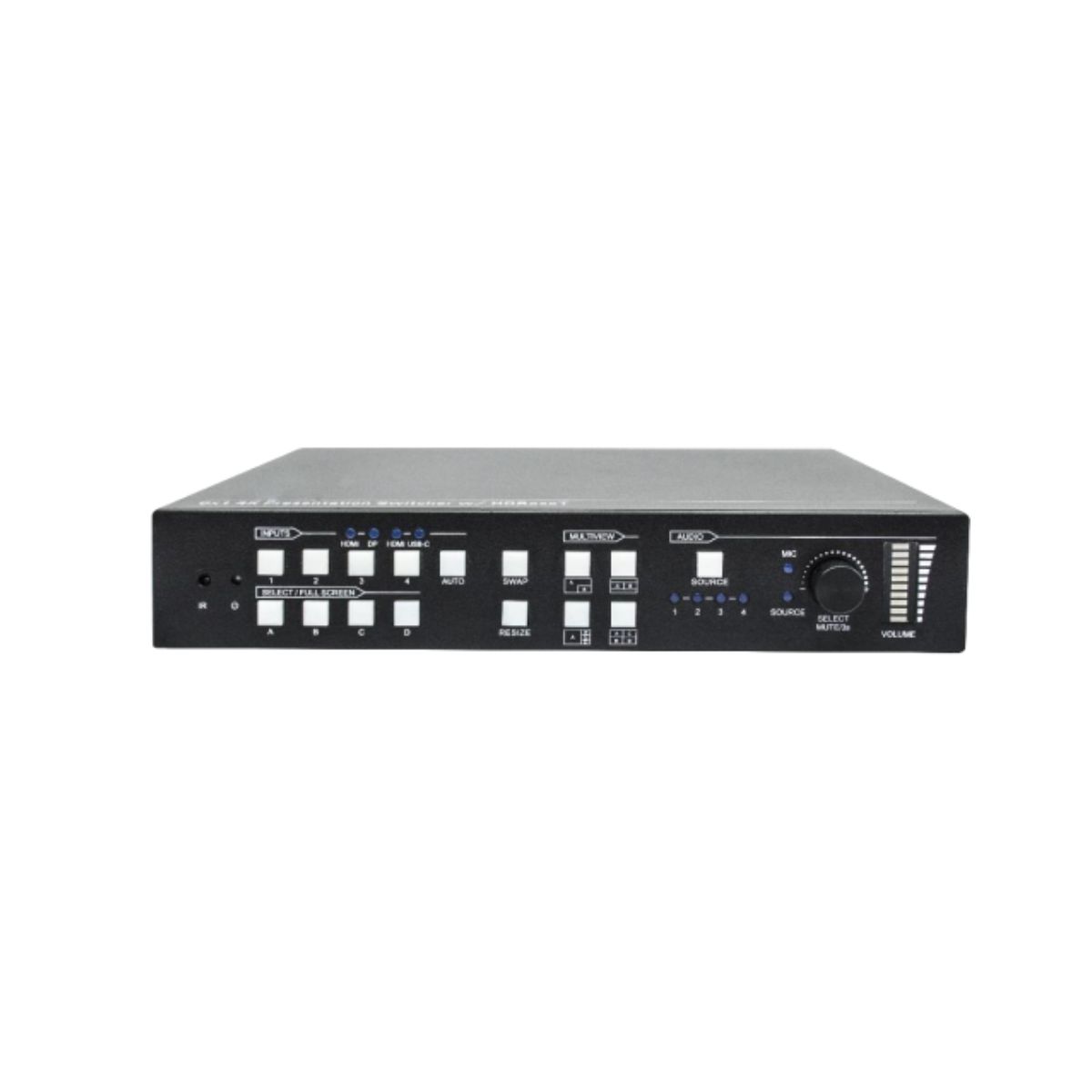

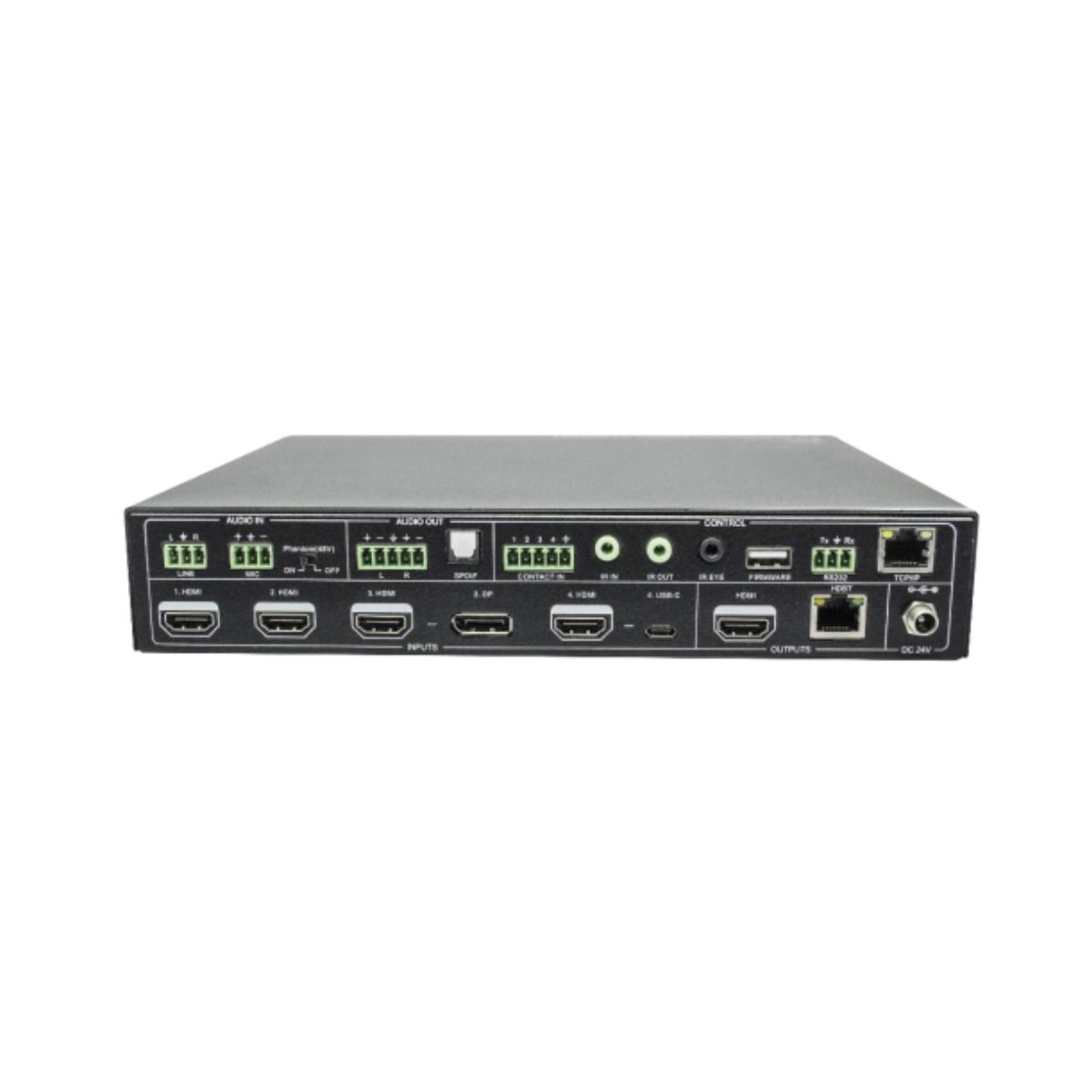

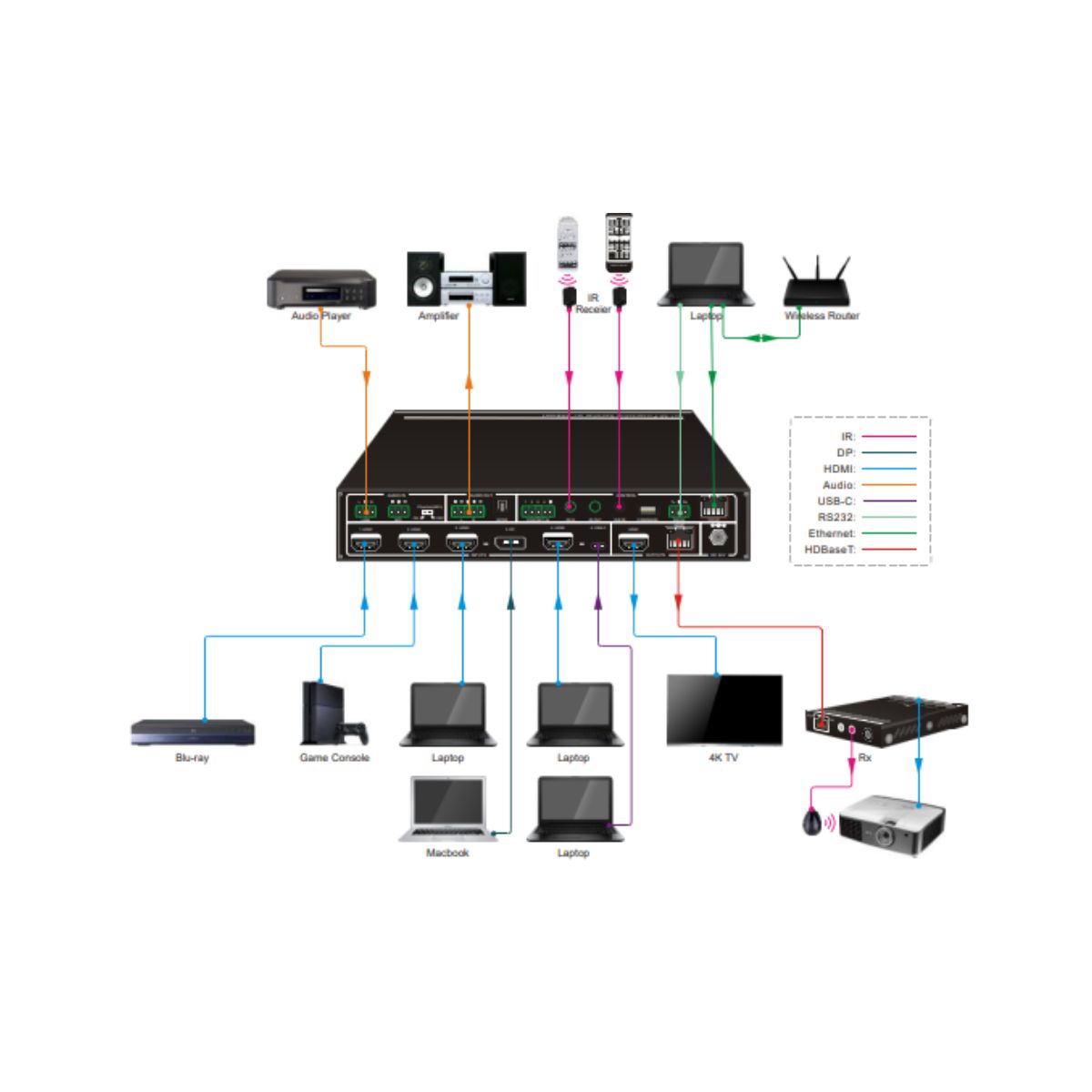

MP-SC6T-MV

MP-SC6T-MV

Highlights

  • 6x1 4K Presentation Switcher with HDBaseT output.
  • Supports seamless and auto switching.
  • HDMI 1.4 and HDCP 2.2 compliant.
  • Extends HDMI signals up to 40 meters at 4K and 70 meters at 1080p.
  • Supports audio embedded, audio de-embedding, and microphone audio mixing.
  • Supports multi-view and up to 16 modes can be selected.
  • Controllable via front panel buttons, GUI, IR remote, RS232, and CEC.
Download

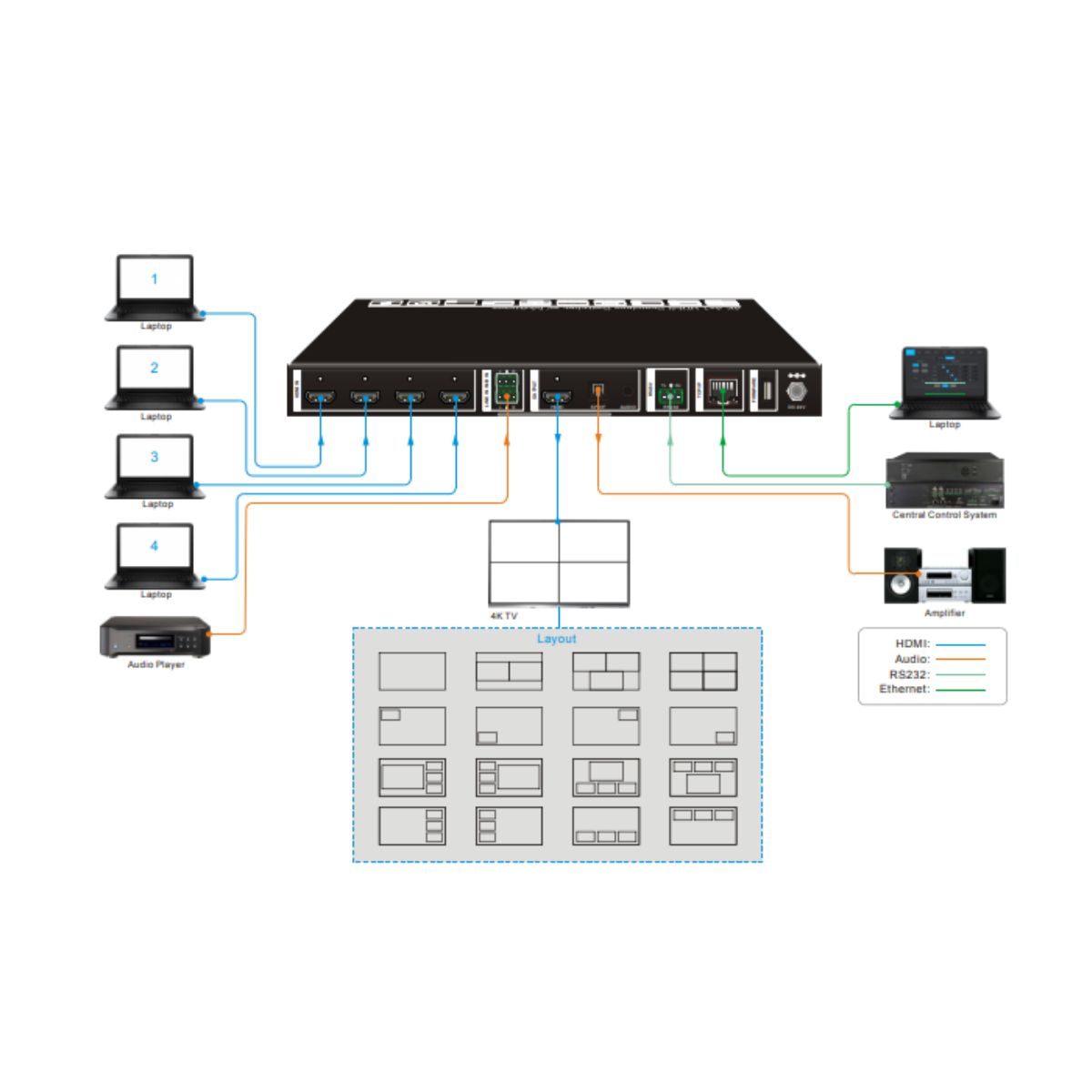

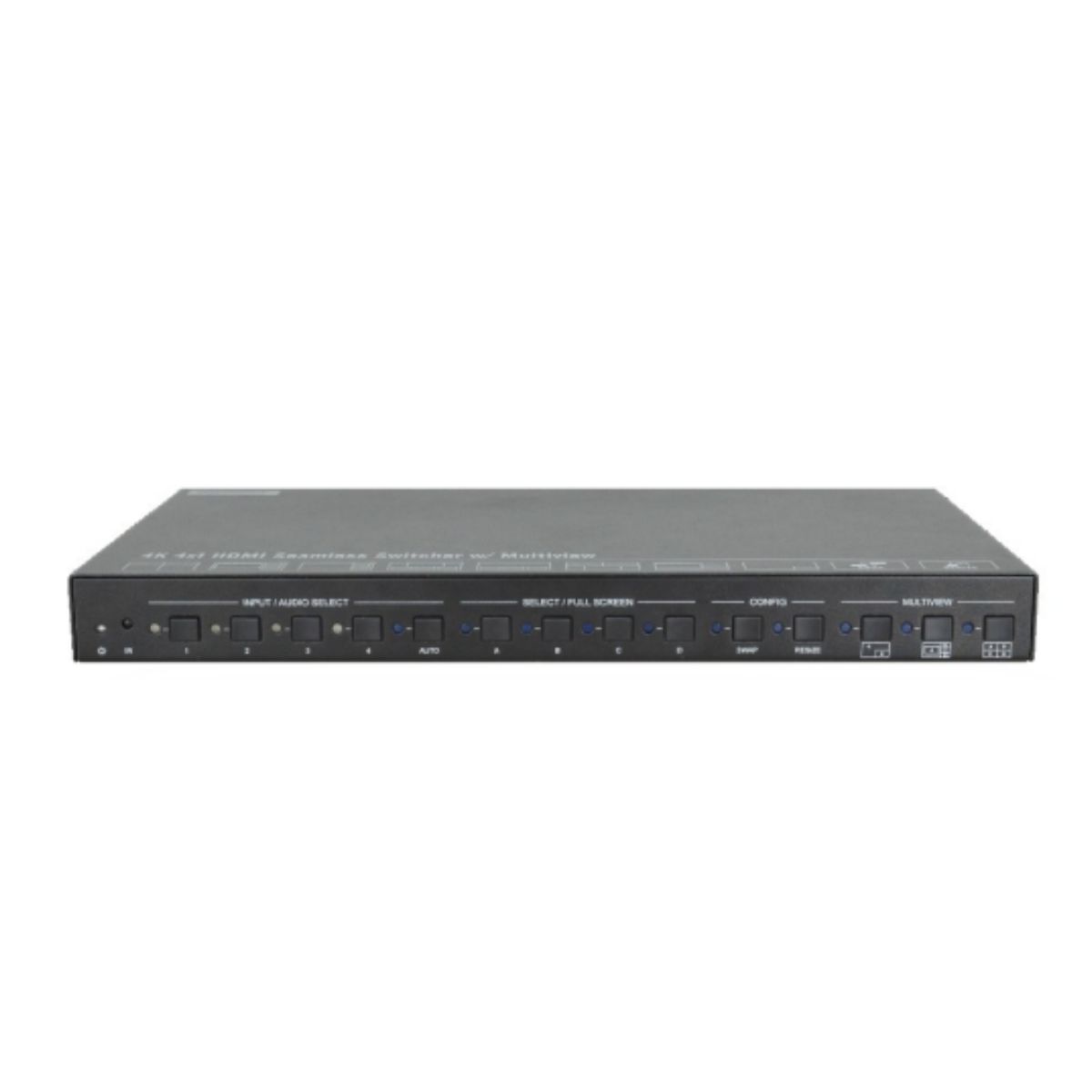

MP-SUH-41MV

MP-SUH-41MV

Highlights

  • 4 x HDMI inputs, 1 x HDMI output.
  • Supports 4K@30Hz 4:4:4, HDCP 2.2.
  • Seamless switch between 4 input ports.
  • Auto Scaler in each source input.
  • Supports audio embedding and mixing.
  • Supports audio de-embedding.
  • Auto switching at a single window.
  • Cycles through the windows from A to D using by swap button.
Download

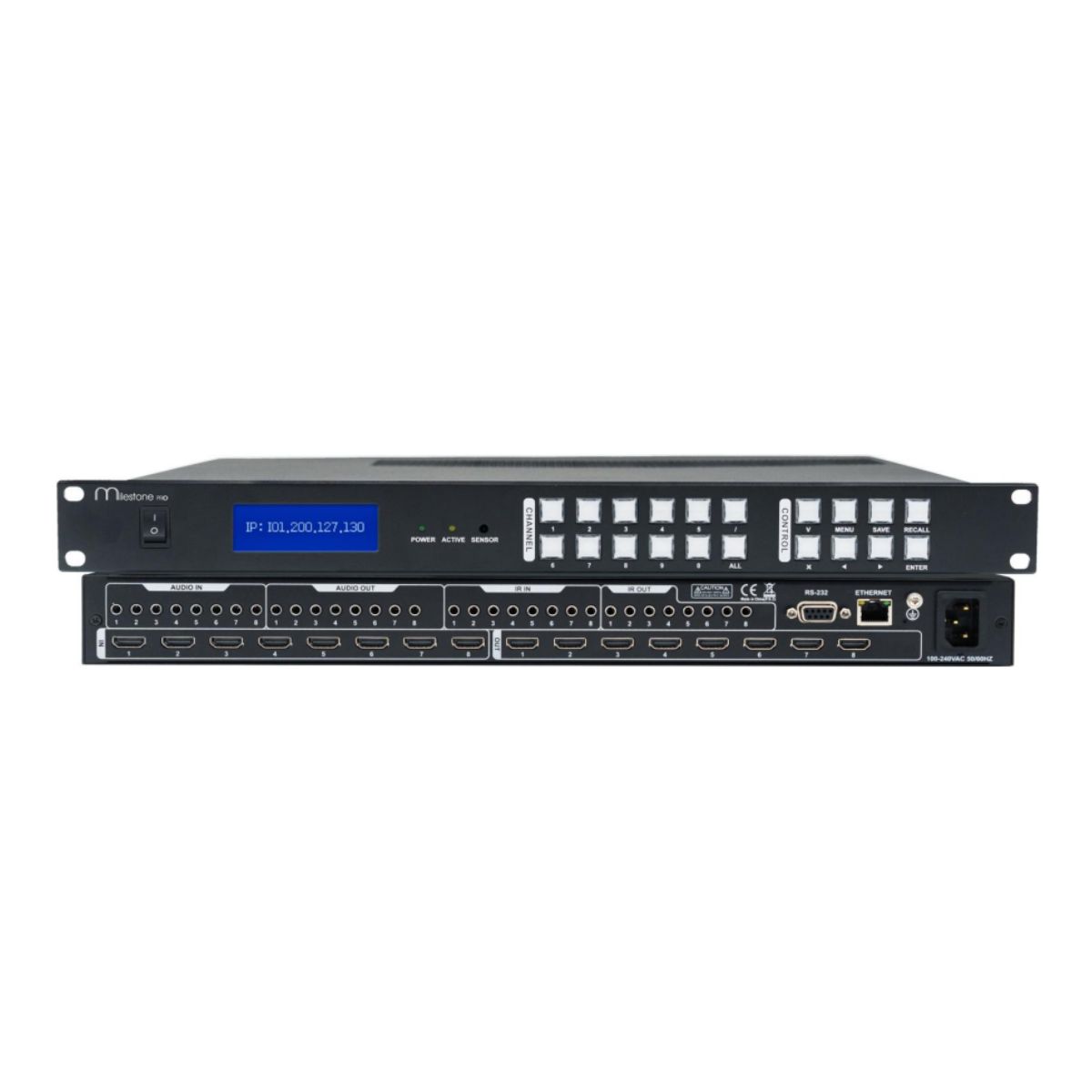

MP-UHD89 MV-VW

MP-UHD89 MV-VW

Highlights

  • 8x9 HDMI Matrix - From input to output, the entire signal path has a complete 18G signal processing. Capable of processing HDR signals with a resolution of up to 4K60 4:4:4 and a total bandwidth of 18Gbps.
  • Video wall - Create creative video wall layouts with an intuitive Web GUI that makes it easy to configure multiple monitors to display video as one large screen.
  • 4K Scaler - 4K scaling technology that converts various input resolutions to the monitor's native resolution, providing viewers with the best picture and video quality.
  • Seamless switching - FPGA-based pure hardware architecture delivers peak data rates up to 4K@60 and perfectly supports simultaneous switching of HDMI signals.
  • HDMI DVI - interface format correction. Automatically reformats the HDMI source signal for output to a connected DVI display.
Download

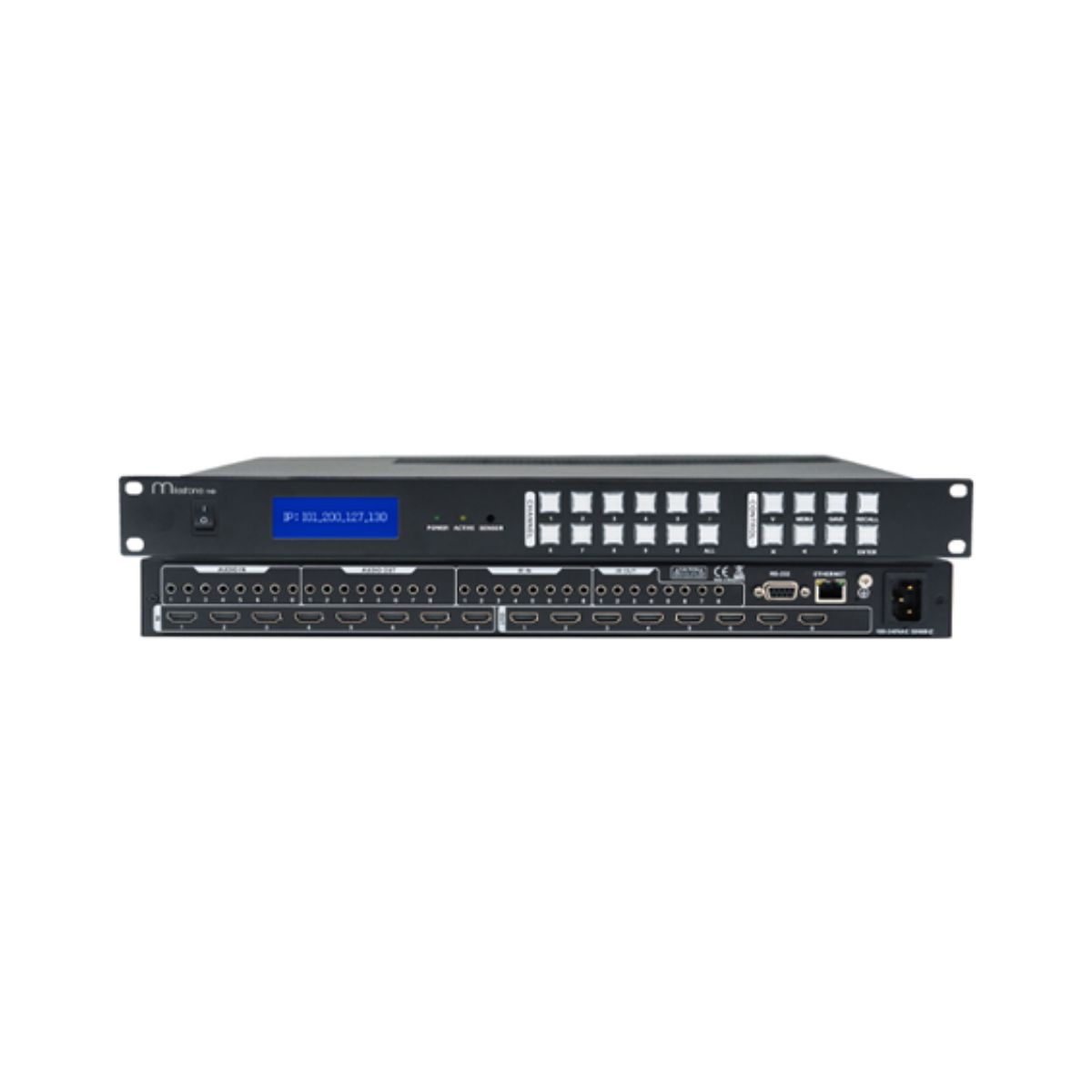

MP-UHD88-VW

MP-UHD88-VW

Highlights

  • 8x8 HDMI Matrix. From input to output, the entire signal path has completed 18G signal processing. Capable of processing HDR signals with a resolution of up to 4K604:4:4 and a total bandwidth of 18Gbps.
  • Video wall: Create creative video wall layouts with an intuitive Web GUI that makes it easy to configure multiple monitors to display video as one large screen.
  • 4K Zoom 4K zoom technology converts various input resolutions to the monitor's native resolution, providing viewers with the best picture and video quality.
  • Seamless switching, FPGA-based pure hardware architecture delivers peak data rates up to 4K@60 and perfectly supports simultaneous switching of HDMI signals.
  • HDMI DVI interface format correction automatically reformats the HDMI source signal for output to a connected DVI display.
Download
